4957-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52A54E
Engine compartment
■1KR-FE engine
Fuse boxes (P. 541)
Engine oil level dipstick
(P. 497)
Engine oil filler cap
(P. 499)
Battery (P. 504)Engine coolant reservoir
(P. 501)
Electric cooling fan
Condenser (P. 503)
Radiator (P. 503)
Washer fluid tank (P. 507)1
2
3
4
5
6
7
8
9

4967-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52A54E■
2NR-FKE engine
Fuse boxes (P. 541)
Engine oil filler cap
(P. 499)
Engine oil level dipstick
(P. 497)
Battery (P. 504)Engine coolant reservoir
(P. 501)
Electric cooling fan
Condenser (P. 503)
Radiator (P. 503)
Washer fluid tank (P. 507)1
2
3
4
5
6
7
8
9

5417-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52A54E

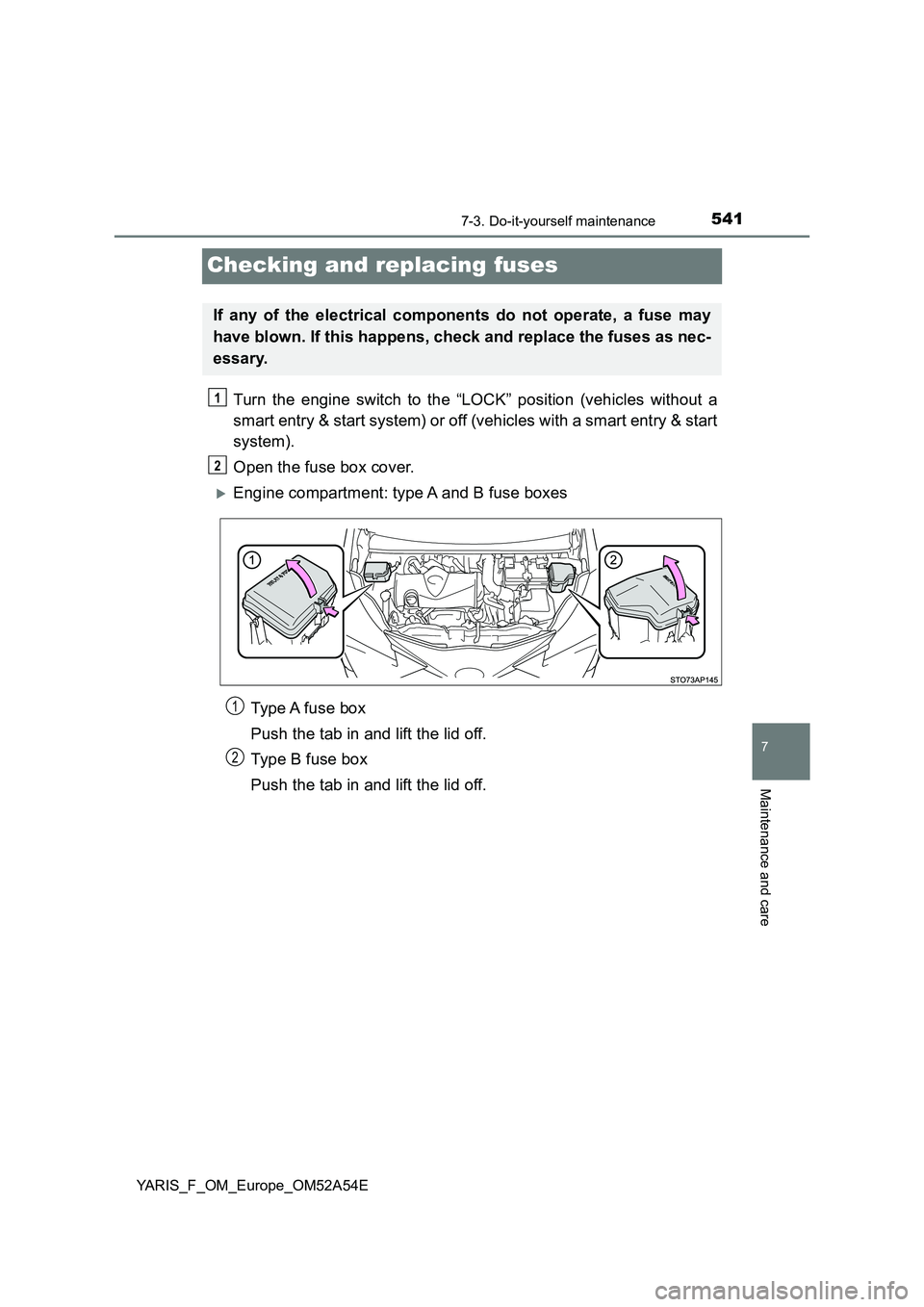

Checking and replacing fuses
Turn the engine switch to the “LOCK” position (vehicles without a
smart entry & start system) or off (vehicles with a smart entry & start
system).
Open the fuse box cover.
Engine compartment: type A and B fuse boxes
Type A fuse box
Push the tab in and lift the lid off.
Type B fuse box
Push the tab in and lift the lid off.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
1
2

5427-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52A54E

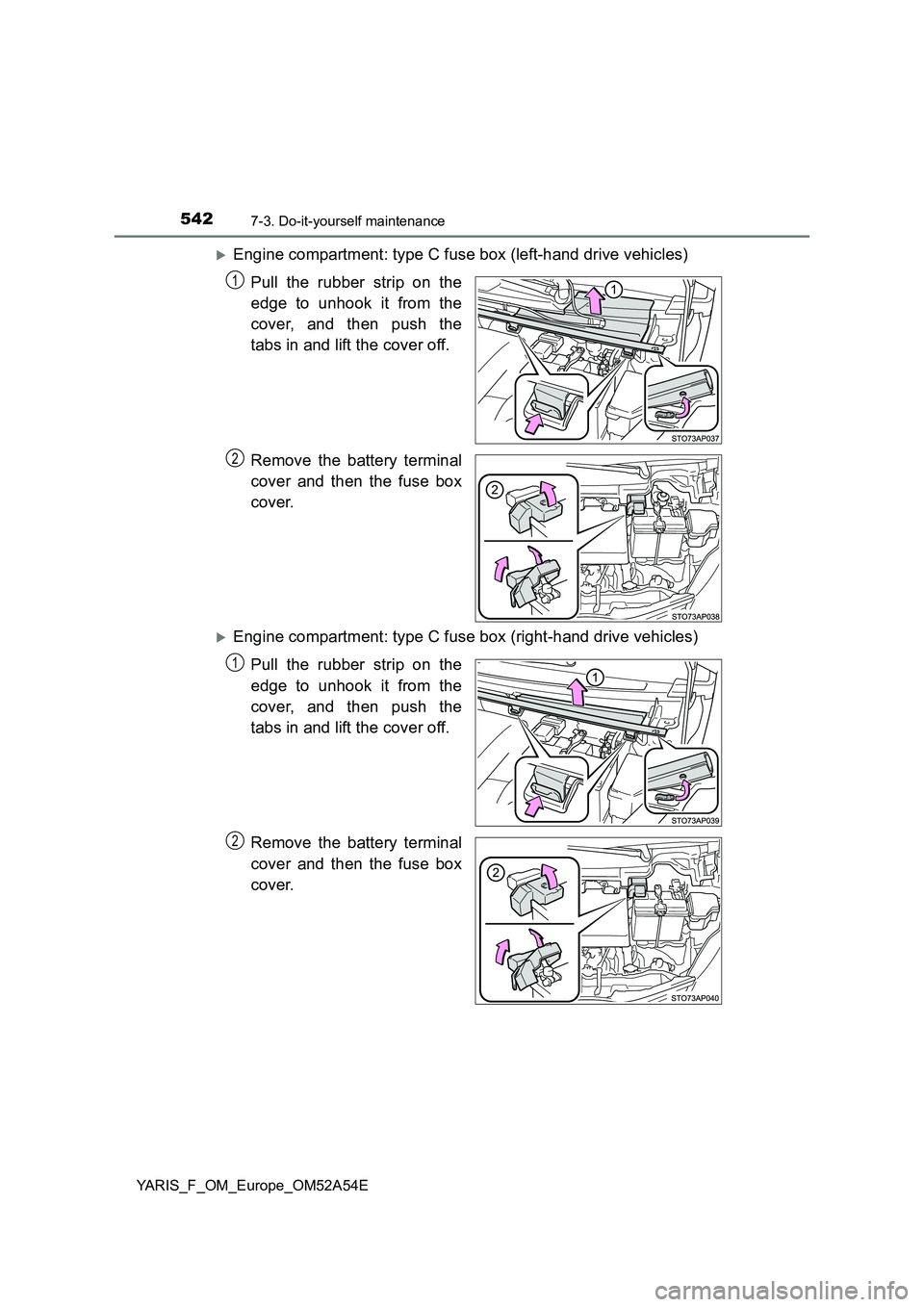

Engine compartment: type C fuse box (left-hand drive vehicles)
Pull the rubber strip on the
edge to unhook it from the
cover, and then push the
tabs in and lift the cover off.
Remove the battery terminal
cover and then the fuse box
cover.
Engine compartment: type C fuse box (right-hand drive vehicles)
Pull the rubber strip on the
edge to unhook it from the
cover, and then push the
tabs in and lift the cover off.
Remove the battery terminal
cover and then the fuse box
cover.
1
2
1
2

5447-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52A54E

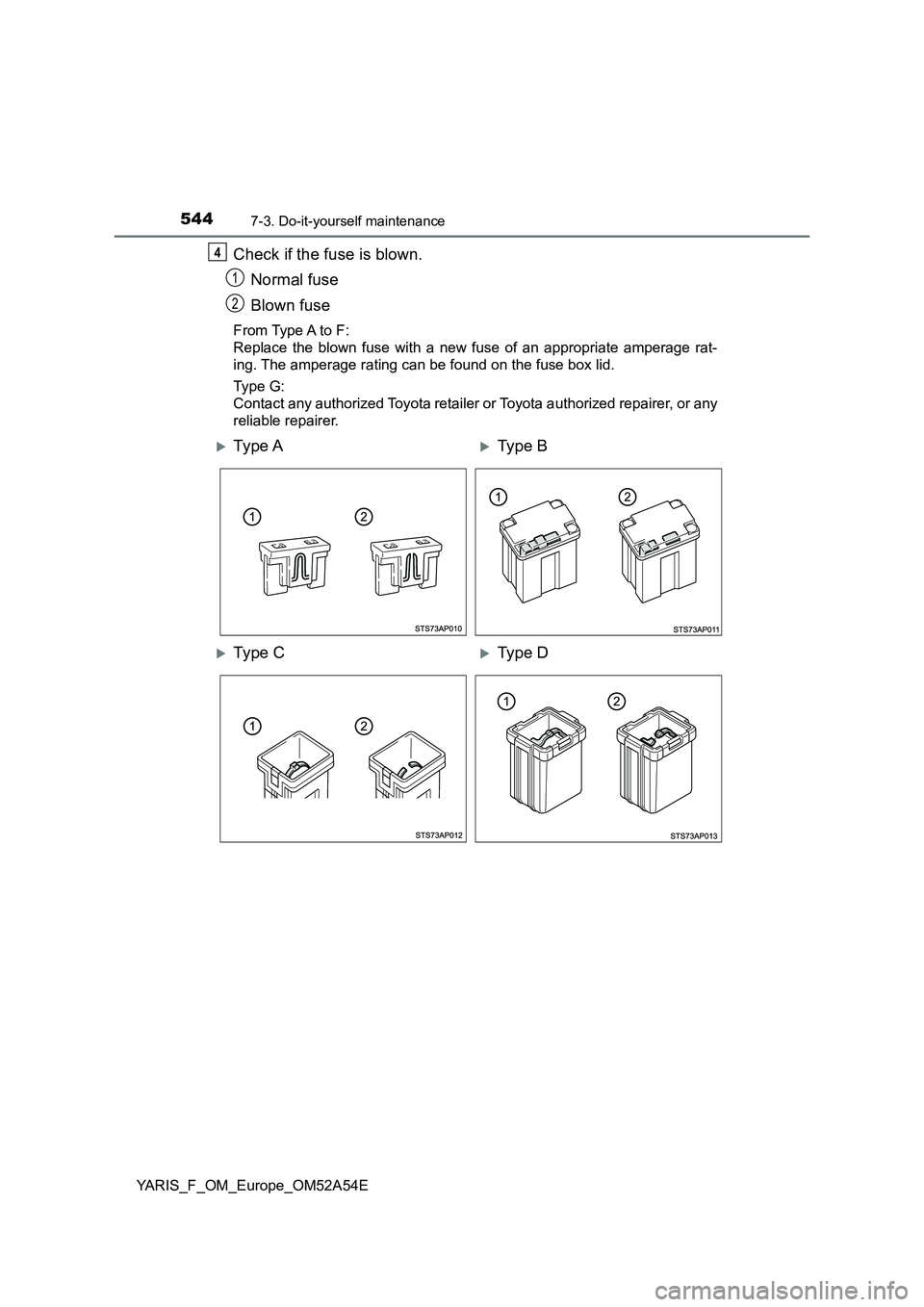

Check if the fuse is blown.
Normal fuse
Blown fuse
From Type A to F:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type G:
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
4
1
2
Ty pe AType B
Ty pe CType D

5467-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52A54E

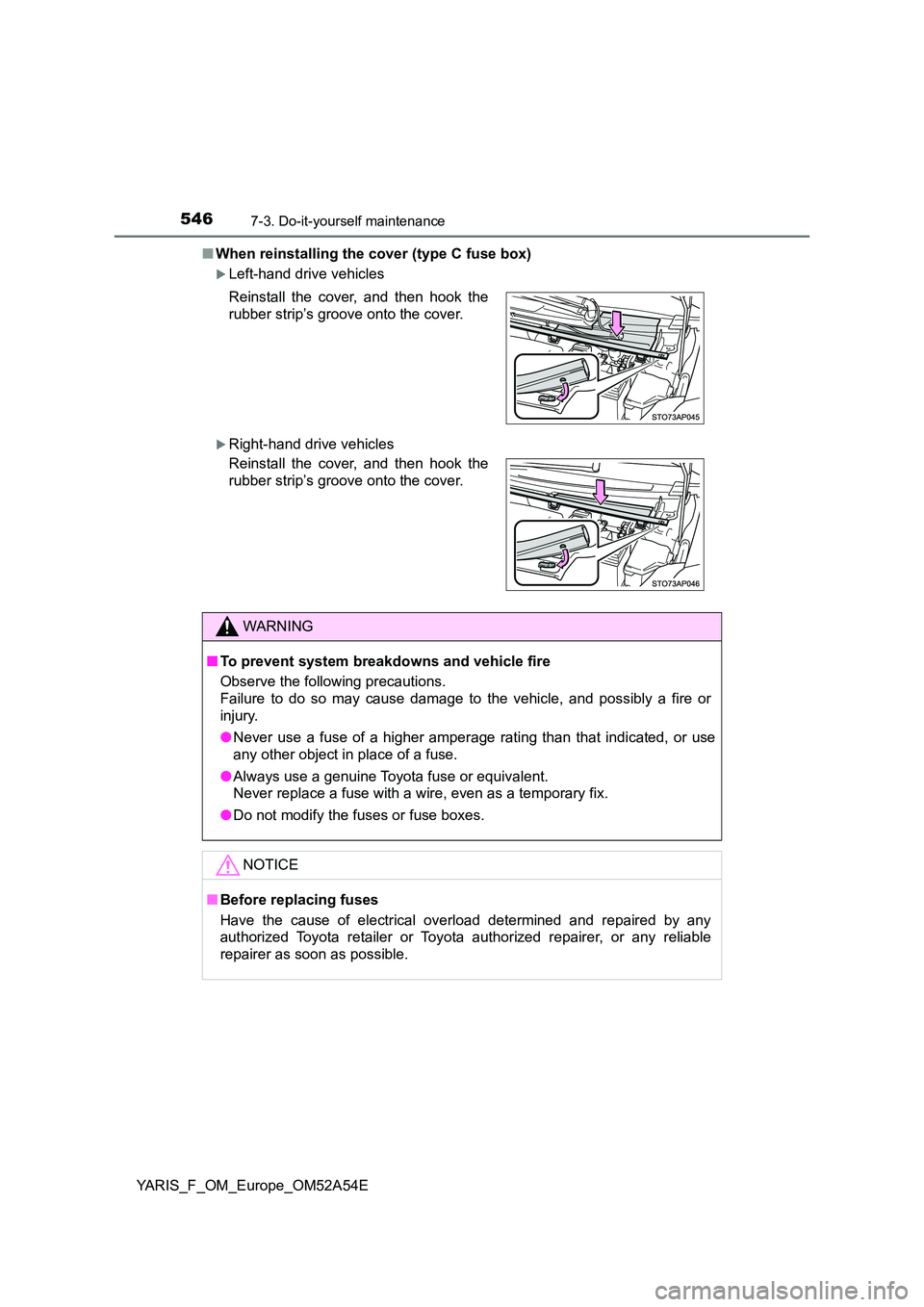

■ When reinstalling the cover (type C fuse box)
Left-hand drive vehicles
Right-hand drive vehicles
Reinstall the cover, and then hook the
rubber strip’s groove onto the cover.
Reinstall the cover, and then hook the
rubber strip’s groove onto the cover.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.

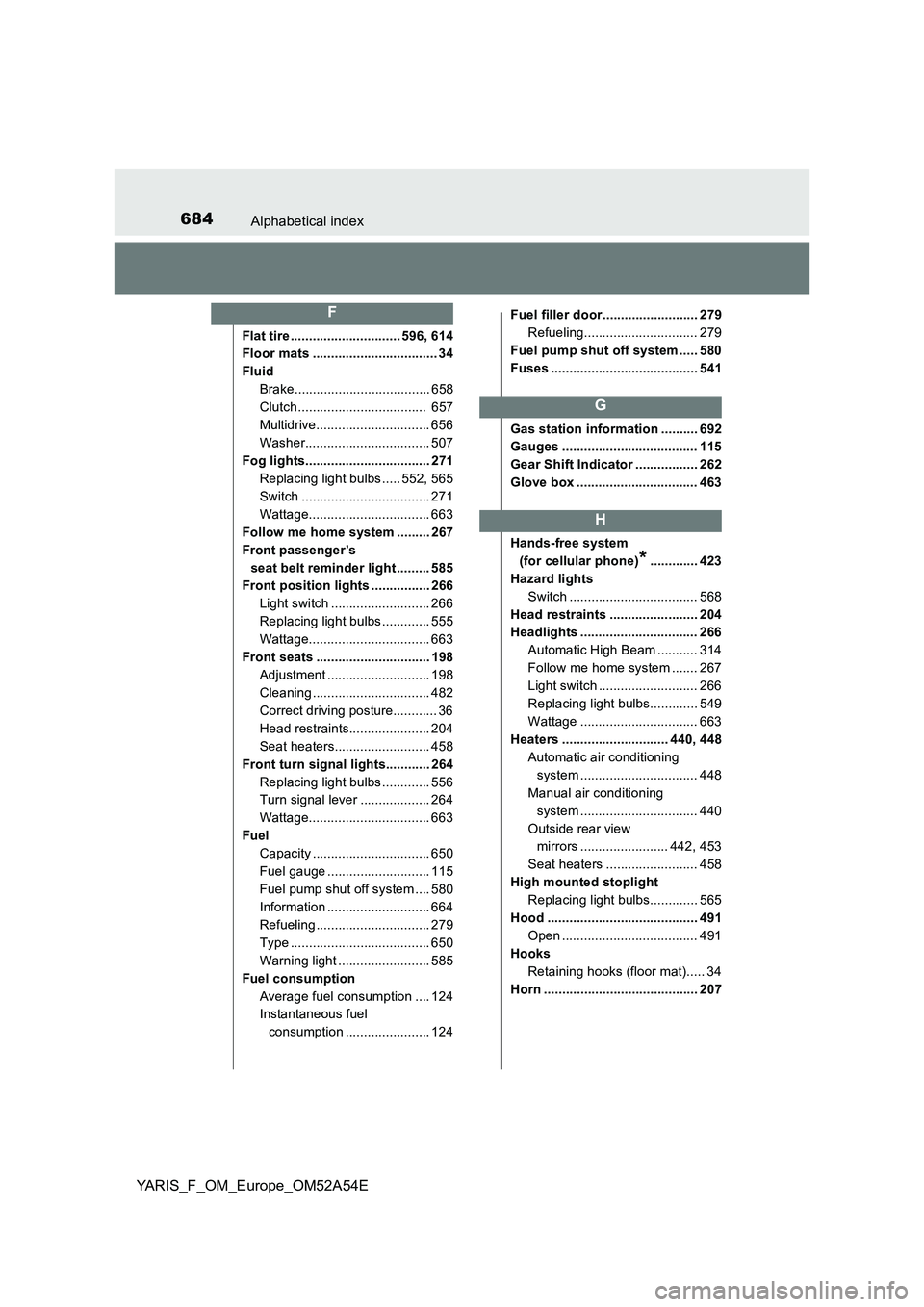

684Alphabetical index
YARIS_F_OM_Europe_OM52A54E
Flat tire .............................. 596, 614
Floor mats .................................. 34
Fluid
Brake..................................... 658
Clutch ................................... 657
Multidrive............................... 656
Washer.................................. 507
Fog lights.................................. 271
Replacing light bulbs ..... 552, 565
Switch ................................... 271
Wattage................................. 663
Follow me home system ......... 267
Front passenger’s
seat belt reminder light ......... 585
Front position lights ................ 266
Light switch ........................... 266
Replacing light bulbs ............. 555
Wattage................................. 663
Front seats ............................... 198
Adjustment ............................ 198
Cleaning ................................ 482
Correct driving posture............ 36
Head restraints...................... 204
Seat heaters.......................... 458
Front turn signal lights............ 264
Replacing light bulbs ............. 556
Turn signal lever ................... 264
Wattage................................. 663
Fuel
Capacity ................................ 650
Fuel gauge ............................ 115
Fuel pump shut off system .... 580
Information ............................ 664
Refueling ............................... 279
Type ...................................... 650
Warning light ......................... 585
Fuel consumption
Average fuel consumption .... 124
Instantaneous fuel
consumption ....................... 124Fuel filler door.......................... 279
Refueling............................... 279
Fuel pump shut off system ..... 580
Fuses ........................................ 541
Gas station information .......... 692
Gauges ..................................... 115
Gear Shift Indicator ................. 262
Glove box ................................. 463
Hands-free system
(for cellular phone)
*............. 423
Hazard lights
Switch ................................... 568
Head restraints ........................ 204
Headlights ................................ 266
Automatic High Beam ........... 314
Follow me home system ....... 267
Light switch ........................... 266
Replacing light bulbs............. 549
Wattage ................................ 663
Heaters ............................. 440, 448
Automatic air conditioning
system ................................ 448
Manual air conditioning
system ................................ 440
Outside rear view
mirrors ........................ 442, 453
Seat heaters ......................... 458
High mounted stoplight
Replacing light bulbs............. 565
Hood ......................................... 491
Open ..................................... 491
Hooks
Retaining hooks (floor mat)..... 34
Horn .......................................... 207
F
G
H
