17Pictorial index
YARIS_F_OM_Europe_OM52A54EMulti-information display . . . . . . . . . . . . . . . . . . . . . . . P. 122, 127
If a warning message or indicator is displayed
*3 . . . . . . P. 581, 592
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 265
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 265
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 363
Warning buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 581
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 264
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 266
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 266
Front fog lights
*5/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . P. 271
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . P. 273, 277
Usage (front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 273
Usage (rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 277
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 507
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 568
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 491
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 207
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . P. 440, 448
Usage (manual air conditioning system) . . . . . . . . . . . . . . . . . P. 440
Usage (automatic air conditioning system) . . . . . . . . . . . . . . . P. 448
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 442, 453
Audio system
*5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 368
Navigation/Multimedia system
*5, 6
*1: Vehicles with a smart entry & start system
*2: Vehicles with monochrome display
*3: Vehicles with color display
*4: Vehicles with a Multidrive
*5: If equipped
*6: Refer to “Navigation and multimedia system Owner’s manual”.
4
5
6
7
8
9
10
11
12

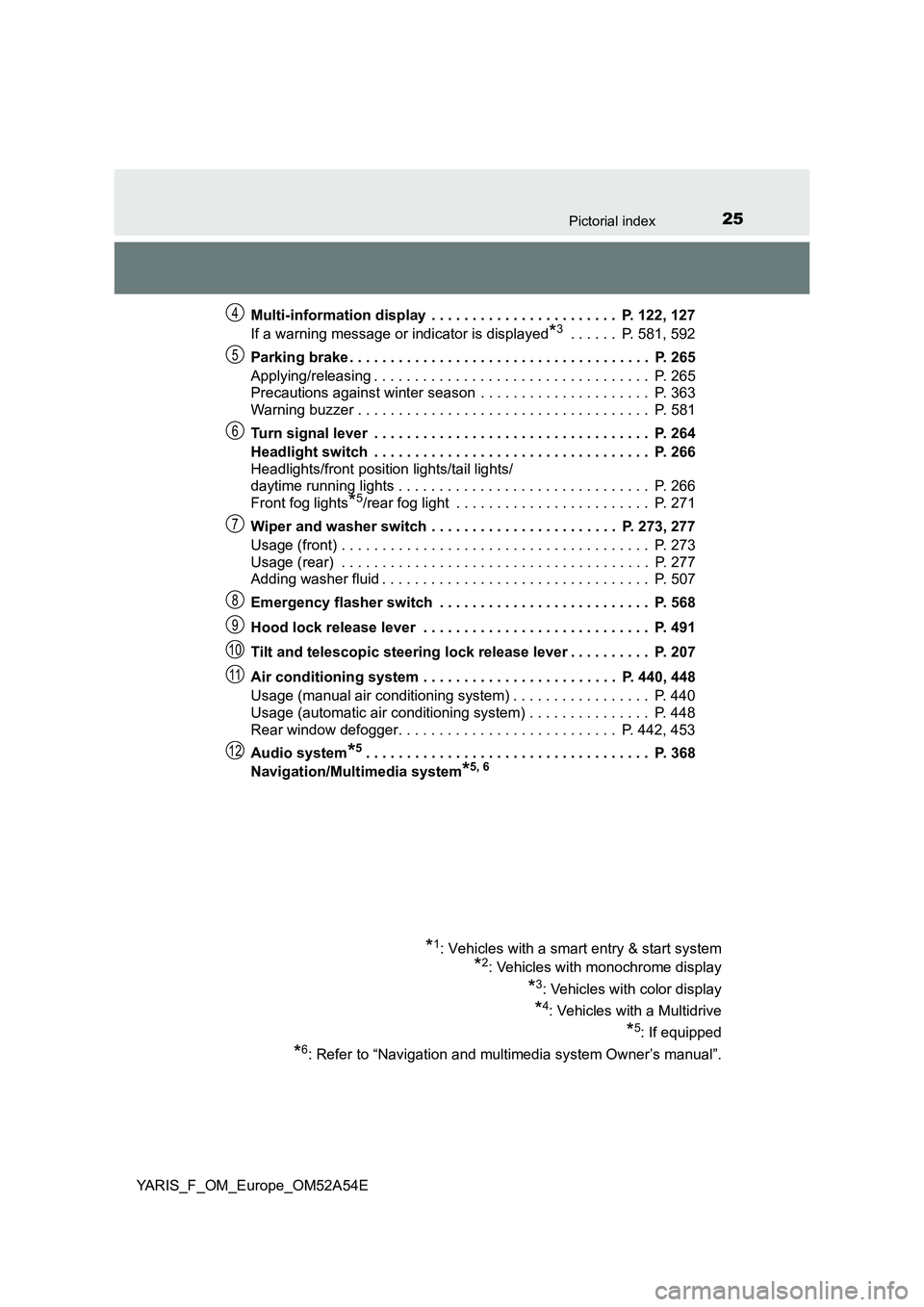

25Pictorial index
YARIS_F_OM_Europe_OM52A54EMulti-information display . . . . . . . . . . . . . . . . . . . . . . . P. 122, 127
If a warning message or indicator is displayed
*3 . . . . . . P. 581, 592
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 265
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 265
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 363
Warning buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 581
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 264
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 266
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 266
Front fog lights
*5/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . P. 271
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . P. 273, 277
Usage (front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 273
Usage (rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 277
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 507
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 568
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 491
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 207
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . P. 440, 448
Usage (manual air conditioning system) . . . . . . . . . . . . . . . . . P. 440
Usage (automatic air conditioning system) . . . . . . . . . . . . . . . P. 448
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 442, 453
Audio system
*5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 368
Navigation/Multimedia system
*5, 6
*1: Vehicles with a smart entry & start system
*2: Vehicles with monochrome display
*3: Vehicles with color display
*4: Vehicles with a Multidrive
*5: If equipped
*6: Refer to “Navigation and multimedia system Owner’s manual”.
4
5
6
7
8
9
10
11
12

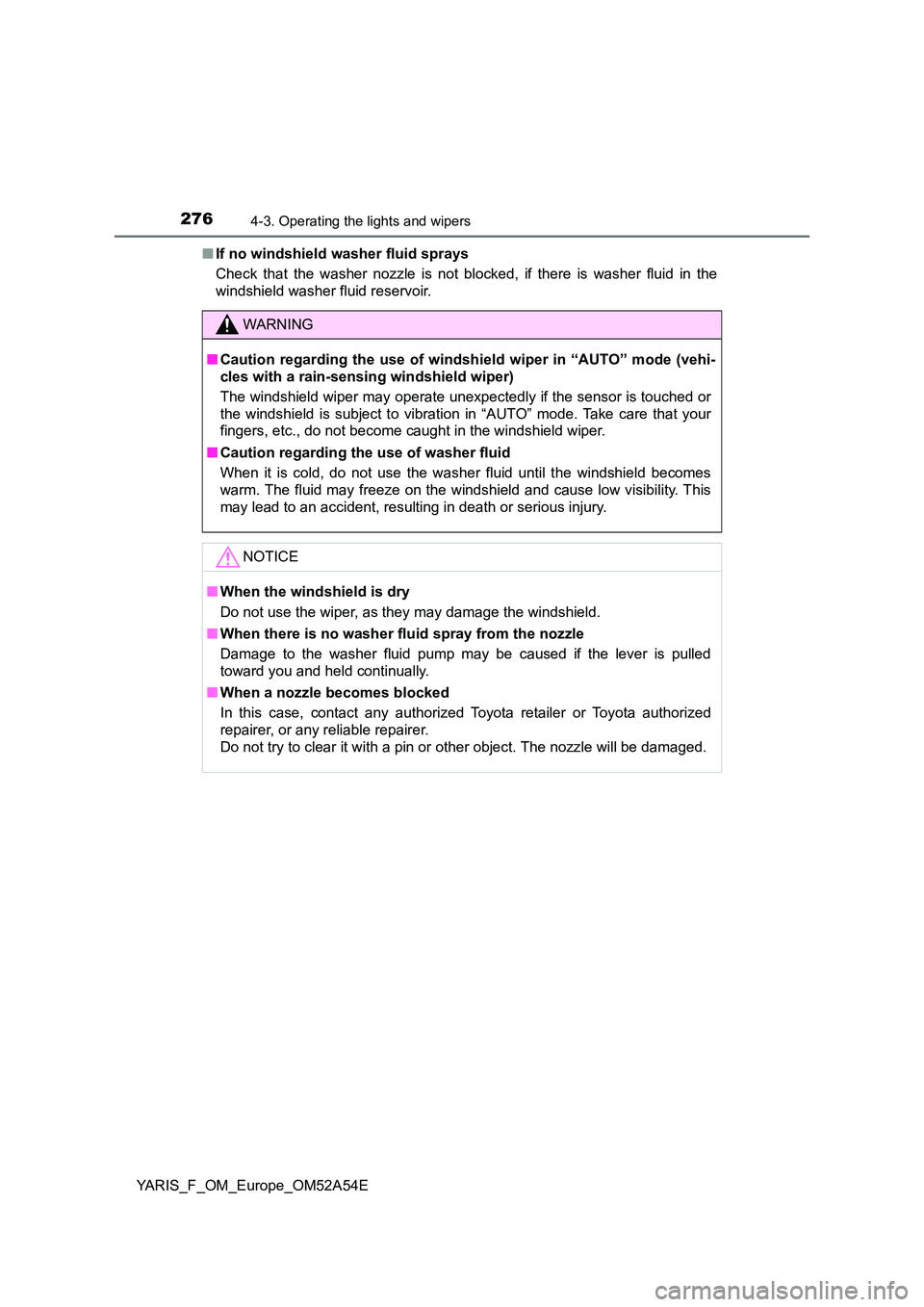

2764-3. Operating the lights and wipers
YARIS_F_OM_Europe_OM52A54E
■ If no windshield washer fluid sprays
Check that the washer nozzle is not blocked, if there is washer fluid in the
windshield washer fluid reservoir.
WARNING
■ Caution regarding the use of windshield wiper in “AUTO” mode (vehi-
cles with a rain-sensing windshield wiper)
The windshield wiper may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in “AUTO” mode. Take care that your
fingers, etc., do not become caught in the windshield wiper.
■ Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
■ When the windshield is dry
Do not use the wiper, as they may damage the windshield.
■ When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
■ When a nozzle becomes blocked
In this case, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

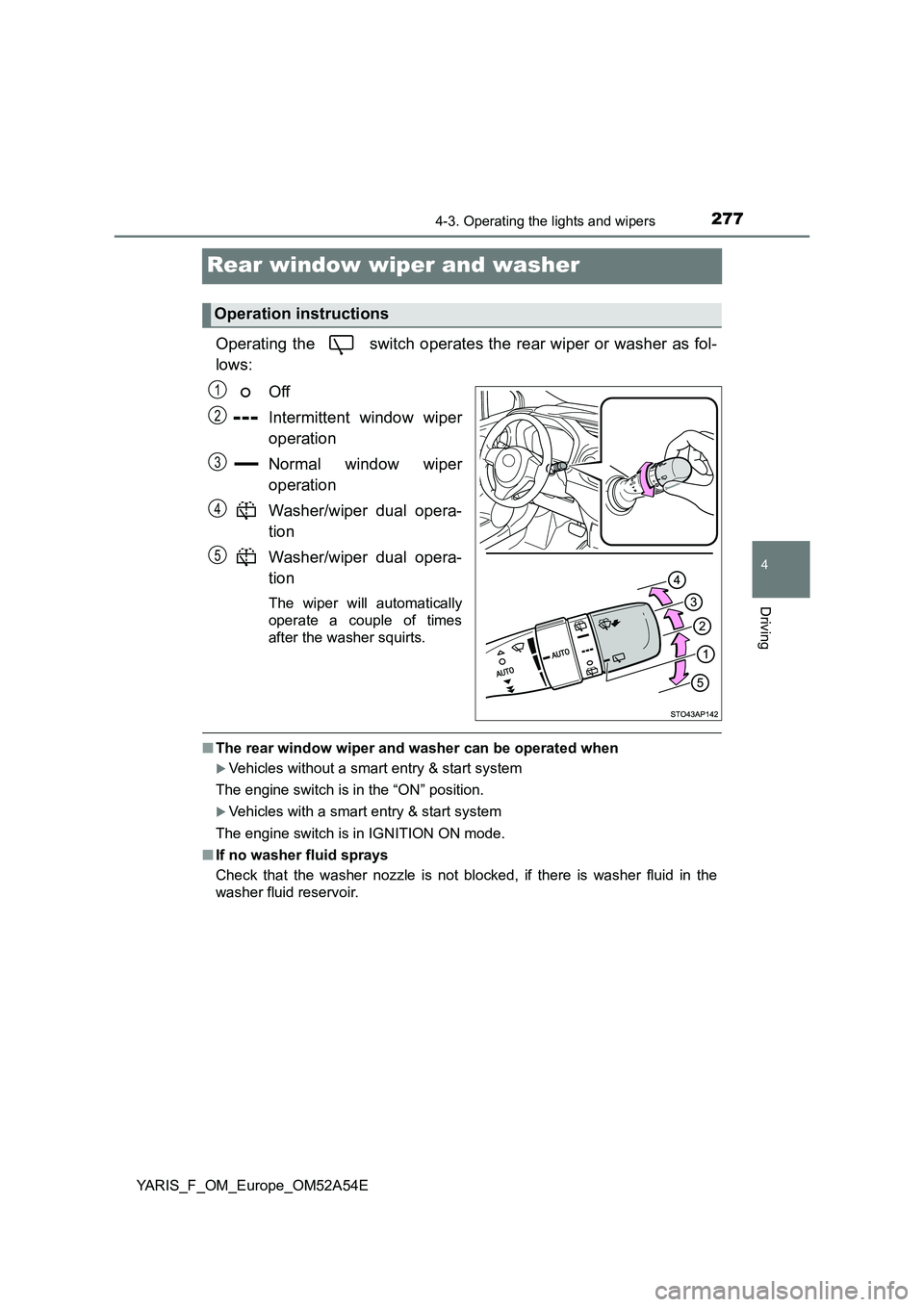

277
4
4-3. Operating the lights and wipers
Driving
YARIS_F_OM_Europe_OM52A54E
Rear window wiper and washer
Operating the switch operates the rear wiper or washer as fol-
lows:
Off
Intermittent window wiper
operation
Normal window wiper
operation
Washer/wiper dual opera-
tion
Washer/wiper dual opera-
tion
The wiper will automatically
operate a couple of times
after the washer squirts.
■The rear window wiper and washer can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■If no washer fluid sprays
Check that the washer nozzle is not blocked, if there is washer fluid in the
washer fluid reservoir.
Operation instructions
1
2
3
4
5

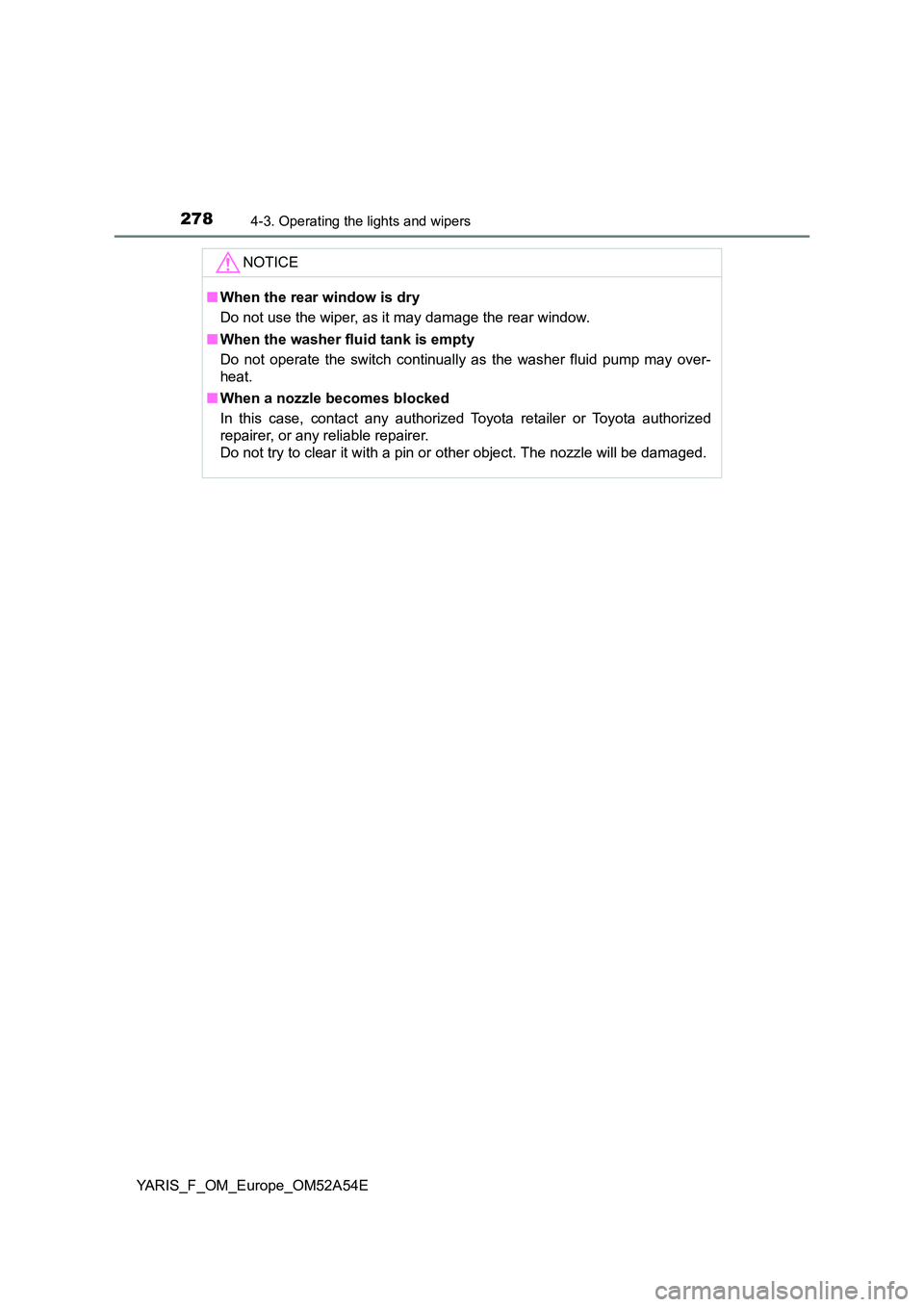

2784-3. Operating the lights and wipers
YARIS_F_OM_Europe_OM52A54E
NOTICE
■When the rear window is dry
Do not use the wiper, as it may damage the rear window.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

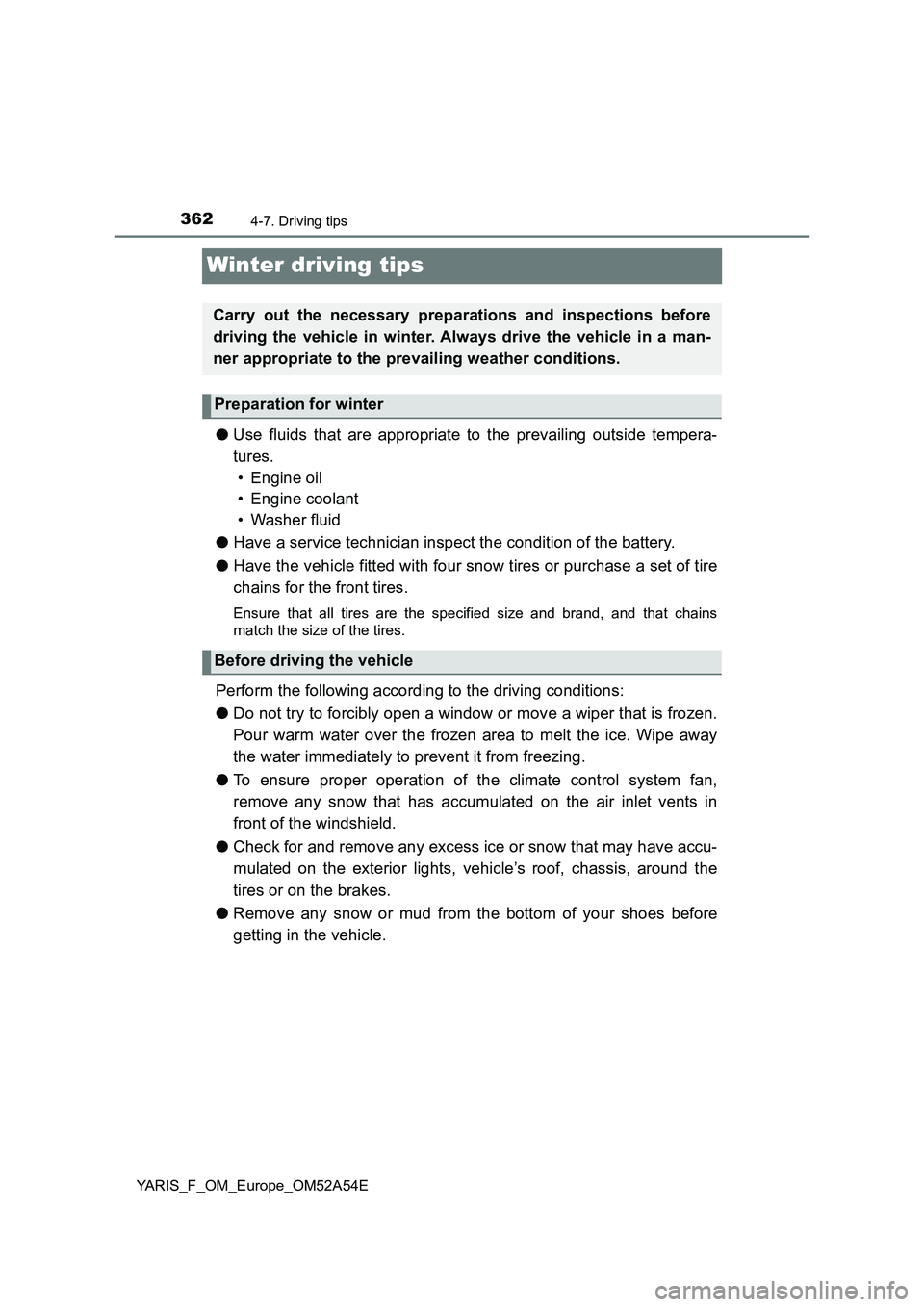

3624-7. Driving tips
YARIS_F_OM_Europe_OM52A54E
Winter driving tips
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
●Have a service technician inspect the condition of the battery.
●Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires.
Ensure that all tires are the specified size and brand, and that chains
match the size of the tires.
Perform the following according to the driving conditions:
●Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
●To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
●Check for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
●Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.
Preparation for winter
Before driving the vehicle

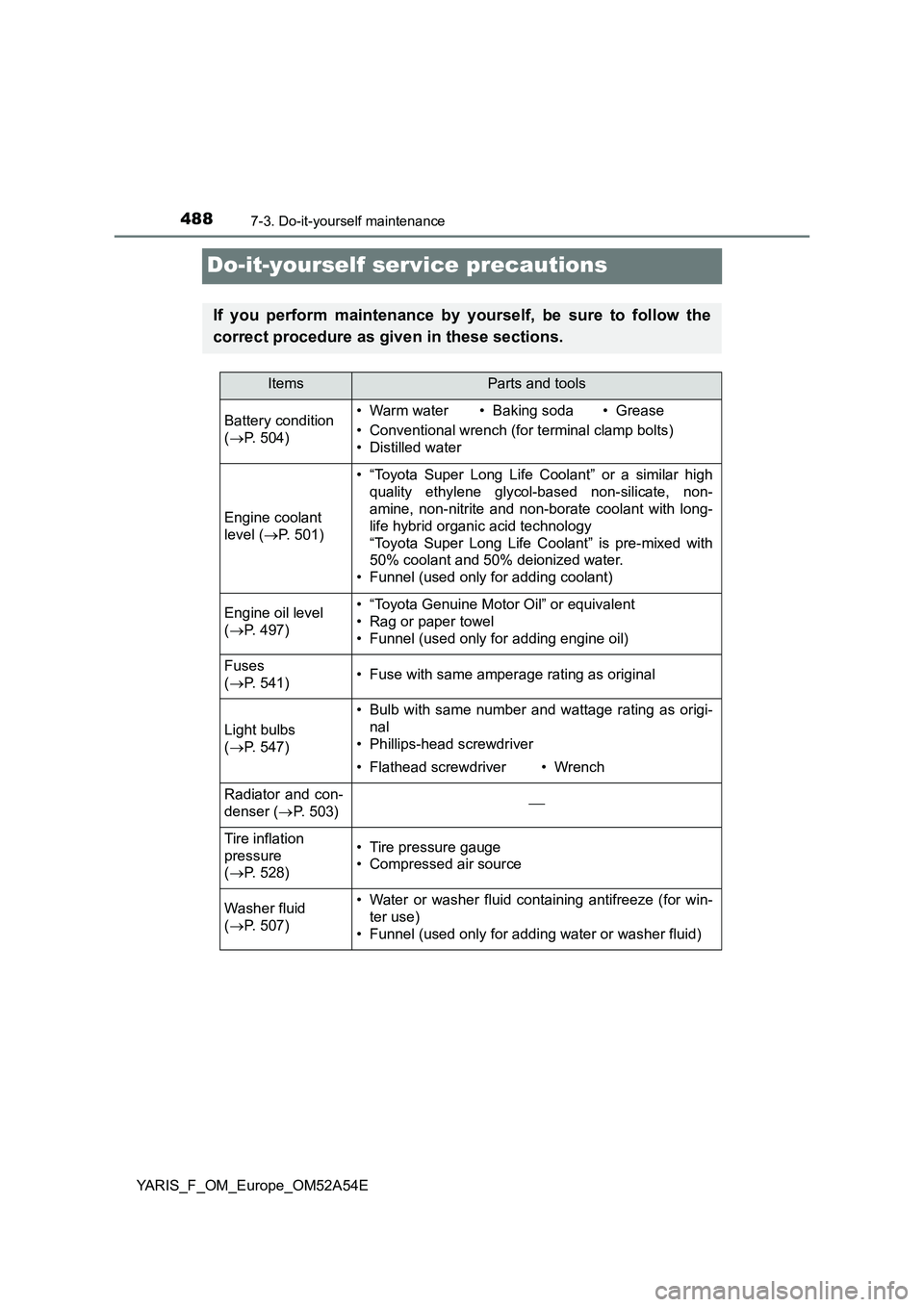

4887-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52A54E
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.
ItemsParts and tools
Battery condition
(P. 504)•Warm water• Baking soda•Grease
• Conventional wrench (for terminal clamp bolts)
• Distilled water
Engine coolant
level (P. 501)
• “Toyota Super Long Life Coolant” or a similar high
quality ethylene glycol-based non-silicate, non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
(P. 497)• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses
(P. 541)• Fuse with same amperage rating as original
Light bulbs
(P. 547)
• Bulb with same number and wattage rating as origi-
nal
• Phillips-head screwdriver
• Flathead screwdriver•Wrench
Radiator and con-
denser (P. 503)
Tire inflation
pressure
(P. 528)• Tire pressure gauge
• Compressed air source
Washer fluid
(P. 507)• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)

4957-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52A54E

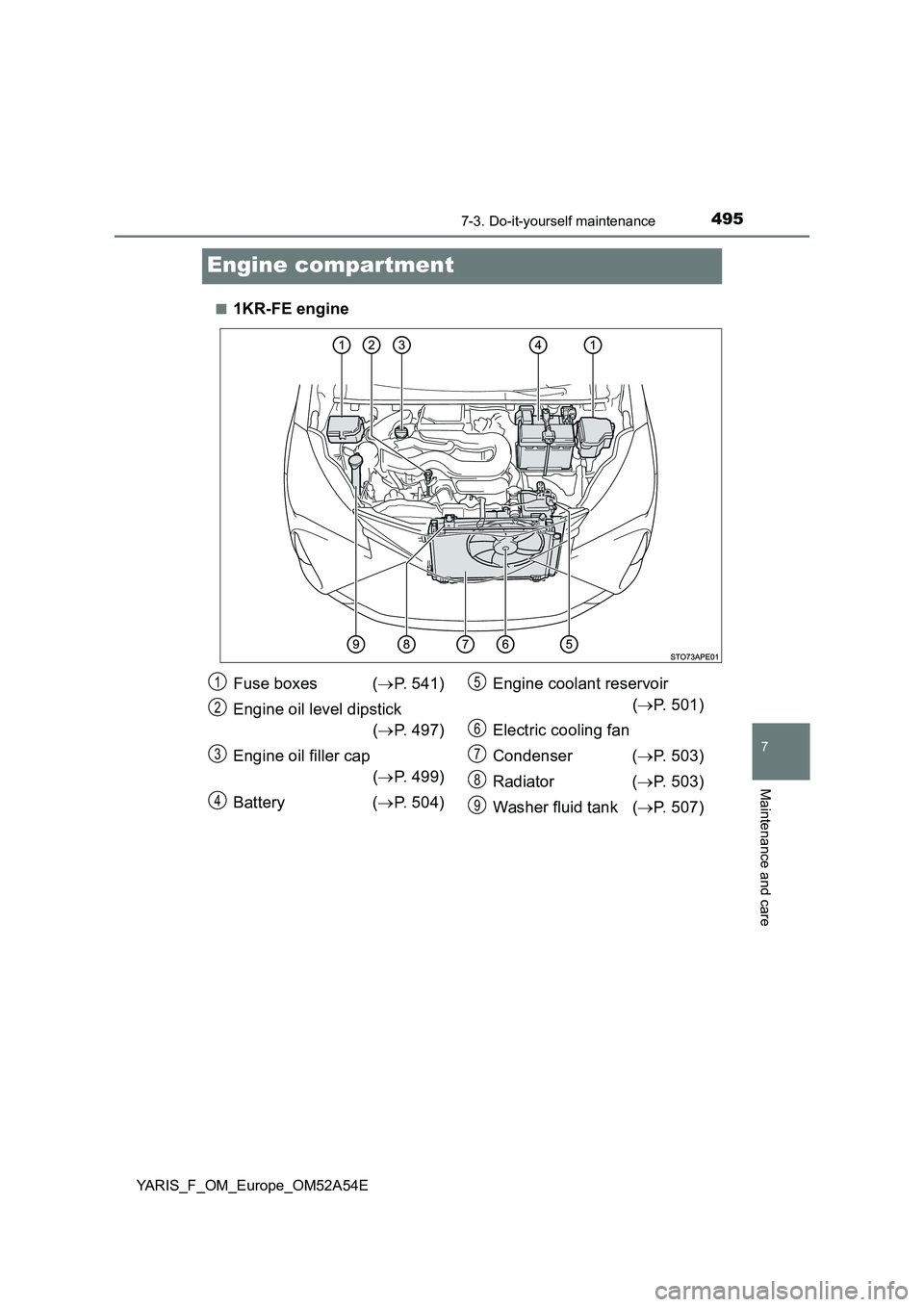

Engine compartment
■1KR-FE engine
Fuse boxes (P. 541)
Engine oil level dipstick
(P. 497)
Engine oil filler cap
(P. 499)
Battery (P. 504)Engine coolant reservoir
(P. 501)
Electric cooling fan
Condenser (P. 503)
Radiator (P. 503)
Washer fluid tank (P. 507)1
2
3
4
5
6
7
8
9

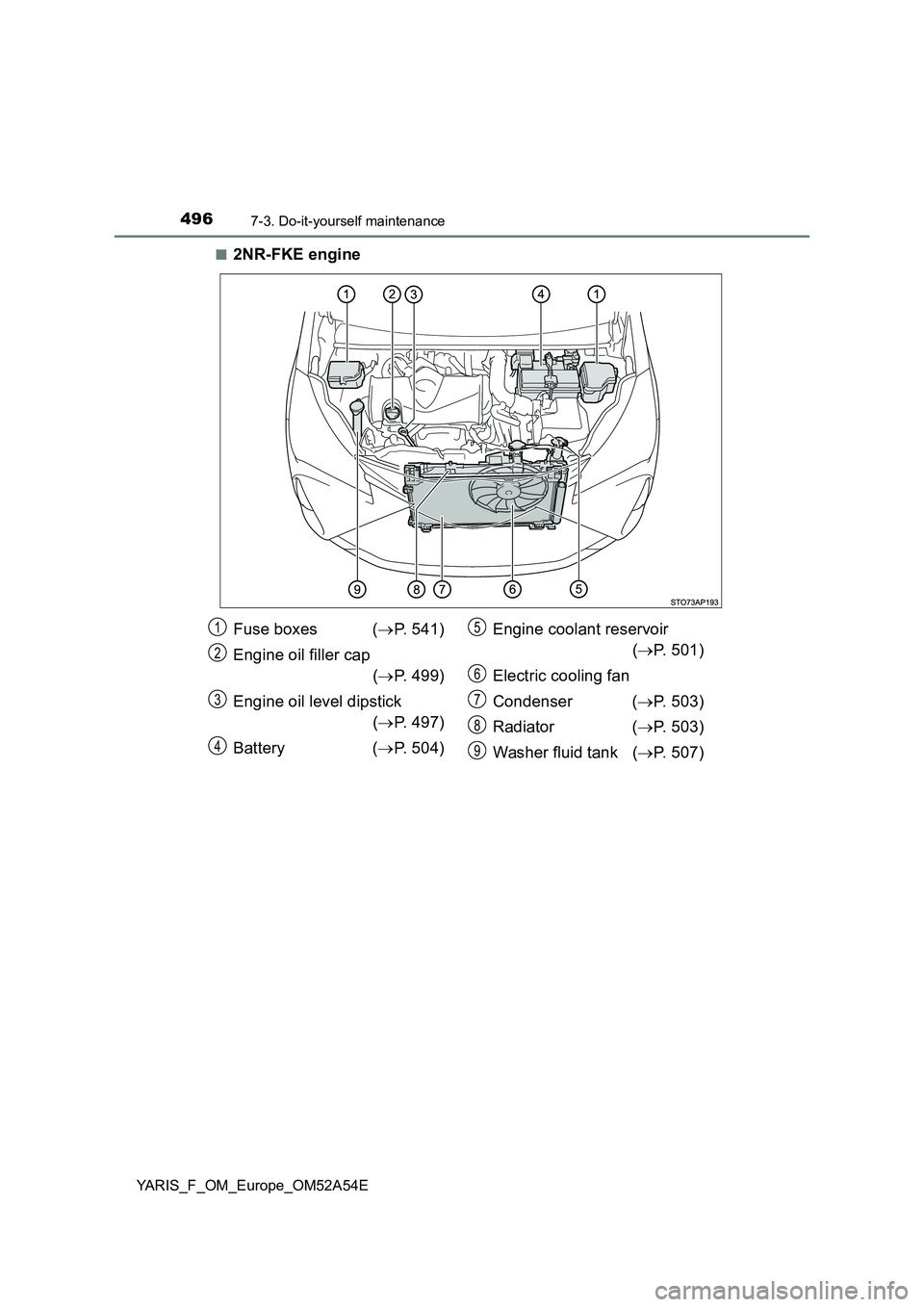

4967-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52A54E■
2NR-FKE engine
Fuse boxes (P. 541)
Engine oil filler cap
(P. 499)
Engine oil level dipstick
(P. 497)
Battery (P. 504)Engine coolant reservoir
(P. 501)
Electric cooling fan
Condenser (P. 503)
Radiator (P. 503)
Washer fluid tank (P. 507)1
2
3
4
5
6
7
8
9

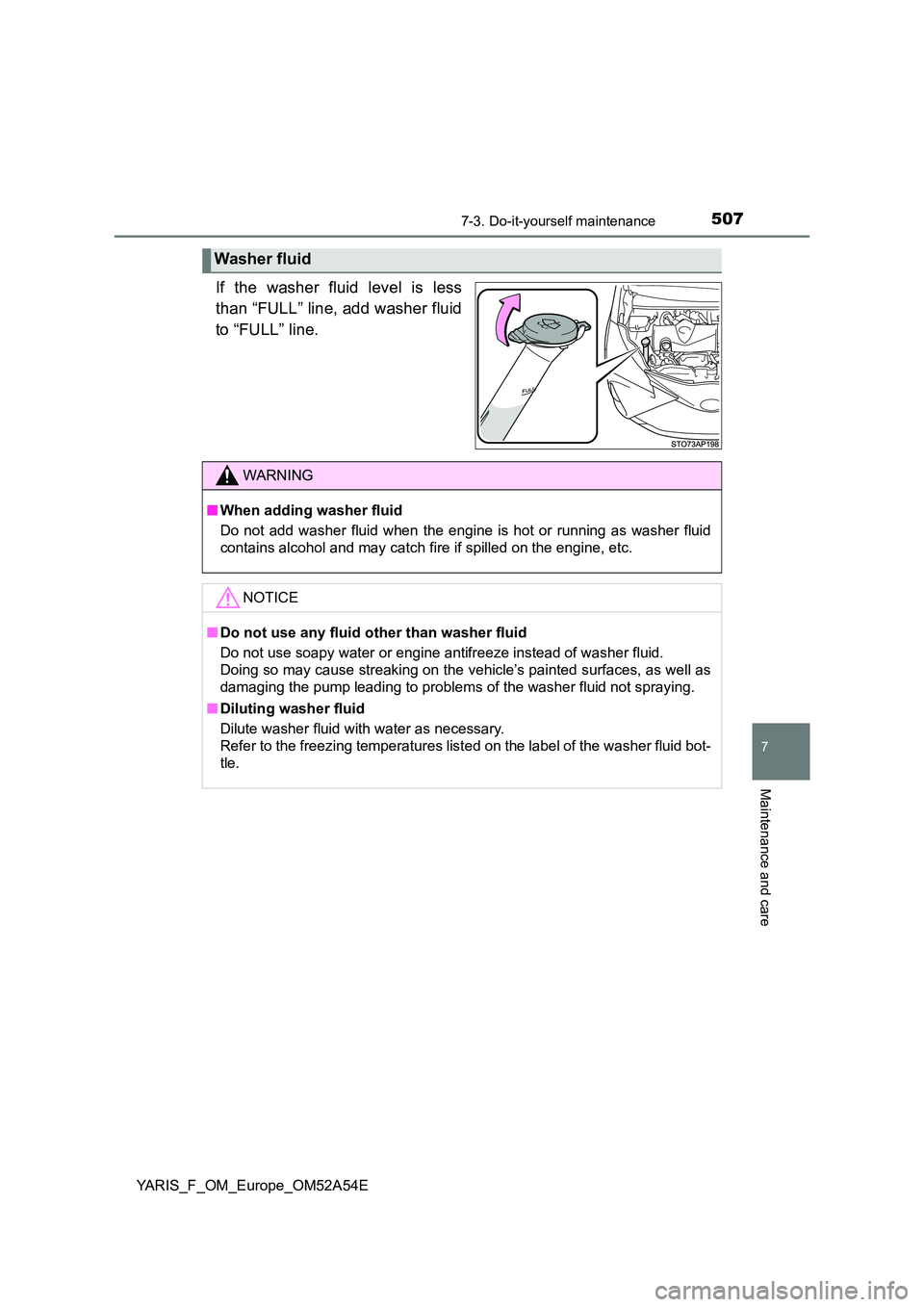

5077-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52A54E
If the washer fluid level is less
than “FULL” line, add washer fluid
to “FULL” line.
Washer fluid
WARNING
■ When adding washer fluid
Do not add washer fluid when the engine is hot or running as washer fluid
contains alcohol and may catch fi re if spilled on the engine, etc.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces, as well as
damaging the pump leading to problems of the washer fluid not spraying.
■ Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures list ed on the label of the washer fluid bot-
tle.
