6-1. Maintenance and care
Maintenance and care
●Use a soft cloth dampened with an
approximately 5% solution of neutral detergent and water to clean the dirt off.
●Wipe the surface with a dry, soft cloth to remove any remaining moisture.
●To remove oily deposits, use alcohol wet wipes or a similar product.
WARNING
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components, etc. to catch fire.
■When cleaning the windshield (vehicles with rain-sensing wind-shield wipers)
Set the wiper switch to off. If the wiper switch is in “AUTO”, the wipers may operate unexpectedly in the following
situations, and may result in hands being caught or other serious injuries and cause damage to the wiper
blades.
Off
AUTO
●When the upper part of the wind- shield where the raindrop sensor is
located is touched by hand
●When a wet rag or similar is held
close to the raindrop sensor
●If something bumps against the
windshield
●If you directly touch the raindrop sensor body or if something bumps into the raindrop sensor
■Precautions regarding the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.When washing the vehicle, be careful
not to touch the pipe until it has cooled sufficiently, as touching a hot exhaust pipe can cause burns.
■Precaution regarding the rear bumper with Blind Spot Monitor
(if equipped)
If the paint of the rear bumper is chipped or scratched, the system may
malfunction. If this occurs, consult with any authorized Toyota retailer or Toyota authorized repairer, or any reli-
able repairer.
NOTICE
■To prevent paint deterioration and corrosion on the body and
components (aluminum wheels, etc.)
●Wash the vehicle immediately in the
following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the paint surface
• After driving in an area contami- nated with soot, oily smoke, mine
dust, iron powder or chemical sub- stances
• If the vehicle becomes heavily soiled with dust or mud

444
YARIS CROSS Owner's Manual_Europe_M52K60_en
7-2. Steps to take in an emergency

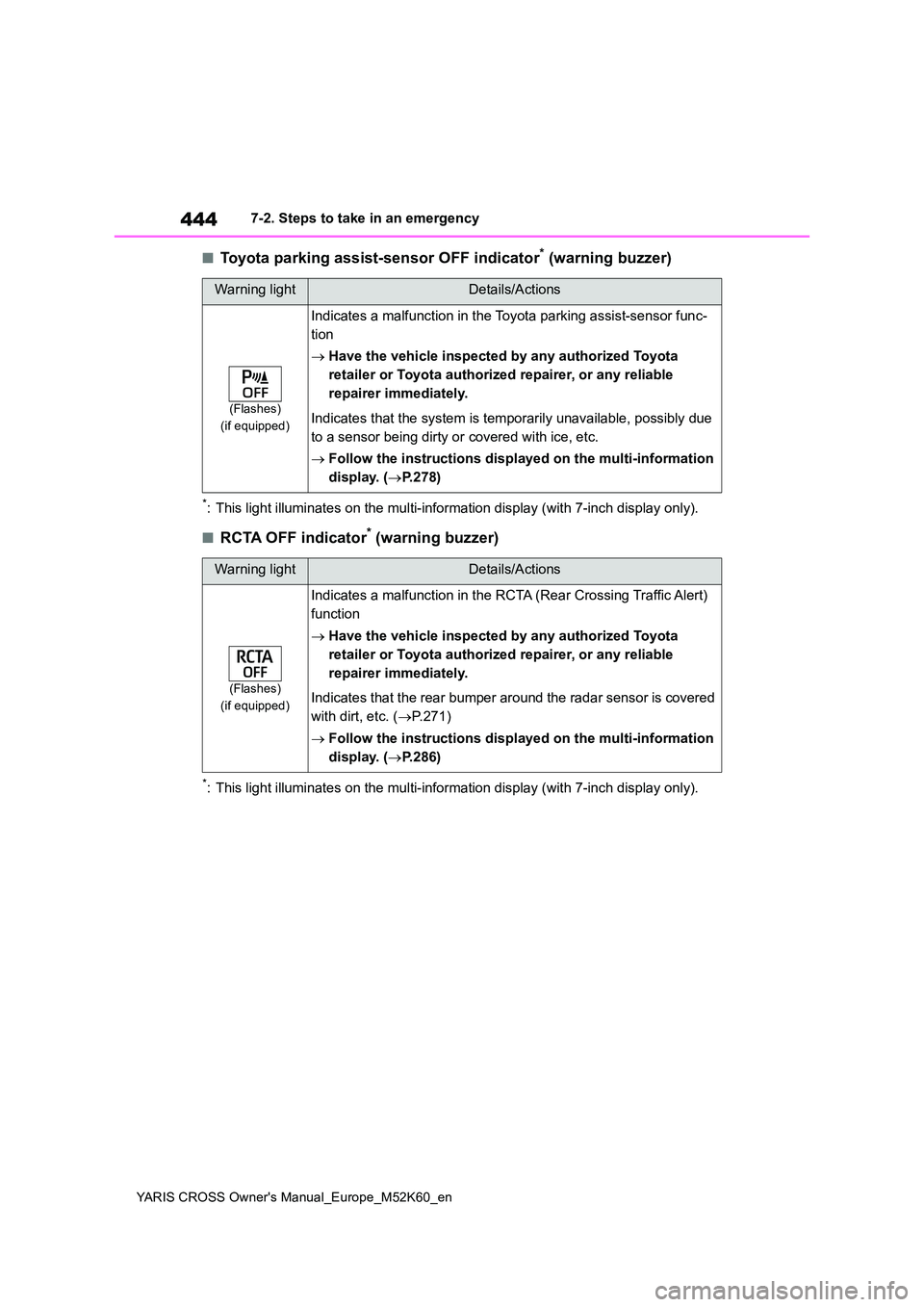

■Toyota parking assist-sensor OFF indicator* (warning buzzer)
*: This light illuminates on the multi-information display (with 7-inch display only).
■RCTA OFF indicator* (warning buzzer)
*: This light illuminates on the multi-information display (with 7-inch display only).
Warning lightDetails/Actions
(Flashes)
(if equipped)
Indicates a malfunction in the Toyota parking assist-sensor fun c-
tion
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Indicates that the system is temporarily unavailable, possibly due
to a sensor being dirty or covered with ice, etc.
 Follow the instructions displayed on the multi-information
display. ( P.278)
Warning lightDetails/Actions
(Flashes)
(if equipped)
Indicates a malfunction in the RCTA (Rear Crossing Traffic Aler t)
function
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Indicates that the rear bumper around the radar sensor is cover ed
with dirt, etc. ( P.271)
 Follow the instructions displayed on the multi-information
display. ( P.286)

445
7
YARIS CROSS Owner's Manual_Europe_M52K60_en
7-2. Steps to take in an emergency
When trouble arises

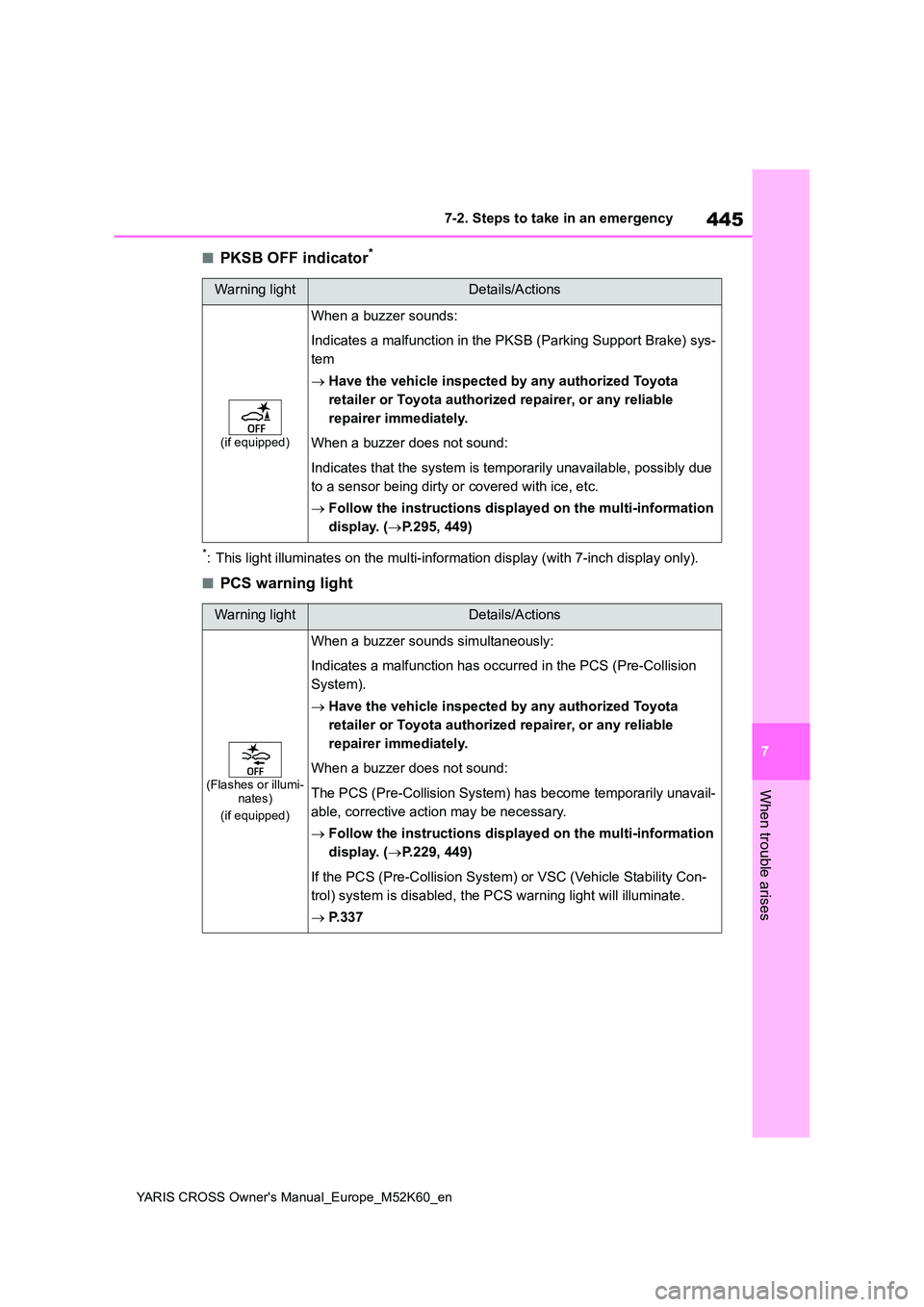

■PKSB OFF indicator*
*: This light illuminates on the multi-information display (with 7-inch display only).
■PCS warning light
Warning lightDetails/Actions
(if equipped)
When a buzzer sounds:
Indicates a malfunction in the PKSB (Parking Support Brake) sys -
tem
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
When a buzzer does not sound:
Indicates that the system is temporarily unavailable, possibly due
to a sensor being dirty or covered with ice, etc.
 Follow the instructions displayed on the multi-information
display. ( P.295, 449)
Warning lightDetails/Actions
(Flashes or illumi- nates)
(if equipped)
When a buzzer sounds simultaneously:
Indicates a malfunction has occurred in the PCS (Pre-Collision
System).
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
When a buzzer does not sound:
The PCS (Pre-Collision System) has become temporarily unavail-
able, corrective action may be necessary.
 Follow the instructions displayed on the multi-information
display. ( P.229, 449)
If the PCS (Pre-Collision System) or VSC (Vehicle Stability Con-
trol) system is disabled, the PCS warning light will illuminate .
 P. 3 3 7

446
YARIS CROSS Owner's Manual_Europe_M52K60_en
7-2. Steps to take in an emergency

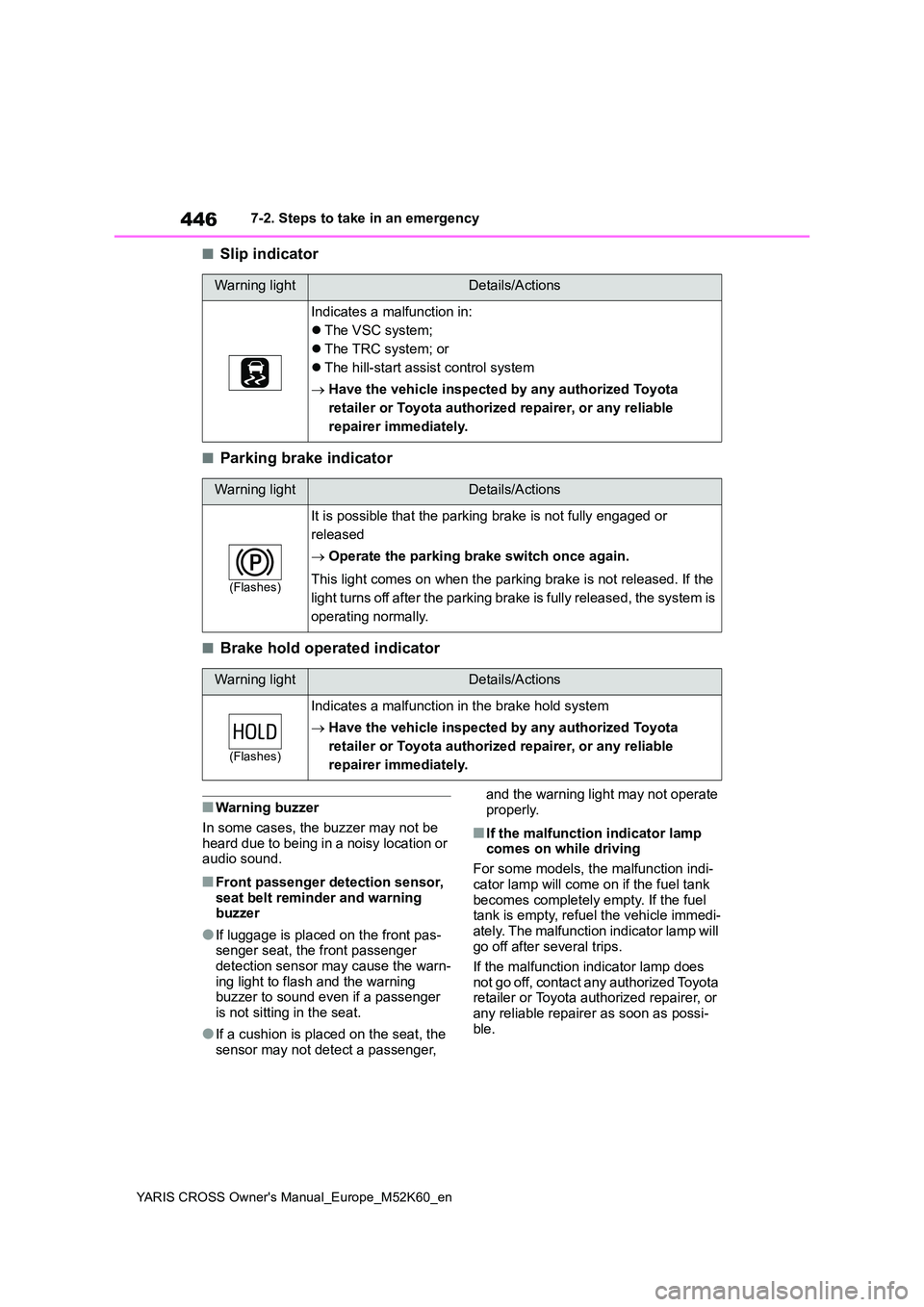

■Slip indicator
■Parking brake indicator
■Brake hold operated indicator
■Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location or audio sound.
■Front passenger detection sensor,
seat belt reminder and warning buzzer
●If luggage is placed on the front pas-senger seat, the front passenger detection sensor may cause the warn-
ing light to flash and the warning buzzer to sound even if a passenger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate
properly.
■If the malfunction indicator lamp comes on while driving
For some models, the malfunction indi-
cator lamp will come on if the fuel tank becomes completely empty. If the fuel tank is empty, refuel the vehicle immedi-
ately. The malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer as soon as possi- ble.
Warning lightDetails/Actions
Indicates a malfunction in:
 The VSC system;
 The TRC system; or
 The hill-start assist control system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Warning lightDetails/Actions
(Flashes)
It is possible that the parking brake is not fully engaged or
released
 Operate the parking brake switch once again.
This light comes on when the parking brake is not released. If the
light turns off after the parking brake is fully released, the system is
operating normally.
Warning lightDetails/Actions
(Flashes)
Indicates a malfunction in the brake hold system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.

450
YARIS CROSS Owner's Manual_Europe_M52K60_en
7-2. Steps to take in an emergency

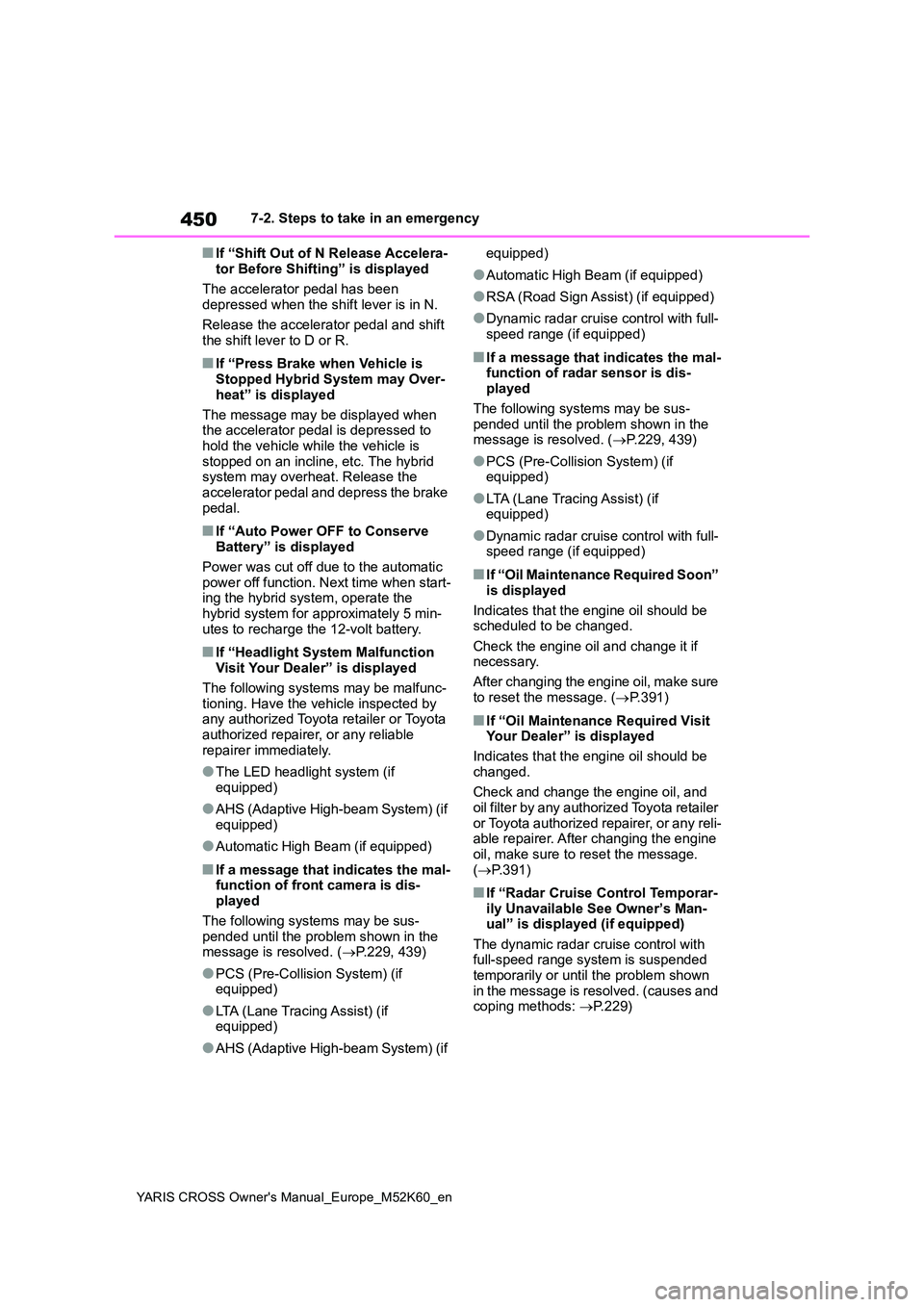

■If “Shift Out of N Release Accelera-
tor Before Shifting” is displayed
The accelerator pedal has been depressed when the shift lever is in N.
Release the accelerator pedal and shift the shift lever to D or R.
■If “Press Brake when Vehicle is Stopped Hybrid System may Over-
heat” is displayed
The message may be displayed when the accelerator pedal is depressed to
hold the vehicle while the vehicle is stopped on an incline, etc. The hybrid system may overheat. Release the
accelerator pedal and depress the brake pedal.
■If “Auto Power OFF to Conserve Battery” is displayed
Power was cut off due to the automatic power off function. Next time when start-ing the hybrid system, operate the
hybrid system for approximately 5 min- utes to recharge the 12-volt battery.
■If “Headlight System Malfunction Visit Your Dealer” is displayed
The following systems may be malfunc- tioning. Have the vehicle inspected by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer immediately.
●The LED headlight system (if equipped)
●AHS (Adaptive High-beam System) (if equipped)
●Automatic High Beam (if equipped)
■If a message that indicates the mal-function of front camera is dis-played
The following systems may be sus- pended until the problem shown in the message is resolved. ( P.229, 439)
●PCS (Pre-Collision System) (if equipped)
●LTA (Lane Tracing Assist) (if equipped)
●AHS (Adaptive High-beam System) (if
equipped)
●Automatic High Beam (if equipped)
●RSA (Road Sign Assist) (if equipped)
●Dynamic radar cruise control with full-
speed range (if equipped)
■If a message that indicates the mal- function of radar sensor is dis-played
The following systems may be sus- pended until the problem shown in the message is resolved. ( P.229, 439)
●PCS (Pre-Collision System) (if equipped)
●LTA (Lane Tracing Assist) (if equipped)
●Dynamic radar cruise control with full-speed range (if equipped)
■If “Oil Maintenance Required Soon”
is displayed
Indicates that the engine oil should be scheduled to be changed.
Check the engine oil and change it if necessary.
After changing the engine oil, make sure
to reset the message. ( P.391)
■If “Oil Maintenance Required Visit Your Dealer” is displayed
Indicates that the engine oil should be
changed.
Check and change the engine oil, and oil filter by any authorized Toyota retailer
or Toyota authorized repairer, or any reli- able repairer. After changing the engine oil, make sure to reset the message.
( P.391)
■If “Radar Cruise Control Temporar- ily Unavailable See Owner’s Man-ual” is displayed (if equipped)
The dynamic radar cruise control with full-speed range system is suspended temporarily or until the problem shown
in the message is resolved. (causes and coping methods: P.229)

501
8
YARIS CROSS Owner's Manual_Europe_M52K60_en
8-2. Customization
Vehicle specifications
*: If equipped

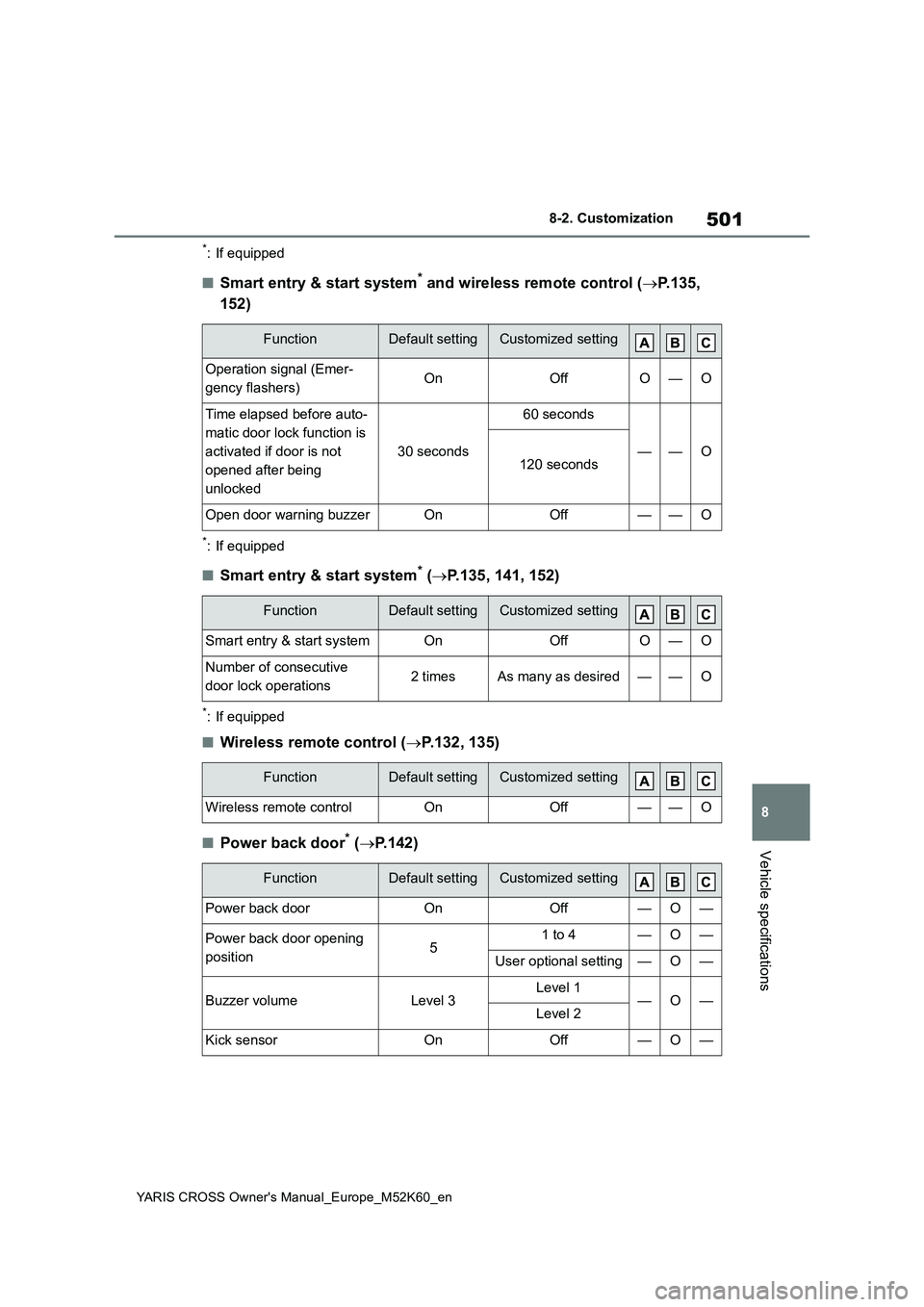

■Smart entry & start system* and wireless remote control (P.135,
152)
*: If equipped
■Smart entry & start system* ( P.135, 141, 152)
*: If equipped
■Wireless remote control (P.132, 135)
■Power back door* (P.142)
FunctionDefault settingCustomized setting
Operation signal (Emer-
gency flashers)OnOffO—O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
30 seconds
60 seconds
——O120 seconds
Open door warning buzzerOnOff——O
FunctionDefault settingCustomized setting
Smart entry & start systemOnOffO—O
Number of consecutive
door lock operations2 timesAs many as desired——O
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
FunctionDefault settingCustomized setting
Power back doorOnOff—O—
Power back door opening
position51 to 4—O—
User optional setting—O—
Buzzer volumeLevel 3Level 1—O—Level 2
Kick sensorOnOff—O—

502
YARIS CROSS Owner's Manual_Europe_M52K60_en
8-2. Customization
*: If equipped

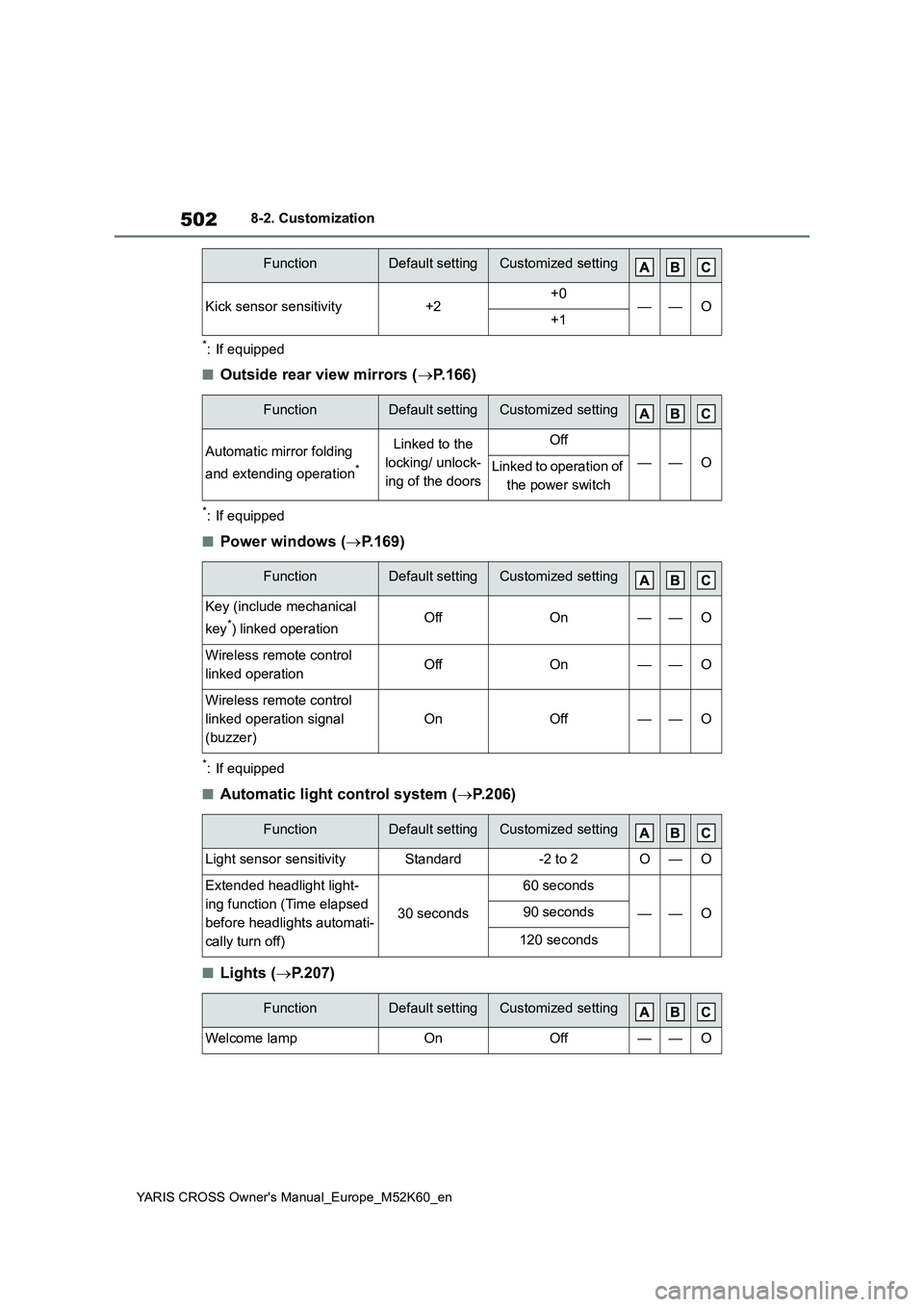

■Outside rear view mirrors (P.166)
*: If equipped
■Power windows (P.169)
*: If equipped
■Automatic light control system (P.206)
■Lights (P.207)
Kick sensor sensitivity+2+0——O+1
FunctionDefault settingCustomized setting
Automatic mirror folding
and extending operation*
Linked to the
locking/ unlock-
ing of the doors
Off
——OLinked to operation of
the power switch
FunctionDefault settingCustomized setting
Key (include mechanical
key*) linked operationOffOn——O
Wireless remote control
linked operationOffOn——O
Wireless remote control
linked operation signal
(buzzer)
OnOff——O
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Extended headlight light-
ing function (Time elapsed
before headlights automati-
cally turn off)
30 seconds
60 seconds
——O90 seconds
120 seconds
FunctionDefault settingCustomized setting
Welcome lampOnOff——O
FunctionDefault settingCustomized setting

505
8
YARIS CROSS Owner's Manual_Europe_M52K60_en
8-2. Customization
Vehicle specifications

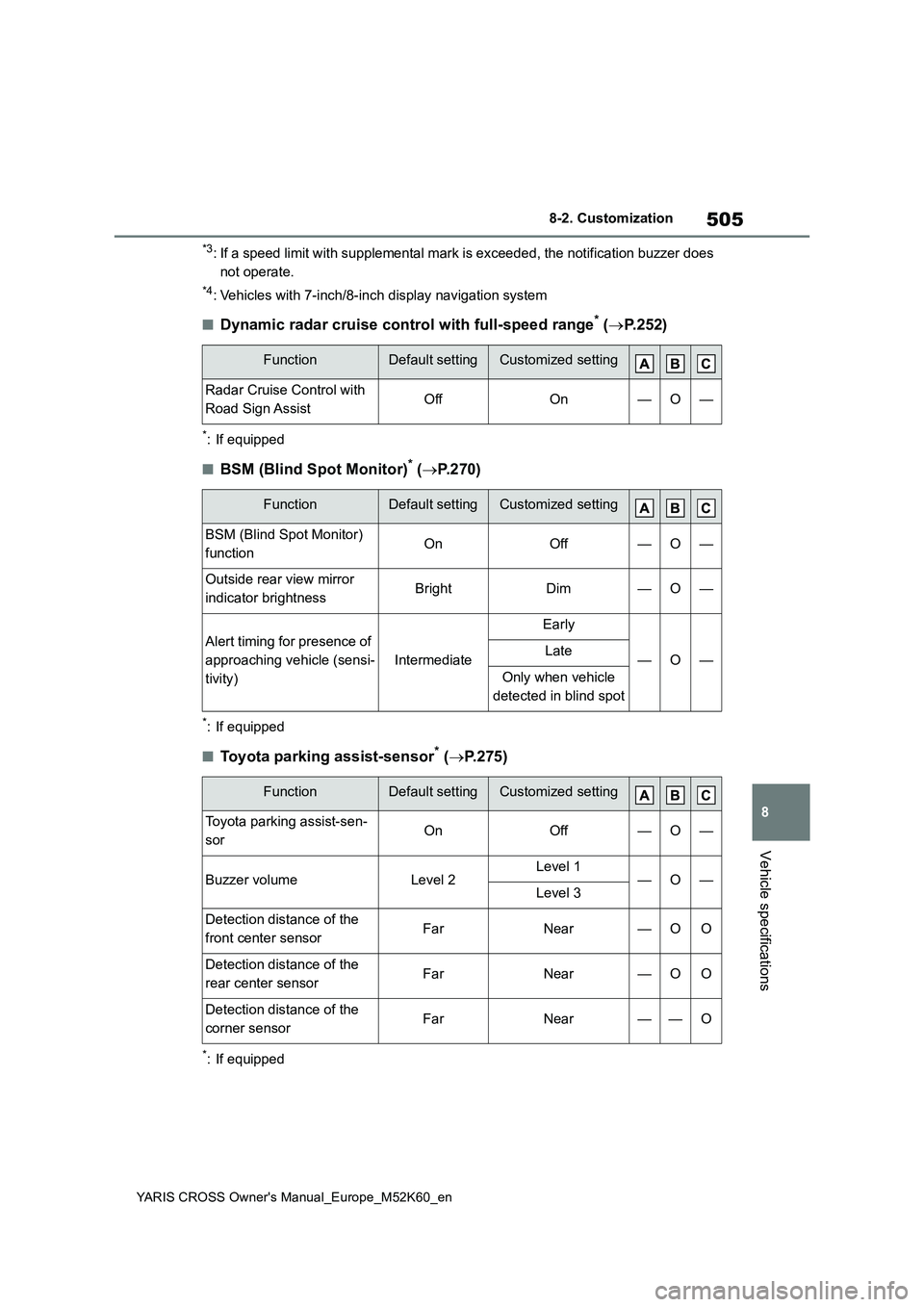

*3: If a speed limit with supplemental mark is exceeded, the notification buzzer does
not operate.
*4: Vehicles with 7-inch/8-inch display navigation system
■Dynamic radar cruise control with full-speed range* ( P. 2 5 2 )
*: If equipped
■BSM (Blind Spot Monitor)* (P.270)
*: If equipped
■Toyota parking assist-sensor* (P.275)
*: If equipped
FunctionDefault settingCustomized setting
Radar Cruise Control with
Road Sign AssistOffOn—O—
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)
functionOnOff—O—
Outside rear view mirror
indicator brightnessBrightDim—O—
Alert timing for presence of
approaching vehicle (sensi-
tivity)
Intermediate
Early
—O—Late
Only when vehicle
detected in blind spot
FunctionDefault settingCustomized setting
Toyota parking assist-sen-
sorOnOff—O—
Buzzer volumeLevel 2Level 1—O—Level 3
Detection distance of the
front center sensorFarNear—OO
Detection distance of the
rear center sensorFarNear—OO
Detection distance of the
corner sensorFarNear——O

514
YARIS CROSS Owner's Manual_Europe_M52K60_en

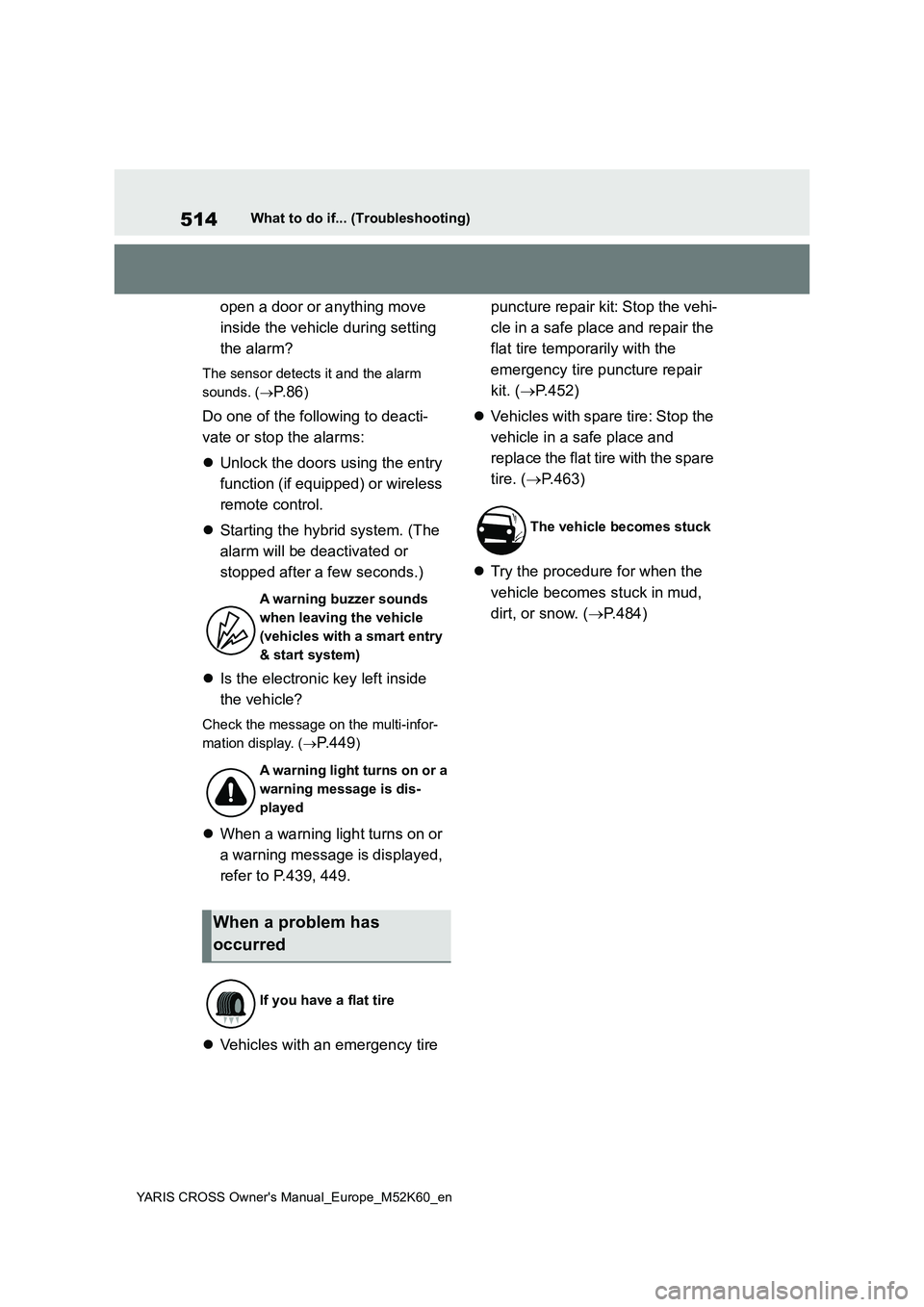

What to do if... (Troubleshooting)
open a door or anything move
inside the vehicle during setting
the alarm?
The sensor detects it and the alarm
sounds. ( P. 8 6)
Do one of the following to deacti-
vate or stop the alarms:
 Unlock the doors using the entry
function (if equipped) or wireless
remote control.
 Starting the hybrid system. (The
alarm will be deactivated or
stopped after a few seconds.)
 Is the electronic key left inside
the vehicle?
Check the message on the multi-infor-
mation display. ( P.449)
When a warning light turns on or
a warning message is displayed,
refer to P.439, 449.
 Vehicles with an emergency tire
puncture repair kit: Stop the vehi-
cle in a safe place and repair the
flat tire temporarily with the
emergency tire puncture repair
kit. ( P.452)
 Vehicles with spare tire: Stop the
vehicle in a safe place and
replace the flat tire with the spare
tire. ( P.463)
 Try the procedure for when the
vehicle becomes stuck in mud,
dirt, or snow. ( P.484)A warning buzzer sounds
when leaving the vehicle
(vehicles with a smart entry
& start system)
A warning light turns on or a
warning message is dis-
played
When a problem has
occurred
If you have a flat tire
The vehicle becomes stuck

516
YARIS CROSS Owner's Manual_Europe_M52K60_en
Alphabetical Index
Battery (traction battery)................ 79
Blind Spot Monitor (BSM) ............ 270
Enabling/disabling the Blind Spot
Monitor..................................... 272
Bottle holders ............................... 361
Brake
Brake hold .................................. 203
Emergency brake signal ............ 336
Fluid ........................................... 494
Parking brake ............................. 200
Regenerative braking ................... 76
Warning light .............................. 439
Brake assist .................................. 336
Break-in tips .................................. 176
Brightness control
Instrument panel light control99, 105
BSM (Blind Spot Monitor) ............ 270
Enabling/disabling the Blind Spot
Monitor..................................... 272
C
Care ....................................... 376, 379
Aluminum wheels ....................... 376
Exterior....................................... 376
Interior ........................................ 379
Seat belts ................................... 379
Chains ........................................... 346
Child restraint system .................... 49
Points to remember...................... 49
Riding with children ...................... 48
Child safety ..................................... 48
12-volt battery precautions. 395, 479
Airbag precautions ....................... 43
Back door precautions ............... 139
Child restraint system .................. 49
Heated steering wheel and seat
heater precautions ................... 356
How your child should wear the seat
belt ............................................. 36
Installing child restraints ............... 49
Power window lock switch.......... 171
Power window precautions ........ 170
Rear door child-protectors.......... 139
Removed electronic key battery pre-
cautions.................................... 418
Seat belt precautions ................... 48
Child-protectors ............................ 139
Cleaning................................. 376, 379
Aluminum wheels .......................376
Exterior ....................................... 376
Interior ........................................379
Radar sensor.............................. 227
Seat belts ...................................379
Clock ..................95, 98, 100, 104, 105
Coat hooks .................................... 373
Condenser ..................................... 393
Console box .................................. 362
Consumption screen .................... 123
Cooling system .............................391
Engine overheating .................... 481
Hybrid system overheating......... 481
Cruise control
Dynamic radar cruise control with
full-speed range .......................252
Cup holders ...................................361
Current fuel consumption .... 107, 114
Curtain shield airbags ....................38
Customizable features ................. 498
