Interior light switch TOYOTA YARIS CROSS 2021 Owners Manual

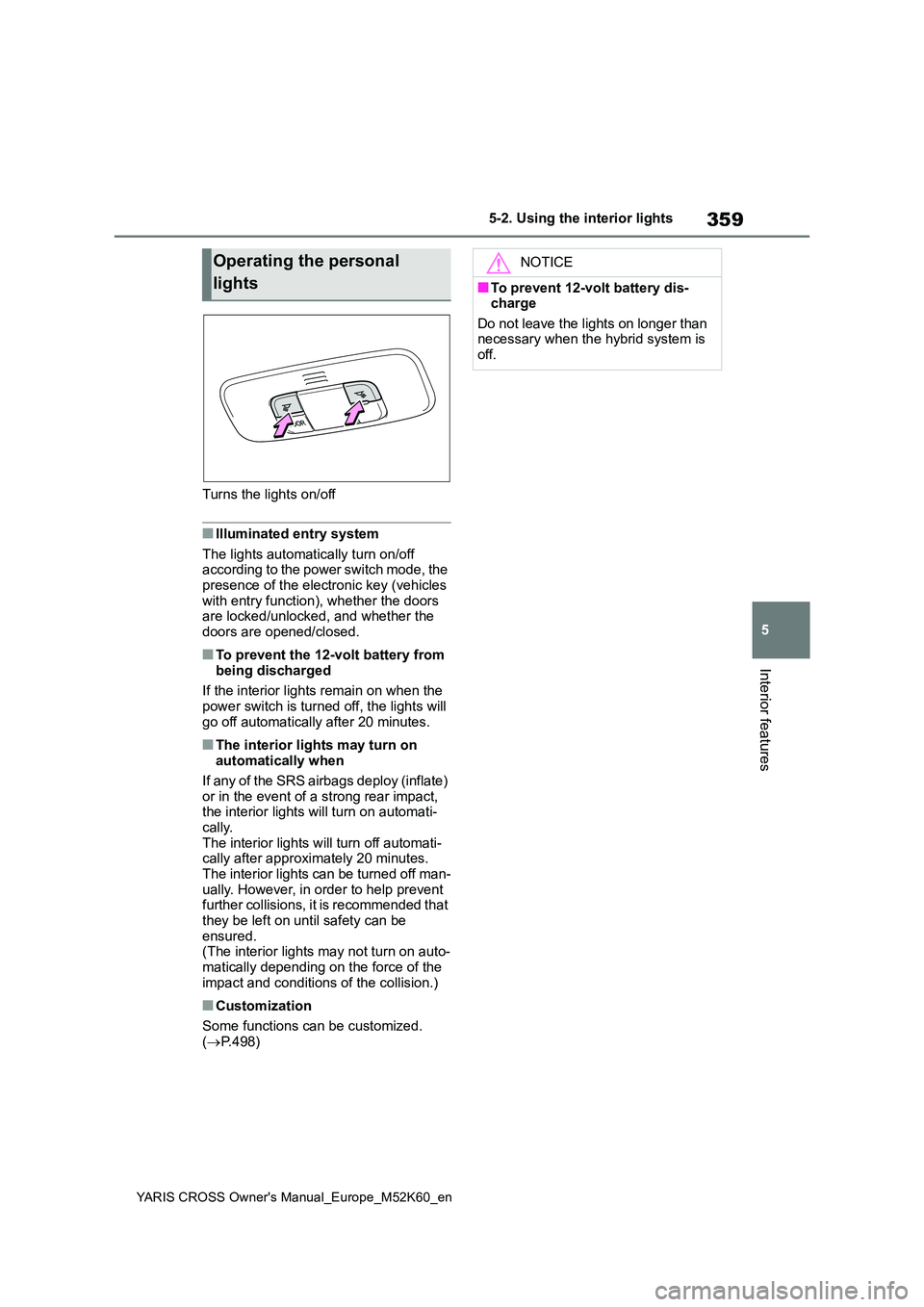

359
5
YARIS CROSS Owner's Manual_Europe_M52K60_en
5-2. Using the interior lights
Interior features
Turns the lights on/off
■Illuminated entry system
The lights automatically turn on/off according to the power switch mode, the presence of the electronic key (vehicles
with entry function), whether the doors are locked/unlocked, and whether the doors are opened/closed.
■To prevent the 12-volt battery from
being discharged
If the interior lights remain on when the power switch is turned off, the lights will
go off automatically after 20 minutes.
■The interior lights may turn on automatically when
If any of the SRS airbags deploy (inflate)
or in the event of a strong rear impact, the interior lights will turn on automati-cally.
The interior lights will turn off automati- cally after approximately 20 minutes.The interior lights can be turned off man-
ually. However, in order to help prevent further collisions, it is recommended that they be left on until safety can be
ensured. (The interior lights may not turn on auto-matically depending on the force of the
impact and conditions of the collision.)
■Customization
Some functions can be customized. ( P.498)
Operating the personal
lights
NOTICE
■To prevent 12-volt battery dis- charge
Do not leave the lights on longer than necessary when the hybrid system is off.

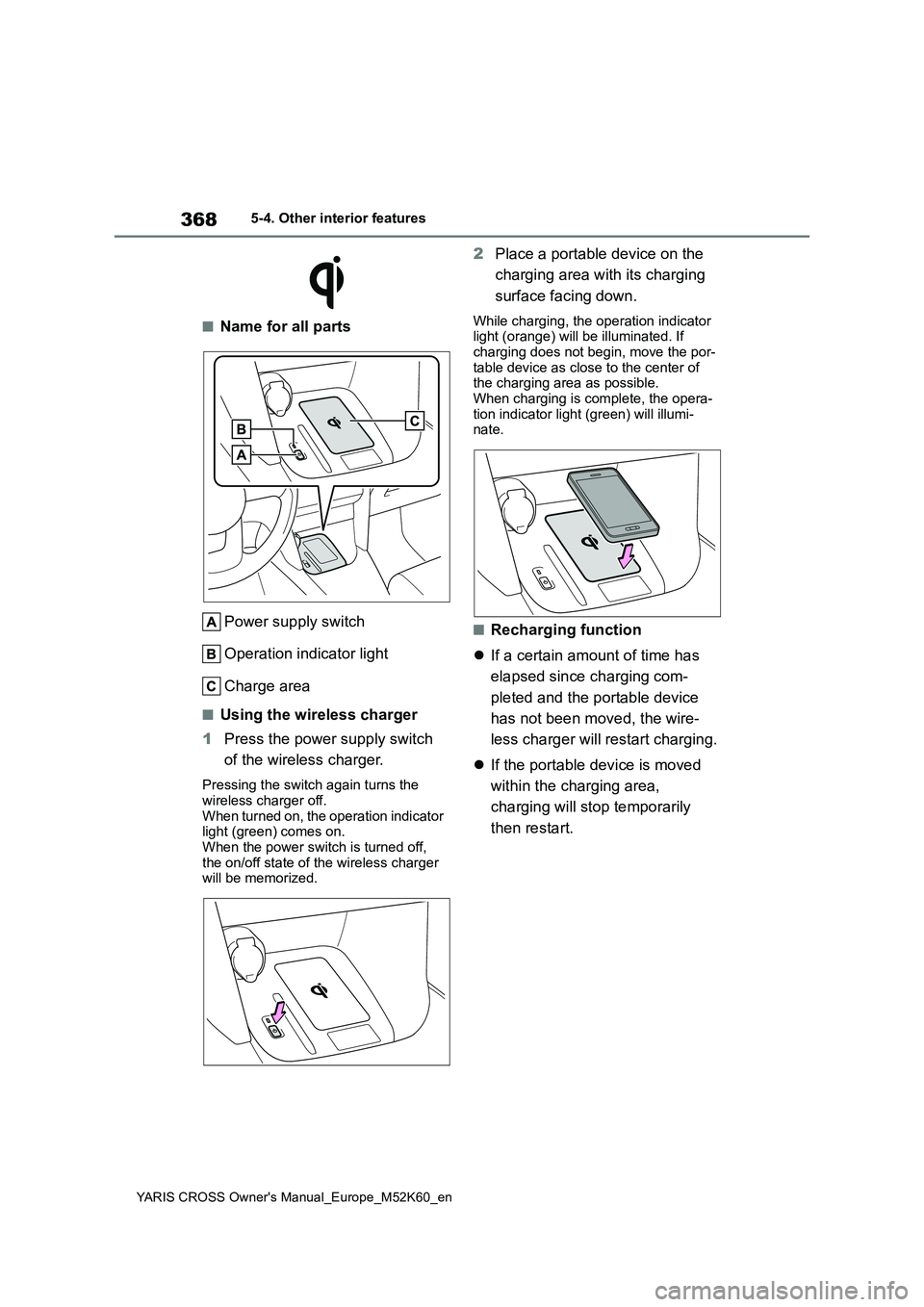

368
YARIS CROSS Owner's Manual_Europe_M52K60_en
5-4. Other interior features
■Name for all parts
Power supply switch
Operation indicator light
Charge area
■Using the wireless charger
1 Press the power supply switch
of the wireless charger.
Pressing the switch again turns the wireless charger off.
When turned on, the operation indicator light (green) comes on. When the power switch is turned off,
the on/off state of the wireless charger will be memorized.
2 Place a portable device on the
charging area with its charging
surface facing down.
While charging, the operation indicator light (orange) will be illuminated. If charging does not begin, move the por-
table device as close to the center of the charging area as possible.When charging is complete, the opera-
tion indicator light (green) will illumi- nate.
■Recharging function
 If a certain amount of time has
elapsed since charging com-
pleted and the portable device
has not been moved, the wire-
less charger will restart charging.
 If the portable device is moved
within the charging area,
charging will stop temporarily
then restart.

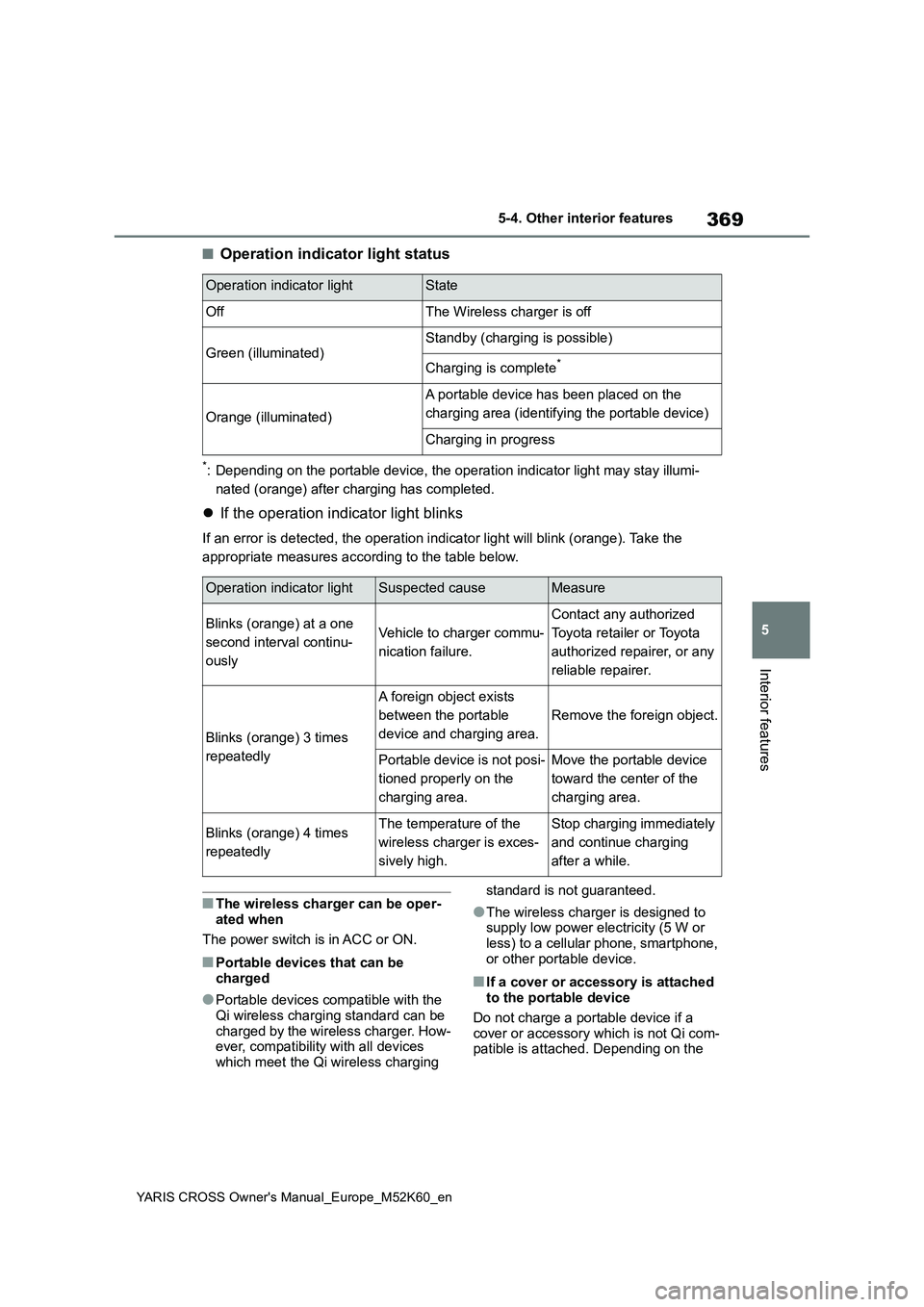

369
5
YARIS CROSS Owner's Manual_Europe_M52K60_en
5-4. Other interior features
Interior features
■Operation indicator light status
*: Depending on the portable device, the operation indicator light may stay illumi-
nated (orange) after charging has completed.
 If the operation indicator light blinks
If an error is detected, the operation indicator light will blink (orange). Take the
appropriate measures according to the table below.
■The wireless charger can be oper-
ated when
The power switch is in ACC or ON.
■Portable devices that can be charged
●Portable devices compatible with the Qi wireless charging standard can be
charged by the wireless charger. How- ever, compatibility with all devices which meet the Qi wireless charging
standard is not guaranteed.
●The wireless charger is designed to supply low power electricity (5 W or
less) to a cellular phone, smartphone, or other portable device.
■If a cover or accessory is attached to the portable device
Do not charge a portable device if a cover or accessory which is not Qi com-patible is attached. Depending on the
Operation indicator lightState
OffThe Wireless charger is off
Green (illuminated)Standby (charging is possible)
Charging is complete*
Orange (illuminated)
A portable device has been placed on the
charging area (identifying the portable device)
Charging in progress
Operation indicator lightSuspected causeMeasure
Blinks (orange) at a one
second interval continu-
ously
Vehicle to charger commu-
nication failure.
Contact any authorized
Toyota retailer or Toyota
authorized repairer, or any
reliable repairer.
Blinks (orange) 3 times
repeatedly
A foreign object exists
between the portable
device and charging area.
Remove the foreign object.
Portable device is not posi-
tioned properly on the
charging area.
Move the portable device
toward the center of the
charging area.
Blinks (orange) 4 times
repeatedly
The temperature of the
wireless charger is exces-
sively high.
Stop charging immediately
and continue charging
after a while.

370
YARIS CROSS Owner's Manual_Europe_M52K60_en
5-4. Other interior features
type of cover and/or accessory
attached, it may not be possible to charge the portable device. If the porta-ble device is placed on the charging
area and does not charge, remove the cover and/or accessories.
■If interference is heard in AM radio broadcasts while charging
Turn off the wireless charger and check if the noise is reduced. If noise is reduced, press and hold the power sup-
ply switch of the wireless charger for 2 seconds. The frequency of the wireless charger is changed and noise may be
reduced. When the frequency is changed, the operation indicator light will blink (orange) 2 times.
■Charging precautions
●If the electronic key cannot be detected in the cabin, charging cannot
be performed. When a door is opened and closed, charging may be tempo-rarily suspended.
●While charging, the wireless charger and the portable device will become
warm. This is not a malfunction.If a portable device becomes warm while charging
and charging stops due to the protec- tion function of the portable device, wait until the portable device cools
down and charge it again.
■Sound generated during operation
When the power supply switch is turned on or while a portable device is being
identified, operation sounds may be heard. This is not a malfunction.
■Cleaning the wireless charger
 P. 3 7 9
WARNING
■Caution while driving
When charging a portable device while driving, for safety reasons, the
driver should not operate the portable device.
■Caution regarding interference with electronic devices
People with implantable cardiac pace-
makers, cardiac resynchronization therapy pacemakers or implantable cardioverter defibrillators, as well as
any other electrical medical device, should consult their physician about the usage of the wireless charger.
Operations of the wireless charger may have an affect on medical devices.
■To prevent damage or burns
Observe the following precautions.
Failure to do so may result in the pos- sibility of fire, equipment failure or damage, or burns due to heat.
●Do not put any metallic objects between the charging area and the
portable device while charging.
●Do not attach metallic objects, such
as aluminum stickers, to the charging area.
●Do not cover the wireless charger with a cloth or other object while charging.
●Do not attempt to charge portable devices which are not compatible
with the Qi wireless charging stan- dard.
●Do not disassemble, modify or remove the wireless charger.
●Do not apply force or impact to the wireless charger.
NOTICE
■Conditions in which the wireless
charger may not operate cor- rectly
In the following situations, the wire-
less charger may not operate cor- rectly:
●When a portable device is fully
charged

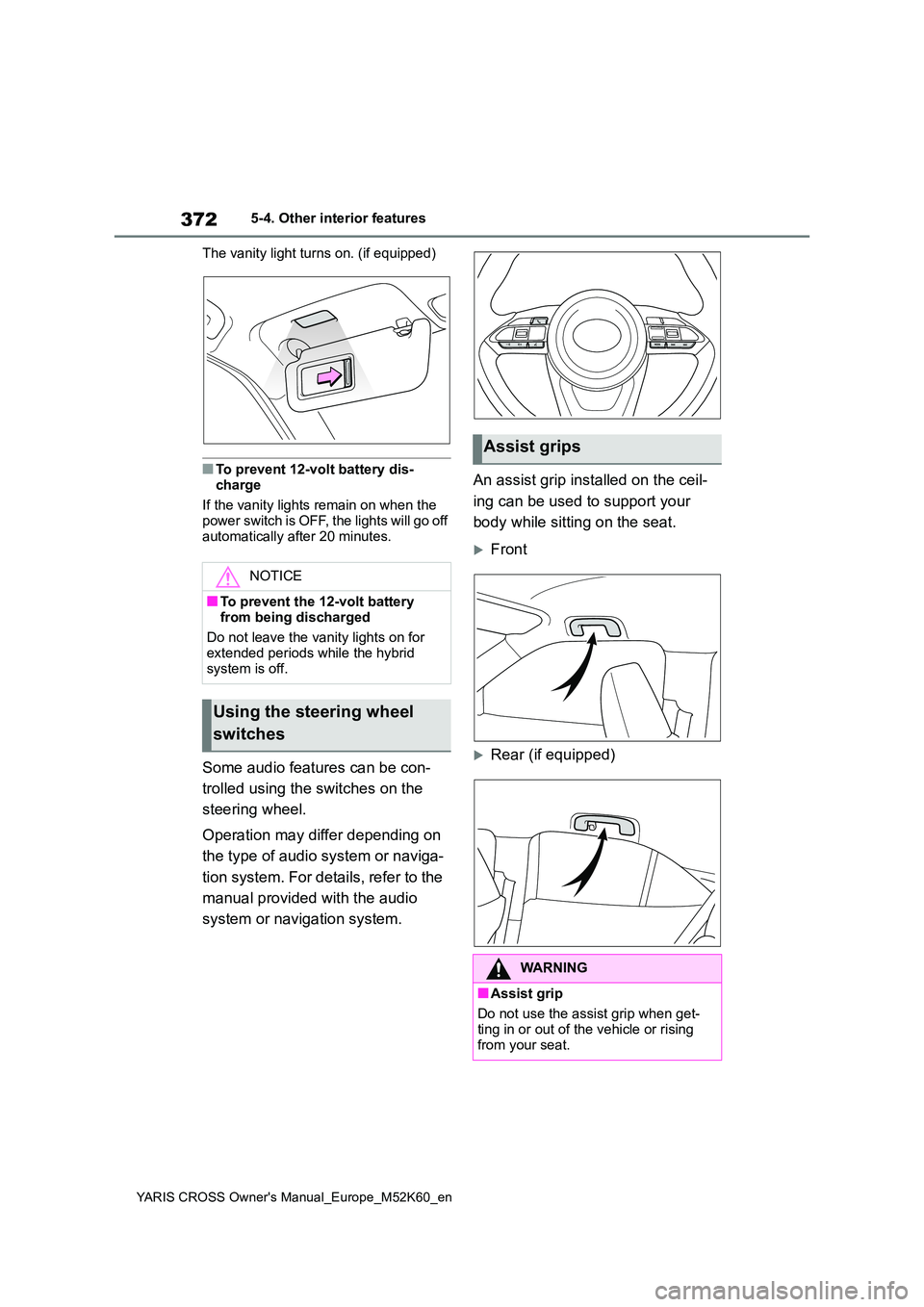

372
YARIS CROSS Owner's Manual_Europe_M52K60_en
5-4. Other interior features
The vanity light turns on. (if equipped)
■To prevent 12-volt battery dis-
charge
If the vanity lights remain on when the power switch is OFF, the lights will go off
automatically after 20 minutes.
Some audio features can be con-
trolled using the switches on the
steering wheel.
Operation may differ depending on
the type of audio system or naviga-
tion system. For details, refer to the
manual provided with the audio
system or navigation system.
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
Front
Rear (if equipped)
NOTICE
■To prevent the 12-volt battery
from being discharged
Do not leave the vanity lights on for extended periods while the hybrid
system is off.
Using the steering wheel
switches
Assist grips
WARNING
■Assist grip
Do not use the assist grip when get-
ting in or out of the vehicle or rising from your seat.

507
8
YARIS CROSS Owner's Manual_Europe_M52K60_en
8-2. Customization
Vehicle specifications
■Automatic air conditioning system (P.350)
■Rear seat reminder (P.137)
■Illumination (P.358)
*: If equipped
■Vehicle customization
When the smart entry & start system is off, Smart door unlocking cannot be cus-tomized.
■In the following situations, custom-
ize mode in which the settings can be changed through the multi-infor-mation display will automatically
be turned off
●A warning message appears after the
customize mode screen is displayed
FunctionDefault settingCustomized setting
Switching between outside
air and recirculated air
mode linked to automatic
mode switch operation
OnOffO—O
FunctionDefault settingCustomized setting
Indication to prevent mis-
placement in the rear seatOnOff—O—
FunctionDefault settingCustomized setting
Time elapsed before the
interior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOff——O
Operation when the doors
are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person*
OnOff——O
Footwell lights*, front con-
sole light and door trim
lights*
OnOff——O

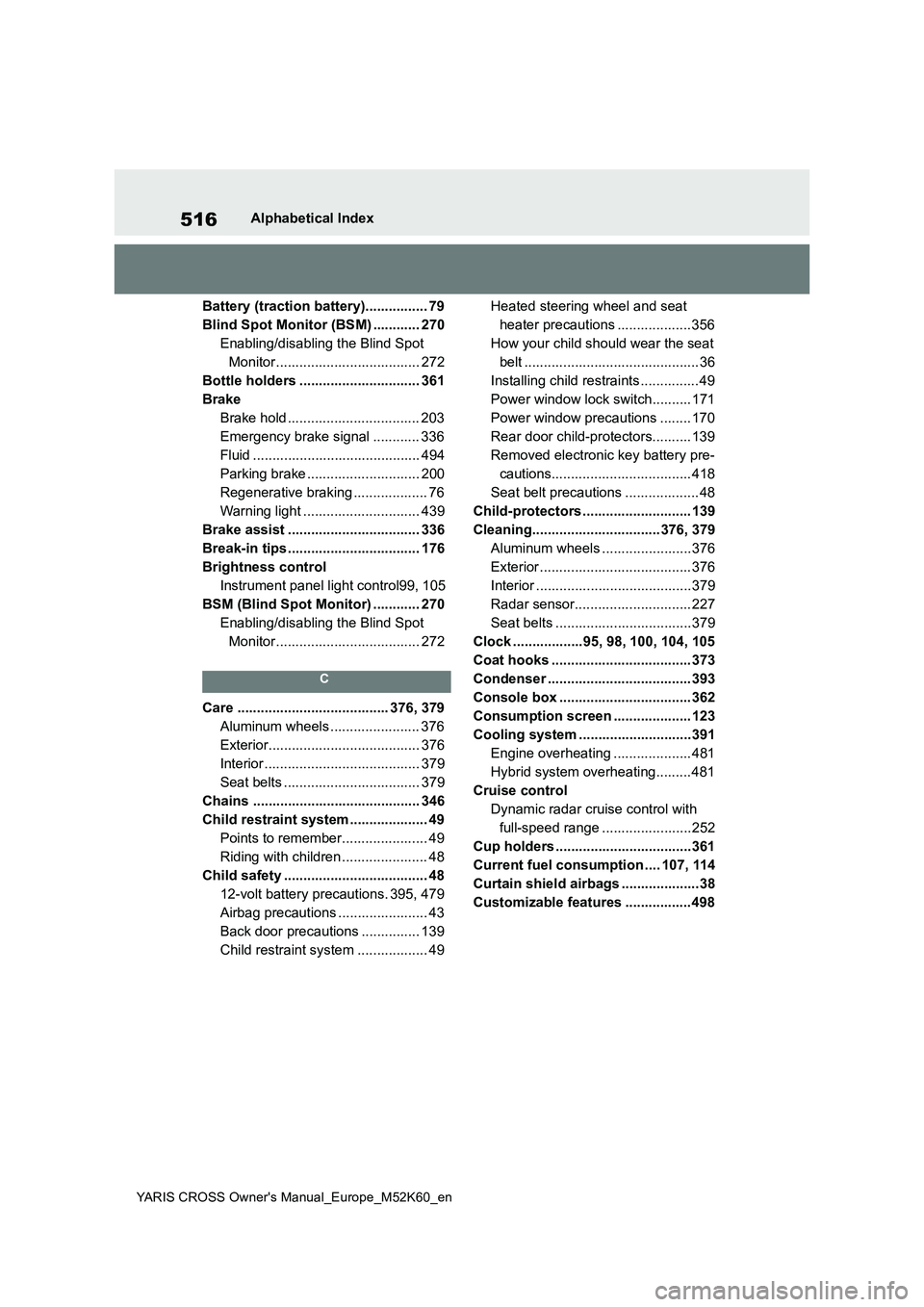

516
YARIS CROSS Owner's Manual_Europe_M52K60_en
Alphabetical Index
Battery (traction battery)................ 79
Blind Spot Monitor (BSM) ............ 270
Enabling/disabling the Blind Spot
Monitor..................................... 272
Bottle holders ............................... 361
Brake
Brake hold .................................. 203
Emergency brake signal ............ 336
Fluid ........................................... 494
Parking brake ............................. 200
Regenerative braking ................... 76
Warning light .............................. 439
Brake assist .................................. 336
Break-in tips .................................. 176
Brightness control
Instrument panel light control99, 105
BSM (Blind Spot Monitor) ............ 270
Enabling/disabling the Blind Spot
Monitor..................................... 272
C
Care ....................................... 376, 379
Aluminum wheels ....................... 376
Exterior....................................... 376
Interior ........................................ 379
Seat belts ................................... 379
Chains ........................................... 346
Child restraint system .................... 49
Points to remember...................... 49
Riding with children ...................... 48
Child safety ..................................... 48
12-volt battery precautions. 395, 479
Airbag precautions ....................... 43
Back door precautions ............... 139
Child restraint system .................. 49
Heated steering wheel and seat
heater precautions ................... 356
How your child should wear the seat
belt ............................................. 36
Installing child restraints ............... 49
Power window lock switch.......... 171
Power window precautions ........ 170
Rear door child-protectors.......... 139
Removed electronic key battery pre-
cautions.................................... 418
Seat belt precautions ................... 48
Child-protectors ............................ 139
Cleaning................................. 376, 379
Aluminum wheels .......................376
Exterior ....................................... 376
Interior ........................................379
Radar sensor.............................. 227
Seat belts ...................................379
Clock ..................95, 98, 100, 104, 105
Coat hooks .................................... 373
Condenser ..................................... 393
Console box .................................. 362
Consumption screen .................... 123
Cooling system .............................391
Engine overheating .................... 481
Hybrid system overheating......... 481
Cruise control
Dynamic radar cruise control with
full-speed range .......................252
Cup holders ...................................361
Current fuel consumption .... 107, 114
Curtain shield airbags ....................38
Customizable features ................. 498

521
YARIS CROSS Owner's Manual_Europe_M52K60_en

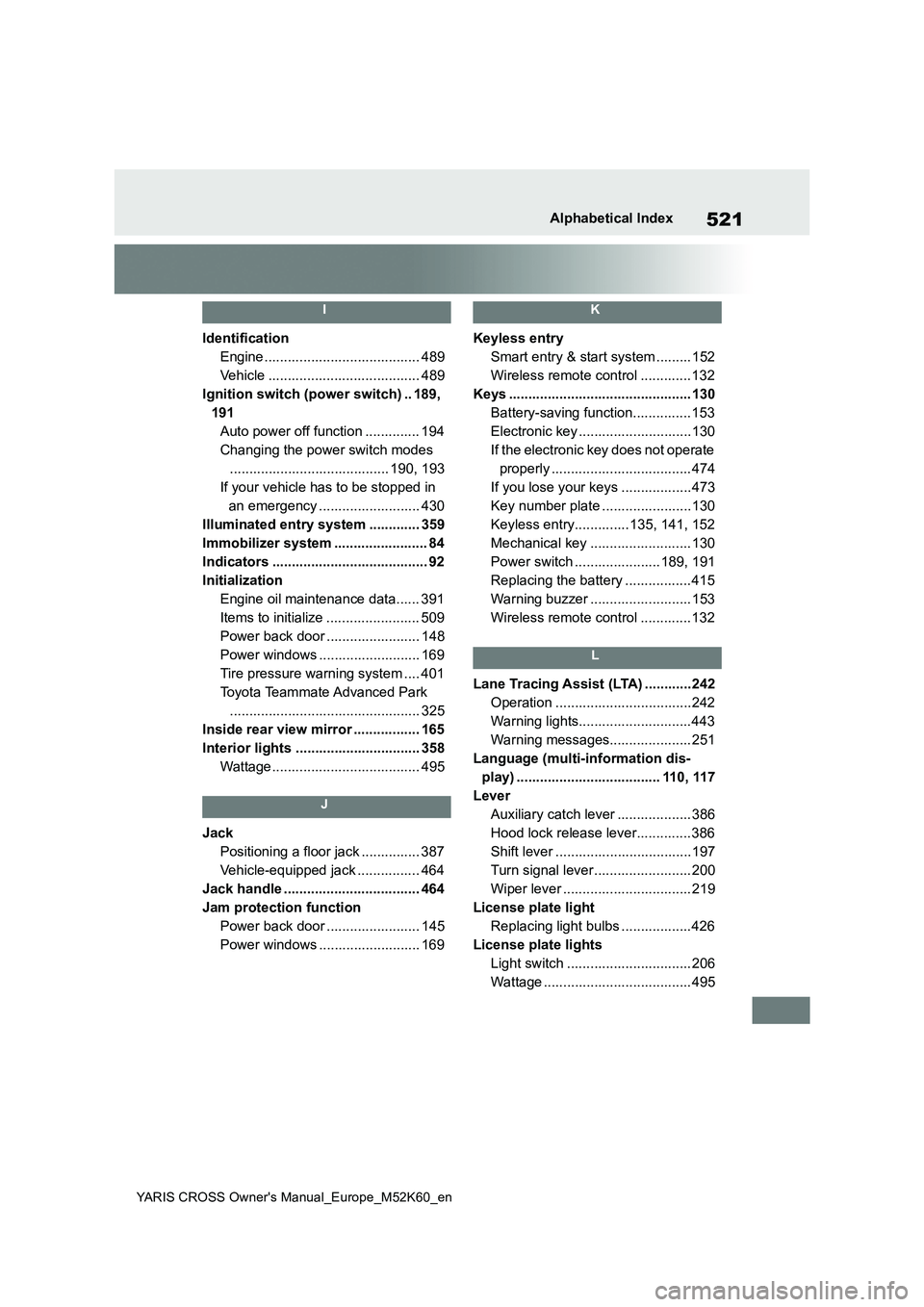

Alphabetical Index
I
Identification
Engine ........................................ 489
Vehicle ....................................... 489
Ignition switch (power switch) .. 189,
191
Auto power off function .............. 194
Changing the power switch modes
......................................... 190, 193
If your vehicle has to be stopped in
an emergency .......................... 430
Illuminated entry system ............. 359
Immobilizer system ........................ 84
Indicators ........................................ 92
Initialization
Engine oil maintenance data...... 391
Items to initialize ........................ 509
Power back door ........................ 148
Power windows .......................... 169
Tire pressure warning system .... 401
Toyota Teammate Advanced Park
................................................. 325
Inside rear view mirror ................. 165
Interior lights ................................ 358
Wattage ...................................... 495
J
Jack
Positioning a floor jack ............... 387
Vehicle-equipped jack ................ 464
Jack handle ................................... 464
Jam protection function
Power back door ........................ 145
Power windows .......................... 169
K
Keyless entry
Smart entry & start system ......... 152
Wireless remote control ............. 132
Keys ............................................... 130
Battery-saving function............... 153
Electronic key .............................130
If the electronic key does not operate
properly .................................... 474
If you lose your keys ..................473
Key number plate .......................130
Keyless entry.............. 135, 141, 152
Mechanical key .......................... 130
Power switch ...................... 189, 191
Replacing the battery ................. 415
Warning buzzer .......................... 153
Wireless remote control ............. 132
L
Lane Tracing Assist (LTA) ............242
Operation ...................................242
Warning lights.............................443
Warning messages..................... 251
Language (multi-information dis-
play) ..................................... 110, 117
Lever
Auxiliary catch lever ................... 386
Hood lock release lever.............. 386
Shift lever ...................................197
Turn signal lever ......................... 200
Wiper lever ................................. 219
License plate light
Replacing light bulbs ..................426
License plate lights
Light switch ................................ 206
Wattage ...................................... 495

522
YARIS CROSS Owner's Manual_Europe_M52K60_en

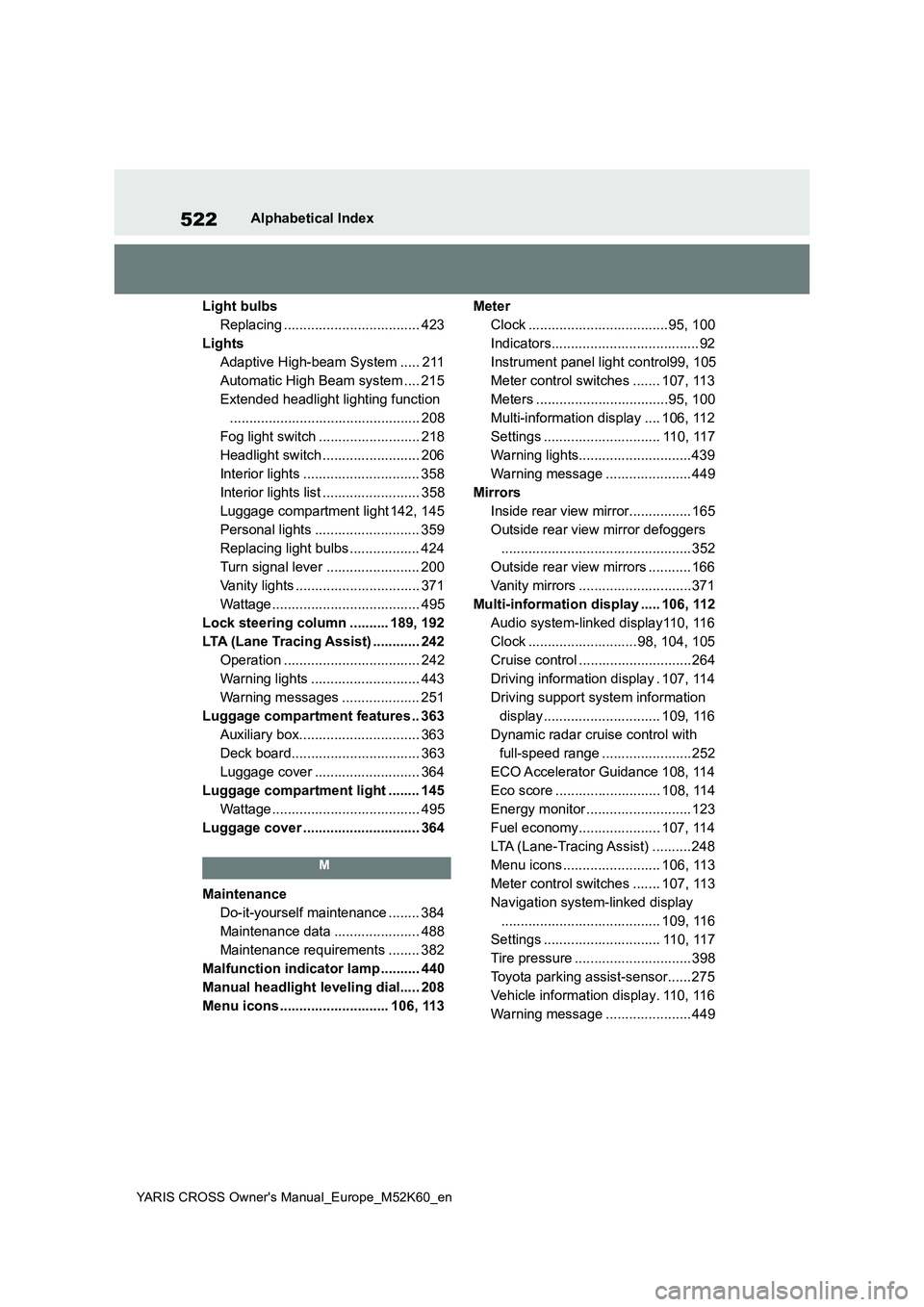

Alphabetical Index
Light bulbs
Replacing ................................... 423
Lights
Adaptive High-beam System ..... 211
Automatic High Beam system .... 215
Extended headlight lighting function
................................................. 208
Fog light switch .......................... 218
Headlight switch ......................... 206
Interior lights .............................. 358
Interior lights list ......................... 358
Luggage compartment light 142, 145
Personal lights ........................... 359
Replacing light bulbs .................. 424
Turn signal lever ........................ 200
Vanity lights ................................ 371
Wattage ...................................... 495
Lock steering column .......... 189, 192
LTA (Lane Tracing Assist) ............ 242
Operation ................................... 242
Warning lights ............................ 443
Warning messages .................... 251
Luggage compartment features .. 363
Auxiliary box............................... 363
Deck board................................. 363
Luggage cover ........................... 364
Luggage compartment light ........ 145
Wattage ...................................... 495
Luggage cover .............................. 364
M
Maintenance
Do-it-yourself maintenance ........ 384
Maintenance data ...................... 488
Maintenance requirements ........ 382
Malfunction indicator lamp .......... 440
Manual headlight leveling dial..... 208
Menu icons ............................ 106, 113
Meter
Clock ....................................95, 100
Indicators...................................... 92
Instrument panel light control99, 105
Meter control switches ....... 107, 113
Meters ..................................95, 100
Multi-information display .... 106, 112
Settings .............................. 110, 117
Warning lights.............................439
Warning message ...................... 449
Mirrors
Inside rear view mirror................ 165
Outside rear view mirror defoggers
................................................. 352
Outside rear view mirrors ........... 166
Vanity mirrors .............................371
Multi-information display ..... 106, 112
Audio system-linked display110, 116
Clock ............................ 98, 104, 105
Cruise control .............................264
Driving information display . 107, 114
Driving support system information
display .............................. 109, 116
Dynamic radar cruise control with
full-speed range .......................252
ECO Accelerator Guidance 108, 114
Eco score ........................... 108, 114
Energy monitor ........................... 123
Fuel economy..................... 107, 114
LTA (Lane-Tracing Assist) .......... 248
Menu icons ......................... 106, 113
Meter control switches ....... 107, 113
Navigation system-linked display
......................................... 109, 116
Settings .............................. 110, 117
Tire pressure .............................. 398
Toyota parking assist-sensor...... 275
Vehicle information display. 110, 116
Warning message ...................... 449
