oil type TOYOTA YARIS CROSS 2021 Owners Manual

13
YARIS CROSS Owner's Manual_Europe_M52K60_en
Pictorial index
Precautions for car wash (vehicles with rain-sensing windshield wipers)
............................................................... ..........................................P.377
Fuel filler door ............................................... .................................P.224
Refueling method ............................................... ..............................P.225
Fuel type/fuel tank capacity ................................... ..........................P.490
Tires .......................................................... ......................................P.396
Tire size/inflation pressure ................................... ............................P.494
Winter tires/tire chains ....................................... ..............................P.345
Checking/rotation/tire pressure warning system ................. .............P.396
Coping with flat tires......................................... ........................P.452, 463
Hood ........................................................... .....................................P.386
Opening ........................................................ ...................................P.386
Engine oil ..................................................... ....................................P.490
Coping with overheating ........................................ ..........................P.481
Headlights/front position lights ............................... .............P.200, 206
Turn signal lights/daytime running lights ...................... ......P.200, 206
Front fog lights*2............................................................... .............P.218
Tail lights/turn signal lights ................................. .................P.200, 206
Stop lights
Tail lights*2 /turn signal lights*2............................................P.200, 206
Rear fog light*2............................................................... ................P.218
Back-up light*2
Shifting the shift position to R ............................... ...........................P.197
Side turn signal lights ........................................ ...........................P.200
License plate lights........................................... .............................P.206
*1: Vehicles with a smart entry & start system
Light bulbs of the exterior lights for driving
(Replacing method: P.423, Watts: P.495)

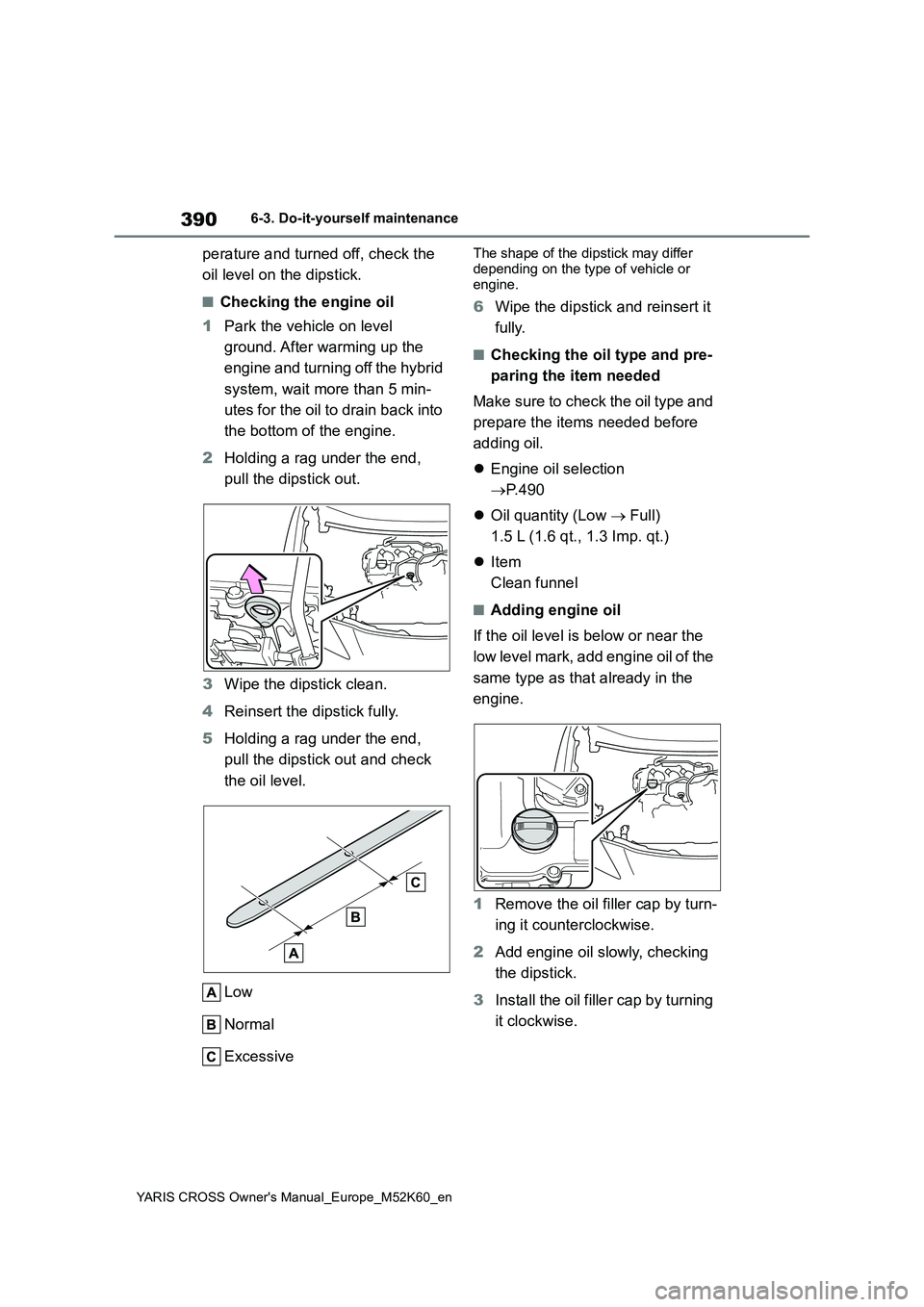

390
YARIS CROSS Owner's Manual_Europe_M52K60_en
6-3. Do-it-yourself maintenance
perature and turned off, check the
oil level on the dipstick.
■Checking the engine oil
1 Park the vehicle on level
ground. After warming up the
engine and turning off the hybrid
system, wait more than 5 min-
utes for the oil to drain back into
the bottom of the engine.
2 Holding a rag under the end,
pull the dipstick out.
3 Wipe the dipstick clean.
4 Reinsert the dipstick fully.
5 Holding a rag under the end,
pull the dipstick out and check
the oil level.
Low
Normal
Excessive
The shape of the dipstick may differ
depending on the type of vehicle or engine.
6 Wipe the dipstick and reinsert it
fully.
■Checking the oil type and pre-
paring the item needed
Make sure to check the oil type and
prepare the items needed before
adding oil.
 Engine oil selection
 P.490
 Oil quantity (Low  Full)
1.5 L (1.6 qt., 1.3 Imp. qt.)
 Item
Clean funnel
■Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of the
same type as that already in the
engine.
1 Remove the oil filler cap by turn-
ing it counterclockwise.
2 Add engine oil slowly, checking
the dipstick.
3 Install the oil filler cap by turning
it clockwise.

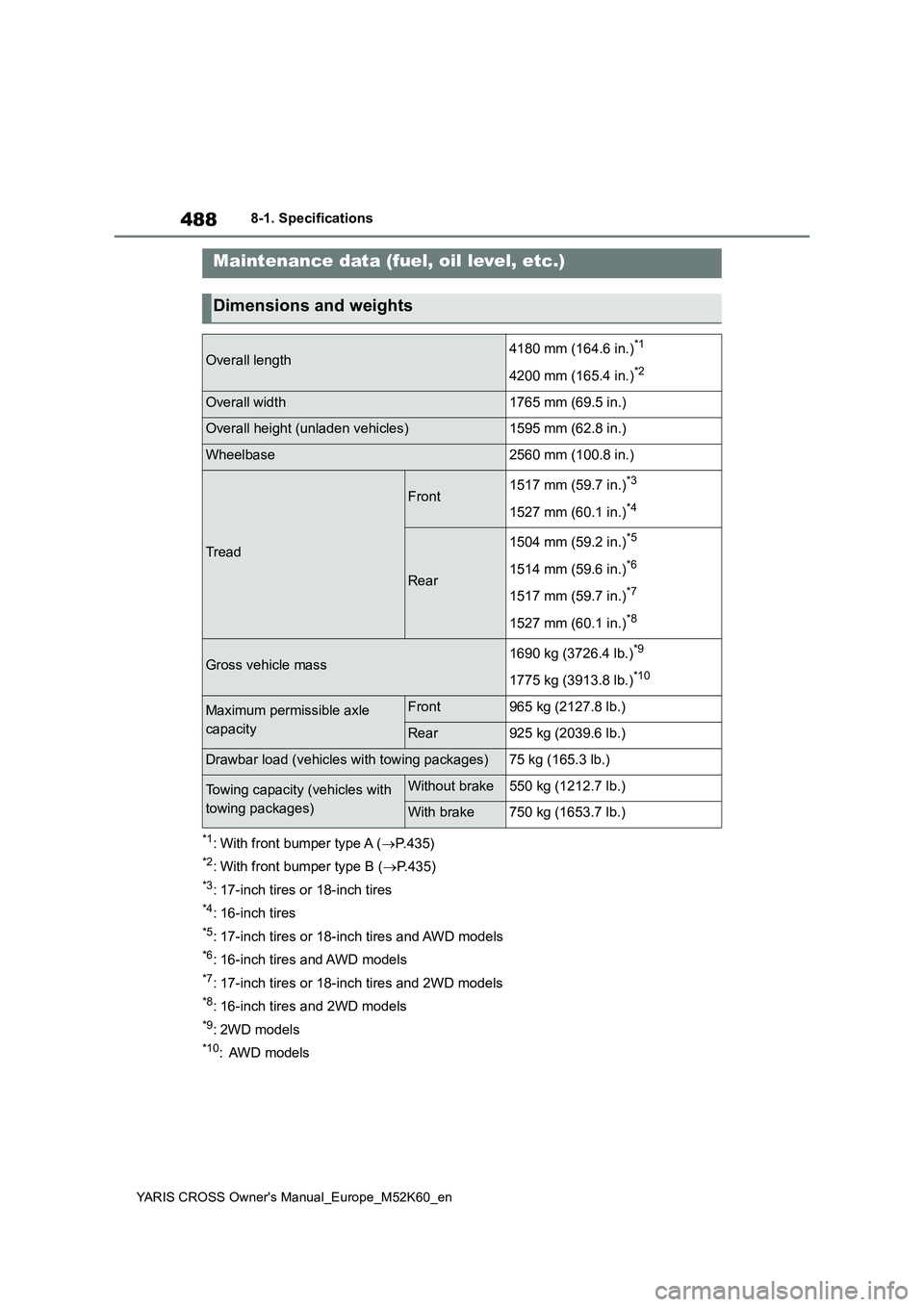

488
YARIS CROSS Owner's Manual_Europe_M52K60_en
8-1. Specifications
8-1.Spec ific ations
*1: With front bumper type A (P.435)
*2: With front bumper type B (P.435)
*3: 17-inch tires or 18-inch tires
*4: 16-inch tires
*5: 17-inch tires or 18-inch tires and AWD models
*6: 16-inch tires and AWD models
*7: 17-inch tires or 18-inch tires and 2WD models
*8: 16-inch tires and 2WD models
*9: 2WD models
*10: AWD models
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length4180 mm (164.6 in.)*1
4200 mm (165.4 in.)*2
Overall width1765 mm (69.5 in.)
Overall height (unladen vehicles)1595 mm (62.8 in.)
Wheelbase2560 mm (100.8 in.)
Tread
Front1517 mm (59.7 in.)*3
1527 mm (60.1 in.)*4
Rear
1504 mm (59.2 in.)*5
1514 mm (59.6 in.)*6
1517 mm (59.7 in.)*7
1527 mm (60.1 in.)*8
Gross vehicle mass1690 kg (3726.4 lb.)*9
1775 kg (3913.8 lb.)*10
Maximum permissible axle
capacity
Front965 kg (2127.8 lb.)
Rear925 kg (2039.6 lb.)
Drawbar load (vehicles with towing packages)75 kg (165.3 lb.)
Towing capacity (vehicles with
towing packages)
Without brake550 kg (1212.7 lb.)
With brake750 kg (1653.7 lb.)

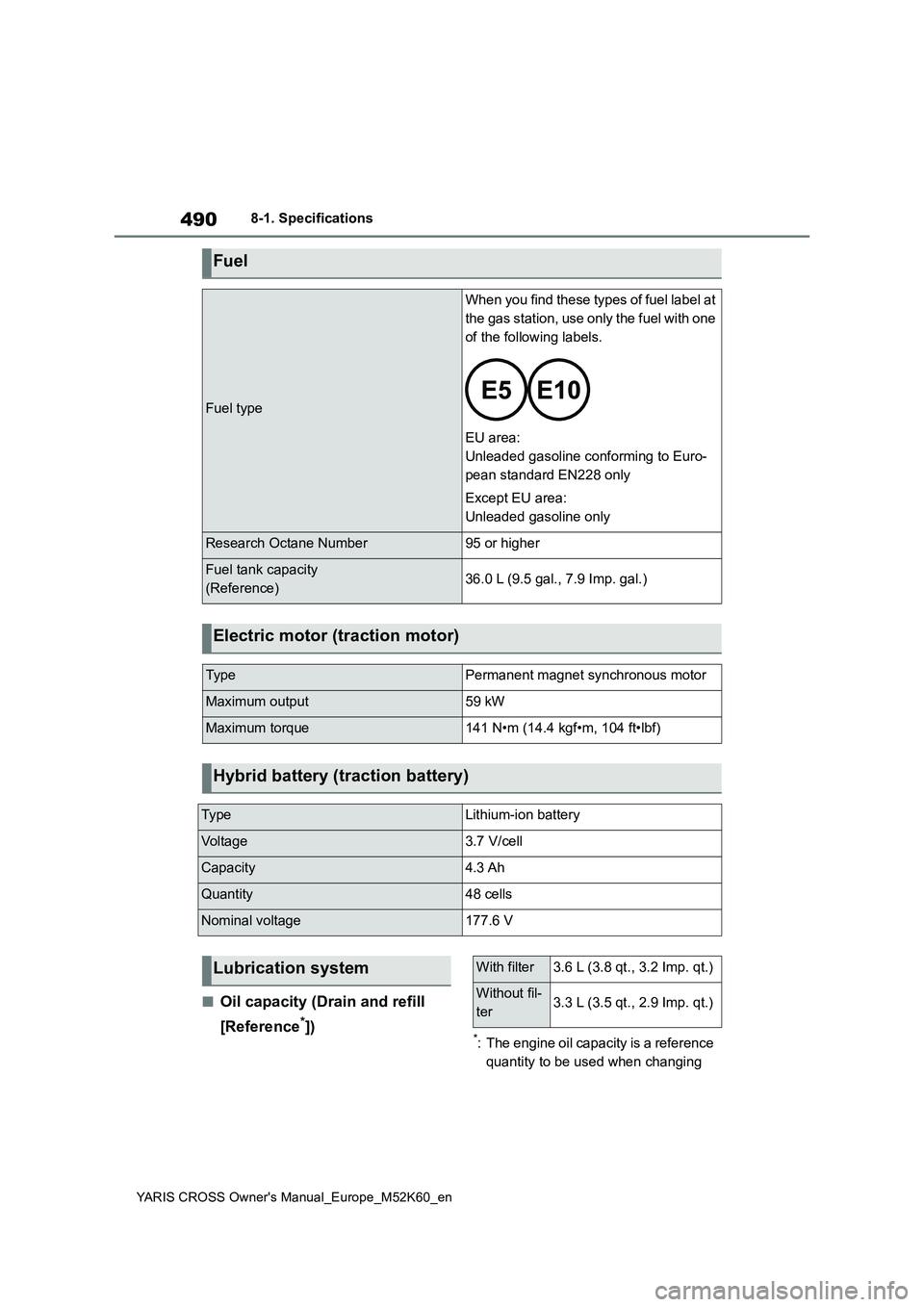

490
YARIS CROSS Owner's Manual_Europe_M52K60_en
8-1. Specifications
■Oil capacity (Drain and refill
[Reference*])*: The engine oil capacity is a reference
quantity to be used when changing
Fuel
Fuel type
When you find these types of fuel label at
the gas station, use only the fuel with one
of the following labels.
EU area:
Unleaded gasoline conforming to Euro-
pean standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity
(Reference)36.0 L (9.5 gal., 7.9 Imp. gal.)
Electric motor (traction motor)
Typ ePermanent magnet synchronous motor
Maximum output59 kW
Maximum torque141 N•m (14.4 kgf•m, 104 ft•lbf)
Hybrid battery (traction battery)
Ty p eLithium-ion battery
Vol t ag e3.7 V/cell
Capacity4.3 Ah
Quantity48 cells
Nominal voltage177.6 V
Lubrication systemWith filter3.6 L (3.8 qt., 3.2 Imp. qt.)
Without fil-
ter3.3 L (3.5 qt., 2.9 Imp. qt.)

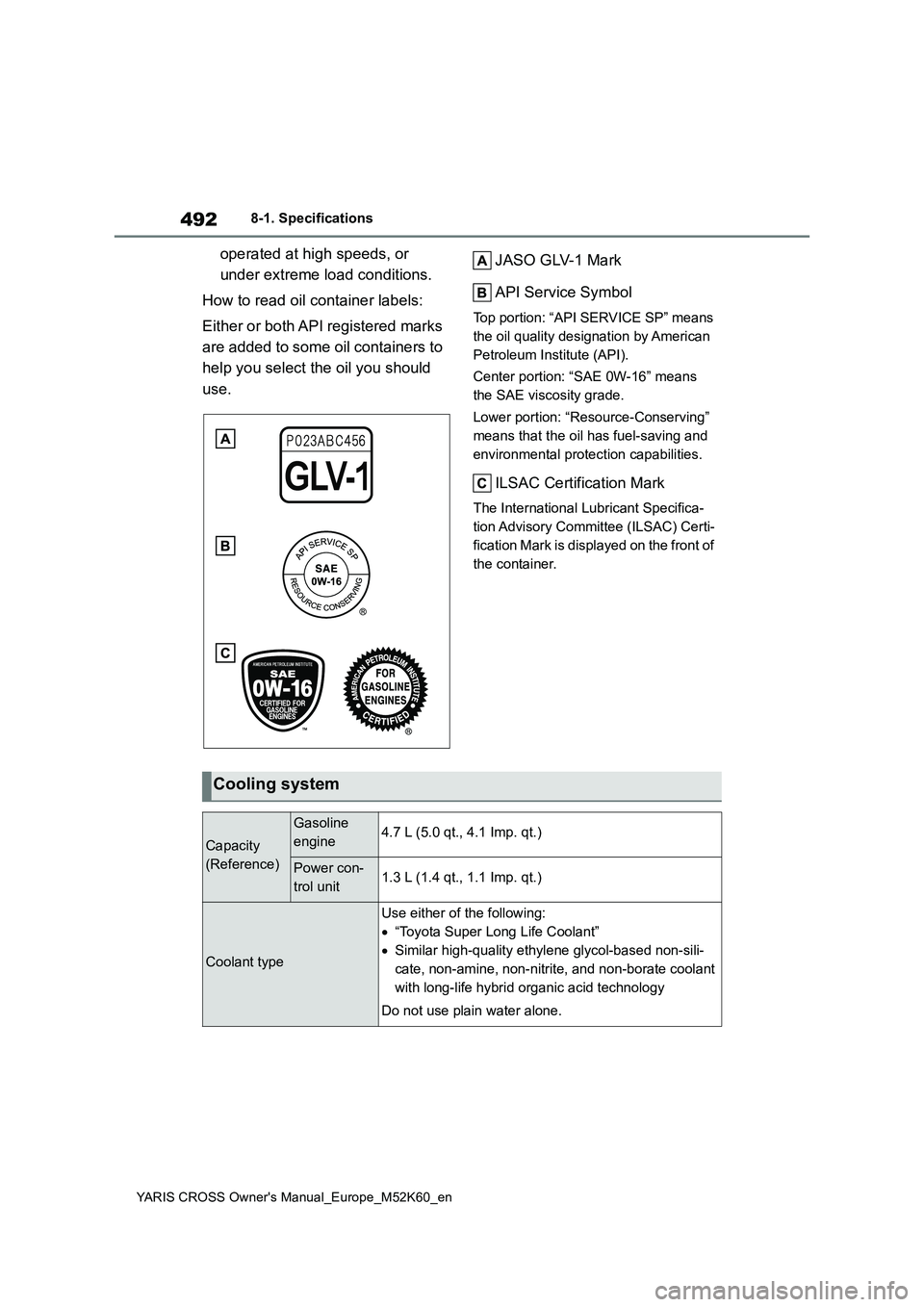

492
YARIS CROSS Owner's Manual_Europe_M52K60_en
8-1. Specifications
operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks
are added to some oil containers to
help you select the oil you should
use.
JASO GLV-1 Mark
API Service Symbol
Top portion: “API SERVICE SP” means
the oil quality designation by American
Petroleum Institute (API).
Center portion: “SAE 0W-16” means
the SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and
environmental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specifica-
tion Advisory Committee (ILSAC) Certi-
f ic at i o n M ar k i s d is pl a ye d on t h e f r o nt o f
the container.
Cooling system
Capacity
(Reference)
Gasoline
engine4.7 L (5.0 qt., 4.1 Imp. qt.)
Power con-
trol unit1.3 L (1.4 qt., 1.1 Imp. qt.)
Coolant type
Use either of the following:
 “Toyota Super Long Life Coolant”
 Similar high-quality ethylene glycol-based non-sili-
cate, non-amine, non-nitrite, and non-borate coolant
with long-life hybrid organic acid technology
Do not use plain water alone.

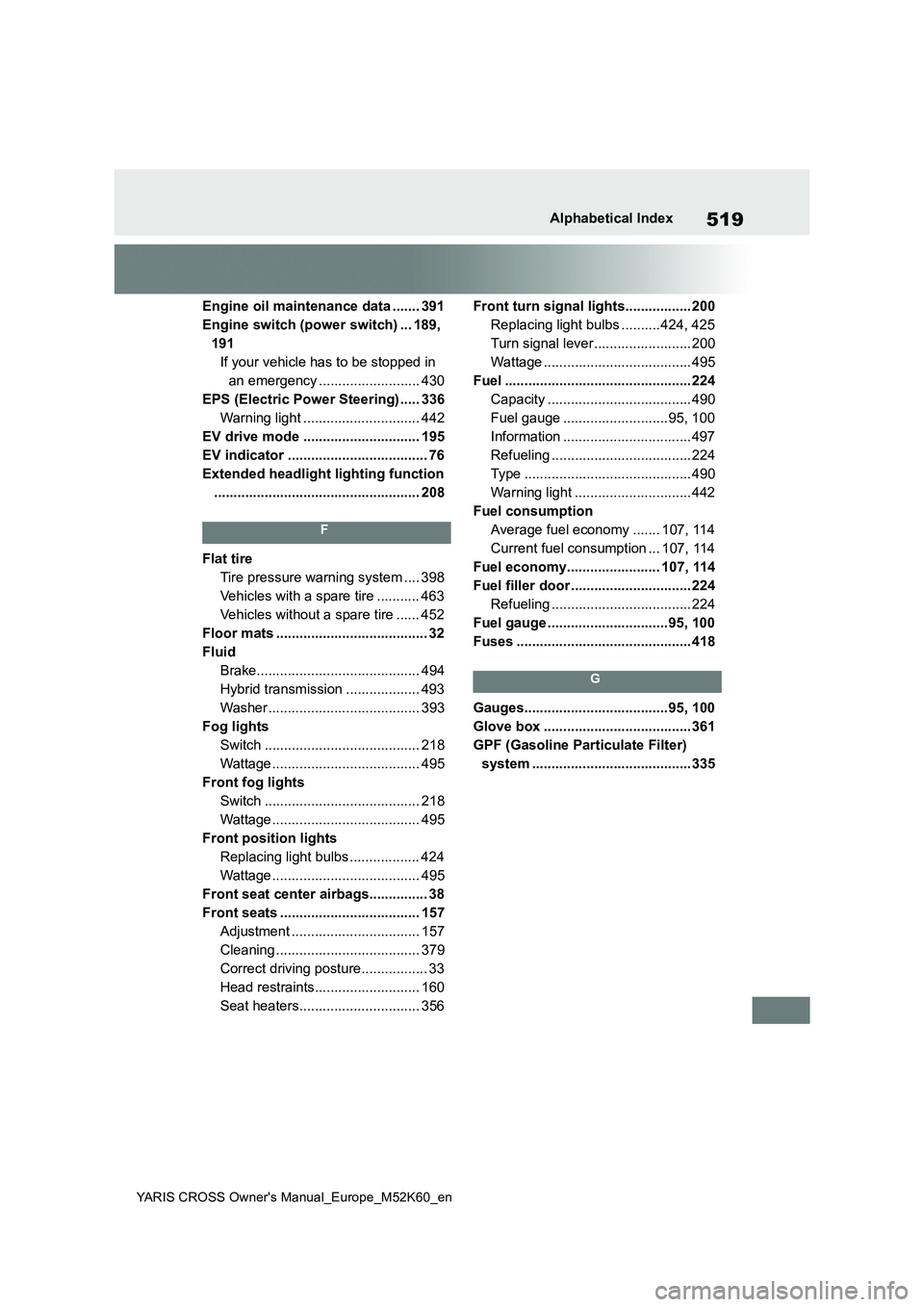

519
YARIS CROSS Owner's Manual_Europe_M52K60_en
Alphabetical Index
Engine oil maintenance data ....... 391
Engine switch (power switch) ... 189,
191
If your vehicle has to be stopped in
an emergency .......................... 430
EPS (Electric Power Steering) ..... 336
Warning light .............................. 442
EV drive mode .............................. 195
EV indicator .................................... 76
Extended headlight lighting function
..................................................... 208
F
Flat tire
Tire pressure warning system .... 398
Vehicles with a spare tire ........... 463
Vehicles without a spare tire ...... 452
Floor mats ....................................... 32
Fluid
Brake.......................................... 494
Hybrid transmission ................... 493
Washer ....................................... 393
Fog lights
Switch ........................................ 218
Wattage ...................................... 495
Front fog lights
Switch ........................................ 218
Wattage ...................................... 495
Front position lights
Replacing light bulbs .................. 424
Wattage ...................................... 495
Front seat center airbags............... 38
Front seats .................................... 157
Adjustment ................................. 157
Cleaning ..................................... 379
Correct driving posture................. 33
Head restraints........................... 160
Seat heaters............................... 356
Front turn signal lights................. 200
Replacing light bulbs ..........424, 425
Turn signal lever ......................... 200
Wattage ...................................... 495
Fuel ................................................ 224
Capacity ..................................... 490
Fuel gauge ...........................95, 100
Information ................................. 497
Refueling .................................... 224
Type ........................................... 490
Warning light .............................. 442
Fuel consumption
Average fuel economy ....... 107, 114
Current fuel consumption ... 107, 114
Fuel economy........................ 107, 114
Fuel filler door ............................... 224
Refueling .................................... 224
Fuel gauge ...............................95, 100
Fuses ............................................. 418
G
Gauges.....................................95, 100
Glove box ...................................... 361
GPF (Gasoline Particulate Filter)
system ......................................... 335

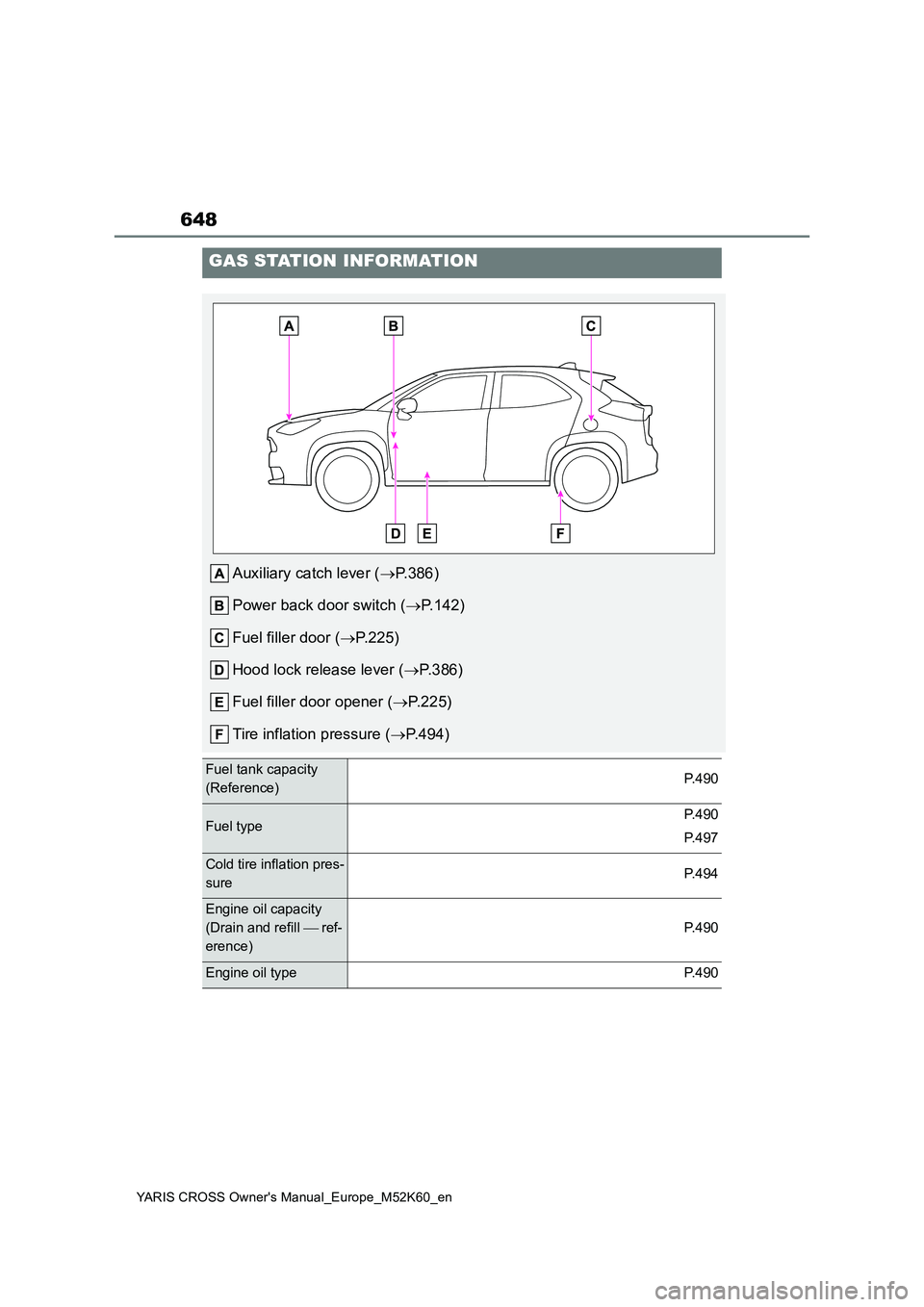

648
YARIS CROSS Owner's Manual_Europe_M52K60_en
GAS STATION INFORMATION
Auxiliary catch lever (P.386)
Power back door switch ( P.142)
Fuel filler door ( P.225)
Hood lock release lever ( P.386)
Fuel filler door opener ( P.225)
Tire inflation pressure ( P.494)
Fuel tank capacity
(Reference)P. 4 9 0
Fuel typeP. 4 9 0
P. 4 9 7
Cold tire inflation pres-
sureP. 4 9 4
Engine oil capacity
(Drain and refill  ref-
erence)
P. 4 9 0
Engine oil typeP. 4 9 0
