493
8
YARIS CROSS Owner's Manual_Europe_M52K60_en

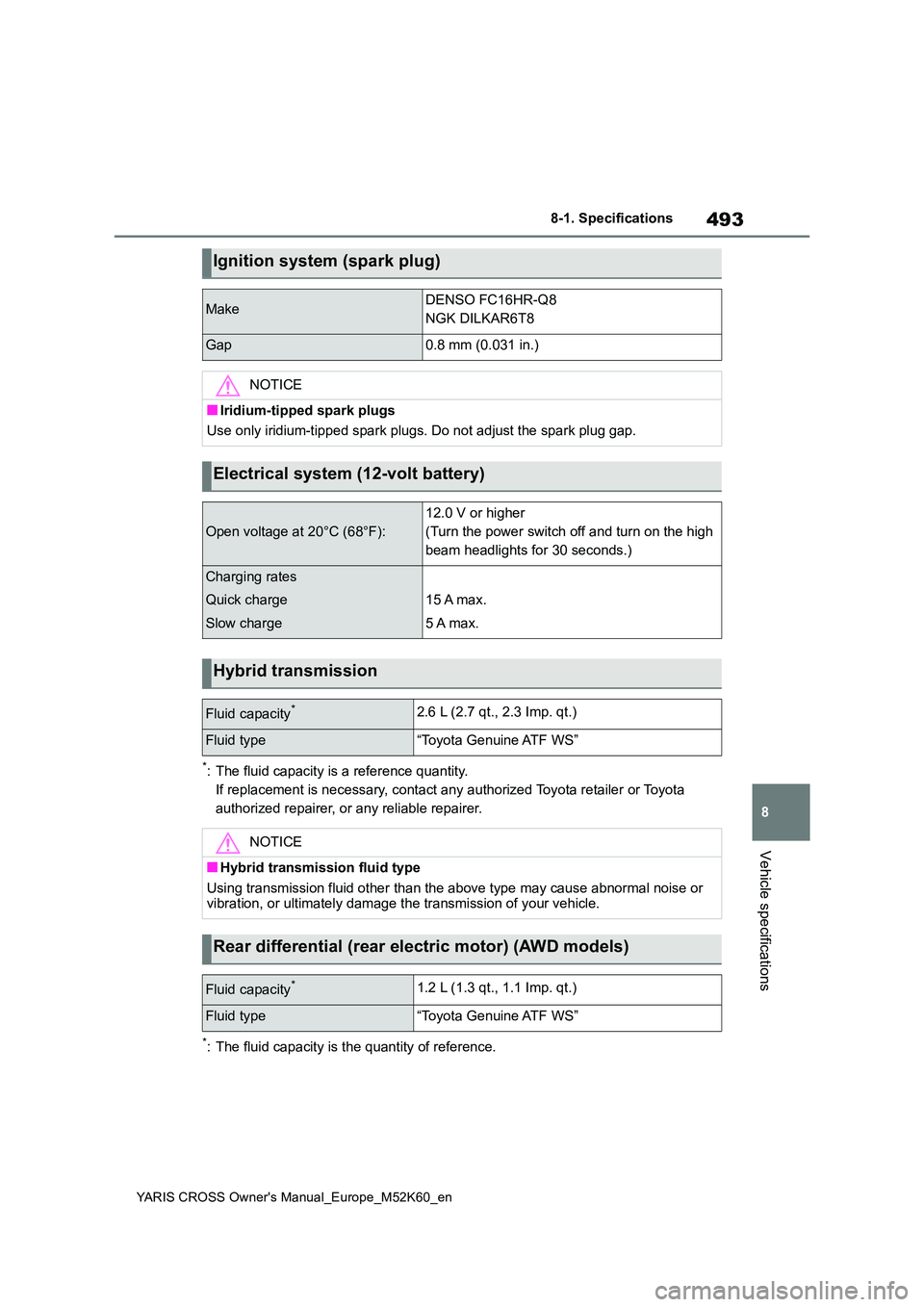

8-1. Specifications
Vehicle specifications
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Toyota reta iler or Toyota
authorized repairer, or any reliable repairer.
*: The fluid capacity is the quantity of reference.
Ignition system (spark plug)
MakeDENSO FC16HR-Q8
NGK DILKAR6T8
Gap0.8 mm (0.031 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark pl ug gap.
Electrical system (12-volt battery)
Open voltage at 20°C (68°F):
12.0 V or higher
(Turn the power switch off and turn on the high
beam headlights for 30 seconds.)
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.
Hybrid transmission
Fluid capacity*2.6 L (2.7 qt., 2.3 Imp. qt.)
Fluid type“Toyota Genuine ATF WS”
NOTICE
■Hybrid transmission fluid type
Using transmission fluid other than the above type may cause ab normal noise or vibration, or ultimately damage the transmission of your vehicl e.
Rear differential (rear electric motor) (AWD models)
Fluid capacity*1.2 L (1.3 qt., 1.1 Imp. qt.)
Fluid type“Toyota Genuine ATF WS”
