110
CV Owner's Manual_Europe_M52N20_en
2-1. Instrument cluster
is turned to ON or when the low
outside temperature indicator is
flashing.
■Outside temperature display
●When the ambient temperature is approximately 3°C (37°F) or lower, the
low outside temperature indicator will flash for approximately 10 seconds and the outside temperature display
will turn off. In this case, the display will be displayed again when the out-side temperature becomes approxi-
mately 5°C (41°F) or higher.
●In the following situations, the correct
outside temperature may not be dis- played, or the display may take longer than normal to change:
• When stopped, or driving at low speeds (less than 25 km/h [16 mph])• When the outside temperature has
changed suddenly (at the entrance/exit of a garage, tunnel, etc.)
●When “--” is displayed, the system may be malfunctioning. Take your vehicle to any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
*: If equipped
■Trip information
1 Press the “MENU” button.
2 Select “Info” on the “Menu”
screen.
If a screen other than “Trip information” is displayed, select “Trip information”.
Fuel consumption in the past 15
minutes
Current fuel consumption
Resetting the consumption data
Average vehicle speed since the
engine was started.
Elapsed time since the engine
was started.
Fuel consumption infor-
mation*
Fuel consumption information
can be displayed on the multi-
media system screen.
Consumption (vehicles with
7-inch/8-inch display multi-
media system)

121
3
CV Owner's Manual_Europe_M52N20_en
3-2. Opening, closing and locking the doors
Before driving
entry function or wireless remote control
is made when a door is not fully closed, a buzzer will sound continuously for 5 seconds. Fully close the door to stop the
buzzer, and lock the doors again.
■Alarm (if equipped)
Locking the doors will set the alarm sys- tem. ( P.77)
■Conditions affecting the operation
of the smart entry & start system or wireless remote control
Vehicles without a smart entry & start
system
 P. 1 1 7
Vehicles with a smart entry & start
system
 P. 1 3 8
■If the smart entry & start system or the wireless remote control does
not operate properly
Vehicles without a smart entry & start system
Replace the key battery with a new one
if it is depleted. ( P.378)
Vehicles with a smart entry & start system
Use the mechanical key to lock and
unlock the doors. ( P.437)
Replace the key battery with a new one
if it is depleted. ( P.378)
■If the battery is discharged (vehi- cles with a smart entry & start sys-
tem)
The doors cannot be locked and unlocked using the entry function or
wireless remote control. Lock or unlock the doors using the mechanical key. ( P.437)
■Rear seat reminder function
●In order to remind you not to forget luggage, etc., in the rear seat, when
the engine switch is turned to OFF after any of the following conditions are met, a buzzer will sound and a
message will be displayed on the
multi-information display for approxi-
mately 6 seconds. • The engine is started within 10 min-utes after opening and closing a rear
door. • A rear door has been opened and closed after the engine was started.
However, if a rear door is opened and
then closed within approximately 2 sec-
onds, the rear seat reminder function
may not operate.
●The rear seat reminder function deter- mines that luggage, etc., has been
placed in a rear seat based on open- ing and closing of a rear door. There-fore, depending on the situation, the
rear seat reminder function may not operate and you may still forget lug-gage, etc., in the rear seat, or it may
operate unnecessarily.
●The rear seat reminder function can
be enabled/disabled. ( P.457)
■Customization
Some functions can be customized. ( P.457)
WARNING
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant being thrown out of the vehicle, resulting in
death or serious injury.
●Ensure that all doors are properly
closed and locked.
●Do not pull the inside door handle
while driving. Be especially careful of the front doors, as the doors may be opened
even if the inside lock buttons are in the locked position.
●Set the rear door child-protector locks when children are seated in the rear seats.

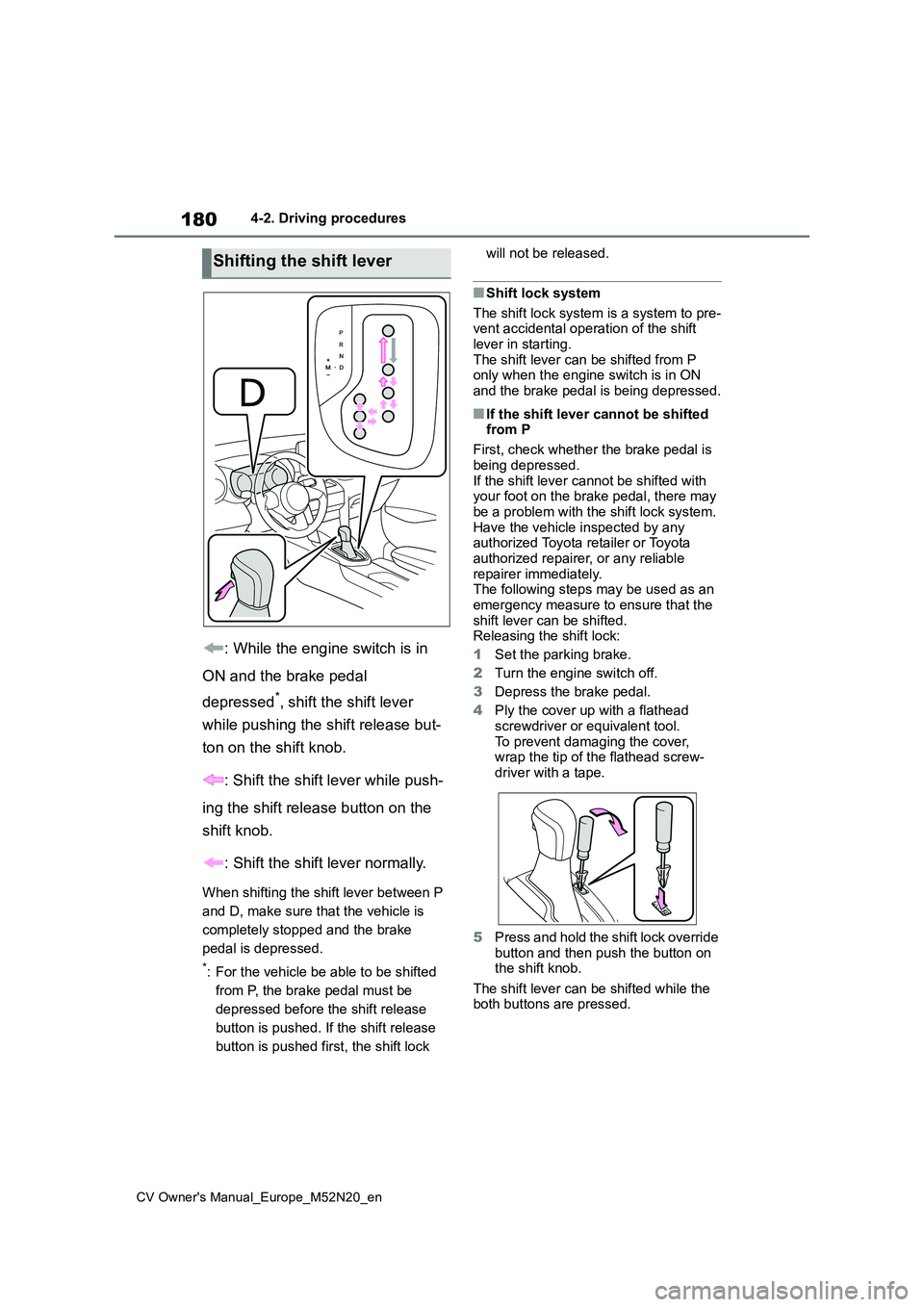

180
CV Owner's Manual_Europe_M52N20_en
4-2. Driving procedures
: While the engine switch is in
ON and the brake pedal
depressed*, shift the shift lever
while pushing the shift release but-
ton on the shift knob.
: Shift the shift lever while push-
ing the shift release button on the
shift knob.
: Shift the shift lever normally.
When shifting the shift lever between P
and D, make sure that the vehicle is
completely stopped and the brake
pedal is depressed.
*: For the vehicle be able to be shifted
from P, the brake pedal must be
depressed before the shift release
button is pushed. If the shift release
button is pushed first, the shift lock
will not be released.
■Shift lock system
The shift lock system is a system to pre- vent accidental operation of the shift
lever in starting. The shift lever can be shifted from P only when the engine switch is in ON
and the brake pedal is being depressed.
■If the shift lever cannot be shifted from P
First, check whether the brake pedal is
being depressed. If the shift lever cannot be shifted with your foot on the brake pedal, there may
be a problem with the shift lock system. Have the vehicle inspected by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer immediately.The following steps may be used as an
emergency measure to ensure that the shift lever can be shifted.Releasing the shift lock:
1 Set the parking brake.
2 Turn the engine switch off.
3 Depress the brake pedal.
4 Ply the cover up with a flathead
screwdriver or equivalent tool. To prevent damaging the cover, wrap the tip of the flathead screw-
driver with a tape.
5 Press and hold the shift lock override button and then push the button on the shift knob.
The shift lever can be shifted while the both buttons are pressed.
Shifting the shift lever

181
4
CV Owner's Manual_Europe_M52N20_en
4-2. Driving procedures
Driving
P. 2 9 9
To drive using temporary shift
range selection, operate the “-” or
“+” paddle shift switch.
When the “-” paddle shift switch is
operated, the gear step switches to
a range that enables engine brak-
ing force that is suitable to driving
conditions. When the “+” paddle
shift switch is operated, the gear
step switches to a step that is one
step higher than the current step.
Changing the gear step allows
restriction of the highest gear step,
preventing unnecessary upshifting
and enabling the level of engine
braking force to be selected.
1 Upshifting
2 Downshifting
The selected gear step, from D1 to
D10, will be displayed on the multi-
information display.
■Gear step functions
●10 levels of accelerating force and engine braking can be selected.
●A lower gear step will provide greater engine braking force than a higher
gear step, and the engine speed will also increase.
■Deactivation of temporary 10-speed Sport Sequential Shiftmatic mode
In the following situations, temporary 10- speed Sport Sequential Shiftmatic mode will be deactivated:
●When the vehicle is stopped
●If the accelerator pedal is depressed continuously for more than a certain amount of time while in one gear step
●If the accelerator pedal is depressed
abruptly and heavily
●When the shift lever is shifted to a
position other than D
●When the “+” paddle shift switch is
operated for a certain amount of time continuously
■Downshifting restriction warning buzzer
To help ensure safety and driving perfor-
WARNING
■To prevent an accident when releasing the shift lock
Before pressing the shift lock override button, make sure to set the parking brake and depress the brake pedal.
If the accelerator pedal is accidentally depressed instead of the brake pedal when the shift lock override button is
pressed and the shift lever is shifted out of P, the vehicle may suddenly start, possibly leading to an accident
resulting in death or serious injury.
Selecting the driving mode
Selecting gear steps in the D
position

190
CV Owner's Manual_Europe_M52N20_en
4-2. Driving procedures
Turn the brake hold system on
The brake hold standby indicator
(green) comes on. While the system
is holding the brake, the brake hold
operated indicator (yellow) comes
on.
■Brake hold system operating con- ditions
The brake hold system cannot be turned on in the following conditions:
●The driver’s door is not closed.
●The driver is not wearing the seat belt.
●The parking brake is engaged.
If any of the conditions above are
detected when the brake hold system is enabled, the system will turn off and the brake hold standby indicator light will go
off. In addition, if any of the conditions are detected while the system is holding the brake, a warning buzzer will sound
and a message will be shown on the multi-information display. The parking brake will then be set automatically.
■Brake hold function
●If the brake pedal is left released for a period of about 3 minutes after the
system has started holding the brake, the parking brake will be set automati-cally. In this case, a warning buzzer
sounds and a message is shown on the multi-information display.
●To turn the system off while the sys-tem is holding the brake, firmly
depress the brake pedal and press the button again.
●The brake hold function may not hold the vehicle when the vehicle is on a steep incline. In this situation, it may
be necessary for the driver to apply the brakes. A warning buzzer will sound and the multi-information dis-
play will inform the driver of this situa- tion. If a warning message is shown
Brake Hold
 Vehicles with Multidrive:
The brake hold system keeps
the brake applied when the
shift lever is in D, M or N with
the system on and the brake
pedal has been depressed to
stop the vehicle. The system
releases the brake when the
accelerator pedal is depressed
with the shift lever in D or M to
allow smooth start off.
 Vehicles with manual transmis-
sion:
The brake hold system keeps
the brake applied when the
shift lever is not in R with the
s y ste m o n an d th e b ra ke ped al
has been depressed to stop
the vehicle. The system
releases the brake when the
accelerator pedal is depressed
with the shift lever in forward to
allow smooth start off.
Enabling the system

438
CV Owner's Manual_Europe_M52N20_en
7-2. Steps to take in an emergency
1Vehicles with a Multidrive:
Ensure that the shift lever is in P
and depress the brake pedal.
Vehicles with a manual trans-
mission: Shift the shift lever to N
and depress the clutch pedal.
2 Touch the area behind the lock
button and unlock button on the
electronic key to the engine
switch.
When the electronic key is detected, a
buzzer sounds and the engine switch will turn to ON.
When the smart entry & start system is
deactivated in customization setting, the engine switch will turn to ACC.
3 Firmly depress the brake pedal
(Multidrive) or clutch pedal
(manual transmission) and
check that is shown on the
multi-information display.
4 Press the engine switch shortly
and firmly.
In the event that the engine still
cannot be started, contact any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
■Stopping the engine
Shift the shift lever to P (Multidrive) or N
(manual transmission) and press the engine switch as you normally do when stopping the engine.
■Electronic key battery
As the above procedure is a temporary measure, it is recommended that the electronic key battery be replaced
immediately when the battery is depleted. ( P.378)
■Alarm (if equipped)
Using the mechanical key to lock the
doors will not set the alarm system. If a door is unlocked using the mechani-cal key when the alarm system is set,
the alarm may be triggered. ( P. 7 7 )
■Changing engine switch modes
Release the brake pedal (Multidrive) or clutch pedal (manual transmission) and
press the engine switch in step 3 above. The engine does not start and modes will be changed each time the switch is
pressed. ( P.177)
WARNING
■When using the mechanical key and operating the power win-
dows
Operate the power window after checking to make sure that there is no
possibility of any passenger having any of their body parts caught in the window.
Also, do not allow children to operate the mechanical key. It is possible for children and other passengers to get
caught in the power window.
Starting the engine

482
CV Owner's Manual_Europe_M52N20_en
Alphabetical Index
Secondary Collision Brake .......... 301
Sensor
Automatic headlight system ....... 193
Automatic High Beam system .... 201
BSM (Blind Spot Monitor) .......... 272
Inside rear view mirror ............... 150
LTA (Lane Tracing Assist) .......... 228
Parking Support Brake function
(static objects) ......................... 277
Radar sensor ..................... 212, 273
Rain-sensing windshield wipers . 206
RCTA (Rear Crossing Traffic Alert)
................................................. 284
Toyota parking assist-sensor ..... 277
Shift lever
If the shift lever cannot be shifted
from P ...................................... 180
Manual transmission .................. 183
Multidrive.................................... 179
Shift lock system .......................... 180
Side airbags .................................... 38
Side mirrors
Adjustment ................................. 150
BSM (Blind Spot Monitor) .......... 272
Folding ....................................... 151
RCTA (Rear Crossing Traffic Alert)
................................................. 284
Side turn signal lights .................. 186
Replacing light bulbs .................. 387
Turn signal lever ........................ 186
Side windows ................................ 153
Smart entry & start system .......... 136
Antenna location ........................ 136
Entry functions ................... 119, 125
Starting the engine ..................... 174
Snow tires ..................................... 307
Spare tire ....................................... 426
Inflation pressure ....................... 454
Storage location ......................... 427
Spark plug ..................................... 452
Specifications ............................... 448
Speed limiter ................................. 261
Warning message ...................... 262
Speedometer ............................. 85, 89
Steering lock
Column lock release........... 173, 175
Steering lock system warning mes-
sage ......................................... 175
Steering wheel
Adjustment ................................. 148
Audio switches ........................... 338
Heated steering wheel ............... 322
Meter control switches .........95, 101
Stop & Start system...................... 267
Function ..................................... 267
System information display ..99, 105
Warning light .............................. 407
Stop & Start system information dis-
play ........................................99, 105
Stop lights
Emergency brake signal............. 301
Replacing light bulbs ..................387
Storage features ........................... 326
Stuck
If the vehicle becomes stuck ...... 444
Sun visors ..................................... 337
Switches
Activating the Adaptive High-beam
System ..................................... 198
Airbag manual on-off switch ......... 47
Audio remote control switches ... 338
Automatic High Beam system .... 201
Brake Hold switch ...................... 190
Display change button............ 87, 92
Door lock switches ..................... 122
Driving mode select switch......... 299
Dynamic radar cruise control switch
................................................. 250
Dynamic radar cruise control with
full-speed range switch ............238
Emergency flashers switch ........ 394
Engine switch .....................173, 174

483
CV Owner's Manual_Europe_M52N20_en
Alphabetical Index
Heated steering wheel switch .... 322
Ignition switch .................... 173, 174
Light switches ............................ 192
LTA (Lane-Tracing Assist) switch233
Meter control switches ......... 95, 101
Outside rear view mirror switches
................................................. 150
Paddle shift switches ................. 181
Parking brake switch .................. 186
Power back door opener switch . 127
Power door lock switch .............. 122
Power window switches ............. 153
Rear window and outside rear view
mirror defoggers switch ........... 316
Seat heater switches.................. 322
“SOS” button ................................ 65
Speed limiter switch ................... 261
Stop & Start cancel switch ......... 268
Vehicle-to-vehicle distance switch
................................................. 250
VSC OFF switch ........................ 302
Window lock switch .................... 155
Windshield wiper and washer switch
................................................. 205
Windshield wiper de-icer switch314,
320
T
Tachometer ............................... 85, 89
Tail lights
Light switch ................................ 192
Replacing light bulbs .................. 387
Theft deterrent system
Alarm............................................ 77
Double locking system ................. 76
Engine immobilizer system .......... 75
Tire inflation pressure .................. 373
Maintenance data ...................... 454
Warning buzzers ........................ 407
Warning light .............................. 407
Tire pressure warning system..... 364
Function ..................................... 364
Initializing ...................................367
Installing tire pressure warning
valves and transmitters ............366
Registering ID codes ..................369
Selecting wheel set .................... 371
Warning buzzers ........................ 407
Warning light .............................. 407
Tires ............................................... 363
Chains ........................................308
Checking .................................... 363
Emergency tire puncture repair kit
................................................. 415
If you have a flat tire ........... 415, 426
Inflation pressure........................ 373
Replacing ...................................426
Rotating tires .............................. 364
Size ............................................ 454
Snow tires .................................. 307
Spare tire.................................... 426
Tire pressure warning system .... 364
Warning buzzers ........................ 407
Warning light .............................. 407
Tools ......................................417, 427
Top tether anchorages ................... 60
To w i n g
Emergency towing...................... 397
Towing capacity .......................... 448
Towing eyelet .............................399
Trailer towing .............................. 167
Toyota parking assist-sensor ...... 277
Enabling/disabling the Toyota park-
ing assist-sensor ...................... 278
Function ..................................... 277
Warning lights.............................408
Warning message ...................... 279
Toyota Safety Sense ..................... 212
AHB (Automatic High Beam)...... 201
AHS (Adaptive High-beam System)
................................................. 197
Dynamic radar cruise control ..... 250
