TOYOTA YARIS HATCHBACK 2008 User Guide

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Seat adjustments-Front
Seat adjustments-Rear
Split seatNon-Split seat
Lock release button
Lock release button
Height
Rear seats (split seat)
Front seats
Rear seats
(non-split seat)
Lock release button
Seatback anglePosition
Seats-Head restraints
Seatback angle/Fold
Position
Angle

10
FEATURES/OPERATIONS

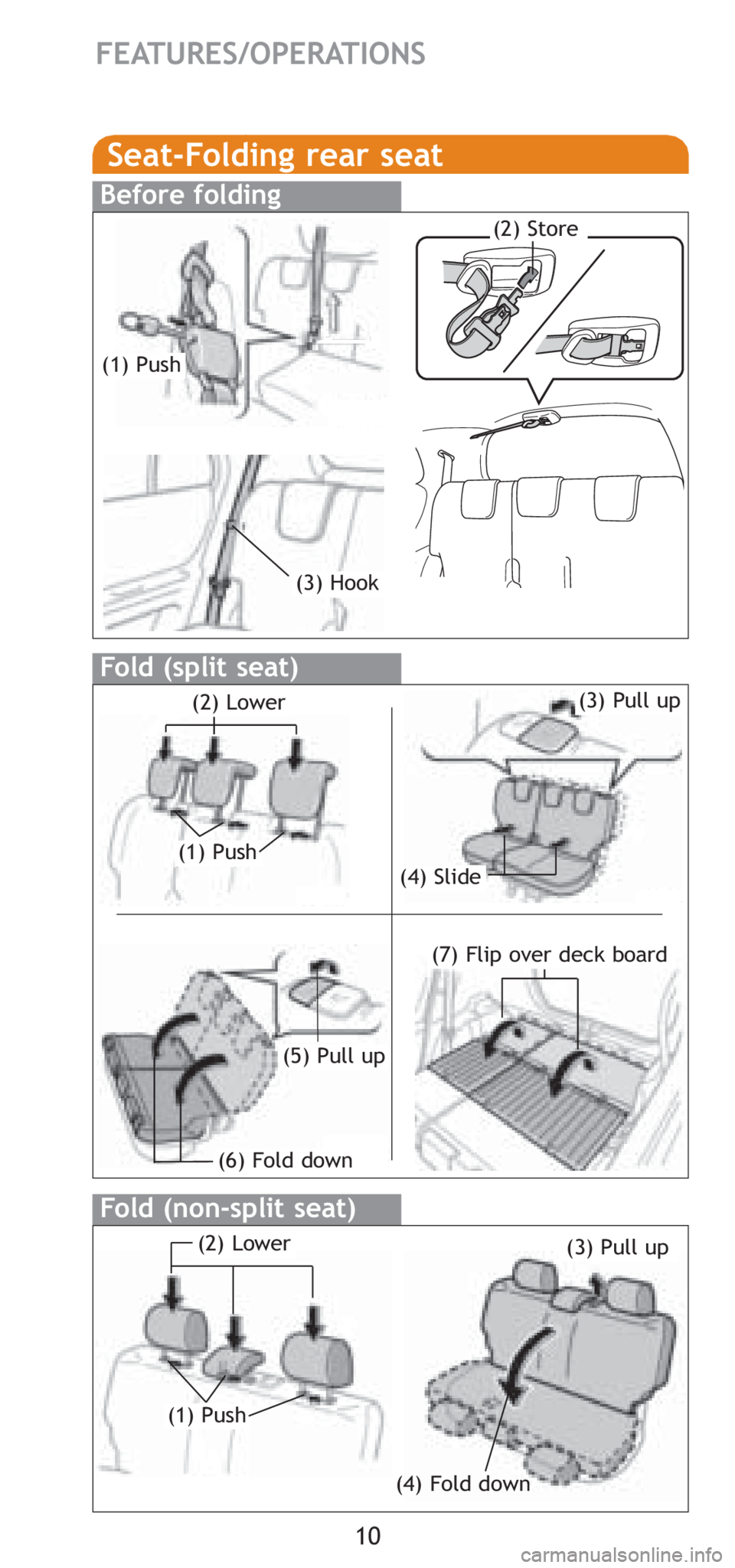

Seat-Folding rear seat
Before folding
(1) Push
(3) Hook
(2) Store
Fold (split seat)
(1) Push
(3) Pull up(2) Lower
(4) Slide
(5) Pull up
(7) Flip over deck board
Fold (non-split seat)
(1) Push
(3) Pull up(2) Lower
(4) Fold down
(6) Fold down

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Lights & turn signals
Headlights
High beam flasher
Low beam Headlights
Parking lights
High beam
-Daytime Running Light system (DRL)*
Automatically turns on the headlights at a reduced
intensity.
* If equipped
Turn signals
Right turn
Lane change
Lane change Left turn
Front fog lights (if equipped)
Tu r n
Front fog lights turn on only when the headlights are
on low beam.
Light control-Instrument panel
Brightness
control
+
-

12
FEATURES/OPERATIONS
Windows-Power (if equipped)
Window operation
Automatic operation (driver side only) Push the
switch completely down and release to fully open.
To stop window midway, lightly pull the switch up.
Window lock switch Deactivates all passenger
windows. Driver’s window remains operable.
Window
lock switchUp
Driver side
DownUp
Down
Door-Back
Open/Close
UnlockLock
Push to open
Windshield wipers & washers
Wipe
Wash and wipe
Wa s h
Rear
Front
Single wipe
Interval wipeSlow
FastPull to wash
and wipe

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

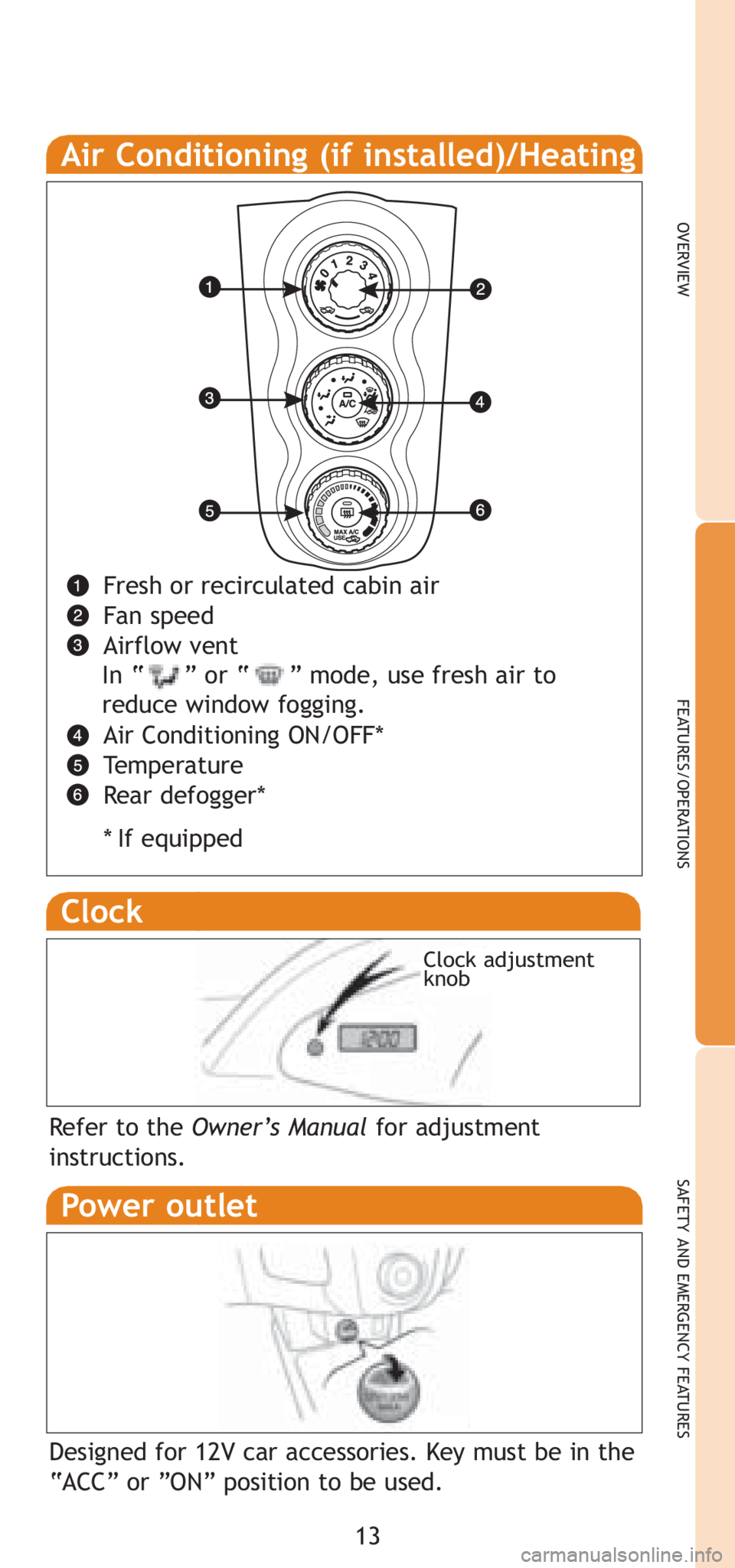

Fresh or recirculated cabin air
Fan speed
Airflow vent
Air Conditioning ON/OFF*
Temperature
Rear defogger*
* If equipped
Air Conditioning (if installed)/Heating
In “ ” or “ ” mode, use fresh air to
reduce window fogging.
Clock
Refer to the Owner’s Manual for adjustment
instructions.
Power outlet
Designed for 12V car accessories. Key must be in the
“ACC” or ”ON” position to be used.
Clock adjustment
knob

14
FEATURES/OPERATIONS

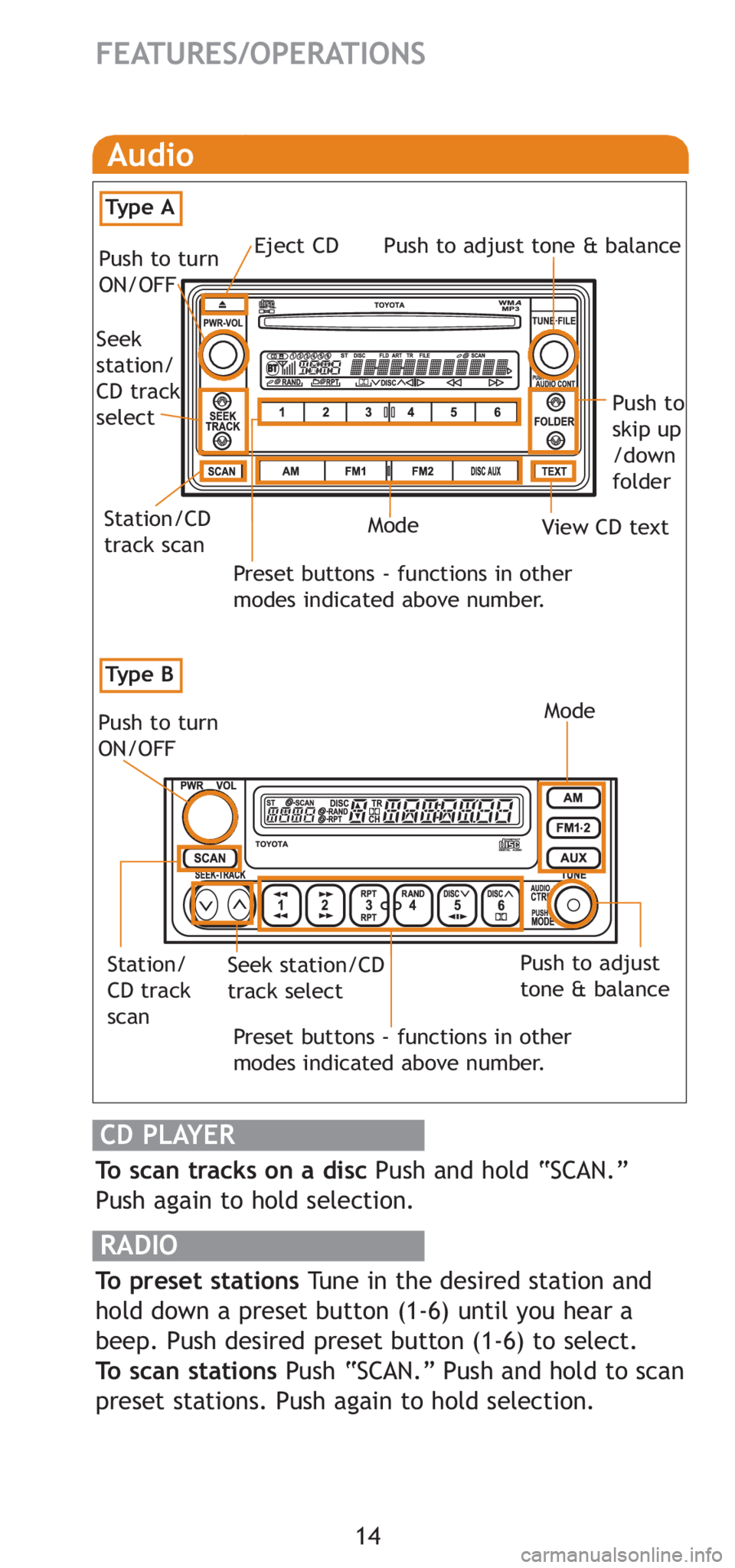

Audio
To scan tracks on a disc Push and hold “SCAN.”
Push again to hold selection.
RADIO
To preset stations Tune in the desired station and
hold down a preset button (1-6) until you hear a
beep. Push desired preset button (1-6) to select.
To scan stations Push “SCAN.” Push and hold to scan
preset stations. Push again to hold selection.
CD PLAYER
Preset buttons - functions in other
modes indicated above number.
Push to turn
ON/OFF
Push to adjust
tone & balance
Station/
CD track
scanSeek station/CD
track select
Mode
Preset buttons - functions in other
modes indicated above number.
View CD text
Push to
skip up
/down
folder
Eject CD
Push to turn
ON/OFF Push to adjust tone & balance
Mode
Seek
station/
CD track
select
Station/CD
track scan
Ty p e B
Ty p e A

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

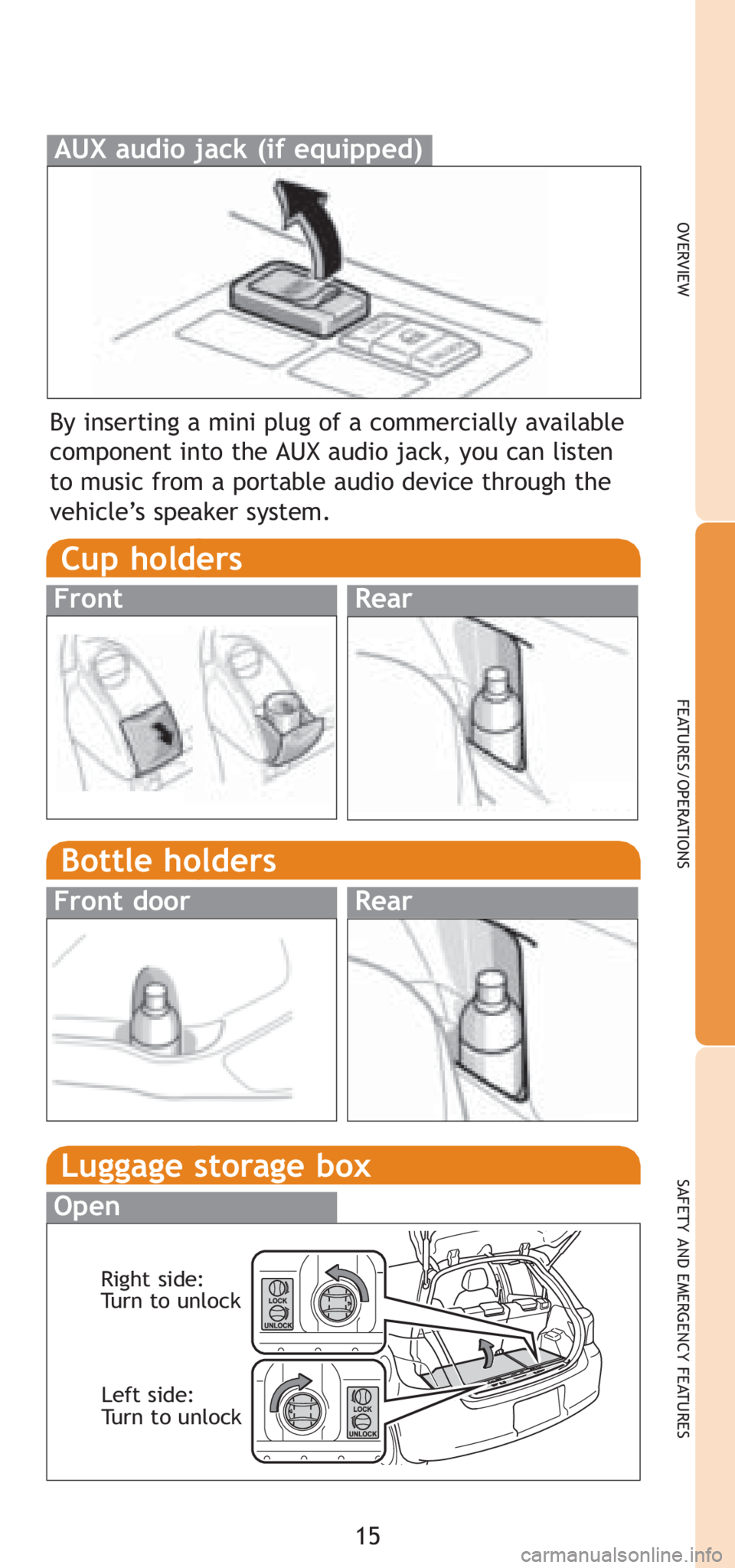

By inserting a mini plug of a commercially available
component into the AUX audio jack, you can listen
to music from a portable audio device through the
vehicle’s speaker system.
AUX audio jack (if equipped)
Cup holders
FrontRear
Bottle holders
Front doorRear
Luggage storage box
Open
Right side:
Turn to unlockLeft side:
Turn to unlock

16

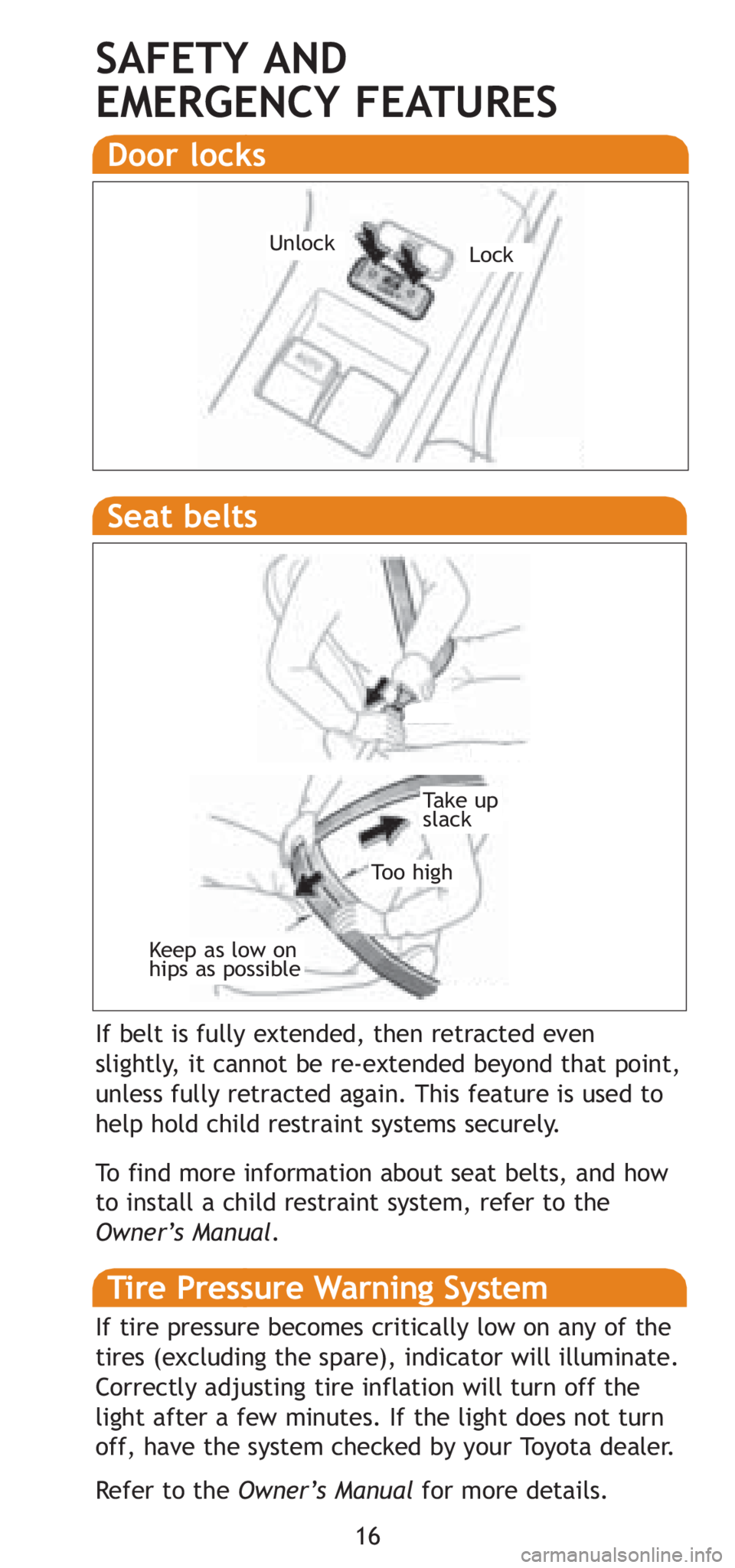

SAFETY AND
EMERGENCY FEATURES
Keep as low on
hips as possible
Take up
slack
Too high
Seat belts
If belt is fully extended, then retracted even
slightly, it cannot be re-extended beyond that point,
unless fully retracted again. This feature is used to
help hold child restraint systems securely.
To find more information about seat belts, and how
to install a child restraint system, refer to the
Owner’s Manual.
Door locks
UnlockLock
Tire Pressure Warning System
If tire pressure becomes critically low on any of the
tires (excluding the spare), indicator will illuminate.
Correctly adjusting tire inflation will turn off the
light after a few minutes. If the light does not turn
off, have the system checked by your Toyota dealer.
Refer to the Owner’s Manual for more details.

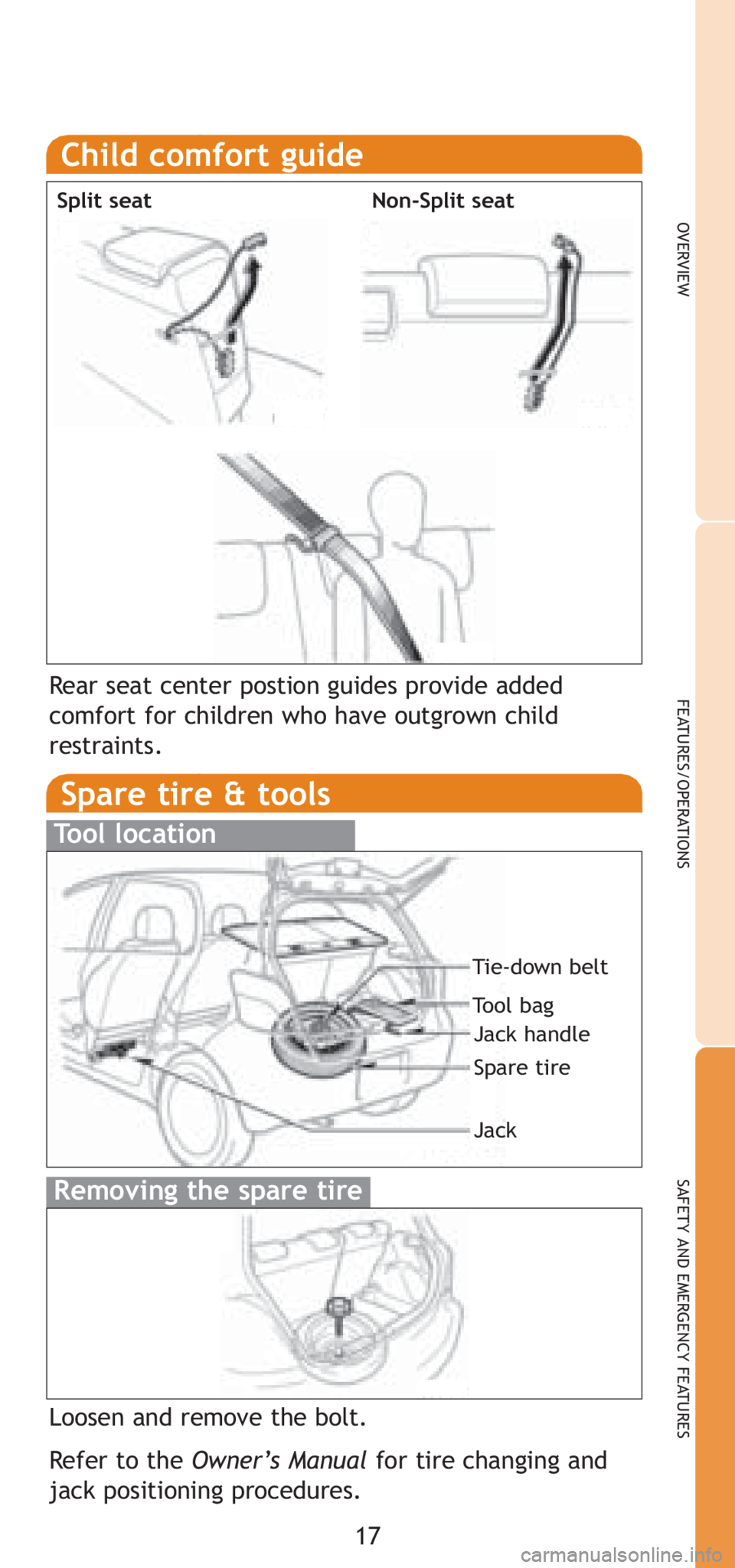

Spare tire & tools
Tool location
Removing the spare tire
17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Loosen and remove the bolt.
Refer to the Owner’s Manual for tire changing and
jack positioning procedures.
Tool bag Tie-down belt
Jack handle
Spare tire
Jack
Child comfort guide
Rear seat center postion guides provide added
comfort for children who have outgrown child
restraints.
Split seatNon-Split seat
