check engine TOYOTA YARIS HATCHBACK 2008 Owner's Guide

320 5-2. Steps to take in an emergency
CAUTION
nUsing the jack
Improper use of the jack may lead to death or injuries due to the vehicle
suddenly falling off the jack.
lDo not use the jack for any purpose other than replacing tires or install-
ing and removing tire chains.
lOnly use the jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, an d do not use other jacks for replac-
ing tires on this vehicle.
lAlways check that the jack is securely set to the jack point.
lDo not put any part of your body under the vehicle supported by a jack.
lDo not start or run the engine while your vehicle is supported by the
jack.
lDo not raise the vehicle while someone is in it.
lWhen raising the vehicle, do not put an object on or under the jack.
lDo not raise the vehicle to a hei ght greater than that required to
replace the tire.
lUse a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one
working on or near the vehicle will be injured.
nReplacing a flat tire
Observe the following precautions to reduce the risk of death or serious
injury.
lNever use oil or grease on the wheel bolts or wheel nuts.
The oil or grease can cause the wheel nuts to loosen, causing a seri-
ous accident.
Remove any oil or grease on the wheel bolts or wheel nuts.
lHave the wheel nuts tightened with a torque wrench to 76 ft·lbf (103
N·m, 10.5 kgf·m) as soon as possible after changing wheels.
Failure to follow these precautions could cause the nuts to loosen and
the wheel may fall off, which could lead to an accident causing death
or serious injury.

5
When trouble arises
329
5-2. Steps to take in an emergency
n
Avoiding a discharged battery
lTurn off the headlights and the audio system while the engine is turned
off.
l Turn off any unnecessary electrical components when the vehicle is run-
ning at a low speed for an extended period, such as in heavy traffic, etc.

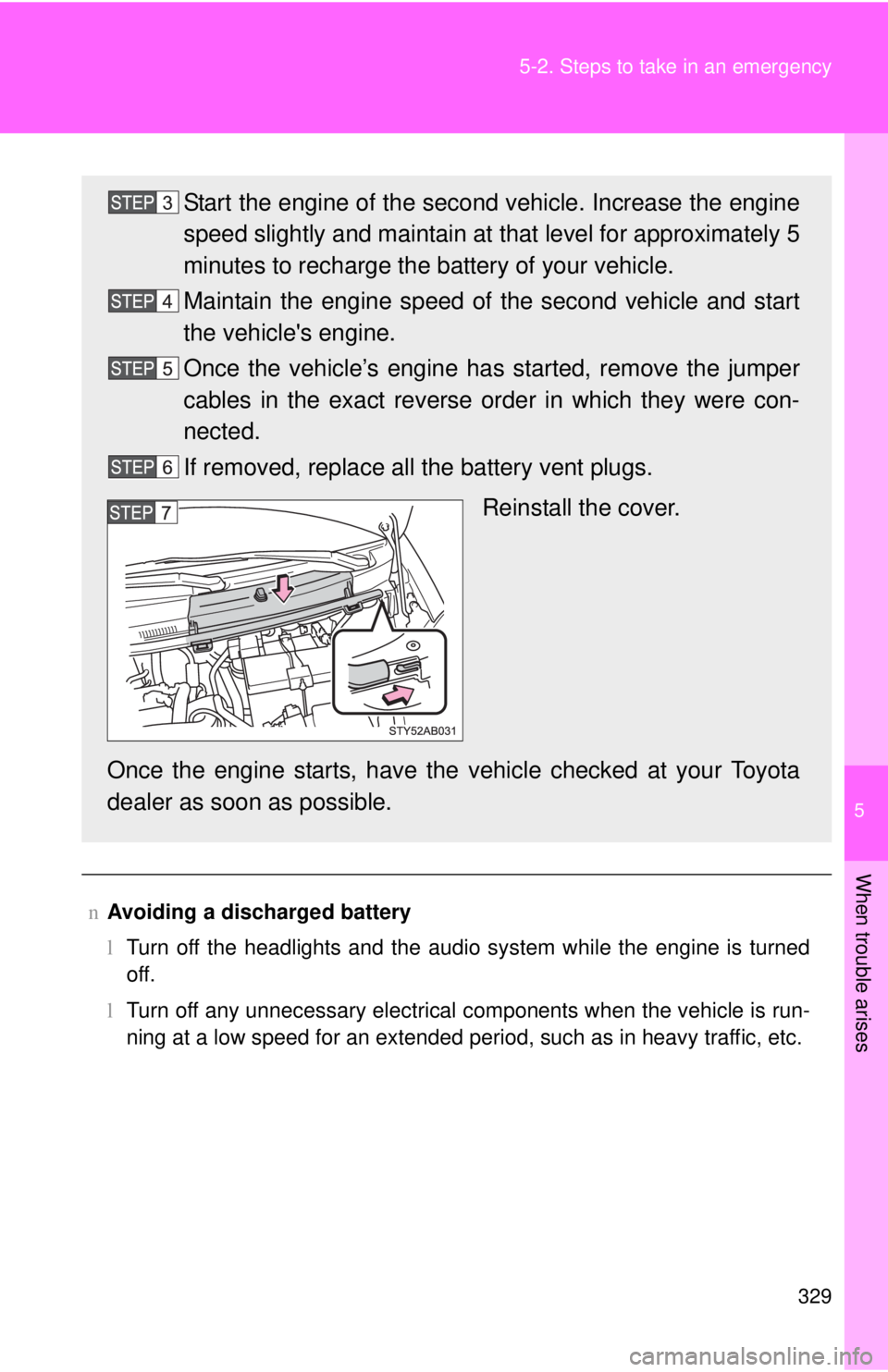

Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.
Maintain the engine speed of the second vehicle and start
the vehicle's engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
If removed, replace all the battery vent plugs.
Reinstall the cover.
Once the engine starts, have the vehicle checked at your Toyota
dealer as soon as possible.

332
5-2. Steps to take in an emergency

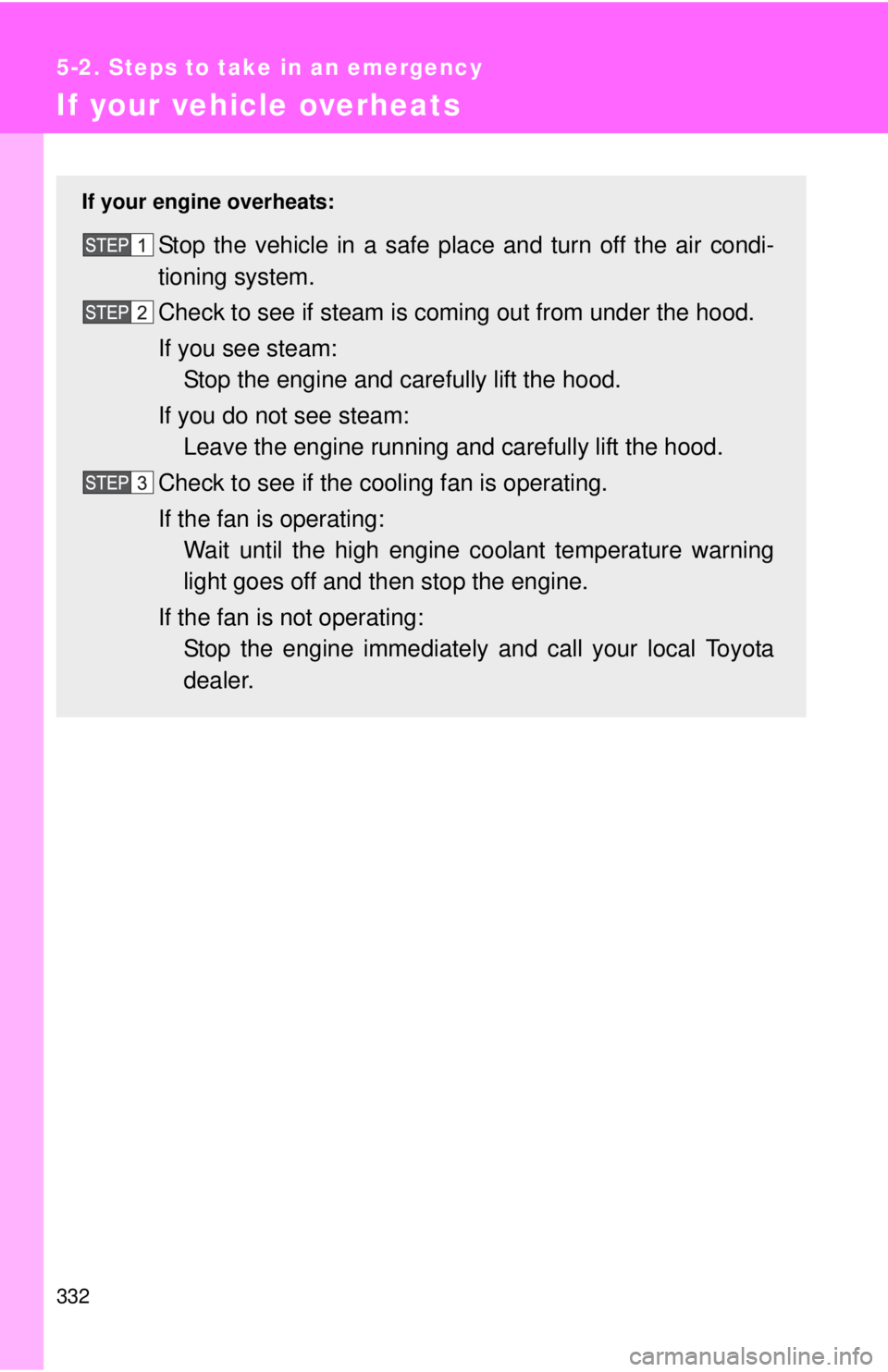

If your vehicle overheats
If your engine overheats:
Stop the vehicle in a safe place and turn off the air condi-
tioning system.
Check to see if steam is coming out from under the hood.
If you see steam: Stop the engine and carefully lift the hood.
If you do not see steam: Leave the engine running and carefully lift the hood.
Check to see if the cooling fan is operating.
If the fan is operating: Wait until the high engine coolant temperature warning
light goes off and then stop the engine.
If the fan is not operating: Stop the engine immediately and call your local Toyota
dealer.

5
When trouble arises
333
5-2. Steps to take in an emergency

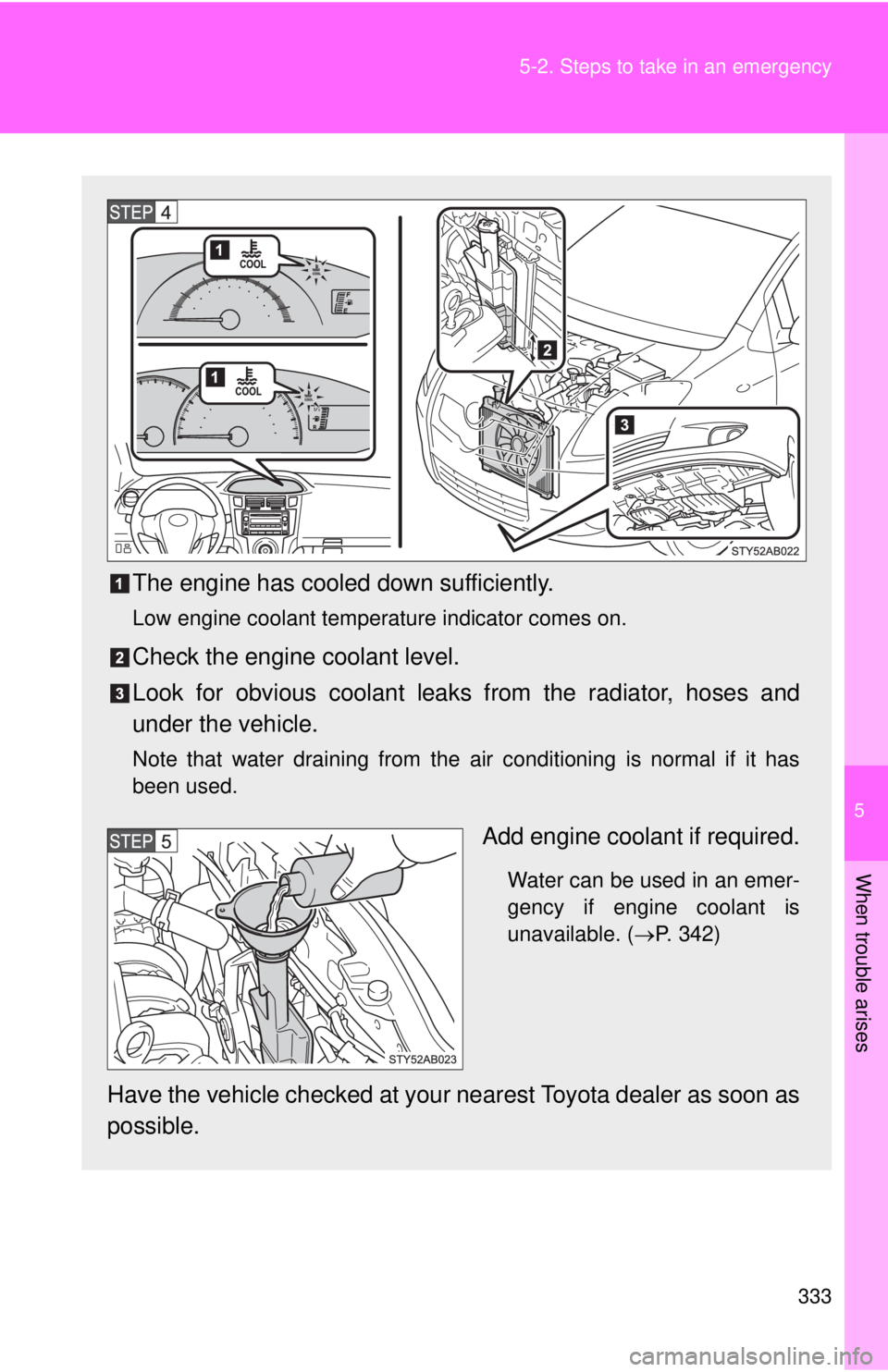

The engine has cooled down sufficiently.
Low engine coolant temperature indicator comes on.
Check the engine coolant level.
Look for obvious coolant leaks
from the radiator, hoses and
under the vehicle.
Note that water draining from the air conditioning is normal if it has
been used.
Add engine coolant if required.
Water can be used in an emer-
gency if engine coolant is
unavailable. ( →P. 342)
Have the vehicle checked at your nearest Toyota dealer as soon as
possible.

377
Alphabetical index
If the vehicle becomes
stuck................................... 335
If your vehicle needs to be towed ................................. 290
If your vehicle overheats ...... 332
Engine Compartment........................ 239
Engine switch ....................... 119
Hood ..................................... 236
How to start the engine ........ 119
Identification number ............ 339
If the engine will not start...... 323
Ignition switch ....................... 119
Immobilizer system................. 70
Overheating .......................... 332
Specifications ....................... 340
Warning light ........................ 301
Engine coolant Capacity ............................... 342
Checking .............................. 244
Indicator................................ 135
Preparing and checking before winter ...................... 151
Type ..................................... 342
Warning light ........................ 301
Engine immobilizer system ...... 70
Engine oil
Capacity ............................... 341
Checking .............................. 240
Grade ................................... 341
Initializing the maintenance data .................................... 243
Preparing and checking before winter ...................... 151
Warning light ................ 301, 303
Engine switch .......................... 119
Engine oil maintenance data ........................................ 242
EPS EPS ...................................... 145
Warning light ........................ 301
Event data recorder ................ 298 Floor mat...................................218
Fluid
Automatic transmission .........343
Brake .....................................246
Clutch ....................................344
Warning light .................300, 303
Washer ..................................250
Fog lights
Indicator ................................141
Replacing light bulbs .............280
Switch....................................141
Wattage .................................346
Front fog lights Indicator ................................141
Replacing light bulbs .............280
Switch....................................141
Wattage .................................346
Front passenger's seat belt reminder light.........................303
Front seats
Adjustment ..............................37
Front side marker lights Replacing light bulbs .............280
Switch....................................139
Wattage .................................346
Front turn signal lights
Indicator ................................126
Lever .....................................126
Replacing light bulbs .............280
Switch....................................126
Wattage .................................346
Fuel
Capacity ................................340
Fuel pump shut off system ....297
Gas station information .........388
Gauge ...................................129
Information ............................347
Refueling .................................66
Type ......................................340
Warning light .........................303
Fuel door.....................................66
Fuel filler door ............................66
Fuel gauge ................................129F

381
Alphabetical index
Uniform tire quality
grading ............................... 355
Tires Chains .................................. 151
Checking .............................. 252
If you have a flat tire ............. 310
Identification number ............ 350
Inflation pressure .......... 258, 345
Inflation pressure sensor ...... 253
Information ........................... 350
Replacing ..................... 252, 310
Rotating tires ........................ 252
Size ...................................... 345
Snow tires............................. 151
Spare tire .............................. 310
Tire pressure warningsystem........................ 252, 303
Warning light ........................ 303
Tools......................................... 310
Total load capacity .................. 150
Towing Dinghy towing ............... 164, 165
Emergency towing ................ 290
Trailer towing ................ 155, 156
Trip meter................................. 132
Turn signal lights Indicator................................ 126
Lever .................................... 126
Replacing light bulbs ............ 280
Switch ................................... 126
Wattage ................................ 346
Vanity mirrors .......................... 214
Vehicle identification number................................... 339
Warning buzzers Brake system........................ 300
Seat belt reminder ................ 303
Warning lights ABS ...................................... 301
Airbag system....................... 301 Anti-lock brake system ..........301
Brake system ........................300
Charging system ....
...............301
Driver’s seat belt ...................303
Electric power steering system ................................301
Electronic engine control system ................................301
Engine oil replacement..........303
EPS system...........................301
Front passenger occupant classification system ...........301
Front passenger’s seat belt ...303
High engine coolant temperature ........................301
Low brake fluid ......................300
Low engine oil pressure ........301
Low fuel level ........................303
Low tire inflation pressure .....303
Low washer fluid ...................303
Malfunction ............................301
Open door .............................303
Seat belt ................................303
Seat belt pretensioner system ................................301
SRS .......................................301
SRS airbag system ...............301
Tire pressure .........................303
Tire pressure warning
system ................................303
Washer Checking ...............................250
Preparing and checking
before winter .......................151
Switch....................................142
Warning light .........................303
Washing and waxing ...............222
Weight Cargo capacity ......................147
Load limits .............................150
Weight ...................................338
Wheels ......................................262
V
W

TABLE OF CONTENTSIndex
4
4-3. Do-it-yourself maintenance ................... 233
Do-it-yourself service precautions ...................... 233
Hood................................... 236
Positioning a floor jack ....... 237
Engine compartment .......... 239
Tires ................................... 252
Tire inflation pressure......... 258
Wheels ............................... 262
Air conditioning filter ........... 264
Key battery ......................... 267
Checking and replacing fuses ................................ 269
Light bulbs .......................... 280
5-1. Essential information....... 290 If your vehicle needs to be towed ............................... 290
If you think something is wrong ............................... 296
Fuel pump shut off system .............................. 297
Event data recorder............ 298
5-2. Steps to take in an emergency ...................... 300
If a warning light turns on or a warning buzzer
sounds... .......................... 300
If you have a flat tire ........... 310
If the engine will not start ... 323
If the shift lever cannot be shifted from P ................... 325
If you lose your keys .......... 326 If the vehicle battery is
discharged ........................ 327
If your vehicle overheats..... 332
If the vehicle becomes stuck ................................. 335
6-1. Specifications ................... 338 Maintenance data (fuel, oil level, etc.) ........... 338
Fuel information .................. 347
Tire information................... 350
6-2. Customization ................... 363 Customizable features ........ 363
Items to initialize ................. 365
Reporting safety defects for U.S. owners ...................... 368
Seat belt instructions for Canadian owners
(in French) ......................... 369
Abbreviation list ........................ 374
Alphabetical index .................... 375
What to do if... ........................... 383
5When trouble arises
6Vehicle specifications
7For owners
Index
