fog light TOYOTA YARIS HATCHBACK 2011 User Guide

152
2-3. Operating the lights and wipers
Fog light switch∗
∗: If equipped
The fog lights improve visibility in difficult driving conditions, such
as in rain or fog. They can be turned on only when the headlights are
on low beam.
nFront fog light switch
OFF
Front fog lights ON

193
3-1. Using the air conditioning system and defogger
3
Interior features
Rear window and outside rear view mirror defoggers∗
∗: If equipped
nThe rear window and outside rear vi ew mirror defoggers can be oper-
ated when
The engine switch is in the ON position.
n Outside rear view mirror defoggers (vehicles with outside rear view
mirror defoggers)
Turning the rear window defogger on will turn the outside rear view mirror
defoggers on.
CAUTION
n When the outside rear view mirror defoggers are on (vehicles with out-
side rear view mirror defoggers)
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.
These features are used to defog the rear window, and to remove
raindrops, dew and frost from the outside rear view mirrors.
On/off
Press the button to turn on the
rear window defogger. The
indicator light will come on.
Pressing the button again also
turns the defoggers off.
Vehicles with timer: The defog-
gers will automatically turn off
after approximately 15 min-
utes.

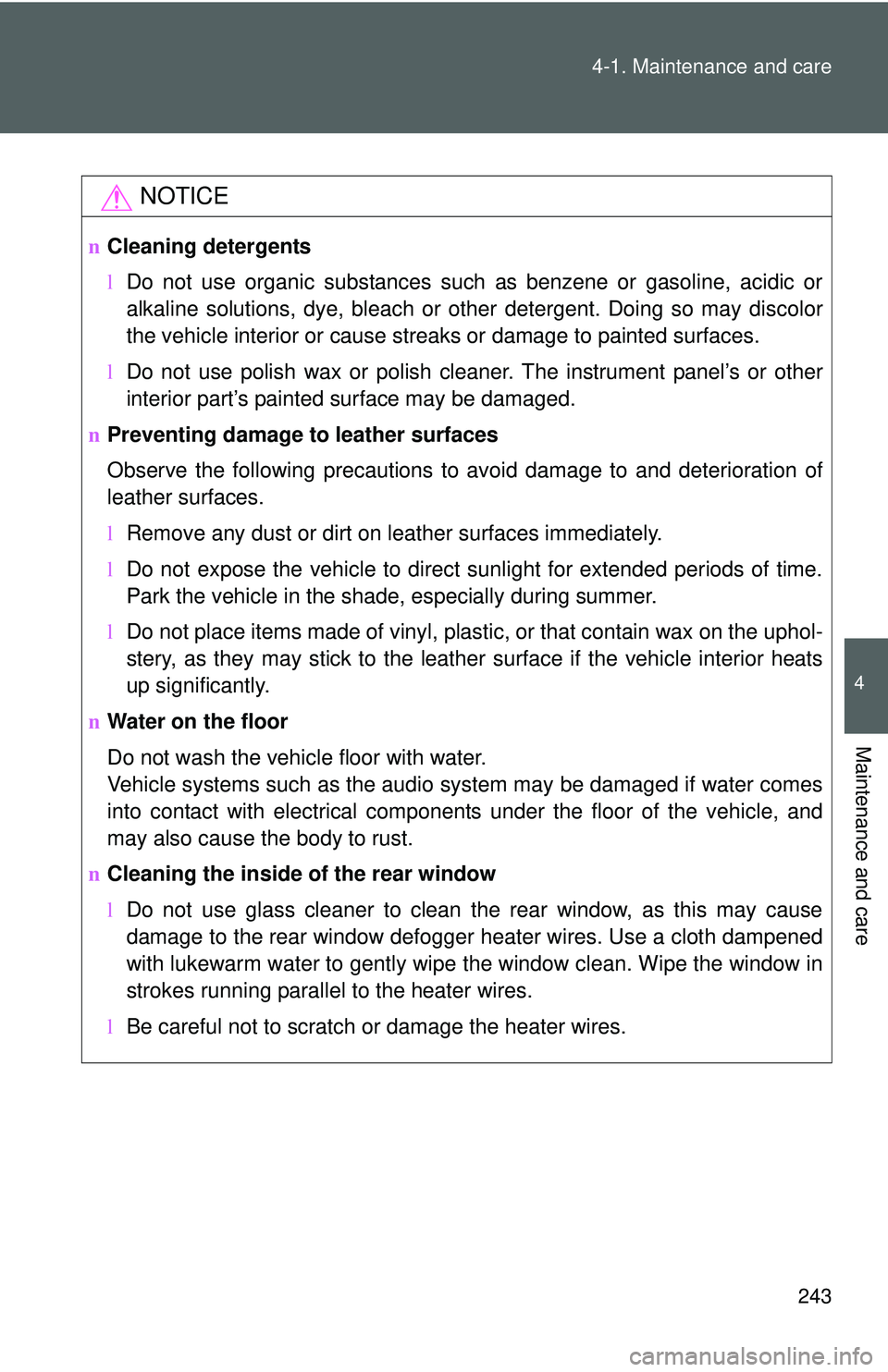

243
4-1. Maintenance and care
4
Maintenance and care
NOTICE
n
Cleaning detergents
lDo not use organic substances such as benzene or gasoline, acidic or
alkaline solutions, dye, bleach or other detergent. Doing so may discolor
the vehicle interior or cause streaks or damage to painted surfaces.
l Do not use polish wax or polish cleaner. The instrument panel’s or other
interior part’s painted surface may be damaged.
n Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration o\
f
leather surfaces.
lRemove any dust or dirt on leather surfaces immediately.
l Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
l Do not place items made of vinyl, plastic, or that contain wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.
n Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components under the floor of the vehicle, and
may also cause the body to rust.
n Cleaning the inside of the rear window
lDo not use glass cleaner to clean the rear window, as this may cause
damage to the rear window defogger heater wires. Use a cloth dampened
with lukewarm water to gently wipe the window clean. Wipe the window in
strokes running parallel to the heater wires.
l Be careful not to scratch or damage the heater wires.

294 4-3. Do-it-yourself maintenance
nUnder the instrument panel (type B)
FuseAmpereCircuit
1 TAIL 10 A Side marker lights, parking lights,
tail lights, license plate lights, multi-
port fuel injection system/sequen-
tial multiport fuel injection system
2 PANEL 1 7.5 A Illuminations, instrument panel light
control, meter and gauge
3 A/C 7.5 A Rear window defogger, air condi-
tioning system
4 D DOOR 20 A No circuit
5 RL DOOR 20 A Rear passenger’s power window
(left side)
6 RR DOOR 20 A Rear passenger’s power window
(right side)
7 CIG 15 A Power outlet
8 ACC 7.5 A Door lock system, outside rear
view mirrors, audio system

295
4-3. Do-it-yourself maintenance
4
Maintenance and care
9 ID/UP/MIR HTR 10 A
Multiport fuel injection system/
sequential multiport fuel injection
system, outside rear view mirror
control, outside rear view mirror
heaters
10 IGN 7.5 A Multiport fuel injection system/
sequential multiport fuel injection
system, SRS airbag system, front
passenger occupant classification
system
11 MET 7.5 A Meter and gauge
12 WIP 25 A Windshield wiper
13 RR WIP 15 A Rear wiper
14 WSH 15 A Windshield washer
15 ECU-IG 10 A Daytime running light system, anti-
lock brake system, electric power
steering system, power windows,
door lock system, theft deterrent
system, electric cooling fan
16 GAUGE 10 A Charging system, turn signal lights,
emergency flashers, back-up
lights, instrument panel light con-
trol, shift lock system, rear window
defogger, air conditioning system,
automatic transmission system
17 OBD2 7.5 A On-board diagnosis system
18 STOP 10 A Stop lights, high mounted stop-
light, multiport fuel injection sys-
tem/sequential multiport fuel
injection system, shift lock system,
anti-lock brake system
19 D/L 25 A Door lock system
20 FR FOG 15 A Front fog lights
FuseAmpereCircuit

297
4-3. Do-it-yourself maintenance
4
Maintenance and care
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
n Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( →P. 366)
n Front bulb locations
Headlights and
daytime running
lights (if equipped)
Front fog lights
(if equipped)
Front side marker lights
Front turn signal lights
Parking lights

299
4-3. Do-it-yourself maintenance
4
Maintenance and care
Release the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
n
Front fog lights (if equipped)
Remove the bolts and clips.
Partly remove the fender liner.

366 6-1. Specifications
Light bulbs
A: HB2 halogen bulbs
B: H11 halogen bulbs
C: Single end bulbs
D: Single end bulbs (amber)
E: Wedge base bulbs
F: Wedge base bulbs (amber)
G: Double end bulbs
Light BulbsBulb NoWTy p e
ExteriorHeadlights 9003 60/55 A
Parking lights 168 5 E
Front fog lights
(if equipped)
—55 B
Front side marker
lights 168 5 E
Front turn signal lights — 21 D
Side turn signal lights — 5 F
Rear turn signal lights 7440 21 E
Stop/tail and rear side
marker lights 7443 21/5 E
Back-up lights 921 16 E
License plate light 168 5 E
Interior Interior light — 8 G
Personal lights — 8 E
Luggage compart-
ment light
—5 G

404 Alphabetical index
CareExterior .................................. 238
Interior ................................... 241
Seat belts .............................. 242
Cargo capacity ......................... 165
CD player .................................. 203
Chains ....................................... 169
Child restraint system
Booster seats, definition ........ 103
Booster seats, installation ..... 107
Convertible seats, definition ............................. 103
Convertible seats, installation ........................... 107
Front passenger occupant classification system .............98
Infant seat, definition ............. 103
Infant seats, installation......... 107
Installing CRS with LATCH system ................................ 109
Installing CRS with seat belts .................................... 110
Installing CRS with top
tether straps ........................ 114
Child safety Airbag precautions ..................93
Battery precautions ....... 265, 348
Child restraint system............ 103
Child-protectors .......................34
How your child should wear
the seat belt ..........................61
Installing child restraints ........ 107
Power window lock switch.......72
Power window precautions .....73
Removed key battery
precautions ......................... 285
Seat belt extender precautions ...........................64
Seat belt precautions ..............62
Child-protectors .........................34 Cleaning
Exterior.................................. 238
Interior ................................... 241
Seat belts .............................. 242
Clock ......................... 140, 142, 229
Clutch
Fluid ...................................... 364
Pedal .............................. 120,135
Comfort guide ............................ 58
Condenser ................................ 262
CRS ........................................... 103
Cruise control Cruise control ........................ 156
Indicator ................................ 156
Cup holders .............................. 222
Curtain shield airbags ............... 86
Customizable features ............ 383
Daytime running light system .................................... 151
Defogger Rear window ......................... 193
Side mirrors........................... 193
Dimension ................................ 358
Do-it-yourself maintenance .... 250
Doors Back door ................................ 35
Door glasses ........................... 71
Door lock ................................. 31
Side doors ............................... 31
Side mirrors............................. 68
Warning light ......................... 322
Driver's seat belt reminder light ......................................... 322
Driving Break-in tips .......................... 122
Correct posture ....................... 84
Procedures............................ 120
Winter driving tips ................. 169C
D

406 Alphabetical index
Floor mat................................... 232
FluidAutomatic transmission ......... 363
Brake ..................................... 263
Clutch .................................... 364
Warning light ................. 319, 322
Washer .................................. 267
Fog lights
Indicator ................................ 152
Replacing light bulbs ............. 297
Switch.................................... 152
Wattage ................................. 366
Front fog lights Indicator ................................ 152
Replacing light bulbs ............. 297
Switch.................................... 152
Wattage ................................. 366
Front passenger's seat belt reminder light......................... 322
Front seats
Adjustment ..............................39
Front side marker lights Replacing light bulbs ............. 297
Switch.................................... 150
Wattage ................................. 366
Front turn signal lights
Indicator ................................ 136
Lever ..................................... 136
Replacing light bulbs ............. 297
Switch.................................... 136
Wattage ................................. 366
Fuel
Capacity ................................ 360
Fuel pump shut off system .... 316
Gas station information ......... 416
Gauge ................................... 140
Indicator ................................ 148
Information ............................ 367
Refueling .................................74
Type ...................................... 360 Fuel door .................................... 74
Fuel filler door ............................ 74
Fuel gauge ................................ 140
Fuel pump shut off system ..... 316
Fuses ........................................ 286
Gas station information .......... 416
Gauges...................................... 140
Glove boxes ............................. 221
Hazard lights
Switch ................................... 308
Head restraints Adjusting ................................ 49
Headlights
Indicator ................................ 150
Replacing light bulbs ............. 297
Switch ................................... 150
Wattage................................. 366
Hood.......................................... 253
Horn .......................................... 139
I/M test ...................................... 249
Identification Engine ................................... 359
Tire ........................................ 370
Vehicle .................................. 359
Ignition switch.......................... 130
Illuminated entry system......... 218
Immobilizer system ................... 78
Indicator lights ......................... 146
Initialization Items to initialize ................... 385
Inside rear view mirror .............. 66
Interior light Switch ................................... 219
Wattage................................. 366F
G
H
I
