TOYOTA YARIS HATCHBACK 2012 Owners Manual

396

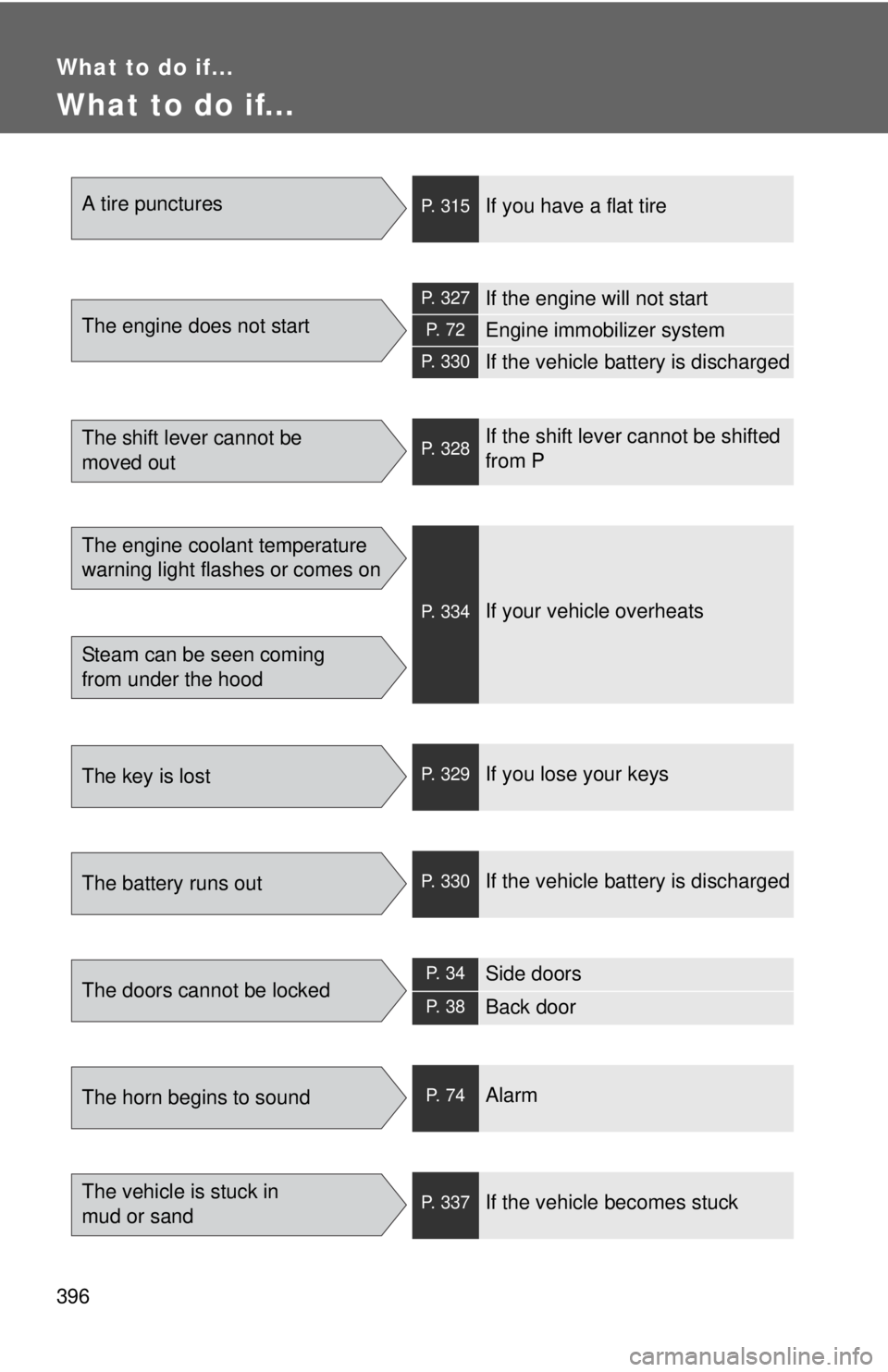

What to do if...
What to do if...
A tire puncturesP. 315If you have a flat tire
The engine does not start
P. 327If the engine will not start
P. 7 2Engine immobilizer system
P. 330If the vehicle battery is discharged
The shift lever cannot be
moved outP. 328If the shift lever cannot be shifted
from P
The engine coolant temperature
warning light flashes or comes on
Steam can be seen coming
from under the hood
P. 334If your vehicle overheats
The key is lostP. 329If you lose your keys
The battery runs outP. 330If the vehicle battery is discharged
The doors cannot be lockedP. 3 4Side doors
P. 3 8Back door
The horn begins to soundP. 7 4Alarm
The vehicle is stuck in
mud or sandP. 337If the vehicle becomes stuck

397
What to do if...
■
Instrument cluster
Vehicles without a tachometer
Vehicles with a tachometer
The warning light or indicator
light comes onP. 305If a warning light turns on

398 What to do if...■Warning lights
P. 307
or
P. 3 0 5P. 307
P. 3 0 6P. 307
P. 3 0 6P. 307
P. 3 0 6P. 307
P. 308
or
P. 3 0 6P. 308
P. 3 0 6P. 308
P. 309
or*1: Slip indicator comes on.
*2: The light flashes to indicate a malfunction.P. 3 0 7
Brake system warning
lightElectric power steering system
warning light
Slip indicator light*1
Charging system warning
lightCruise control indicator
light*2
Low engine oil pressure
warning lightOpen door warning light
High engine coolant tempera-
ture warning lightLow fuel level warning
light
Malfunction indicator
lamp
Tire pressure warning
light
SRS warning lightLow windshield washer fluid
warning light
ABS warning lightMaintenance required
reminder light
Driver’s and front pas-
senger’s seat belt
reminder light

399

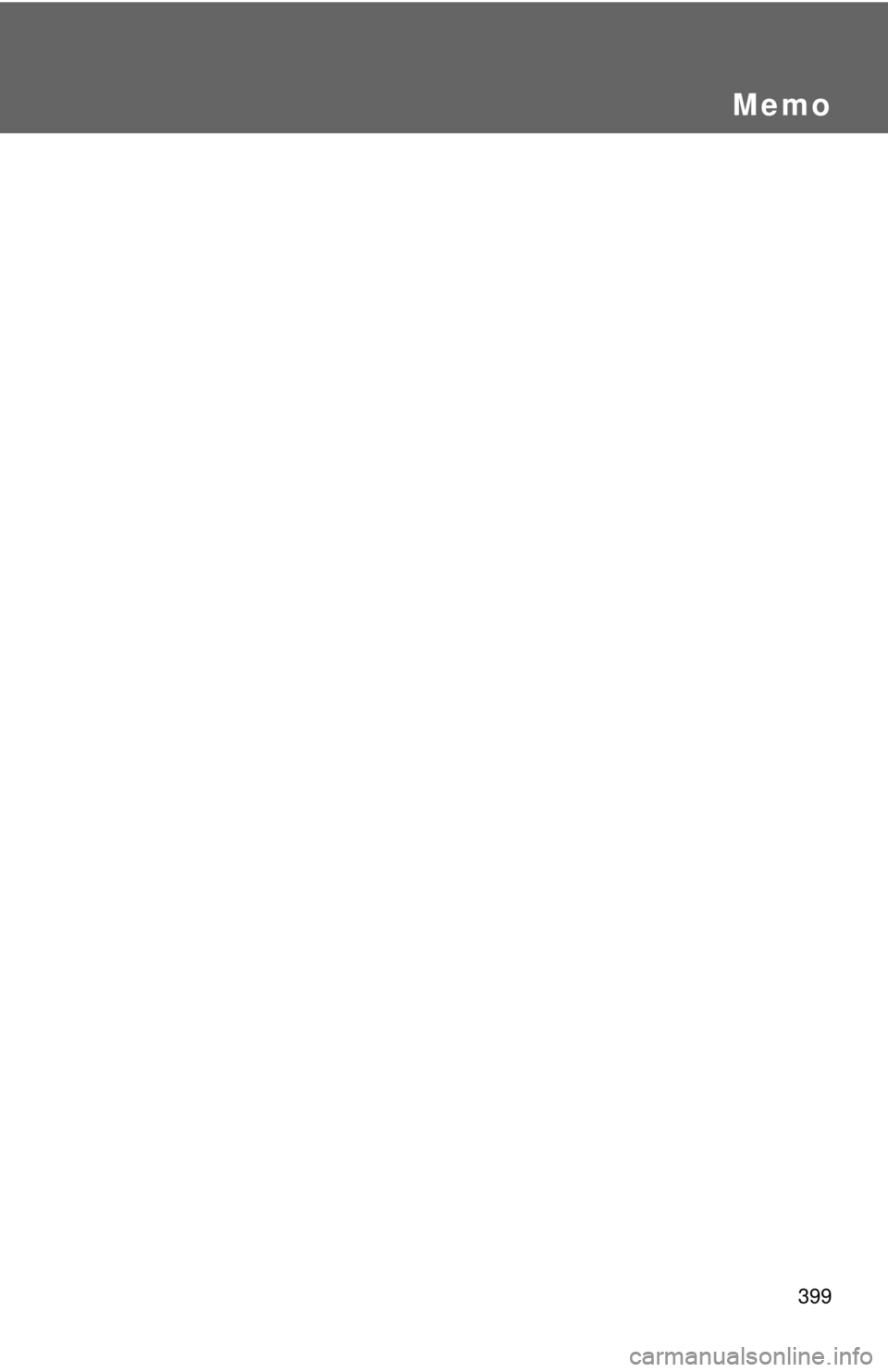

Memo

400
GAS STATION INFORMATION
Auxiliary catch leverP. 236Fuel filler doorP. 6 9Hood lock release lever P. 2 3 6
Fuel filler door openerP. 6 9Tire inflation pressureP. 351
Fuel tank capacity
(Reference) 11.1 gal. (42 L, 9.2 lmp.gal.)
Fuel type
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher
Cold tire inflation
pressure
P. 3 5 1
Engine oil capacity
(Drain and refill
-reference)qt. (L, Imp.qt.)
With filter 3.9 (3.7, 3.3)
Without filter 3.6 (3.4, 3.0)
Engine oil type Toyota Genuine Motor Oil or equivalent
Oil grade:
ILSAC multigrade engine oil.
Recommended oil viscosity: SAE 5W-30 P. 346
