Page 119 of 365

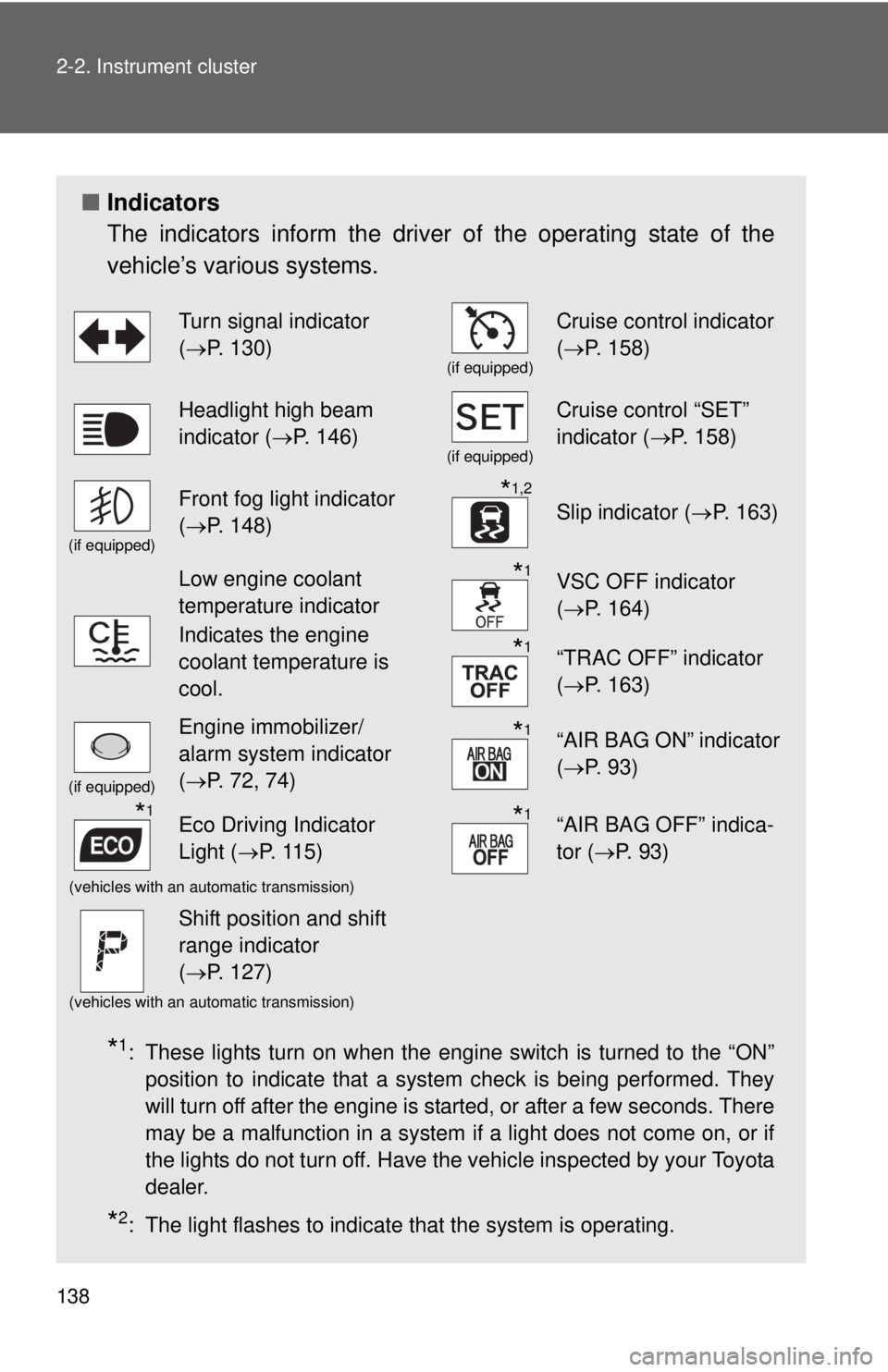

138 2-2. Instrument cluster
■Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
*1: These lights turn on when the engine switch is turned to the “ON”
position to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota
dealer.
*2: The light flashes to indicate that the system is operating.
Turn signal indicator
(→ P. 130)
(if equipped)
Cruise control indicator
(→ P. 158)
Headlight high beam
indicator ( →P. 146)
(if equipped)
Cruise control “SET”
indicator ( →P. 158)
(if equipped)
Front fog light indicator
(→ P. 148)*1,2
Slip indicator ( →P. 163)
Low engine coolant
temperature indicator
Indicates the engine
coolant temperature is
cool.*1VSC OFF indicator
(→ P. 164)
*1“TRAC OFF” indicator
(→ P. 163)
(if equipped)
Engine immobilizer/
alarm system indicator
(→ P. 72, 74)*1“AIR BAG ON” indicator
(→ P. 93)
*1Eco Driving Indicator
Light ( →P. 115)*1“AIR BAG OFF” indica-
tor (→ P. 93)
(vehicles with an automatic transmission)
Shift position and shift
range indicator
(→ P. 127)
(vehicles with an automatic transmission)
Page 127 of 365

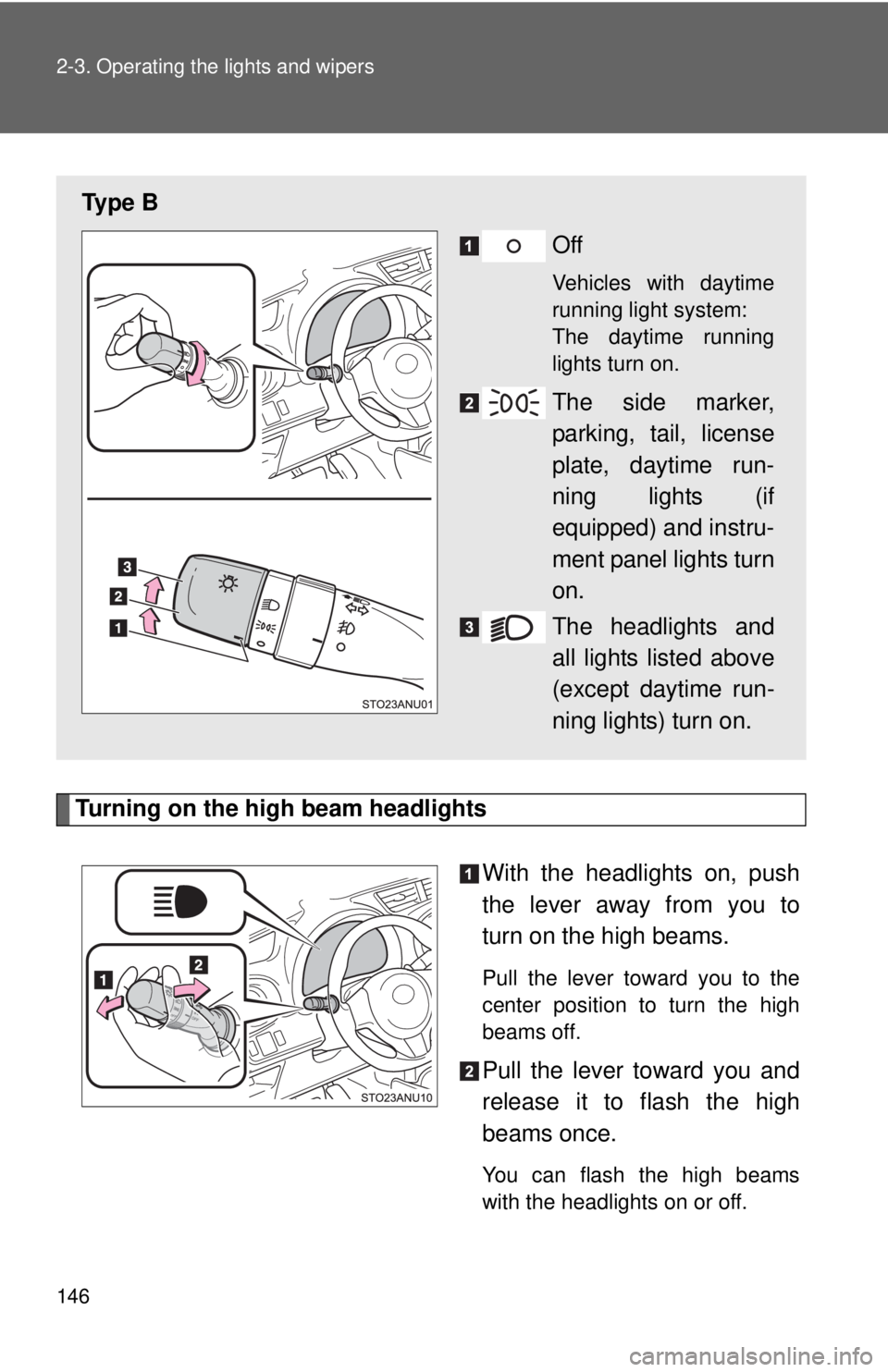

146 2-3. Operating the lights and wipers
Turning on the high beam headlightsWith the headlights on, push
the lever away from you to
turn on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams
with the headlights on or off.
Ty p e B Off
Vehicles with daytime
running light system:
The daytime running
lights turn on.
The side marker,
parking, tail, license
plate, daytime run-
ning lights (if
equipped) and instru-
ment panel lights turn
on.
The headlights and
all lights listed above
(except daytime run-
ning lights) turn on.
Page 260 of 365
281
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine compartment (type B fuse box)
FuseAmpereCircuit
1 EU-DRL 15 A No circuit
2 S-HORN 10 A Multiport fuel injection system/
sequential multiport fuel injection
system
3 H-LP MAIN 7.5 A Headlights
4 H-LP RH HI 10 A Right-hand headlight (high beam)
5 H-LP LH HI 10 A Left-hand headlight (high beam),
gauges and meters
6 H-LP RH LO 10 A Right-hand headlight (low beam)
7 H-LP LH LO 10 A Left-hand headlight (low beam),
front fog lights
