TOYOTA YARIS HATCHBACK 2015 Owner's Manual

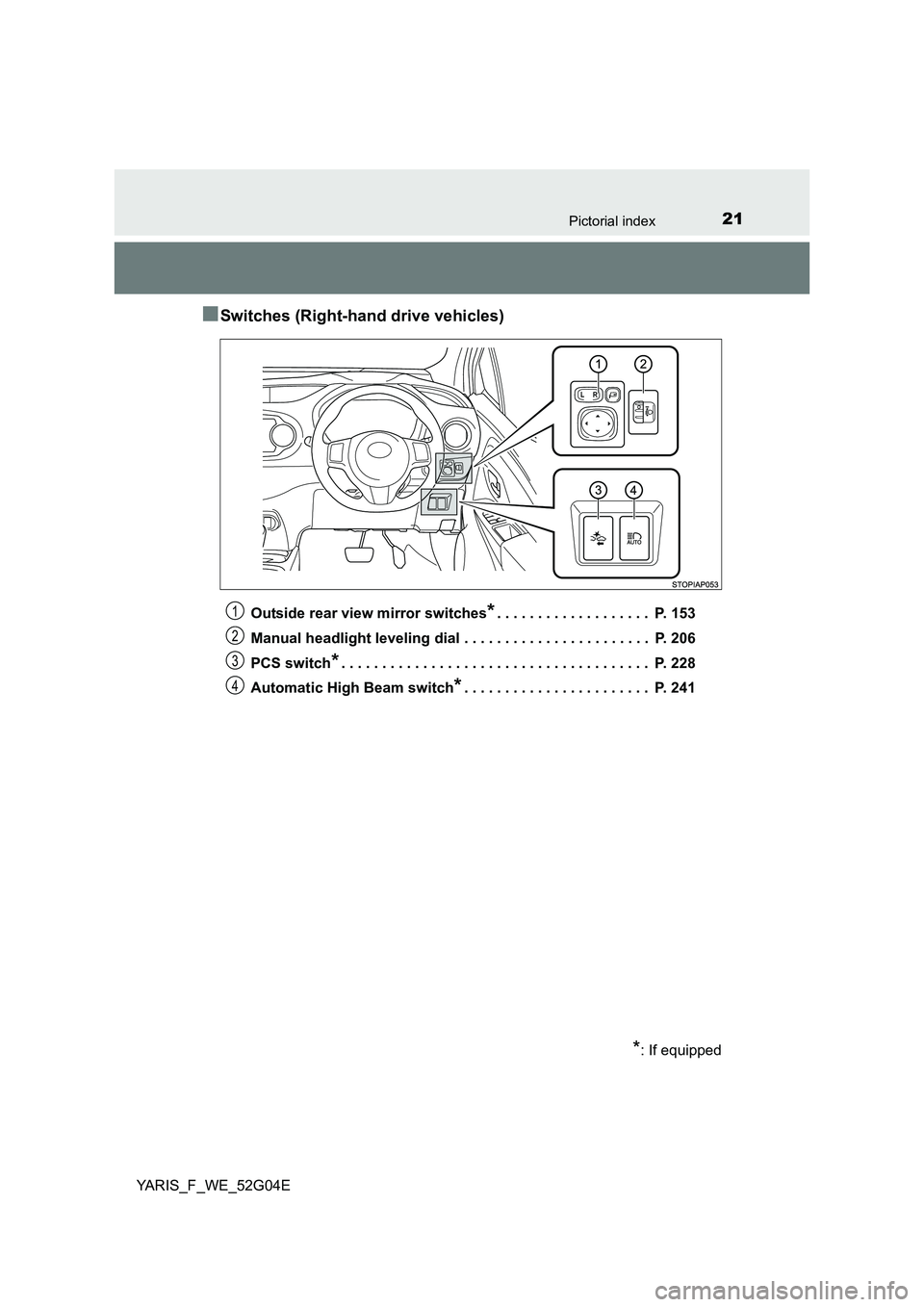

21Pictorial index
YARIS_F_WE_52G04E
■Switches (Right-hand drive vehicles)
Outside rear view mirror switches*. . . . . . . . . . . . . . . . . . . P. 153
Manual headlight leveling dial . . . . . . . . . . . . . . . . . . . . . . . P. 206
PCS switch*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Automatic High Beam switch*. . . . . . . . . . . . . . . . . . . . . . . P. 241
*: If equipped
1
2
3
4

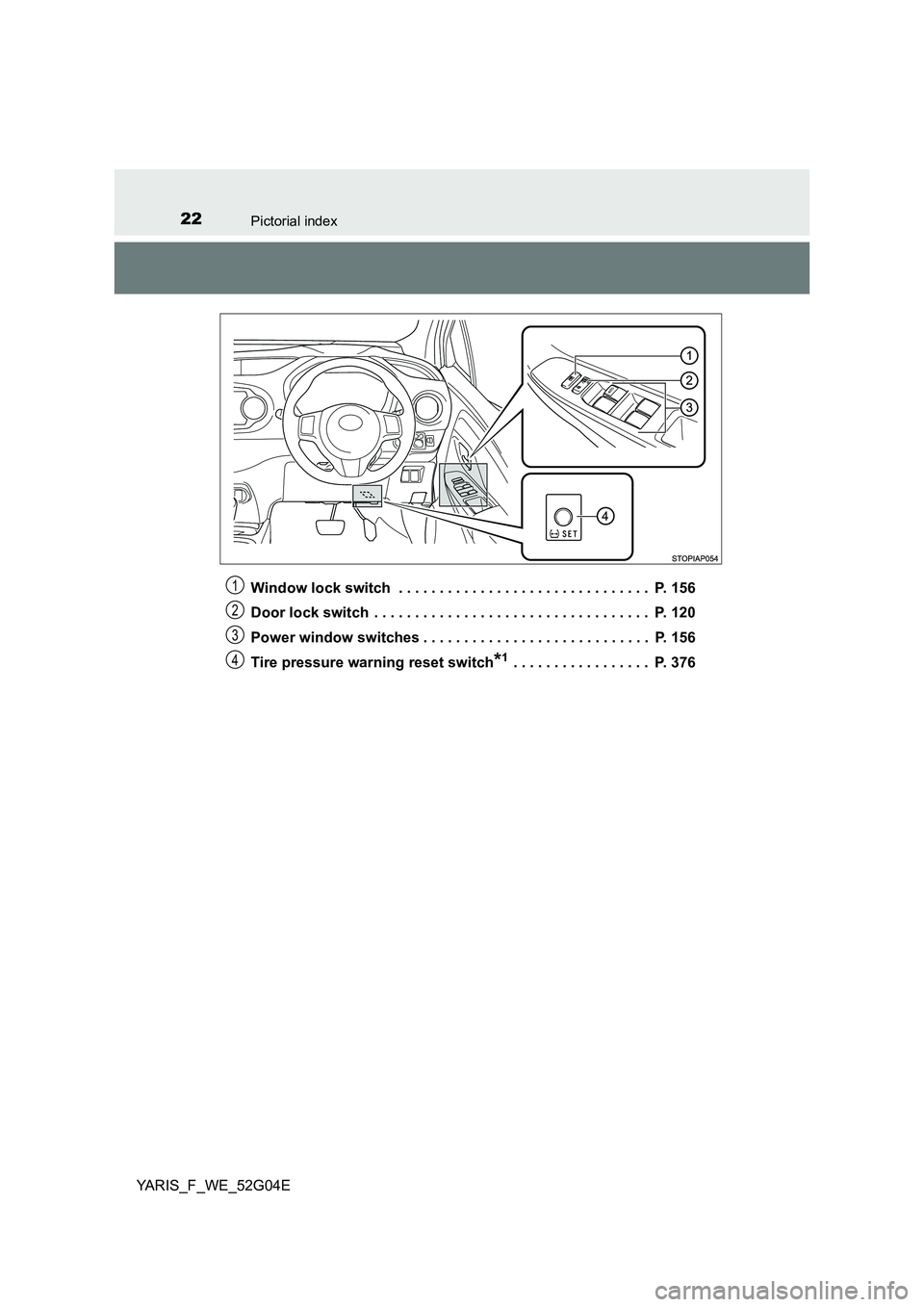

22Pictorial index
YARIS_F_WE_52G04E
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 156
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 120
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 156
Tire pressure warning reset switch*1 . . . . . . . . . . . . . . . . . P. 376
1
2
3
4

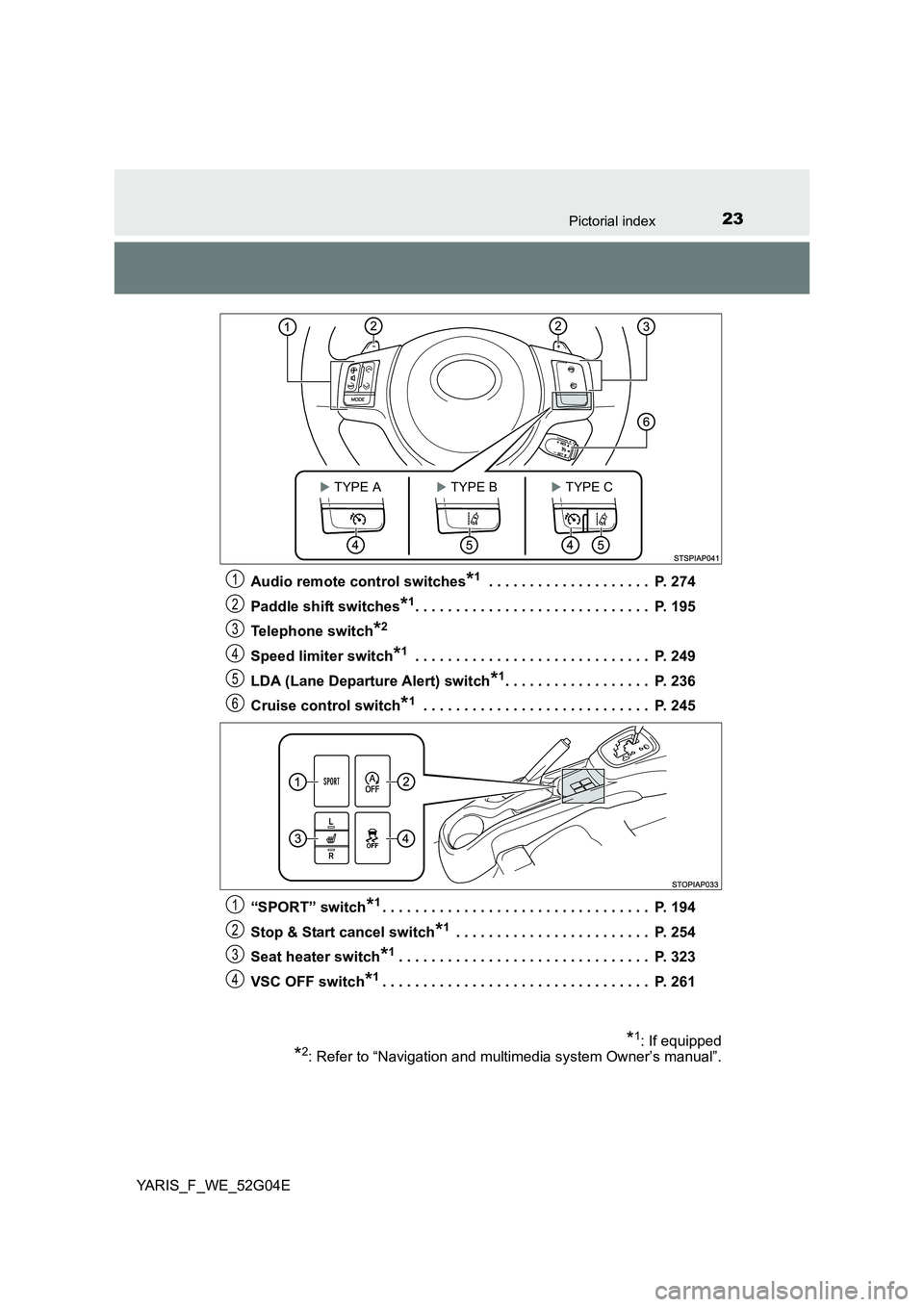

23Pictorial index
YARIS_F_WE_52G04E
Audio remote control switches*1 . . . . . . . . . . . . . . . . . . . . P. 274
Paddle shift switches*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Telephone switch*2
Speed limiter switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 249
LDA (Lane Departure Alert) switch*1. . . . . . . . . . . . . . . . . . P. 236
Cruise control switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 245
“SPORT” switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 194
Stop & Start cancel switch*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 254
Seat heater switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 323
VSC OFF switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
 TYPE A TYPE B TYPE C
1
2
3
4
5
6
*1: If equipped*2: Refer to “Navigation and multimedia system Owner’s manual”.
1
2
3
4

24Pictorial index
YARIS_F_WE_52G04E
■Interior (Right-hand drive vehicles)
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 39
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 28
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 140
Rear seats*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 143
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 146
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 32
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 120
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 329
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 340
1
2
3
4
5
6
7
8
9

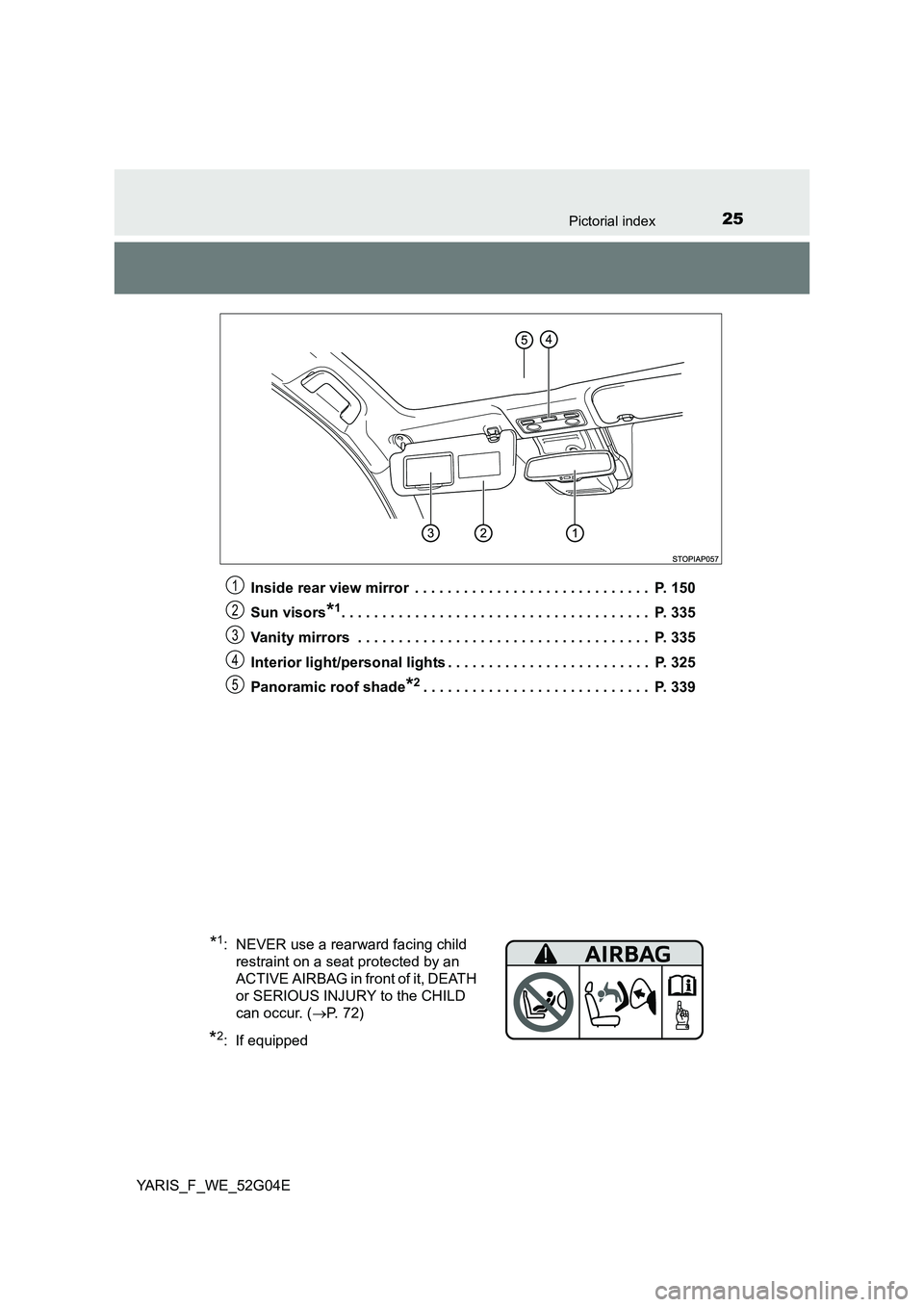

25Pictorial index
YARIS_F_WE_52G04E
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 150
Sun visors*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 335
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 335
Interior light/personal lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 325
Panoramic roof shade*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 339
1
2
3
4
5
*1: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD
can occur. ( P. 72)
*2: If equipped

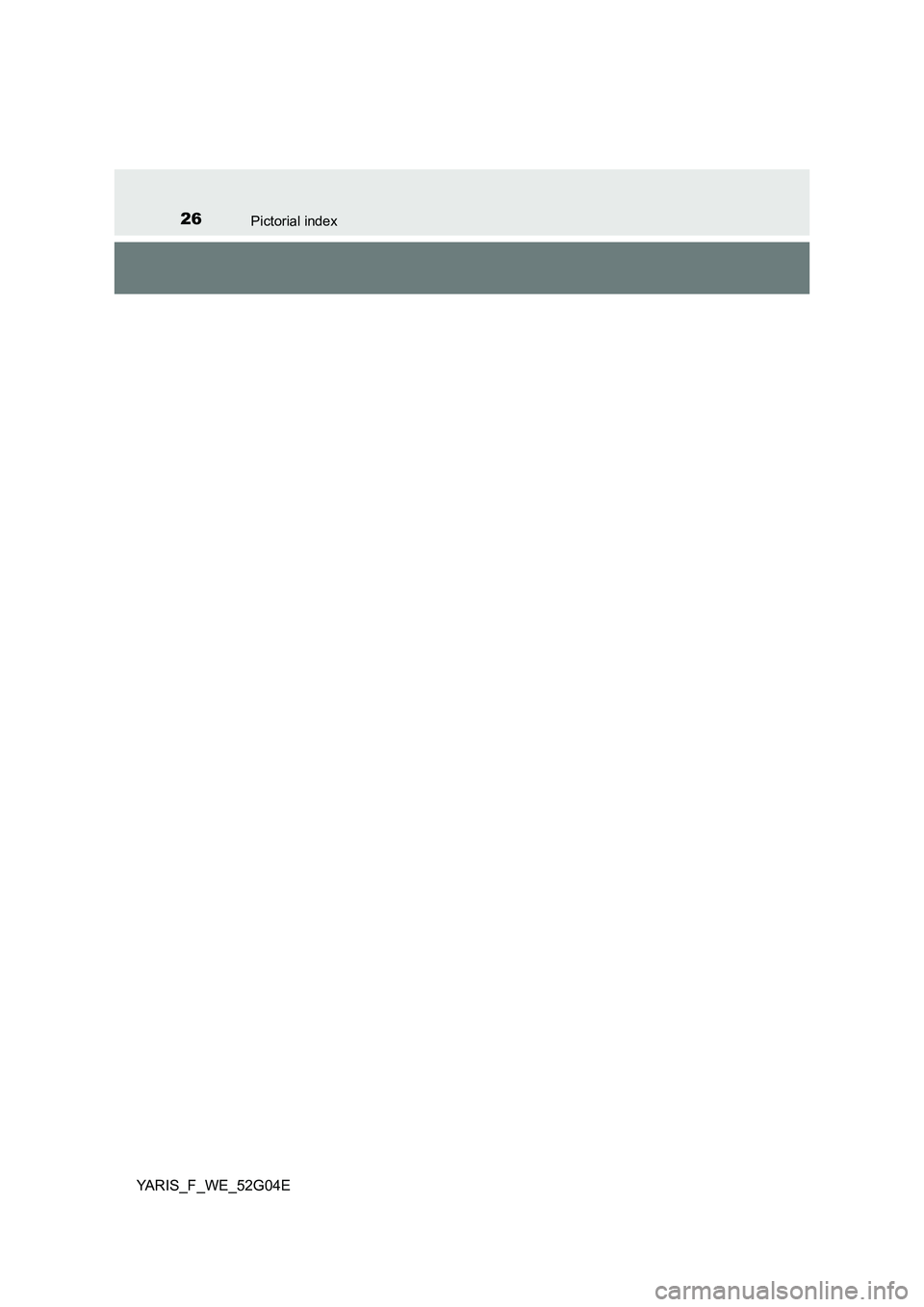

26Pictorial index
YARIS_F_WE_52G04E

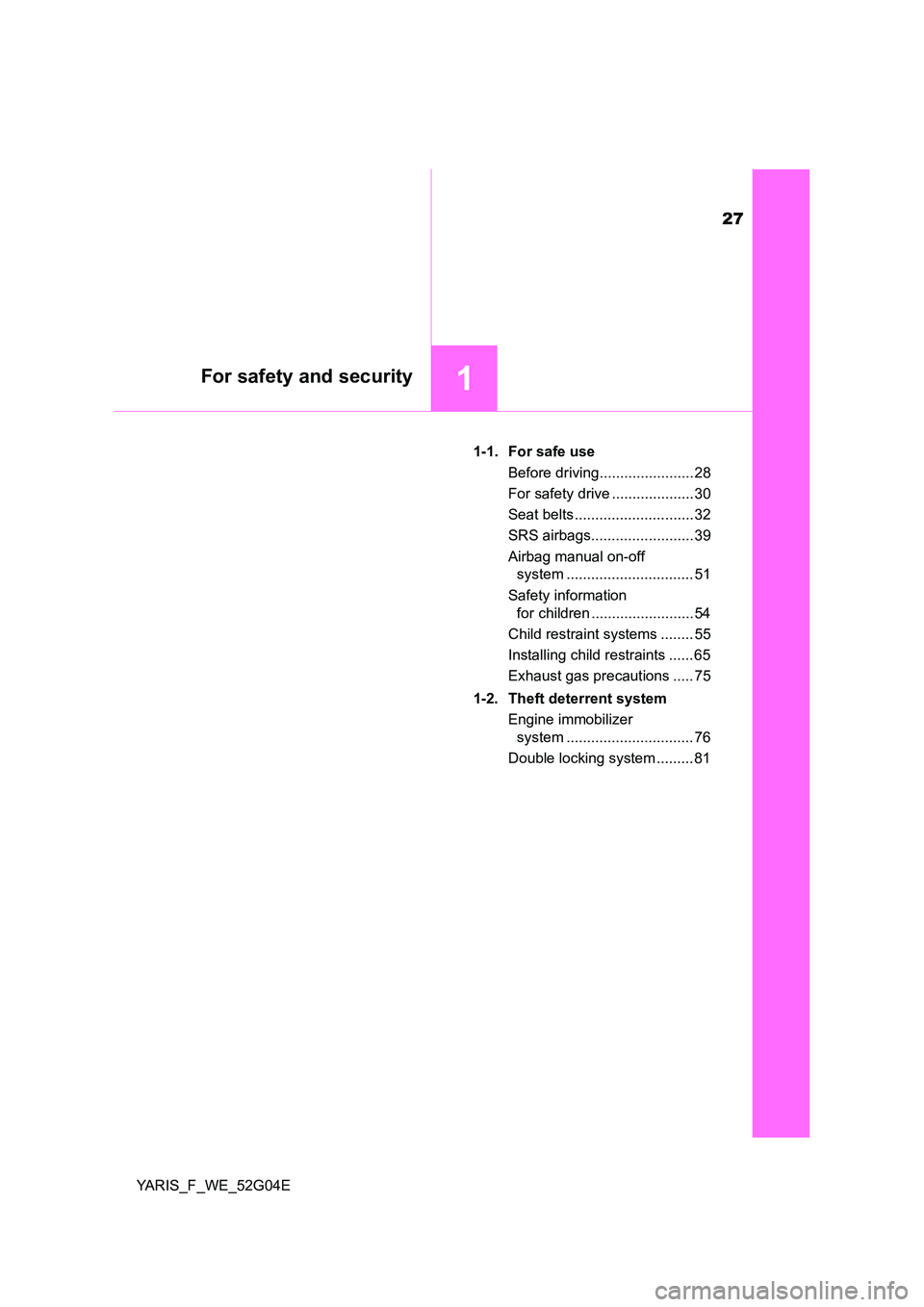

27
1For safety and security
YARIS_F_WE_52G04E
1-1. For safe use
Before driving....................... 28
For safety drive .................... 30
Seat belts ............................. 32
SRS airbags......................... 39
Airbag manual on-off
system ............................... 51
Safety information
for children ......................... 54
Child restraint systems ........ 55
Installing child restraints ...... 65
Exhaust gas precautions ..... 75
1-2. Theft deterrent system
Engine immobilizer
system ............................... 76
Double locking system ......... 81

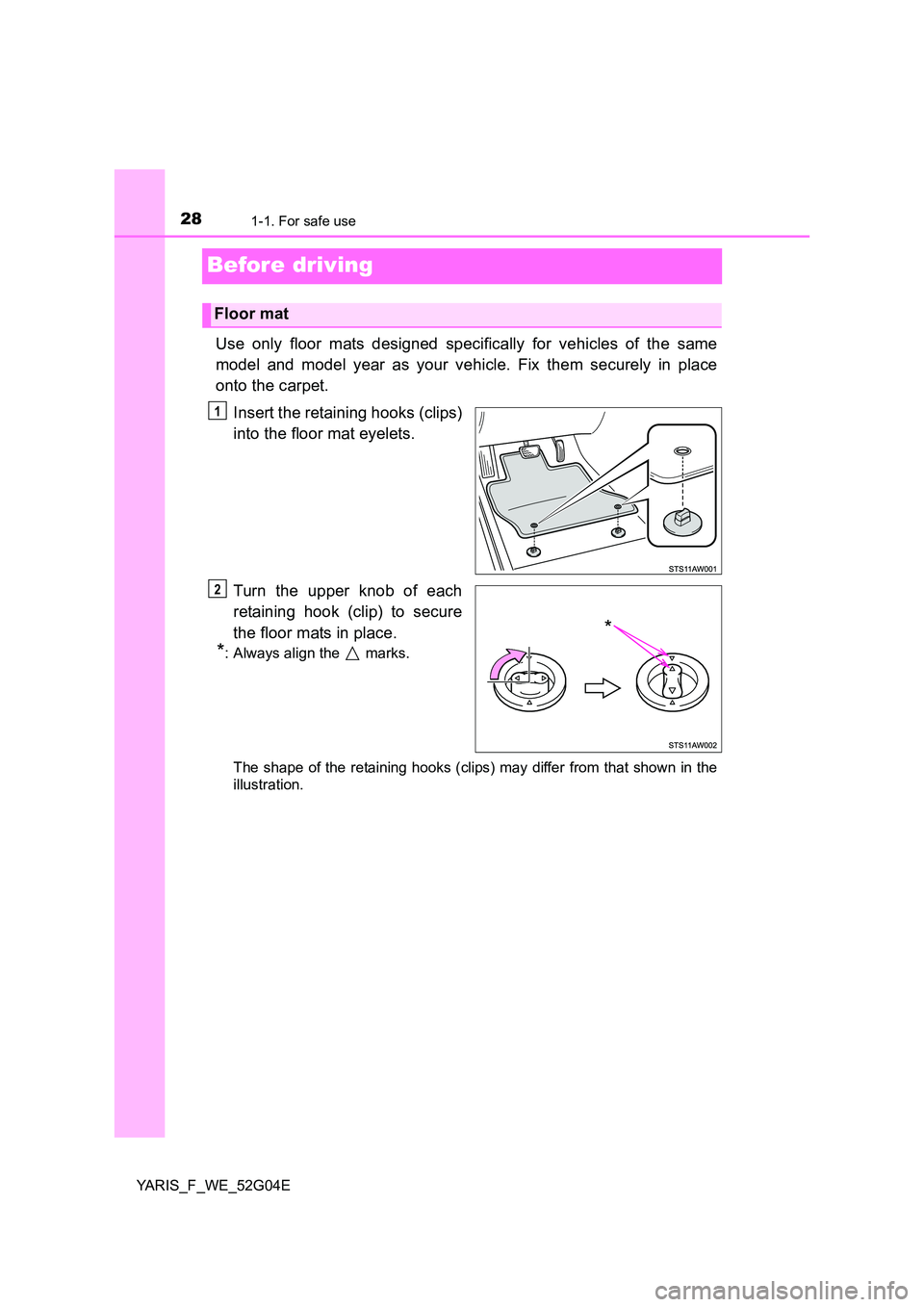

281-1. For safe use
YARIS_F_WE_52G04E
Before driving
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Floor mat
1
*
2

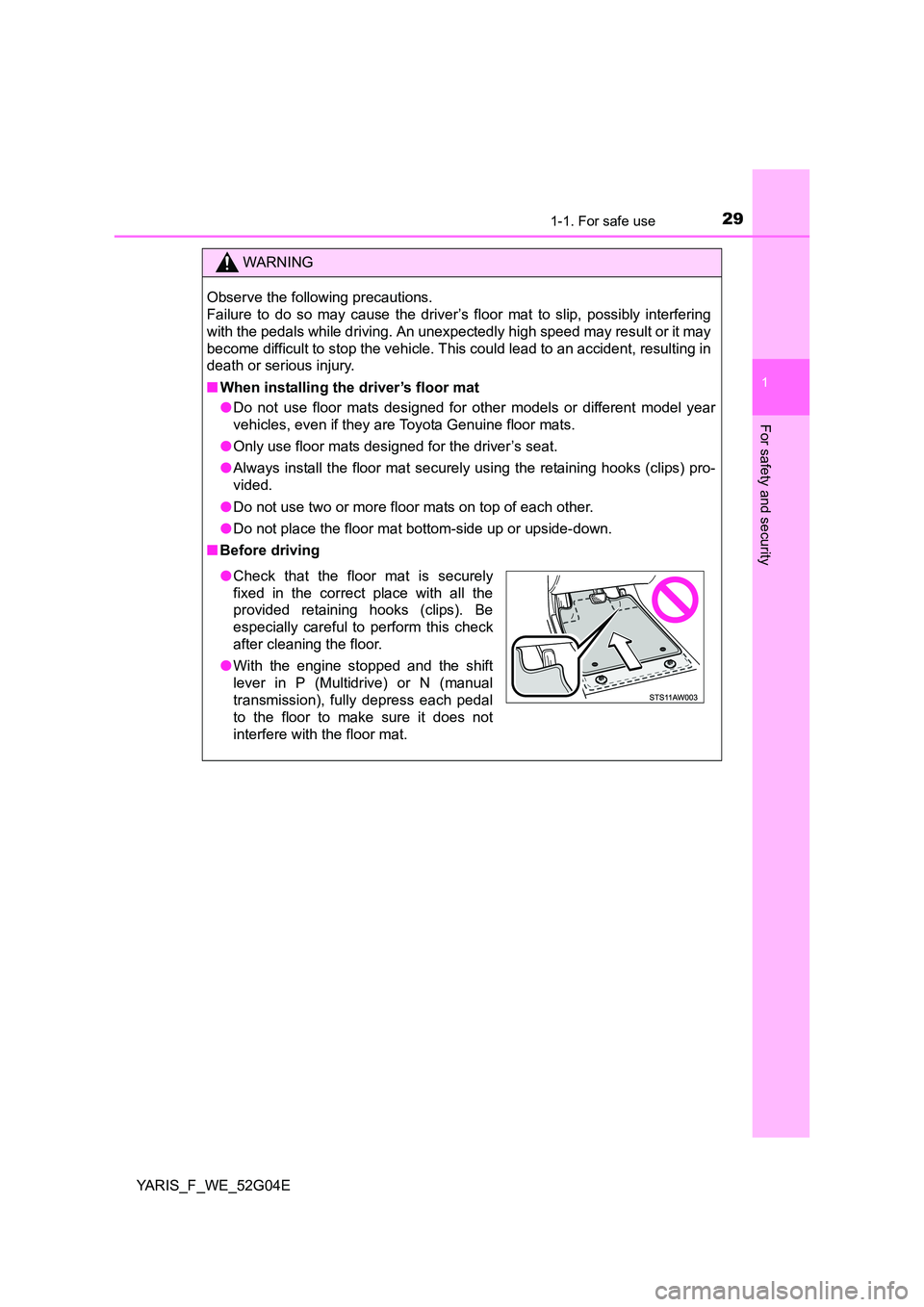

291-1. For safe use
1
For safety and security
YARIS_F_WE_52G04E
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■ When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P (Multidrive) or N (manual
transmission), fully depress each pedal
to the floor to make sure it does not
interfere with the floor mat.

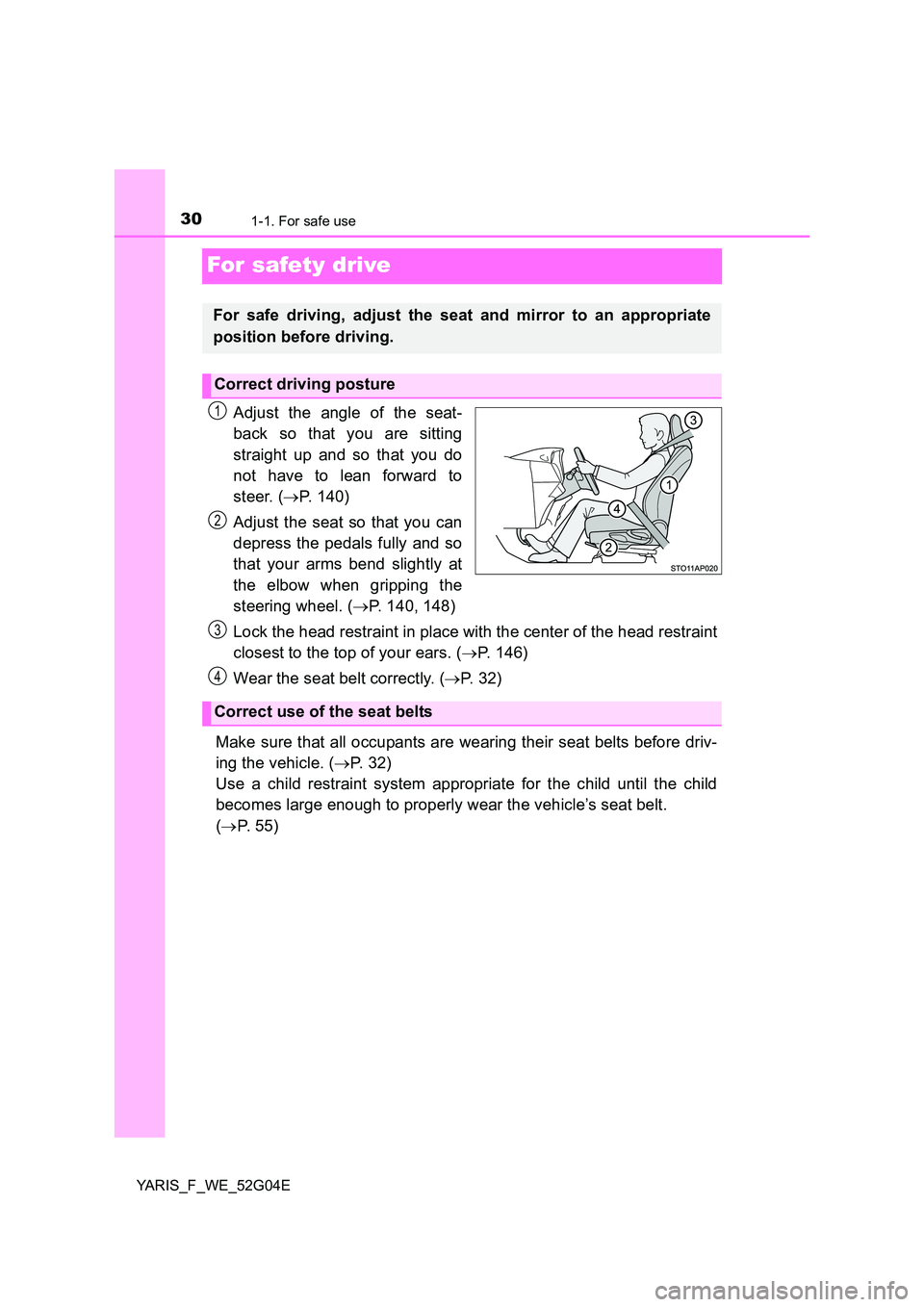

301-1. For safe use
YARIS_F_WE_52G04E
For safety drive
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. ( P. 140)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 140, 148)
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. ( P. 146)
Wear the seat belt correctly. ( P. 3 2 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 3 2 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
( P. 5 5 )
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
3
4
