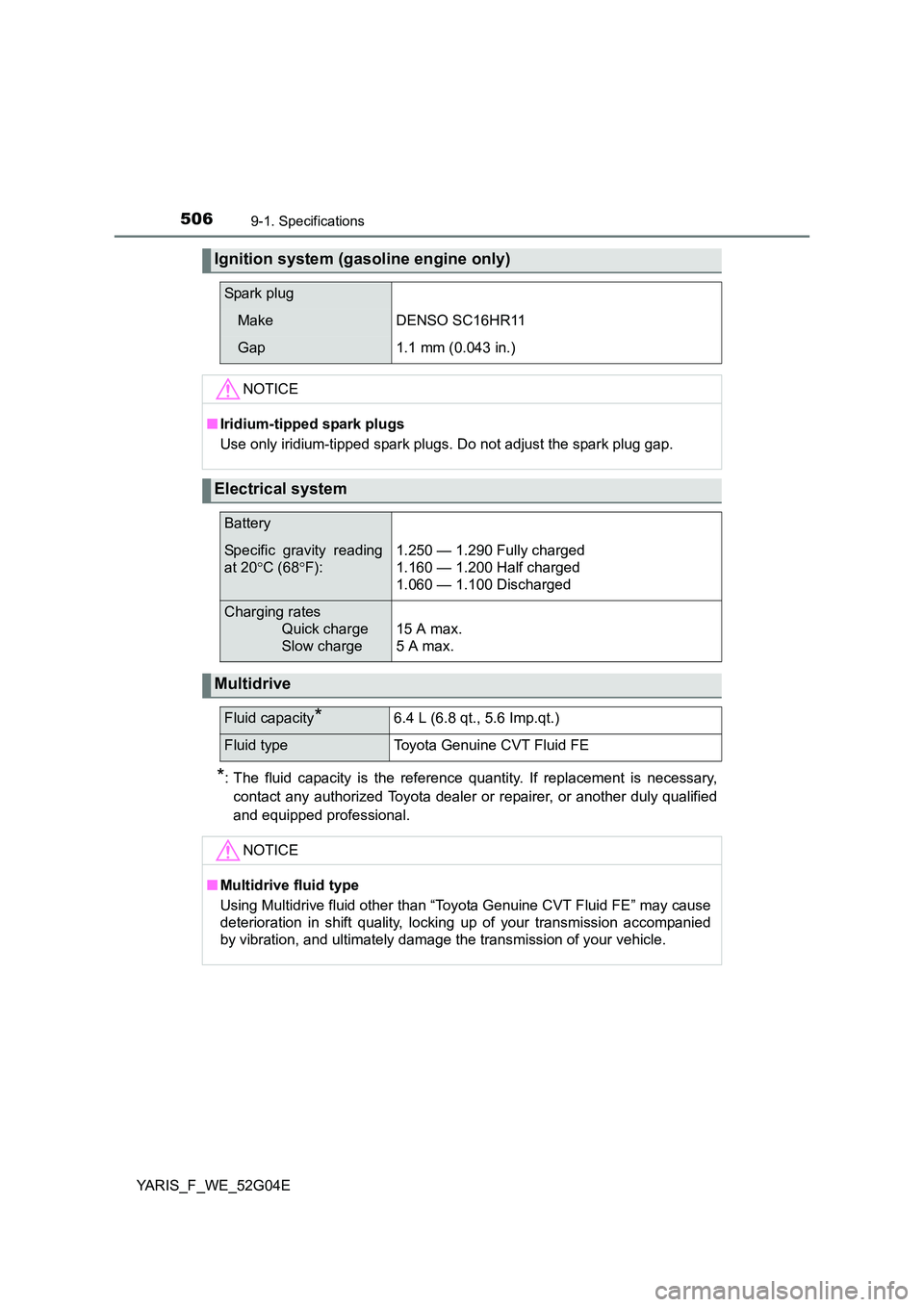

5069-1. Specifications
YARIS_F_WE_52G04E
*: The fluid capacity is the reference quantity. If replacement is necessary,
contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Ignition system (gasoline engine only)
Spark plug
MakeDENSO SC16HR11
Gap1.1 mm (0.043 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
Battery
Specific gravity reading
at 20 C (68F):
1.250 — 1.290 Fully charged
1.160 — 1.200 Half charged
1.060 — 1.100 Discharged
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.
Multidrive
Fluid capacity*6.4 L (6.8 qt., 5.6 Imp.qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
■ Multidrive fluid type
Using Multidrive fluid other than “T oyota Genuine CVT Fluid FE” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage the transmission of your vehicle.
