TOYOTA YARIS HYBRID 2013 Owners Manual

431 3-5. Other interior features
3
Interior features
YARIS_F (including HV)_WE_52D27E

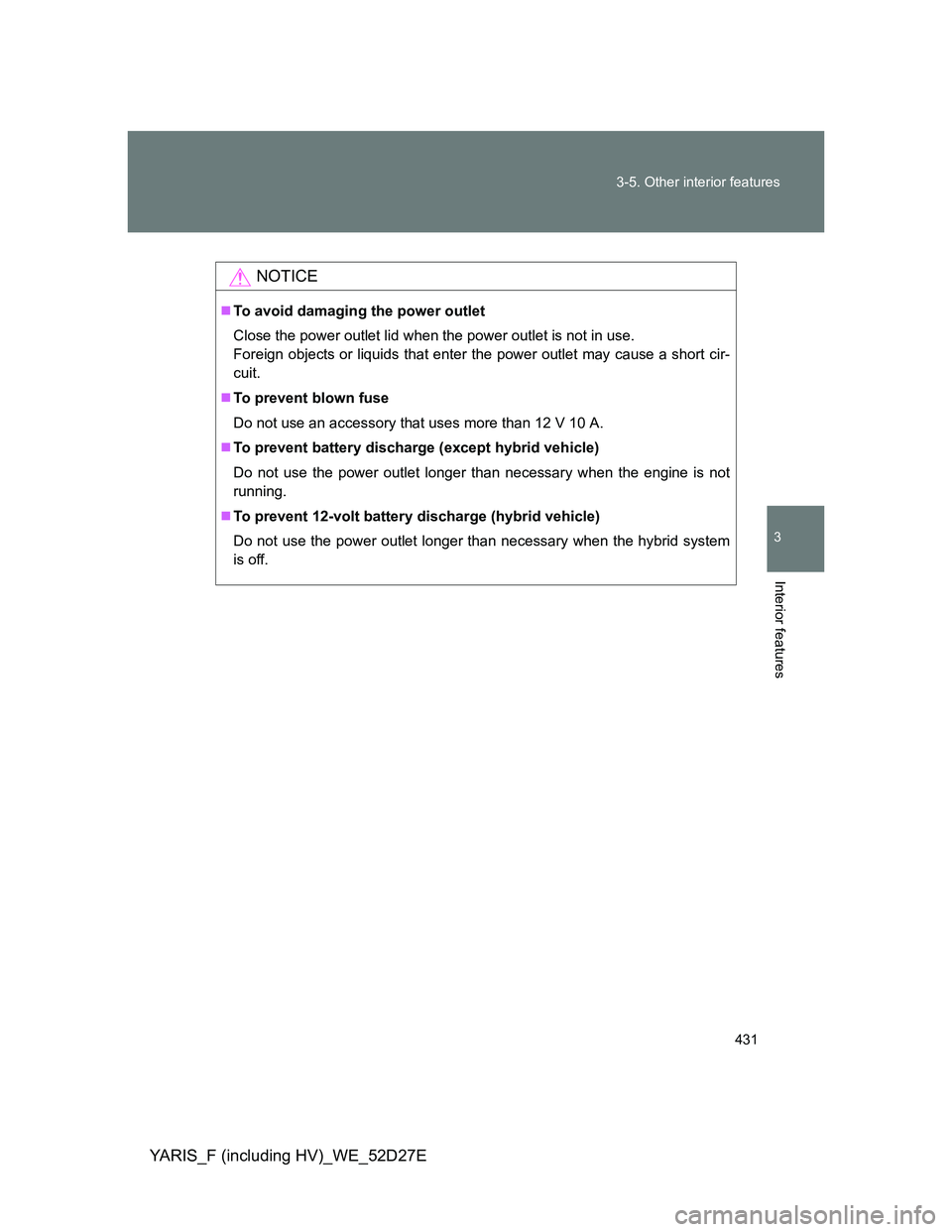

NOTICE
To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
To prevent blown fuse
Do not use an accessory that uses more than 12 V 10 A.
To prevent battery discharge (except hybrid vehicle)
Do not use the power outlet longer than necessary when the engine is not
running.
To prevent 12-volt battery discharge (hybrid vehicle)
Do not use the power outlet longer than necessary when the hybrid system
is off.

432
3-5. Other interior features
YARIS_F (including HV)_WE_52D27E

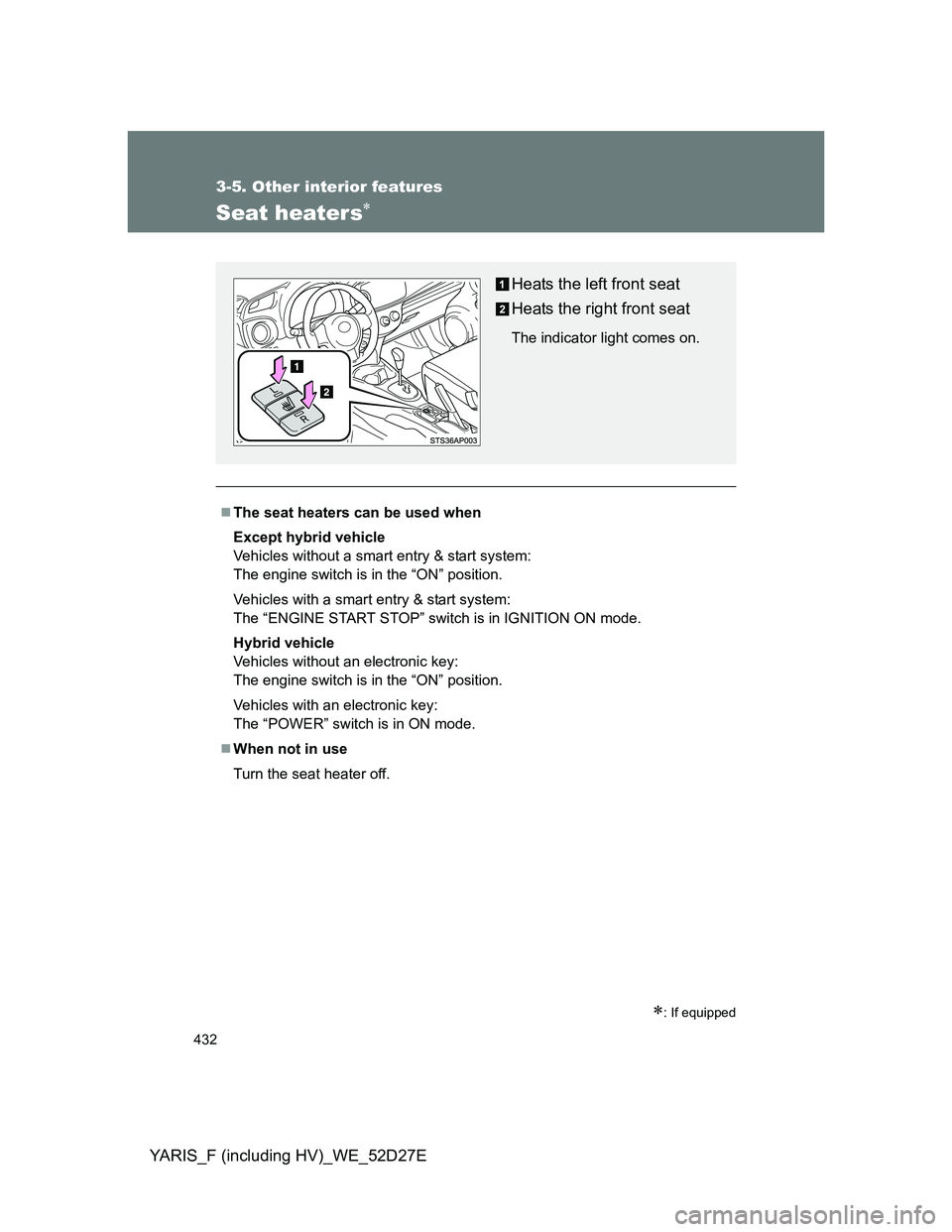

Seat heaters
: If equipped
The seat heaters can be used when
Except hybrid vehicle
Vehicles without a smart entry & start system:
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system:
The “ENGINE START STOP” switch is in IGNITION ON mode.
Hybrid vehicle
Vehicles without an electronic key:
The engine switch is in the “ON” position.
Vehicles with an electronic key:
The “POWER” switch is in ON mode.
When not in use
Turn the seat heater off.
Heats the left front seat
Heats the right front seat
The indicator light comes on.

433 3-5. Other interior features
3
Interior features
YARIS_F (including HV)_WE_52D27E

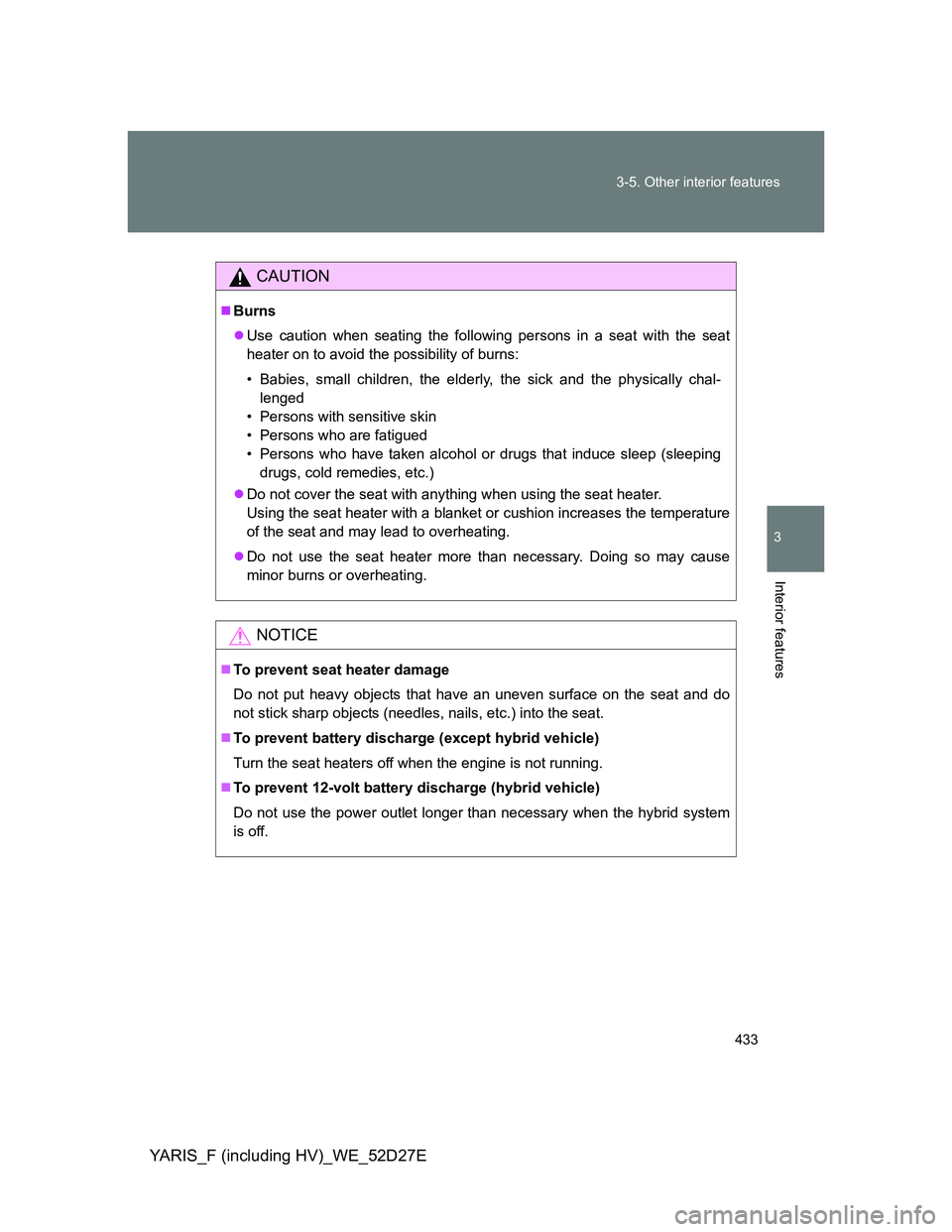

CAUTION
Burns
Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
Do not use the seat heater more than necessary. Doing so may cause
minor burns or overheating.
NOTICE
To prevent seat heater damage
Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
To prevent battery discharge (except hybrid vehicle)
Turn the seat heaters off when the engine is not running.
To prevent 12-volt battery discharge (hybrid vehicle)
Do not use the power outlet longer than necessary when the hybrid system
is off.

434
3-5. Other interior features
YARIS_F (including HV)_WE_52D27E

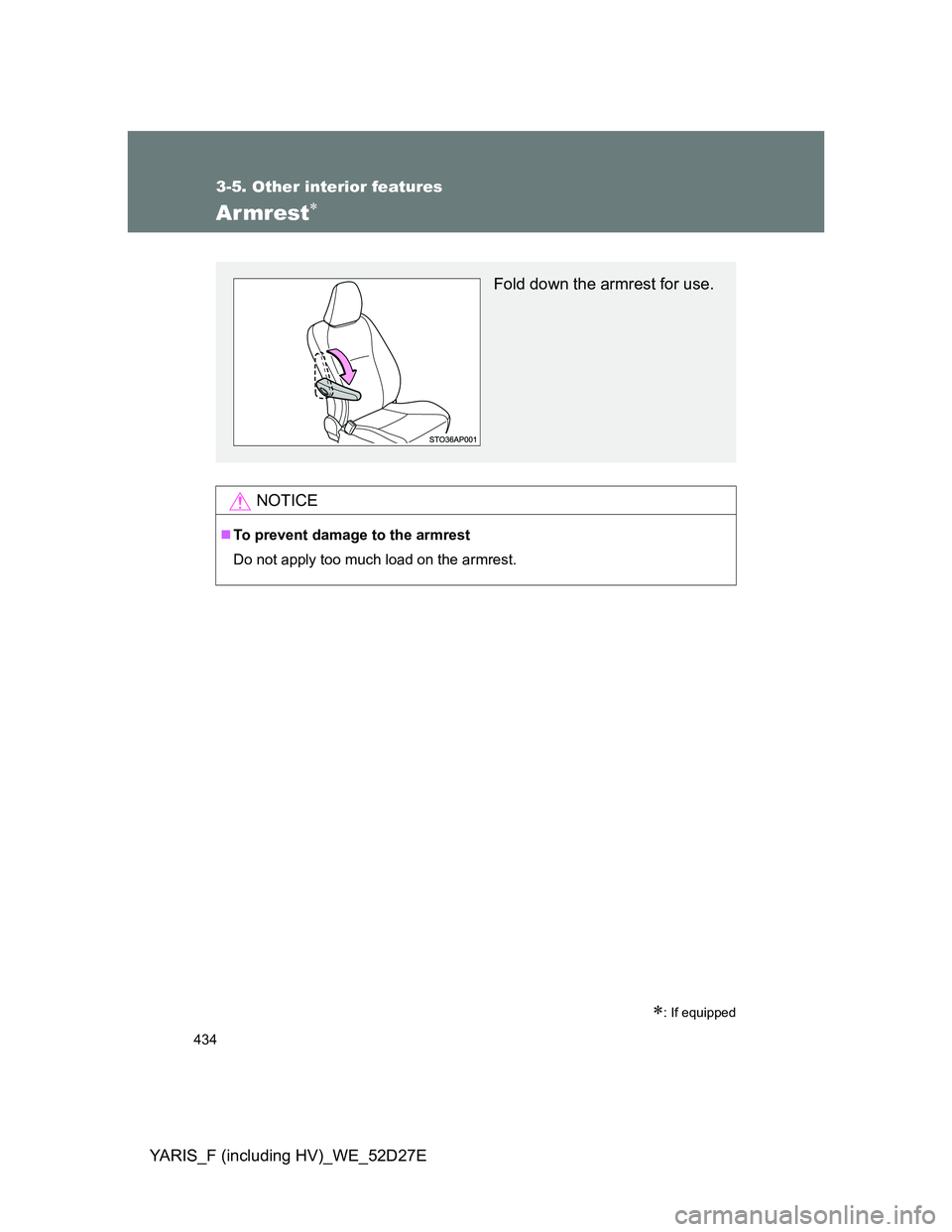

Armrest
: If equipped
NOTICE
To prevent damage to the armrest
Do not apply too much load on the armrest.
Fold down the armrest for use.

435
3-5. Other interior features
3
Interior features
YARIS_F (including HV)_WE_52D27E

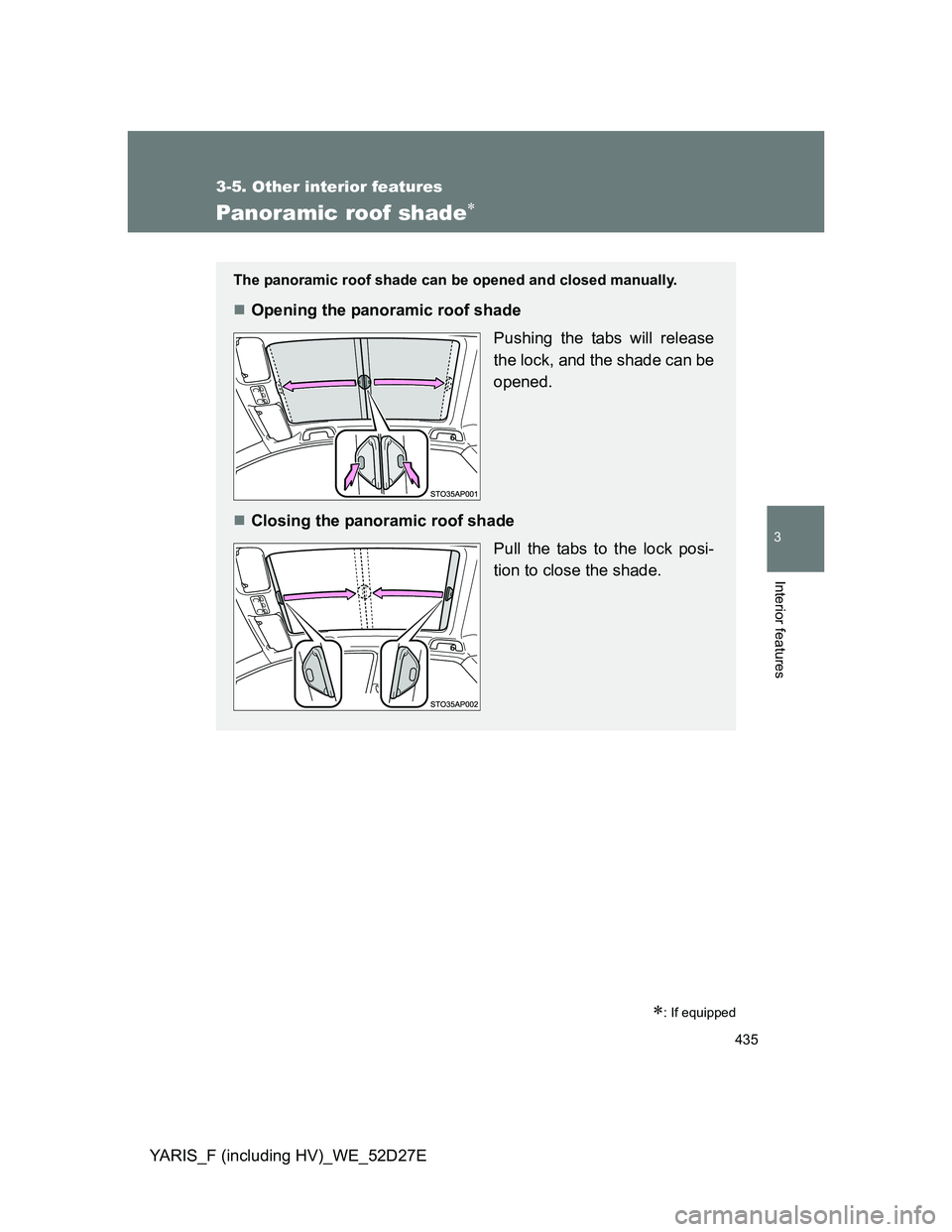

Panoramic roof shade
: If equipped
The panoramic roof shade can be opened and closed manually.
Opening the panoramic roof shade
Pushing the tabs will release
the lock, and the shade can be
opened.
Closing the panoramic roof shade
Pull the tabs to the lock posi-
tion to close the shade.

436
3-5. Other interior features
YARIS_F (including HV)_WE_52D27E

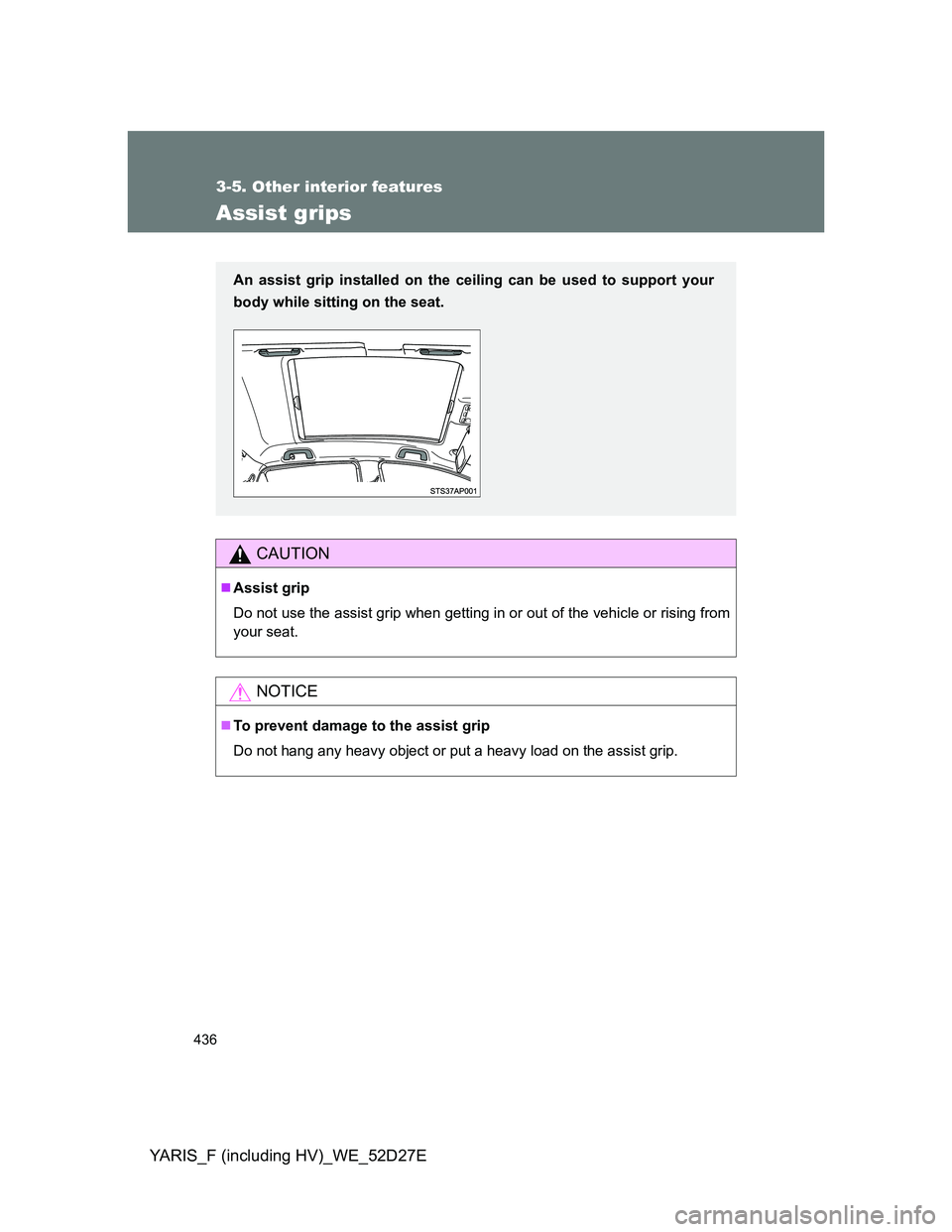

Assist grips
CAUTION
Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
An assist grip installed on the ceiling can be used to support your
body while sitting on the seat.

437
3-5. Other interior features
3
Interior features
YARIS_F (including HV)_WE_52D27E

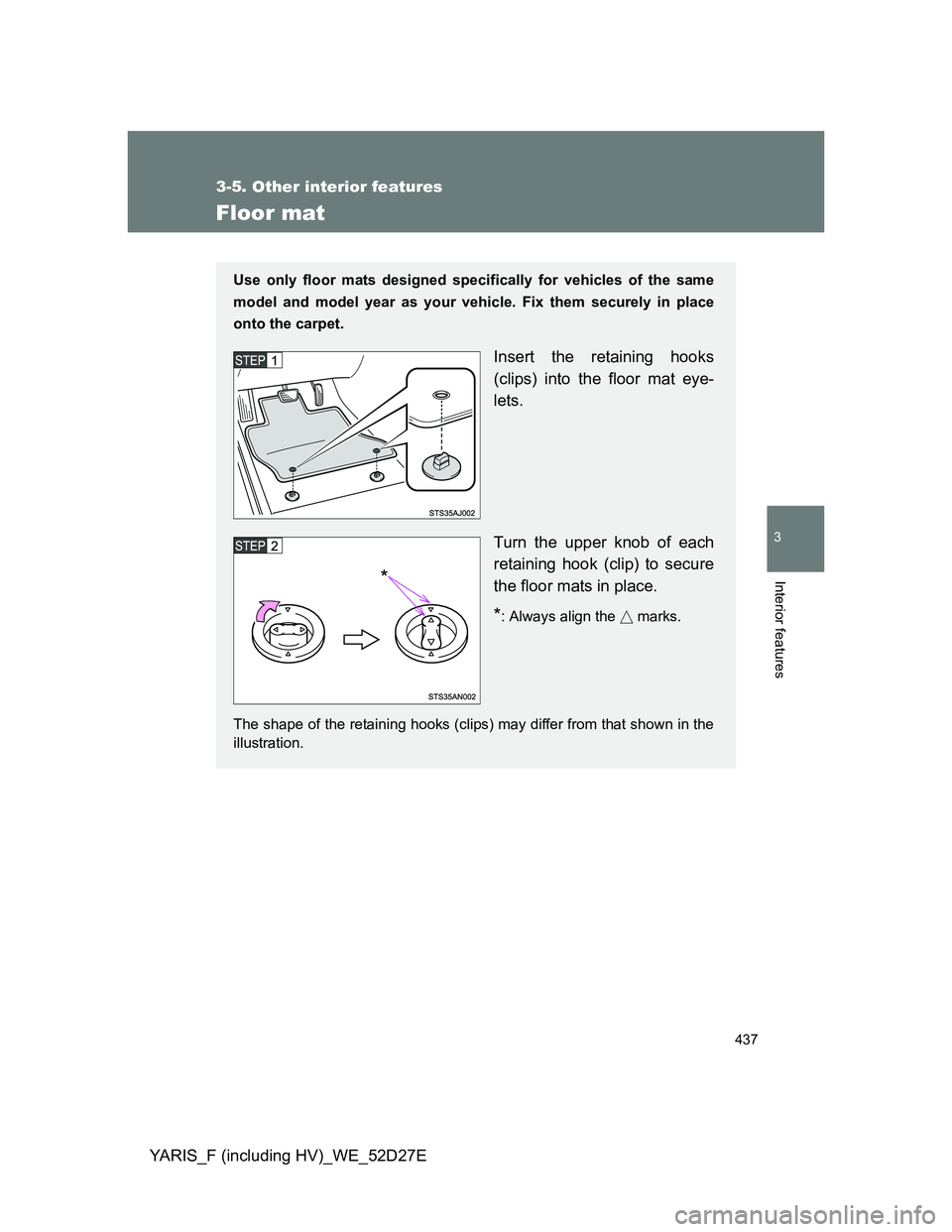

Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
*

438 3-5. Other interior features
YARIS_F (including HV)_WE_52D27E

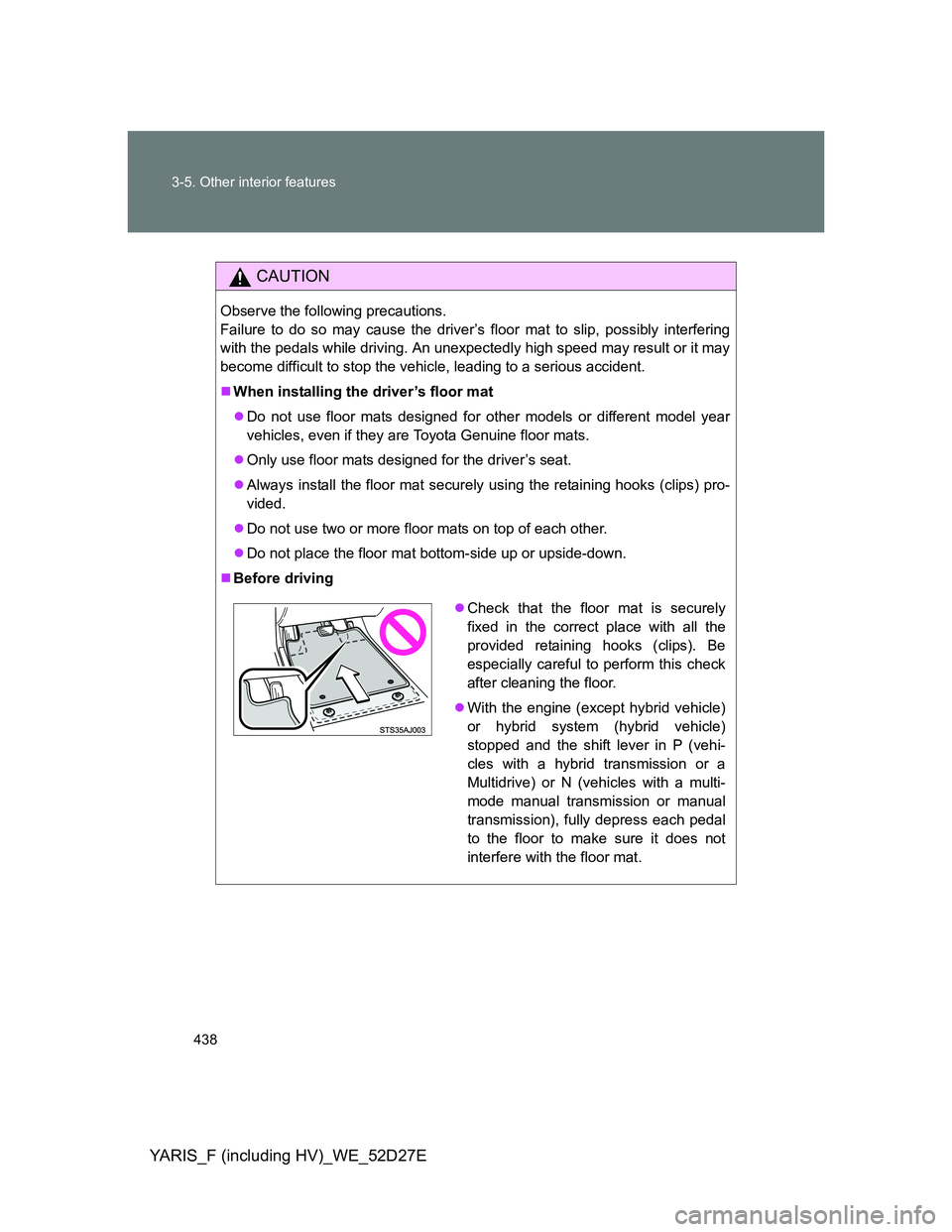

CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
When installing the driver’s floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
Only use floor mats designed for the driver’s seat.
Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
With the engine (except hybrid vehicle)
or hybrid system (hybrid vehicle)
stopped and the shift lever in P (vehi-
cles with a hybrid transmission or a
Multidrive) or N (vehicles with a multi-
mode manual transmission or manual
transmission), fully depress each pedal
to the floor to make sure it does not
interfere with the floor mat.

439
3-5. Other interior features
3
Interior features
YARIS_F (including HV)_WE_52D27E
Luggage compar tment features
Deck board (if equipped)
Upper position
Lower position
The lower position can be used
when the deck board is placed
on the luggage floor cover.
Auxiliary box (if equipped)
Lift the deck board and the
luggage floor cover.

440 3-5. Other interior features
YARIS_F (including HV)_WE_52D27E

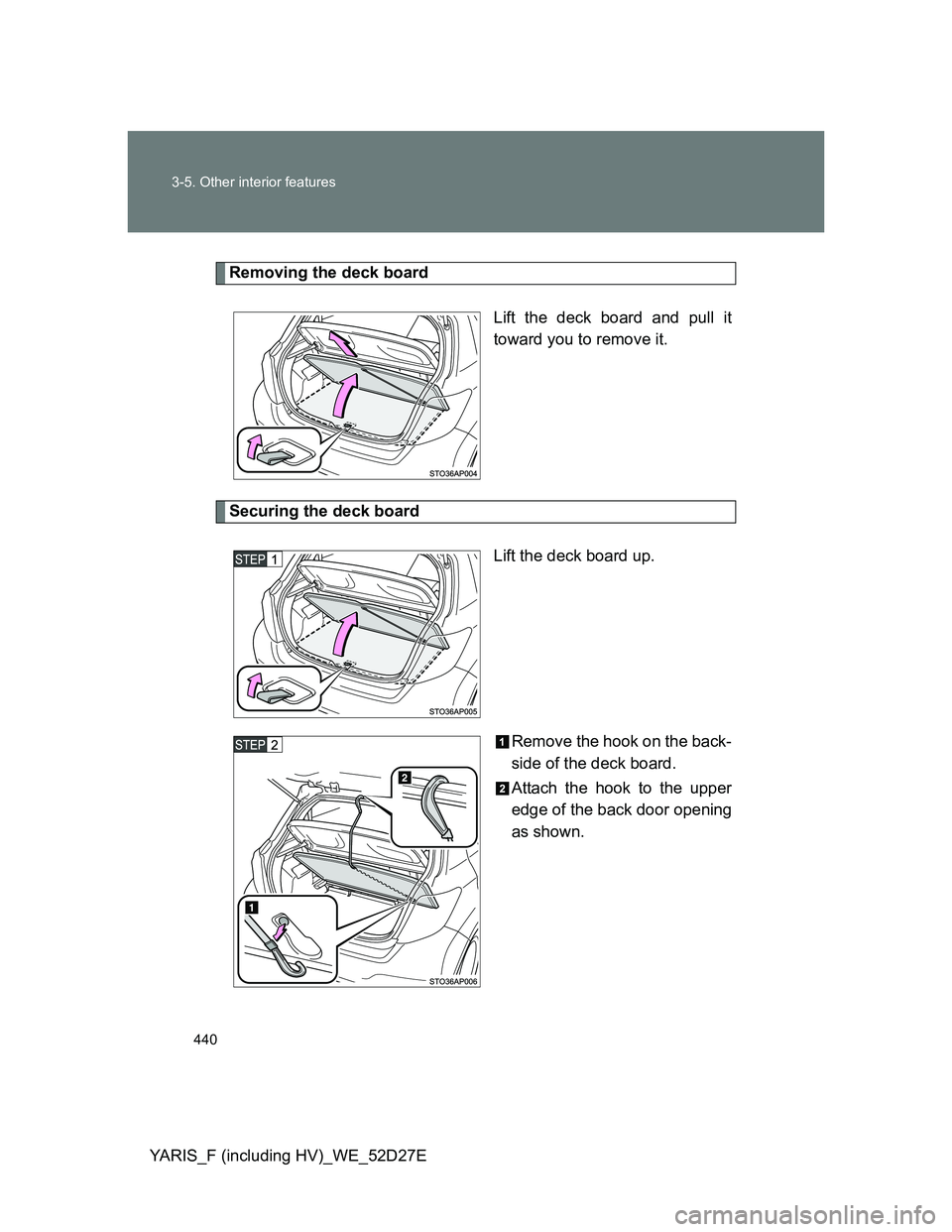

Removing the deck board
Lift the deck board and pull it
toward you to remove it.
Securing the deck board
Lift the deck board up.
Remove the hook on the back-
side of the deck board.
Attach the hook to the upper
edge of the back door opening
as shown.
