551 5-1. Essential information
When trouble arises
YARIS_F (including HV)_WE_52D27ERemove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a
rag between the screwdriver and
the vehicle body as shown in the
illustration.
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench.

552 5-1. Essential information
YARIS_F (including HV)_WE_52D27EHybrid vehicle
Push the eyelet cover and then
open it.
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench.

5
553 5-1. Essential information
When trouble arises
YARIS_F (including HV)_WE_52D27E
Towing with a sling-type truck
Do not tow with a sling-type truck
to prevent body damage.
Towing with a wheel-lift type truck
From the front
Release the parking brake.

554 5-1. Essential information

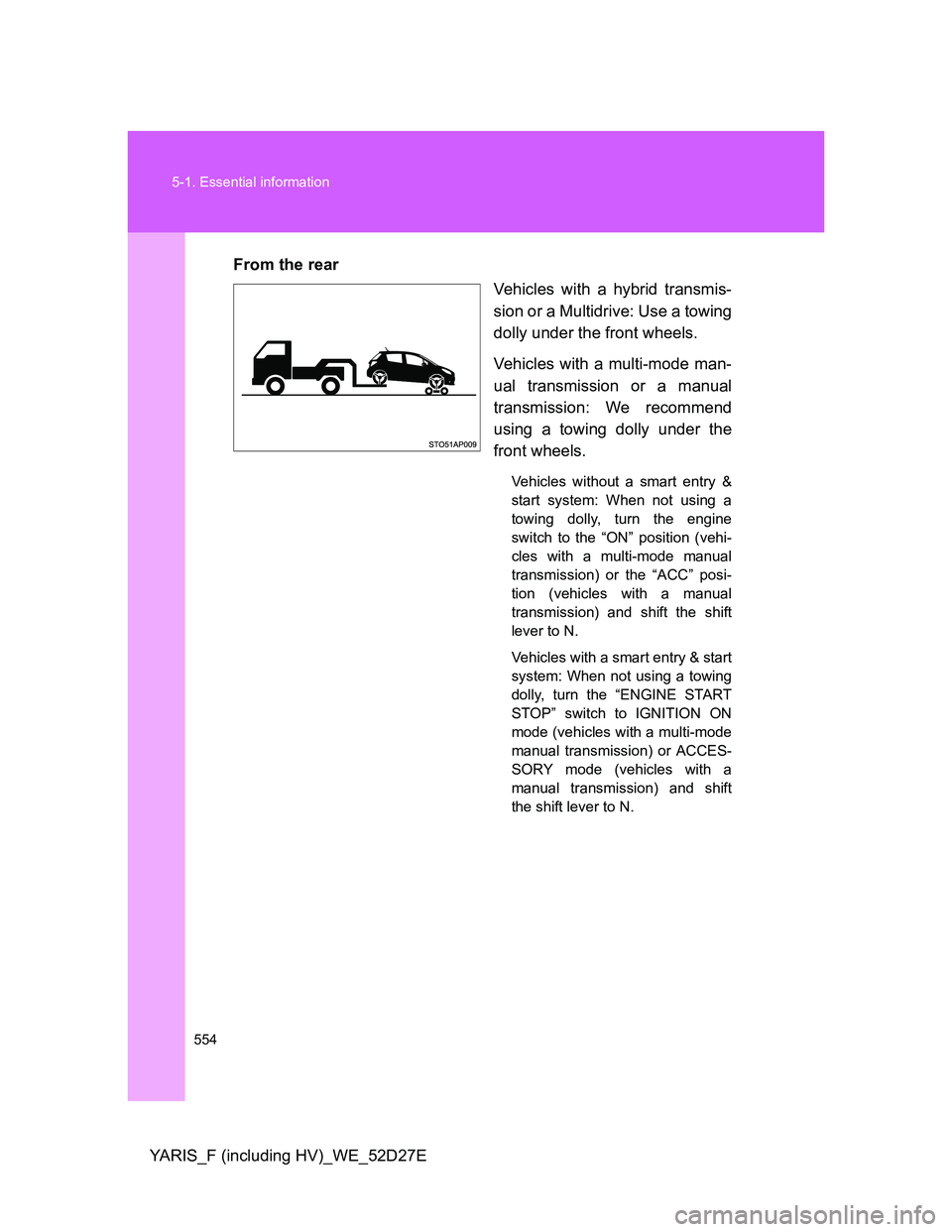

YARIS_F (including HV)_WE_52D27EFrom the rear
Vehicles with a hybrid transmis-
sion or a Multidrive: Use a towing
dolly under the front wheels.
Vehicles with a multi-mode man-
ual transmission or a manual
transmission: We recommend
using a towing dolly under the
front wheels.
Vehicles without a smart entry &
start system: When not using a
towing dolly, turn the engine
switch to the “ON” position (vehi-
cles with a multi-mode manual
transmission) or the “ACC” posi-
tion (vehicles with a manual
transmission) and shift the shift
lever to N.
Vehicles with a smart entry & start
system: When not using a towing
dolly, turn the “ENGINE START
STOP” switch to IGNITION ON
mode (vehicles with a multi-mode
manual transmission) or ACCES-
SORY mode (vehicles with a
manual transmission) and shift
the shift lever to N.

5
555 5-1. Essential information
When trouble arises
YARIS_F (including HV)_WE_52D27E
Using a flatbed truck
.If your Toyota is transported by a
flatbed truck, it should be tied
down at the locations shown in
the illustration.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45.
Do not overly tighten the tie
downs or the vehicle may be
damaged.
Front

556 5-1. Essential information
YARIS_F (including HV)_WE_52D27E

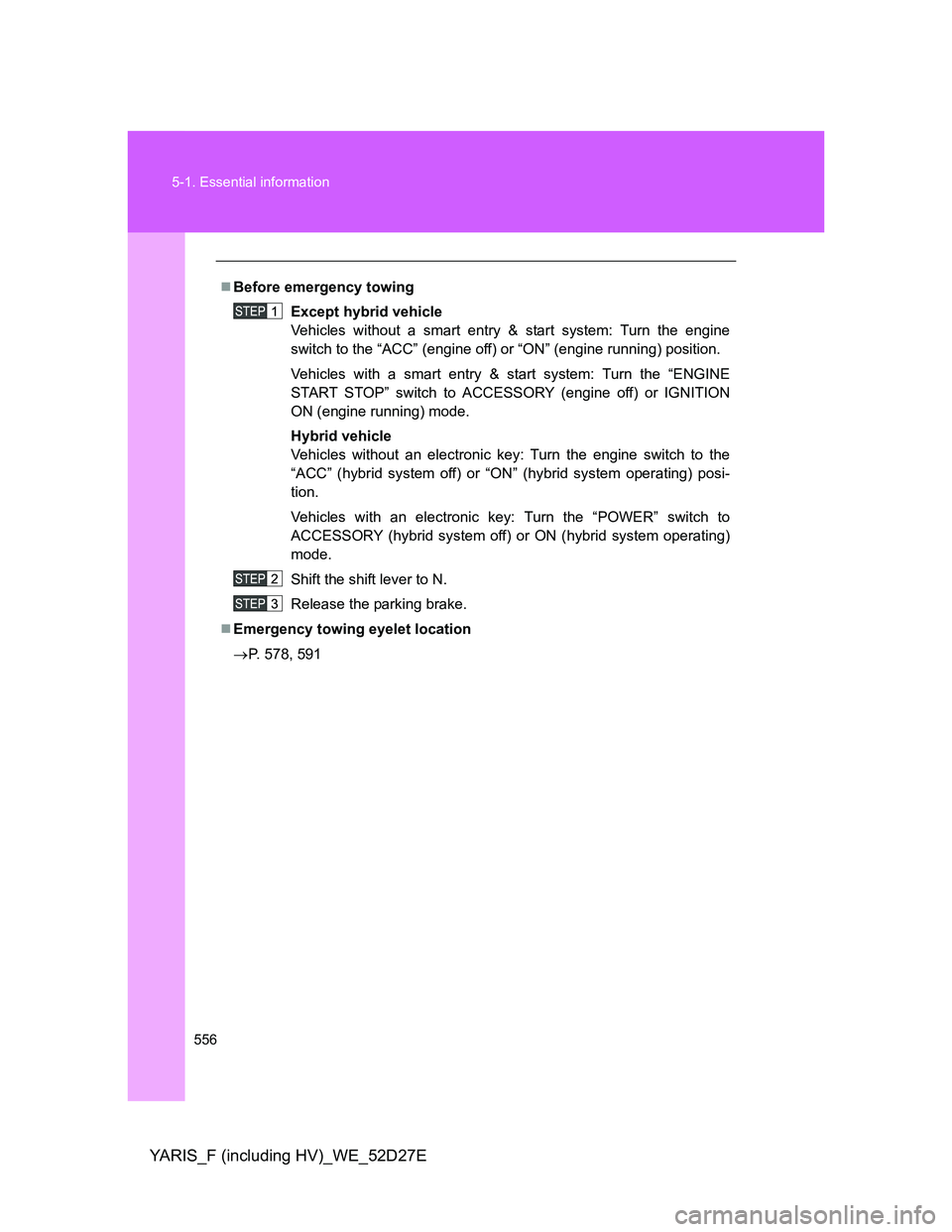

Before emergency towing
Except hybrid vehicle
Vehicles without a smart entry & start system: Turn the engine
switch to the “ACC” (engine off) or “ON” (engine running) position.
Vehicles with a smart entry & start system: Turn the “ENGINE
START STOP” switch to ACCESSORY (engine off) or IGNITION
ON (engine running) mode.
Hybrid vehicle
Vehicles without an electronic key: Turn the engine switch to the
“ACC” (hybrid system off) or “ON” (hybrid system operating) posi-
tion.
Vehicles with an electronic key: Turn the “POWER” switch to
ACCESSORY (hybrid system off) or ON (hybrid system operating)
mode.
Shift the shift lever to N.
Release the parking brake.
Emergency towing eyelet location
P. 578, 591

5
557 5-1. Essential information
When trouble arises
YARIS_F (including HV)_WE_52D27E

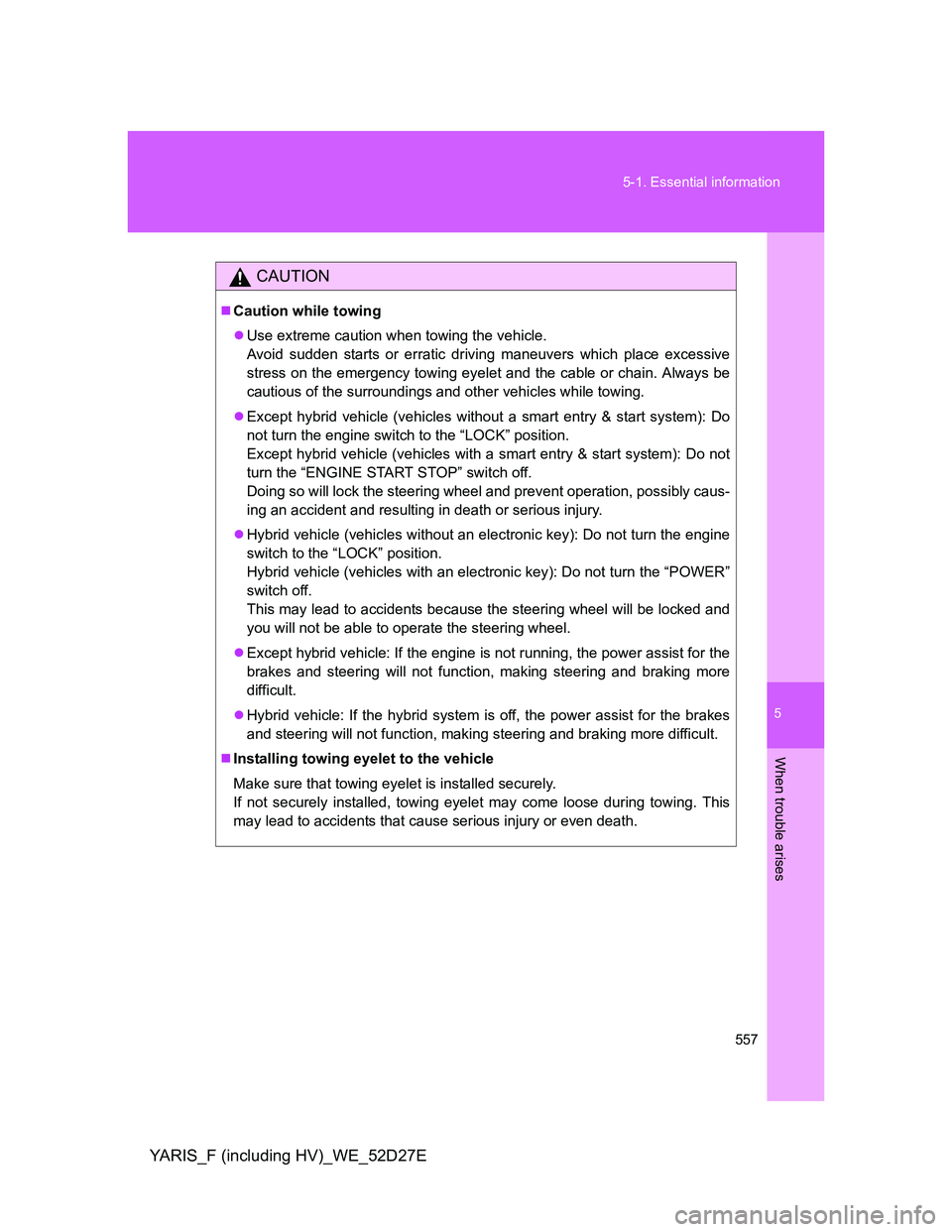

CAUTION
Caution while towing
Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive
stress on the emergency towing eyelet and the cable or chain. Always be
cautious of the surroundings and other vehicles while towing.
Except hybrid vehicle (vehicles without a smart entry & start system): Do
not turn the engine switch to the “LOCK” position.
Except hybrid vehicle (vehicles with a smart entry & start system): Do not
turn the “ENGINE START STOP” switch off.
Doing so will lock the steering wheel and prevent operation, possibly caus-
ing an accident and resulting in death or serious injury.
Hybrid vehicle (vehicles without an electronic key): Do not turn the engine
switch to the “LOCK” position.
Hybrid vehicle (vehicles with an electronic key): Do not turn the “POWER”
switch off.
This may lead to accidents because the steering wheel will be locked and
you will not be able to operate the steering wheel.
Except hybrid vehicle: If the engine is not running, the power assist for the
brakes and steering will not function, making steering and braking more
difficult.
Hybrid vehicle: If the hybrid system is off, the power assist for the brakes
and steering will not function, making steering and braking more difficult.
Installing towing eyelet to the vehicle
Make sure that towing eyelet is installed securely.
If not securely installed, towing eyelet may come loose during towing. This
may lead to accidents that cause serious injury or even death.

558 5-1. Essential information
YARIS_F (including HV)_WE_52D27E
NOTICE
To prevent causing serious damage to the transmission when towing
using a wheel-lift type truck (vehicles with a hybrid transmission or a
Multidrive)
Never tow this vehicle from the rear with the front wheels on the ground.
To prevent causing serious damage to the Stop & Start system when
towing (vehicles with a Stop & Start system)
Never tow this vehicle with four wheels on the ground. Use a flatbed truck, or
lift up front or rear of the vehicle by using a wheel-lift type truck.
To prevent damage to the vehicle when towing using a wheel-lift type
truck (vehicles with a hybrid transmission or a Multidrive)
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
To prevent damage to the vehicle when towing using a wheel-lift type
truck (vehicles with a multi-mode manual transmission or a manual
transmission)
Vehicles without a smart entry & start system: Do not tow the vehicle from
the rear when the engine switch is in the “LOCK” position or the key is
removed. The steering lock mechanism is not strong enough to hold the
front wheels straight.
Vehicles with a smart entry & start system: Do not tow the vehicle from the
rear when the “ENGINE START STOP” switch is off. The steering lock
mechanism is not strong enough to hold the front wheels straight.
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
To prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
To prevent causing serious damage to the transmission in emergency
towing
Never tow a vehicle from the rear with four wheels on the ground. This may
cause serious damage to the transmission.

5
559
5-1. Essential information
When trouble arises
YARIS_F (including HV)_WE_52D27E

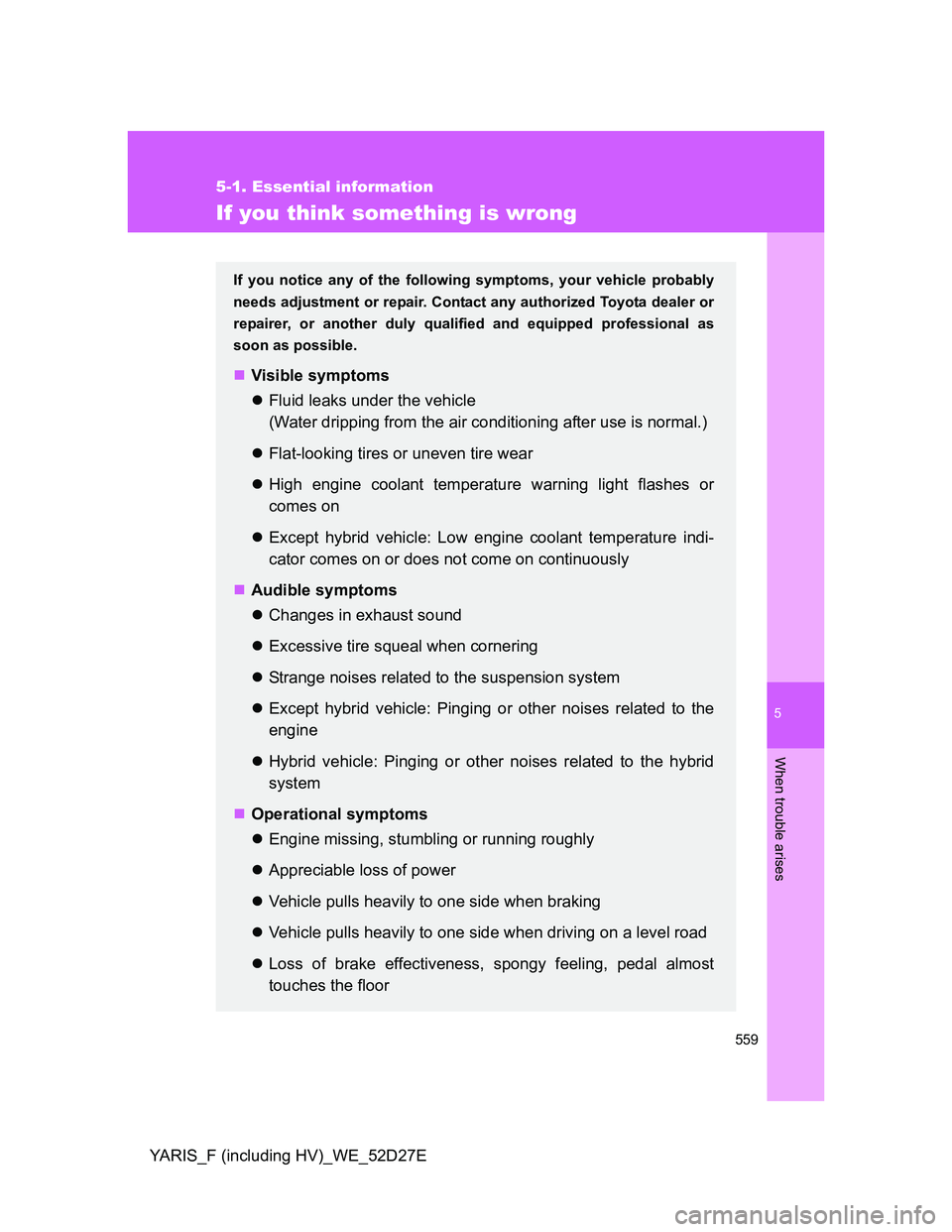

If you think something is wrong
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional as
soon as possible.
Visible symptoms
Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
Flat-looking tires or uneven tire wear
High engine coolant temperature warning light flashes or
comes on
Except hybrid vehicle: Low engine coolant temperature indi-
cator comes on or does not come on continuously
Audible symptoms
Changes in exhaust sound
Excessive tire squeal when cornering
Strange noises related to the suspension system
Except hybrid vehicle: Pinging or other noises related to the
engine
Hybrid vehicle: Pinging or other noises related to the hybrid
system
Operational symptoms
Engine missing, stumbling or running roughly
Appreciable loss of power
Vehicle pulls heavily to one side when braking
Vehicle pulls heavily to one side when driving on a level road
Loss of brake effectiveness, spongy feeling, pedal almost
touches the floor

560
5-1. Essential information
YARIS_F (including HV)_WE_52D27E

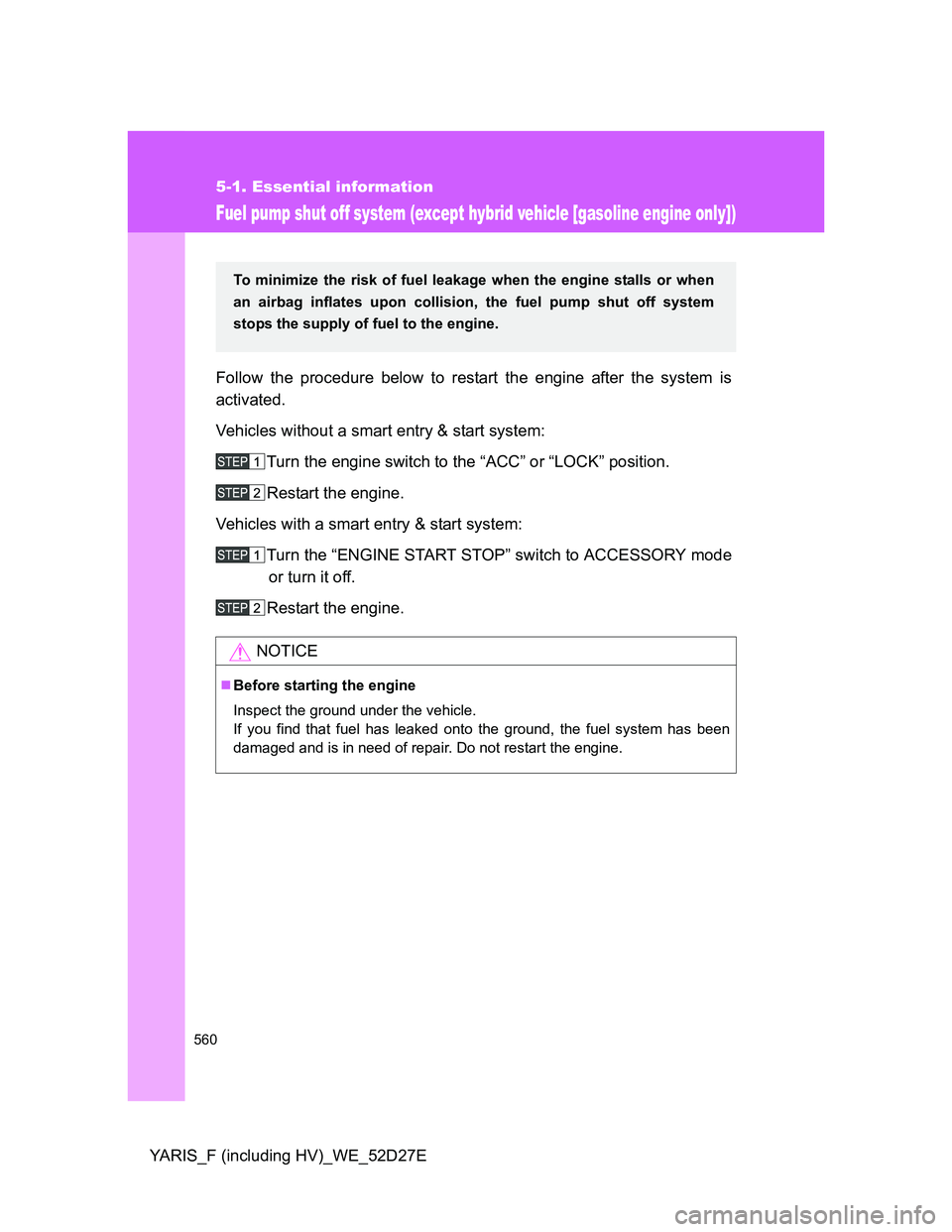

Fuel pump shut off system (except hybrid vehicle [gasoline engine only])
Follow the procedure below to restart the engine after the system is
activated.
Vehicles without a smart entry & start system:
Turn the engine switch to the “ACC” or “LOCK” position.
Restart the engine.
Vehicles with a smart entry & start system:
Turn the “ENGINE START STOP” switch to ACCESSORY mode
or turn it off.
Restart the engine.
NOTICE
Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or when
an airbag inflates upon collision, the fuel pump shut off system
stops the supply of fuel to the engine.
