TOYOTA YARIS HYBRID 2013 Owners Manual

661 6-1. Specifications
6
Vehicle specifications
YARIS_F (including HV)_WE_52D27E

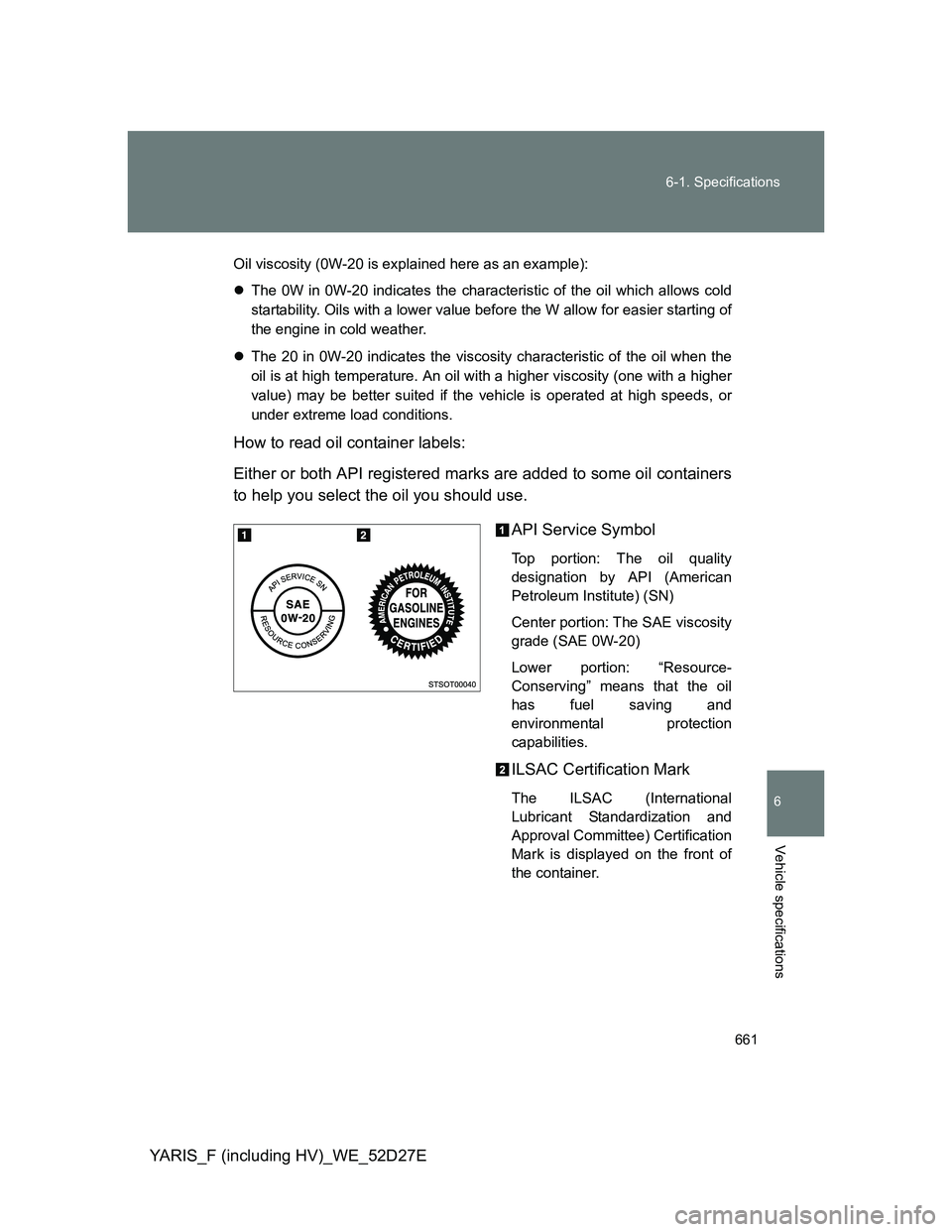

Oil viscosity (0W-20 is explained here as an example):
The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality
designation by API (American
Petroleum Institute) (SN)
Center portion: The SAE viscosity
grade (SAE 0W-20)
Lower portion: “Resource-
Conserving” means that the oil
has fuel saving and
environmental protection
capabilities.
ILSAC Certification Mark
The ILSAC (International
Lubricant Standardization and
Approval Committee) Certification
Mark is displayed on the front of
the container.

662 6-1. Specifications
YARIS_F (including HV)_WE_52D27EDiesel engine vehicles without a DPF system
*
Oil grade: ACEA C2, B1, API CF-4 or CF
(You may also use API CE or CD.)
Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 or 0W-30
engine oil is recommended.
Oil viscosity (0W-30 is explained here as an example):
The 0W in 0W-30 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
The 30 in 0W-30 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
*: To determine whether or not your vehicle has a DPF system, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Temperature range anticipated before
next oil change.
Preferred

663 6-1. Specifications
6
Vehicle specifications

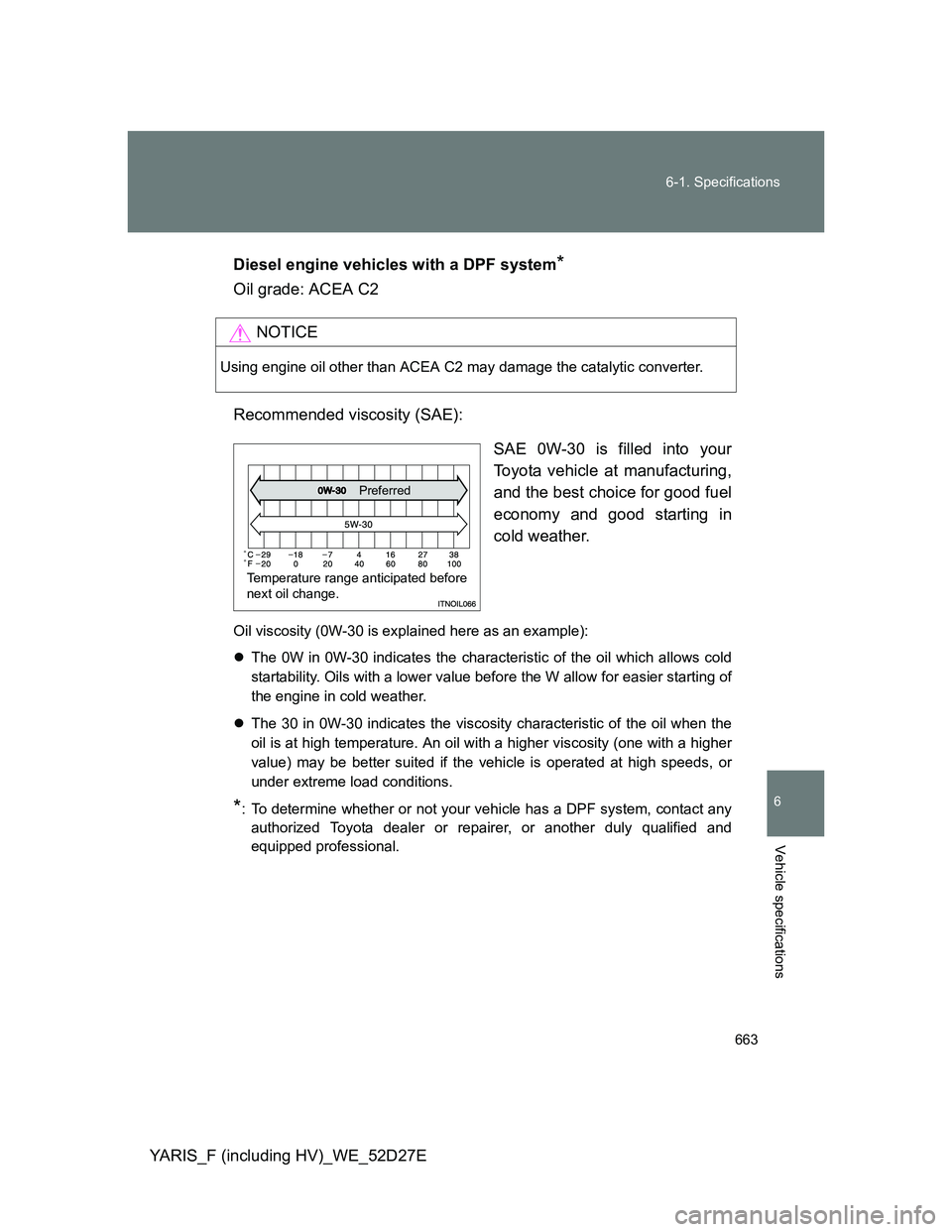

YARIS_F (including HV)_WE_52D27EDiesel engine vehicles with a DPF system
*
Oil grade: ACEA C2
Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
Oil viscosity (0W-30 is explained here as an example):
The 0W in 0W-30 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
The 30 in 0W-30 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
*: To determine whether or not your vehicle has a DPF system, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
NOTICE
Using engine oil other than ACEA C2 may damage the catalytic converter.
Temperature range anticipated before
next oil change.
Preferred

664 6-1. Specifications
YARIS_F (including HV)_WE_52D27E

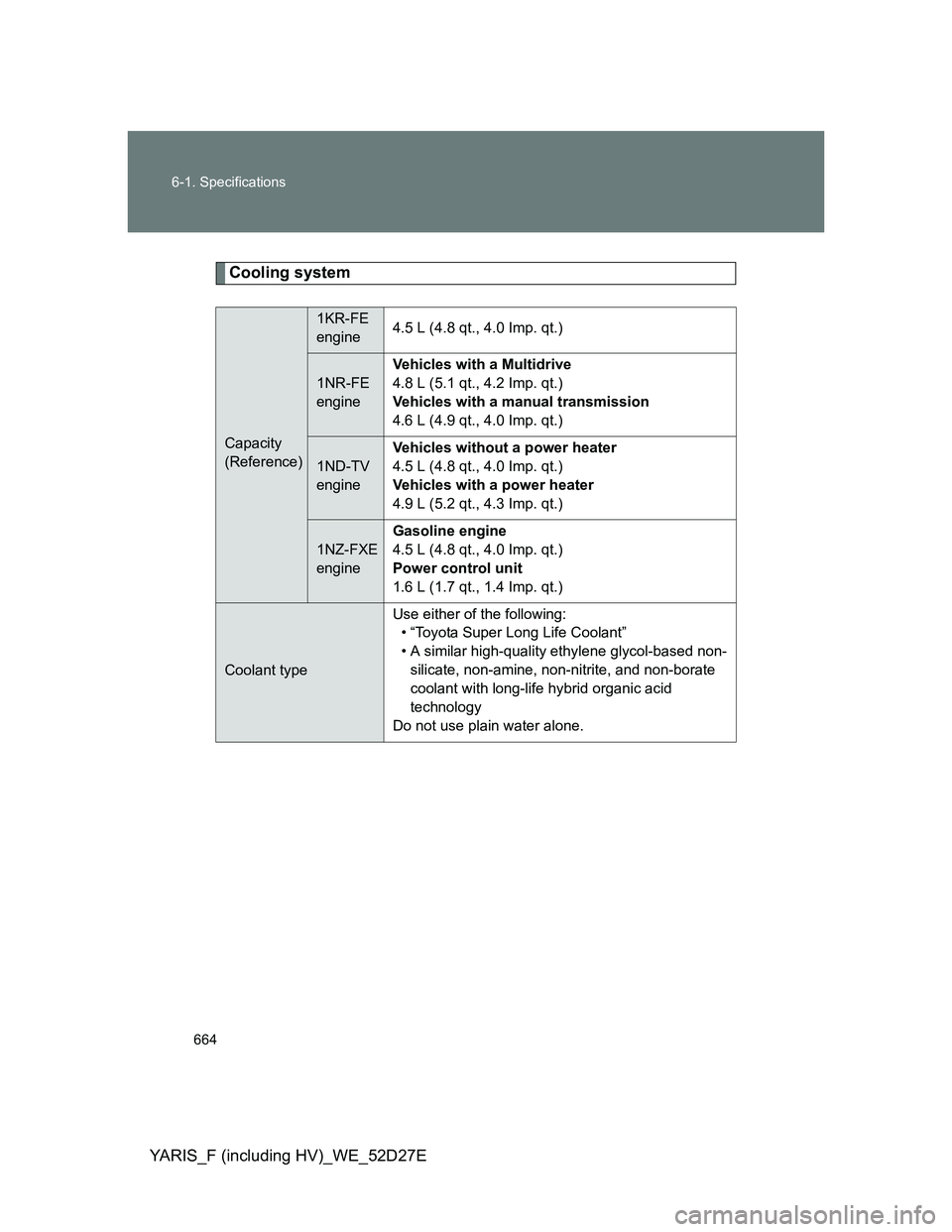

Cooling system
Capacity
(Reference)
1KR-FE
engine4.5 L (4.8 qt., 4.0 Imp. qt.)
1NR-FE
engineVehicles with a Multidrive
4.8 L (5.1 qt., 4.2 Imp. qt.)
Vehicles with a manual transmission
4.6 L (4.9 qt., 4.0 Imp. qt.)
1ND-TV
engineVehicles without a power heater
4.5 L (4.8 qt., 4.0 Imp. qt.)
Vehicles with a power heater
4.9 L (5.2 qt., 4.3 Imp. qt.)
1NZ-FXE
engineGasoline engine
4.5 L (4.8 qt., 4.0 Imp. qt.)
Power control unit
1.6 L (1.7 qt., 1.4 Imp. qt.)
Coolant typeUse either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based non-
silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid
technology
Do not use plain water alone.

665 6-1. Specifications
6
Vehicle specifications
YARIS_F (including HV)_WE_52D27E

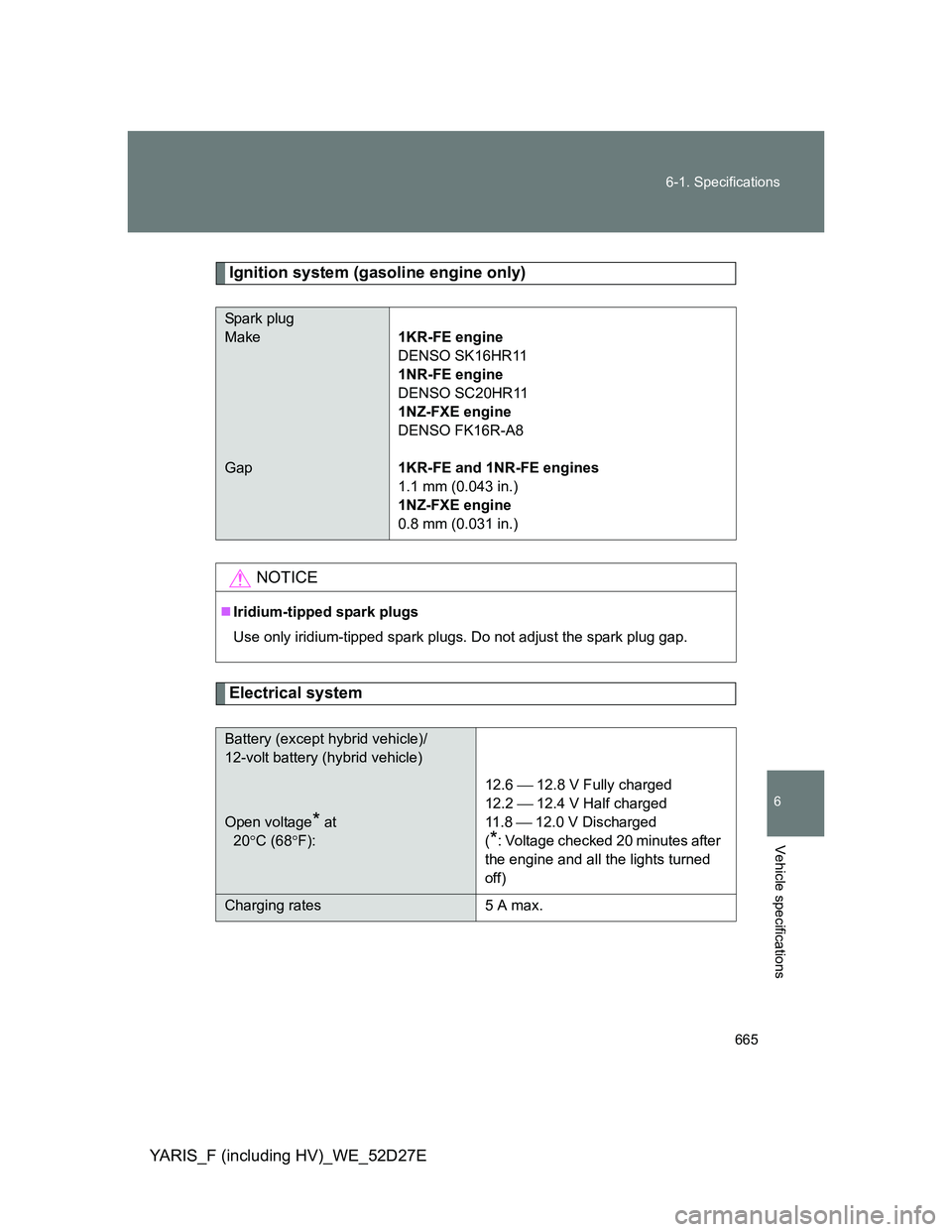

Ignition system (gasoline engine only)
Electrical system
Spark plug
Make
Gap1KR-FE engine
DENSO SK16HR11
1NR-FE engine
DENSO SC20HR11
1NZ-FXE engine
DENSO FK16R-A8
1KR-FE and 1NR-FE engines
1.1 mm (0.043 in.)
1NZ-FXE engine
0.8 mm (0.031 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Battery (except hybrid vehicle)/
12-volt battery (hybrid vehicle)
Open voltage* at
20C (68F):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(
*: Voltage checked 20 minutes after
the engine and all the lights turned
off)
Charging rates 5 A max.

666 6-1. Specifications
YARIS_F (including HV)_WE_52D27E

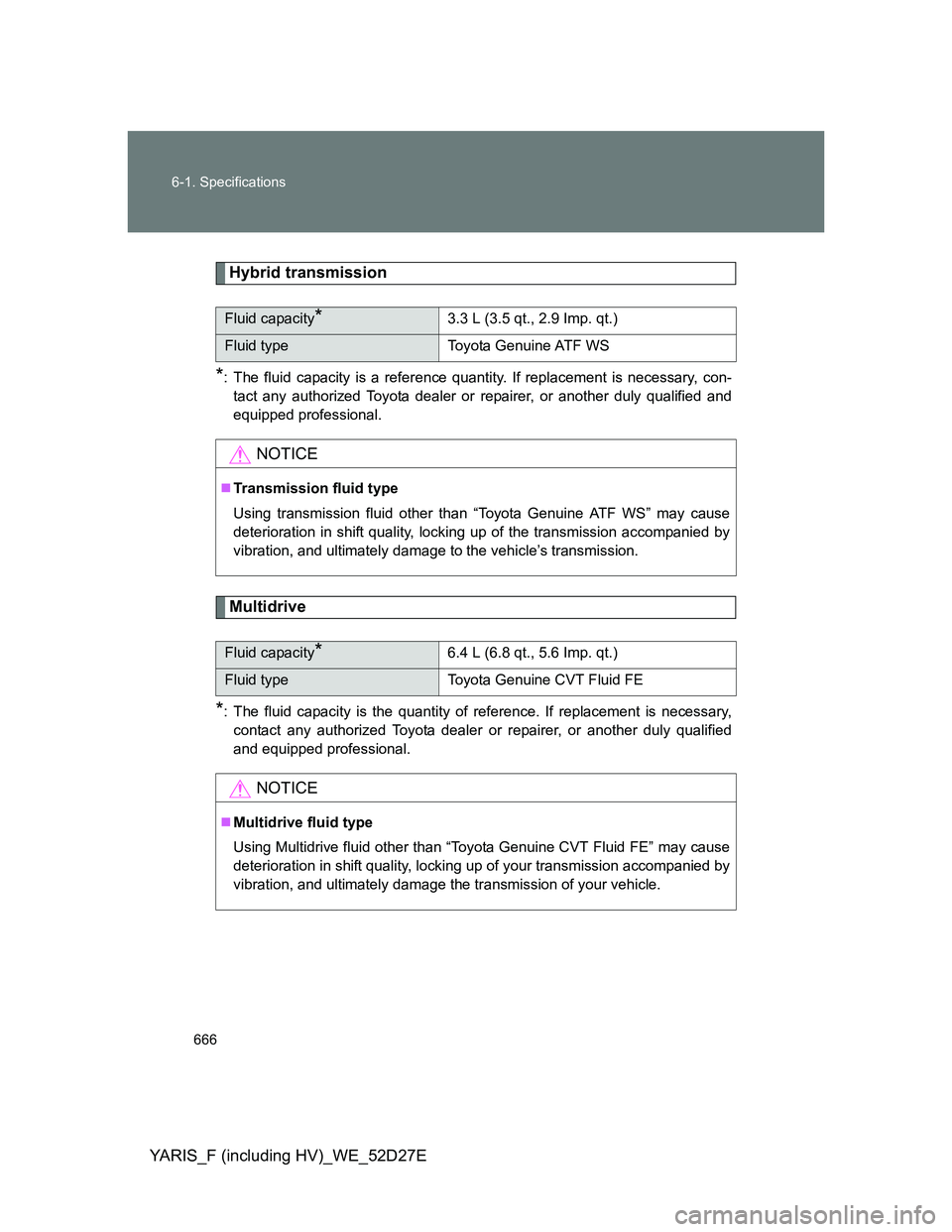

Hybrid transmission
*: The fluid capacity is a reference quantity. If replacement is necessary, con-
tact any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Multidrive
*: The fluid capacity is the quantity of reference. If replacement is necessary,
contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Fluid capacity*3.3 L (3.5 qt., 2.9 Imp. qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of the transmission accompanied by
vibration, and ultimately damage to the vehicle’s transmission.
Fluid capacity*6.4 L (6.8 qt., 5.6 Imp. qt.)
Fluid type Toyota Genuine CVT Fluid FE
NOTICE
Multidrive fluid type
Using Multidrive fluid other than “Toyota Genuine CVT Fluid FE” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage the transmission of your vehicle.

667 6-1. Specifications
6
Vehicle specifications
YARIS_F (including HV)_WE_52D27E

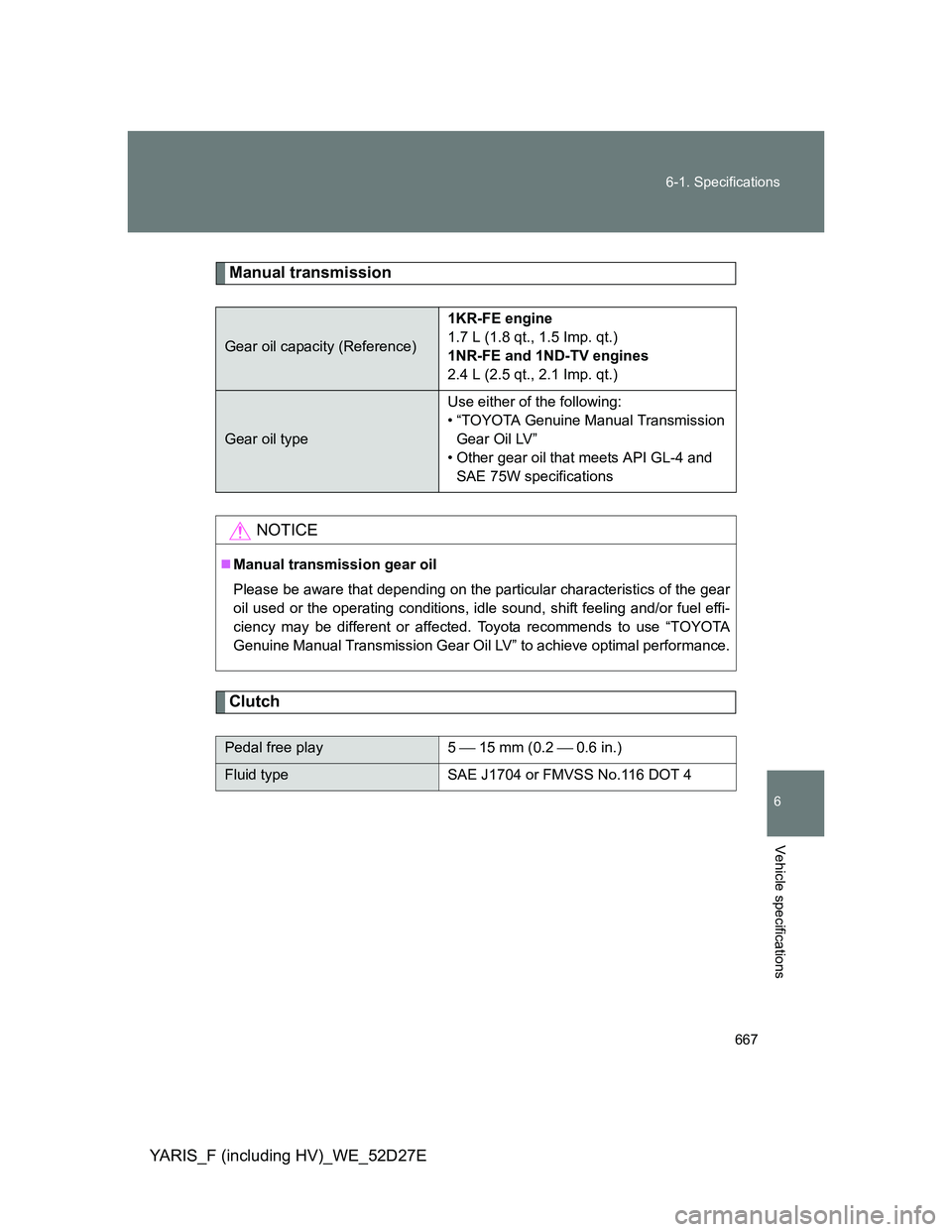

Manual transmission
Clutch
Gear oil capacity (Reference)1KR-FE engine
1.7 L (1.8 qt., 1.5 Imp. qt.)
1NR-FE and 1ND-TV engines
2.4 L (2.5 qt., 2.1 Imp. qt.)
Gear oil typeUse either of the following:
• “TOYOTA Genuine Manual Transmission
Gear Oil LV”
• Other gear oil that meets API GL-4 and
SAE 75W specifications
NOTICE
Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal performance.
Pedal free play 5  15 mm (0.2  0.6 in.)
Fluid type SAE J1704 or FMVSS No.116 DOT 4

668 6-1. Specifications
YARIS_F (including HV)_WE_52D27E

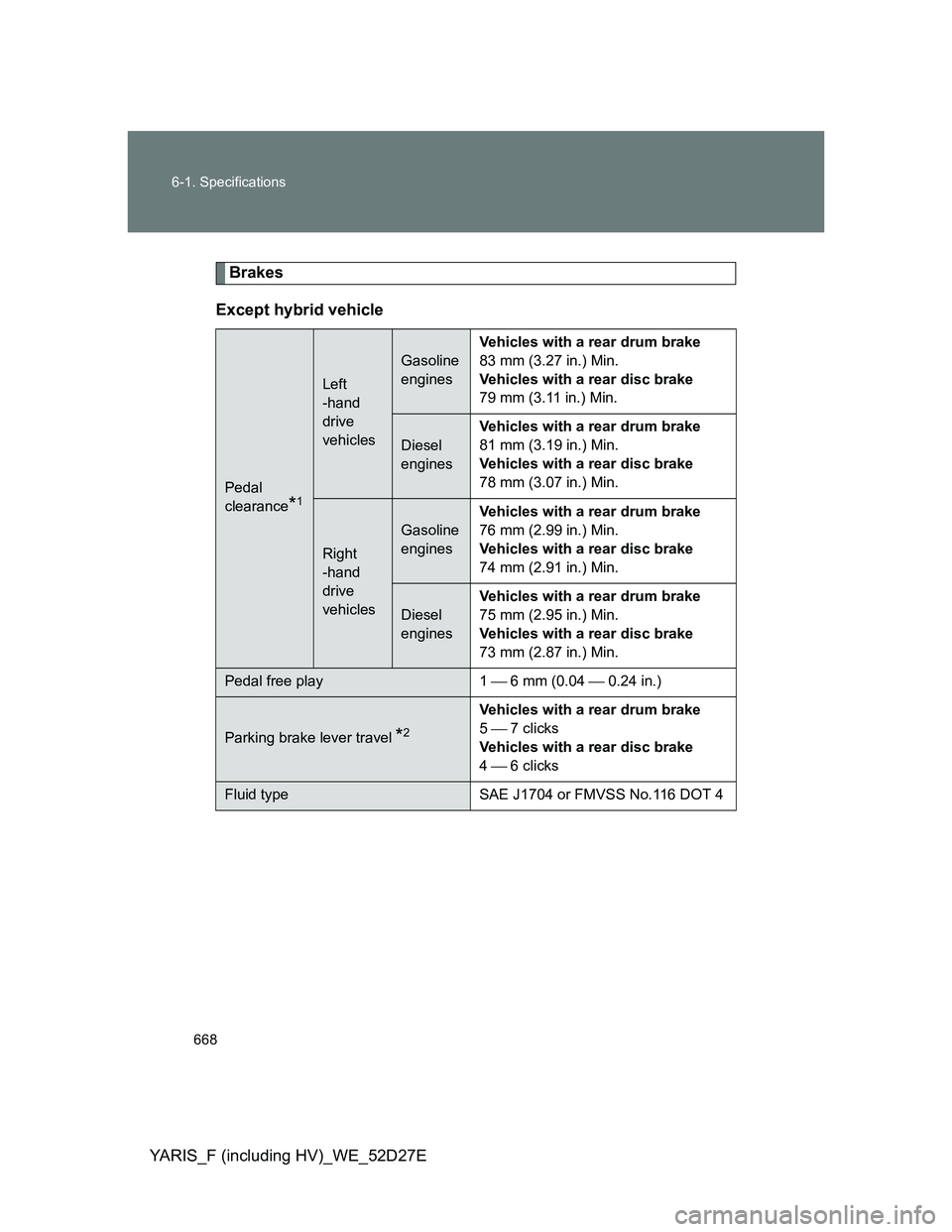

Brakes
Except hybrid vehicle
Pedal
clearance
*1
Left
-hand
drive
vehicles
Gasoline
enginesVehicles with a rear drum brake
83 mm (3.27 in.) Min.
Vehicles with a rear disc brake
79 mm (3.11 in.) Min.
Diesel
enginesVehicles with a rear drum brake
81 mm (3.19 in.) Min.
Vehicles with a rear disc brake
78 mm (3.07 in.) Min.
Right
-hand
drive
vehicles
Gasoline
enginesVehicles with a rear drum brake
76 mm (2.99 in.) Min.
Vehicles with a rear disc brake
74 mm (2.91 in.) Min.
Diesel
enginesVehicles with a rear drum brake
75 mm (2.95 in.) Min.
Vehicles with a rear disc brake
73 mm (2.87 in.) Min.
Pedal free play 1  6 mm (0.04  0.24 in.)
Parking brake lever travel *2
Vehicles with a rear drum brake
5  7 clicks
Vehicles with a rear disc brake
4  6 clicks
Fluid type SAE J1704 or FMVSS No.116 DOT 4

669 6-1. Specifications
6
Vehicle specifications

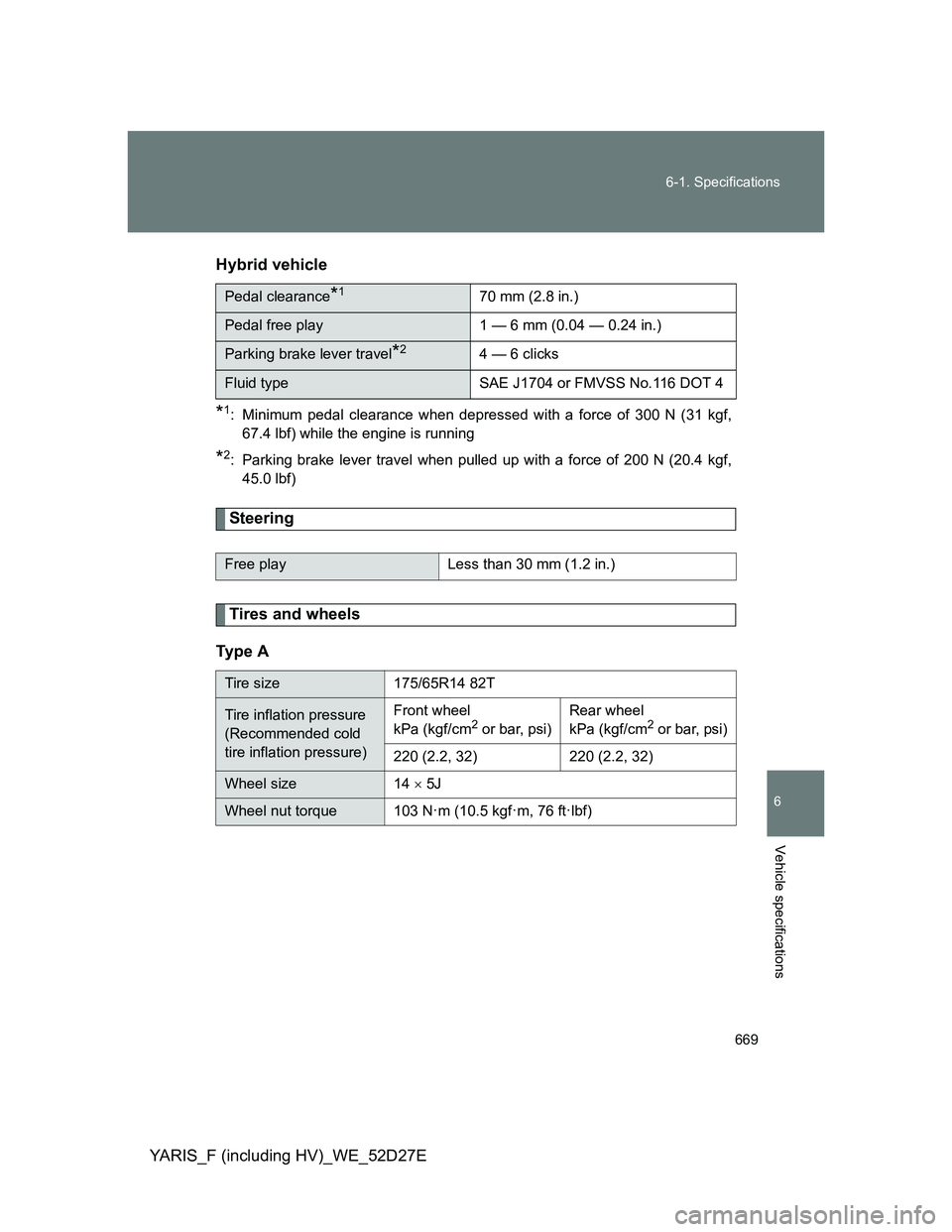

YARIS_F (including HV)_WE_52D27EHybrid vehicle
*1: Minimum pedal clearance when depressed with a force of 300 N (31 kgf,
67.4 lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf)
Steering
Tires and wheels
Ty p e A
Pedal clearance*170 mm (2.8 in.)
Pedal free play 1 — 6 mm (0.04 — 0.24 in.)
Parking brake lever travel*24 — 6 clicks
Fluid type SAE J1704 or FMVSS No.116 DOT 4
Free play Less than 30 mm (1.2 in.)
Tire size 175/65R14 82T
Tire inflation pressure
(Recommended cold
tire inflation pressure)Front wheel
kPa (kgf/cm2 or bar, psi)Rear wheel
kPa (kgf/cm2 or bar, psi)
220 (2.2, 32) 220 (2.2, 32)
Wheel size 14  5J
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)

670 6-1. Specifications

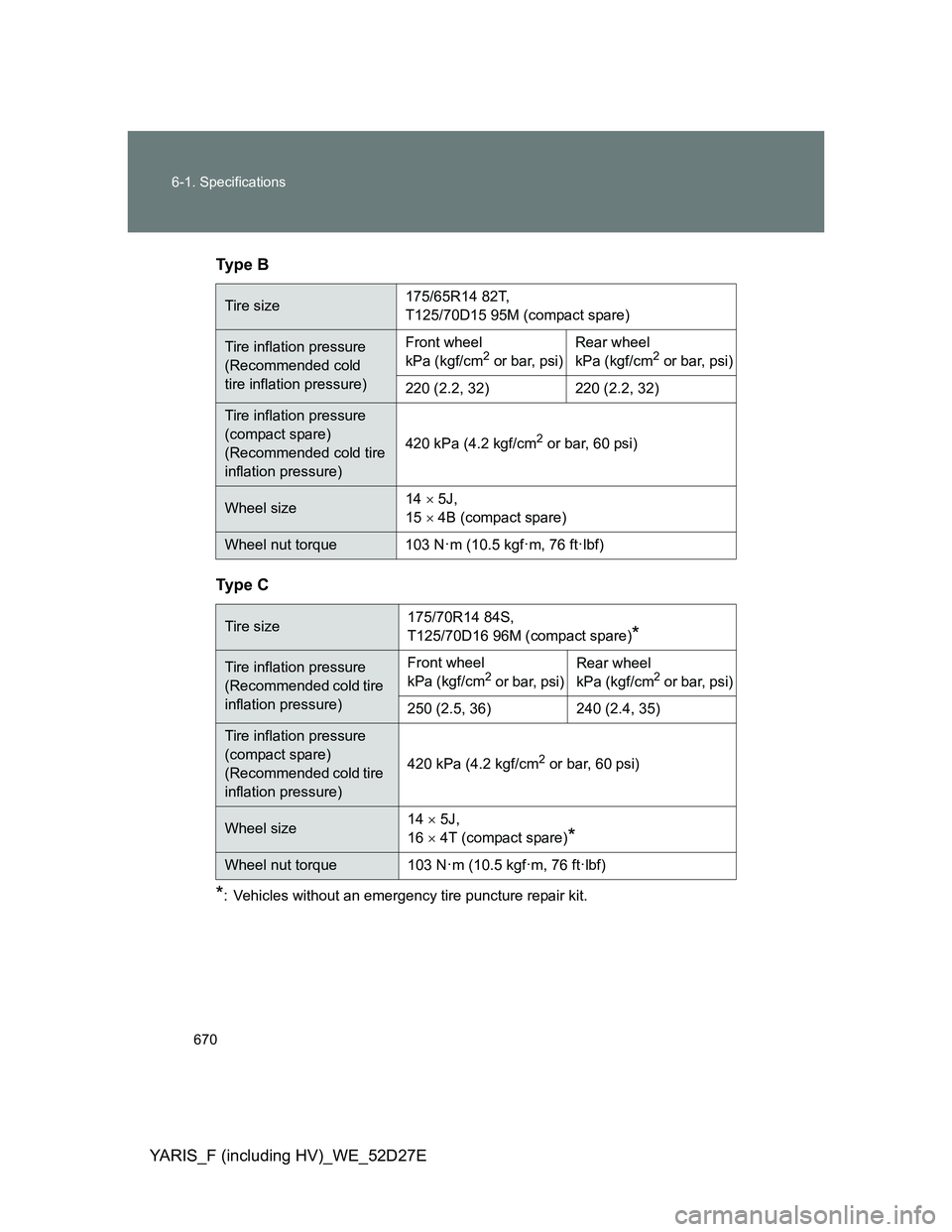

YARIS_F (including HV)_WE_52D27ETy p e B
Ty p e C
*: Vehicles without an emergency tire puncture repair kit.
Tire size175/65R14 82T,
T125/70D15 95M (compact spare)
Tire inflation pressure
(Recommended cold
tire inflation pressure)Front wheel
kPa (kgf/cm2 or bar, psi)Rear wheel
kPa (kgf/cm2 or bar, psi)
220 (2.2, 32) 220 (2.2, 32)
Tire inflation pressure
(compact spare)
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm
2 or bar, 60 psi)
Wheel size14  5J,
15  4B (compact spare)
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size175/70R14 84S,
T125/70D16 96M (compact spare)*
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front wheel
kPa (kgf/cm2 or bar, psi)Rear wheel
kPa (kgf/cm2 or bar, psi)
250 (2.5, 36) 240 (2.4, 35)
Tire inflation pressure
(compact spare)
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm
2 or bar, 60 psi)
Wheel size14  5J,
16  4T (compact spare)*
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)
