odometer TOYOTA YARIS HYBRID 2013 Owners Manual

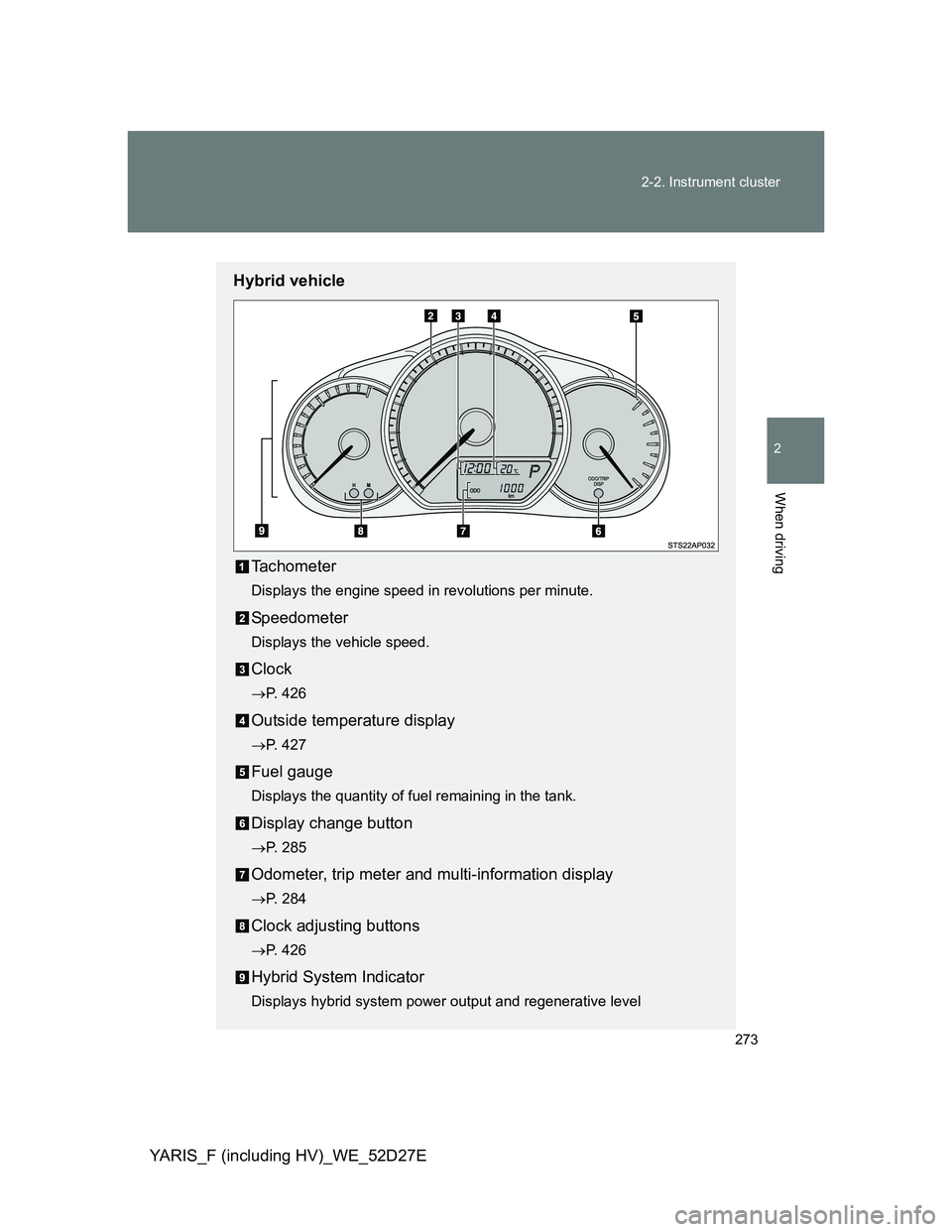

273 2-2. Instrument cluster
2
When driving
YARIS_F (including HV)_WE_52D27E
Hybrid vehicle
Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Clock
P. 426
Outside temperature display
P. 427
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Display change button
P. 285
Odometer, trip meter and multi-information display
P. 284
Clock adjusting buttons
P. 426
Hybrid System Indicator
Displays hybrid system power output and regenerative level

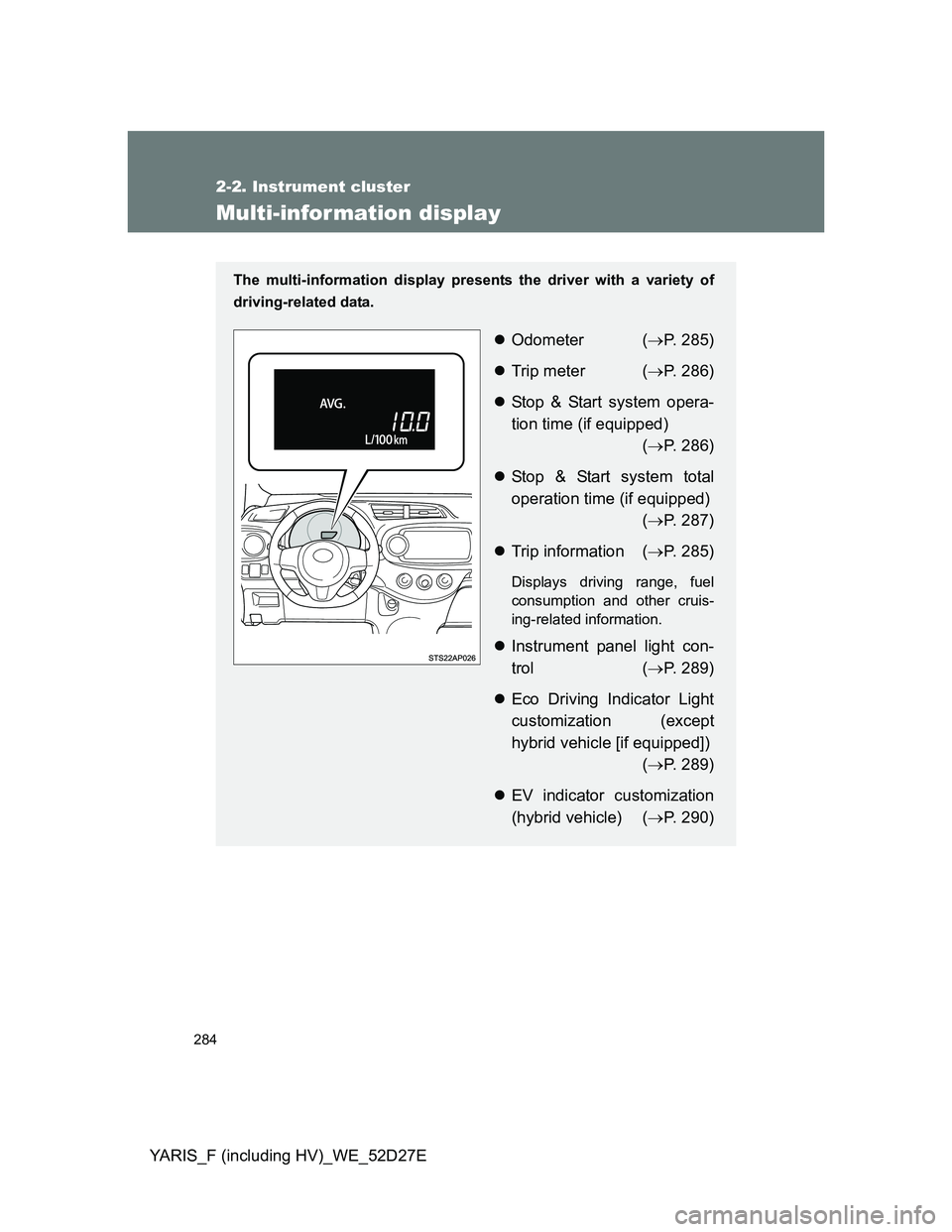

284
2-2. Instrument cluster
YARIS_F (including HV)_WE_52D27E
Multi-infor mation display
The multi-information display presents the driver with a variety of
driving-related data.
Odometer (P. 285)
Trip meter (P. 286)
Stop & Start system opera-
tion time (if equipped)
(P. 286)
Stop & Start system total
operation time (if equipped)
(P. 287)
Trip information (P. 285)
Displays driving range, fuel
consumption and other cruis-
ing-related information.
Instrument panel light con-
trol (P. 289)
Eco Driving Indicator Light
customization (except
hybrid vehicle [if equipped])
(P. 289)
EV indicator customization
(hybrid vehicle) (P. 290)

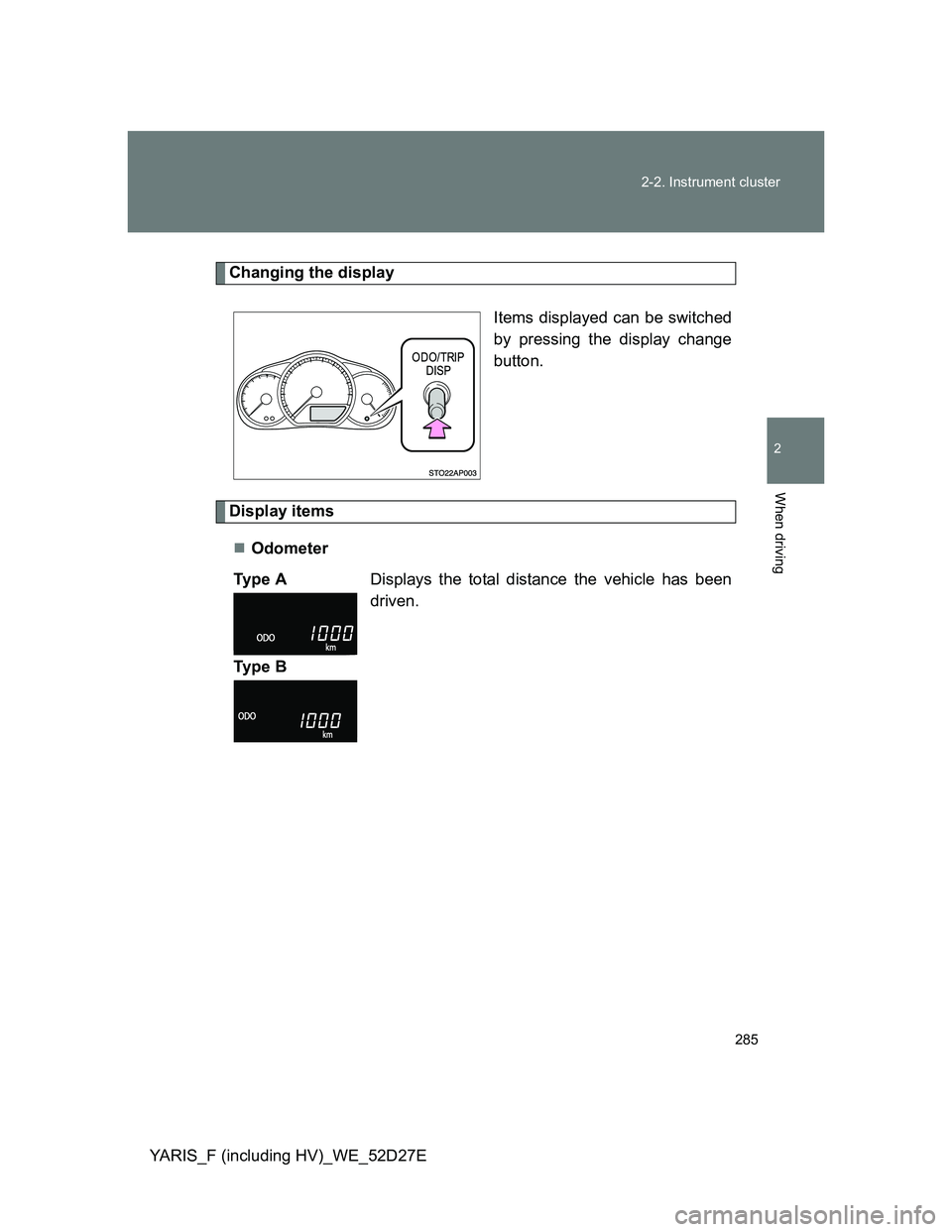

285 2-2. Instrument cluster
2
When driving
YARIS_F (including HV)_WE_52D27E
Changing the display
Items displayed can be switched
by pressing the display change
button.
Display items
Odometer
Ty p e ADisplays the total distance the vehicle has been
driven.
Ty p e B

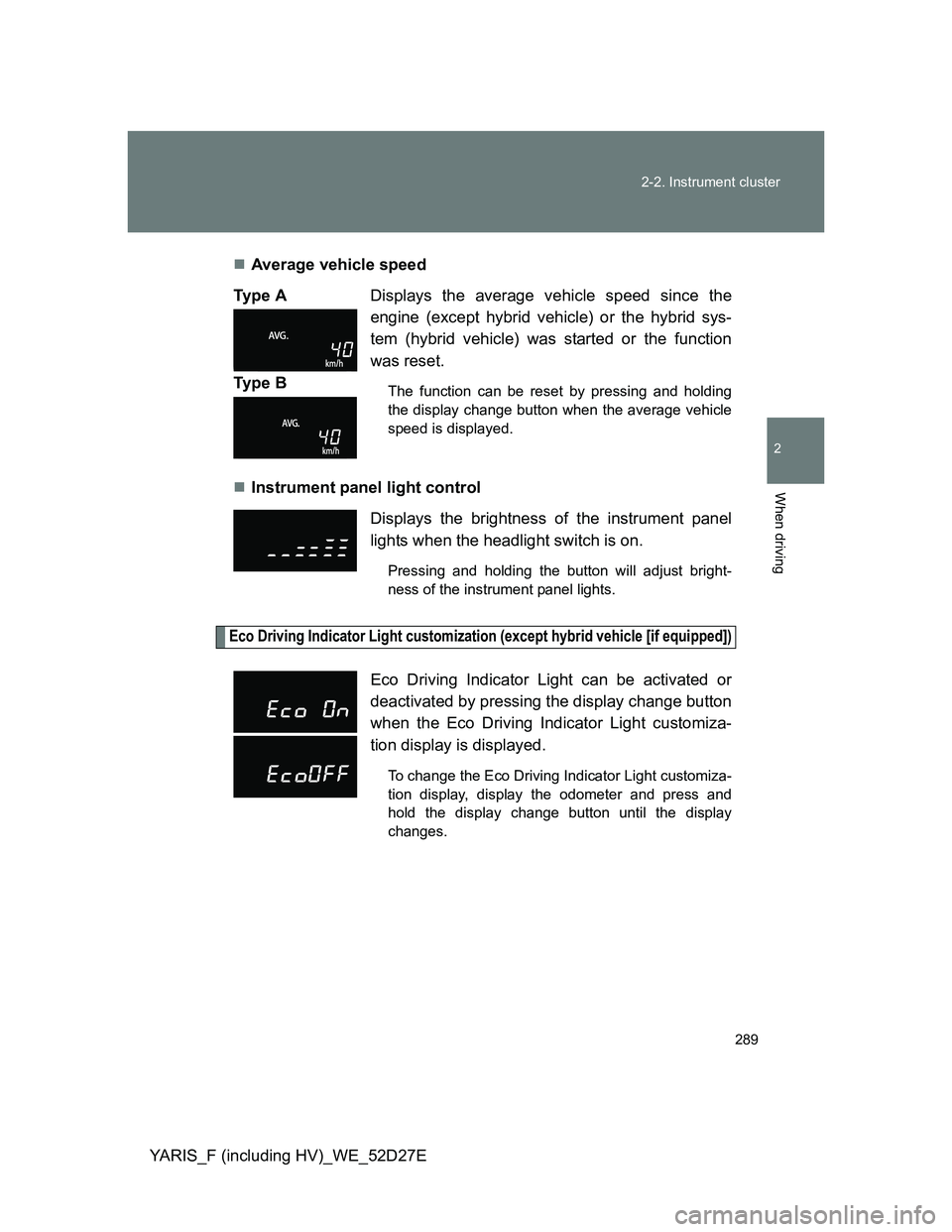

289 2-2. Instrument cluster
2
When driving
YARIS_F (including HV)_WE_52D27EAverage vehicle speed
Instrument panel light control
Eco Driving Indicator Light customization (except hybrid vehicle [if equipped])
Ty p e ADisplays the average vehicle speed since the
engine (except hybrid vehicle) or the hybrid sys-
tem (hybrid vehicle) was started or the function
was reset.
The function can be reset by pressing and holding
the display change button when the average vehicle
speed is displayed.Ty p e B
Displays the brightness of the instrument panel
lights when the headlight switch is on.
Pressing and holding the button will adjust bright-
ness of the instrument panel lights.
Eco Driving Indicator Light can be activated or
deactivated by pressing the display change button
when the Eco Driving Indicator Light customiza-
tion display is displayed.
To change the Eco Driving Indicator Light customiza-
tion display, display the odometer and press and
hold the display change button until the display
changes.

290 2-2. Instrument cluster
YARIS_F (including HV)_WE_52D27E
EV indicator customization (hybrid vehicle)
EV indicator can be activated or deactivated by
pressing the display change button when the EV
indicator customization display is displayed.
To change the EV indicator customization display,
display the odometer and press and hold the display
change button until the display changes.
When disconnecting and reconnecting battery (except hybrid vehicle)
or 12-volt battery (hybrid vehicle) terminals
The following information data will be reset:
Stop & Start system total operation time (if equipped)
Average fuel consumption
Driving range
Average vehicle speed
NOTICE
The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

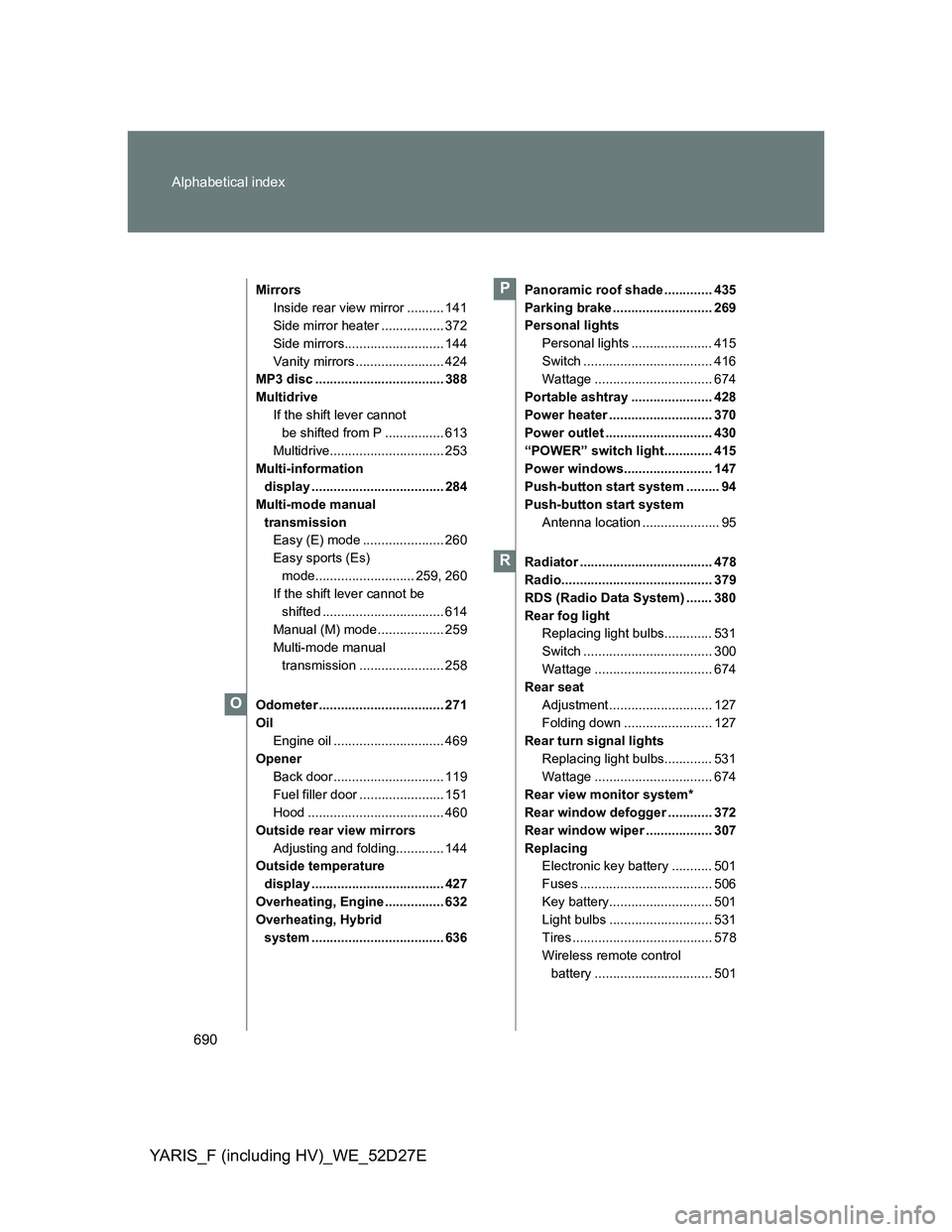

690 Alphabetical index
YARIS_F (including HV)_WE_52D27E
Mirrors
Inside rear view mirror .......... 141
Side mirror heater ................. 372
Side mirrors........................... 144
Vanity mirrors ........................ 424
MP3 disc ................................... 388
Multidrive
If the shift lever cannot
be shifted from P ................ 613
Multidrive............................... 253
Multi-information
display .................................... 284
Multi-mode manual
transmission
Easy (E) mode ...................... 260
Easy sports (Es)
mode........................... 259, 260
If the shift lever cannot be
shifted ................................. 614
Manual (M) mode .................. 259
Multi-mode manual
transmission ....................... 258
Odometer .................................. 271
Oil
Engine oil .............................. 469
Opener
Back door .............................. 119
Fuel filler door ....................... 151
Hood ..................................... 460
Outside rear view mirrors
Adjusting and folding............. 144
Outside temperature
display .................................... 427
Overheating, Engine ................ 632
Overheating, Hybrid
system .................................... 636Panoramic roof shade ............. 435
Parking brake ........................... 269
Personal lights
Personal lights ...................... 415
Switch ................................... 416
Wattage ................................ 674
Portable ashtray ...................... 428
Power heater ............................ 370
Power outlet ............................. 430
“POWER” switch light............. 415
Power windows........................ 147
Push-button start system ......... 94
Push-button start system
Antenna location ..................... 95
Radiator .................................... 478
Radio......................................... 379
RDS (Radio Data System) ....... 380
Rear fog light
Replacing light bulbs............. 531
Switch ................................... 300
Wattage ................................ 674
Rear seat
Adjustment ............................ 127
Folding down ........................ 127
Rear turn signal lights
Replacing light bulbs............. 531
Wattage ................................ 674
Rear view monitor system*
Rear window defogger ............ 372
Rear window wiper .................. 307
Replacing
Electronic key battery ........... 501
Fuses .................................... 506
Key battery............................ 501
Light bulbs ............................ 531
Tires ...................................... 578
Wireless remote control
battery ................................ 501
O
P
R
