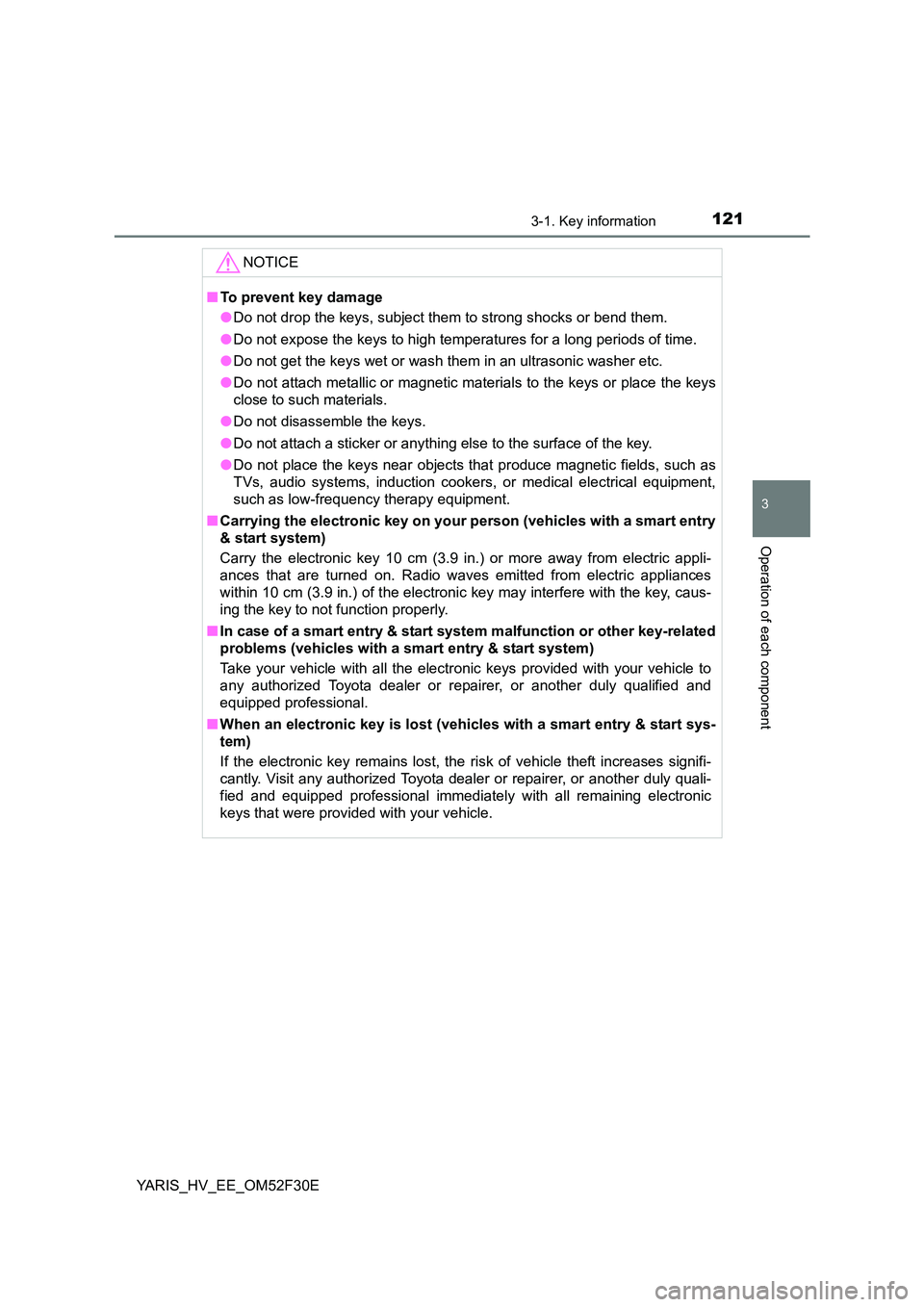

Page 121 of 492

TOYOTA YARIS HYBRID 2015  Owners Manual 1213-1. Key information
3
Operation of each component
YARIS_HV_EE_OM52F30E
NOTICE
■ To prevent key damage
● Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose t

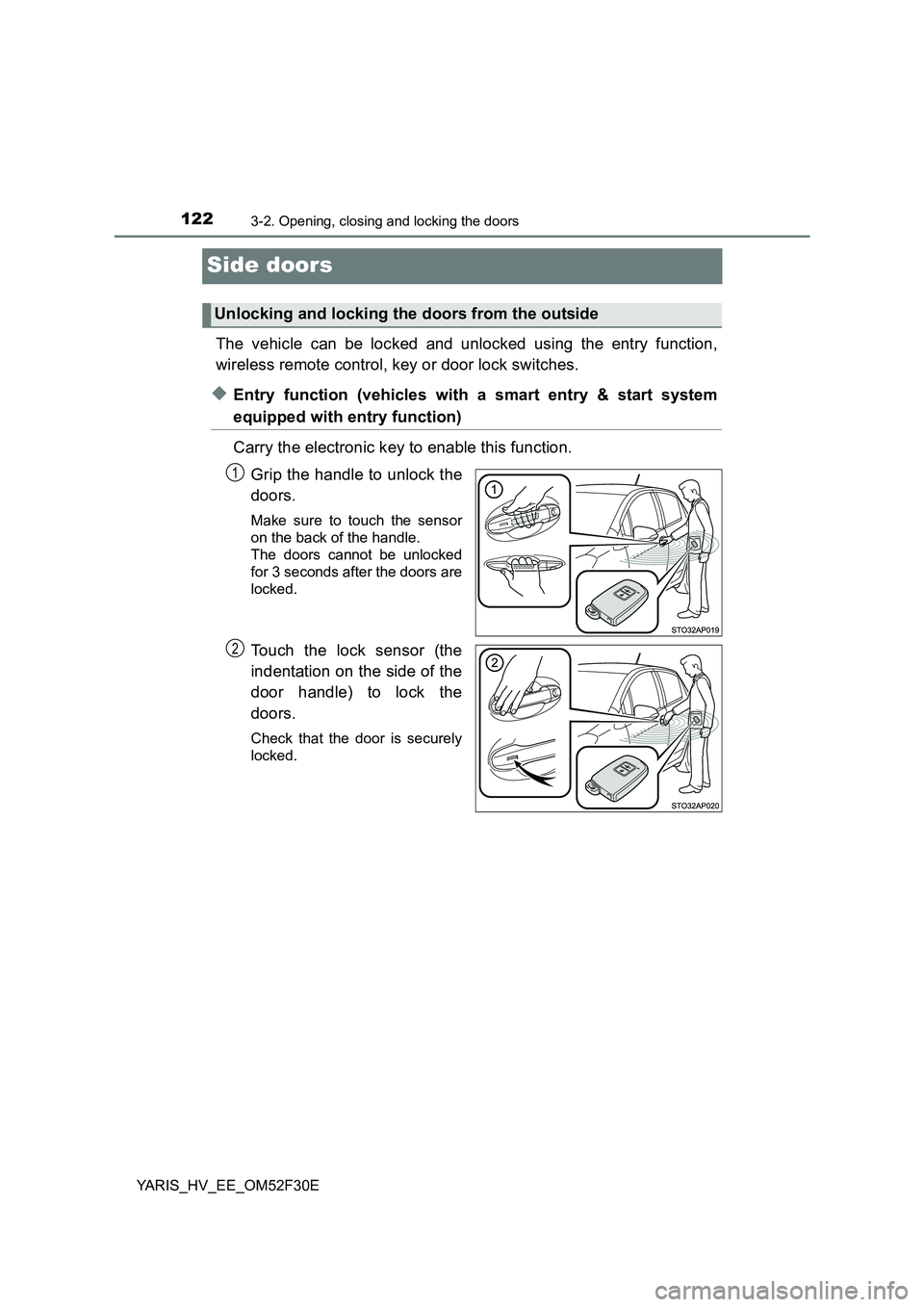

Page 122 of 492

TOYOTA YARIS HYBRID 2015  Owners Manual 1223-2. Opening, closing and locking the doors
YARIS_HV_EE_OM52F30E
Side doors
The vehicle can be locked and unlocked using the entry function,
wireless remote control, key or door lock switches.
◆

Page 123 of 492

TOYOTA YARIS HYBRID 2015  Owners Manual 1233-2. Opening, closing and locking the doors
3
Operation of each component
YARIS_HV_EE_OM52F30E

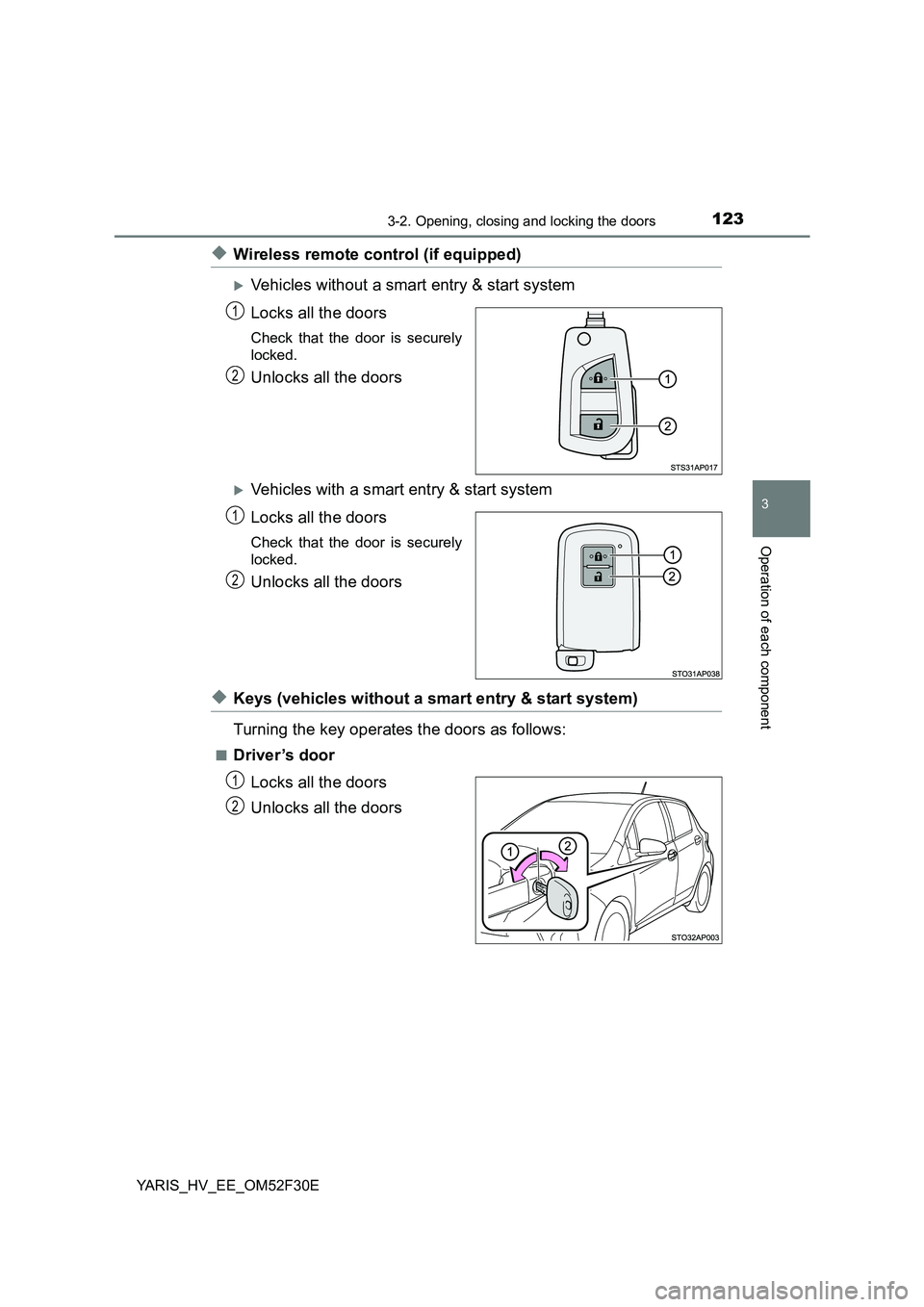

◆Wireless remote control (if equipped)
�XVehicles without a smart entry & start system
Locks all th

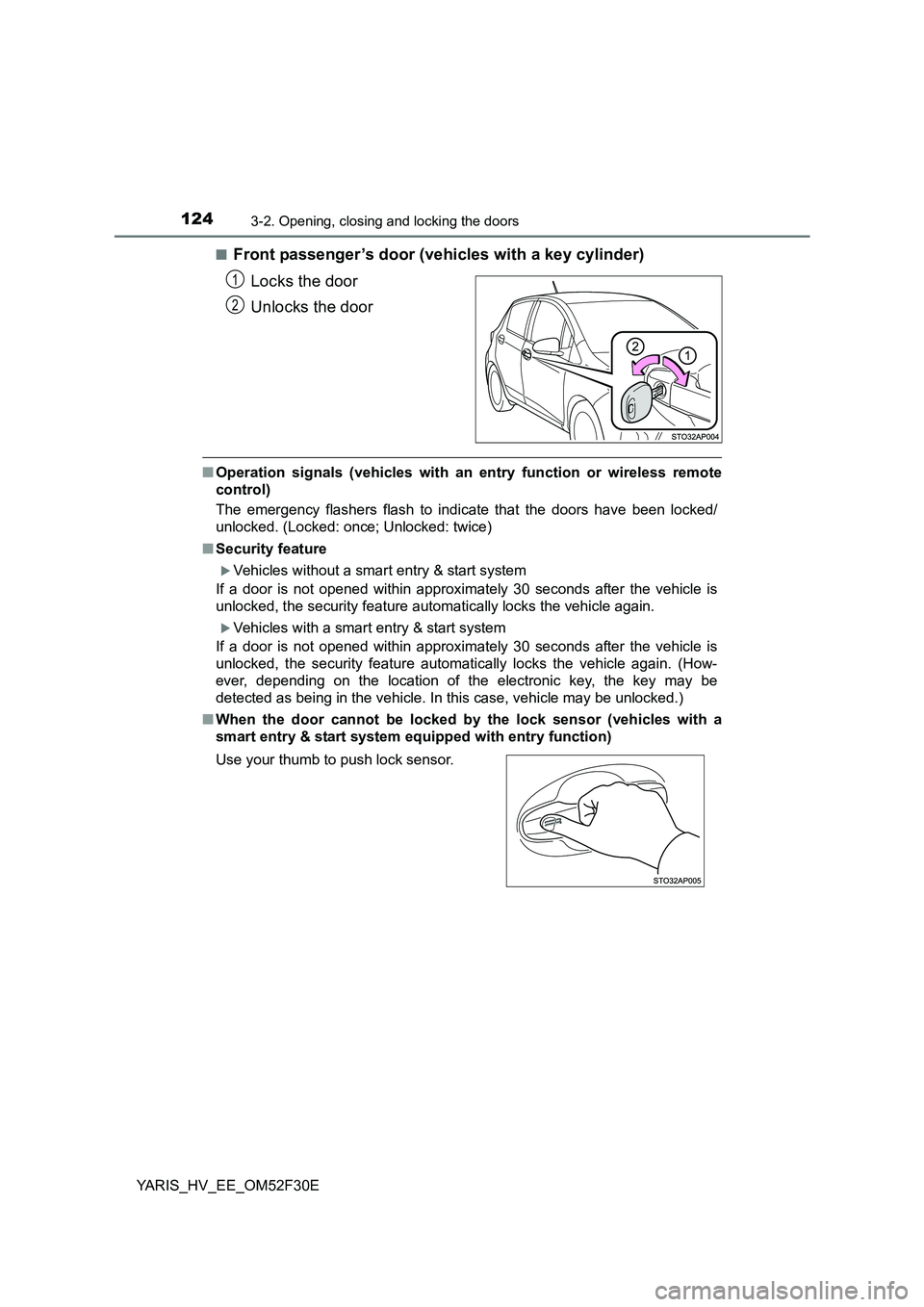

Page 124 of 492

TOYOTA YARIS HYBRID 2015  Owners Manual 1243-2. Opening, closing and locking the doors
YARIS_HV_EE_OM52F30E
■Front passenger ’s door (vehicles with a key cylinder)
Locks the door
Unlocks the door
■ Operation signals (vehicles with

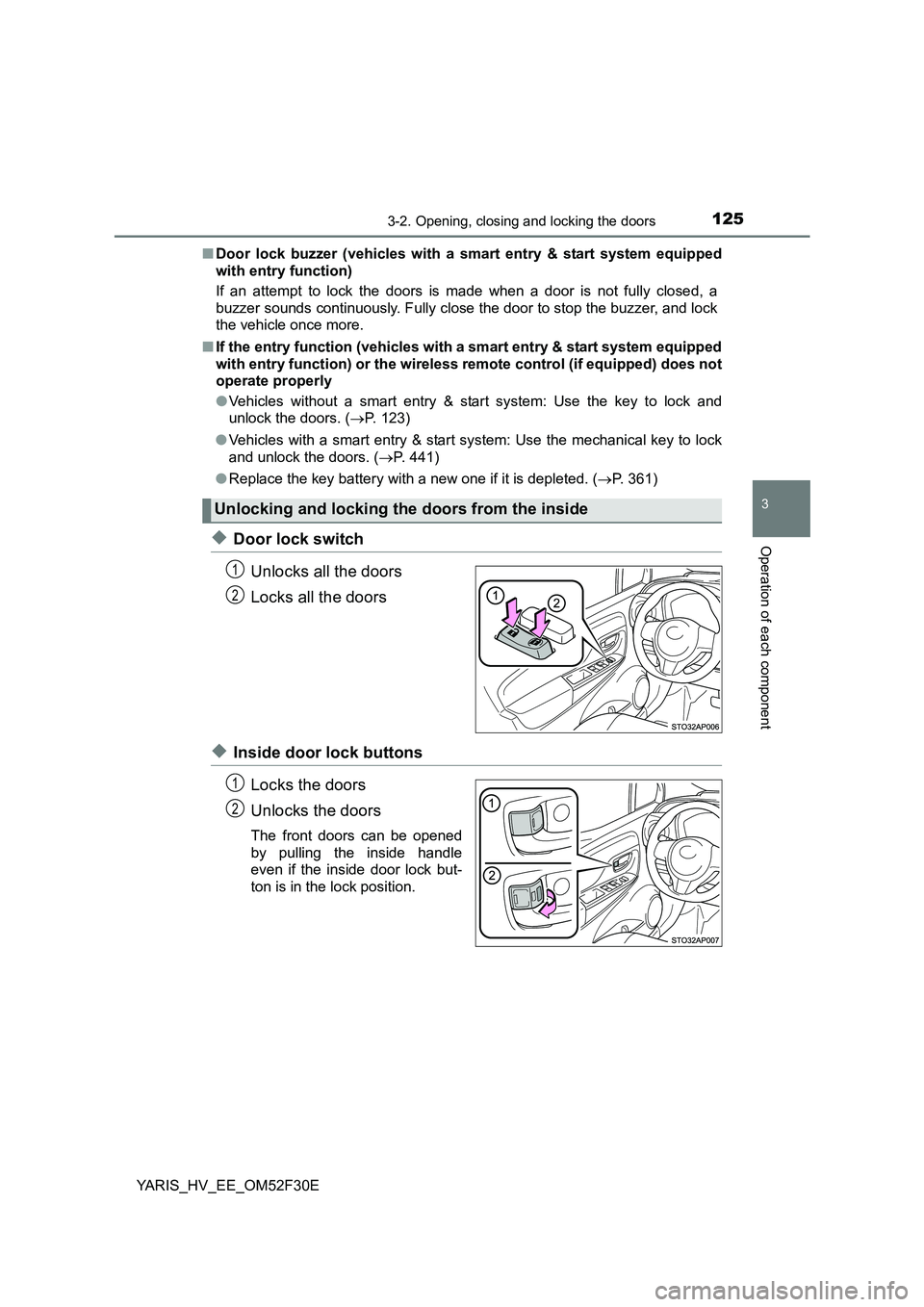

Page 125 of 492

TOYOTA YARIS HYBRID 2015  Owners Manual 1253-2. Opening, closing and locking the doors
3
Operation of each component
YARIS_HV_EE_OM52F30E
■ Door lock buzzer (vehicles with a smart entry & start system equipped
with entry function)
If a

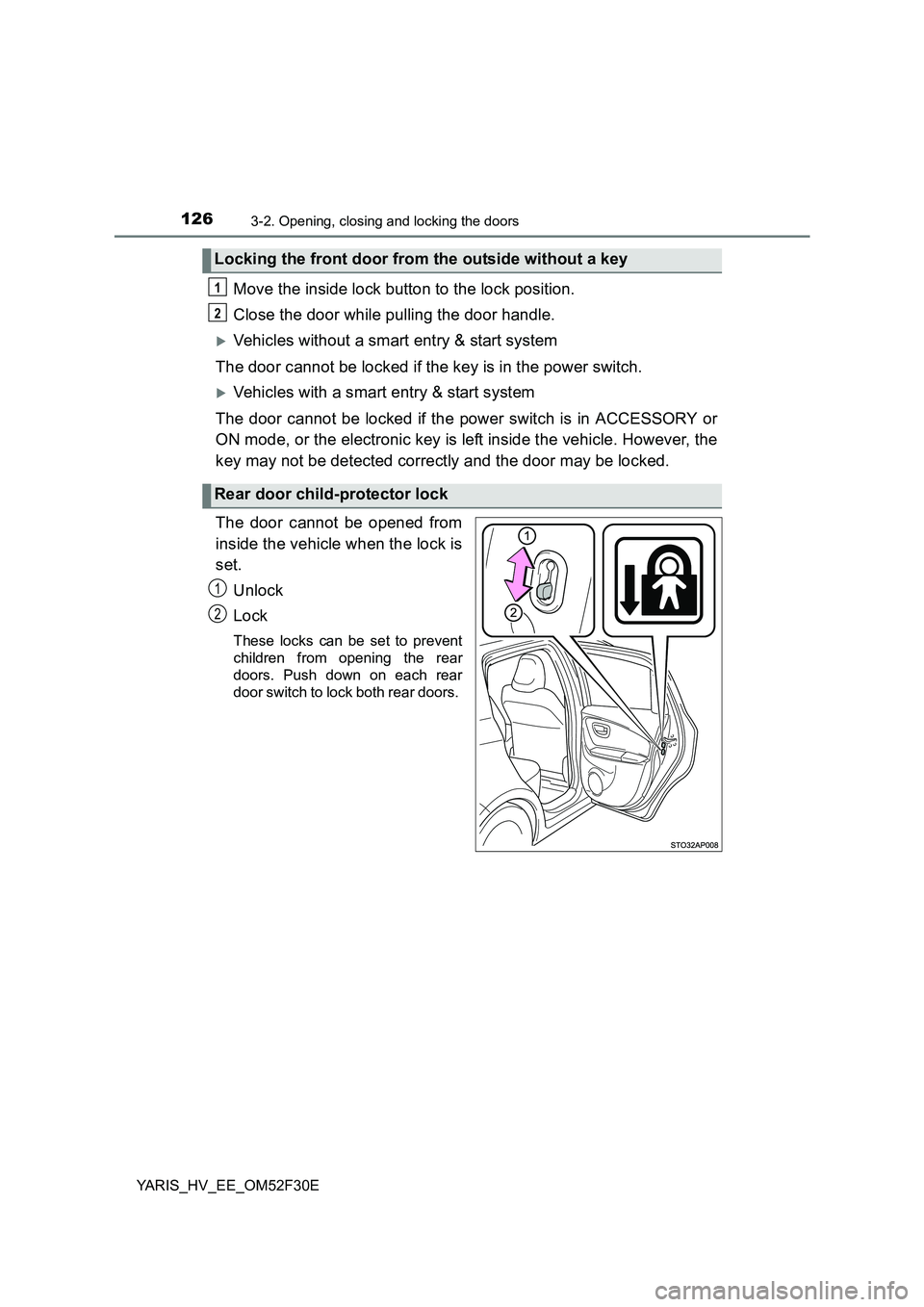

Page 126 of 492

TOYOTA YARIS HYBRID 2015  Owners Manual 1263-2. Opening, closing and locking the doors
YARIS_HV_EE_OM52F30E
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
�XVehicles without a smart entry &

Page 127 of 492

TOYOTA YARIS HYBRID 2015  Owners Manual 1273-2. Opening, closing and locking the doors
3
Operation of each component
YARIS_HV_EE_OM52F30E

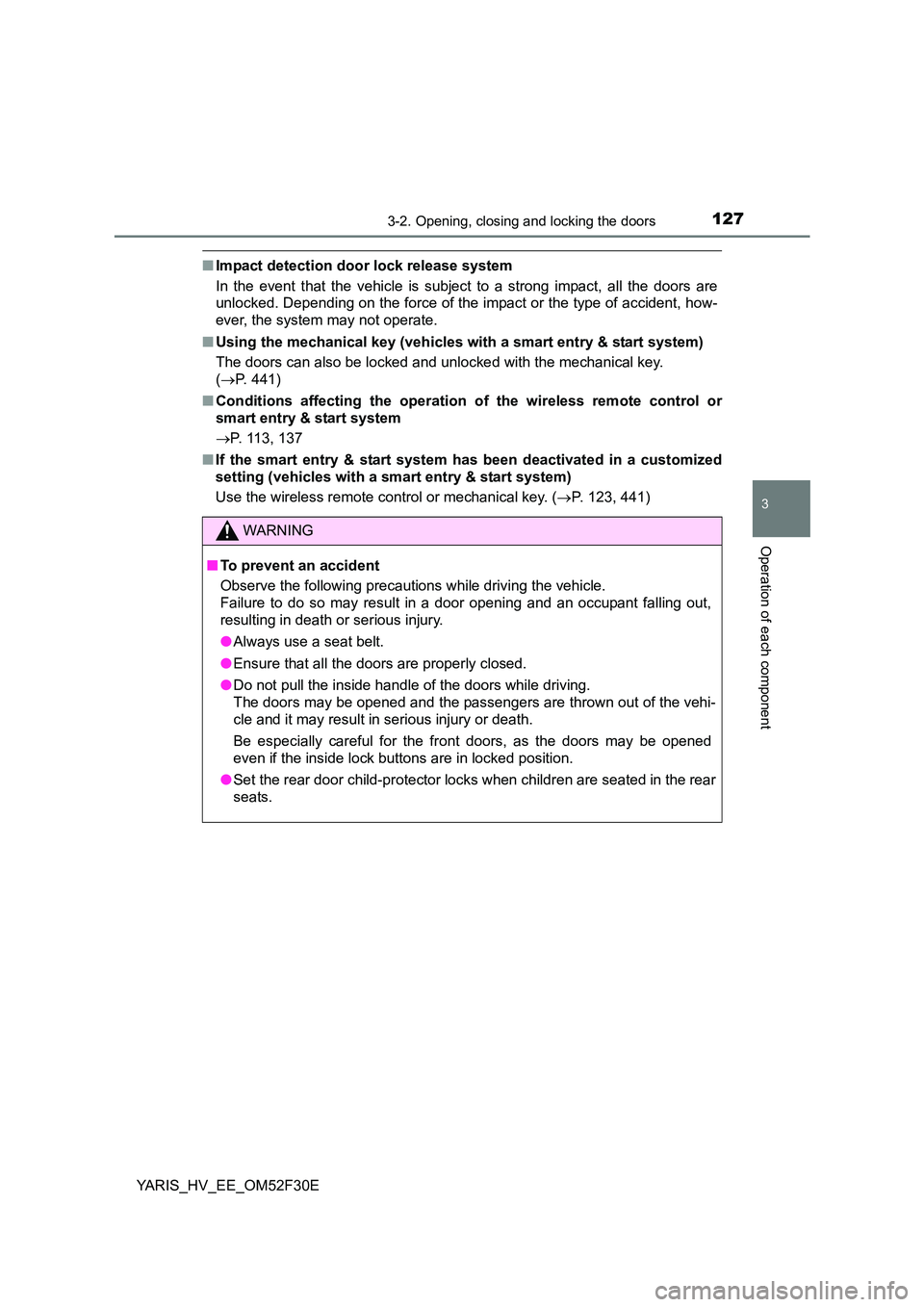

■Impact detection door lock release system
In the event that the vehicle is subject to a strong imp

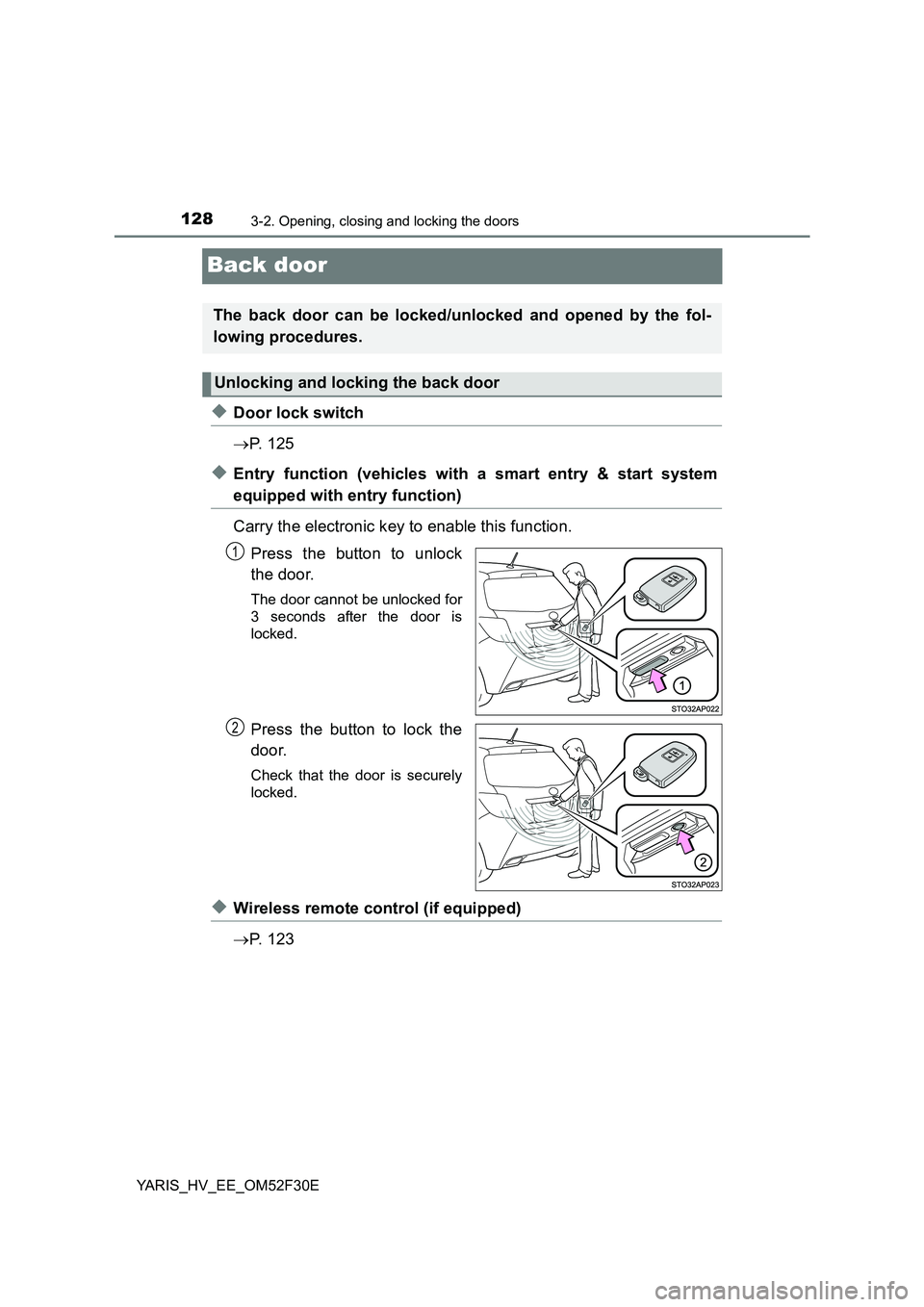

Page 128 of 492

TOYOTA YARIS HYBRID 2015  Owners Manual 1283-2. Opening, closing and locking the doors
YARIS_HV_EE_OM52F30E
Back door
◆Door lock switch
→ P.  1 2 5
◆Entry function (vehicles with a smart entry & start system
equipped with entry funct

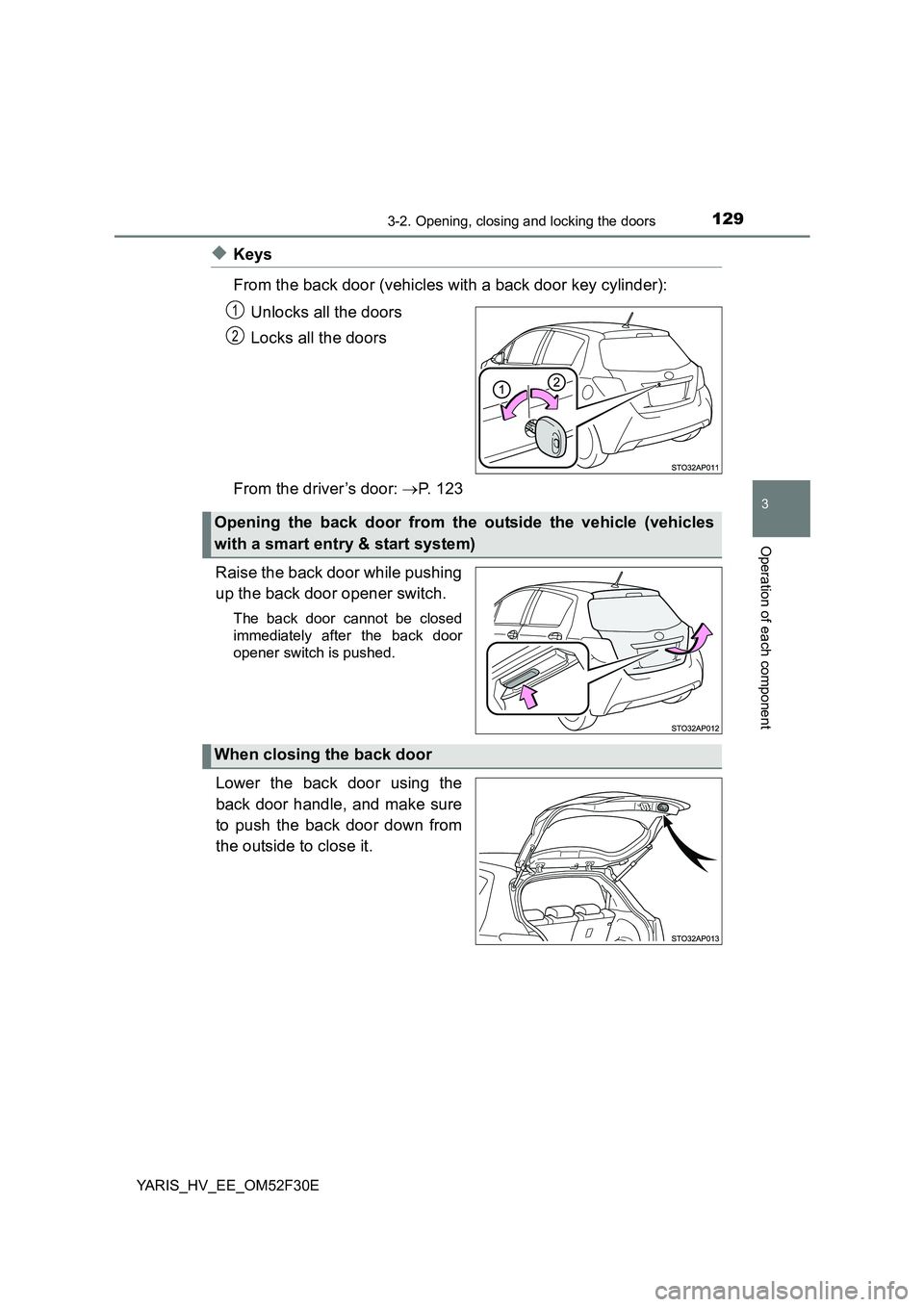

Page 129 of 492

TOYOTA YARIS HYBRID 2015  Owners Manual 1293-2. Opening, closing and locking the doors
3
Operation of each component
YARIS_HV_EE_OM52F30E
◆Keys
From the back door (vehicles with a back door key cylinder):
Unlocks all the doors
Locks al

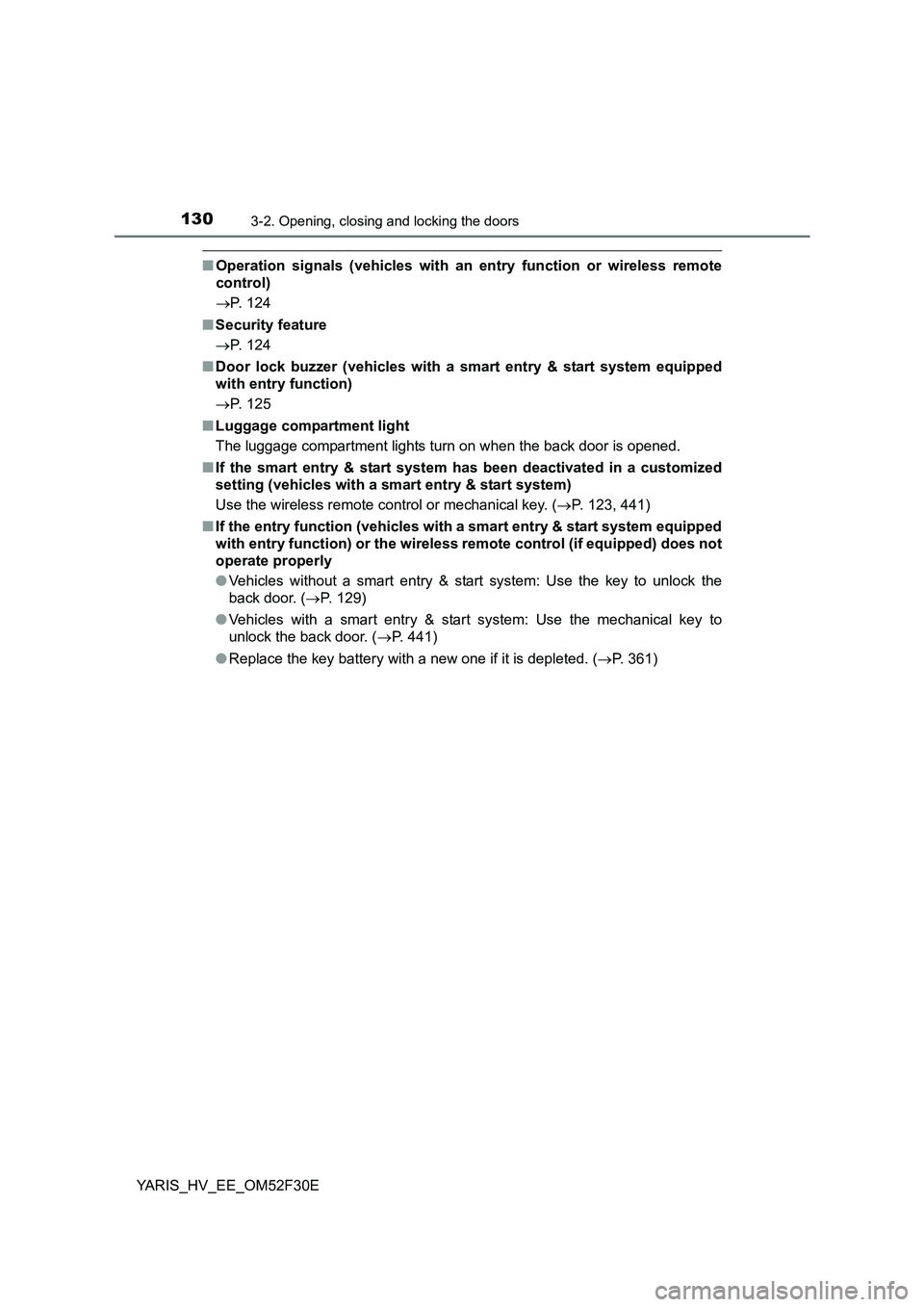

Page 130 of 492

TOYOTA YARIS HYBRID 2015  Owners Manual 1303-2. Opening, closing and locking the doors
YARIS_HV_EE_OM52F30E
■Operation signals (vehicles with an entry function or wireless remote
control)
→ P. 124
■ Security feature
→ P. 124
