Winter driving tips
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine/power control unit coolant
• Washer fluid
• Power control unit coolant (hybrid system)
● Have a service technician inspect the condition of the 12-volt bat-
tery.
● Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires.
Ensure that all tires are the same size and brand, and that their wear
level is not noticeably different with each other. Also make sure that
chains match the size of the tires.
Perform the following according to the driving conditions:
● Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Check for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
● Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.
Preparation for winter
Before driving the vehicle

3187-2. Maintenance
YARIS_HV_EE_OM52F30E
■Where to go for the maintenance service?
In order to maintain your vehicle in the best possible condition, Toyota recom-
mends that all repairs and service operations be carried out by authorized
Toyota dealers or repairers or ot her duly qualified and equipped profession-
als. For repairs and services covered by your warranty, please visit an autho-
rized Toyota dealer or repairer, who will use genuine Toyota parts in repairing
any difficulties you may encounter. There can also be advantages in utilizing
authorized Toyota dealers or repairers for non-warranty repairs and services,
as members of the Toyota network will be able to expertly assist you with any
difficulties you may encounter.
Your Toyota dealer or repairer, or another duly qualified and equipped profes-
sional will perform all of the scheduled maintenance on your vehicle reliably
and economically due to their experience with Toyota vehicles.
■ Does your vehicle need repairs?
Be on the alert for changes in performance and sounds, and visual tip-offs
that indicate service is needed. Some important clues are:
● Engine misfire, stumbling or pinging
● Appreciable loss of power
● Strange engine noises
● A fluid leak under the vehicle (However, water dripping from the air condi-
tioning system after use is normal.)
● Change in exhaust sound (This may indicate a dangerous carbon monoxide
leak. Drive with the windows open and have the exhaust system checked
immediately.)
● Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
● Vehicle pulls to one side when driven straight on a level road
● Strange noises related to suspension movement
● Loss of brake effectiveness, spongy feeling brake pedal, pedal almost
touches the floor, vehicle pulls to one side when braking
● Engine coolant temperature continually higher than normal
If you notice any of these clues, take your vehicle to any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional as
soon as possible. Your vehicle may need adjustment or repair.

3207-3. Do-it-yourself maintenance
YARIS_HV_EE_OM52F30E
Do-it-yourself ser vice precautions
If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.
ItemsParts and tools
12-volt battery
condition
( →P. 334)
• Grease
• Conventional wrench (for terminal clamp bolts)
Engine/power
control unit
coolant level
( →P. 331)
• “Toyota Super Long Life Coolant” or a similar high
quality ethylene glycol-based non-silicate, non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
( →P. 328)
• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses
( →P. 365)• Fuse with same amperage rating as original
Light bulbs
( →P. 370)
• Bulb with same number and wattage rating as origi-
nal
• Phillips-head screwdriver
• Flathead screwdriver•Wrench
Radiator and
condenser
( →P. 332)

Tire inflation
pressure
( →P. 354)
• Tire pressure gauge
• Compressed air source
Washer fluid
( →P. 333)
• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)

3277-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_EE_OM52F30E

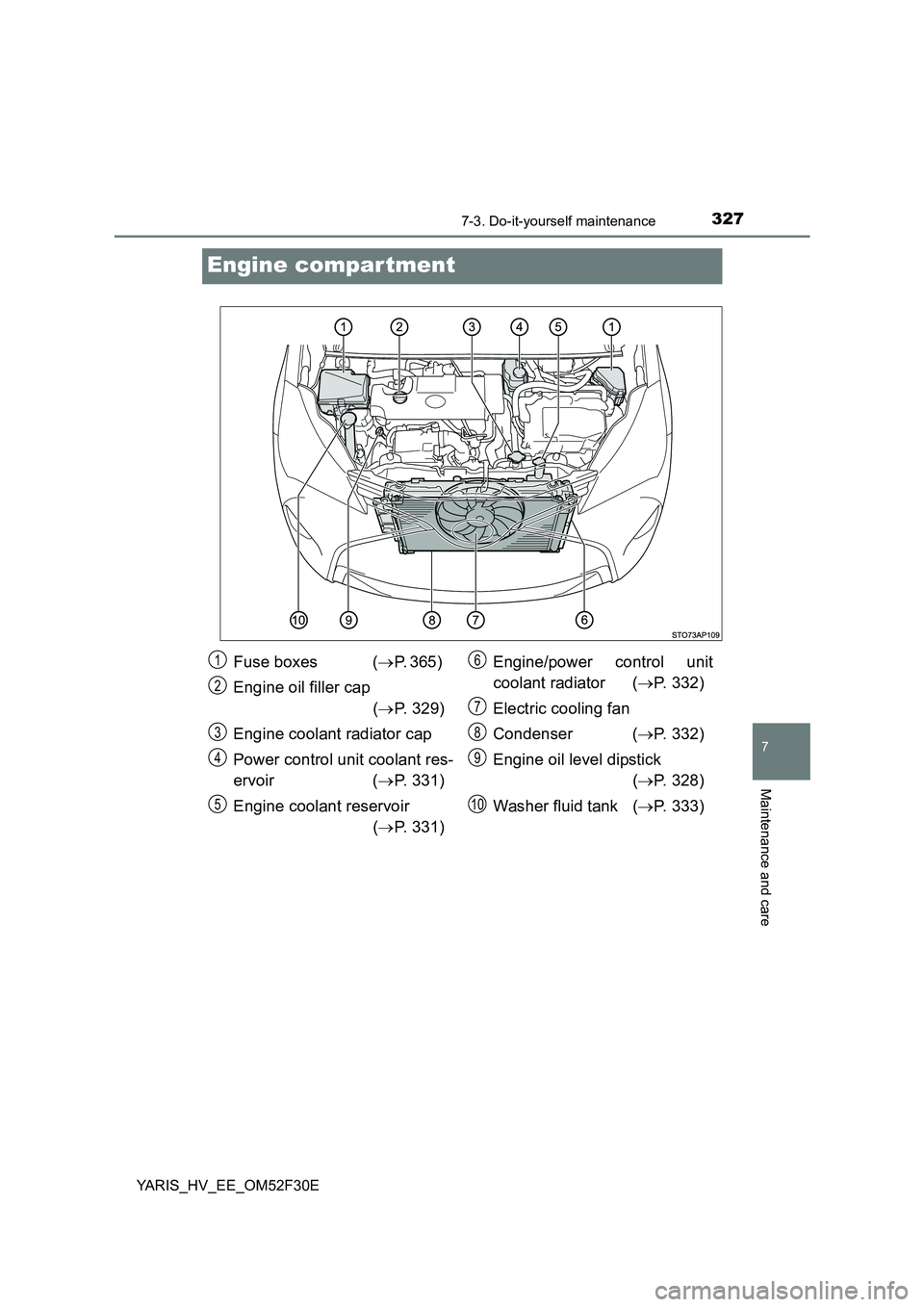

Engine compar tment
Fuse boxes (→P. 365)
Engine oil filler cap
( →P. 329)
Engine coolant radiator cap
Power control unit coolant res-
ervoir ( →P. 331)
Engine coolant reservoir
( →P. 331)
Engine/power control unit
coolant radiator ( →P. 332)
Electric cooling fan
Condenser ( →P. 332)
Engine oil level dipstick
( →P. 328)
Washer fluid tank ( →P. 333)
1
2
3
4
5
6
7
8
9
10

3317-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_EE_OM52F30E
XEngine coolant reservoir
The coolant level is satisfactory if it is between the “FULL” and
“LOW” lines on the reservoir when the engine is cold.
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line.
XPower control unit coolant reservoir
The coolant level is satisfactory if it is between the “F” and “L” lines
on the reservoir when the hybrid system is cold.
Reservoir cap
“F” line
“L” line
If the level is on or below the “L”
line, add coolant up to the “F”
line.
■ Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non- nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -35 °C [-31°F])
For more details about coolant, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Coolant
1
2
3
1
2
3

3327-3. Do-it-yourself maintenance
YARIS_HV_EE_OM52F30E
■ If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine/power control unit coolant reservoir
caps, drain cock and water pump.
If you cannot find a leak, have any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, test the cap and check for
leaks in the cooling system.
Check the radiator and condenser and clear away any foreign objects.
If any of the above parts is extremely dirty or you are not sure of their
condition, have your vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
WARNING
■ When the hybrid system is hot
Do not remove the engine/power control unit coolant reservoir caps.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.
NOTICE
■ When adding coolant
Coolant is neither plain water nor stra ight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
■ If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
Radiator and condenser
WARNING
■ When the hybrid system is hot
Do not touch the radiator or condenser as they may be hot and cause seri-
ous injuries, such as burns.

3958-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_EE_OM52F30E
If you think something is wrong
●Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal)
● Flat-looking tires or uneven tire wear
● High engine coolant temperature warning light flashes or comes on
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the hybrid system
● Engine misfire, stumbling or running roughly
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, spongy feeling, pedal almost touches
the floor
If you notice any of the following symptoms, your vehicle proba-
bly needs adjustment or repair. Contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

4498-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_EE_OM52F30E
The coolant level is satisfac-
tory if it is between the
“FULL” and “LOW” lines on
the reservoir.
Reservoir
“FULL”
“LOW”
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Start the hybrid system and turn the air conditioning system on to
check that the radiator cooling fan operates and to check for
coolant leaks from the radiator or hoses.
The fan operates when the air condi tioning system is turned on immedi-
ately after a cold start. Confirm that the fan is operating by checking the
fan sound and air flow. If it is difficult to check these, turn the air condi-
tioning system on and off repeatedly.
(The fan may not operate in freezing temperatures.)
If the fan is not operating:
Stop the hybrid system immediately and contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
If the fan is operating:
Have the vehicle inspected at the nearest authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
4
1
2
3
5
6
7

4508-2. Steps to take in an emergency
YARIS_HV_EE_OM52F30E
■If the hybrid system overheat warning light comes on
Stop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
After the hybrid system has
cooled down, inspect the
hoses and radiator core
(radiator) for any leaks.
Radiator
Cooling fan
If a large amount of coolant
leaks, immediately contact any
authorized Toyota dealer or
repairer, or another duly quali-
fied and equipped professional.
The coolant level is satisfac-
tory if it is between the “F”
and “L” lines on the reservoir.
Reservoir
“F” line
“L” line
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
1
2
3
1
2
4
1
2
3
5

490Alphabetical index
YARIS_HV_EE_OM52F30E
Tools ................................. 408, 423
Top strap .................................... 70
Towing
Emergency towing ................ 389
Towing eyelet ........................ 391
Trailer towing ........................ 177
Toyota Safety Sense................ 211
Traction control ....................... 237
Trailer towing ........................... 177
Transmission ........................... 190
Hybrid transmission .............. 190
If the shift lever cannot
be shifted from P ................ 440
Trip meters ............................... 101
Turn signal lights ..................... 193
Replacing light
bulbs ........................... 376, 378
Turn signal lever ................... 193
Wattage................................. 465
USB memory*.......................... 276
USB port*................................. 253
Vanity lights
Vanity lights........................... 304
Wattage................................. 465
Vanity mirrors .......................... 304
Vehicle identification
number ................................... 457
Vehicle Stability Control
(VSC)....................................... 237
VSC
(Vehicle Stability Control)..... 237
Warning buzzers
Brake system ........................ 396
Electric power steering ......... 397
Hybrid system ....................... 397
Hybrid system overheat ........ 400
Key reminder ........................ 181
Open door ............................. 399
P position request ................. 400
PCS (Pre-Crash Safety
system)............................... 215
Seat belt reminder ................ 399
Smart entry & start system ... 135
Warning lights............................ 93
ABS....................................... 397
Automatic High Beam ........... 398
Brake system ........................ 396
Charging system ................... 396
Cruise control indicator ......... 399
Electric power steering
system ................................ 397
High engine coolant
temperature ........................ 396
Hybrid system ....................... 397
Hybrid system overheat ........ 400
LDA
(Lane Departure Alert)........ 399
Low engine oil pressure ........ 396
Low fuel level ........................ 399
Low traction battery .............. 399
Malfunction indicator lamp .... 397
Open door ............................. 399
U
V
W
