TOYOTA YARIS HYBRID 2016 Owners Manual

3317-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_EE_OM52G10E

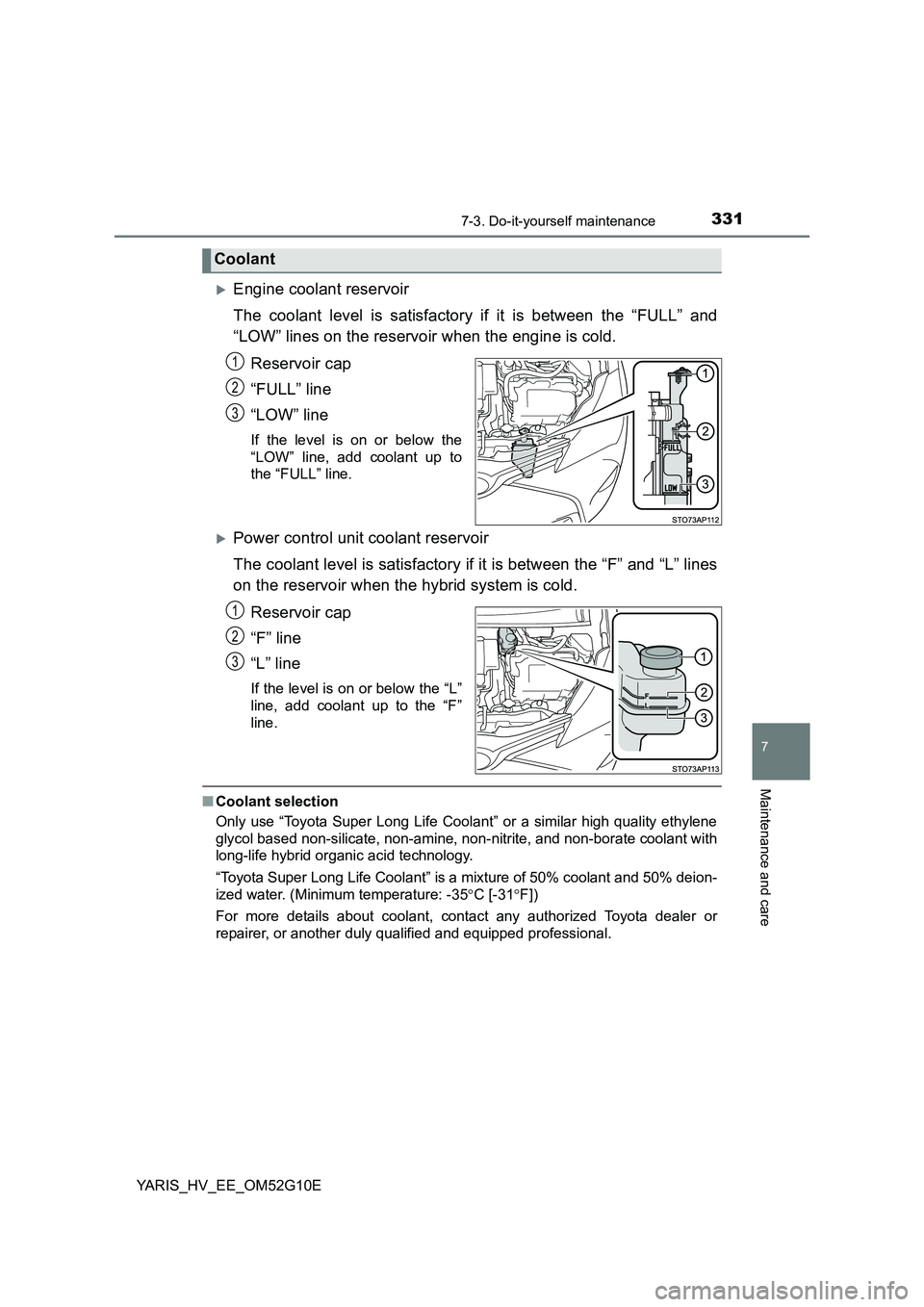

Engine coolant reservoir
The coolant level is satisfactory if it is between the “FULL” and
“LOW” lines on the reservoir when the engine is cold.
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line.
Power control unit coolant reservoir
The coolant level is satisfactory if it is between the “F” and “L” lines
on the reservoir when the hybrid system is cold.
Reservoir cap
“F” line
“L” line
If the level is on or below the “L”
line, add coolant up to the “F”
line.
■ Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non- nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -35 C [-31F])
For more details about coolant, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Coolant
1
2
3
1
2
3

3327-3. Do-it-yourself maintenance
YARIS_HV_EE_OM52G10E

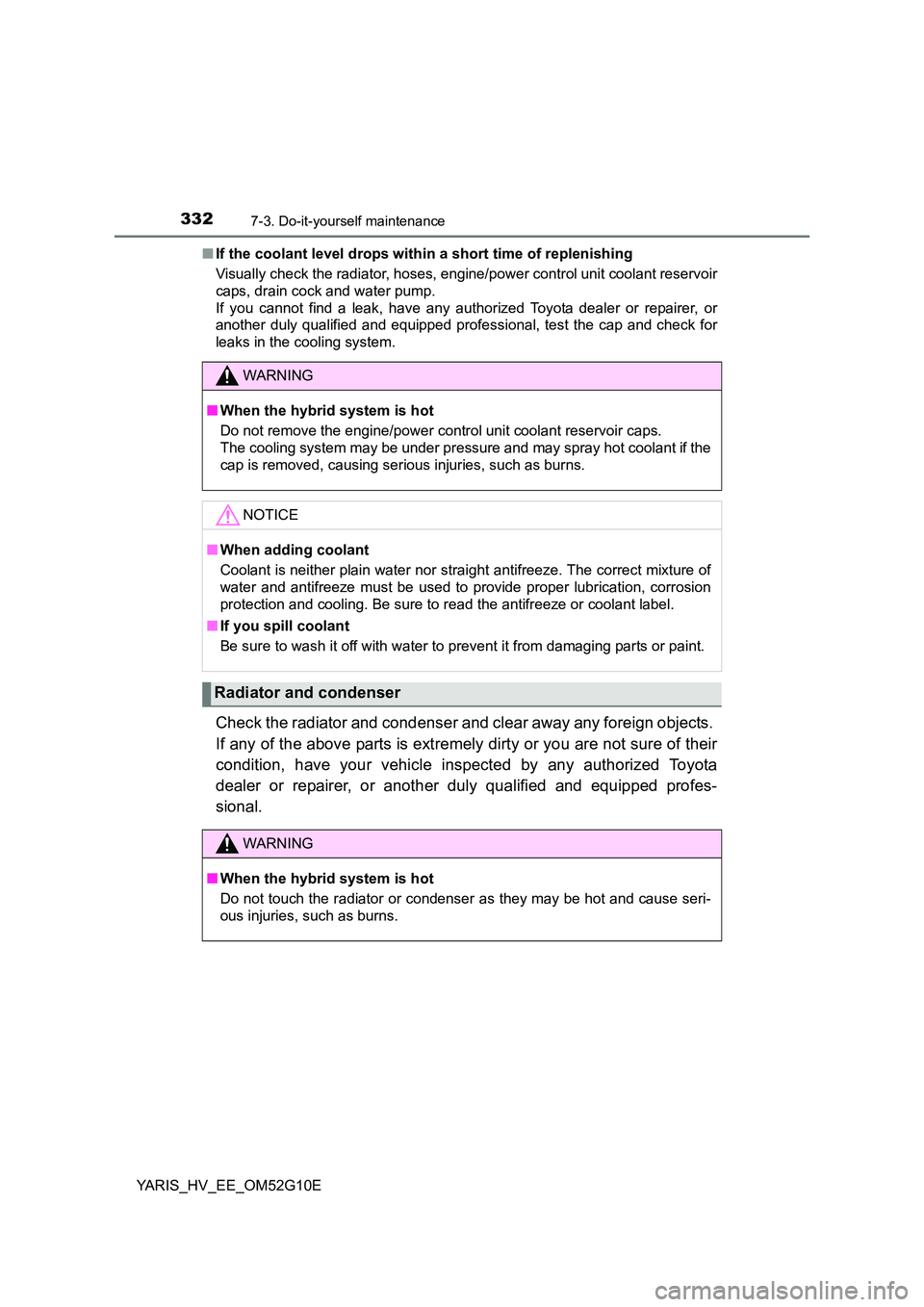

■ If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine/power control unit coolant reservoir
caps, drain cock and water pump.
If you cannot find a leak, have any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, test the cap and check for
leaks in the cooling system.
Check the radiator and condenser and clear away any foreign objects.
If any of the above parts is extremely dirty or you are not sure of their
condition, have your vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
WARNING
■ When the hybrid system is hot
Do not remove the engine/power control unit coolant reservoir caps.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.
NOTICE
■ When adding coolant
Coolant is neither plain water nor stra ight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
■ If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
Radiator and condenser
WARNING
■ When the hybrid system is hot
Do not touch the radiator or condenser as they may be hot and cause seri-
ous injuries, such as burns.

3337-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_EE_OM52G10E

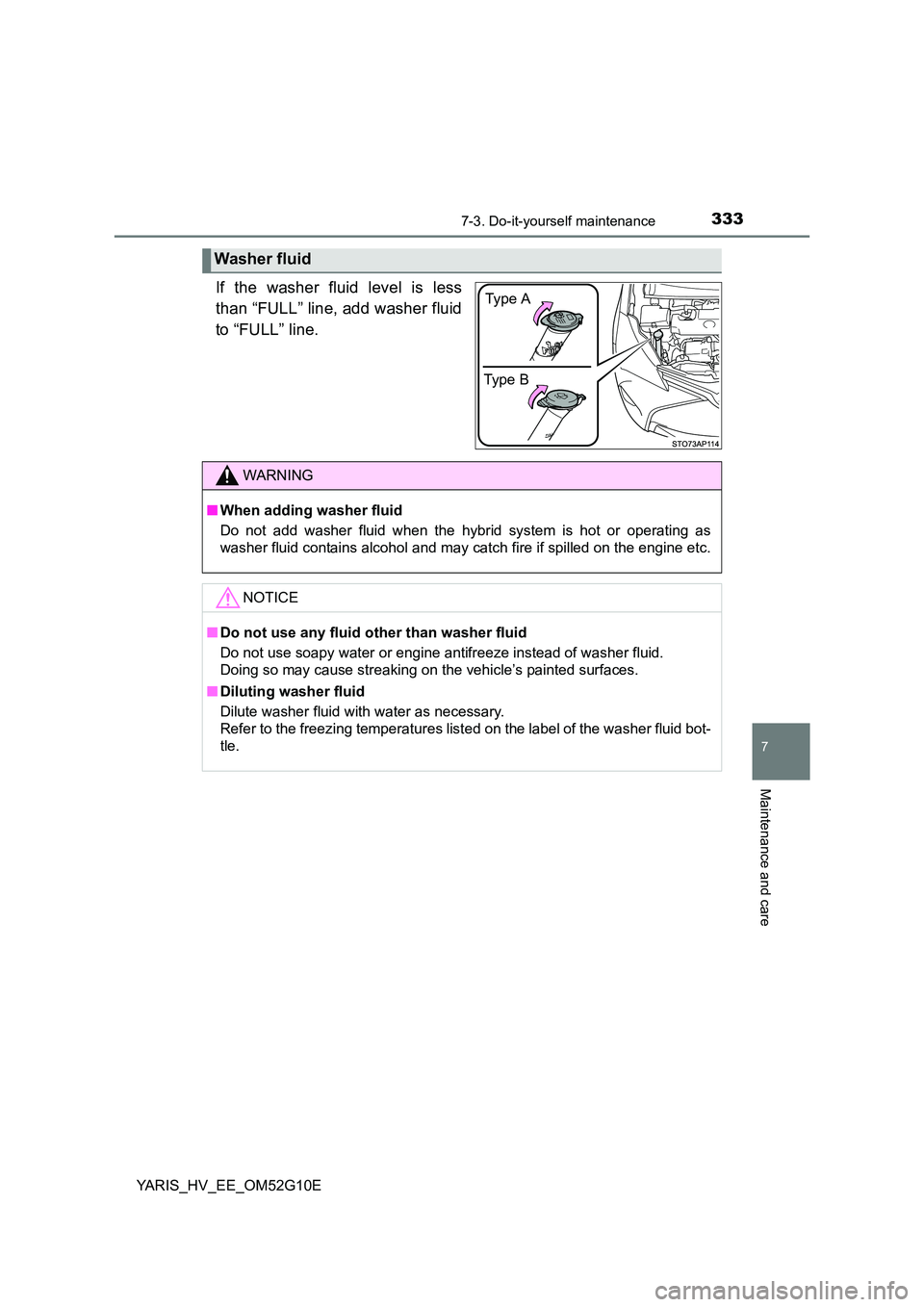

If the washer fluid level is less
than “FULL” line, add washer fluid
to “FULL” line.
Washer fluid
Type B
Ty p e A
WARNING
■ When adding washer fluid
Do not add washer fluid when the hybrid system is hot or operating as
washer fluid contains alcohol and may catch fire if spilled on the engine etc.
NOTICE
■ Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■ Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures list ed on the label of the washer fluid bot-
tle.

3347-3. Do-it-yourself maintenance
YARIS_HV_EE_OM52G10E

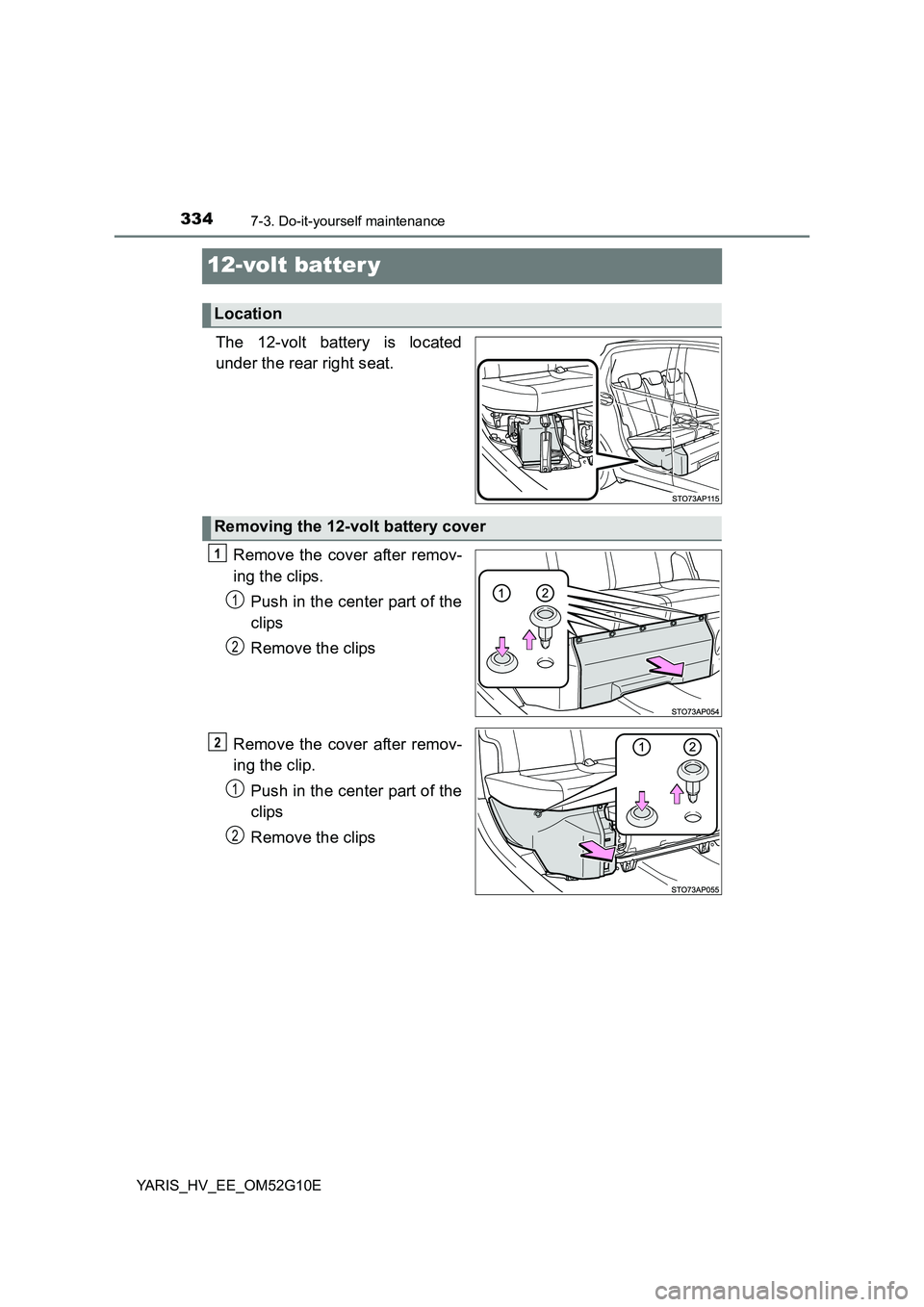

12-volt batter y
The 12-volt battery is located
under the rear right seat.
Remove the cover after remov-
ing the clips.
Push in the center part of the
clips
Remove the clips
Remove the cover after remov-
ing the clip.
Push in the center part of the
clips
Remove the clips
Location
Removing the 12-volt battery cover
1
1
2
2
1
2

3357-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_EE_OM52G10E

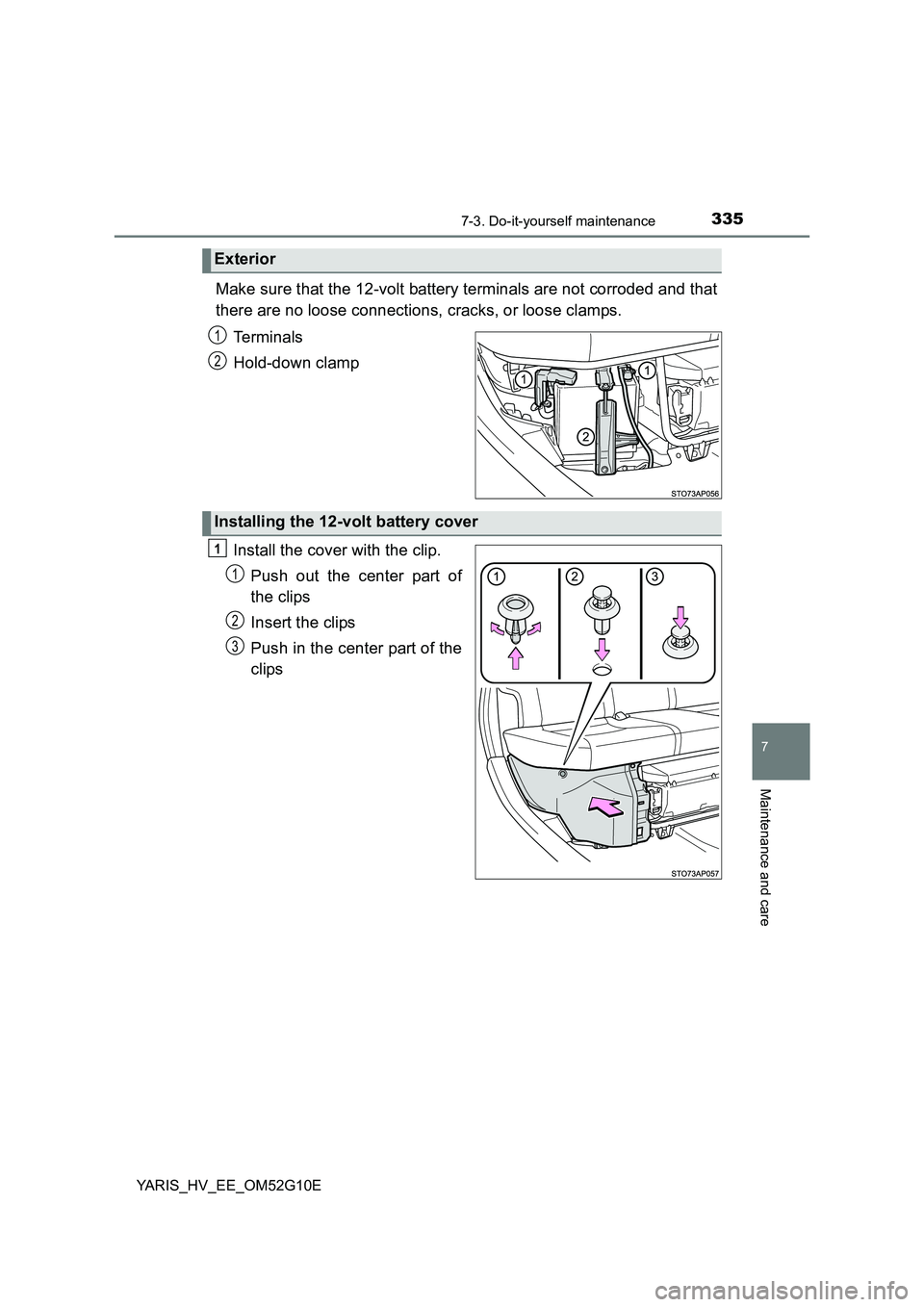

Make sure that the 12-volt battery terminals are not corroded and that
there are no loose connections, cracks, or loose clamps.
Terminals
Hold-down clamp
Install the cover with the clip.
Push out the center part of
the clips
Insert the clips
Push in the center part of the
clips
Exterior
1
2
Installing the 12-volt battery cover
1
1
2
3

3367-3. Do-it-yourself maintenance
YARIS_HV_EE_OM52G10E

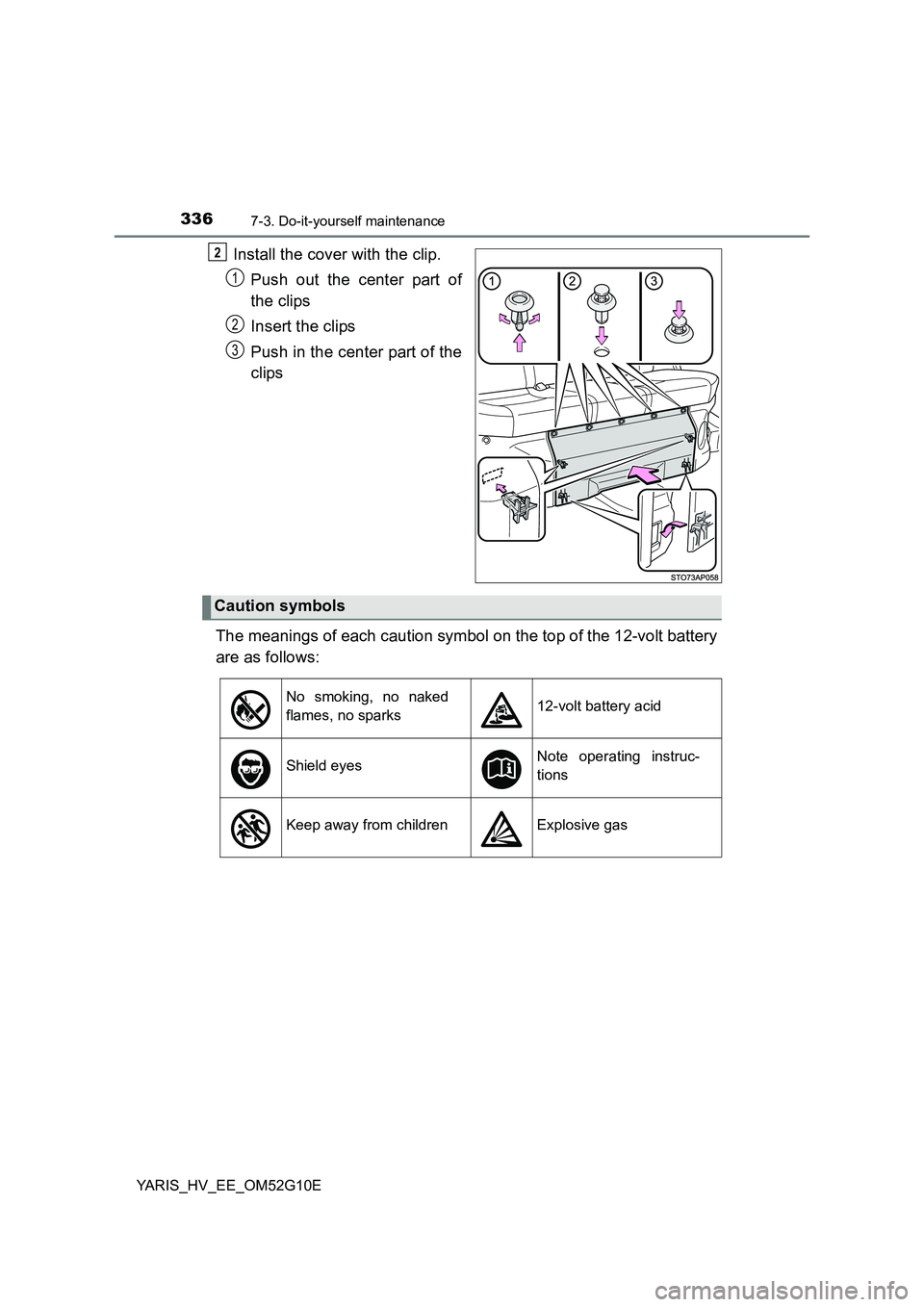

Install the cover with the clip.
Push out the center part of
the clips
Insert the clips
Push in the center part of the
clips
The meanings of each caution symbol on the top of the 12-volt battery
are as follows:
2
1
2
3
Caution symbols
No smoking, no naked
flames, no sparks12-volt battery acid
Shield eyesNote operating instruc-
tions
Keep away from childrenExplosive gas

3377-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_EE_OM52G10E

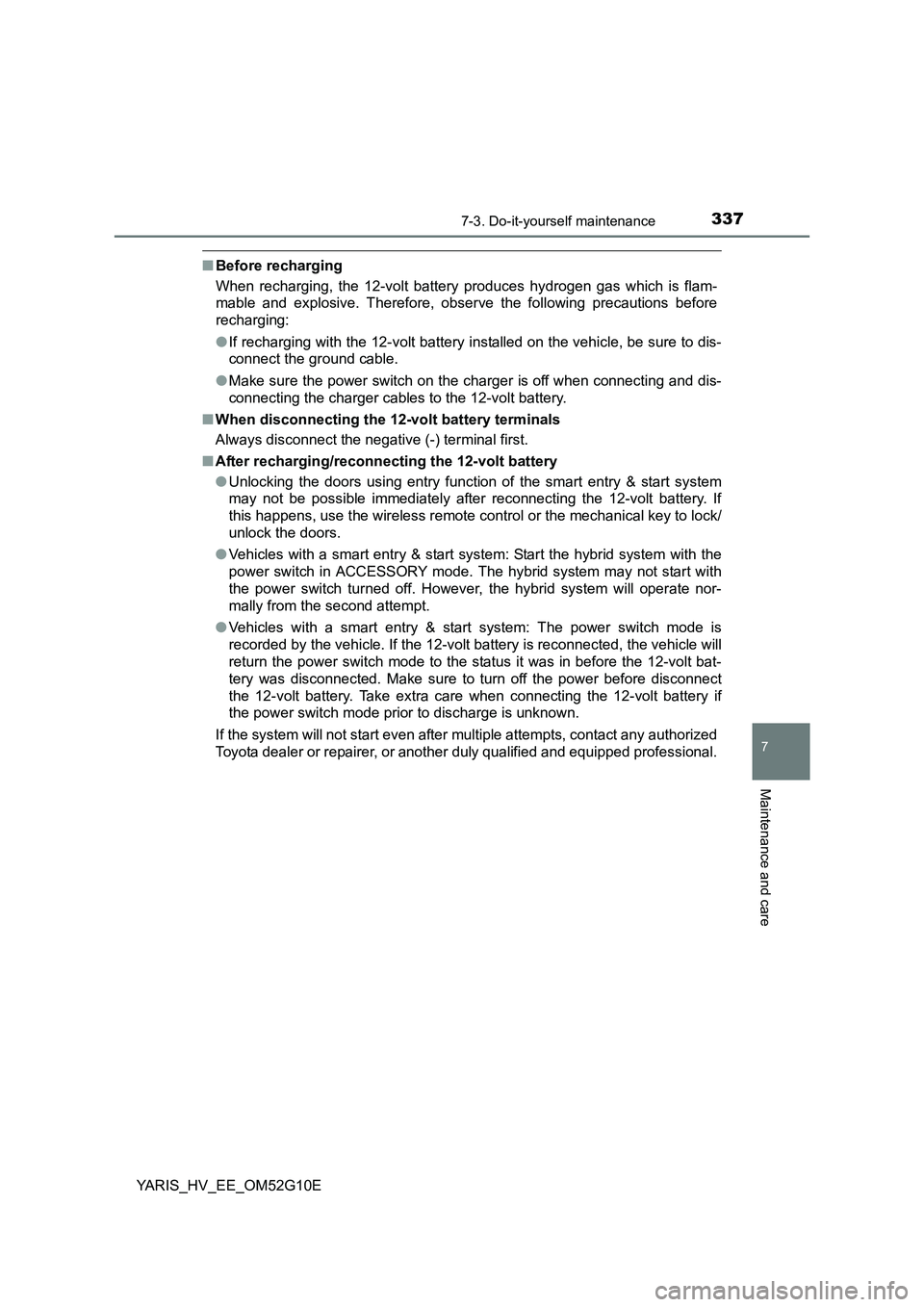

■Before recharging
When recharging, the 12-volt battery produces hydrogen gas which is flam-
mable and explosive. Therefore, obser ve the following precautions before
recharging:
● If recharging with the 12-volt battery installed on the vehicle, be sure to dis-
connect the ground cable.
● Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the 12-volt battery.
■ When disconnecting the 12-volt battery terminals
Always disconnect the negative (-) terminal first.
■ After recharging/reconnecting the 12-volt battery
● Unlocking the doors using entry function of the smart entry & start system
may not be possible immediately after reconnecting the 12-volt battery. If
this happens, use the wireless remote control or the mechanical key to lock/
unlock the doors.
● Vehicles with a smart entry & start system: Start the hybrid system with the
power switch in ACCESSORY mode. The hybrid system may not start with
the power switch turned off. However, the hybrid system will operate nor-
mally from the second attempt.
● Vehicles with a smart entry & start system: The power switch mode is
recorded by the vehicle. If the 12-volt battery is reconnected, the vehicle will
return the power switch mode to the status it was in before the 12-volt bat-
tery was disconnected. Make sure to turn off the power before disconnect
the 12-volt battery. Take extra care when connecting the 12-volt battery if
the power switch mode prior to discharge is unknown.
If the system will not start even after multiple attempts, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional.

3387-3. Do-it-yourself maintenance
YARIS_HV_EE_OM52G10E

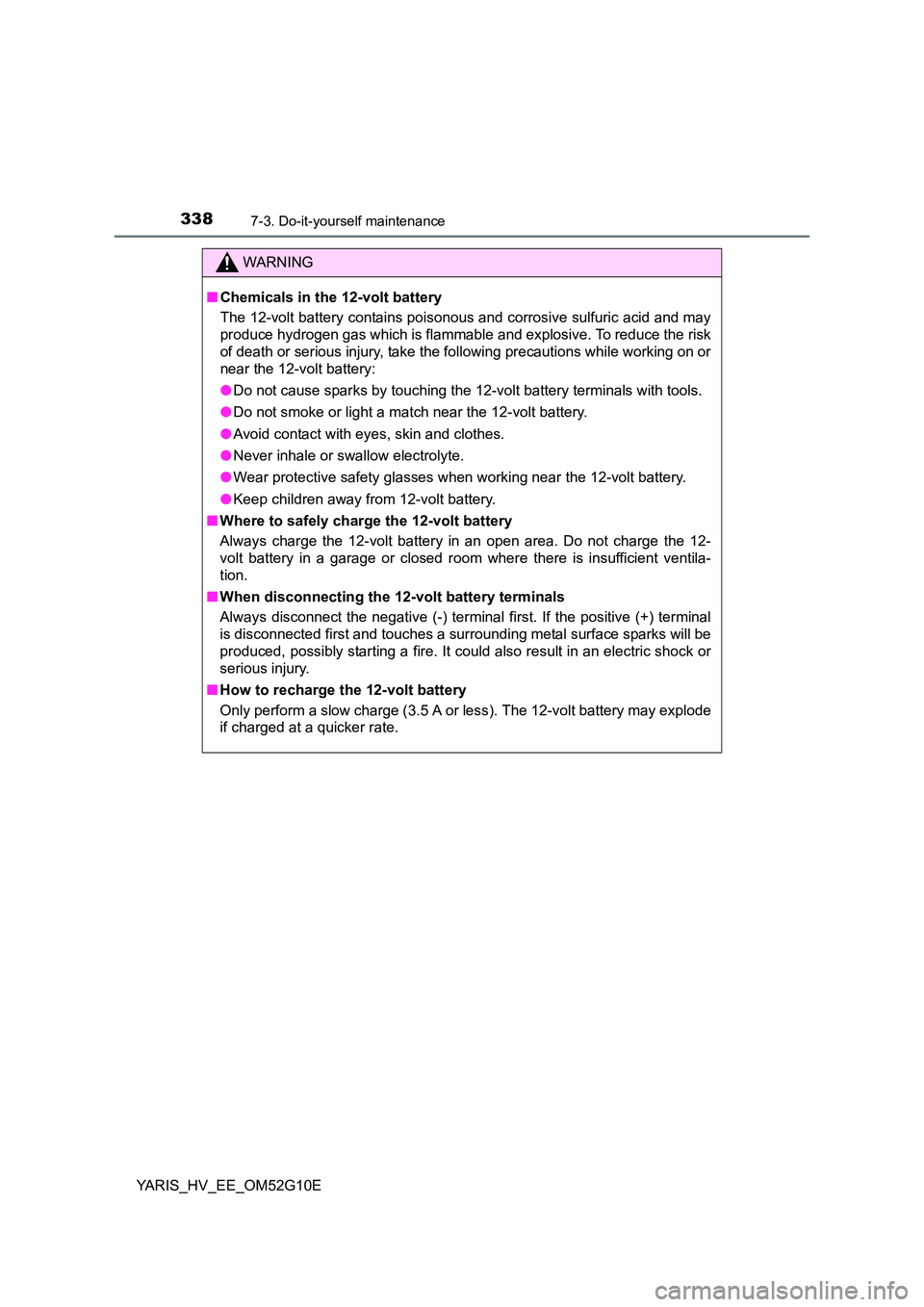

WARNING
■Chemicals in the 12-volt battery
The 12-volt battery contains poisonous and corrosive sulfuric acid and may
produce hydrogen gas which is flammable and explosive. To reduce the risk
of death or serious injury, take the following precautions while working on or
near the 12-volt battery:
● Do not cause sparks by touching the 12-volt battery terminals with tools.
● Do not smoke or light a match near the 12-volt battery.
● Avoid contact with eyes, skin and clothes.
● Never inhale or swallow electrolyte.
● Wear protective safety glasses when working near the 12-volt battery.
● Keep children away from 12-volt battery.
■ Where to safely charge the 12-volt battery
Always charge the 12-volt battery in an open area. Do not charge the 12-
volt battery in a garage or closed room where there is insufficient ventila-
tion.
■ When disconnecting the 12-volt battery terminals
Always disconnect the negative (-) terminal first. If the positive (+) terminal
is disconnected first and touches a surrounding metal surface sparks will be
produced, possibly starting a fire. It could also result in an electric shock or
serious injury.
■ How to recharge the 12-volt battery
Only perform a slow charge (3.5 A or less). The 12-volt battery may explode
if charged at a quicker rate.

3397-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_EE_OM52G10E
WARNING

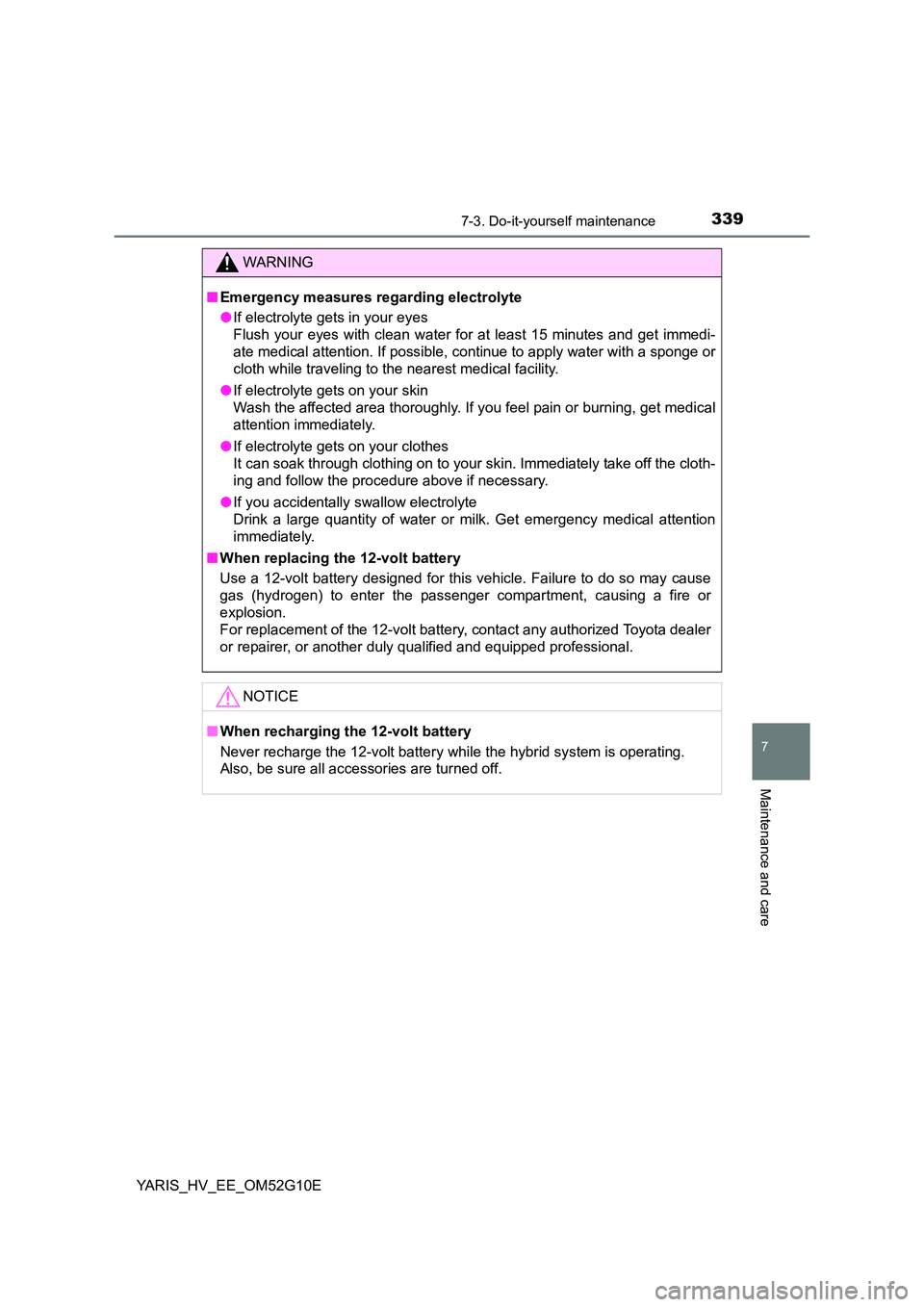

■Emergency measures regarding electrolyte
● If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immedi-
ate medical attention. If possible, continue to apply water with a sponge or
cloth while traveling to the nearest medical facility.
● If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.
● If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the cloth-
ing and follow the procedure above if necessary.
● If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.
■ When replacing the 12-volt battery
Use a 12-volt battery designed for this vehicle. Failure to do so may cause
gas (hydrogen) to enter the passenger compartment, causing a fire or
explosion.
For replacement of the 12-volt battery, contact any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
NOTICE
■ When recharging the 12-volt battery
Never recharge the 12-volt battery while the hybrid system is operating.
Also, be sure all accessories are turned off.

3407-3. Do-it-yourself maintenance
YARIS_HV_EE_OM52G10E

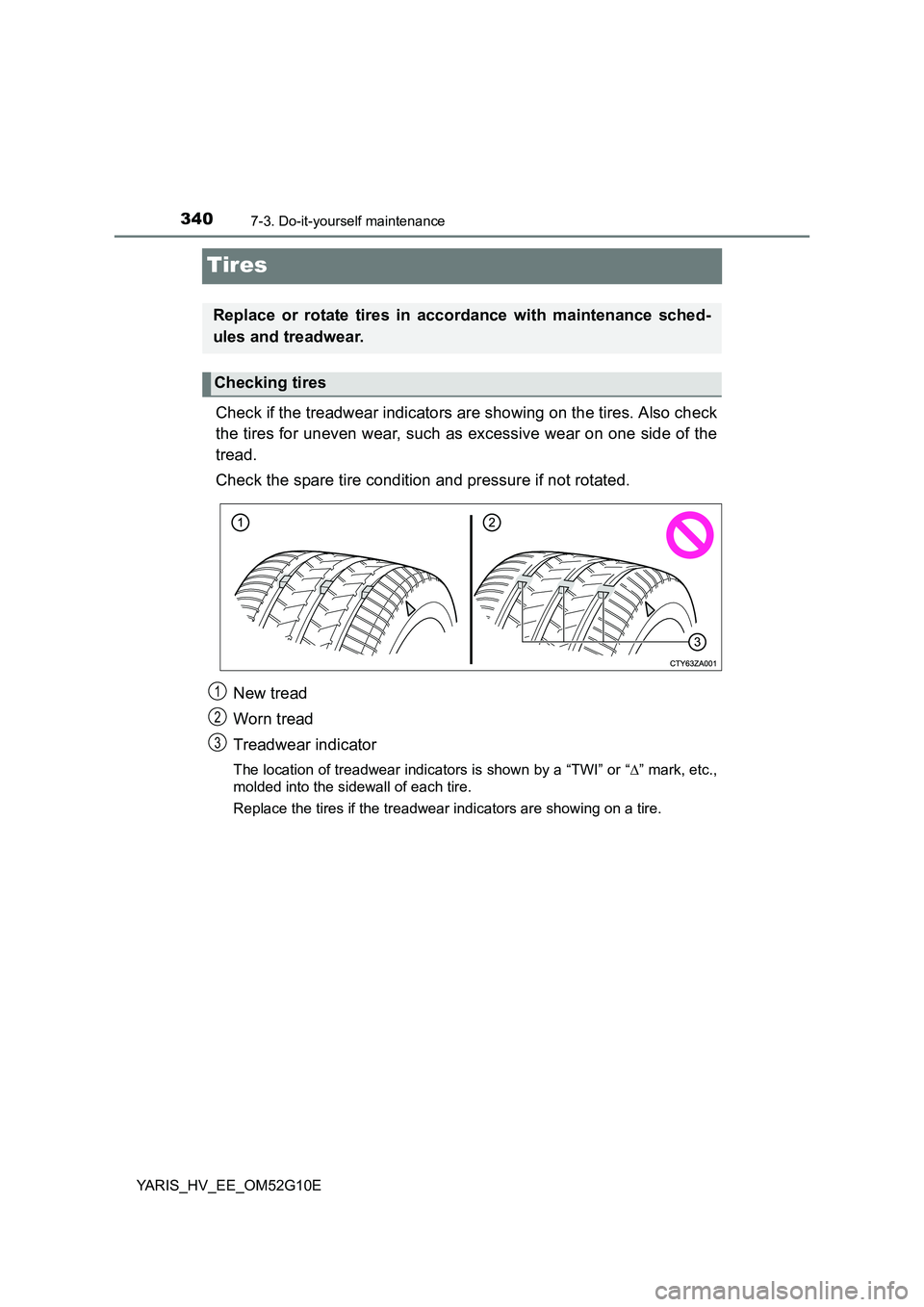

Tires
Check if the treadwear indicators are showing on the tires. Also check
the tires for uneven wear, such as excessive wear on one side of the
tread.
Check the spare tire condition and pressure if not rotated.
New tread
Worn tread
Treadwear indicator
The location of treadwear indicators is shown by a “TWI” or “ ” mark, etc.,
molded into the sidewall of each tire.
Replace the tires if the treadwear indicators are showing on a tire.
Replace or rotate tires in accordance with maintenance sched-
ules and treadwear.
Checking tires
1
2
3
