1012. Instrument cluster
2
Instrument cluster
YARIS_HV_OM_Europe_OM52G76E

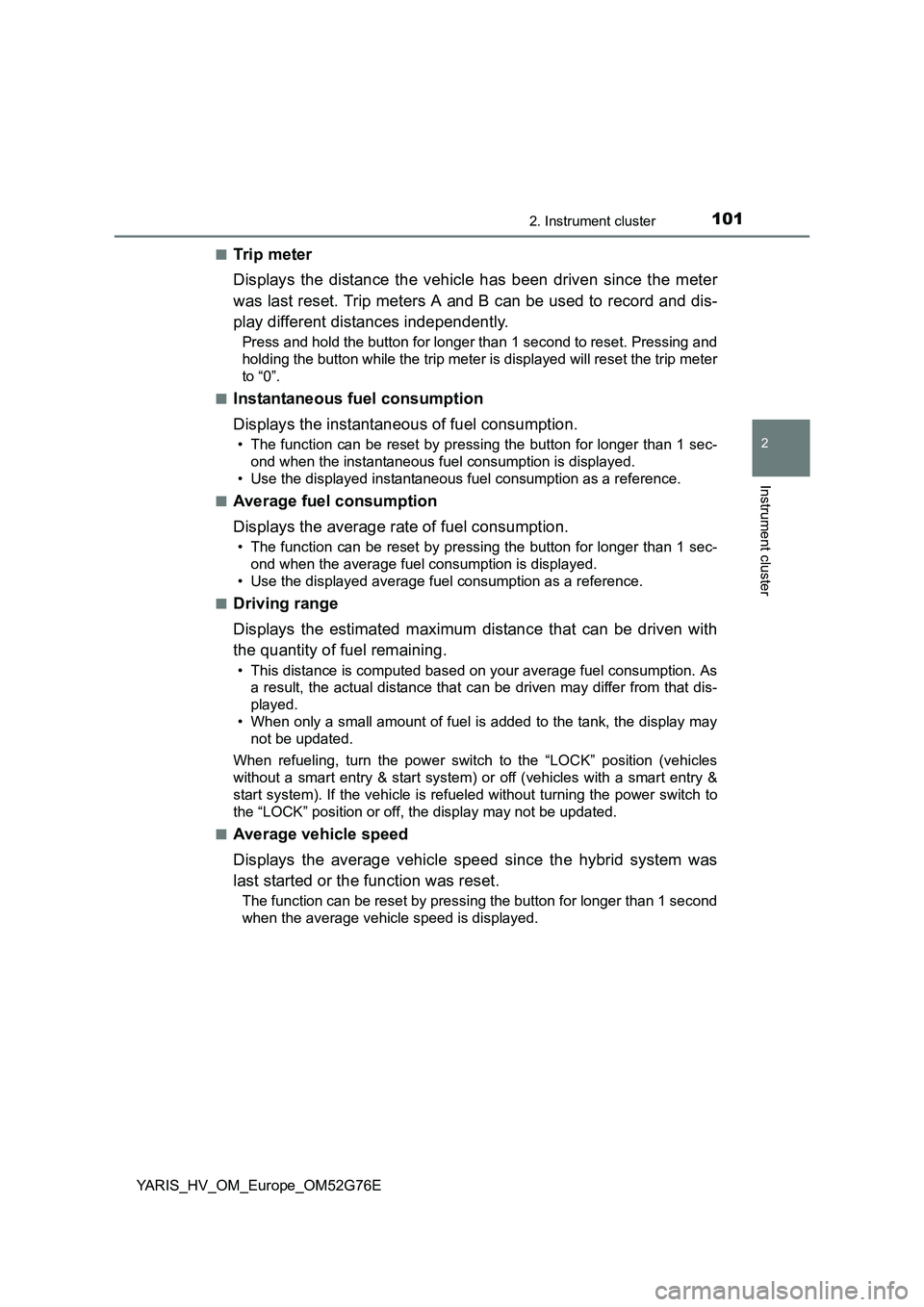

■Trip meter
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
Press and hold the button for longer than 1 second to reset. Pressing and
holding the button while the trip meter is displayed will reset the trip meter
to “0”.
■Instantaneous fuel consumption
Displays the instantaneous of fuel consumption.
• The function can be reset by pressing the button for longer than 1 sec-
ond when the instantaneous fuel consumption is displayed.
• Use the displayed instantaneous fuel consumption as a reference.
■Average fuel consumption
Displays the average rate of fuel consumption.
• The function can be reset by pressing the button for longer than 1 sec-
ond when the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
■Driving range
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the power switch to the “LOCK” position (vehicles
without a smart entry & start system) or off (vehicles with a smart entry &
start system). If the vehicle is refueled without turning the power switch to
the “LOCK” position or off, the display may not be updated.
■Average vehicle speed
Displays the average vehicle speed since the hybrid system was
last started or the function was reset.
The function can be reset by pressing the button for longer than 1 second
when the average vehicle speed is displayed.

1022. Instrument cluster
YARIS_HV_OM_Europe_OM52G76E
EV indicator can be activated or deactivated by pressing the display
change button when the EV indicator customization display is dis-
played.
To change the EV indicator customization display, display the odometer
and press and hold the display change button until the display changes.
The clock can be adjusted by pressing the buttons.
Adjust the hours
Adjust the minutes
The temperature display shows temperatures within the range of
-40°C (-40°F) and 50°C (122°F).
■Display
In the following situations, the correct outside temperature may not
be displayed, or the display may take longer than normal to change:
● When the vehicle is stopped, or moving at low speeds (less than
25 km/h [16 mph])
● When the outside temperature has changed suddenly (at the
entrance/exit of a garage, tunnel, etc.)
■When “ ” or “E” is displayed
The system may be malfunctioning. Take your vehicle to any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
EV indicator customization
Clock
1
2
Outside temperature display

1032. Instrument cluster
2
Instrument cluster
YARIS_HV_OM_Europe_OM52G76E
■When disconnecting and reconnecting battery terminals
The following information data will be reset.
● Average fuel consumption
● Driving range
● Average vehicle speed
● Clock data
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal display, and there is no problem continuing to
use the display.
■ Changing the pre-crash warning timing
 P. 221
WARNING
■Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ The Multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.

1042. Instrument cluster
YARIS_HV_OM_Europe_OM52G76E

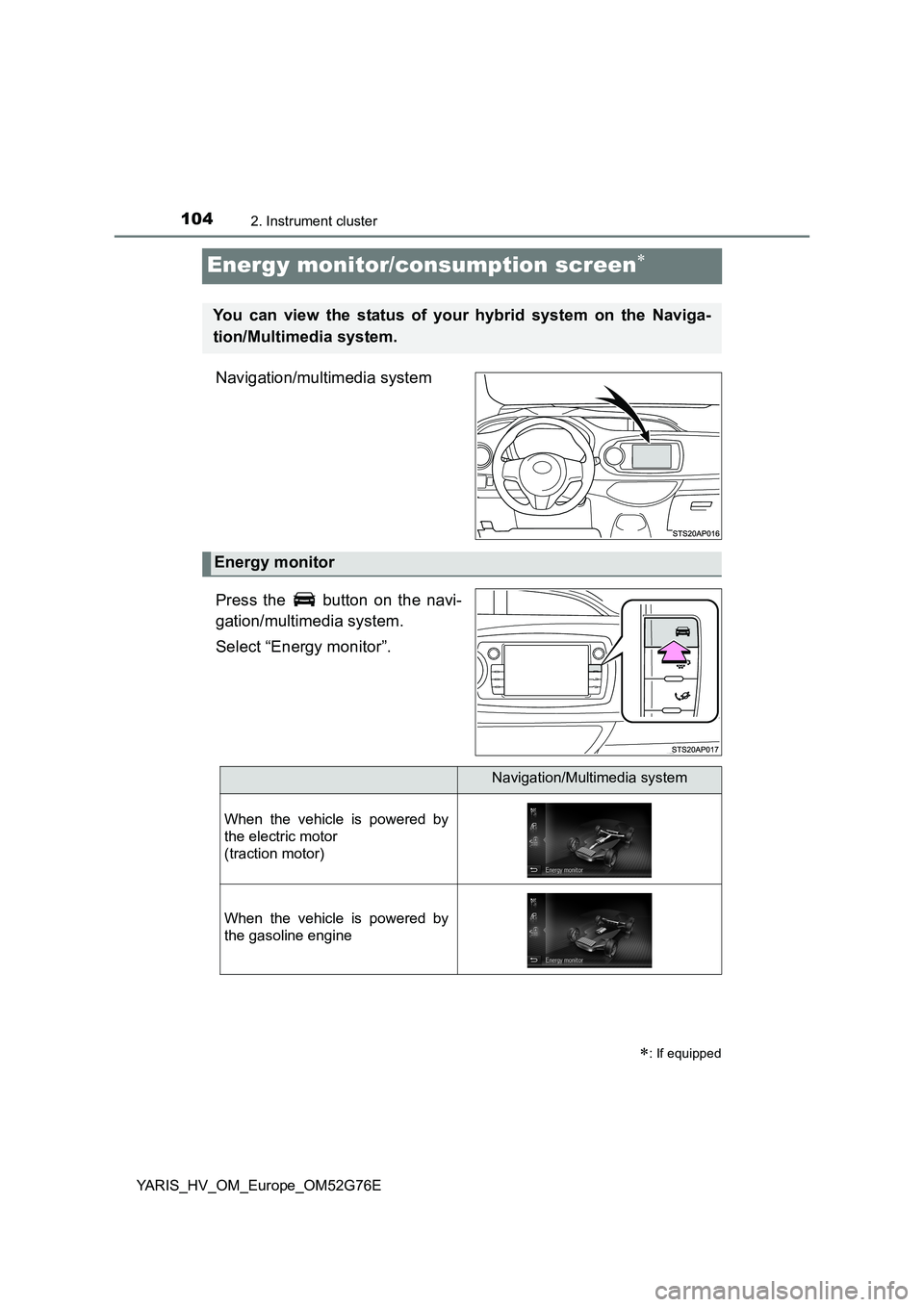

Energy monitor/consumption screen
Navigation/multimedia system
Press the button on the navi-
gation/multimedia system.
Select “Energy monitor”.
: If equipped
You can view the status of your hybrid system on the Naviga-
tion/Multimedia system.
Energy monitor
Navigation/Multimedia system
When the vehicle is powered by
the electric motor
(traction motor)
When the vehicle is powered by
the gasoline engine

1052. Instrument cluster
2
Instrument cluster
YARIS_HV_OM_Europe_OM52G76E
These images are examples only, and may vary slightly from actual condi-
tions.

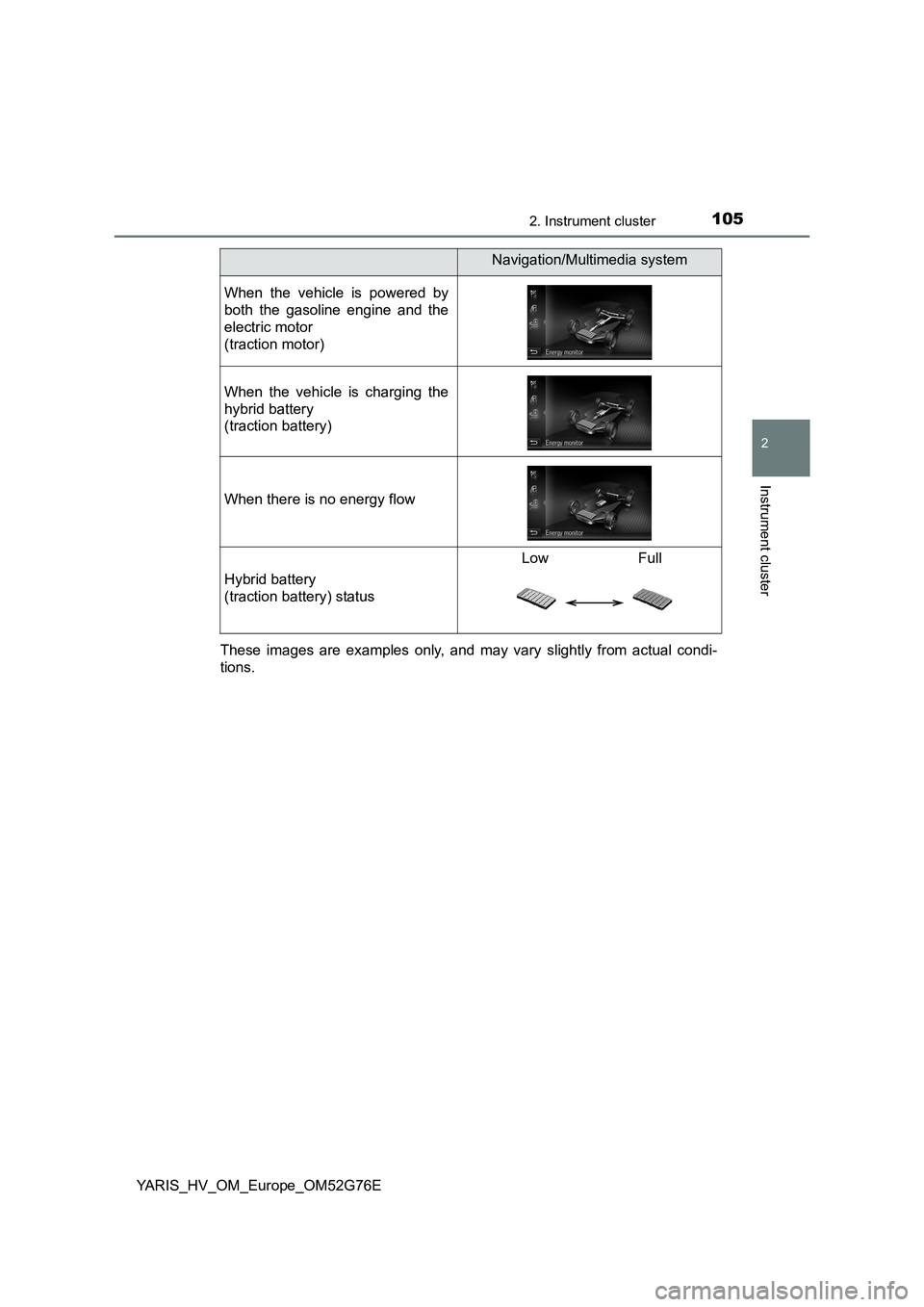

When the vehicle is powered by
both the gasoline engine and the
electric motor
(traction motor)
When the vehicle is charging the
hybrid battery
(traction battery)
When there is no energy flow
Hybrid battery
(traction battery) status
Low Full

Navigation/Multimedia system

1062. Instrument cluster
YARIS_HV_OM_Europe_OM52G76E
Press the button on the
navigation/multimedia system.
Select “Trip information”.
Displays the average vehicle
speed since the hybrid system
was started.
Cruising range ( P. 108)
Fuel consumption in the past
15 minutes
Regenerated energy in the
past 15 minutes
One symbol indicates 30 Wh. Up to 5 symbols are shown.
Displays the elapsed time since the hybrid system was started.
Resetting the consumption data
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the power
switch was last turned to ON mode. Use the displayed average fuel
consumption as a reference.
This image is an example only.
Trip information (navigation/multimedia system)
1
2
1
2
3
4
5
6

1072. Instrument cluster
2
Instrument cluster
YARIS_HV_OM_Europe_OM52G76E

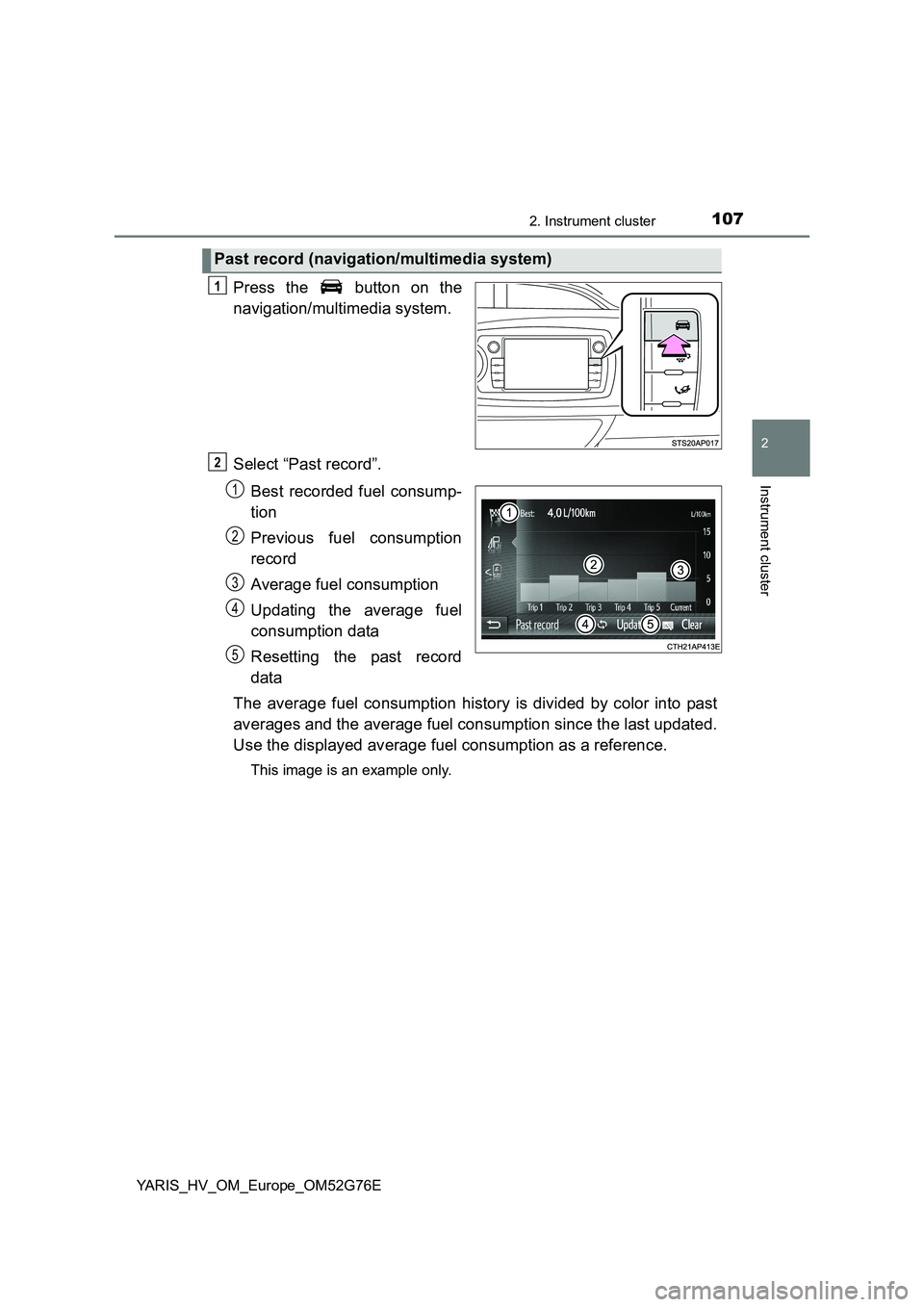

Press the button on the
navigation/multimedia system.
Select “Past record”.
Best recorded fuel consump-
tion
Previous fuel consumption
record
Average fuel consumption
Updating the average fuel
consumption data
Resetting the past record
data
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
This image is an example only.
Past record (navigation/multimedia system)
1
2
1
2
3
4
5

1082. Instrument cluster
YARIS_HV_OM_Europe_OM52G76E
■Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.
■ Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.

109
3
Operation of
each component
YARIS_HV_OM_Europe_OM52G76E
3-1. Key information
Keys ................................... 110
3-2. Opening, closing
and locking the doors
Side doors.......................... 122
Back door........................... 128
Smart entry &
start system ..................... 134
3-3. Adjusting the seats
Front seats ......................... 148
Rear seats ......................... 150
Head restraints .................. 153
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ................... 155
Inside rear view mirror ....... 157
Outside rear view mirrors... 159
3-5. Opening and closing
the windows
Power windows .................. 162

1103-1. Key information
YARIS_HV_OM_Europe_OM52G76E

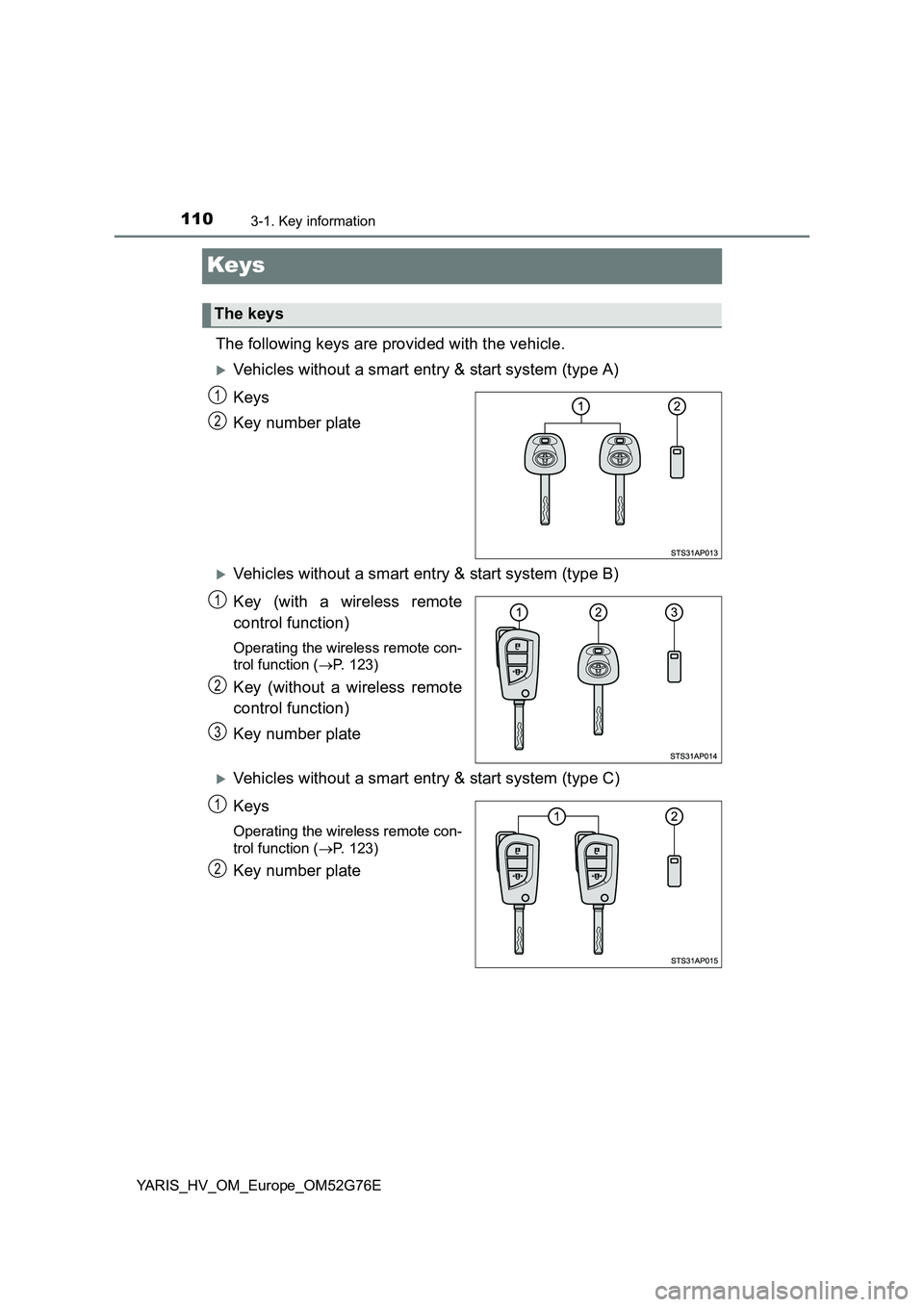

Keys
