4618-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_OM_Europe_OM52G76E

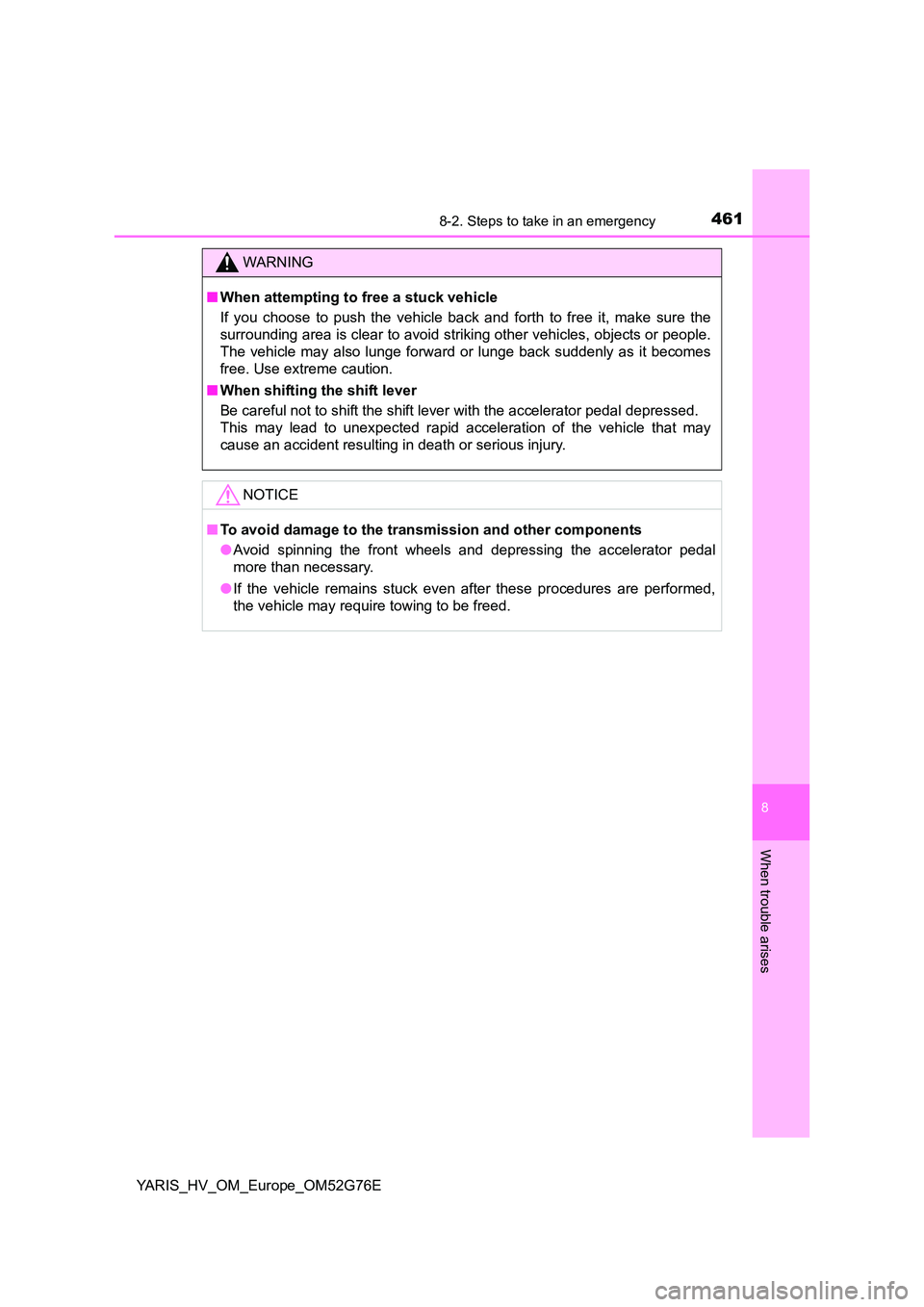

WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damage to the transmission and other components
● Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

4628-2. Steps to take in an emergency
YARIS_HV_OM_Europe_OM52G76E

463

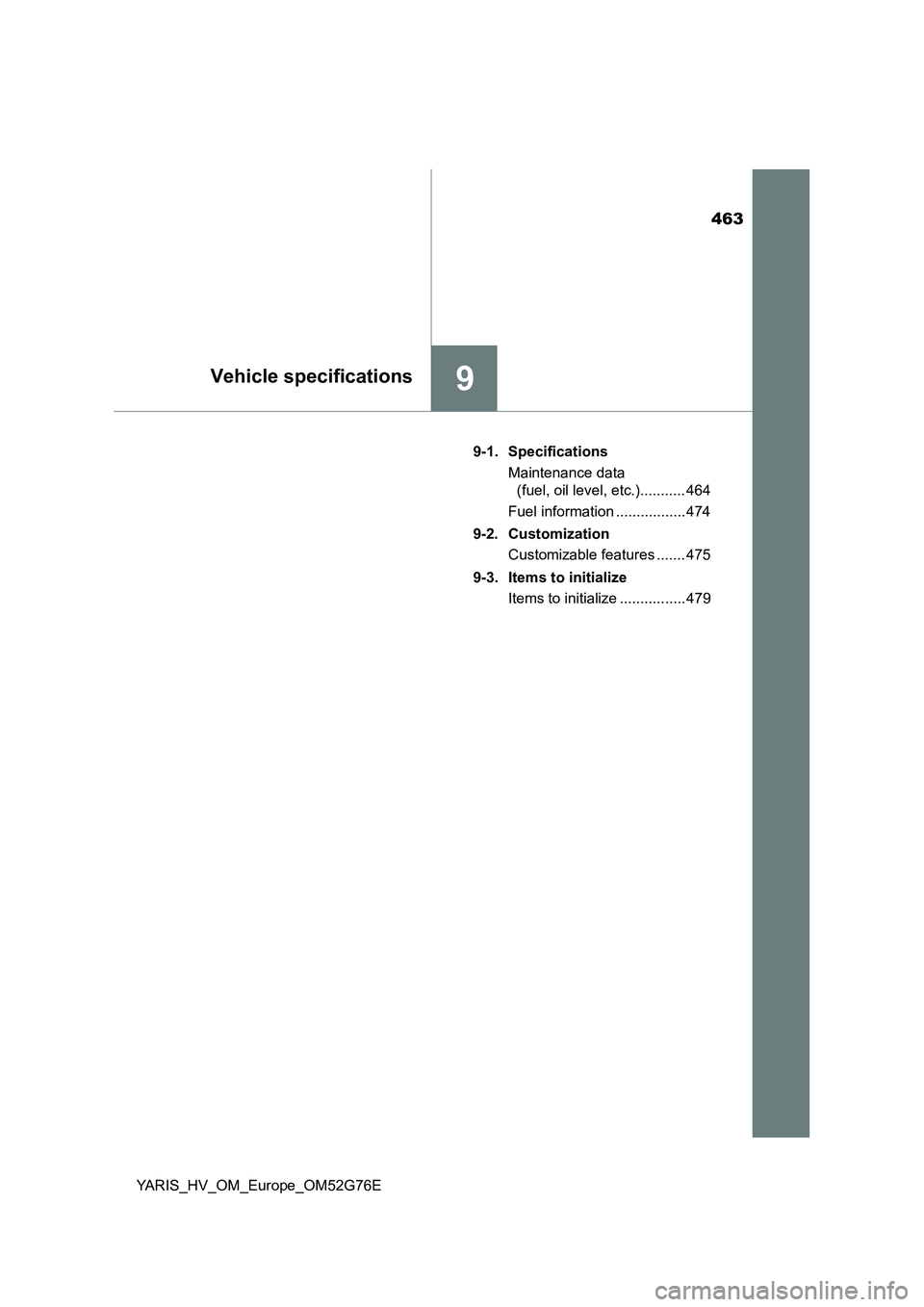

9Vehicle specifications
YARIS_HV_OM_Europe_OM52G76E
9-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 464
Fuel information ................. 474
9-2. Customization
Customizable features ....... 475
9-3. Items to initialize
Items to initialize ................ 479

4649-1. Specifications
YARIS_HV_OM_Europe_OM52G76E

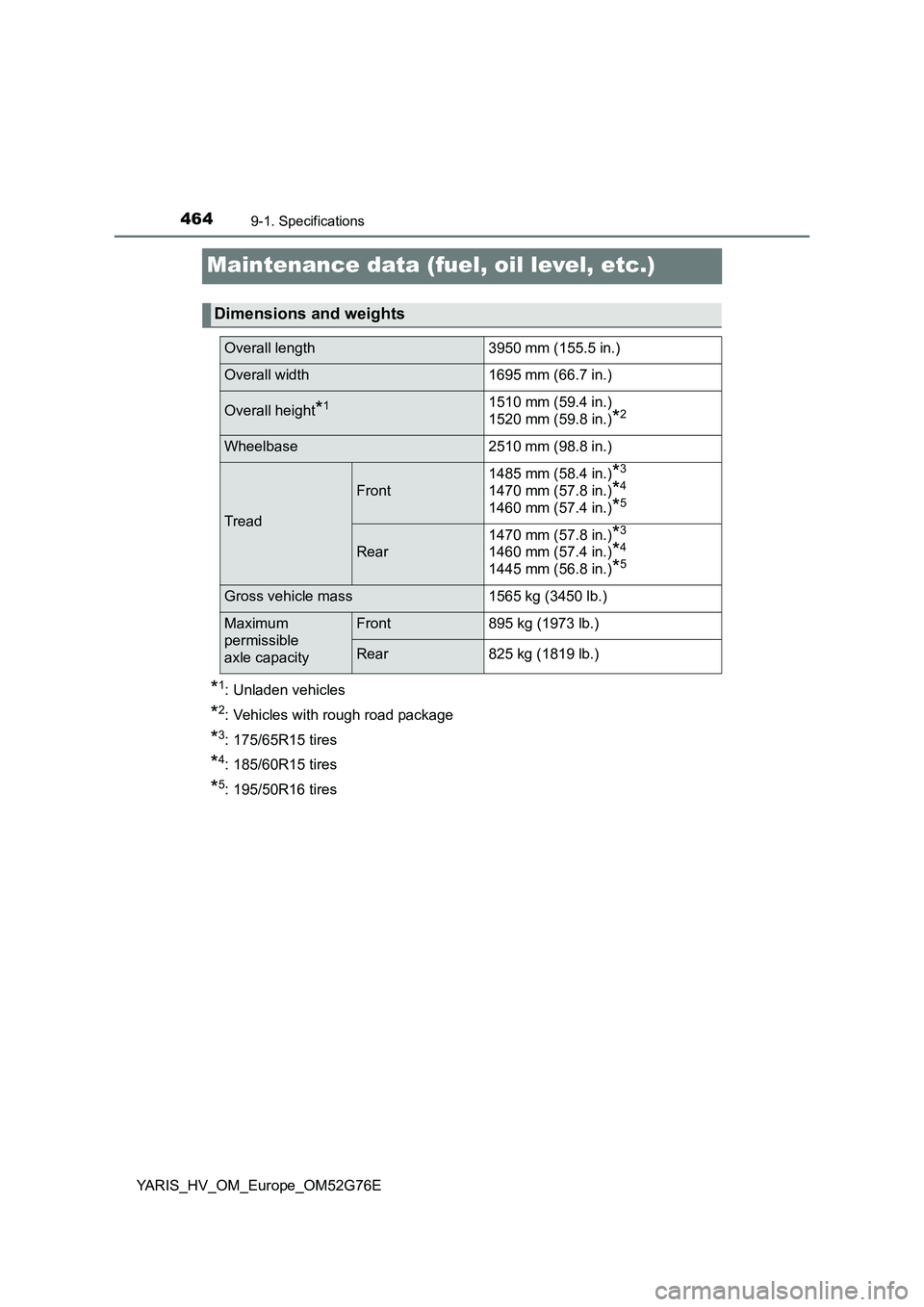

Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicles
*2: Vehicles with rough road package
*3: 175/65R15 tires
*4: 185/60R15 tires
*5: 195/50R16 tires
Dimensions and weights
Overall length 3950 mm (155.5 in.)
Overall width 1695 mm (66.7 in.)
Overall height*11510 mm (59.4 in.)
1520 mm (59.8 in.)*2
Wheelbase 2510 mm (98.8 in.)
Tread
Front
1485 mm (58.4 in.)*3
1470 mm (57.8 in.)*4
1460 mm (57.4 in.)*5
Rear
1470 mm (57.8 in.)*3
1460 mm (57.4 in.)*4
1445 mm (56.8 in.)*5
Gross vehicle mass 1565 kg (3450 lb.)
Maximum
permissible
axle capacity
Front 895 kg (1973 lb.)
Rear 825 kg (1819 lb.)

4659-1. Specifications
9
Vehicle specifications
YARIS_HV_OM_Europe_OM52G76E

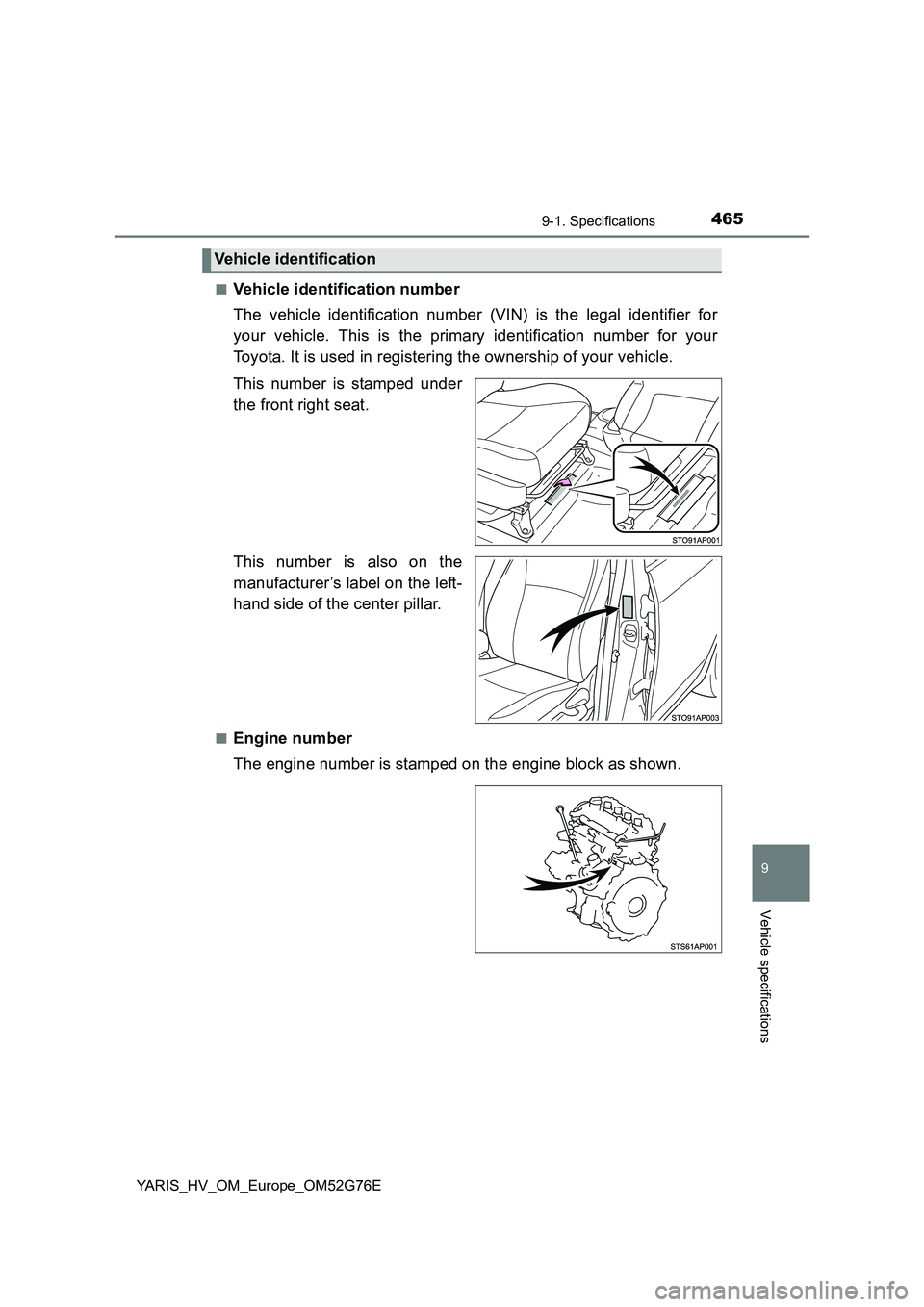

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the front right seat.
This number is also on the
manufacturer’s label on the left-
hand side of the center pillar.
■Engine number
The engine number is stamped on the engine block as shown.
Vehicle identification

4669-1. Specifications
YARIS_HV_OM_Europe_OM52G76E
Engine
Model1NZ-FXE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke75.0  84.7 mm (2.95  3.33 in.)
Displacement1497 cm3 (91.3 cu.in.)
Valve clearance
(engine cold)
Intake: 0.15  0.25 mm (0.0060.010 in.)
Exhaust: 0.25 0.35 mm (0.010  0.014 in.)
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane
Number95 or higher
Fuel tank capacity
(Reference)36 L (9.5 gal., 7.9 Imp.gal.)
Electric motor (Traction motor)
Ty p ePermanent magnet motor
Maximum output45 kW
Maximum torque169 N·m (17.2 kgf·m, 125 ft·lbf)
Hybrid battery (Traction battery)
Ty p eNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity20 modules
Overall voltage144 V

4679-1. Specifications
9
Vehicle specifications
YARIS_HV_OM_Europe_OM52G76E

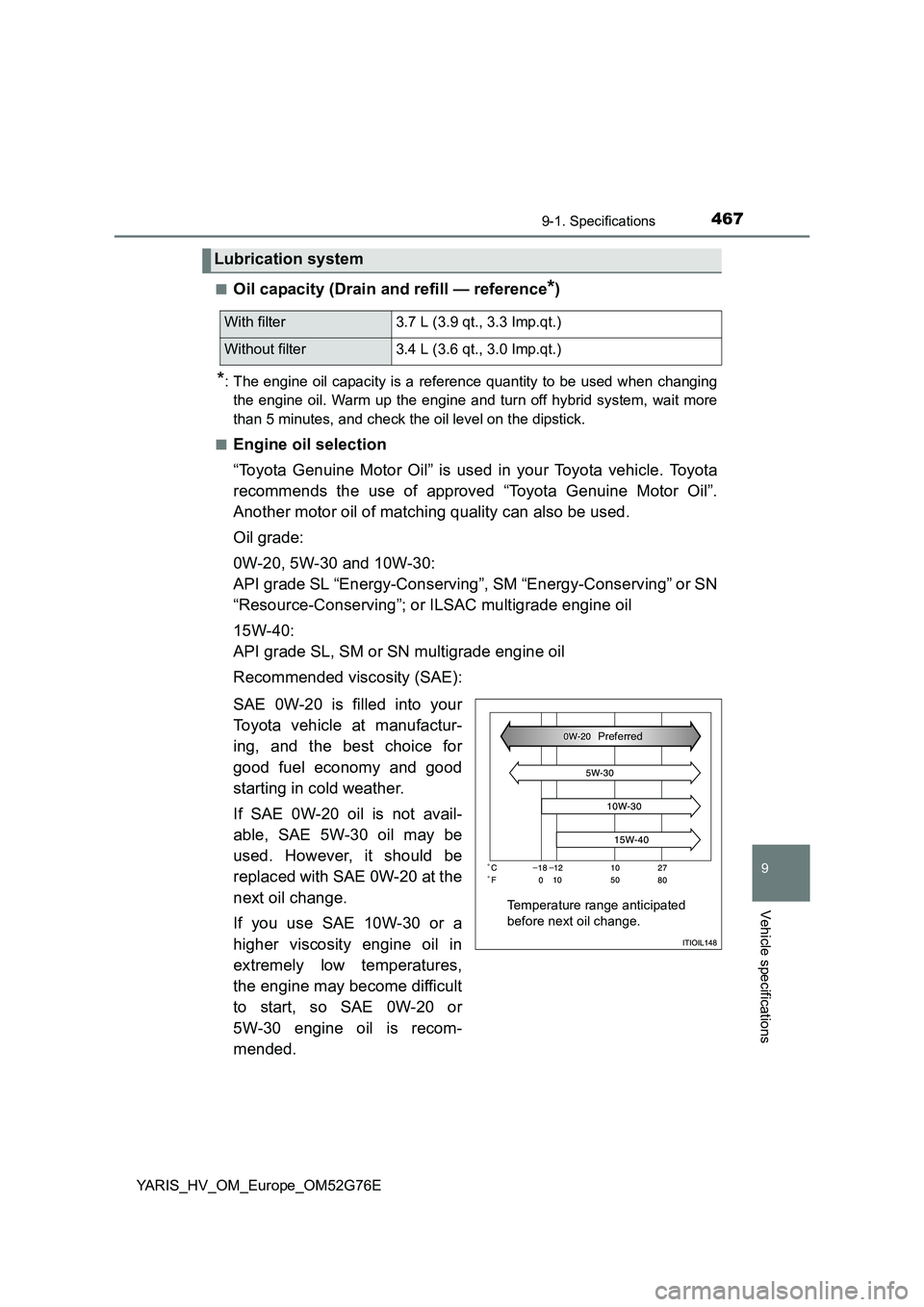

■Oil capacity (Drain and refill — reference*)
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up the engine and turn off hybrid system, wait more
than 5 minutes, and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20 or
5W-30 engine oil is recom-
mended.
Lubrication system
With filter 3.7 L (3.9 qt., 3.3 Imp.qt.)
Without filter 3.4 L (3.6 qt., 3.0 Imp.qt.)
Temperature range anticipated
before next oil change.
Preferred

4689-1. Specifications
YARIS_HV_OM_Europe_OM52G76E

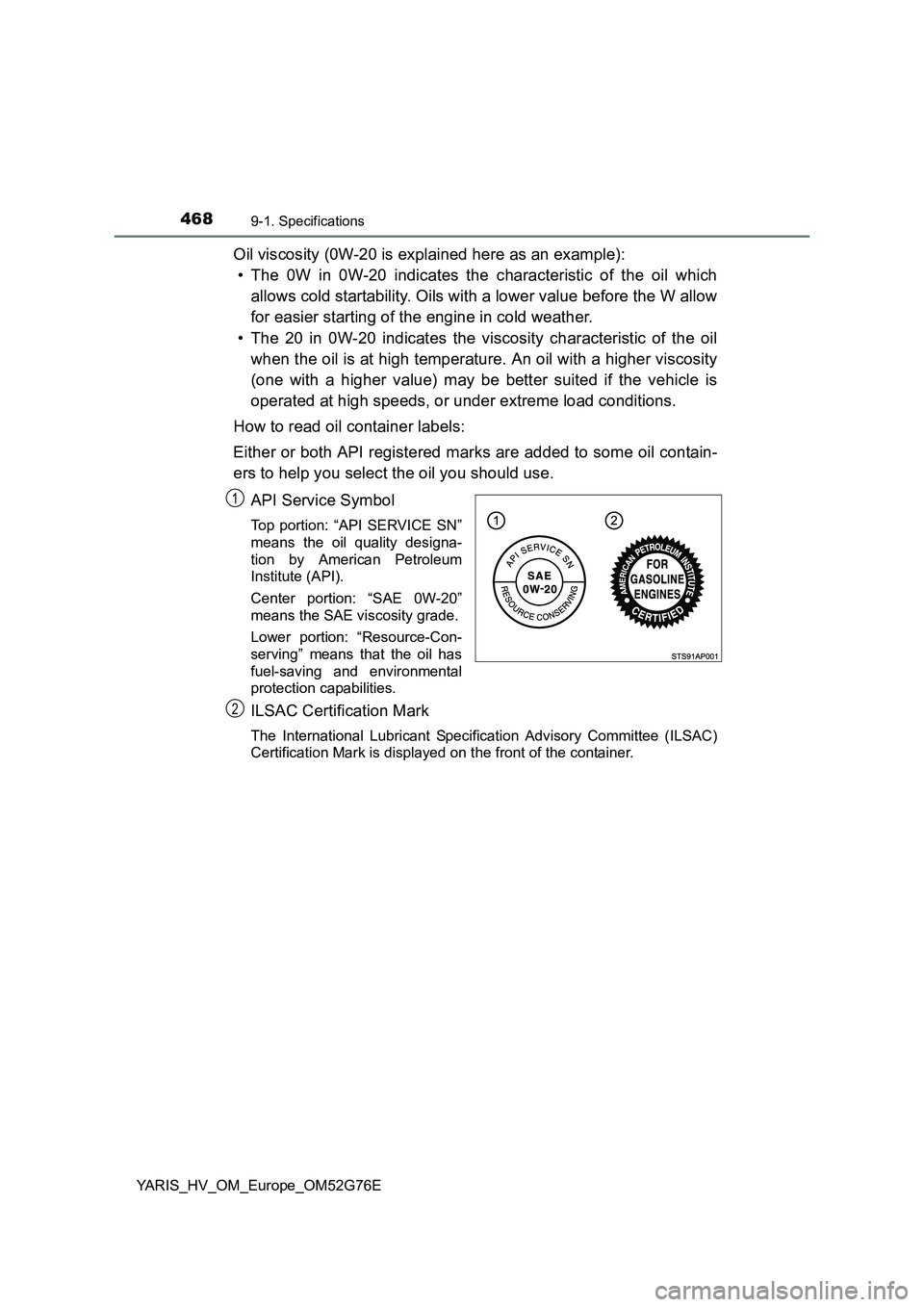

Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

4699-1. Specifications
9
Vehicle specifications
YARIS_HV_OM_Europe_OM52G76E

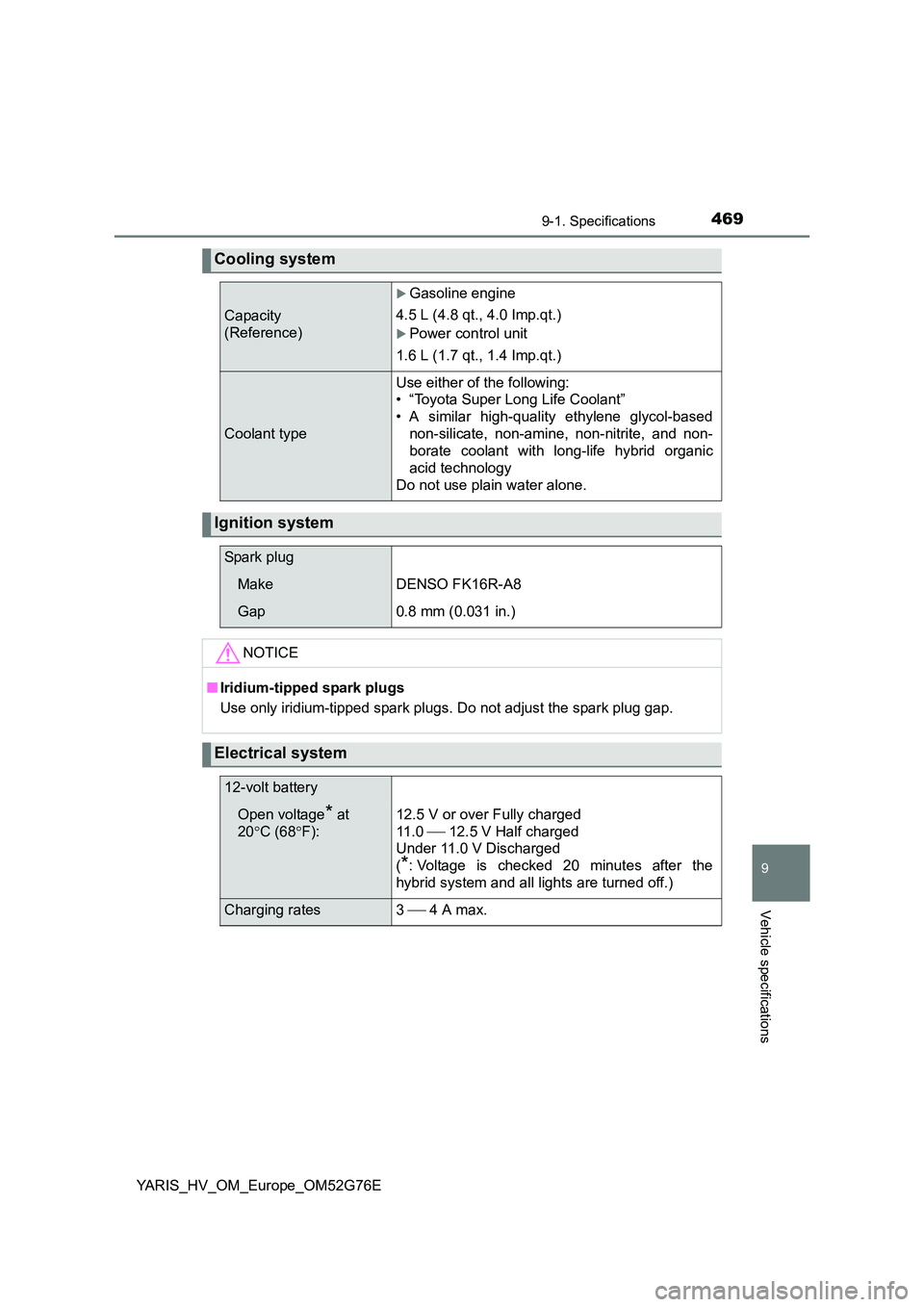

Cooling system
Capacity
(Reference)
Gasoline engine
4.5 L (4.8 qt., 4.0 Imp.qt.)
Power control unit
1.6 L (1.7 qt., 1.4 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.
Ignition system
Spark plug
MakeDENSO FK16R-A8
Gap0.8 mm (0.031 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
12-volt battery
Open voltage* at
20 C (68F):
12.5 V or over Fully charged
11 . 0  12.5 V Half charged
Under 11.0 V Discharged
(*: Voltage is checked 20 minutes after the
hybrid system and all lights are turned off.)
Charging rates 3  4 A max.

4709-1. Specifications
YARIS_HV_OM_Europe_OM52G76E
*: The fluid capacity is the reference quantity. If replacement is necessary,
contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
*1: Minimum pedal clearance when depressed with a force of 300 N (31 kgf,
67.4 lbf) while the hybrid system is operating
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf)
*3: Follow the indications of the designated fluid types for the brake reservoir
tank.

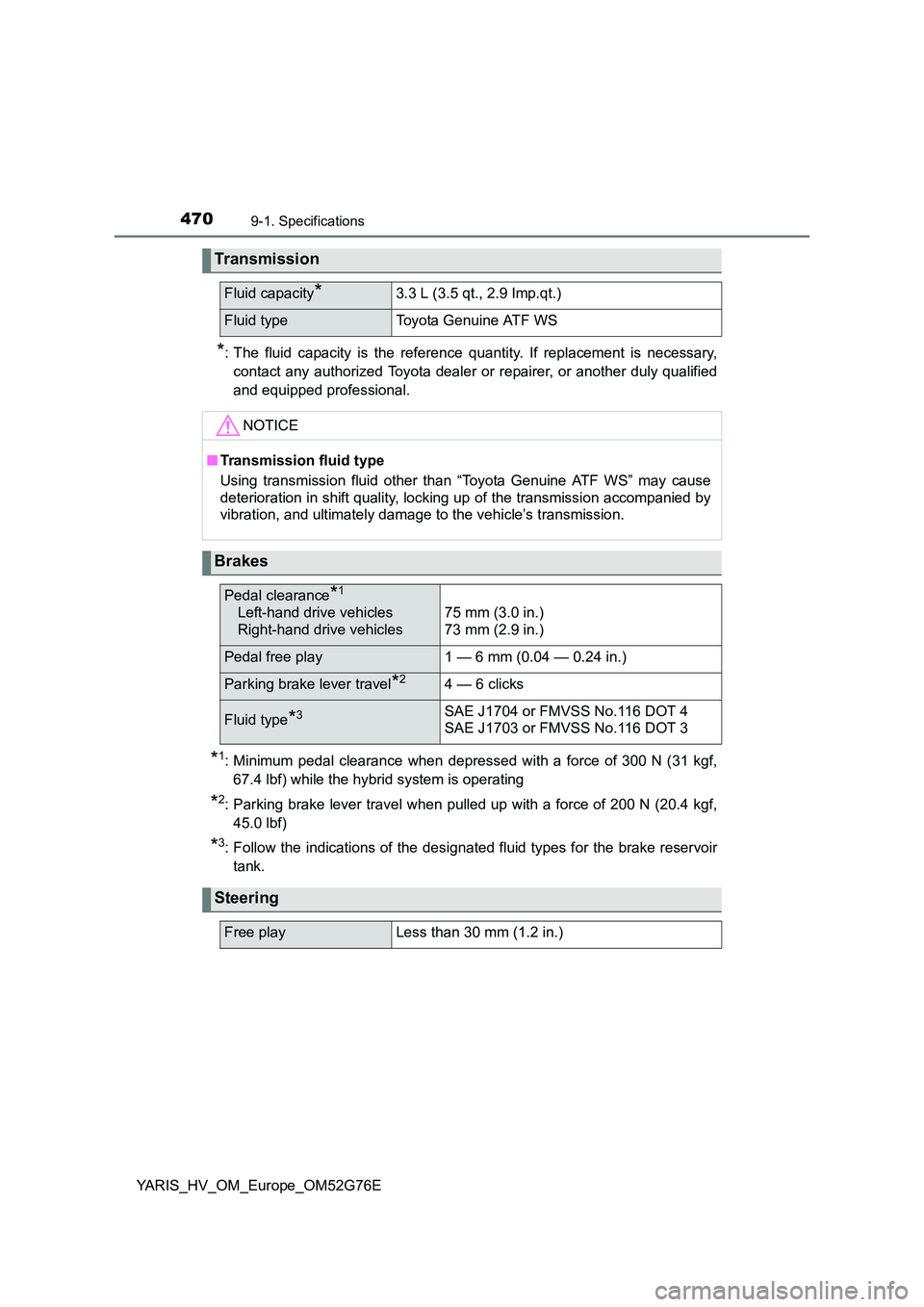

Transmission
Fluid capacity*3.3 L (3.5 qt., 2.9 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of the transmission accompanied by
vibration, and ultimately damage to the vehicle’s transmission.
Brakes
Pedal clearance*1
Left-hand drive vehicles
Right-hand drive vehicles
75 mm (3.0 in.)
73 mm (2.9 in.)
Pedal free play 1 — 6 mm (0.04 — 0.24 in.)
Parking brake lever travel*24 — 6 clicks
Fluid type*3SAE J1704 or FMVSS No.116 DOT 4
SAE J1703 or FMVSS No.116 DOT 3
Steering
Free playLess than 30 mm (1.2 in.)
