TABLE OF CONTENTS4
YARIS_HV_OM_Europe_OM52G76E
6-1. Using the air conditioning
system and defogger
Automatic air conditioning
system .............................292
Seat heaters ......................301
6-2. Using the interior lights
Interior lights list .................303
• Interior light ....................303
• Personal lights ...............304
6-3. Using the storage features
List of storage features ......305
• Glove box ......................306
• Cup holders ...................307
• Bottle holders ................308
• Auxiliary box ..................308
Luggage compartment
features............................309
6-4. Using the other interior
features
Other interior features ........312
• Sun visors ......................312
• Vanity mirrors ................312
• Portable ashtray ............313
• Cigarette lighter .............313
• Power outlet ..................314
• Armrest ..........................315
• Panoramic roof shade ...315
• Assist grips ....................316
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .......... 318
Cleaning and protecting
the vehicle interior ........... 322
7-2. Maintenance
Maintenance
requirements ................... 325
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ..................... 328
Hood.................................. 331
Positioning a floor jack ...... 333
Engine compartment ......... 335
12-volt battery ................... 342
Tires .................................. 348
Tire inflation pressure........ 362
Wheels .............................. 364
Air conditioning filter .......... 367
Wireless remote control/
electronic key battery ...... 369
Checking and replacing
fuses ............................... 373
Light bulbs ......................... 378
6Interior features7Maintenance and care

1383-2. Opening, closing and locking the doors
YARIS_HV_OM_Europe_OM52G76E
■ Notes for the entry function (vehicles with an entry function)
● Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following case:
• The electronic key is too close to the window or outside door handle, near
the ground, or in a high place w hen the doors are locked or unlocked.
● Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave recep-
tion conditions, it may be detected by the antenna outside the cabin and the
door will become lockable from the outside, possibly trapping the electronic
key inside the vehicle.
● As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone.
● The doors may unlock if a large amount of water splashes on the door han-
dle, such as in the rain or in a car wash when the electronic key is within the
effective range. (The door will automatically be locked after approximately
30 seconds if the doors are not opened and closed.)
● Gripping the door handle when wearing a glove may not unlock the door.
● If the wireless remote control is used to lock the doors when the electronic
key is near the vehicle, there is a possibility that the door may not be
unlocked by the entry function. (Use the wireless remote control to unlock
the doors.)
● A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the origi-
nal position and check that the doors unlock before pulling the door handle
again.
■ Notes for the start function
● Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following case:
• The electronic key is on the inst rument panel, luggage cover (if equipped)
or floor, or in the door pockets, glove box, accessory box of the instru-
ment panel, or in/near the front cup holder when the hybrid system is
started or power switch modes are changed.
● Even if the electronic key is not inside the vehicle, it may be possible to start
the hybrid system if the electronic key is near the window.

1734-1. Before driving
4
Driving
YARIS_HV_OM_Europe_OM52G76E
WARNING
■When the vehicle is parked
● Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in
the vehicle when it is in the sun.
Doing so may result in the following:
• Gas may leak from a cigarette lighter or spray can, and may lead to a
fire.
• The temperature inside the vehicle may cause the plastic lenses and
plastic material of glasses to deform or crack.
• Soft drink cans may rupture, causing the contents to spray over the
interior of the vehicle, and may also cause a short circuit in the vehicle’s
electrical components.
• Do not leave cigarette lighters in the v ehicle. If a cigarette lighter is in a
place such as the glove box or on the floor, it may be lit accidentally
when luggage is loaded or the seat is adjusted, causing a fire.
● Do not attach adhesive discs to the windshield or windows. Do not place
containers such as air fresheners on the instrument panel or dashboard.
Adhesive discs or containers may act as lenses, causing a fire in the vehi-
cle.
● Do not leave a door or window open if the curved glass is coated with a
metallized film such as a silver-colored one. Reflected sunlight may cause
the glass to act as a lens, causing a fire.
● Always apply the parking brake, shift the shift lever to P, stop the hybrid
system and lock the vehicle.
Do not leave the vehicle unattended while the “READY” indicator is illumi-
nated.
When the vehicle is left without applying the parking brake even if the shift
lever is in P, it may start to move, leading to an accident.
● Do not touch the exhaust pipes while the “READY” indicator is illuminated
or immediately after turning the hybrid system off.
Doing so may cause burns.
■ When taking a nap in the vehicle
Always turn the hybrid system off. Otherwise, if you accidentally move the
shift lever or depress the accelerator pedal, this could cause an accident or
fire due to hybrid system overheating. Additionally, if the vehicle is parked in
a poorly ventilated area, exhaust gases may collect and enter the vehicle,
leading to death or a serious health hazard.

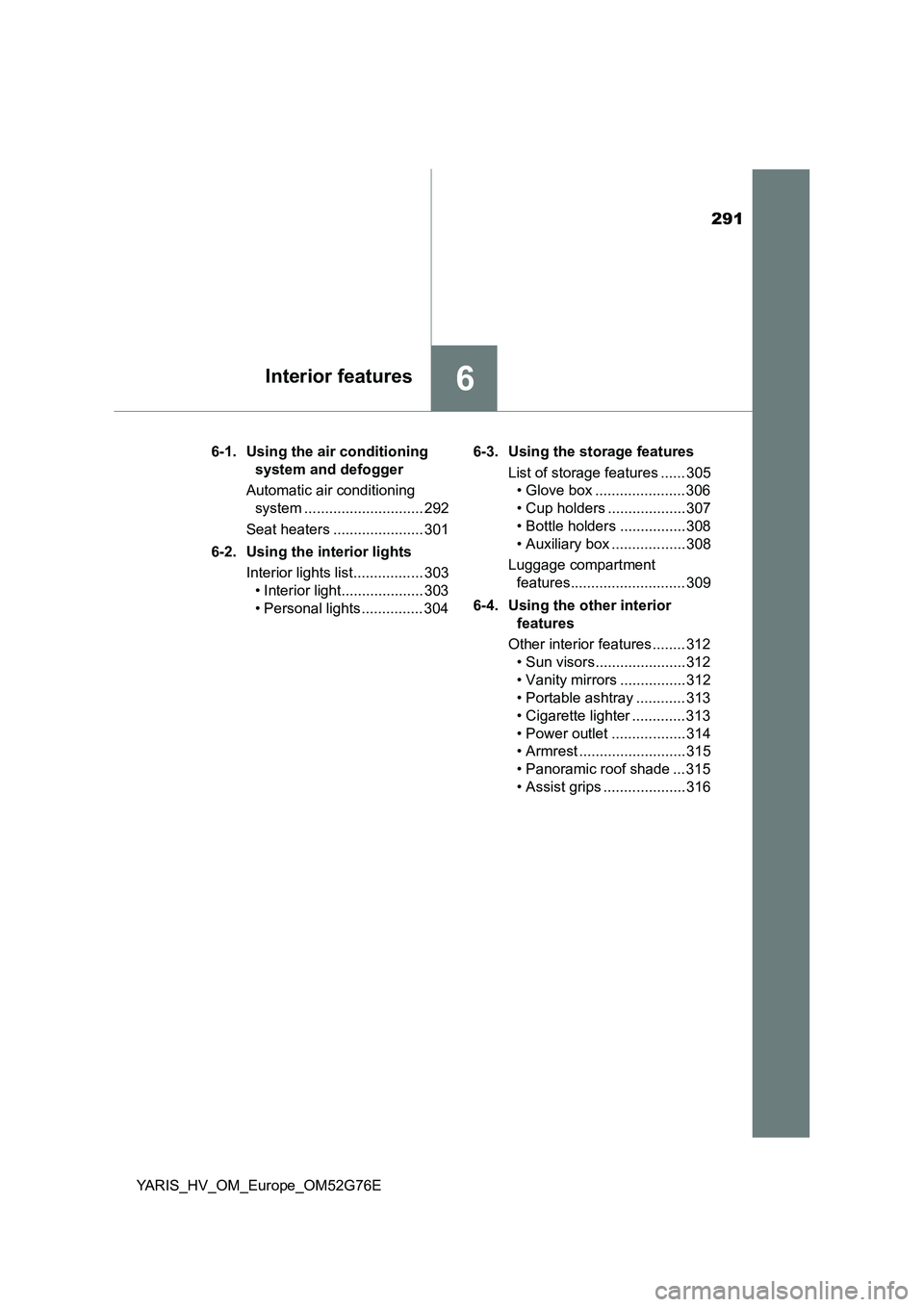

291
6Interior features
YARIS_HV_OM_Europe_OM52G76E
6-1. Using the air conditioning
system and defogger
Automatic air conditioning
system ............................. 292
Seat heaters ...................... 301
6-2. Using the interior lights
Interior lights list................. 303
• Interior light.................... 303
• Personal lights ............... 304
6-3. Using the storage features
List of storage features ...... 305
• Glove box ...................... 306
• Cup holders ................... 307
• Bottle holders ................ 308
• Auxiliary box .................. 308
Luggage compartment
features............................ 309
6-4. Using the other interior
features
Other interior features ........ 312
• Sun visors...................... 312
• Vanity mirrors ................ 312
• Portable ashtray ............ 313
• Cigarette lighter ............. 313
• Power outlet .................. 314
• Armrest .......................... 315
• Panoramic roof shade ... 315
• Assist grips .................... 316

3056-3. Using the storage features
6
Interior features
YARIS_HV_OM_Europe_OM52G76E
List of storage features
Glove box (P. 306)
Cup holders ( P. 307)
Bottle holders ( P. 308)
Auxiliary box ( P. 308)
WARNING
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may result in the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
1
2
3
4

3066-3. Using the storage features
YARIS_HV_OM_Europe_OM52G76E
Pull up the lever to open the glove
box.
■ Using the glove box vent (if equipped)
Perishable items should not be put in the box.
Glove box
Air from the air conditioning system can
be distributed into the glove box by open-
ing and closing the vent.
Open
Close
The air is conditioned the same as the air
for the passenger side vent.
WARNING
■ Caution while driving
Keep the glove box closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by the open
glove box or the items stored inside.
1
2

3677-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_OM_Europe_OM52G76E
Air conditioning filter
Turn the power switch to the “LOCK” position (vehicles without a
smart entry & start system) or off (vehicles with a smart entry & start
system).
Open the glove box and slide
off the damper.
Push in each side of the glove
box to disconnect the upper
claws.
Pull out the glove box and dis-
connect the lower claws.
The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.
Removal method
1
2
3
4

4378-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_OM_Europe_OM52G76E
Connect the bottle to the com-
pressor.
Screw the end of the hose clock-
wise as far as possible.
Check the specified tire inflation
pressure.
Tire inflation pressure is specified
on the label in the glove box.
( P. 471)
Start the hybrid system.
To inject the sealant and inflate
the tire, turn the compressor
switch on.
10
11
12
13

492Alphabetical index
YARIS_HV_OM_Europe_OM52G76E
Front seats ............................... 148
Adjustment ............................ 148
Cleaning ................................ 322
Correct driving posture............ 32
Head restraints...................... 153
Seat heaters.......................... 301
Front turn signal lights............ 194
Replacing light bulbs ............. 384
Turn signal lever ................... 194
Wattage................................. 473
Fuel
Capacity ................................ 466
Fuel gauge .............................. 97
Information ............................ 474
Refueling ............................... 209
Type .............................. 210, 466
Warning light ......................... 407
Fuel consumption
Average fuel consumption .... 101
Instantaneous fuel
consumption ....................... 101
Fuel filler door .......................... 209
Refueling ............................... 209
Fuses ........................................ 373
Gas station information .......... 504
Gauges........................................ 97
Glove box ................................. 306
Hands-free system
(for cellular phone)*
Hazard lights
Switch ................................... 394
Head restraints ........................ 153
Headlights ................................ 196
Automatic High Beam ........... 236
Follow me home system ....... 197
Light switch ........................... 196
Replacing light bulbs............. 380
Wattage ................................ 473
Heaters ..................................... 292
Automatic air conditioning
system ................................ 292
Outside rear view mirrors...... 296
Seat heaters ......................... 301
High mounted stoplight
Replacing light bulbs............. 390
Hill-start assist control............ 244
Hood ......................................... 331
Open ..................................... 331
Hooks
Retaining hooks (floor mat)..... 30
Horn .......................................... 155
Hybrid battery (traction battery)
Location .................................. 79
Specification ......................... 466
Hybrid battery air vent .............. 80
G
H
