TOYOTA YARIS iA 2018 Owners Manual (in English)

YARIS iA_OM_OM99Q46z_(U)
5116-7. Warning/Indicator Lights and Warning Sounds
6
If Trouble Arises
■Tire Pressure Monitoring System Warning Light
●
Perform tire pressure adjustment wh en the tires are cold. Tire pressure
will vary according to the tire temperature, therefore let the vehicle stand
for 1 hour or only drive it 1 mile (1.6 km) or less before adjusting the tire
pressures. When pressure is adjusted on hot tires to the cold inflation
pressure, the TPMS warning light/beep may turn on after the tires cool
and pressure drops below specification.
Also, an illuminated TPMS warning ligh t, resulting from the tire air pres-
sure dropping due to cold ambient temperature will remain illuminated
even if the ambient temper ature rises. In this case, it will also be neces-
sary to adjust the tire air pressures. If the TPMS warning light illuminates
due to a drop in tire air pressure, make sure to check and adjust the tire
air pressures.
●Tires lose air naturally over time and the TPMS cannot tell if the tires are
getting too soft over time or you have a flat. However, when you find one
low tire in a set of four-that is an indication of trouble; you should have
someone drive the vehicle slowly forward so you can inspect any low
tire for cuts and any metal objects sticking through tread or sidewall. Put
a few drops of water in the valve stem to see if it bubbles indicating a
bad valve. Leaks need to be address ed by more than simply reinflating
the tire as leaks are dangerous - take it to your Toyota dealer.
WARNING
■If the tire pressure monitoring system warning light illuminates or
flashes, or the tire pressure warning beep sound is heard, decrease
vehicle speed immediately and avoid sudden maneuvering and
braking
If the tire pressure monitoring system warning light illuminates or
flashes, or the tire pressure warning beep sound is heard, it is danger-
ous to drive the vehicle at high speeds, or perform sudden maneuvering
or braking. Vehicle driv ability could worsen and re sult in an accident.
To determine if you have a slow leak or a flat, pull over to a safe position
where you can check the visual condition of the tire and determine if you
have enough air to proceed to a place where air may be added and the
system monitored again by your Toyota dealer or a tire repair station.
■Do not ignore the TPMS Warning Light
Ignoring the TPMS warning light is da ngerous, even if you know why it
is illuminated. Have th e problem taken care of as soon as possible
before it develops into a more serious situation that could lead to tire
failure and a dangerous accident.

512
YARIS iA_OM_OM99Q46z_(U)
6-7. Warning/Indicator Lights and Warning Sounds
Message Indicated on Display∗
■Display example
∗: If equipped.
If a message is displayed in the center display (Type B audio),
take appropriate action (in a calm manner) according to the dis-
played message.

YARIS iA_OM_OM99Q46z_(U)
5136-7. Warning/Indicator Lights and Warning Sounds
6
If Trouble Arises

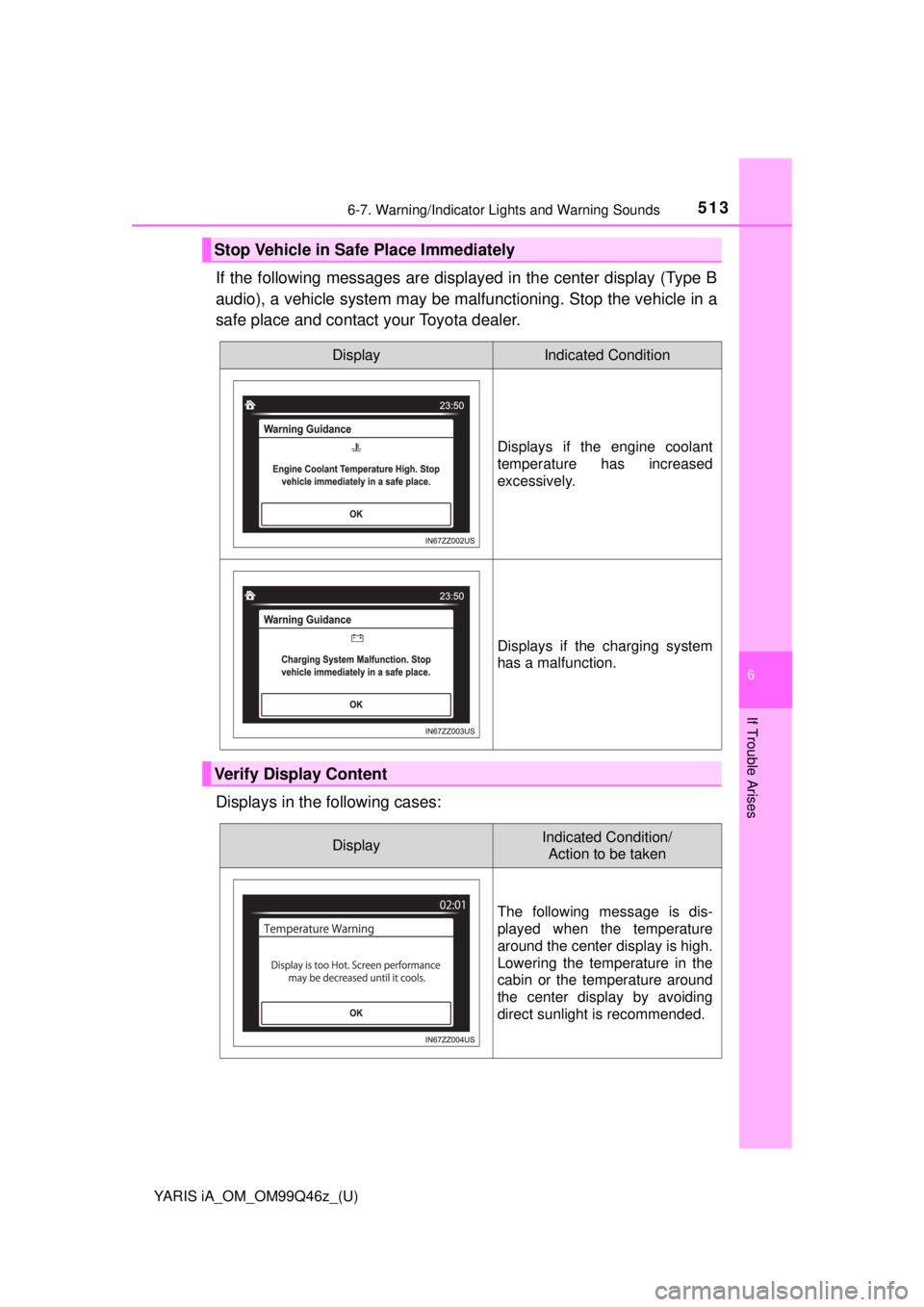

If the following messages are displayed in the center display (Type B
audio), a vehicle system may be malfunctioning. Stop the vehicle in a
safe place and contact your Toyota dealer.
Displays in the following cases:
Stop Vehicle in Safe Place Immediately
DisplayIndicated Condition
Displays if the engine coolant
temperature has increased
excessively.
Displays if the charging system
has a malfunction.
Verify Display Content
DisplayIndicated Condition/ Action to be taken
The following message is dis-
played when the temperature
around the center display is high.
Lowering the temperature in the
cabin or the temperature around
the center display by avoiding
direct sunlight is recommended.

514
YARIS iA_OM_OM99Q46z_(U)
6-7. Warning/Indicator Lights and Warning Sounds
Warning Sound is Activated
The lights-on reminder is operable when the time setting*1 of the auto
headlight off function is off.
If lights are on and the ignition is switched to ACC or the ignition is
switched off, a continuous beep sound will be heard when the driver’s
door is opened.
*1: If the light switch is left on, the auto headlight off function automatically turns off the lights about 30 seconds after switching the ignition off. The
time setting can be changed.
Refer to Customizable Features on P. 562.
● When the ignition is switched to ACC, the “Ignition Not Switched Off (STOP)
Warning Beep” ( →P. 516) overrides the lights-on reminder.
● A personalized function is available to change the sound volume for the
lights-on reminder.
Refer to Customizable Features on P. 562.
If there is a problem with the air bag/seat belt pretensioner systems
and the warning light illumination, a warning beep sound will be heard
for about 5 seconds every minute.
The air bag and seat belt pretensioner system warning beep sound
will continue to be heard for approximately 35 minutes. Have your
vehicle inspected at your Toyota dealer as soon as possible.
Lights-On Reminder
Air Bag/Front Seat Belt Pretensioner System Warning Beep
WARNING
■ Do not drive the vehicle with the air bag/seat belt pretensioner system
warning beep sounding
Driving the vehicle with the air bag/seat belt pretensioner system warning
beep sounding is dangerous. In a collision, the air bags and the seat belt
pretensioner system will not deploy and this could result in death or serious
injury. Contact your Toyota dealer to have the vehicle inspected as soon as
possible.

YARIS iA_OM_OM99Q46z_(U)
5156-7. Warning/Indicator Lights and Warning Sounds
6
If Trouble Arises
If the driver’s seat belt is not fastened when the ignition is switched
ON, a beep sound will be heard for about 6 seconds. If the driver or
the front passenger’s seat belt is not fastened and the vehicle is
driven at a speed faster than about 12 mph (20 km/h), a beep sound
will be heard again for a specified period of time.
Until a seat belt is fastened or a given period of time has elapsed, the
beep sound will not stop even if the vehicle speed falls below 12 mph
(20 km/h).
● To allow the front passenger occupant classification sensor to function p\
rop-
erly, do not place and sit on an additional seat cushion on the front passen-
ger’s seat. The sensor may not function properly because the additional
seat cushion could cause sensor interference.
● If a small child is seated on the front passenger’s seat, the warning beep
may not operate.
Seat Belt Warning Beep

5166-7. Warning/Indicator Lights and Warning Sounds
YARIS iA_OM_OM99Q46z_(U)
If the driver’s door is opened while the ignition is switched to ACC, a
continuous beep sound will be heard to notify th e driver that the igni-
tion has not been switched off (STOP). Left in this condition, the key-
less entry system will not operate, the car cannot be locked, and the
battery power will be depleted.
A beep sound will be hear d 6 times and the KEY warning light (red)
will flash continuously if the ignition has not been switched off, all the
doors are closed, and the key is remo ved from the vehicle. This is to
notify the driver that the key has been removed from the vehicle and
the ignition has not been switched off.
Because the key utilizes low-intensity radio waves, the Key Removed From
Vehicle Warning may activate if the key is carried together with a metal object
or it is placed in a poor signal reception area.
The warning beep sound will be heard for about 3 seconds when
there is any abnormality in tire inflation pressures (→P. 218).
If there is the possibility of a collis ion with a vehicle ahead, the beep
sounds continuously and a warning is indicated in the display.
If the power steering system has a malfunction, the power steering
malfunction light turns on or flashes and the buzzer operates at the
same time.
Refer to Warning/Indicator Lights on P. 156.
Ignition Not Switched Off (STOP) Warning Beep
Key Removed from Vehicle Warning Beep
Tire Inflation Pressure Warning Beep (if equipped)
Collision warning (if equipped)
Power Steering Warning Buzzer

517
YARIS iA_OM_OM99Q46z_(U)
6-8. When Trunk Lid Cannot be Opened
6
If Trouble Arises
When Trunk Lid Cannot be Opened
Open the cover.
Move the lever to the left to fold
the seatback.
Move the lever to the left to
open the trunk lid.
After performing this emergency me asure, have the vehicle inspected
at your Toyota dealer as soon as possible.
If the vehicle battery is dead or there is a malfunction in the elec-
trical system and the trunk lid cannot be opened, perform the
following procedure as an emergency measure to open it:
LeverCover1
2
3

5186-8. When Trunk Lid Cannot be Opened
YARIS iA_OM_OM99Q46z_(U)

519
YARIS iA_OM_OM99Q46z_(U)
7Customer Information andReporting Safety Defects
7-1. Reporting Safety Defects
Reporting Safety Defects (U.S.A.) .............. 520
Reporting Safety Defects (Canada) ............ 521
7-2. Warranty Warranties for Your Toyota ............................. 522
Outside the United States/Canada ................ 523
Add-On Non-Genuine Parts and
Accessories..................... 524
7-3. Cell Phones Cell Phones Warning ........ 525 7-4. Event Data Recorder
Event Data Recorder (U.S.A. and Canada) ...... 526
7-5. Vehicle Data Recordings Vehicle Data Recordings ...................... 528
7-6. Uniform Tire Quality Grading System (UTQGS)
Uniform Tire Quality Grading System
(UTQGS)......................... 529
7-7. Tire Information (U.S.A.) Tire Labeling ..................... 532
Location of the Tire Label (Placard) ............... 538
Tire Maintenance .............. 541
Vehicle Loading ................ 544
Steps for Determining the Correct Load Limit .......... 549
7-8. Declaration of Conformity Declaration of Conformity ...................... 550

520
YARIS iA_OM_OM99Q46z_(U)
7-1. Reporting Safety Defects

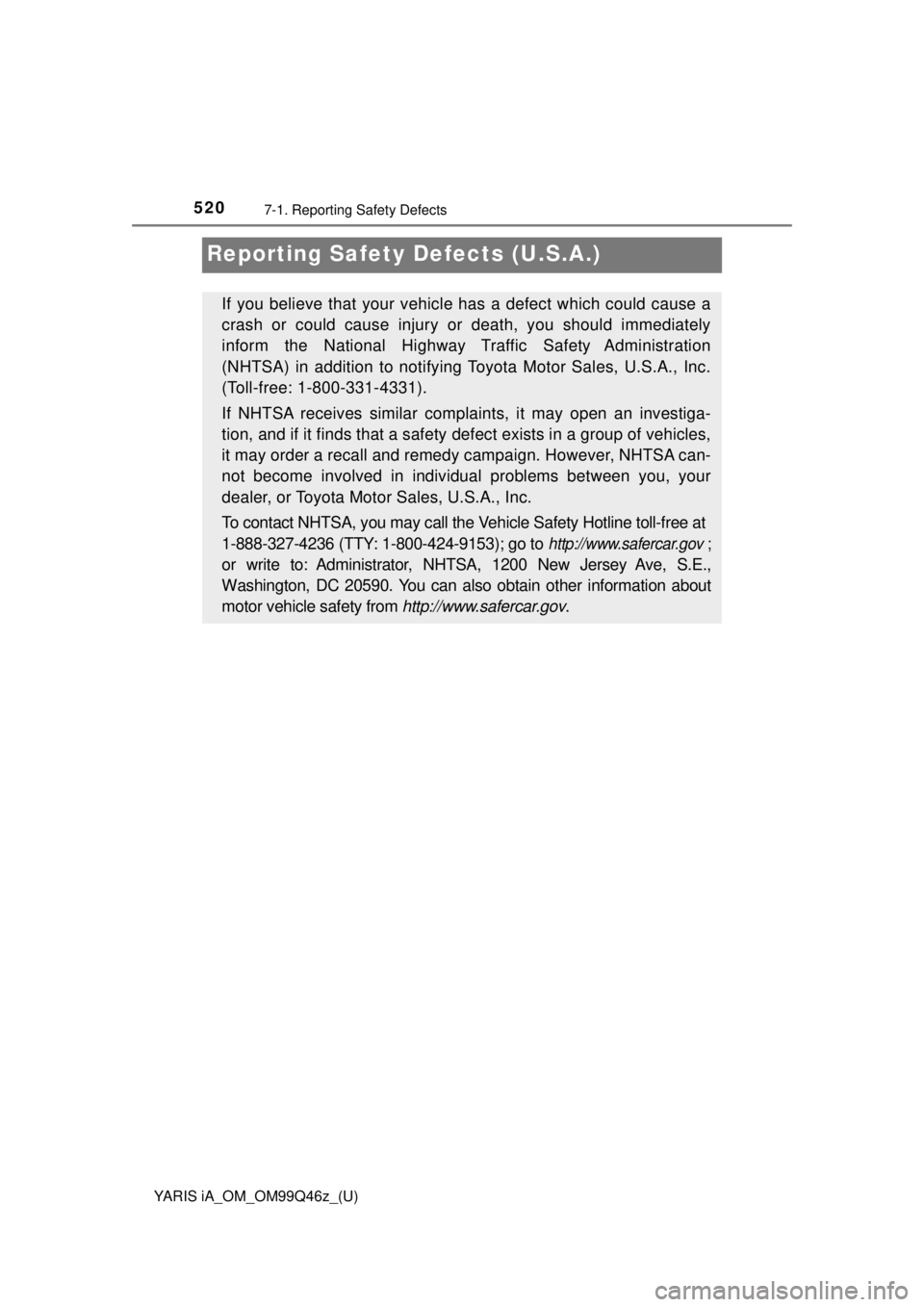

Reporting Safety Defects (U.S.A.)
If you believe that your vehicl e has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffic Safety Administration
(NHTSA) in addition to notifying Toyota Motor Sales, U.S.A., Inc.
(Toll-free: 1-800-331-4331).
If NHTSA receives similar comp laints, it may open an investiga-
tion, and if it finds that a safety defect exists in a group of vehicles,
it may order a recall and remedy campaign. However, NHTSA can-
not become involved in individual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ;
or write to: Administrator, NHTSA, 1200 New Jersey Ave, S.E.,
Washington, DC 20590. You can also obtain other information about
motor vehicle safety from http://www.safercar.gov.
