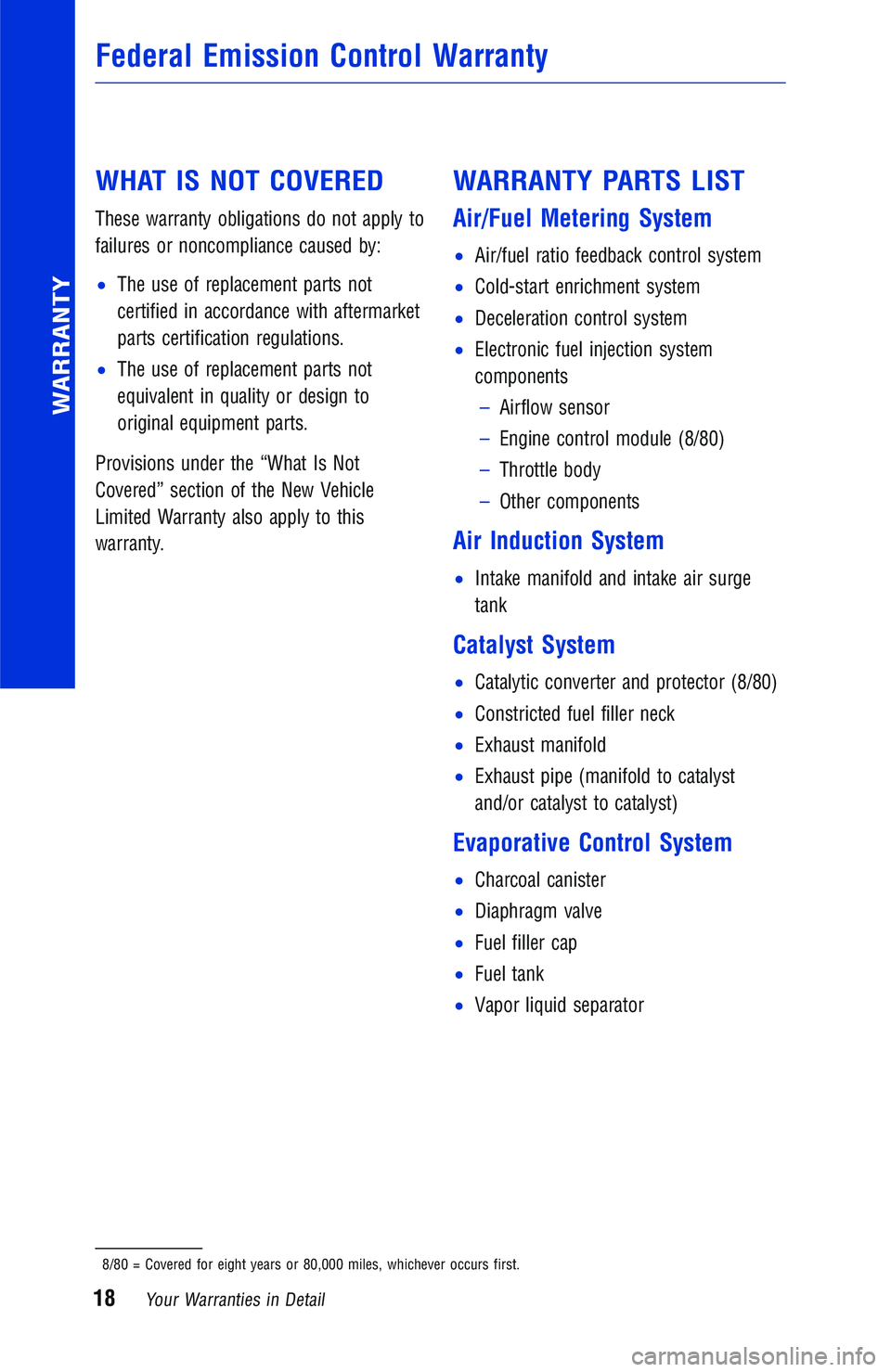

WHAT IS NOT COVERED
These warranty obligations do not apply to
failures or noncompliance caused by:
•The use of replacement parts not
certified in accordance with aftermarket
parts certification regulations.
•The use of replacement parts not
equivalent in quality or design to
original equipment parts.
Provisions under the “What Is Not
Covered” section of the New Vehicle
Limited Warranty also apply to this
warranty.
WARRANTY PARTS LIST
Air/Fuel Metering System
•Air/fuel ratio feedback control system
•Cold-start enrichment system
•Deceleration control system
•Electronic fuel injection system
components
–Airflow sensor
–Engine control module (8/80)
–Throttle body
–Other components
Air Induction System
•Intake manifold and intake air surge
tank
Catalyst System
•Catalytic converter and protector (8/80)
•Constricted fuel filler neck
•Exhaust manifold
•Exhaust pipe (manifold to catalyst
and/or catalyst to catalyst)
Evaporative Control System
•Charcoal canister
•Diaphragm valve
•Fuel filler cap
•Fuel tank
•Vapor liquid separator
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
Federal Emission Control Warranty
WARRANTY
Your Warranties in Detail18

22,500 miles or 18 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper bladesReplace engine oil and oil filter2
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
30,000 miles or 24 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect emergency flat tire repair kit (if
equipped)3
Inspect wiper bladesReplace cabin air filterReplace engine oil and oil filter2
Rotate tiresTighten nuts and bolts on body and
chassis
Inspect the following:Ball joints and dust coversBrake lines and hosesBrake linings/drums and
brake pads/discs4
Drive shaft bootsEngine coolant5
Fuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
Fuel tank cap gasketRadiator and condenserSteering gearSteering linkage and bootsTransmission fluid or oil
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Inspect sealed transmissions, transfer cases, and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2Reset the scheduled maintenance indicator light. Use 0W-20 Genuine Toyota Motor Oil or equivalent.3Check the tire repair fluid expiration date every year during inspection. Replace the tire repair fluid bottle with a new
one before the expiration date.
4Inspect thickness measurement and disc runout.5Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log39

52,500 miles or 42 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper bladesReplace engine oil and oil filter2
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
60,000 miles or 48 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect emergency flat tire repair kit (if
equipped)3
Inspect wiper bladesReplace cabin air filterReplace engine oil and oil filter2
Rotate tiresTighten nuts and bolts on body and
chassis
Inspect the following:Ball joints and dust coversBrake lines and hosesBrake linings/drums and
brake pads/discs4
Drive shaft bootsEmission hoses and tubesEngine coolant5
Fuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
Fuel tank cap gasketRadiator and condenserSteering gearSteering linkage and bootsTransmission fluid or oil
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Inspect sealed transmissions, transfer cases, and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2Reset the scheduled maintenance indicator light. Use 0W-20 Genuine Toyota Motor Oil or equivalent.3Check the tire repair fluid expiration date every year during inspection. Replace the tire repair fluid bottle with a new
one before the expiration date.
4Inspect thickness measurement and disc runout.5Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log41

82,500 miles or 66 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper bladesReplace engine oil and oil filter2
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
90,000 miles or 72 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect emergency flat tire repair kit (if
equipped)3
Inspect wiper bladesReplace cabin air filterReplace engine oil and oil filter2
Rotate tiresTighten nuts and bolts on body and
chassis
Inspect the following:Ball joints and dust coversBrake lines and hosesBrake linings/drums and
brake pads/discs4
Drive shaft bootsEngine coolant5
Exhaust pipes and mountingsFuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
Fuel tank cap gasketRadiator and condenserSteering gearSteering linkage and bootsTransmission fluid or oil
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Inspect sealed transmissions, transfer cases, and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2Reset the scheduled maintenance indicator light. Use 0W-20 Genuine Toyota Motor Oil or equivalent.3Check the tire repair fluid expiration date every year during inspection. Replace the tire repair fluid bottle with a new
one before the expiration date.
4Inspect thickness measurement and disc runout.5Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log43

112,500 miles or 90 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect drive beltsInspect wiper bladesReplace engine air filterReplace engine oil and oil filter2
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
120,000 miles or 96 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect emergency flat tire repair kit (if
equipped)3
Inspect wiper bladesReplace cabin air filterReplace engine coolant4
Replace engine oil and oil filter2
Rotate tiresTighten nuts and bolts on body and
chassis
Inspect the following:Ball joints and dust coversBrake lines and hosesBrake linings/drums and
brake pads/discs5
Drive shaft bootsEmission hoses and tubesFuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
Fuel tank cap gasketRadiator and condenserSteering gearSteering linkage and bootsTransmission fluid or oil
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Inspect sealed transmissions, transfer cases, and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2Reset the scheduled maintenance indicator light. Use 0W-20 Genuine Toyota Motor Oil or equivalent.3Check the tire repair fluid expiration date every year during inspection. Replace the tire repair fluid bottle with a new
one before the expiration date.
4NOTE:Initial replacement at 120,000 miles/120 months. Replace every 60,000 miles/60 months thereafter. Refer to
“Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.
5Inspect thickness measurement and disc runout.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log45

Fuel Lines and Connections,
Fuel Tank Band and Fuel Tank
Vapor Vent System Hoses
Visually inspect for corrosion, damage,
cracks, and loose or leaking connections.
Tighten connections or replace parts as
necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterioration
and damage and replace if necessary.
Nuts and Bolts on Chassis and
Body
Re-tighten the seat-mounting bolts and
front/rear suspension member retaining
bolts to specified torque.
Radiator and Condenser
Inspect for debris, corrosion and signs of
damage. Have any problem repaired
immediately by a qualified technician.
Spark Plugs
Replace at specified intervals. Install new
plugs of the same type as originally
equipped. A qualified technician should
perform this operation.
Steering Gear
Inspect for signs of leakage. If you
discover any leakage, have it repaired
immediately by a qualified technician.
Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering wheel.
Inspect the linkage for bending and
damage and the dust boots for
deterioration, cracks and damage. Replace
any damaged parts. A qualified technician
should perform these operations.
Tire Rotation
Tires should be rotated according to the
instructions in the Owner’s Manual. When
rotating tires, check for damage and
uneven wear. Replace if necessary.
Transmission Fluid or Oil
Inspect at specified intervals. When
performing inspections, check each
component for signs of leakage. If you
discover any leakage, have it repaired by a
qualified technician immediately.
Wiper Blades
The wiper blades should not show any
signs of cracking, splitting, wear,
contamination or deformation. The wiper
blades should clear the windshield without
streaking or skipping.
Explanation of Maintenance Items
Maintenance Log48
