TOYOTA YARIS SEDAN 2010  Owners Manual 260 4-3. Do-it-yourself maintenance
nChecking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas wit h heavy traffic flow, early re

Page 272 of 386

TOYOTA YARIS SEDAN 2010  Owners Manual 261
4-3. Do-it-yourself maintenance
4
Maintenance and care
Key batter y

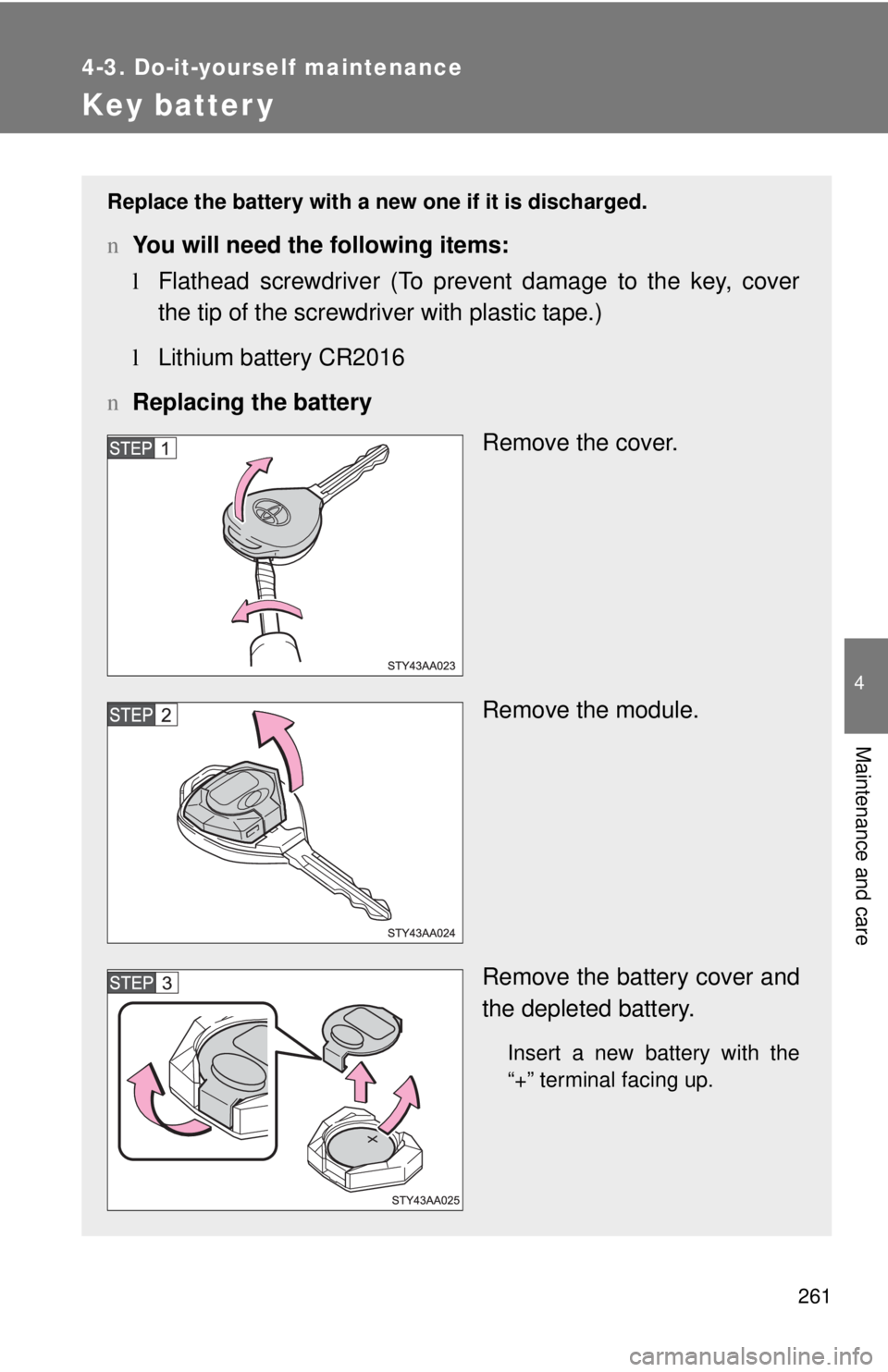

Replace the battery with a new one if it is discharged.
nYou will need the following items:
lFlathead screwdriver (To prevent da

Page 273 of 386

TOYOTA YARIS SEDAN 2010  Owners Manual 262 4-3. Do-it-yourself maintenance
nIf the key battery is discharged
The following symptoms may occur.
lThe wireless remote control will not function properly.
l The operational range is reduced.
n U

Page 274 of 386

TOYOTA YARIS SEDAN 2010  Owners Manual 263
4-3. Do-it-yourself maintenance
4
Maintenance and care
Checking and replacing fuses

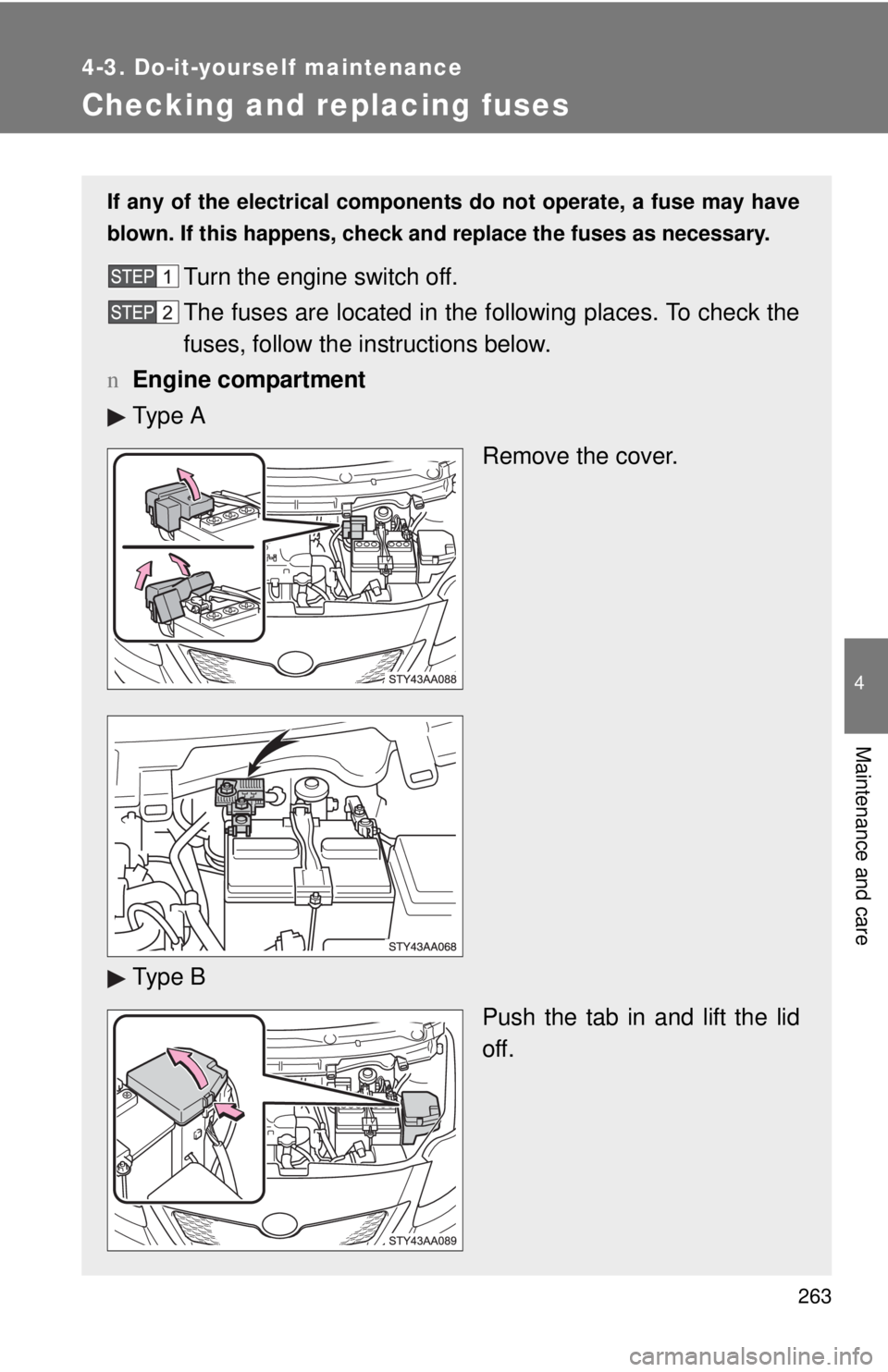

If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace th

Page 275 of 386

TOYOTA YARIS SEDAN 2010  Owners Manual 264 4-3. Do-it-yourself maintenance

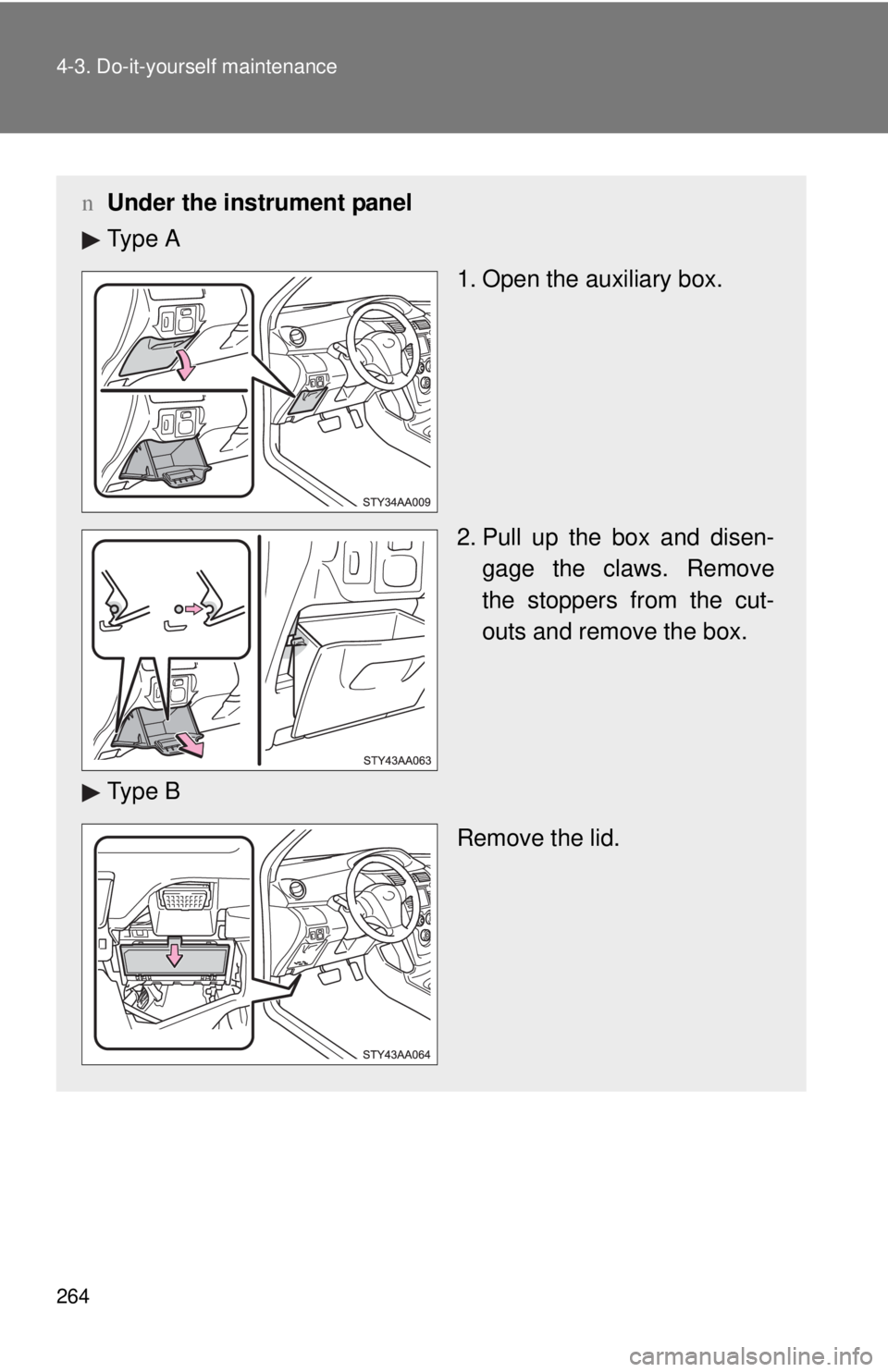

nUnder the instrument panel
Ty p e  A
1. Open the auxiliary box.
2. Pull up the box and disen-gage the claws. Remove
the stoppers from the cut-
outs and remove the

Page 276 of 386

TOYOTA YARIS SEDAN 2010  Owners Manual 265
4-3. Do-it-yourself maintenance
4
Maintenance and care

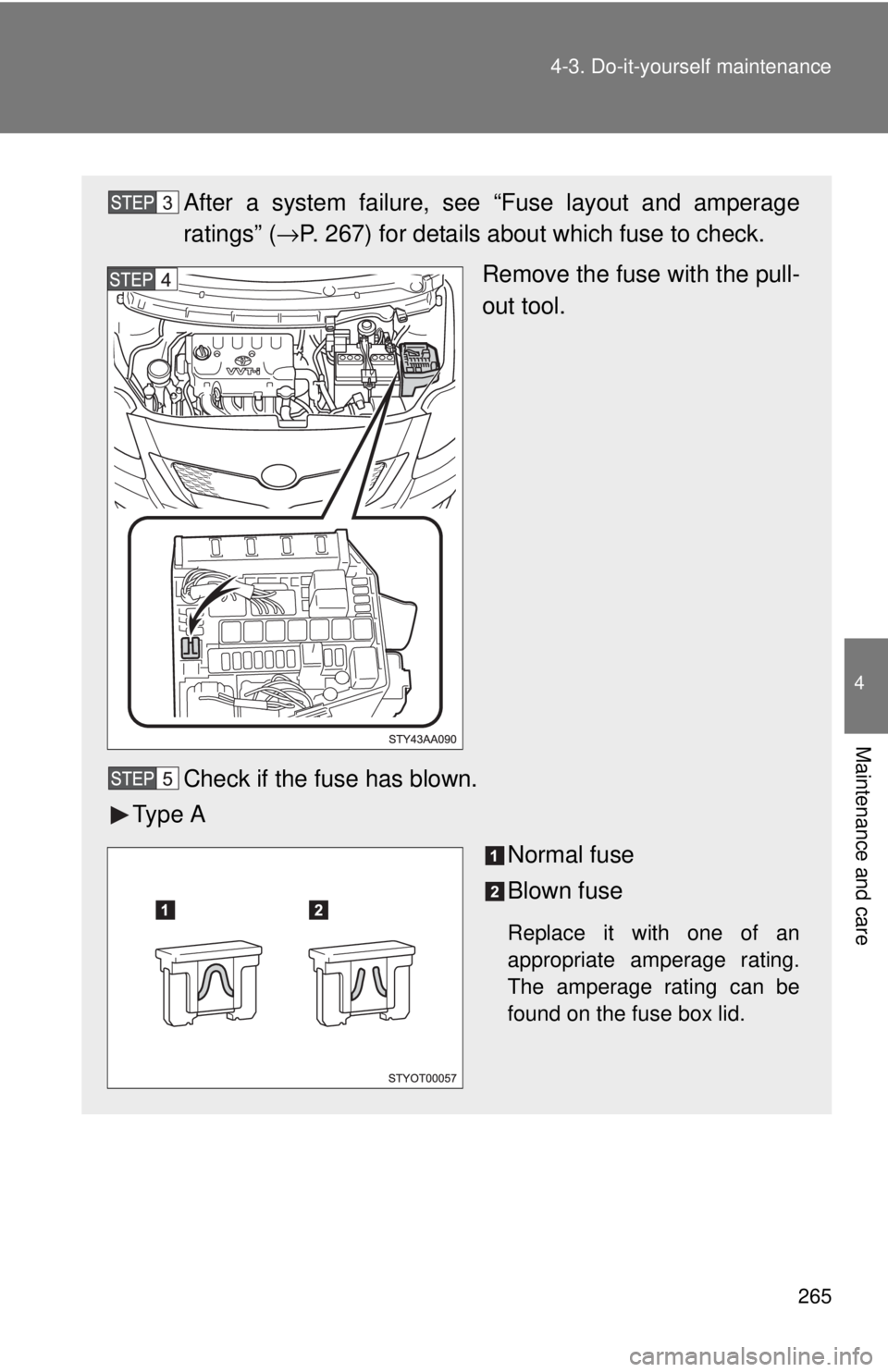

After a system failure, s
ee “Fuse layout and amperage
ratings” (→ P. 267) for details about which fuse to check.
Remove the fuse with

Page 277 of 386

TOYOTA YARIS SEDAN 2010  Owners Manual 266 4-3. Do-it-yourself maintenance

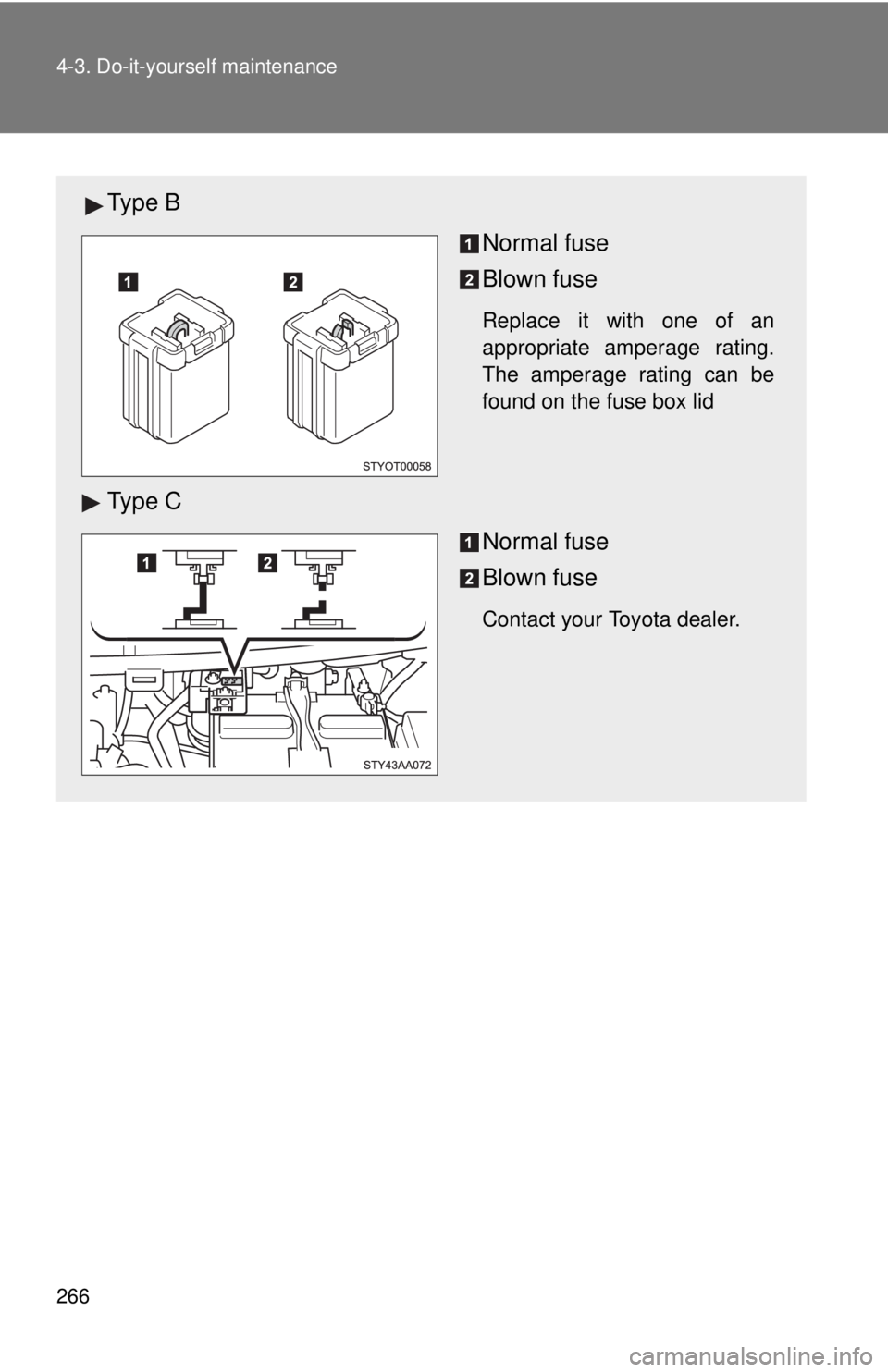

Ty p e  BNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid
Ty p e  CNormal fuse
Blo

Page 278 of 386

TOYOTA YARIS SEDAN 2010  Owners Manual 267
4-3. Do-it-yourself maintenance
4
Maintenance and care

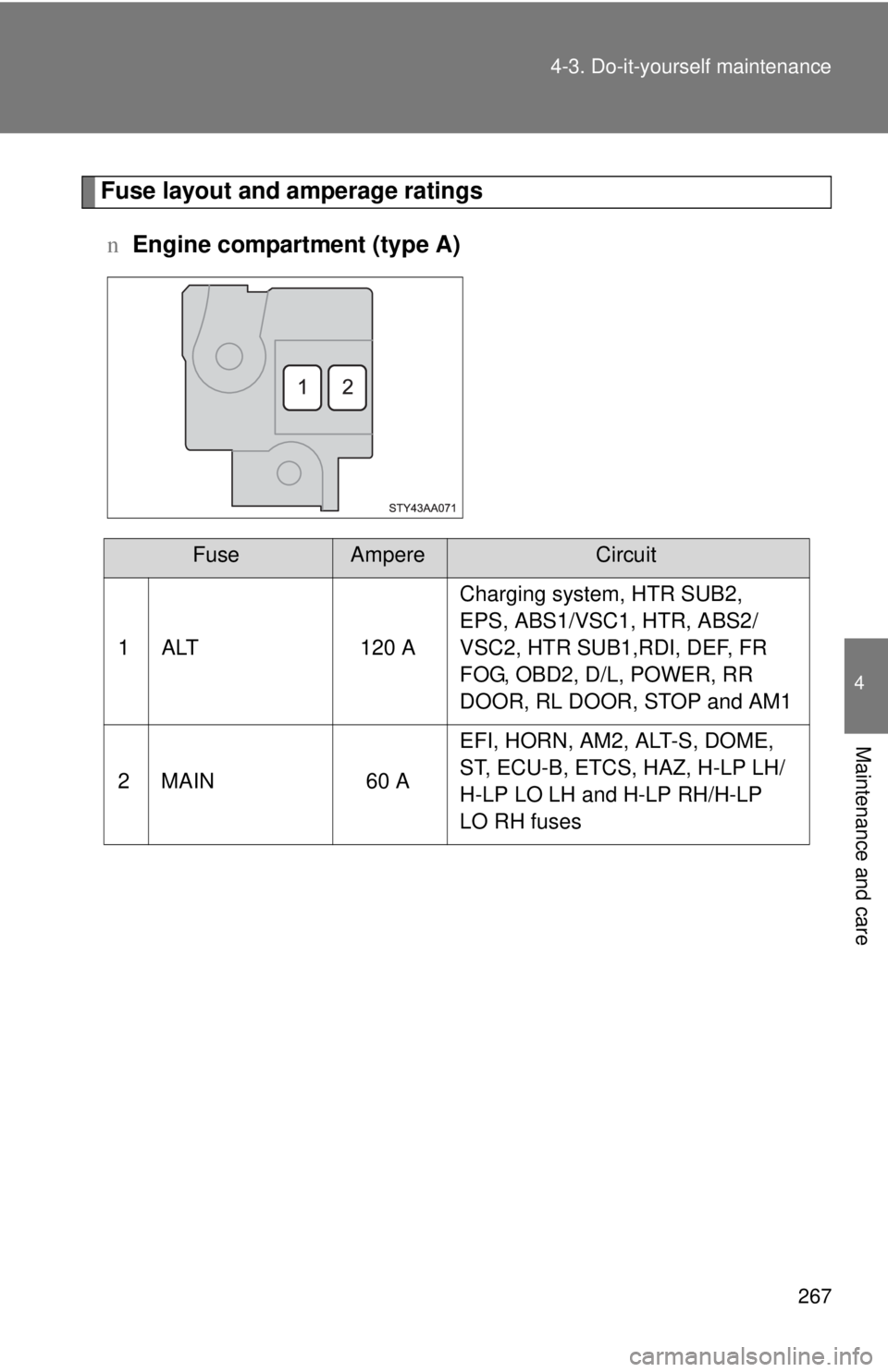

Fuse layout and amperage ratings
n Engine compartment (type A)
FuseAmpereCircuit
1 ALT 120 A Charging system, HTR SUB2,
EPS, ABS1/VSC1, HTR,

Page 279 of 386

TOYOTA YARIS SEDAN 2010  Owners Manual 268 4-3. Do-it-yourself maintenance
nEngine compartment (type B)

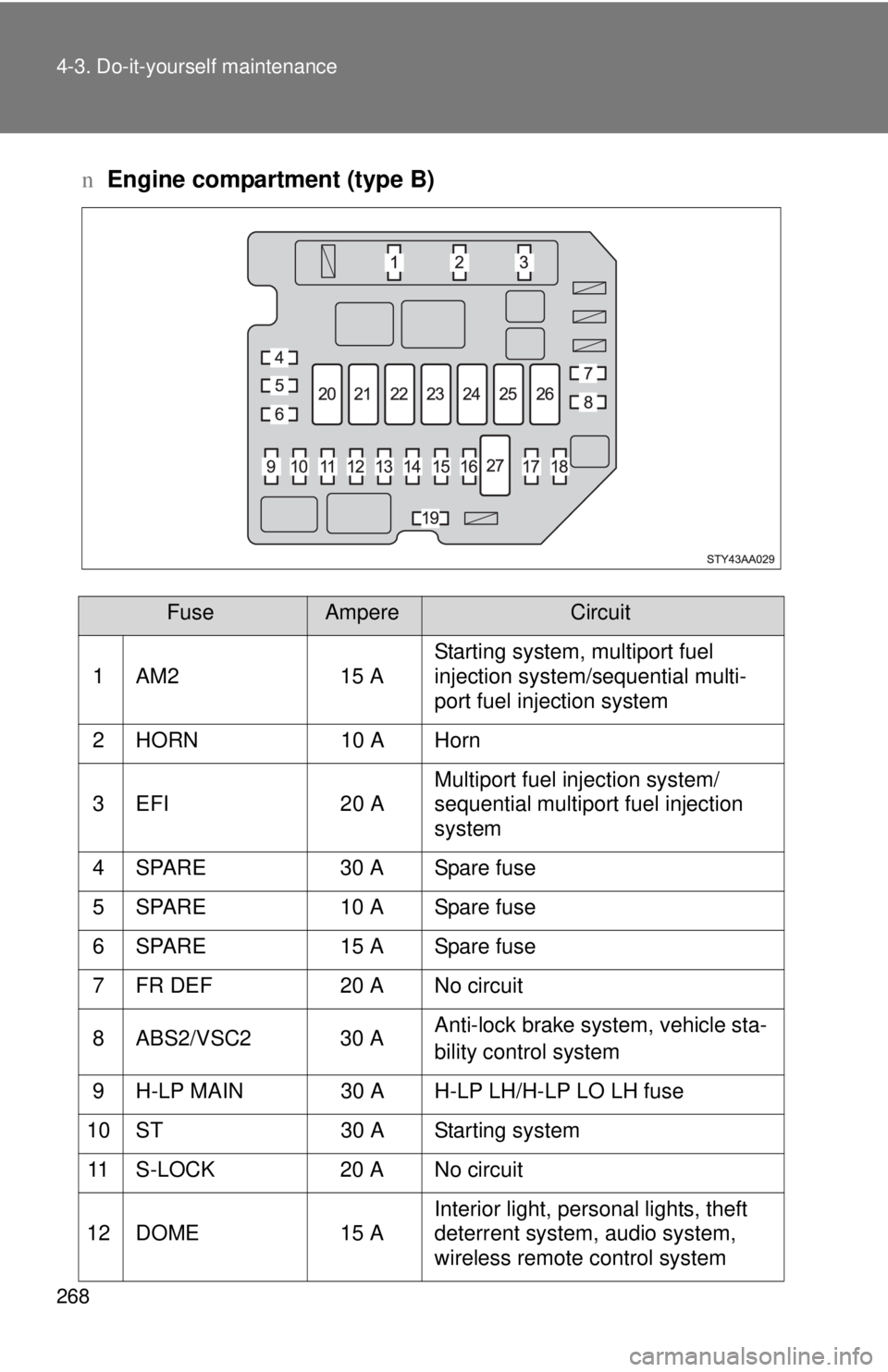

FuseAmpereCircuit
1 AM2 15 A Starting system, multiport fuel
injection system/sequential multi-
port fuel injection system
2 HORN 10 A

Page 280 of 386

TOYOTA YARIS SEDAN 2010  Owners Manual 269
4-3. Do-it-yourself maintenance
4
Maintenance and care
13 ECU-B
7.5 ADaytime running light system, front
passenger occupant classification
system, power windows, door lock
system, theft deterre
