4-3. Do-it-yourself maintenance
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
n Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( →P. 342)

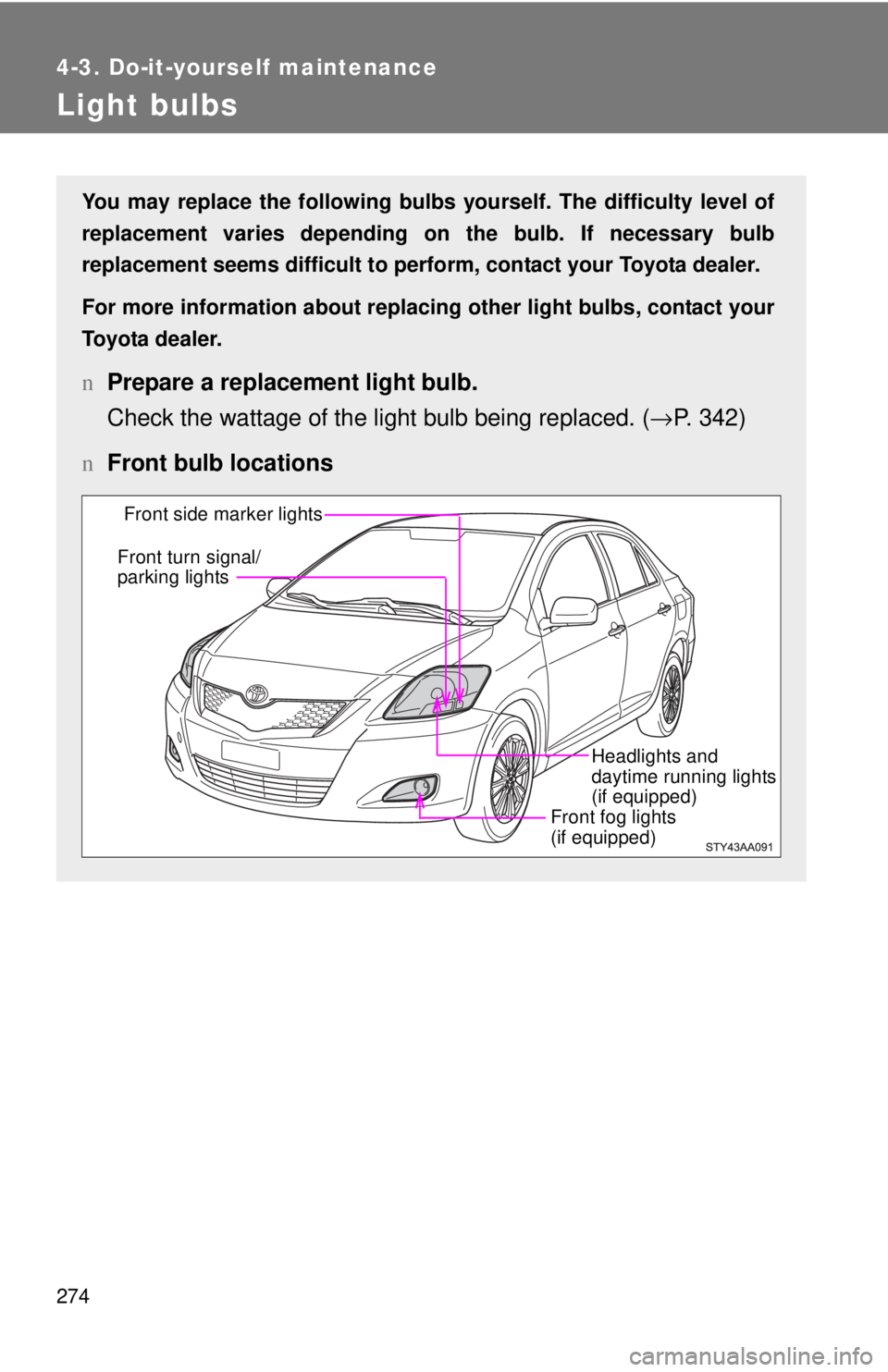

n Front bulb locations
Front fog lights
(if equipped)
Front side marker lights
Front turn signal/
parking lights
Headlights and
daytime running lights
(if equipped)

275
4-3. Do-it-yourself maintenance
4
Maintenance and care
Replacing light bulbs
n Headlights and daytime r unning lights (if equipped)
Unplug the connector.
Remove the rubber cover.

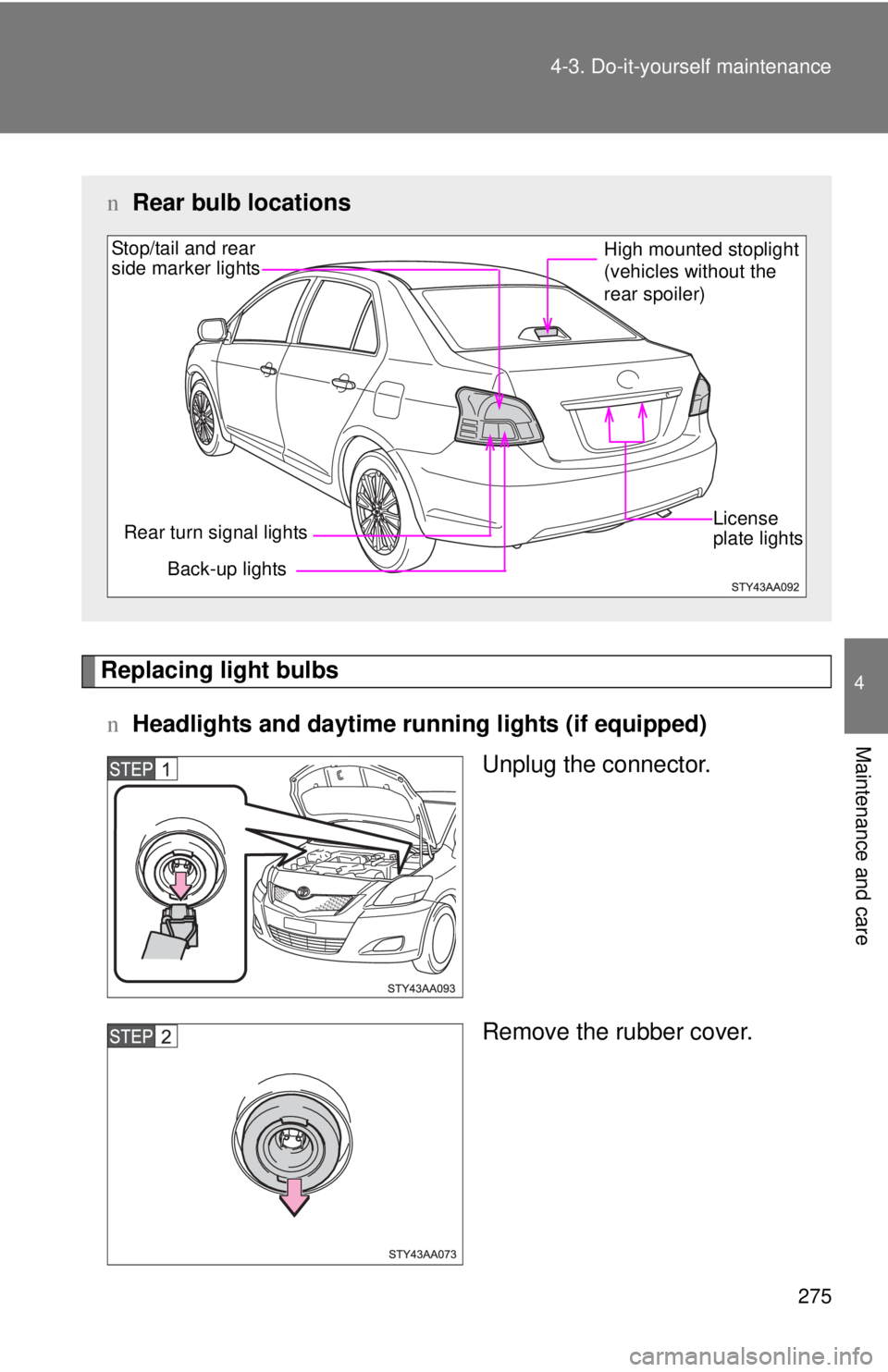

nRear bulb locations
Back-up lights
Rear turn signal lights
Stop/tail and rear
side marker lights
License
plate lights
High mounted stoplight
(vehicles without the
rear spoiler)

282 4-3. Do-it-yourself maintenance

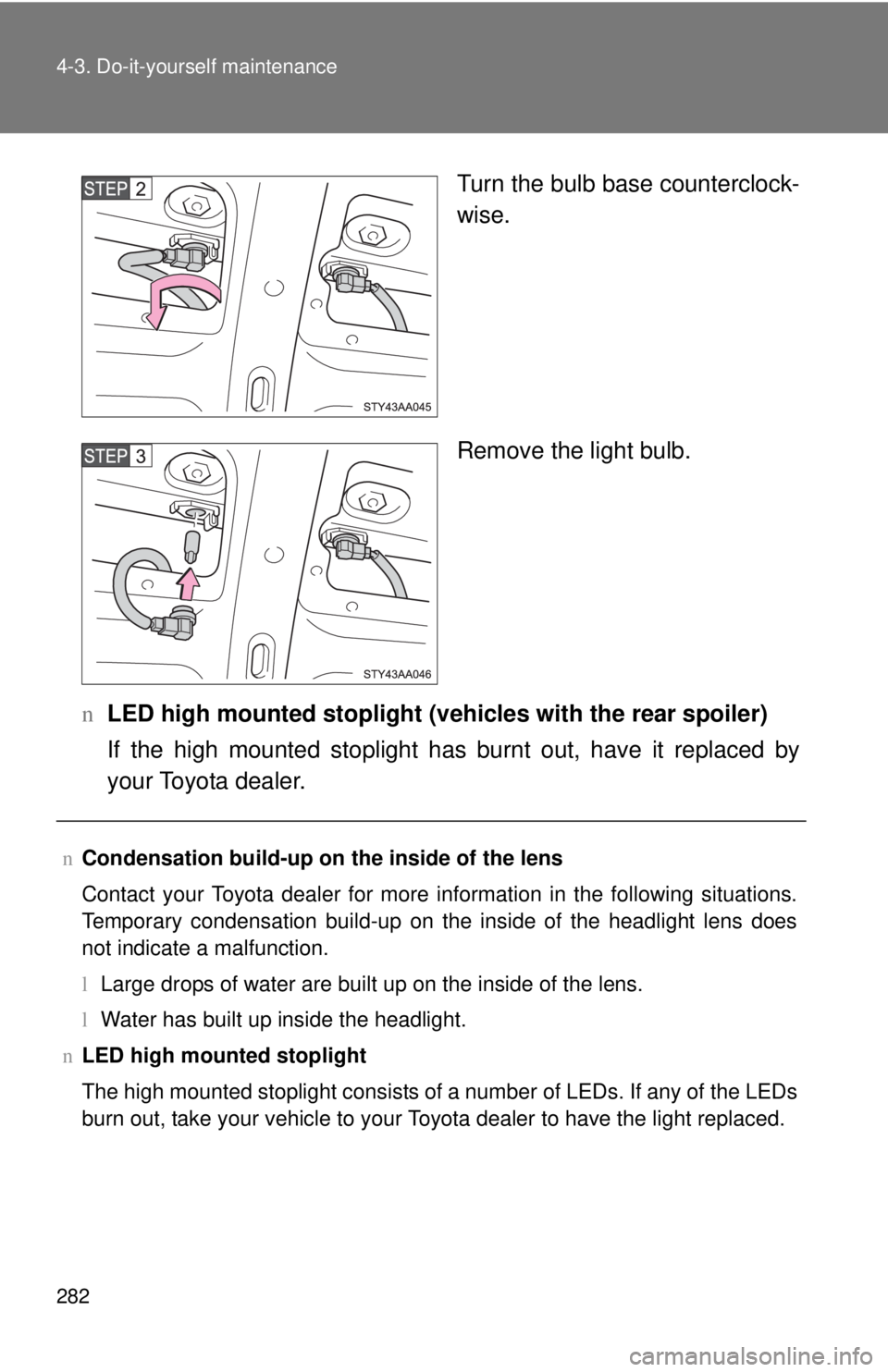

Turn the bulb base counterclock-
wise.
Remove the light bulb.
n LED high mounted stoplight (veh icles with the rear spoiler)
If the high mounted stoplight has burnt out, have it replaced by
your Toyota dealer.
n Condensation build-up on th e inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
l Large drops of water are built up on the inside of the lens.
l Water has built up inside the headlight.
n LED high mounted stoplight
The high mounted stoplight consists of a number of LEDs. If any of the LEDs
burn out, take your vehicle to your Toyota dealer to have the light replaced.

283
4-3. Do-it-yourself maintenance
4
Maintenance and care
n

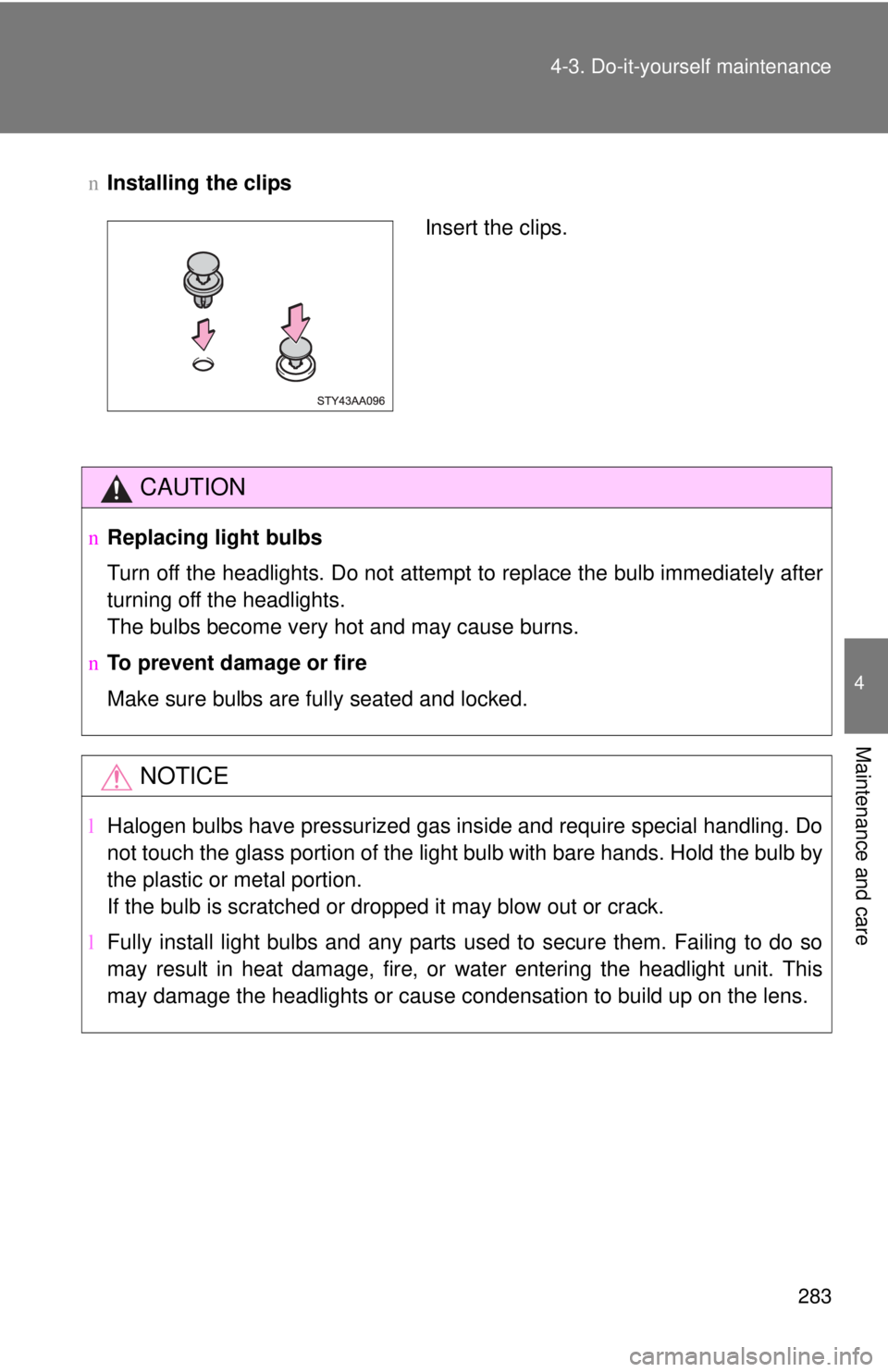

Installing the clips
CAUTION
nReplacing light bulbs
Turn off the headlights. Do not attempt to replace the bulb immediately after
turning off the headlights.
The bulbs become very hot and may cause burns.
n To prevent damage or fire
Make sure bulbs are fully seated and locked.
NOTICE
lHalogen bulbs have pressurized gas inside and require special handling. \
Do
not touch the glass portion of the light bulb with bare hands. Hold the bulb by
the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
l Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
Insert the clips.

342 6-1. Specifications
Light bulbs
A: HB2 halogen bulbs
B: H11 halogen bulbs
C: Wedge base bulbs
D: Wedge base bulbs (amber)
E: Double end bulbs
Light BulbsBulb NoWTy p e
ExteriorHeadlights — 60/55 A
Front fog lights
(if equipped)
—55 B
Front side marker
lights —5 C
Front turn signal/park-
ing lights — 21/5 C
Rear turn signal lights — 21 D
Stop/tail and rear side
marker lights — 21/5 C
Buck-up lights — 18 C
License plate lights — 5 C
High mounted stop-
light (vehicles without
a rear spoiler) —18 C
InteriorInterior light — 8 E
Personal lights — 8 E
Trunk light — 3.8 E
