oil type TOYOTA YARIS SEDAN 2011 Owners Manual

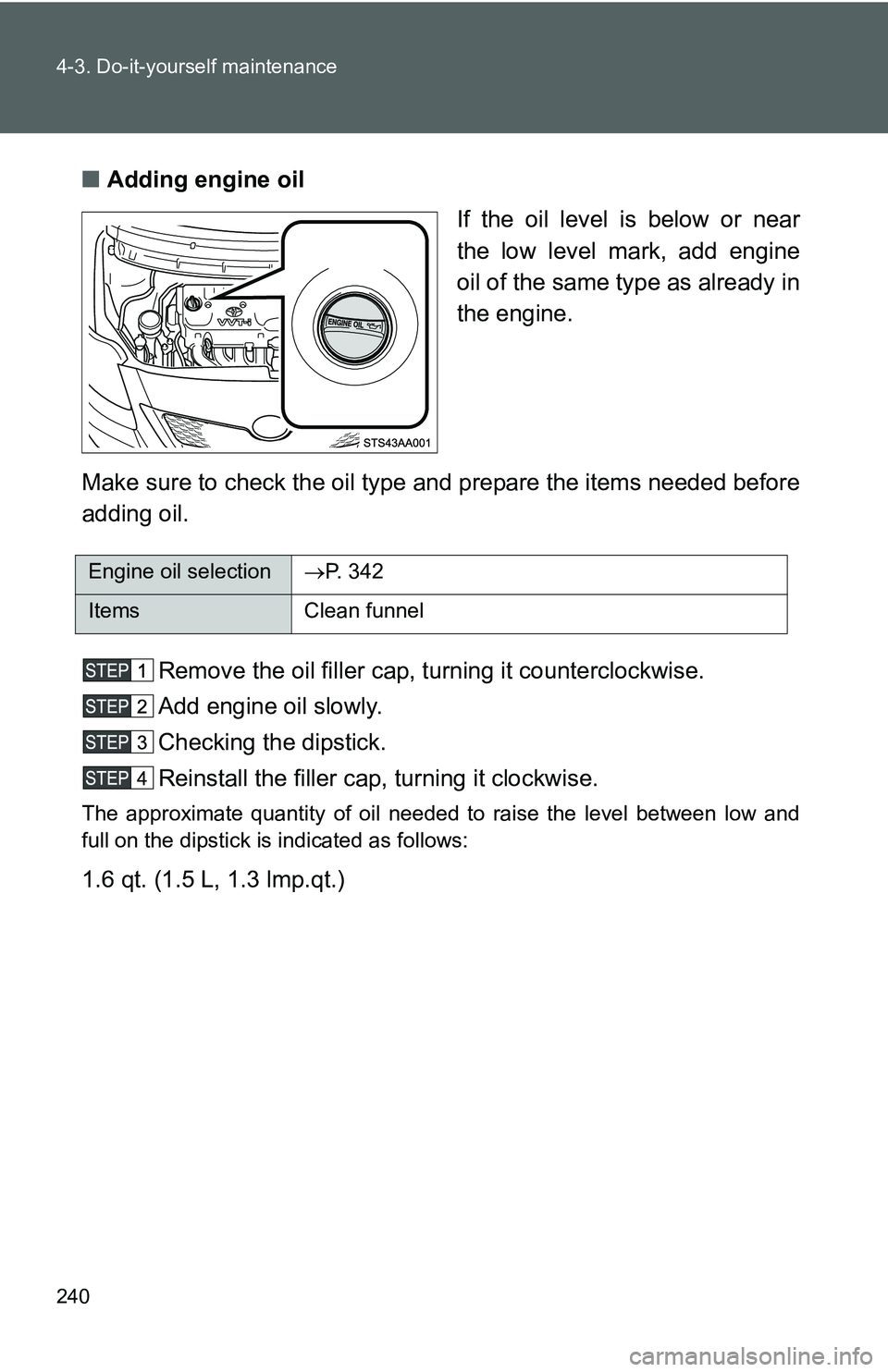

240 4-3. Do-it-yourself maintenance
■Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as already in
the engine.
Make sure to check the oil type and prepare the items needed before
adding oil. Remove the oil filler cap, turning it counterclockwise.
Add engine oil slowly.
Checking the dipstick.
Reinstall the filler cap, turning it clockwise.
The approximate quantity of oil needed to raise the level between low and
full on the dipstick is indicated as follows:
1.6 qt. (1.5 L, 1.3 lmp.qt.)
Engine oil selection →P. 342
ItemsClean funnel

343
6-1. Specifications
6
Vehicle specifications

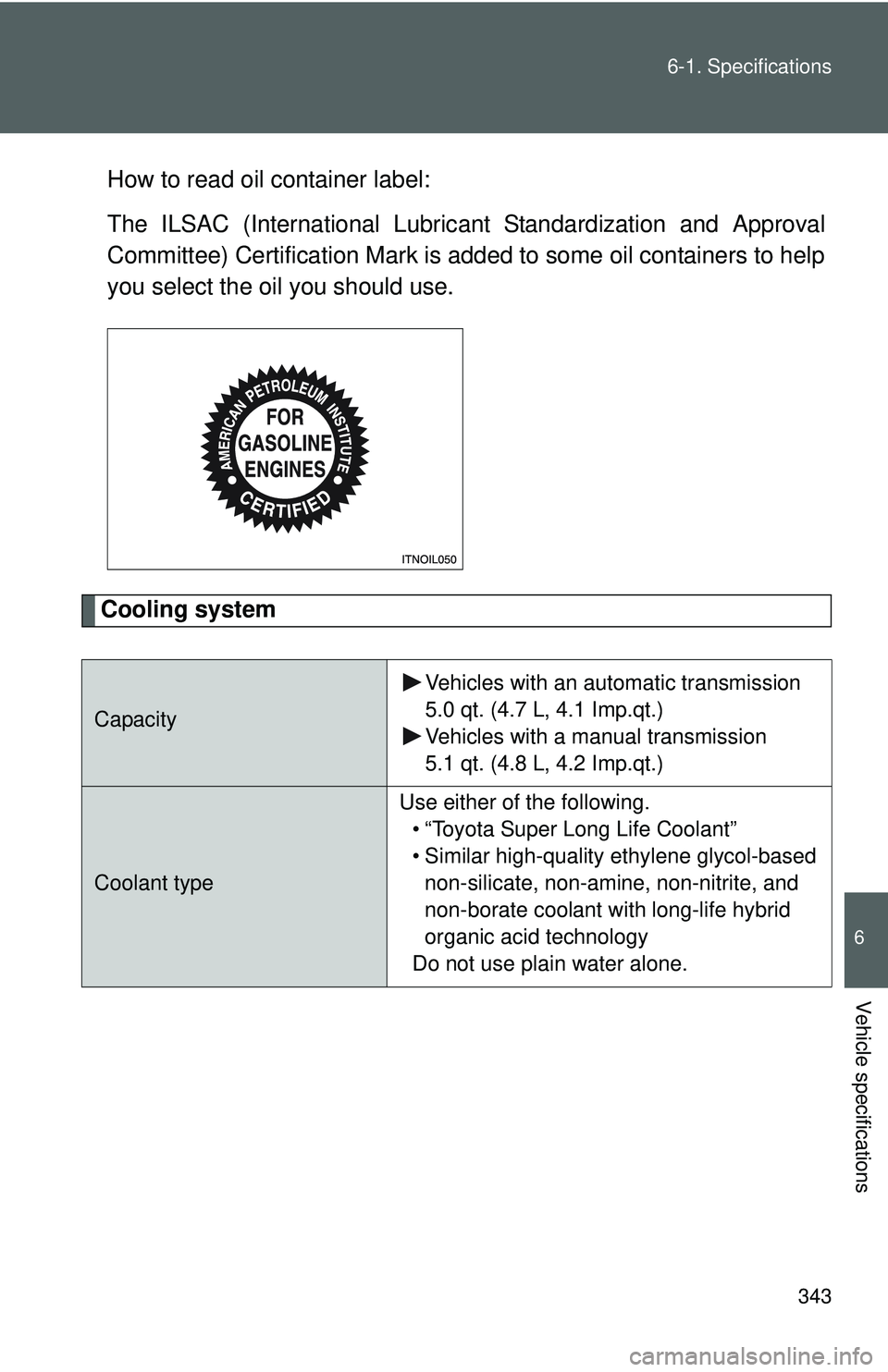

How to read oil container label:
The ILSAC (International Lubric
ant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.
Cooling system
Capacity Vehicles with an automatic transmission
5.0 qt. (4.7 L, 4.1 Imp.qt.)
Vehicles with a manual transmission
5.1 qt. (4.8 L, 4.2 Imp.qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.

345
6-1. Specifications
6
Vehicle specifications

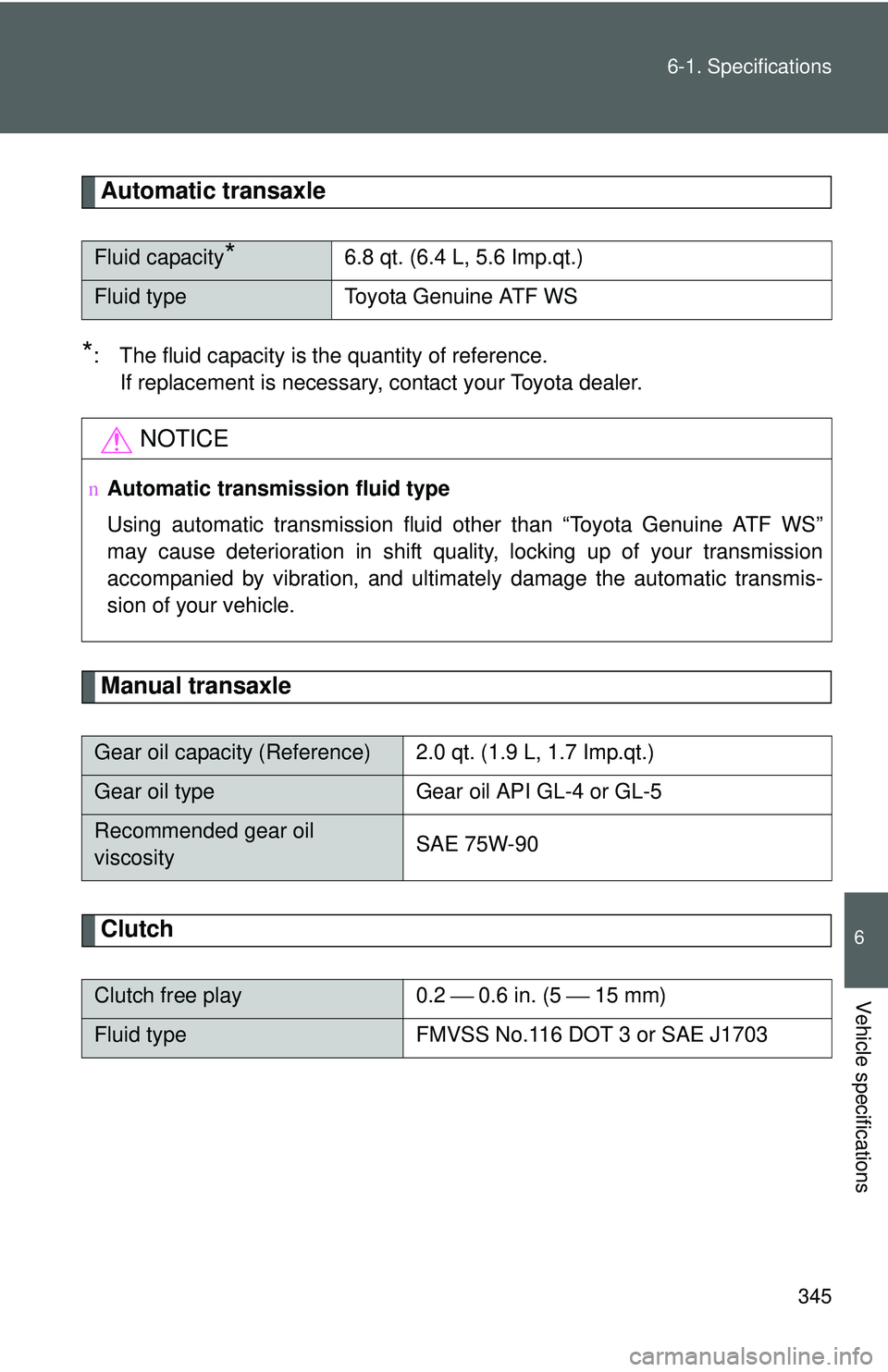

Automatic transaxle
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact your Toyota dealer.
Manual transaxle
Clutch
Fluid capacity*6.8 qt. (6.4 L, 5.6 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
nAutomatic transmission fluid type
Using automatic transmission fluid other than “Toyota Genuine ATF WS”
may cause deterioration in shift quality, locking up of your transmission
accompanied by vibration, and ultimately damage the automatic transmis-
sion of your vehicle.
Gear oil capacity (Reference) 2.0 qt. (1.9 L, 1.7 Imp.qt.)
Gear oil type Gear oil API GL-4 or GL-5
Recommended gear oil
viscosity SAE 75W-90
Clutch free play
0.2 ⎯ 0.6 in. (5 ⎯ 15 mm)
Fluid type FMVSS No.116 DOT 3 or SAE J1703

387

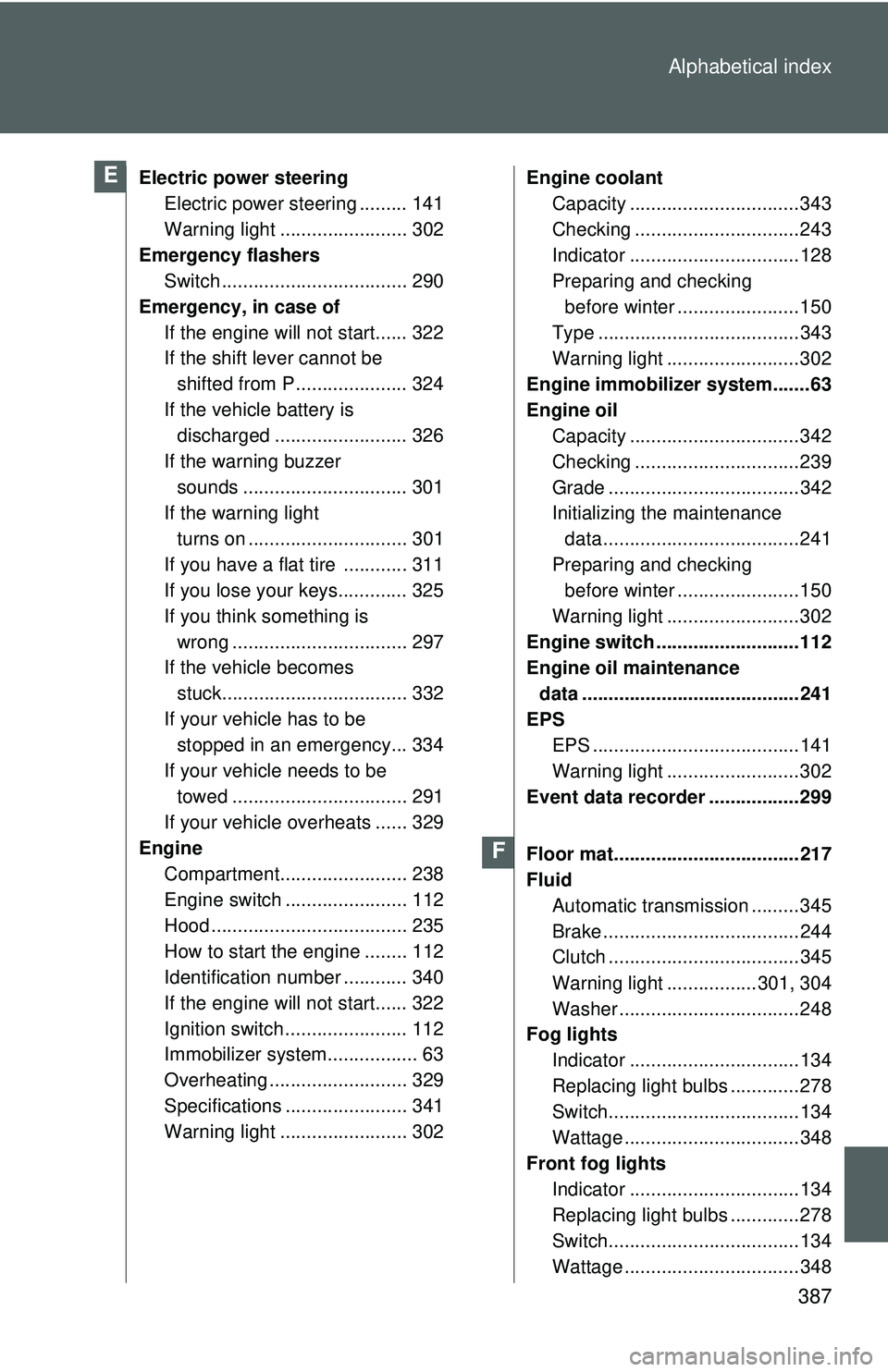

Alphabetical index
Electric power steering
Electric power steering ......... 141
Warning light ........................ 302
Emergency flashers Switch ................................... 290
Emergency, in case of If the engine will not start...... 322
If the shift lever cannot be shifted from P ..................... 324
If the vehicle battery is discharged ......................... 326
If the warning buzzer sounds ............................... 301
If the warning light
turns on .............................. 301
If you have a flat tire ............ 311
If you lose your keys............. 325
If you think something is wrong ................................. 297
If the vehicle becomes
stuck................................... 332
If your vehicle has to be stopped in an emergency... 334
If your vehicle needs to be towed ................................. 291
If your vehicle overheats ...... 329
Engine Compartment........................ 238
Engine switch ....................... 112
Hood ..................................... 235
How to start the engine ........ 112
Identification number ............ 340
If the engine will not start...... 322
Ignition switch ....................... 112
Immobilizer system................. 63
Overheating .......................... 329
Specifications ....................... 341
Warning light ........................ 302 Engine coolant
Capacity ................................343
Checking ...............................243
Indicator ................................128
Preparing and checking
before winter .......................150
Type ......................................343
Warning light .........................302
Engine immobilizer system.......63
Engine oil Capacity ................................342
Checking ...............................239
Grade ....................................342
Initializing the maintenance
data .....................................241
Preparing and checking before winter .......................150
Warning light .........................302
Engine switch ...........................112
Engine oil maintenance data .........................................241
EPS EPS .......................................141
Warning light .........................302
Event data recorder .................299
Floor mat...................................217
Fluid Automatic transmission .........345
Brake .....................................244
Clutch ....................................345
Warning light .................301, 304
Washer ..................................248
Fog lights
Indicator ................................134
Replacing light bulbs .............278
Switch....................................134
Wattage .................................348
Front fog lights Indicator ................................134
Replacing light bulbs .............278
Switch....................................134
Wattage .................................348E
F

396

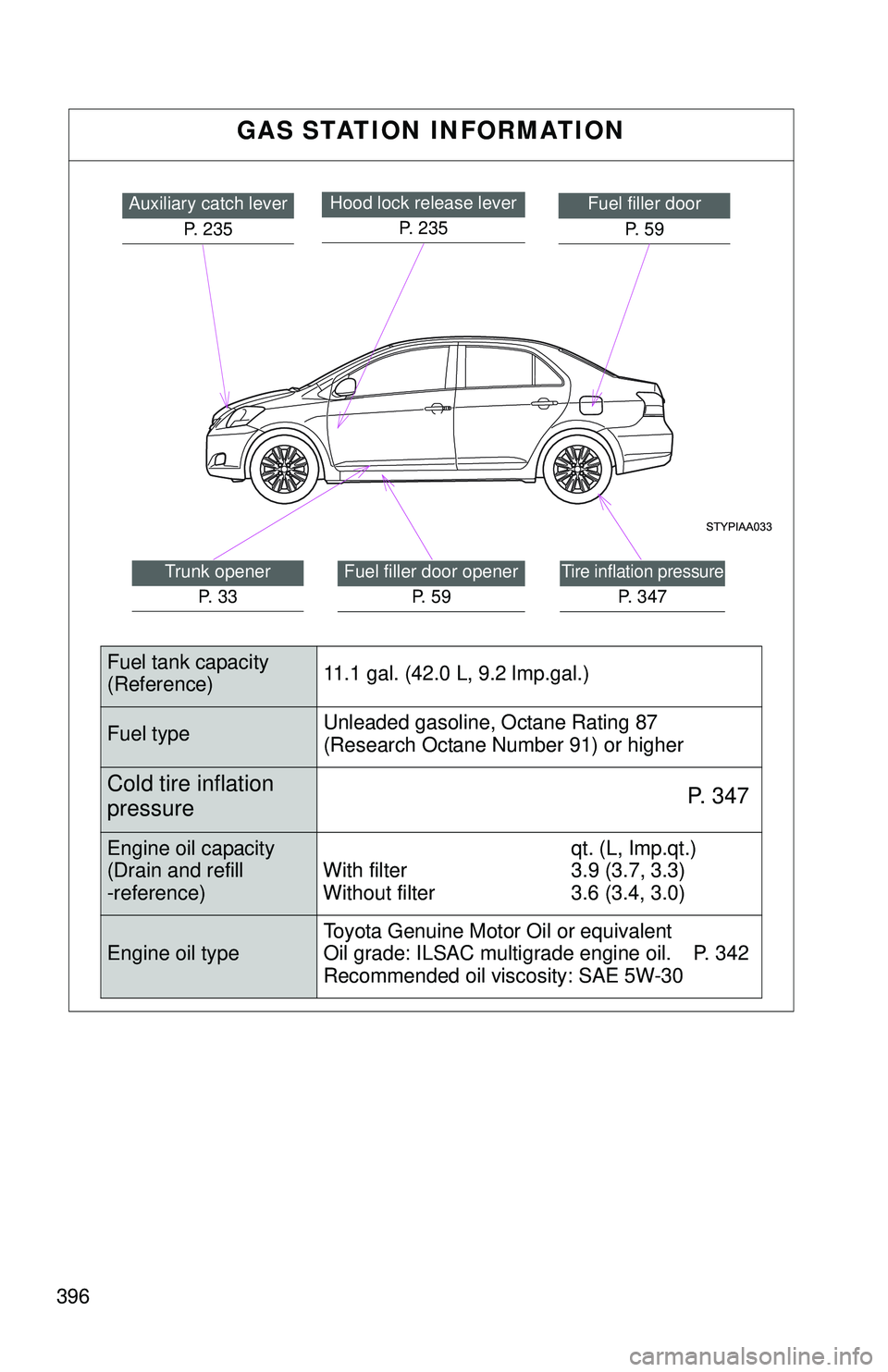

GAS STATION INFORMATION
Auxiliary catch leverP. 235Fuel filler doorP. 5 9Hood lock release lever P. 235
Fuel filler door openerP. 5 9Tire inflation pressure
P. 347
Trunk openerP. 3 3
Fuel tank capacity
(Reference) 11.1 gal. (42.0 L, 9.2 lmp.gal.)
Fuel typeUnleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher
Cold tire inflation
pressure
P. 3 4 7
Engine oil capacity
(Drain and refill
-reference)qt. (L, Imp.qt.)
With filter 3.9 (3.7, 3.3)
Without filter 3.6 (3.4, 3.0)
Engine oil type Toyota Genuine Motor Oil or equivalent
Oil grade: ILSAC multigrade engine oil. P. 342
Recommended oil viscosity: SAE 5W-30
