ESP VAUXHALL ADAM 2014 Infotainment system

Radio25
Notice
If a waveband specific station list is
updated the corresponding category
list (if available) is also updated.
A station search is started and a
corresponding message is displayed. Once the search is finished, the
respective station list is displayed.
Notice
The currently received radio station
is indicated by the l symbol next to
the station name.
EPG current program An electronic program guide (EPG)
provides you with continuously
updated information about current and upcoming programmes.
Notice
The submenu item is only available
in the DAB waveband menu.
To display information on the
currently active programme, select
EPG current program in the DAB
waveband menu.EPG station list
The EPG station list contains the
stations providing an electronic
programme guide.
Notice
The submenu item is only available
in the DAB waveband menu.
To display current and upcoming
programmes of the respective station,
select the Info screen button beside
the station name.
Intellitext
The Intellitext function allows the
reception of additional information such as announcements, financial
infos, sports, news etc.
Notice
The submenu item is only available
in the DAB waveband menu.
Select one of the categories and
choose a specific item to display
detailed information.
Info To display detailed information on the
currently active DAB station, select
the Info menu item.
Notice
The submenu item is only available
in the DAB waveband menu.
Tone settings
Find a detailed description of the
Tone settings menu 3 16.

26RadioRadio data system (RDS)RDS is a service of FM stations that
considerably facilitates the finding of
the desired station and its fault-free
reception.
Advantages of RDS ■ On the display, the programme name of the station appears
instead of its frequency.
■ During a station search the Infotainment system tunes in to
RDS stations only.
■ The Infotainment system always tunes into the best receivable
broadcasting frequency of the set
station by means of AF (alternative
frequency).
■ Depending on the station that is received, the Infotainment systemdisplays radio text that can contain
e.g. information about the current
programme.
RDS option menu To open the menu for the RDS
configuration:Press the ; button and then select
the Settings screen button.
Select Radio settings and then RDS
option to display the respective menu.
Notice
If RDS is set to Off, not all menu
items shown above are displayed.
Traffic announcements (TA)
Radio traffic service stations are RDS stations that broadcast traffic news. Ifthe traffic service is switched on, the
currently active function is interrupted
for the duration of the traffic
announcement.
Switching the traffic announcements
on and off
Set the TA menu item to On or Off.
If the radio traffic service is activated,
[TP] is shown in the top line of all main
menus. If the current station is not a
radio traffic service station, TP is
greyed out and a search is started
automatically for the next radio traffic
service station. As soon as a radio
traffic service station is found, TP is
highlighted. If no radio traffic service
station is found, TP remains greyed
out.
If a traffic announcement is
broadcasted on the respective
station, a message is displayed.
To interrupt the announcement and
return to the function previously
activated: select the Cancel screen
button in the message.
TP volume
The volume of traffic announcements
can be preset to a value between 0
and 63.

28Radio
■ If the DAB signal is reflected bynatural obstacles or buildings, the
reception quality of DAB is
improved, whereas AM or FM
reception is considerably impaired in such cases.
■ When DAB reception is enabled, the FM tuner of the Infotainmentsystem remains active in the
background and continually
searches for the best receivable FM stations. If TP 3 26 is activated,
traffic announcements of the FM station which is currently best
receivable are issued. Deactivate
TP, if DAB reception should not be
interrupted by FM traffic
announcements.

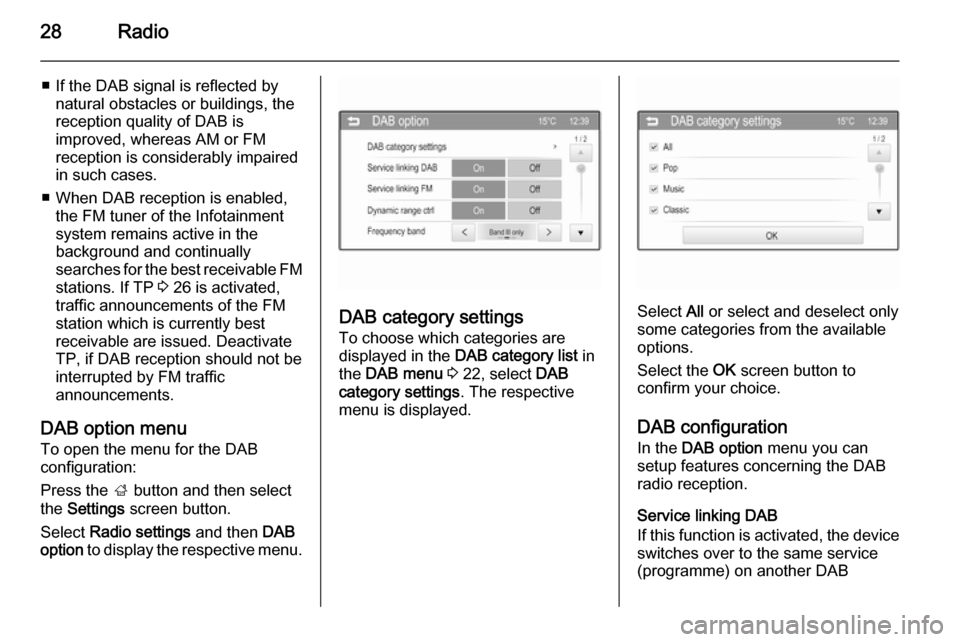

DAB option menu
To open the menu for the DAB
configuration:
Press the ; button and then select
the Settings screen button.
Select Radio settings and then DAB
option to display the respective menu.
DAB category settings
To choose which categories are
displayed in the DAB category list in
the DAB menu 3 22, select DAB
category settings . The respective
menu is displayed.Select All or select and deselect only
some categories from the available
options.
Select the OK screen button to
confirm your choice.
DAB configuration In the DAB option menu you can
setup features concerning the DAB
radio reception.
Service linking DAB
If this function is activated, the device
switches over to the same service
(programme) on another DAB

Radio29
ensemble (frequency, if available)
when the DAB signal is too weak to
be picked up by the receiver.
Set Service linking DAB to On or Off.
Service linking FM If this function is activated, the device switches over to a corresponding FM
station of the active DAB service (if
available) when the DAB signal is too
weak to be picked up by the receiver.
Set Service linking FM to On or Off.
Dynamic range compression
If this function is activated, the
dynamic range of the DAB signal is
reduced. That means that the level of loud sounds is reduced and the level
of quiet sounds is increased.
Therefore the volume of the
Infotainment system can be raised to
a point where the quiet sounds are audible, without the loud soundsbeing too loud.
Set Dynamic range ctrl to On or Off.Selecting a frequency band
With this function you may define which DAB wavebands are to be
received by the Infotainment system.
Choose L-Band only
( 1452 - 1492 MHz, earth and satellite
radio) Band lll only (174 - 240 MHz,
earth radio) or Both.
Radio text
If this function is activated, additional information about the programme
currently received or the music track
currently playing such as title, artist,
music type, news or traffic updates
are displayed.
To show or hide the information, set
Radio text to On or Off.
Slide Show
If this function is activated, additional
information about the programme
currently received or the music track
currently playing are displayed in
form of pictures, graphics or short video sequences.To show or hide these pictures,
graphics or videos sequences, set
Slide Show to On or Off.

External devices31
3-pole for audio source, 4-pole for
movie source.1=Left audio signal2=Right audio signal3=Ground4=Video signal
AUX audio function
The Infotainment system can play music files contained in auxiliary
devices like smartphones or iPod/
iPhone products.
AUX movie function
The Infotainment system can play
movies contained in auxiliary devices like smartphones or iPod/iPhone
products.
Notice
To use the movie function with your
iPod/iPhone, connect your device to
the AUX port only. A constant
connection cannot be established
via the USB port.
USB port
An MP3 player, USB drive, SD card
(via USB connector/adapter), iPod or
Smartphone can be connected to the USB port.
When connected to the USB port,
various functions of the devices
mentioned above can be operated via
the controls and menus of the
Infotainment system.
Notice
Not all MP3 player, USB drive, SD
card, iPod models or Smartphones
are supported by the Infotainment
system.Connecting/disconnecting a device
Connect the USB device or iPod to
the USB port. For the iPod, use the
appropriate connection cable. The
music function starts automatically.
Notice
If a non-readable USB device or
iPod is connected, a corresponding
error message will appear and the
Infotainment system will
automatically switch to the previous
function.
To disconnect the USB device or
iPod, select another function and then remove the USB storage device.Caution
Avoid disconnecting the device
during playback. This may
damage the device or the
Infotainment system.
USB audio function
The Infotainment system can play music files contained in USB storage
devices or iPod/iPhone products.

32External devices
USB picture function
The Infotainment system can display
pictures contained in USB storage
devices.
USB movie function
The Infotainment system can play
movies contained in USB storage
devices.
Notice
To use the movie function with your iPod/iPhone, connect your device to
the AUX port only. A constant
connection cannot be established
via the USB port.
Bluetooth
Bluetooth enabled audio sources (e.g. music mobile phones, MP3
players featuring Bluetooth, etc.),
which support the Bluetooth music
profiles A2DP and AVRCP can be
connected wirelessly to the
Infotainment system.
Connecting a device
Find a detailed description on the
Bluetooth connection 3 46.Bluetooth audio function
The Infotainment system can play
music files contained in Bluetooth
devices like smartphones or iPod/
iPhone products.
Support of smartphone
applications
The Apps function of the Infotainment
system allows access to approved smartphone applications. The
Infotainment system authorises
application updates as they become
available.
Before an approved application can
be operated using the controls and
menus of the Infotainment system,
the respective application has to be
installed on the smartphone.
Follow the instructions on the
smartphone when installing an
approved smartphone application.
File formats and folders The maximum capacity of a devicesupported by the Infotainment system
amounts to 2500 music files, 2500
picture files, 250 movie files, 2500folders and 10 stages of folder
structure. Only devices formatted in
the FAT16/FAT32 file system are
supported.
Notice
Some files may not be played
properly. This might be due to a
different recording format or the
condition of the file.
Files from online shops to which
digital rights management has been
applied cannot be played.
The Infotainment system can play the following audio, picture and movie
files stored on external devices.
Audio files
The playable audio file formats
are .mp3, .wma, .ogg and .wav.
When playing a file with ID3 tag
information, the Infotainment system
can display information, e.g. on the
track title and artist.
Picture files
The displayable picture file formats
are .jpg, .bmp, .png and .gif.

External devices33
.jpg files must have a size of 64 to
5000 pixels in widths and 64 to 5000
pixels in heights.
.bmp, .png and .gif files must have a
size of 64 to 1024 pixels in widths and 64 to 1024 pixels in heights.
Movie files
The playable movie file formats
are .avi, .mpg, .mp4, .divx, .xvid
and .wmv.
The resolution of the files has to be
within a range of 720 pixels in widths and 576 pixels in heights. The frame
rate has to be less that 30 fps.
Usable codecs are divx, xvid,
mpeg-1, mpeg-4 (mpg4, mp42,
mp43) and wmv9 (wmv3).
The playable audio formats
are .mp3, .ac3, .aac and .wma.
The displayable subtitle format
is .smi.Playing audio
Auxiliary device
Activating the AUX function
If the auxiliary device is not yet
connected to the Infotainment
system, connect the device 3 30 . The
AUX audio menu is displayed and playback of the audio tracks starts
automatically.
In case the auxiliary device is already
connected:
If required, press the ; button and
then select the Audio screen button to
open the audio main menu last
selected.
If required, select the Source screen
button to open a drop down list and then select AUX to open the
respective audio main menu.
Playback of the audio tracks starts
automatically.
Changing the tone settings
Select the k Tone settings screen
button to open the respective menu.
Find a detailed description 3 16.
Notice
The volume and the tone settings
can be adjusted via the Infotainment system. All other functions need to
be performed via the auxiliary
device.

34External devices
USB device and iPod
Activating the USB device or iPod
function
If the USB device or iPod is not yet
connected to the Infotainment
system, connect the device 3 30 . The
respective audio main menu is
displayed and playback of the audio
tracks starts automatically.
In case the USB device or iPod is
already connected:
If required, press the ; button and
then select the Audio screen button to
open the audio main menu last
selected.
If required, select the Source screen
button to open a drop down list and then select USB to open the
respective audio main menu.
Playback of the audio tracks starts
automatically.
Notice
Album covers are displayed, if they
are comprised in the audio file e.g.
MP3 file.
Interrupting and resuming playback
Tap on the = screen button to
interrupt playback. The screen button changes to l.
Tap on the l screen button to
resume playback.
Playing the next or previous track
Tap on the v screen button to play
the next track.
Tap on the t screen button within
the first 2 seconds of the track playing
to return to the previous track.
Returning to the beginning of the
current track
Tap on the t screen button after 2
seconds of the track playing.
Fast forwarding and rewinding
Hold down the t or v screen
buttons. Release the respective button to return to the normal
playback mode.
Alternatively, you can move the slider showing the current track position
with your finger to the left or right.
Playing tracks repeatedly
Repeatedly tap on the r screen
button to choose one of the following options.
■ 1: the current track is played
repeatedly.
■ ALL : all tracks on the device are
played repeatedly.
■ OFF : normal playback mode.

External devices35
Playing tracks randomly
Repeatedly tap on the s screen
button to activate or deactivate the
function.
■ ON : all tracks on the device are
played in random order.
■ OFF : normal playback mode.
Viewing information
To display information on the track
currently playing, tap on the screen. A
message is displayed showing
information, e.g. on the title, artist, or
album, saved with the track.
Using the music menu
Tap on the MENU screen button to
open the respective music menu.
Different categories, in which the
tracks are sorted, are displayed, e.g.
Folders , Artists , or Albums .
Select the desired category,
subcategory (if available) and then
choose a track.
Changing the tone settings
Select Tone settings to open the
respective menu. Find a detailed
description 3 16.Bluetooth music
Activating the Bluetooth music
function
If the Bluetooth device is not yet
connected to the Infotainment
system, establish a Bluetooth
connection 3 46 and then continue
as described below.
In case the Bluetooth device is
already connected:
If required, press the ; button and
then select the Audio screen button to
open the audio main menu last
selected.
If required, select the Source screen
button to open a drop down list and
then select Bluetooth to open the
respective audio main menu.
Playback of the audio tracks starts
automatically.

36External devices
Interrupting and resuming playback
Tap on the = screen button to
interrupt playback. The screen button
changes to l.
Tap on the l screen button to
resume playback.
Playing the next or previous track
Tap on the v screen button to play
the next track.
Tap on the t screen button within
the first 2 seconds of the track playing to return to the previous track.
Returning to the beginning of the
current track
Tap on the t screen button after 2
seconds of the track playing.
Fast forwarding and rewinding
Hold down the t or v screen
buttons. Release the respective
button to return to the normal
playback mode.
Playing a song or file repeatedly Repeatedly tap on the r screen
button to choose one of the following
options.
■ 1: the current track is played
repeatedly.
■ ALL : all tracks on the device are
played repeatedly.
■ OFF : normal playback mode.
Playing a file randomly
Repeatedly tap on the s screen
button to activate or deactivate the
function.
■ ON : all tracks on the device are
played in random order.
■ OFF : normal playback mode.Notice
Depending on the mobile phone
some of these functions may not be
available.
Changing the tone settings
Select the k screen button to open
the Tone settings menu. Find a
detailed description 3 16.
Displaying pictures You can view pictures from a USB
device.
Notice
For your safety, some features are disabled while your vehicle is in
motion.
Viewing pictures
If the USB device is not yet connected to the Infotainment system, connect
the device 3 30 and then continue as
described below.
In case the USB device is already
connected:
