navigation system VAUXHALL ADAM 2016 Infotainment system

6IntroductionIntroductionGeneral information.......................6
Theft-deterrent feature ...................7
Control elements overview ............8
Usage .......................................... 10
Basic operation ............................ 13
Tone settings ............................... 16
Volume settings ........................... 17
System settings ........................... 18General information
The Infotainment system provides
you with state-of-the-art in-car
infotainment.
Using radio tuner functions, you may
register up to 35 stations on seven
favourites pages.
For the different wavebands the radio is equipped with 15 automaticallyassignable channel presets.
Furthermore, 35 channels can be
allocated manually (waveband-
independent).
You can connect external data
storage devices, e.g. iPod, USB
devices, or other auxiliary devices to
the Infotainment system as further
audio sources; either via cable or via
Bluetooth.
Using the controls and menus of the Infotainment system, you can operate
approved smartphone applications,
e.g. a navigation app.
In addition, the Infotainment system is equipped with a Phone portal that
allows for comfortable and safe use of
your mobile phone in the vehicle.Optionally, the Infotainment system
can be operated using the controls on the steering wheel, or via the speech
recognition application 'Siri Eyes
Free'.
The well-thought-out design of the
control elements, the touchscreen
and the clear displays enable you to
control the system easily and
intuitively.
Notice
This manual describes all options
and features available for the
various Infotainment systems.
Certain descriptions, including those for display and menu functions, may
not apply to your vehicle due to
model variant, country
specifications, special equipment or
accessories.
Important information on
operation and traffic safety9 Warning
The Infotainment system must be
used so that the vehicle can be
driven safely at all times. If in

40External devicesThe menu shows which smartphone
applications are currently supported
by the Infotainment system, see
"Displaying or hiding application
icons" below.
Find a detailed description of the
respective application on the website
of the corresponding software
producer.
Starting an application
If not yet connected to the
Infotainment system, connect the
smartphone:
● iPod/iPhone: connect the device
to the USB port 3 30
● Android phone: establish a
Bluetooth connection 3 43
If not installed, download the
respective application to your
smartphone.

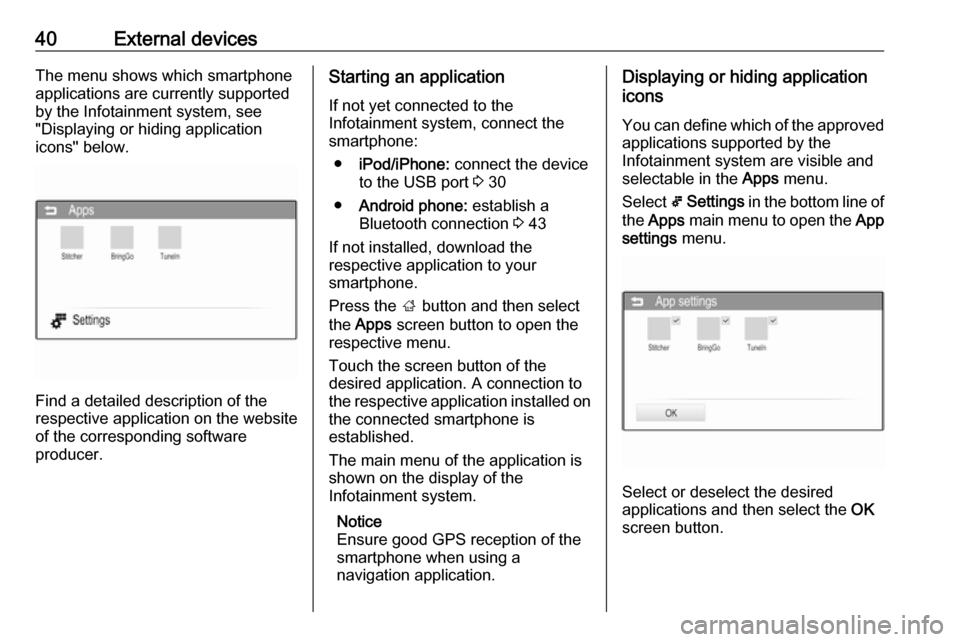

Press the ; button and then select
the Apps screen button to open the
respective menu.
Touch the screen button of the
desired application. A connection to
the respective application installed on the connected smartphone is
established.
The main menu of the application is
shown on the display of the
Infotainment system.
Notice
Ensure good GPS reception of the
smartphone when using a
navigation application.Displaying or hiding application
icons
You can define which of the approvedapplications supported by the
Infotainment system are visible and
selectable in the Apps menu.
Select 5 Settings in the bottom line of
the Apps main menu to open the App
settings menu.
Select or deselect the desired
applications and then select the OK
screen button.

53F
Favourite lists ............................... 22
Retrieving stations..................... 22
Storing stations ......................... 22
File formats Audio files.................................. 30
Movie files ................................. 30
Picture files................................ 30
Frequency band............................ 26
G
General information ..........30, 41, 42
Apps .......................................... 30
AUX ........................................... 30
Bluetooth ................................... 30
DAB ........................................... 26
Infotainment system ....................6
Phone ........................................ 42
Smartphone applications ..........30
USB ........................................... 30
H Home menu .................................. 13
I Infotainment control panel ..............8
Intellitext ....................................... 26
iPod Connecting device ....................30
General information................... 30
iPod audio menu .......................32L
Language ..................................... 10
M
Maximum startup volume .............17
Menu operation............................. 13
Mobile phones and CB radio equipment ................................ 51
Movie files..................................... 30
Mute.............................................. 10
N Navigation..................................... 39
O Operation ...................................... 46
External devices ........................30
Menu ......................................... 13
Phone ........................................ 46
Radio ......................................... 20
P Pairing .......................................... 43
Phone Bluetooth ................................... 42
Bluetooth connection ................43
Call history ................................ 46
Emergency calls ........................46
Entering a number ....................46
Functions during a call ..............46
General information................... 42Incoming call ............................. 46
Phone book ............................... 46
Phone main menu .....................46
Selecting the ring tone ..............46
Speed dial number ....................46
Phone book .................................. 46
Picture files ................................... 30
Playing audio ................................ 32
Playing movies ............................. 37
R
Radio Activating................................... 20Autostore lists............................ 21
Category list .............................. 22
Configuring DAB .......................26
Configuring RDS .......................24
DAB announcements ................26
Digital audio broadcasting
(DAB) ........................................ 26
Dynamic range compression..... 26
EPG current programme ...........26
EPG station list.......................... 26
Favourite lists ............................ 22
Frequency band ........................26
Intellitext .................................... 26
Radio data system (RDS) .........24
Regional .................................... 24
Regionalisation ......................... 24
Retrieving stations ..............21, 22

Introduction591m VOL
Press: switch on/off
Infotainment system ..............62
Turn: adjust volume ..............62
2 Display
3 MENU-TUNE
Central control for
selection and navigation in menus ................................... 64
4 AUX input .............................. 79
5 P BACK
Menu: one level back ............64
Input: delete last character
or entire entry ........................ 64
6 CONFIG
System settings ..................... 62
7 u
Radio: search forwards .........68
CD/MP3/WMA: skip track
forwards ................................ 778FAV 1-2-3
Radio favourites and
autostore lists ........................ 70
9 MEDIA
Activate media or change
audio source ......................... 62
10 TP
Activate or deactivate
radio traffic service ................72
11 RADIO
Activate radio or change
waveband .............................. 68
12 TONE
Tone settings ........................ 66
13 s
Radio: search backwards .....68
CD/MP3/WMA: skip track
backwards ............................. 7714INFO
Radio: Information about
the current station
CD/MP3/WMA:
Information about the
current track
15 y / @
Open telephone main menu . 85
or activate/deactivate
mute function ........................ 62
16 Disc slot
17 d
Eject disc ............................... 77
18 Radio station buttons 1 - 6
Long press: save station .......70
Short press: select station ....70

Introduction611m VOL
Press: switch on/off
Infotainment system ..............62
Turn: adjust volume ..............62
2 Display
3 MENU-TUNE
Central control for
selection and navigation in menus ................................... 64
4 AUX input .............................. 79
5 P BACK
Menu: one level back ............64
Input: delete last character
or entire entry ........................ 64
6 CONFIG
System settings ..................... 62
7 u
Search forwards ....................68
8 FAV 1-2-3
Radio favourites and
autostore lists ........................ 709AUX
Activate auxiliary device ........ 62
10 TP
Activate or deactivate
radio traffic service ................72
11 RADIO
Activate radio or change
waveband .............................. 68
12 TONE
Tone settings ........................ 66
13 s
Search backwards ................68
14 INFO
Information about the
current radio station
15 @
Activate/deactivate mute
function ................................. 62
16 Radio station buttons 1 - 6
Long press: save station .......70
Short press: select station ....70Steering wheel audio controls
1 7
Short press: take phone call . 85
or activate redial function ......88
or dial number in call list .......88
Long press: open call list ......88
or switch handsfree mode
on/off ..................................... 88
2 SRC (Source) ........................ 62
Press: select audio source ....62
