In brief9
Dazzle from following vehicles at
night is automatically reduced.
Automatic anti-dazzle interior mirror 3 28.
Exterior mirrors
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 27,
Electric adjustment 3 27, Folding
exterior mirrors 3 27.
Heated exterior mirrors 3 28.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 39, Ignition
positions 3 124.

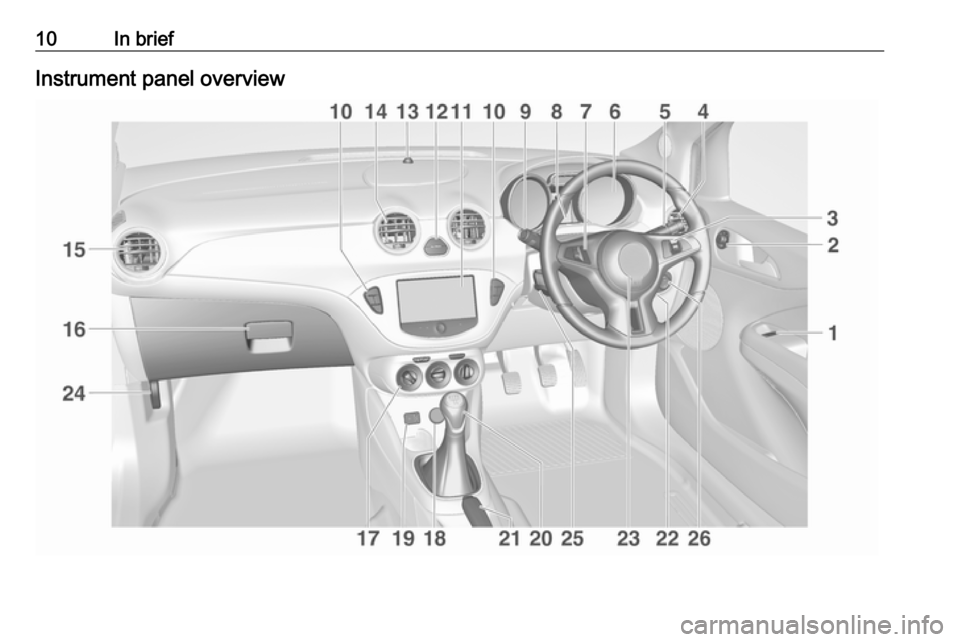

10In briefInstrument panel overview

In brief111Power windows .....................29
2 Exterior mirrors .....................27
3 Cruise control .....................139
Speed limiter ....................... 141
4 Side air vents ...................... 121
5 Turn and lane-change
signals, headlight flash,
low beam and high beam ....108
Exit lighting ......................... 111
Parking lights ...................... 108
Buttons for Driver
Information Centre ................87
6 Instruments .......................... 77
7 Steering wheel controls .......70
8 Driver Information Centre ...... 87
9 Windscreen wiper,
windscreen washer
system, headlight washer
system, rear wiper, rear
washer system ......................71
10 Central locking system ..........22
City mode ............................ 138
Fuel selector ......................... 78Eco button for stop-start
system ................................. 126
Traction Control system .....136
Electronic Stability Control . 137
Parking assist ..................... 142
Seat heating .......................... 36
Heated steering wheel ..........70
11 Colour-Info-Display ..............92
Graphic-Info-Display .............93
12 Hazard warning flashers ....107
Control indicator for airbag
deactivation .......................... 83
Control indicator for front
passenger seat belt .............82
13 Anti-theft alarm system
status LED ........................... 25
14 Centre air vents .................. 121
15 Side air vents passenger
side ..................................... 121
16 Glovebox .............................. 51
Fuse box ............................ 178
17 Climate control system ........ 113
18 Power outlet .......................... 7619AUX input, USB input ...........10
20 Selector lever,
transmission ....................... 130
21 Parking brake ......................135
22 Ignition switch with
steering wheel lock ............124
23 Horn ..................................... 71
Driver airbag ........................ 42
24 Bonnet release lever ..........160
25 Steering wheel adjustment ..70
26 Light switch ........................ 105
Headlight range
adjustment ......................... 107
Rear fog light ...................... 108
Brightness of instrument
panel illumination ................109
Brightness of ambient light 109

12In briefExterior lighting
Light switch
Turn light switch:
7:lights off8:sidelights9:headlightsLight switch with automatic light
controlAUTO:automatic light control:
exterior lighting is switched
on and off automaticallym:activation or deactivation of
the automatic light control8:sidelights9:headlights
Automatic light control 3 106.
Rear fog light
Press r in the light switch.
Headlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:push or pull lever
High beam 3 106, Headlight flash
3 106.

In brief13Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 108, Parking lights 3 108.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 107.
Horn
Press j.

14In briefWasher and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping
or
automatic wiping with rain
sensorOFF:off
For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.
Windscreen wiper 3 71, Wiper
blade replacement 3 165.
Windscreen washer
Pull lever.
Windscreen washer system 3 71,
Washer fluid 3 162.
Rear window wiper
Press the rocker switch to activate the
rear window wiper:
upper switch:continuous
operationlower switch:intermittent
operationmiddle position:off

In brief15Rear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper/washer 3 73.
Climate control
Heated rear window
The heating is operated by pressing
Ü .
Heated rear window 3 30.
Heated exterior mirrors
Pressing Ü also activates the heated
exterior mirrors.
Heated exterior mirror 3 28.
Demisting and defrosting the
windows
● Set air distribution control to l.
● Press V.
● Set temperature control to warmest level.
● Set fan speed to highest level.
● Switch on heated rear window Ü.
● Open side air vents as required and direct them towards the doorwindows.
Climate control system 3 113.

16In briefTransmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal and press the release button on the selector lever
and engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 130.
Manual transmission automatedN:neutral positionD/M:switch between automatic (D)
and manual (M) shift mode. D
or M is indicated in the
transmission display<:upshifting in manual mode]:downshifting in manual modeR:reverse, engage only when
vehicle is stationary
Manual transmission automated
3 130.
Starting off
Check before starting off ● tyre pressure and condition 3 182, 3 221
● engine oil level and fluid levels 3 161
● all windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational
● proper position of mirrors, seats, and seat belts 3 27, 3 33,
3 38
● brake function at low speed, particularly if the brakes are wet

In brief17Starting the engine
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Manual transmission: operate clutch and brake pedal.
Manual transmission automated:
operate brake pedal.
● Do not operate accelerator pedal.
● Turn key to position 3 and
release.
Starting the engine 3 125.
Stop-start system
If the vehicle is at a low speed or at a
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
Vehicles with manual transmission ● Depress the clutch pedal.
● Set the lever in neutral.
● Release the clutch pedal.
An Autostop is indicated by the
needle at the AUTOSTOP position in
the tachometer.
To restart the engine, depress the
clutch pedal again.
Vehicles with manual transmission
automated
If the vehicle is at a standstill with
depressed brake pedal, Autostop is
activated automatically, indicated by
the needle at the AUTOSTOP
position in the tachometer.
Release the brake pedal or move
selector lever out of D to restart the
engine.
Stop-start system 3 126.

18In briefParking9Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply the parking brake. Activate the parking
brake without pressing the
release button. Apply as firmly
as possible on a downhill slope
or uphill slope. Depress brake
pedal at the same time to
reduce operating force.
● Switch off the engine.
● If the vehicle is on a level surface or uphill slope, engage
first gear before removing the ignition key. On an uphill slope, turn the front wheels away from
the kerb.
If the vehicle is on a downhill
slope, engage reverse gear
before removing the ignition
key. Turn the front wheels
towards the kerb.
● Close the windows and the sunroof.
● Remove the ignition key from the ignition switch. Turn the
steering wheel until the
steering wheel lock is felt to
engage.
For vehicles with manual
transmission automated, the key can only be removed from
the ignition switch when the
parking brake is applied.
● Lock the vehicle by pressing e on
the radio remote control.
Activate the anti-theft alarm
system 3 25.
● The engine cooling fans may run
after the engine has been
switched off 3 160.
Caution
After running at high engine
speeds or with high engine loads,
operate the engine briefly at a low load or run in neutral for
approx. 30 seconds before
switching off, in order to protect
the turbocharger.
Keys, locks 3 19, Laying-up the
vehicle for a long period of time
3 159.
