16In briefTransmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal and press the release button on the selector lever
and engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 132.
Manual transmission automatedN:neutral positionD/M:switch between automatic (D)
and manual (M) shift mode. D
or M is indicated in the
transmission display<:upshifting in manual mode]:downshifting in manual modeR:reverse, engage only when
vehicle is stationary
Manual transmission automated
3 132.
Starting off
Check before starting off ● tyre pressure and condition 3 186, 3 225
● engine oil level and fluid levels 3 165
● all windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational
● proper position of mirrors, seats, and seat belts 3 27, 3 33,
3 38
● brake function at low speed, particularly if the brakes are wet

104Instruments and controlsTo connect a mobile device with the
Wi-Fi hotspot:
1. Press j and then select Wi-Fi
settings on the Info-Display. The settings displayed include the Wi-
Fi hotspot name (SSID),
password and connection type.
2. Start a Wi-Fi network search on your mobile device.
3. Select your vehicle hotspot (SSID) when listed.
4. When prompted, enter the password on your mobile device.
Notice
To change the SSID or password,
press Z and talk to an advisor or log
in to your account.
To switch off the Wi-Fi hotspot
functionality, press Z to call an
advisor.
Smartphone app
With the My Vauxhall smartphone
app, some vehicle functions can be
operated remotely.The following functions are available:
● Lock or unlock vehicle.
● Honk horn or flash lights.
● Check fuel level, engine oil life and tyre pressure (only with tyre
pressure monitoring system).
● Send navigation destination to the vehicle, if equipped with a
built-in navigation system.
● Locate vehicle on a map.
● Manage Wi-Fi settings.
To operate these functions, download the app from App Store ®
or
Google Play™ Store.
Remote control
If desired, use any phone to call an
advisor, who can remotely operate
specific vehicle functions. Find the
respective OnStar phone number on
our country-specific website.
The following functions are available: ● Lock or unlock vehicle.
● Provide information on the vehicle location.
● Honk horn or flash lights.Stolen vehicle assistance
If the vehicle is stolen, report the theft
to the authorities and request OnStar
stolen vehicle assistance. Use any
phone to call an advisor. Find the
respective OnStar phone number on
our country-specific website.
OnStar can provide support in
locating and recovering the vehicle.Theft alert
When the anti-theft alarm system is
triggered, a notification is sent to
OnStar. You are then informed about
this event by text message or email.Restart prevention
By sending remote signals, OnStar can prevent the vehicle from
restarting once it has been turned off.
On-demand diagnostics
At any time e.g. if the vehicle displays a vehicle message, press Z to
contact an advisor and ask to
complete a real-time diagnostic check
to directly determine the issue.
Depending on the results, the advisor
will provide further support.

Driving and operating157LED off:petrol operationLED
flashes:checking conditions for
fuel transition to liquid
gas operation.
Illuminates if conditions
are fulfilled.LED illu‐
minates:liquid gas operationLED
flashes
five
times
and
extin‐
guishes:liquid gas tank is empty
or failure in liquid gas
system. A message is
displayed in the Driver
Information Centre.
If the fuel tank is empty, the engine
will not start.
The selected fuel mode is stored and
reactivated at the next ignition cycle if
conditions allow.
As soon as the liquid gas tanks are
empty, petrol operation is
automatically engaged until the
ignition is switched off.
When switching automatically
between petrol or gas operation, a
brief delay of engine tractive power
may be noticeable.
Every six months, run the petrol tank
down until control indicator Y
illuminates, then refuel. This helps
maintain fuel quality and system
function for petrol operation.
Fill the tank completely at regular intervals to prevent corrosion in the
tank.
Faults and remedies
If gas mode is not possible, check the following:
● Is there enough liquid gas present?
● Is there enough petrol present for
starting?
Due to extreme temperatures in
combination with the gas
composition, it may take slightly
longer before the system switches
from petrol to gas mode.
In extreme situations, the system may
also switch back to petrol mode if the
minimum requirements are not
fulfilled. If conditions allow, it might be possible to manually switch back to
liquid gas operation.Seek the assistance of a workshop in
the event of all other faults.Caution
Repairs and adjustments may only be made by trained specialists in
order to maintain the safety and
warranty on the LPG system.
Liquid gas is given a particular odour
(odorised) so that any leaks can be
detected easily.
9 Warning
If you smell gas in the vehicle or in
the immediate vicinity, switch to petrol mode immediately. No
smoking. No naked flames or
ignition sources.
If the gas odour persists, do not start
the engine. Have the cause of the
fault remedied by a workshop.
When using underground car parks,
follow the instructions of the operator
and local laws.

162Vehicle careVehicle careGeneral Information...................162
Accessories and vehicle modifications .......................... 162
Vehicle storage ........................163
End-of-life vehicle recovery .....163
Vehicle checks ........................... 164
Performing work ......................164
Bonnet ..................................... 164
Engine oil ................................. 165
Engine coolant ......................... 166
Washer fluid ............................ 166
Brakes ..................................... 167
Brake fluid ............................... 167
Vehicle battery ......................... 167
Wiper blade replacement ........169
Bulb replacement .......................170
Halogen headlights ..................170
Front turn signal lights .............172
Tail lights ................................. 174
Side turn signal lights ..............177
Number plate light ...................177
Interior lights ............................ 178
Instrument panel illumination ...178
Electrical system ........................179
Fuses ....................................... 179Engine compartment fuse box . 180
Instrument panel fuse box .......182
Vehicle tools .............................. 184
Tools ........................................ 184
Wheels and tyres .......................185
Winter tyres ............................. 185
Tyre designations ....................185
Tyre pressure .......................... 186
Tyre pressure monitoring system .................................... 187
Tread depth ............................. 190
Changing tyre and wheel size . 191
Wheel covers ........................... 191
Tyre chains .............................. 191
Tyre repair kit .......................... 192
Wheel changing .......................196
Spare wheel ............................ 198
Jump starting ............................. 203
Towing ....................................... 204
Towing the vehicle ...................204
Towing another vehicle ...........206
Appearance care .......................207
Exterior care ............................ 207
Interior care ............................. 209General Information
Accessories and vehicle modifications
We recommend the use of genuine
parts and accessories and factory approved parts specific for your
vehicle type. We cannot assess or guarantee reliability of other products
- even if they have a regulatory or
otherwise granted approval.
Any modification, conversion or other changes made to standard vehicle
specifications (including, without
limitation, software modifications,
modifications of the electronic control
units) may invalidate the warranty
offered by Vauxhall. Furthermore,
such changes may impact fuel
consumption, CO 2 emissions and
other emissions of the vehicle and
cause the vehicle to no longer
conform to the type approval,
impacting the validity of your vehicle
registration.

170Vehicle careBulb replacement
Switch off the ignition and switch off
the relevant switch or close the doors.
Only hold a new bulb at the base! Do not touch the bulb glass with bare
hands.
Use only the same bulb type for
replacement.
Replace headlight bulbs from within
the engine compartment.
Bulb check After a bulb replacement switch on
the ignition, operate and check the
lights.

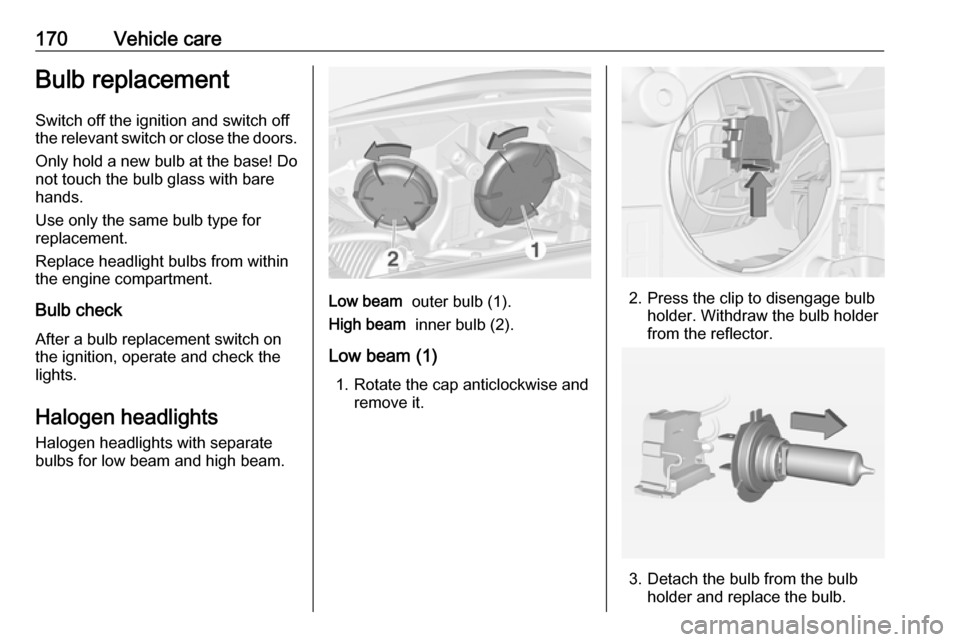

Halogen headlights
Halogen headlights with separate
bulbs for low beam and high beam.
Low beam outer bulb (1).
High beam inner bulb (2).
Low beam (1) 1. Rotate the cap anticlockwise and remove it.2. Press the clip to disengage bulb holder. Withdraw the bulb holder
from the reflector.
3. Detach the bulb from the bulb holder and replace the bulb.

237SSafety belts ................................... 37
Seat adjustment ....................... 7, 34 Seat belt ........................................ 8
Seat belt reminder .......................84
Seat belts ..................................... 37
Seat folding .................................. 35
Seat heating ................................. 36
Seat position ................................ 33
Selector lever ............................. 133
Service ....................................... 124
Service display ............................ 81
Service information ....................211
Service vehicle soon .................... 86
Side airbag system ......................43
Side blind spot alert ....................154
Sidelights .................................... 107
Side turn signal lights ................177
Software acknowledgement .......229
Spare wheel ............................... 198
Speed limiter............................... 143
Speedometer ............................... 79
Starting and operating ................126
Starting off ................................... 16
Starting the engine ............127, 133
Steering ...................................... 126
Steering wheel adjustment ......9, 71
Steering wheel controls ...............71
Stop-start system........................ 128
Storage ......................................... 51Storage compartments.................51
Sunroof ........................................ 31
Sun visors .................................... 30
Symbols ......................................... 4
T
Tachometer ................................. 79
Tail lights ................................... 174
Three-point seat belt .................... 38
Tools .......................................... 184
Top-tether fastening eyes ............50
Towing ........................................ 204
Towing another vehicle .............206
Towing the vehicle .....................204
Traction Control system ............. 138
Transmission ............................... 16
Transmission display .................133
Tread depth ............................... 190
Trip odometer .............................. 79
Turn and lane-change signals ...110
Turn signal ................................... 84
Tyre chains ................................ 191
Tyre designations ......................185
Tyre pressure ............................ 186
Tyre pressure monitoring system ............................... 88, 187
Tyre pressures ........................... 225
Tyre repair kit ............................. 192U
Ultrasonic parking assist ...... 87, 145
Upholstery .................................. 209
Uplevel-Display............................. 89
Upshift .......................................... 87
Using this manual ..........................3
V Vehicle battery ........................... 167
Vehicle checks............................ 164
Vehicle data ................................ 216
Vehicle data recording and privacy ..................................... 231
Vehicle dimensions .................... 223
Vehicle Identification Number ....214
Vehicle jack ................................ 184
Vehicle messages .......................96
Vehicle personalisation ...............99
Vehicle security ............................ 25
Vehicle specific data ......................3
Vehicle storage ........................... 163
Vehicle tools ............................... 184
Vehicle unlocking ........................... 6
Vehicle weight ........................... 222
Ventilation ................................... 115
W
Warning chimes ........................... 98
Warning lights ............................... 79
Warning triangle .......................... 66
Washer and wiper systems .........14
