252Vehicle careInstrument panel fuse box
In left-hand drive vehicles, the fuse
box is behind the storage
compartment in the instrument panel.
Open the compartment and push it to the left to unlock. Fold the
compartment down and remove it.
In right-hand drive vehicles, the fuse
box is located behind a cover in the
glovebox. Open the glovebox, then
open the cover and fold it down.
No.Circuit1Displays2Exterior lights, body control
module3Exterior lights, body control
module4Infotainment system5Infotainment system, instru‐
ment6Power outlet, cigarette lighter7Power outlet8Left low beam, body control
module9Right low beam, body control
module, airbag module10Door locks, body control module11Interior fan12–13–

Vehicle care259
Notice
In countries where the tyre pressure
monitoring system is legally
required, the use of wheels without
pressure sensors will invalidate the
vehicle type approval.

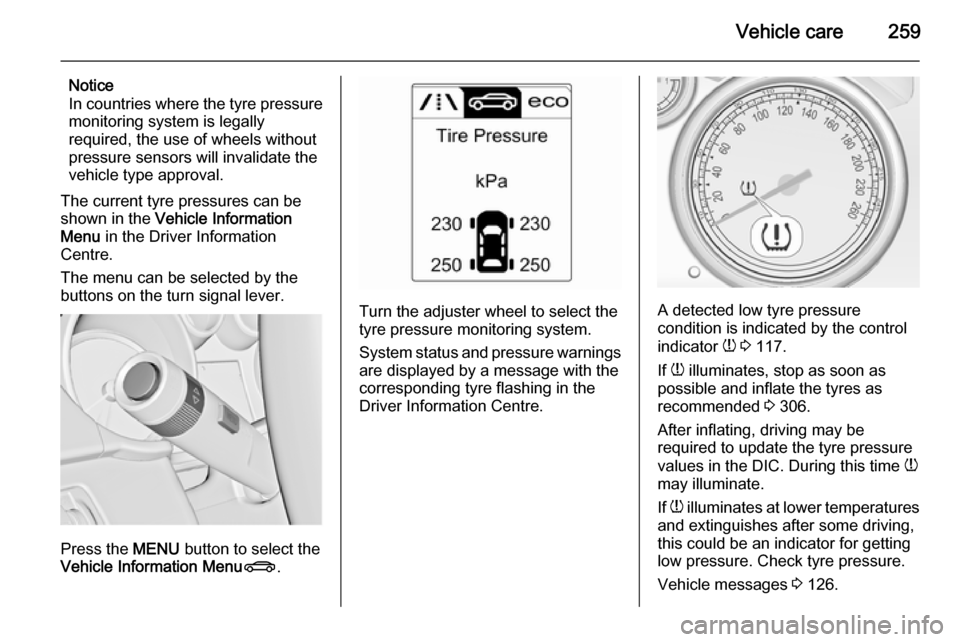

The current tyre pressures can be
shown in the Vehicle Information
Menu in the Driver Information
Centre.
The menu can be selected by the
buttons on the turn signal lever.
Press the MENU button to select the
Vehicle Information Menu X.
Turn the adjuster wheel to select the
tyre pressure monitoring system.
System status and pressure warnings
are displayed by a message with the
corresponding tyre flashing in the
Driver Information Centre.A detected low tyre pressure
condition is indicated by the control
indicator w 3 117.
If w illuminates, stop as soon as
possible and inflate the tyres as
recommended 3 306.
After inflating, driving may be
required to update the tyre pressure
values in the DIC. During this time w
may illuminate.
If w illuminates at lower temperatures
and extinguishes after some driving,
this could be an indicator for getting low pressure. Check tyre pressure.
Vehicle messages 3 126.

260Vehicle care
If the tyre pressure must be reduced
or increased, switch off ignition.
Only mount wheels with pressure
sensors, otherwise the tyre pressure
will not be displayed and w
illuminates continuously.
A spare wheel or temporary spare
wheel is not equipped with pressure
sensors. The tyre pressure
monitoring system is not operational
for these wheels. Control indicator w
illuminates. For the further three
wheels the system remains
operational.
The use of commercially available
liquid tyre repair kits can impair the
function of the system. Factory-
approved repair kits can be used.
External high-power radio equipment
could disrupt the tyre pressure
monitoring system.
Each time the tyres are replaced, tyre pressure monitoring system sensors
must be dismounted and serviced.
For the screwed sensor: replace
valve core and sealing ring. For
clipped sensor: replace complete
valve stem.Vehicle loading status
Adjust tyre pressure to load condition according to tyre information label ortyre pressure chart 3 306, and select
the relevant setting in the menu Tire
Load in the Driver Information Centre,
Vehicle Information Menu 3 119.
Select:
■ Light for comfort pressure up to
3 people
■ Eco for Eco pressure up to
3 people
■ Max for full loading
Auto learn function
After changing wheels, the vehicle
must be stationary for approx.
20 minutes, before the system
recalculates. The following relearn process takes up to 10 minutes of
driving with a minimum speed of
12 mph. In this case, $ can be
displayed or pressure values can
swap in the Driver Information Centre.
If problems occur during the relearn
process, a warning message is
displayed in the Driver Information
Centre.
Temperature dependency Tyre pressure depends on the
temperature of the tyre. During
driving, tyre temperature and
pressure increase.
The tyre pressure value displayed in
the Driver Information Centre shows
the actual tyre pressure. Therefore it
is important to check tyre pressure
with cold tyres.

280Vehicle care
Air shutter
Clean the shutter system in the front
bumper to maintain correct
functionality.
Interior care
Interior and upholstery Only clean the vehicle interior,
including the instrument panel fascia
and panelling, with a dry cloth or
interior cleaner.
Clean the leather upholstery with
clear water and a soft cloth. In case of heavy soiling, use leather care.
The instrument cluster and the
displays should only be cleaned using
a soft damp cloth. If necessary use a
weak soap solution.
Clean fabric upholstery with a
vacuum cleaner and brush. Remove
stains with an upholstery cleaner.
Clothing fabrics may not be
colourfast. This could cause visible
discolourations, especially on light-coloured upholstery. Removable
stains and discolourations should be
cleaned as soon as possible.
Clean seat belts with lukewarm water or interior cleaner.Caution
Close Velcro fasteners as open
Velcro fasteners on clothing could
damage seat upholstery.
The same applies to clothing with
sharp-edged objects, like zips or
belts or studded jeans.
Plastic and rubber parts
Plastic and rubber parts can be
cleaned with the same cleaner as
used to clean the body. Use interior cleaner if necessary. Do not use any
other agent. Avoid solvents and petrol in particular. Do not use high-
pressure jet cleaners.

Service and maintenance281Service and
maintenanceGeneral information ...................281
Recommended fluids, lubricants and parts .................................... 282General information
Service information In order to ensure economical and
safe vehicle operation and to
maintain the value of your vehicle, it
is of vital importance that all
maintenance work is carried out at the proper intervals as specified.
The detailed, up-to-date service
schedule for your vehicle is available
at the workshop.
Service display 3 110.
European service intervals
Maintenance of your vehicle is
required every 20,000 miles or after
1 year , whichever occurs first, unless
otherwise indicated in the service
display.
The European service intervals are
valid for the following countries:
Andorra, Austria, Belgium, Bosnia-
Herzegovina, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark,
Estonia, Finland, France, Germany,
Greece, Greenland, Hungary,Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Macedonia,
Malta, Montenegro, Netherlands,
Norway, Poland, Portugal, Romania,
Serbia, Slovakia, Slovenia, Spain,
Sweden, Switzerland, United
Kingdom.
Service display 3 110.
International service intervals Maintenance of your vehicle is
required every 10,000 miles or after
1 year , whichever occurs first, unless
otherwise indicated in the service
display.
The international service intervals are
valid for the countries which are not listed in the European service
intervals.
Service display 3 110.
Confirmations
Confirmation of service is recorded in the Service and Warranty Booklet.
The date and mileage is completed
with the stamp and signature of the
servicing workshop.

282Service and maintenance
Make sure that the Service and
Warranty Booklet is completed
correctly as continuous proof of
service is essential if any warranty or goodwill claims are to be met, and is
also a benefit when selling the
vehicle.
Service interval with remaining
engine oil life duration The service interval is based on
several parameters depending on
usage.
The service display lets you know
when to change the engine oil.
Service display 3 110.Recommended fluids,
lubricants and parts
Recommended fluids andlubricants Only use products that meet the
recommended specifications.
Damage resulting from the use of
products not in line with these
specifications will not be covered by
the warranty.9 Warning
Operating materials are
hazardous and could be
poisonous. Handle with care. Pay
attention to information given on
the containers.
Engine oil
Engine oil is identified by its quality
and its viscosity. Quality is more
important than viscosity when
selecting which engine oil to use. The oil quality ensures e.g. engine
cleanliness, wear protection and oil
aging control, whereas viscosity
grade gives information on the oil's
thickness over a temperature range.
Dexos is the newest engine oil quality
that provides optimum protection for gasoline and diesel engines. If it is
unavailable, engine oils of other listed qualities must be used.
Recommendations for gasoline
engines are also valid for
Compressed Natural Gas (CNG),
Liquified Petroleum Gas (LPG) and
Ethanol (E85) fuelled engines.
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
3 286.
Topping up engine oil
Engine oils of different manufacturers
and brands can be mixed as long as
they comply with the required engine
oil quality and viscosity.
Use of engine oil with only
ACEA A1/B1 or only A5/B5 quality is
prohibited, since it can cause long-
term engine damage under certain
operating conditions.

324
Glass panel .................................. 37
Glovebox ..................................... 60
Graphic-Info-Display, Colour- Info-Display ............................ 124
H Halogen headlights ....................230
Hand brake ......................... 171, 172
Hazard warning flashers ............145
Headlight flash ........................... 140
Headlight range adjustment ......140
Headlights................................... 138
Headlights when driving abroad 141
Head restraint adjustment .............9
Head restraints ............................ 38
Heated mirrors ............................. 32
Heated rear window ..................... 35
Heated steering wheel ...............101
Heating ........................................ 46
Heating and ventilation system . 151
Height adjustable rear floor cover 88
High beam ......................... 118, 139
High beam assist ................118, 139
Hill start assist ........................... 174
Horn ..................................... 16, 101
I
Identification plate .....................284
Ignition switch positions .............161
Immobiliser .......................... 31, 118Indicators.................................... 108
Information displays.................... 119
Instrument cluster ......................108
Instrument panel fuse box .........252
Instrument panel illumination .....248
Instrument panel illumination control .................................... 147
Instrument panel overview ........... 12
Interactive driving system ...........177
Interior care ............................... 280
Interior lighting ............................ 147
Interior lights ...................... 147, 248
Interior mirrors .............................. 32
Interruption of power supply ......170
Introduction .................................... 3
ISOFIX child restraint systems ....59
J
Jump starting ............................. 274
K Key, memorised settings ..............23
Keys ............................................. 21
Keys, locks ................................... 21
L
Lane departure warning .....116, 207
Lashing eyes ............................... 91
Lighting features .........................148
Light switch ................................ 138Load compartment ................26, 82
Load compartment cover .............86
Load compartment fuse box ......253
Loading information .....................98
Low fuel ..................................... 118
Low washer fluid ........................119
M
Malfunction indicator light ..........114
Manual anti-dazzle ......................32
Manual mode ............................. 169
Manual transmission .................. 171
Manual windows ..........................33
Memorised settings ......................23
Mirror adjustment ......................... 10
Misted light covers .....................146
N New vehicle running-in ..............161
Number plate light .....................248
O
Object detection systems ...........195
Odometer ................................... 108
Oil, engine .......................... 282, 286
Operate pedal ............................. 115
Outside temperature ..................104
Overrun cut-off ........................... 162

325
PParking ................................ 20, 165
Parking assist ............................ 195
Parking brake ............................ 172
Parking lights ............................. 146
Particulate filter ........................... 166
Performance .............................. 292
Performing work ........................222
Pollen filter ................................. 159
Power outlets ............................. 106
Power seat adjustment ................44
Power steering............................ 116
Power steering fluid ....................225
Power windows ............................ 33
Preheating ................................. 117
Puncture ..................................... 265
Q
Quickheat ................................... 158
R Radio Frequency Identification (RFID) .................................... 320
Radio remote control ...................22
Reading lights ............................ 148
Rear carrier system ......................64
Rear floor storage cover ..............88
Rear fog light ............................. 119
Rear fog lights ........................... 146
Rear seats .................................... 47Rear storage................................. 86
Rear view camera ...................... 202
Rear window wiper/washer ........ 104
Recommended fluids and lubricants ........................ 282, 286
Reduced engine power ..............118
Refuelling ................................... 211
Retained power off ....................161
Reversing lights .........................146
Ride control systems ..................174
Roof .............................................. 36
Roof load ...................................... 98
Roof rack ..................................... 97
S Safety belts ................................... 47
Safety net .................................... 93
Seat adjustment ....................... 7, 40
Seat belt ...................................... 10
Seat belt reminder .....................113
Seat belts ..................................... 47
Seat folding .................................. 43
Seat position ................................ 40
Selector lever ............................. 168
Service ............................... 159, 281
Service display .......................... 110
Service information ....................281
Service vehicle soon .................. 114
Side airbag system ......................51
Side blind spot alert ....................201Sidelights.................................... 138
Side turn signal lights ................246
Smartphone controller ................126
Spare wheel ............................... 269
Speed limiter............................... 181
Speedometer ............................. 108
Starting and operating ................161
Starting off ................................... 19
Starting the engine ....................161
Steering ...................................... 160
Steering wheel adjustment ..11, 100
Steering wheel controls .............100
Stop-start system........................ 163
Storage ......................................... 60
Storage compartments .................60
Sunroof ........................................ 36
Sunvisor lights ........................... 148
Sun visors .................................... 35
Symbols ......................................... 4
T
Tachometer ............................... 108
Tail lights ................................... 239
Three-point seat belt .................... 48
Tools .......................................... 255
Top-tether fastening eyes ............59
Tow bar....................................... 215
Towing ................................ 215, 275
Towing another vehicle .............276
Towing equipment .....................216

326
Towing the vehicle .....................275
Traction Control system ............. 174
Traction Control system off ........ 117
Traffic sign assistant ...................204
Trailer coupling ........................... 215
Trailer stability assist .................220
Trailer towing ............................. 216
Transmission ............................... 18
Transmission display .................167
Tread depth ............................... 261
Trip computer ............................ 130
Trip odometer ............................ 108
Turn and lane-change signals ...145
Turn signal ................................. 113
Tyre chains ................................ 262
Tyre designations ......................257
Tyre pressure ............................ 257
Tyre pressure monitoring system ............................ 117, 258
Tyre pressures ........................... 306
Tyre repair kit ............................. 262
U Ultrasonic parking assist ...116, 195
Underseat storage .......................62
Upholstery .................................. 280
Upshift ........................................ 116
Using this manual ..........................3V
Vehicle battery ........................... 226
Vehicle checks............................ 222
Vehicle data ................................ 286
Vehicle data recording and privacy ..................................... 319
Vehicle detected ahead ..............119
Vehicle dimensions .................... 303
Vehicle Identification Number ....284
Vehicle jack ................................ 255
Vehicle messages .....................126
Vehicle personalisation .............132
Vehicle security ............................ 28
Vehicle specific data ......................3
Vehicle storage ........................... 221
Vehicle tools ............................... 255
Vehicle unlocking ........................... 6
Vehicle weight ........................... 298
Ventilation ................................... 151
W
Warning chimes .........................129
Warning lights ............................. 108
Warning triangle .......................... 94
Washer and wiper systems .........16
Washer fluid ............................... 226
Wheel changing .........................265
Wheel covers ............................. 261
Wheels and tyres .......................257Windows....................................... 33
Windscreen................................... 33
Windscreen wiper/washer .........102
Winter tyres ............................... 257
Wiper blade replacement ..........228
