<=manual mode upshifting: move
selector lever in position M and
tap upwards]=manual mode downshifting:
move selector lever in position
M and tap rearwards
The selector lever VAUXHALL ASTRA J 2015.75 Owners Guide 168Driving and operating
<=manual mode upshifting: move
selector lever in position M and
tap upwards]=manual mode downshifting:
move selector lever in position
M and tap rearwards
The selector lever](/img/38/19342/w960_19342-169.png)
168Driving and operating
<=manual mode upshifting: move
selector lever in position M and
tap upwards]=manual mode downshifting:
move selector lever in position
M and tap rearwards
The selector lever is locked in P and
can only be moved when the ignition
is on and the brake pedal is applied.
Without brake pedal applied, the
control indicator j illuminates.
If the selector lever is not in P when
the ignition is switched off, the control
indicators j and P flash.
To engage P or R, press the release
button.
The engine can only be started with the lever in position P or N. When
position N is selected, press the brake
pedal or apply the parking brake
before starting.
Do not accelerate while engaging a
gear. Never depress the accelerator
pedal and brake pedal at the same
time.
When a gear is engaged, the vehicle
slowly begins to creep when the
brake is released.
Engine braking To utilise the engine braking effect,select a lower gear in good time when
driving downhill, see manual mode.
Rocking the vehicle
Rocking the vehicle is only
permissible if the vehicle is stuck in
sand, mud or snow. Move the selector
lever between D and R in a repeat
pattern. Do not race the engine and
avoid sudden acceleration.Parking
Apply the parking brake and engage P .
The ignition key can only be removed
when the selector lever is in position
P .
Manual mode
Move selector lever out of position D
towards the left to select manual
mode M.
Tap selector lever
forwards <=shift to a higher gearbackwards ]=shift to a lower gear
Page 171 of 337

Driving and operating169
The selected gear is indicated in the
instrument cluster.
If a higher gear is selected when
vehicle speed is too low, or a lower
gear when vehicle speed is too high,
the shift is not executed. This can
cause a message in the Driver
Information Centre (DIC).
In manual mode, no automatic
shifting to a higher gear takes place
at high engine revolutions.
Electronic driving
programmes ■ Following a cold start, the operating
temperature programme increasesengine speed to quickly bring the
catalytic converter to the required
temperature.
■ The automatic neutral shift function
automatically shifts to idling when
the vehicle is stopped with a
forward gear engaged and the
brake pedal is pressed.■ When SPORT mode is engaged, the vehicle shifts at higher engine
speeds (unless cruise control is
on). SPORT mode 3 176.
■ Special programmes automatically adapt the shifting points when
driving up inclines or down hills.
■ When starting off in snowy or icy conditions or on other slippery
surfaces, the electronic
transmission control selects a
higher gear automatically.
Kickdown If the accelerator pedal is pressed
down completely in automatic mode, the transmission shifts to a lower gear
depending on engine speed.
Fault
In the event of a fault, control indicator g illuminates. Additionally, a code
number or a vehicle message is
displayed in the Driver Information
Centre (DIC). Vehicle messages
3 125.The transmission no longer shifts
automatically. Continued travel ispossible with manual shifting.
Only the highest gear is available.
Depending on the fault, 2nd gear may also be available in manual mode.
Shift only when vehicle is at a
standstill.
Have the cause of the fault remedied
by a workshop.
Interruption of power
supply
In the event of an interruption of
power supply, the selector lever
cannot be moved out of the P
position. The ignition key cannot be
removed from the ignition switch.
If the vehicle battery is discharged,
start the vehicle using jump leads
3 277.
If the vehicle battery is not the cause
of the fault, release the selector lever.
1. Apply the parking brake.
Page 218 of 337

216Driving and operating

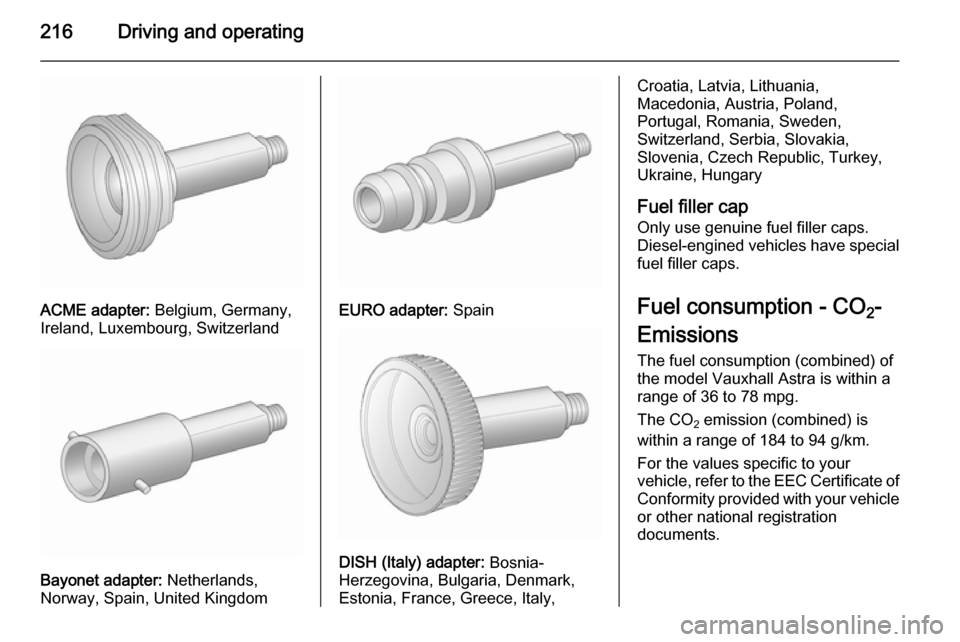

ACME adapter: Belgium, Germany,
Ireland, Luxembourg, Switzerland
Bayonet adapter: Netherlands,
Norway, Spain, United Kingdom
EURO adapter: Spain
DISH (Italy) adapter: Bosnia-
Herzegovina, Bulgaria, Denmark,
Estonia, France, Greece, Italy,
Croatia, Latvia, Lithuania,
Macedonia, Austria, Poland,
Portugal, Romania, Sweden,
Switzerland, Serbia, Slovakia,
Slovenia, Czech Republic, Turkey,
Ukraine, Hungary
Fuel filler cap
Only use genuine fuel filler caps. Diesel-engined vehicles have special fuel filler caps.
Fuel consumption - CO 2-
Emissions
The fuel consumption (combined) of
the model Vauxhall Astra is within a
range of 36 to 78 mpg.
The CO 2 emission (combined) is
within a range of 184 to 94 g/km.
For the values specific to your
vehicle, refer to the EEC Certificate of
Conformity provided with your vehicle or other national registration
documents.
Page 222 of 337

220Driving and operating
Checking the tensioning of the
coupling ball bar
■ Red marking on rotary knob must
point towards green marking on
coupling ball bar.
■ The gap between the rotary knob and the coupling ball bar must beapprox. 6 mm.
■ The key must be in position c.
Otherwise, the coupling ball bar must be tensioned before being inserted:
■ Unlock coupling ball bar by turning key to position c.
■ Pull out rotary knob and turn
clockwise as far as it will go.

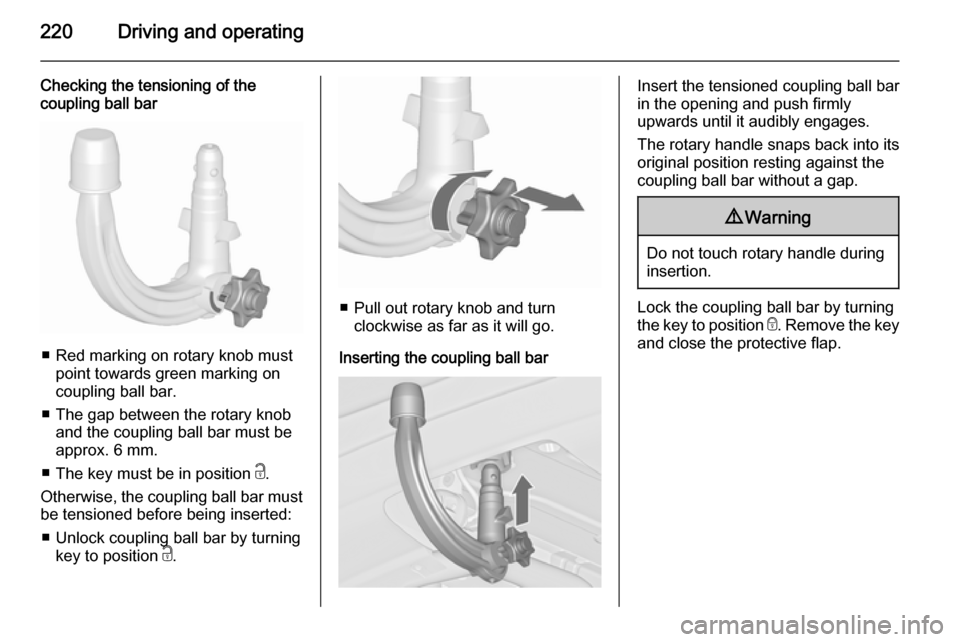

Inserting the coupling ball bar
Insert the tensioned coupling ball bar
in the opening and push firmly
upwards until it audibly engages.
The rotary handle snaps back into its
original position resting against the
coupling ball bar without a gap.9 Warning
Do not touch rotary handle during
insertion.
Lock the coupling ball bar by turning
the key to position e. Remove the key
and close the protective flap.
Page 223 of 337

Driving and operating221
Eye for break-away stopping cable
Attach breakaway stopping cable to
eye.
Check that the coupling ball bar is correctly installed
■ Green marking on rotary knob must
point towards green marking on
coupling ball bar.
■ There must be no gap between the
rotary handle and the coupling ball
bar.
■ The coupling ball bar must be firmly
engaged in the opening.
■ The coupling ball bar must be locked and the key removed.9 Warning
Towing a trailer is permitted only
when a coupling ball bar is fitted correctly. If the coupling ball bardoes not engage correctly, seekthe assistance of a workshop.
Dismounting the coupling ball
bar

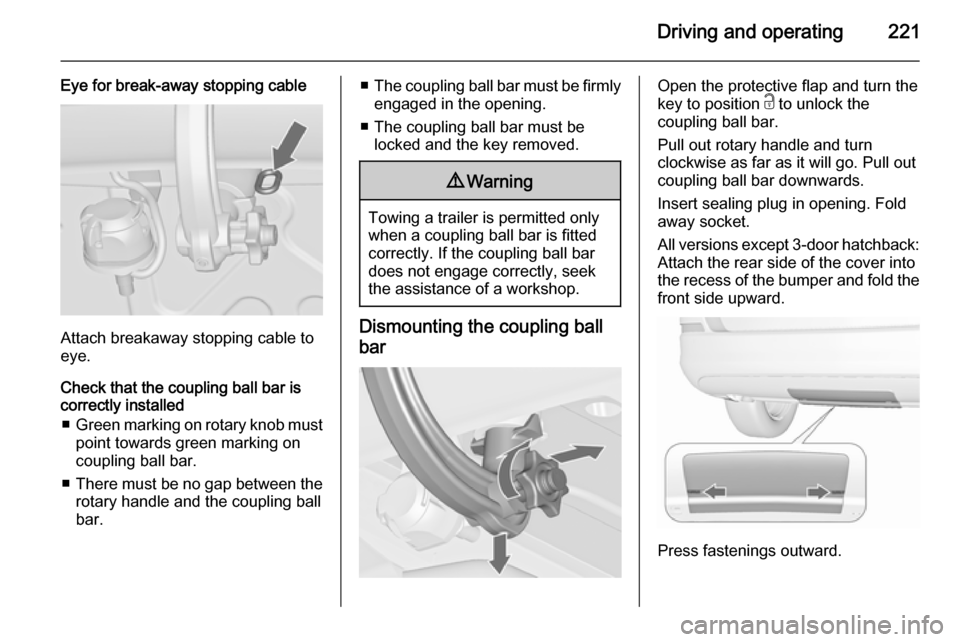

Open the protective flap and turn the
key to position c to unlock the
coupling ball bar.
Pull out rotary handle and turn
clockwise as far as it will go. Pull out coupling ball bar downwards.
Insert sealing plug in opening. Fold away socket.
All versions except 3-door hatchback:
Attach the rear side of the cover into
the recess of the bumper and fold the
front side upward.
Press fastenings outward.
Page 277 of 337

Vehicle care275
Vehicles equipped with a temporary
spare wheel:
Secure a damaged full size wheel
outside up with the wing nut in the
spare wheel well after exchanging the thread bolt by an extension bolt,
placed in the tool bag 3 257. To
replace the bolt:
1. Install the hexagon key of the wheel wrench ensuring that it
locates securely on the bolt.
2. Turn the wheel wrench anticlockwise to loosen the bolt.
Remove the bolt.
3. Take the extension bolt from the tool bag 3 257 and screw it in
hand-tight using the hexagon key
of the wheel wrench.
4. Store the tool box and the damaged wheel outside up in the
spare wheel well and secure it by
turning the wing nut clockwise on
the bolt.
The floor cover can be placed on the
projecting wheel.
Replace the extension bolt with the
short bolt before placing the
temporary spare wheel in the well after renewing or repairing the
defective wheel.
Stowing the spare wheel back in the well after replacing the
damaged wheel

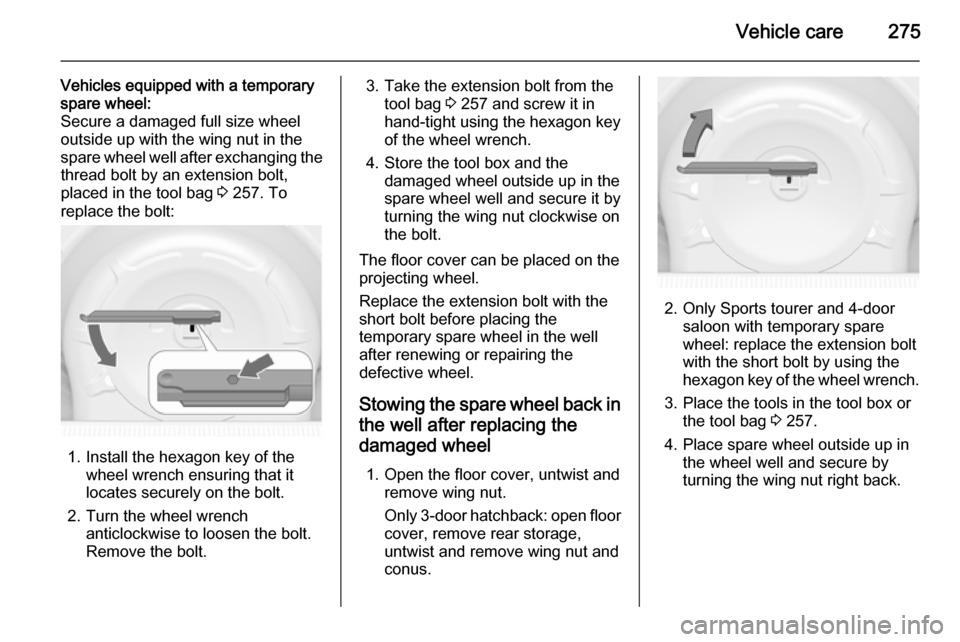

1. Open the floor cover, untwist and remove wing nut.
Only 3-door hatchback: open floor
cover, remove rear storage,
untwist and remove wing nut and
conus.
2. Only Sports tourer and 4-door saloon with temporary spare
wheel: replace the extension bolt
with the short bolt by using the
hexagon key of the wheel wrench.
3. Place the tools in the tool box or the tool bag 3 257.
4. Place spare wheel outside up in the wheel well and secure by
turning the wing nut right back.
Page 334 of 337

332
Glass panel .................................. 36
Glovebox ..................................... 59
Graphic-Info-Display, Colour- Info-Display ............................ 123
H Halogen headlights ....................232
Hand brake ......................... 171, 172
Hazard warning flashers ............143
Headlight flash ........................... 138
Headlight range adjustment ......138
Headlights................................... 136
Headlights when driving abroad 139
Head restraint adjustment .............9
Head restraints ............................ 37
Heated mirrors ............................. 31
Heated rear window ..................... 34
Heated steering wheel ...............100
Heating ........................................ 45
Heating and ventilation system . 149
Height adjustable rear floor cover 88
High beam ......................... 117, 137
High beam assist ................117, 137
Hill start assist ........................... 174
Horn ..................................... 15, 100
I
Identification plate .....................287
Ignition switch positions .............160
Immobiliser .......................... 29, 117Indicators.................................... 107
Information displays.................... 118
Instrument cluster ......................107
Instrument panel fuse box .........254
Instrument panel illumination .....250
Instrument panel illumination control .................................... 145
Instrument panel overview ........... 11
Interactive driving system ...........176
Interior care ............................... 283
Interior lighting ............................ 145
Interior lights ...................... 145, 250
Interior mirrors .............................. 31
Interruption of power supply ......169
Introduction .................................... 3
ISOFIX child restraint systems ....58
J
Jump starting ............................. 277
K Key, memorised settings ..............22
Keys ............................................. 20
Keys, locks ................................... 20
L
Lane departure warning .....115, 209
Lashing eyes ............................... 90
Lighting features .........................146
Light switch ................................ 136Load compartment ................25, 81
Load compartment cover .............85
Load compartment fuse box ......255
Loading information .....................97
Low fuel ..................................... 117
Low washer fluid ........................118
M
Malfunction indicator light ..........113
Manual anti-dazzle ......................31
Manual mode ............................. 168
Manual transmission .................. 170
Manual windows ..........................32
Memorised settings ......................22
Mirror adjustment ......................... 10
Misted light covers .....................144
N New vehicle running-in ..............160
Number plate light .....................250
O
Object detection systems ...........195
Odometer ................................... 107
Oil, engine .......................... 285, 289
Operate pedal ............................. 114
Outside temperature ..................103
Overrun cut-off ........................... 161
