Storage89
Notice■ If mounted in position 2 or 3, the
space between the rear floor
cover and the height adjustable
cover can be used as a stowage
compartment.
■ The height adjustable cover can be lifted and hooked in with the
strap when it is mounted in
position 1 or 2.
■ If mounted in position 2, an almost
completely flat load bay is created
if the rear seat backrests are
folded forwards.
■ Opening the side covers (e.g. when exchanging the rear light
bulbs) is only possible with the
height adjustable cover mounted
in position 1 or 2.Caution
The height adjustable cover is
able to withstand a load of no more
than 100 kg.
Rear floor cover, Sports tourer
Lift the rear floor cover by pulling the
handle. Fold and place the cover
behind the rear seats.

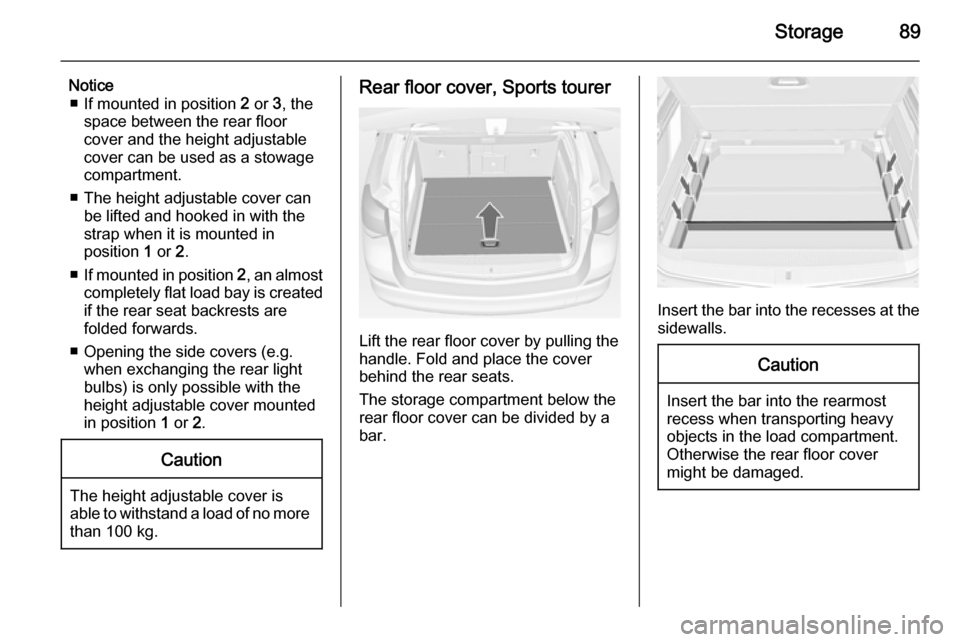

The storage compartment below the rear floor cover can be divided by a
bar.
Insert the bar into the recesses at the
sidewalls.
Caution
Insert the bar into the rearmost
recess when transporting heavy objects in the load compartment.Otherwise the rear floor cover
might be damaged.

90StorageLashing eyes
The lashing eyes are designed to
secure items against slippage, e.g.
using lashing straps or luggage net.
Cargo management
system
The FlexOrganizer is a flexible
system for dividing up the load
compartment.
The system consists of: ■ adapters,
■ mesh pockets,
■ hooks,
■ service box,
■ strap set.
The components are fitted in rails on
both side panels using adapters and
hooks.
Installation of adapters in the
rails
Fold open the handle plate, insert the adapter into the upper and lower
groove of the rail and move to the
required position. Turn the handle
plate upwards to lock the adapter. To
remove, turn the handle plate down
and move out of the rail.

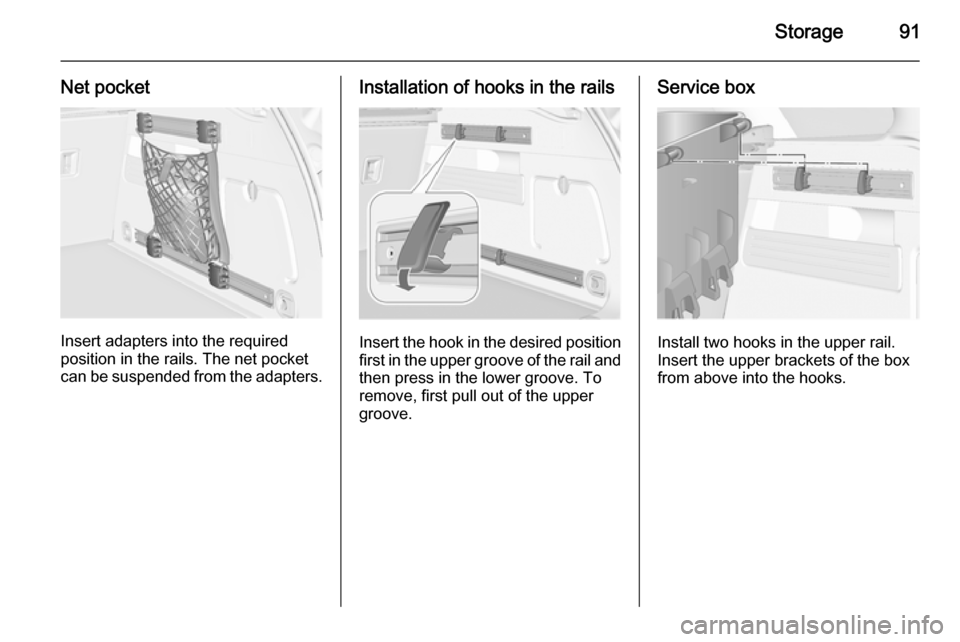

Variable partition net
Insert adapters into the required
position in the rails. Stick together the
halves of the net rods.
To install, push rods together a little
and insert into the relevant openings
in the adapters.
To remove, press the net rods
together and remove from the
adapters.

Storage91
Net pocket
Insert adapters into the required
position in the rails. The net pocket
can be suspended from the adapters.
Installation of hooks in the rails
Insert the hook in the desired position first in the upper groove of the rail and
then press in the lower groove. To
remove, first pull out of the upper
groove.
Service box
Install two hooks in the upper rail.
Insert the upper brackets of the box
from above into the hooks.

92Storage
Alternatively install both hooks in the
lower rail. Plug in the lower brackets
of the box from above into the lower
hooks.

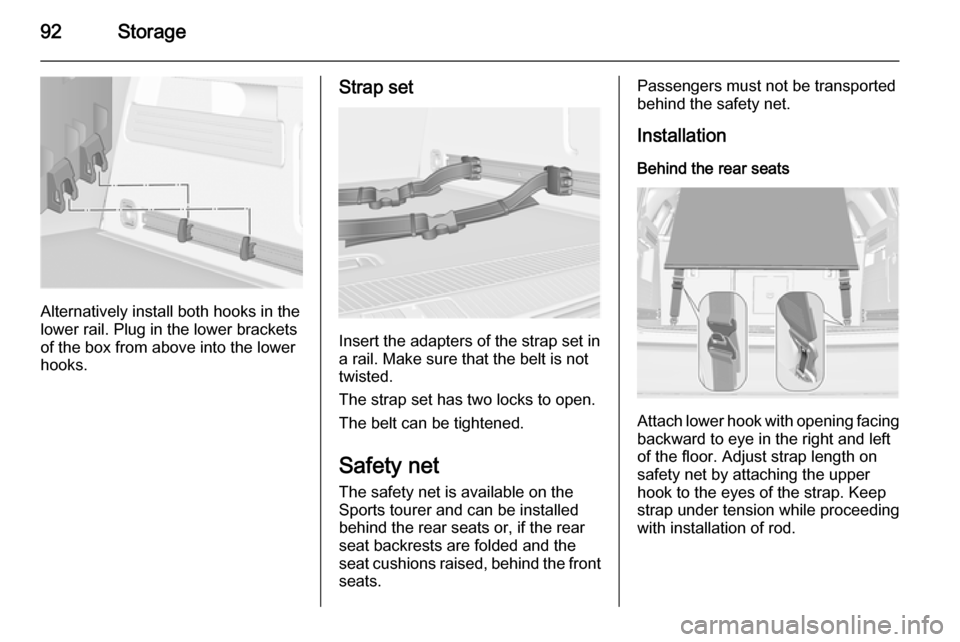

Strap set
Insert the adapters of the strap set in
a rail. Make sure that the belt is not
twisted.
The strap set has two locks to open. The belt can be tightened.
Safety net
The safety net is available on the
Sports tourer and can be installed
behind the rear seats or, if the rear
seat backrests are folded and the
seat cushions raised, behind the front seats.
Passengers must not be transported
behind the safety net.
Installation
Behind the rear seats
Attach lower hook with opening facing
backward to eye in the right and left
of the floor. Adjust strap length on
safety net by attaching the upper
hook to the eyes of the strap. Keep
strap under tension while proceeding
with installation of rod.

Storage93
Behind the front seats
Attach strap to eyes underneath the
rear seat cushion.
Fold backrests forward.
To get a flat load bay, first fold seat cushion before attaching the safety
net. Move front seats forward to ease
tension if necessary.
Installation of the rod
There are two installation openings in the roof frame: suspend and engage
rod of net at one side, compress rod and suspend and engage at other
side.
Load compartment 3 81.
Removal Unhook the safety net rods from the
brackets in the roof frame. Detach
straps from the eyes. Roll up the net
and secure with a strap.
The removed safety net can be stored under the rear floor cover 3 87.
Warning triangle
3-door hatchback, 5-door
hatchback

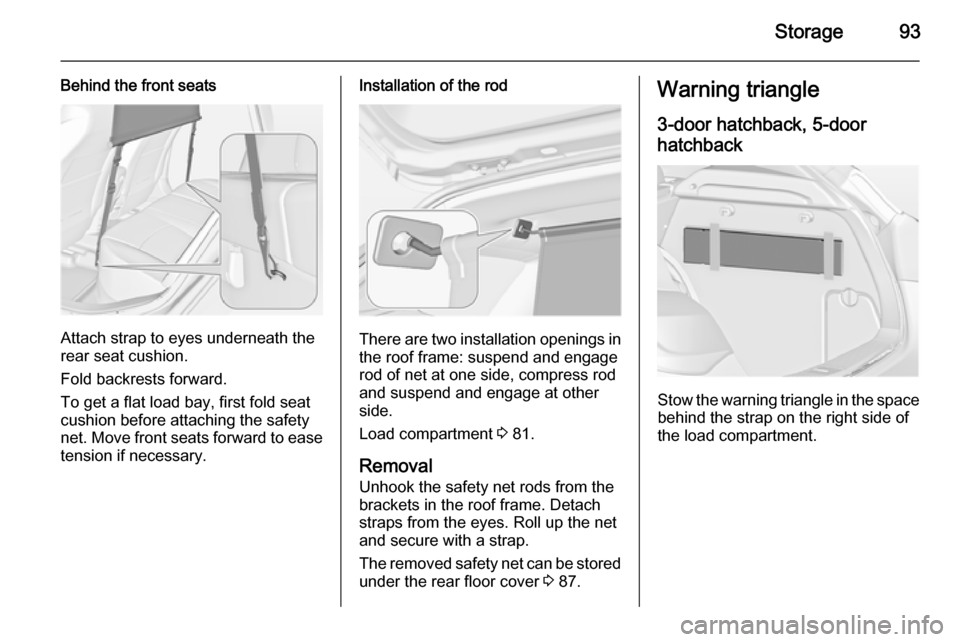

Stow the warning triangle in the space
behind the strap on the right side of
the load compartment.

94Storage
Sports tourer
Fold down straps. Stow the warning
triangle in the space behind the straps on the inside of the tailgate.
4-door saloon
Stow the warning triangle in the
recess on the left side of the load
compartment.
First aid kit
5-door hatchback
Stow the first aid kit in the stowage
compartment behind the warning
triangle.
Before first use, press in the interior
trim at the top and at the sides of the
perforation. Then fold the trim
outward to gain access to the
stowage compartment.

Storage95
3-door hatchback
Stow the first aid kit in the stowage
compartment behind the warning
triangle.
Use the recesses to fold down the
cover.
Depending on the equipment, the first aid kit can be stored in the rear
storage 3 85.
Sports tourer
Fold down strap. Stow the first aid kit
in the space behind a strap on the
inside of the tailgate.
4-door saloon
Stow the first aid kit in the space
behind the mesh net on the right side of the load compartment.

96StorageRoof rack systemRoof rack
For safety reasons and to avoid
damage to the roof, the vehicle
approved roof rack system is
recommended. For further
information contact your workshop.
Follow the installation instructions
and remove the roof rack when not in use.

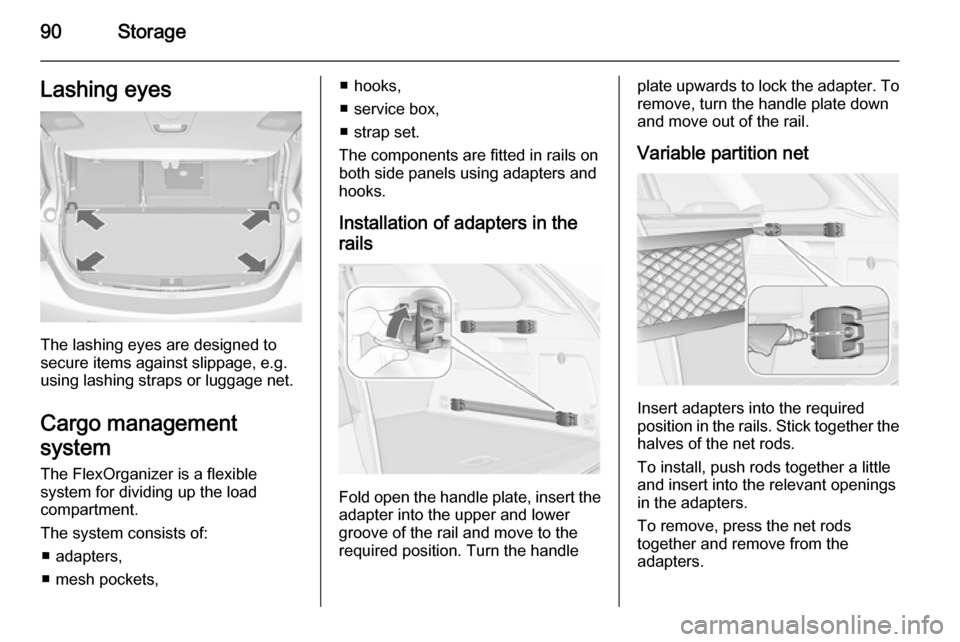

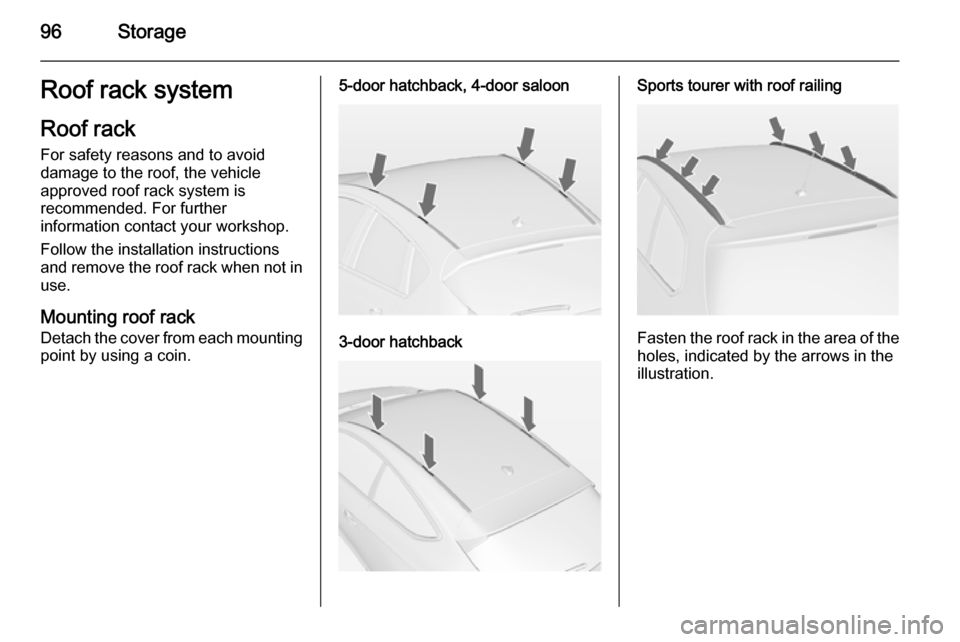

Mounting roof rack Detach the cover from each mounting
point by using a coin.5-door hatchback, 4-door saloon
3-door hatchback
Sports tourer with roof railing
Fasten the roof rack in the area of the
holes, indicated by the arrows in the
illustration.

Storage97Loading information
■ Heavy objects in the loadcompartment should be placedagainst the seat backrests. Ensure
that the backrests are securely
engaged. If objects can be stacked, heavier objects should be placed at
the bottom.
■ Secure objects with lashing straps attached to the lashing eyes 3 90.
Attach the height adjustable cover
in the lowest position (1) 3 87.
■ Use the four hooks at the sidewalls
of the load compartment for
hanging up carrier bags. Maximum
load: 5 kg per hook.
■ Sports tourer: Use the hooks at the
sidewalls of the load compartment
for hanging up carrier bags. Press
to fold out the hook.
■ Secure loose objects in the load compartment to prevent them from
sliding.
■ When transporting objects in the load compartment, the backrests ofthe rear seats must not be angled
forward.
■ Do not allow the load to protrude above the upper edge of the
backrests.
■ Do not place any objects on the load compartment cover or the
instrument panel, and do not cover
the sensor on top of the instrument
panel.
■ The load must not obstruct the operation of the pedals, parking
brake and gear selector lever, or
hinder the freedom of movement of the driver. Do not place any
unsecured objects in the interior.
■ Do not drive with an open load compartment.9 Warning
Always make sure that the load in
the vehicle is securely stowed.
Otherwise objects can be thrown
around inside the vehicle and
cause personal injury or damage
to the load or car.
■ The payload is the difference between the permitted gross

98Storage
vehicle weight (see identification
plate 3 286) and the EC kerb
weight.
To calculate the payload, enter the
data for your vehicle in the Weights
table at the front of this manual.
The EC kerb weight includes
weights for the driver (68 kg),
luggage (7 kg) and all fluids (tank
90 % full).
Optional equipment and
accessories increase the kerb
weight.
■ Driving with a roof load increases the sensitivity of the vehicle to
cross-winds and has a detrimental
effect on vehicle handling due to
the vehicle's higher centre of
gravity. Distribute the load evenly
and secure it properly with retaining
straps. Adjust the tyre pressure and
vehicle speed according to the load conditions. Check and retighten the
straps frequently.
Do not drive faster than 75 mph.
The permissible roof load is 75 kg for the 3-door / 5-door hatchbackand 4-door saloon, for the Sports
tourer it is 100 kg. The roof load is
the combined weight of the roof
rack and the load.
