VAUXHALL ASTRA J 2016.25 Infotainment system

Phone121Mobile phones and CB radio
equipment
Installation instructions and
operating guidelines
The vehicle specific installation
instructions and the operating
guidelines of the mobile phone and
handsfree manufacturer must be observed when installing and
operating a mobile telephone. Failure to do so could invalidate the vehicle
type approval (EU directive 95/54/
EC).
Recommendations for fault-free
operation:
● Professionally installed exterior antenna to obtain the maximum
range possible,
● Maximum transmission power 10 watts,
● Installation of the phone in a suitable spot, consider relevant
Note in the Owner's Manual,
section Airbag system .
Seek advice on predetermined
installation points for the external
antenna or equipment holder andways of using devices with a
transmission power exceeding
10 watts.
Use of a handsfree attachment
without external antenna with mobile
telephone standards GSM
900/1800/1900 and UMTS is only
permitted if the maximum
transmission power of the mobile
telephone is 2 watts for GSM 900 or
1 watt for the other types.
For reasons of safety, do not use the
phone while driving. Even use of a handsfree set can be a distractionwhile driving.9 Warning
Operation of radio equipment and
mobile telephones which fail to
meet above mentioned mobile
telephone standards is only
permitted using an antenna
located outside of the vehicle.
Caution
Mobile telephones and radio
equipment may lead to
malfunctions in the vehicle
electronics when operated inside
the vehicle with no exterior
antenna, unless the above
mentioned regulations are
observed.

122IndexAActivating AUX audio ..................107
Activating Bluetooth music .........107
Activating iPod audio ..................107
Activating phone .........................117
Activating phone projection ........110
Activating radio ............................. 99
Activating USB audio ..................107
Activating USB movie .................109
Activating USB picture ................108
Audio files ................................... 105
Auto volume.................................. 96
AUX AUX audio menu .....................107
Connecting device ..................105
General information ................105
B Basic operation ............................. 93
Bluetooth Bluetooth connection ..............114
Bluetooth music menu ............107
Connecting device ..................105
General information ................105
Pairing ..................................... 114
Phone ...................................... 117
Bluetooth connection ..................114C
Call Functions during a call ............117
Incoming call ........................... 117
Initiating a phone call ..............117
Ring tone ................................. 117
Call history .................................. 117
Control elements Infotainment system ..................88
Steering wheel .......................... 88
Control elements overview ...........88
D DAB ............................................ 103
Digital audio broadcasting ..........103
Displaying pictures .....................108
Display settings ..................108, 109
E Emergency call ........................... 116
F Favourite lists ............................. 101
Retrieving stations................... 101
Storing stations .......................101
File formats Audio files................................ 105
Movie files ............................... 105
Picture files.............................. 105

123GGeneral information ....105, 112, 113
AUX ......................................... 105
Bluetooth ................................. 105
DAB ......................................... 103
Infotainment system ..................86
Phone ...................................... 113
Smartphone applications ........105
USB ......................................... 105
H Home menu .................................. 93
I
Infotainment control panel ............88
Intellitext ..................................... 103
iPod ............................................ 105
Connecting device ..................105
iPod audio menu .....................107
M
Maximum startup volume .............96
Menu operation............................. 93
Mobile phones and CB radio equipment .............................. 121
Movie files................................... 105
Mute.............................................. 91
O Operation .................................... 117
External devices ......................105Menu......................................... 93
Phone ...................................... 117
Radio ......................................... 99
P Pairing ........................................ 114
Phone Bluetooth ................................. 113
Bluetooth connection ..............114
Call history .............................. 117
Emergency calls ......................116
Entering a number ..................117
Functions during a call ............117
General information ................113
Incoming call ........................... 117
Phone book ............................. 117
Phone main menu ...................117
Selecting the ring tone ............117
Speed dial number ..................117
Phone book ................................ 117
Phone projection ........................110
Picture files ................................. 105
Playing audio .............................. 107
Playing movies ........................... 109
R Radio Activating................................... 99
Configuring DAB .....................103
Configuring RDS .....................102
DAB announcements ..............103Digital audio broadcasting
(DAB) ...................................... 103
Favourite lists .......................... 101
Intellitext .................................. 103
Radio data system (RDS) .......102
Regional .................................. 102
Regionalisation ....................... 102
Retrieving stations................... 101
Selecting the waveband ............99
Station search ........................... 99
Station tuning ............................ 99
Storing stations .......................101
Usage ........................................ 99
Radio data system (RDS) ..........102
RDS ............................................ 102
Regional ..................................... 102
Regionalisation ........................... 102
Retrieving stations ......................101
Ring tone Changing the ring tone ............117
Ring tone volume ......................96
S Smartphone ................................ 105
Phone projection .....................110
Speech recognition .....................112
Speed dial numbers ...................117
Station search............................... 99
Steering wheel audio controls ......88
Storing stations ........................... 101

124Switching the Infotainmentsystem on .................................. 91
System settings ............................ 97
T
Theft-deterrent feature ................. 87
Tone settings ................................ 95
Touch beep volume ......................96
TP volume .................................... 96
U Usage ............................. 91, 99, 112
AUX ......................................... 105
Bluetooth ................................. 105
iPod ......................................... 105
Menu ......................................... 93
Phone ...................................... 117
Radio ......................................... 99
USB ......................................... 105
USB Connecting device ..................105
General information ................105
USB audio menu .....................107
USB movie menu ....................109
USB picture menu ...................108
Using smartphone applications ..110V
Voice recognition ........................112
Volume Auto volume .............................. 96
Maximum startup volume ..........96
Mute function............................. 91
Ring tone volume ......................96
Setting the volume ....................91
Speed compensated volume ....96
Touch beep volume ..................96
TP volume ................................. 96
Volume limitation at high
temperatures ............................. 91
Volume settings ............................ 96
W
Waveband selection .....................99

Introduction................................ 126
Basic operation .......................... 132
Radio ......................................... 136
External devices ........................141
Speech recognition ....................144
Phone ........................................ 145
Index .......................................... 152R300 BT

126IntroductionIntroductionGeneral information...................126
Theft-deterrent feature ...............127
Control elements overview ........128
Usage ........................................ 130General information
The Infotainment system provides
you with state-of-the-art in-car
infotainment.
Using the FM, AM or DAB radio
functions, you can register a large
number of stations on different
favourites pages.
You can connect external data
storage devices, e.g. iPod, USB
devices, or other auxiliary devices to
the Infotainment system as further
audio sources; either via a cable or
via Bluetooth.
The digital sound processor provides
you with several preset equaliser
modes for sound optimisation.
In addition, the Infotainment system is equipped with a Phone portal that
allows comfortable and safe use of
your mobile phone in the vehicle.
Optionally, the Infotainment system
can be operated using the control
panel or the controls on the steering
wheel, or - if provided by your mobile
phone - via speech recognition.Notice
This manual describes all options
and features available for the
various Infotainment systems.
Certain descriptions, including those
for display and menu functions, may not apply to your vehicle due to
model variant, country
specifications, special equipment or
accessories.
Important information on
operation and traffic safety9 Warning
Drive safely at all times when
using the Infotainment system.
If in doubt, stop the vehicle before operating the Infotainment
system.

Introduction127Radio receptionRadio reception may be disrupted bystatic, noise, distortion or loss of
reception due to:
● changes in distance from the transmitter
● multi-path reception due to reflection
● shadowing
Theft-deterrent feature
The Infotainment system is equipped
with an electronic security system for
the purpose of theft deterrence.
The Infotainment system therefore functions only in your vehicle and isworthless to a thief.

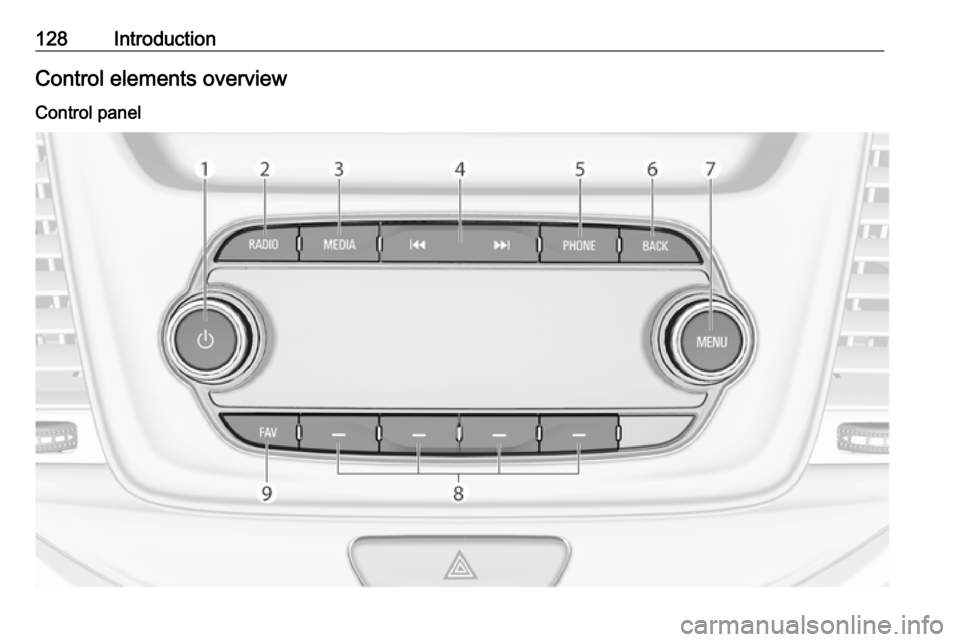

128IntroductionControl elements overviewControl panel

Introduction1291X......................................... 130
If switched off: short press:
switch power on
If switched on: short press: mute system; long press:
switch power off
Turn: adjust volume
2 RADIO
Activate radio or change
waveband ........................... 136
3 MEDIA
Activate media or change
media source ...................... 143
4 t v
Radio: short press: skip to
previous or next station;
press and hold: seek down or up .................................... 136
External devices: short
press: skip to previous or
next track; press and hold:
rewind or fast forward .........1435PHONE
Short press: open phone
menu ................................... 145
Long press: activate
speech recognition ..............144
6 BACK
Menu: one level back ..........132
Input: delete last character
or entire entry ......................132
7 MENU ................................. 132
Turn: mark screen buttons or menu items; set
numeric values
Press: select/activate a
marked screen button or
menu item; confirm set
value; switch to different
setting option; open
application-specific menu
(if available)8 Softkeys
Favourites: press: select
favourites; press and hold:
save radio stations as
favourites ............................ 137
Menu: press: select
corresponding screen
button .................................. 132
9 FAV
Press: display favourites
bar ....................................... 137

130IntroductionSteering wheel audio controls
1qw
Short press: accept phone
call ....................................... 145
or dial number in call list .....148
With Phone portal active
and calls waiting: short
press: switch between calls 148
Long press: activate
speech recognition ..............144
2 SRC (Source) ...................... 130
Press: select audio source ..130
With radio active: turn
upwards/downwards to
select next/previous
preset radio station .............136
With Phone portal active
and call list open: turn
upwards/downwards to
select next/previous entry
in call list ............................. 148
3 w
Increase volume .................. 130
4 ─
Reduce volume ...................130
5 xn
Short press: end/decline
call ....................................... 148
or close call list .................... 148
or deactivate speech
recognition .......................... 144
or activate/deactivate mute . 130Usage
Control elements
The Infotainment system is operated
via function buttons, a MENU knob
and menus that are shown on the display.
Inputs are made optionally via: ● the control panel on the Infotainment system 3 128
● audio controls on the steering wheel 3 128
● the speech recognition 3 144
Switching the Infotainment
system on or off
Press X briefly. After switching on,
the last selected Infotainment source
becomes active.
Press and hold X again to turn the
system off.
Automatic switch-off
If the Infotainment system is switched
on, pressing X while the ignition is
switched off, it switches off again
automatically after 10 minutes.
