288Technical dataTechnical dataVehicle identification..................288
Vehicle Identification Number ..288
Identification plate ...................288
Engine identification ................289
Vehicle data ............................... 290
Recommended fluids and lubricants ................................ 290
Engine data ............................. 293
Performance ............................ 296
Vehicle weight ......................... 300
Vehicle dimensions .................304
Capacities ................................ 305
Tyre pressures ........................ 307Vehicle identification

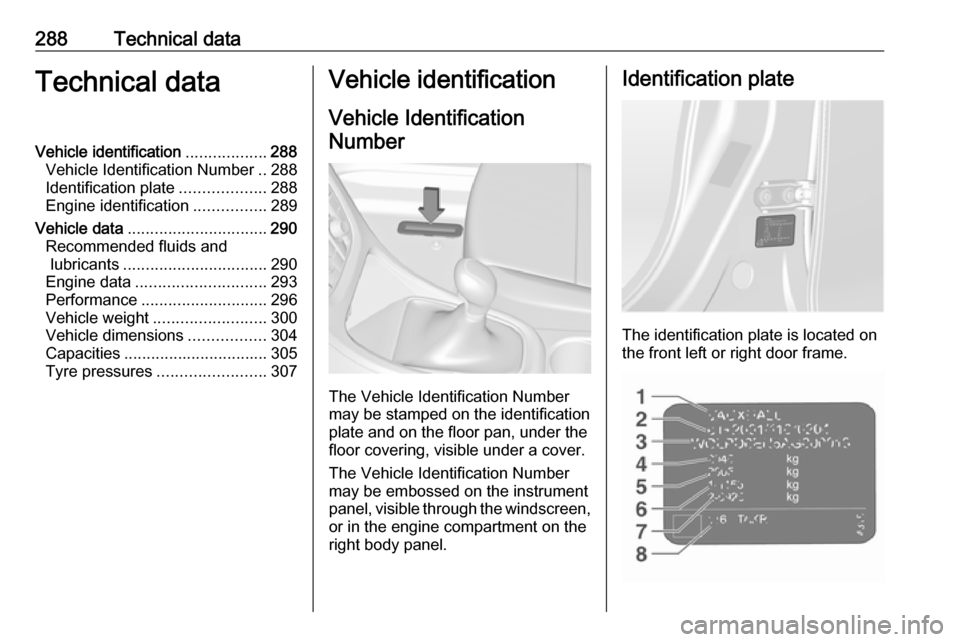

Vehicle IdentificationNumber
The Vehicle Identification Number
may be stamped on the identification plate and on the floor pan, under thefloor covering, visible under a cover.
The Vehicle Identification Number
may be embossed on the instrument
panel, visible through the windscreen,
or in the engine compartment on the
right body panel.
Identification plate
The identification plate is located on
the front left or right door frame.

304Technical dataVehicle dimensions3-door hatchback5-door hatchback4-door saloonSports tourerLength [mm]4466441946584698Width without exterior mirrors [mm]1840181418141814Width with two exterior mirrors [mm]2020201320132013Height (without antenna) [mm]1482151015001535Length of load compartment floor [mm]85583610841069Length of load compartment with folded rear seats
[mm]1617154917781835Load compartment width [mm]98010279761026Load compartment height [mm]512554546721Wheelbase [mm]2695268526852685Turning circle diameter [m]11.411.511.511.5
