clock VAUXHALL ASTRA J 2017.5 User Guide

244Vehicle care4. Insert bulb holder and turnclockwise.
5. Insert left end of the lamp, slide to
the left and insert right end.

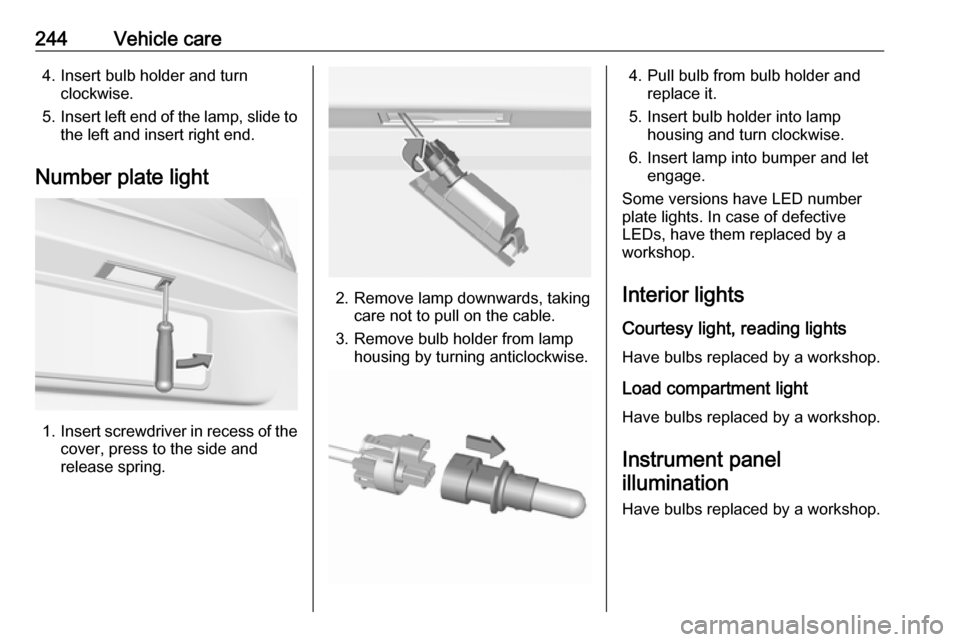

Number plate light
1. Insert screwdriver in recess of the
cover, press to the side and
release spring.
2. Remove lamp downwards, taking care not to pull on the cable.
3. Remove bulb holder from lamp housing by turning anticlockwise.
4. Pull bulb from bulb holder and replace it.
5. Insert bulb holder into lamp housing and turn clockwise.
6. Insert lamp into bumper and let engage.
Some versions have LED number
plate lights. In case of defective
LEDs, have them replaced by a
workshop.
Interior lights
Courtesy light, reading lights Have bulbs replaced by a workshop.
Load compartment light
Have bulbs replaced by a workshop.
Instrument panel illumination
Have bulbs replaced by a workshop.

302IndexAAccessories and vehicle modifications .......................... 226
Active emergency braking ..........195
Adaptive cruise control .......113, 184
Adjustable air vents ...................154
Airbag and belt tensioners .........109
Airbag deactivation ..............62, 109
Airbag label................................... 57 Airbag system .............................. 57
Air conditioning regular operation ................................ 155
Air conditioning system .............. 147
Air intake .................................... 155
Air vents...................................... 154
Antilock brake system ................ 175
Antilock brake system (ABS) .....111
Anti-theft alarm system ................35
Anti-theft locking system .............. 35
Appearance care ........................272
Armrest ................................... 52, 54
Armrest storage ........................... 71
Ashtrays ....................................... 98
Automatic anti-dazzle ..................40
Automatic light control ...............136
Automatic locking ........................28
Automatic transmission .............168
Autostop ..................................... 162
Auxiliary heater ........................... 154B
Battery discharge protection ......145
Battery voltage ........................... 123 Belts.............................................. 55
Bonnet ....................................... 228
Brake and clutch fluid .................277
Brake and clutch system ...........110
Brake assist ............................... 178
Brake fluid .................................. 231
Brakes ............................... 175, 231
Breakdown.................................. 270
Bulb replacement ....................... 234
C Capacities .................................. 291
Cargo management system ........81
Catalytic converter .....................167
Central locking system ................23
Centre console lighting ..............144
Changing tyre and wheel size ...259
Charging system ........................ 110
Child locks ................................... 29
Child restraint installation locations ................................... 66
Child restraints.............................. 63
Child restraint systems ................63
Climate control ............................. 15
Climate control systems .............146
Clock............................................. 94
Collision damage repair ..............296
