fuse VAUXHALL ASTRA J 2017.5 Owner's Manual

In brief111Power windows .....................40
2 Exterior mirrors .....................38
3 Central locking system ..........23
4 Side air vents ...................... 154
5 Cruise control .....................181
Speed limiter ....................... 183
Adaptive cruise control .......184
Forward collision alert .........192
6 Turn and lane-change
signals, headlight flash,
low/high beam, high beam
assist ................................... 141
Exit lighting ......................... 144
Parking lights ...................... 142
Buttons for Driver
Information Centre ..............114
7 Instruments ........................ 103
Driver Information Centre .... 114
8 Buttons for Driver
Information Centre ..............114
9 Forward collision alert
indicator ............................. 19210Windscreen wiper and
washer, rear wiper and
washer ................................. 91
11 Centre air vents .................. 154
12 Info-Display ........................ 120
13 Anti-theft alarm system
status LED ........................... 35
14 Hazard warning flashers ....140
15 Glovebox .............................. 70
16 CD player
17 Controls for Info-Display
operation ............................. 120
18 Climate control system ........ 147
19 Fuse box ............................ 248
Power connector ..................97
20 Traction Control system .....178
Electronic Stability Control . 179
Sport mode ........................ 180
Parking assist/Advanced
parking assist .....................198
Lane keep assist ................214
Eco button for stop-start
system ................................. 162
21 Manual transmission ..........171Automatic transmission ......168
Manual transmission
automated ........................... 172
22 Power outlet .......................... 96
23 Parking brake ......................176
24 Power button ....................... 158
25 Ignition switch with
steering wheel lock ............157
26 Steering wheel adjustment ..90
27 Horn ..................................... 91
28 Bonnet release lever ..........228
29 Storage compartment ...........71
30 Light switch ........................ 135
Headlight range
adjustment ......................... 136
Front/rear fog lights ............141
Instrument illumination .......143

70StorageStorageStorage compartments................70
Glovebox ................................... 70
Cupholders ................................ 70
Front storage ............................. 71
Armrest storage .........................71
Load compartment .......................72
Rear storage .............................. 78
Load compartment cover ...........78
Rear floor storage cover ............80
Lashing eyes ............................. 80
Cargo management system ......81
Safety net .................................. 83
Warning triangle ........................85
First aid kit ................................. 85
Roof rack system .........................86
Roof rack ................................... 86
Loading information .....................87Storage compartments9Warning
Do not store heavy or sharp
objects in the storage
compartments. Otherwise, the
storage compartment lid could
open and vehicle occupants could be injured by objects being thrown
around in the event of hard
braking, a sudden change in
direction or an accident.
Glovebox
The glovebox features a pen holder,
a coin holder and an adapter for the
locking wheel nuts.
The glovebox may also contain a CD
player and a tool for removing the
fuse cover with power connector.
The glovebox should be closed whilst driving.
Cupholders
Cupholders are located in the centre
console.

Instruments and controls97Sports Tourer: A 12 Volt power outlet
is located at the left sidewall in the
load compartment.
Do not exceed the maximum power
consumption of 120 watts.
With ignition off, the power outlet is
deactivated. Additionally, the power
outlet is deactivated in the event of
low vehicle battery voltage.
Electrical accessories that are
connected must comply with the
electromagnetic compatibility
requirements laid down in
DIN VDE 40 839.
Do not connect any current-delivering
accessories, e.g. electrical charging
devices or batteries.
Do not damage the outlets by using
unsuitable plugs.

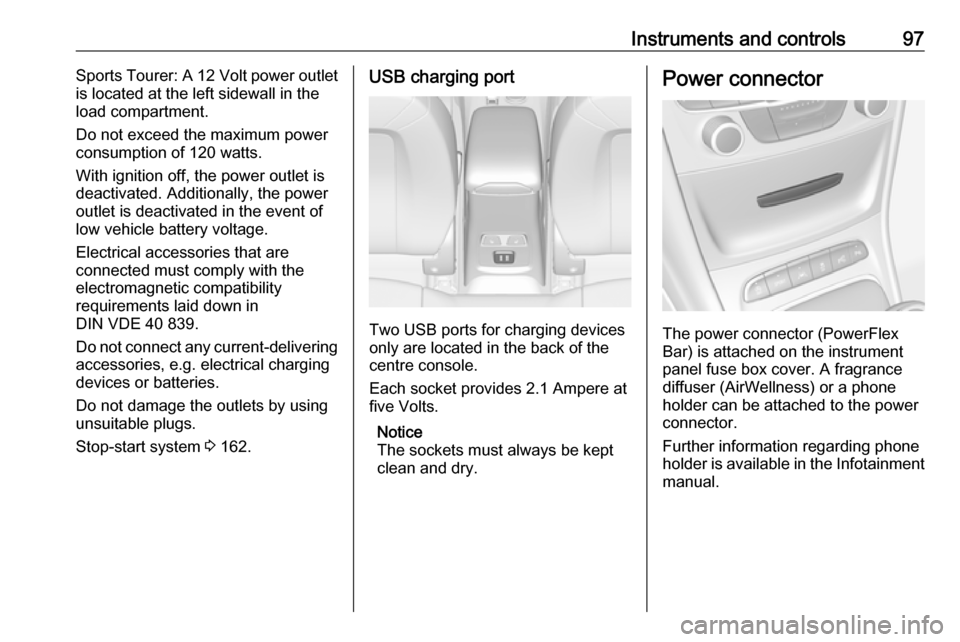

Stop-start system 3 162.USB charging port
Two USB ports for charging devices
only are located in the back of the
centre console.
Each socket provides 2.1 Ampere at
five Volts.
Notice
The sockets must always be kept
clean and dry.

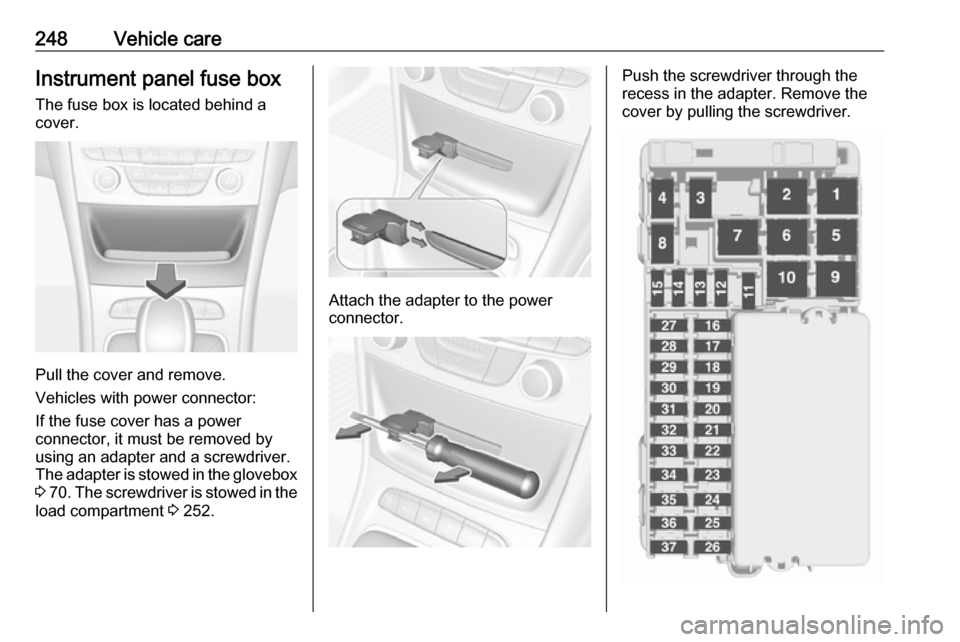

Power connector
The power connector (PowerFlex
Bar) is attached on the instrument
panel fuse box cover. A fragrance
diffuser (AirWellness) or a phone
holder can be attached to the power
connector.
Further information regarding phone
holder is available in the Infotainment
manual.

98Instruments and controlsFragrance diffuser
1.Attach fragrance diffuser to upper
side of the power connector (1)
and swivel downwards to engage
(2).
2. Press front button to activate and deactivate the fragrance diffuser.
LED indicates activation.
3. To remove fragrance diffuser, press diffuser downwards and
swivel backwards.
4. To replace fragrance pad, shift cartridge upwards and remove it.
5. Replace fragrance pad.
Ashtrays
Caution
To be used only for ash and not for combustible rubbish.

108Instruments and controlsResetOn Midlevel display press SET/CLR
on turn signal lever for several
seconds to reset. The ignition must be
switched on but engine not running.
On Uplevel display press > on
steering wheel to open the subfolder. Select Reset and confirm by pressing
9 for several seconds. The ignition
must be switched on but engine not
running.
The system must be reset every time the engine oil is changed to allow
proper functionality. Seek the
assistance of a workshop.
Next service When the system has calculated thatengine oil life has been diminished,
Change Engine Oil Soon appears in
the Driver Information Centre. Have
engine oil and filter changed by a
workshop within one week or
300 miles (whichever occurs first).
Service information 3 276.Control indicators
The control indicators described are
not present in all vehicles. The
description applies to all instrument
versions. Depending on the
equipment, the position of the control indicators may vary. When the
ignition is switched on, most control
indicators will illuminate briefly as a functionality test.
The control indicator colours mean:red:danger, important reminderyellow:warning, information, faultgreen:confirmation of activationblue:confirmation of activationwhite:confirmation of activation
See all control indicators on different
instrument clusters 3 100.
Turn signal O illuminates or flashes green.
Illuminates briefly The parking lights are switched on.
Flashes
A turn signal or the hazard warning flashers are activated.
Rapid flashing: failure of a turn signal
light or associated fuse, failure of turn signal light on trailer.
Bulb replacement 3 234, Fuses
3 245.
Turn signals 3 141.
Seat belt reminder
Seat belt reminder on front seats
X for driver's seat illuminates or
flashes red in the instrument cluster.
k for front passenger seat illuminates
or flashes red in the roof console,
when seat is occupied.

226Vehicle careVehicle careGeneral Information...................226
Accessories and vehicle modifications .......................... 226
Vehicle storage ........................227
End-of-life vehicle recovery .....227
Vehicle checks ........................... 228
Performing work ......................228
Bonnet ..................................... 228
Engine oil ................................. 229
Engine coolant ......................... 230
Washer fluid ............................ 231
Brakes ..................................... 231
Brake fluid ............................... 231
Vehicle battery ......................... 232
Diesel fuel system bleeding .....233
Wiper blade replacement ........234
Bulb replacement .......................234
Halogen headlights ..................234
Fog lights ................................. 236
Tail lights ................................. 237
Side turn signal lights ..............243
Number plate light ...................244
Interior lights ............................ 244
Instrument panel illumination ...244Electrical system ........................245
Fuses ....................................... 245
Engine compartment fuse box . 246
Instrument panel fuse box .......248
Load compartment fuse box ....250
Vehicle tools .............................. 252
Tools ........................................ 252
Wheels and tyres .......................253
Winter tyres ............................. 253
Tyre designations ....................253
Tyre pressure .......................... 254
Tyre pressure monitoring system .................................... 255
Tread depth ............................. 259
Changing tyre and wheel size . 259 Wheel covers ........................... 259
Tyre chains .............................. 260
Tyre repair kit .......................... 260
Wheel changing .......................263
Spare wheel ............................ 266
Jump starting ............................. 269
Towing ....................................... 270
Towing the vehicle ...................270
Towing another vehicle ...........271
Appearance care .......................272
Exterior care ............................ 272
Interior care ............................. 274General Information
Accessories and vehiclemodifications
We recommend the use of genuine
parts and accessories and factory
approved parts specific for your
vehicle type. We cannot assess or guarantee reliability of other products
- even if they have a regulatory or
otherwise granted approval.
Any modification, conversion or other
changes made to standard vehicle
specifications (including, without
limitation, software modifications,
modifications of the electronic control units) may invalidate the warranty
offered by Vauxhall. Furthermore,
such changes may affect driver
assistance systems, may impact fuel
consumption, CO 2 emissions and
other emissions of the vehicle and
cause the vehicle to no longer
conform to the type approval,
impacting the validity of your vehicle
registration.

Vehicle care245Electrical system
Fuses Data on the replacement fuse must
match the data on the defective fuse.
There are three fuse boxes in the
vehicle:
● engine compartment
● instrument panel
● load compartment
Before replacing a fuse, turn off the
respective switch and the ignition.

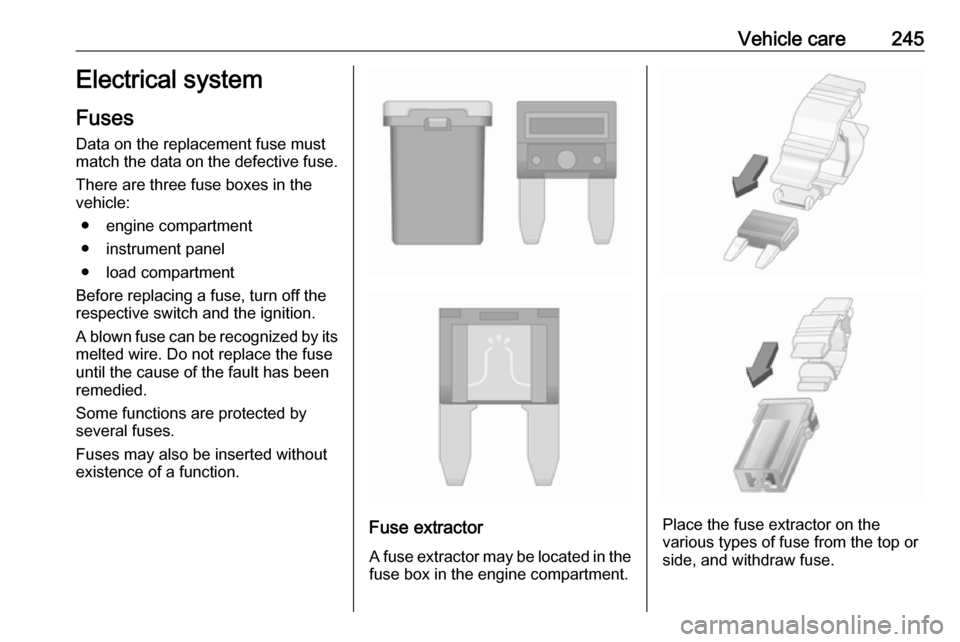

A blown fuse can be recognized by its melted wire. Do not replace the fuse
until the cause of the fault has been
remedied.
Some functions are protected by
several fuses.
Fuses may also be inserted without existence of a function.
Fuse extractor
A fuse extractor may be located in the
fuse box in the engine compartment.Place the fuse extractor on the
various types of fuse from the top or
side, and withdraw fuse.

246Vehicle careEngine compartment fuse
box
The fuse box is in the front left of the
engine compartment.
Disengage the cover and remove it.
No.Circuit1Starter2Starter3Exhaust sensor4Engine control module5Engine functions6Transmission control module7–8Engine control module9Climate control system10Diesel exhaust system11Tailgate locking system, Trans‐
mission12Seat lumbar massage13After boil pump14Diesel exhaust system15Exhaust sensor16Fuel injection17Fuel injection

Vehicle care247No.Circuit18Diesel exhaust system19Diesel exhaust system20–21DC/AC Converter22ABS23Washer system for windscreen
and rear window24–25Diesel fuel heating26Transmission control module27Power tailgate module28–29Heated rear window30Mirror defrost31–32DC transformer/LED display/
Electrical heater/Climate
control/Glow plug controllerNo.Circuit33Anti theft warning34Horn35Power outlet load compartment36Right high beam (Halogen)/
Right low beam (LED)37Left high beam (Halogen)38LED headlight/Automatic head‐
light range adjustment39Front fog light40OnStar41Water in fuel sensor/Water
pump42Manual headlight range adjust‐
ment43Fuel pump44Rear view camera/Inside rear
view mirror/Trailer module45LED headlight left/Automatic
headlight range adjustment leftNo.Circuit46Instrument cluster47Steering column lock48Rear wiper49–50LED headlight right/Automatic
headlight range adjustment
right51Left low beam (LED)52Engine control module/Trans‐
mission control module53–54Windscreen wiper55Diesel exhaust system56–57–
After having changed defective fuses,
close the fuse box cover and press
until it engages.
If the fuse box cover is not closed
correctly, malfunction may occur.

248Vehicle careInstrument panel fuse boxThe fuse box is located behind a
cover.
Pull the cover and remove.
Vehicles with power connector:
If the fuse cover has a power
connector, it must be removed by
using an adapter and a screwdriver.
The adapter is stowed in the glovebox 3 70 . The screwdriver is stowed in the
load compartment 3 252.
Attach the adapter to the power
connector.
Push the screwdriver through the
recess in the adapter. Remove the
cover by pulling the screwdriver.
