width VAUXHALL ASTRA J 2018 Infotainment system

112External devicesJPG files must be 64 to 5000 pixels in
width and 64 to 5000 pixels in height.
BMP, PNG and GIF files must be 64
to 1024 pixels in width and 64 to
1024 pixels in height.
The pictures should not exceed a file size of 1MB.
Movie files
The playable movie file formats are
AVI and MP4.
The maximum resolution is 1280 x
720 pixels. The frame rate must be
less than 30 fps.
The usable codec is H.264/MPEG-4
AVC.
The playable audio formats are MP3,
AC3, AAC and WMA.
The displayable subtitle format is
SMI.
Playing audio Activating the music function
If the device is not yet connected to
the Infotainment system, connect the
device 3 110.Usually, the respective audio main
menu is displayed automatically.
If playback is not started
automatically, e.g. if USB Auto
Launch is deactivated 3 110 , take the
following steps:
Press ; and then select AUDIO to
open the audio main menu last
selected.
Select Source in the interaction
selector bar and then select the
desired audio source to open the respective audio main menu.
Playback of the audio tracks starts
automatically.Function buttons
Interrupting and resuming playback
Touch = to interrupt playback. The
screen button changes to l.
Touch l to resume playback.
Playing the next or previous track
Touch v to play the next track.
Touch t within the first two seconds
of the track playing to return to the
previous track.
Returning to the beginning of the
current track
Touch t after two seconds of the
track playing.
Fast forwarding and rewinding
Touch and hold t or v. Release to
return to normal playback mode.
Alternatively, you can move the slider
showing the current track position to
the left or right.
Playing tracks randomly
Touch n to play the tracks in random
order. The screen button changes to
o .

162Phone holderPhone holderPhone holder............................. 162Phone holder
General information
The phone holder is attached to a
power connector (PowerFlex Bar).
Further information regarding power
connector is available in the Owner's
Manual.
Smartphones with following
dimensions can be attached to the
phone holder:
● height: up to 158.5 mm
● width: 57 to 78 mm
● depth: 6 to 11 mm
9 Warning
Devices attached to the phone
holder must be used in a way that
driver distraction is avoided and the vehicle can be driven safely at all times. You must always comply
with the respective laws and
regulations of the country where
you are driving. These laws may
differ from the information in this
manual. If in doubt, stop your
vehicle and operate devices while
the vehicle is stationary.
Caution
To avoid theft, do not leave the mobile phone in the phone holder
when leaving the vehicle.

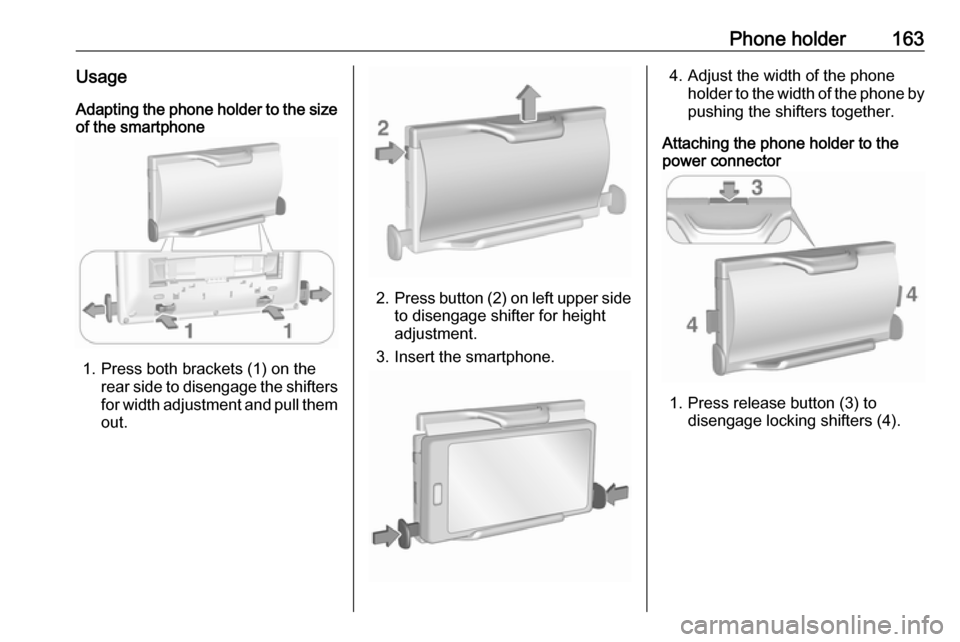

Phone holder163UsageAdapting the phone holder to the sizeof the smartphone
1. Press both brackets (1) on the
rear side to disengage the shifters
for width adjustment and pull them
out.
2. Press button (2) on left upper side
to disengage shifter for height
adjustment.
3. Insert the smartphone.
4. Adjust the width of the phone holder to the width of the phone by
pushing the shifters together.
Attaching the phone holder to the
power connector
1. Press release button (3) to
disengage locking shifters (4).
