VAUXHALL ASTRA J GTC 2018 Owner's Manual

Customer information279Maximum output: N/A
Antenna Kathrain
Kathrein Automotive GmbH
Roemerring 1, 31137 Hildesheim,
Germany
Operation frequency: N/A
Maximum output: N/A
OnStar module
LGE
LG Electronics European Shared
Service Center B.V., Krijgsman 1,
1186 DM Amstelveen, The
NetherlandsOperation
frequency (MHz)Maximum output
(dBm)2402 - 248042412 - 246218880 - 915331710 - 1785241850 - 1910241920 - 1980242500 - 257023
Immobiliser
Continental Automotive GmbH
Siemensstrasse 12, 93055
Regensburg, Germany
Operation frequency: 125 kHz
Maximum output:
5.1 dBuA/m @ 10m
Radio remote control receiver
Continental Automotive GmbH
Siemensstrasse 12, 93055
Regensburg, Germany
Operation frequency: 433.92 MHz
Maximum output: N/A
Radio remote control transmitter
Continental Automotive GmbH
Siemensstrasse 12, 93055
Regensburg, Germany
Operation frequency: 433.92 MHz
Maximum output: -5,7 dBm
Tyre pressure sensors
Schrader Electronics Ltd.
11 Technology Park, Belfast Road,
Antrim BT41 1QS, Northern Ireland,
United Kingdom
Operation frequency: 433.92 MHz
Maximum output: 10 dBm

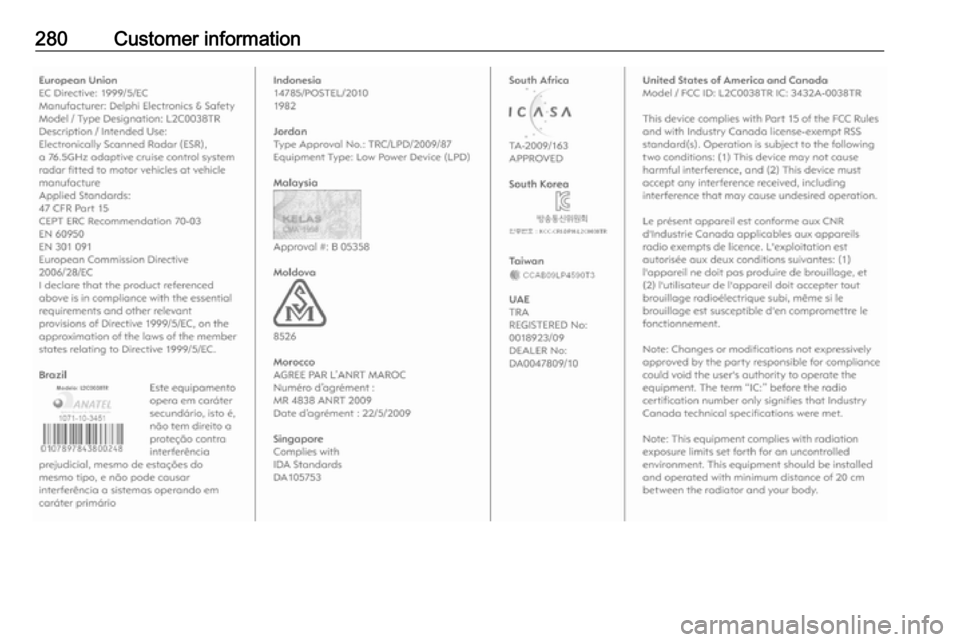

Radar systems
Country-specific Declarations of
Conformity for radar systems are
shown on the following page:

280Customer information

Customer information281Jack

282Customer informationTranslation of the original declarationof conformity
Declaration of conformity according
to EC Directive 2006/42/EC
We declare that the product:
Product designation: Jack
Type/GM part number: 13576735
is in compliance with the provisions of
Directive 2006/42/EC.
Applied technical standards:GMN9737:jackingGM 14337:standard equipment
jack – hardware
testsGMN5127:vehicle integrity –
hoisting and service
station jackingGMW15005:standard equipment
jack and spare tyre,
vehicle testISO TS 16949:quality
management
systemsThe signatory is authorised to
compile the technical documentation.
Rüsselsheim, 31st January 2014
signed by
Hans-Peter Metzger
Engineering Group Manager Chassis & Structure
Adam Opel AG
D-65423 Rüsselsheim
REACH
Registration, Evaluation,
Authorisation and Restriction of
Chemicals (REACH) is a European
Union regulation adopted to improve
the protection of human health and
the environment from the risks that
can be posed by chemicals. Visit
www.opel.com/reach for further
information and for access to the Article 33 communication.Collision damage repair
Paint thicknessDue to production techniques, the
thickness of the paint can vary
between 50 and 400 µm.
Therefore, different paint thickness is
no indicator for a collision damage
repair.
Software acknowledgement Certain OnStar components include
libcurl and unzip software and other
third party software. Below are the notices and licenses associated with
libcurl and unzip and for other third
party software please see http://
www.lg.com/global/support/
opensource/index.
libcurl Copyright and permission notice
Copyright (c) 1996 - 2010, Daniel
Stenberg, .
All rights reserved.

Customer information283Permission to use, copy, modify, and
distribute this software for any
purpose with or without fee is hereby
granted, provided that the above
copyright notice and this permission
notice appear in all copies.
The software is provided "as is",
without warranty of any kind, express
or implied, including but not limited to
the warranties of merchantability,
fitness for a particular purpose and
noninfringement of third party rights.
In no event shall the authors or
copyright holders be liable for any
claim, damages or other liability,
whether in an action of contract, tort
or otherwise, arising from, out of or in connection with the software or the
use or other dealings in the software.
Except as contained in this notice, the name of a copyright holder shall not
be used in advertising or otherwise to
promote the sale, use or other
dealings in this Software without prior
written authorization of the copyright
holder.unzip
This is version 2005-Feb-10 of the
Info-ZIP copyright and license. The
definitive version of this document
should be available at ftp://ftp.info-
zip.org/pub/infozip/license.html
indefinitely.
Copyright (c) 1990-2005 Info-ZIP. All
rights reserved.
For the purposes of this copyright and
license, “Info-ZIP” is defined as the
following set of individuals:
Mark Adler, John Bush, Karl Davis,
Harald Denker, Jean-Michel Dubois,
Jean-loup Gailly, Hunter Goatley, Ed
Gordon, Ian Gorman, Chris Herborth, Dirk Haase, Greg Hartwig, Robert
Heath, Jonathan Hudson, Paul
Kienitz, David Kirschbaum, Johnny
Lee, Onno van der Linden, Igor
Mandrichenko, Steve P. Miller, Sergio Monesi, Keith Owens, George
Petrov, Greg Roelofs, Kai Uwe
Rommel, Steve Salisbury, Dave
Smith, Steven M. Schweda, Christian
Spieler, Cosmin Truta, Antoine
Verheijen, Paul von Behren, Rich
Wales, Mike White.This software is provided “as is,”
without warranty of any kind, express or implied. In no event shall Info-ZIP
or its contributors be held liable for
any direct, indirect, incidental, special
or consequential damages arising out
of the use of or inability to use this
software.
Permission is granted to anyone to
use this software for any purpose,
including commercial applications,
and to alter it and redistribute it freely,
subject to the following restrictions:
1. Redistributions of source code must retain the above copyright
notice, definition, disclaimer, and
this list of conditions.
2. Redistributions in binary form (compiled executables) must
reproduce the above copyright
notice, definition, disclaimer, and
this list of conditions in
documentation and/or other
materials provided with the
distribution. The sole exception to this condition is redistribution of a
standard UnZipSFX binary
(including SFXWiz) as part of a
self-extracting archive; that is

284Customer informationpermitted without inclusion of this
license, as long as the normal
SFX banner has not been
removed from the binary or
disabled.
3. Altered versions--including, but not limited to, ports to new
operating systems, existing ports
with new graphical interfaces, and dynamic, shared, or static library
versions--must be plainly marked
as such and must not be
misrepresented as being the
original source. Such altered
versions also must not be
misrepresented as being Info-ZIP
releases--including, but not
limited to, labeling of the altered
versions with the names “Info-
ZIP” (or any variation thereof,
including, but not limited to,
different capitalizations), “Pocket
UnZip,” “WiZ” or “MacZip” without
the explicit permission of Info-ZIP.
Such altered versions are further
prohibited from misrepresentativeuse of the Zip-Bugs or Info-ZIP e- mail addresses or of the Info-ZIP
URL(s).
4. Info-ZIP retains the right to use the names “Info-ZIP,” “Zip,”
“UnZip,” “UnZipSFX,” “WiZ,”
“Pocket UnZip,” “Pocket Zip,” and
“MacZip” for its own source and
binary releases.
Registered trademarksApple Inc.
Apple CarPlay™ is a trademark of Apple Inc.
App Store ®
and iTunes Store ®
are
registered trademarks of Apple Inc.
iPhone ®
, iPod ®
, iPod touch ®
, iPod
nano ®
, iPad ®
and Siri ®
are registered
trademarks of Apple Inc.Bluetooth SIG, Inc.
Bluetooth ®
is a registered trademark
of Bluetooth SIG, Inc.DivX, LLC
DivX ®
and DivX Certified ®
are
registered trademarks of DivX, LLC.EnGIS Technologies, Inc.
BringGo ®
is a registered trademark of
EnGIS Technologies, Inc.Google Inc.
Android™ and Google Play™ Store
are trademarks of Google Inc.Stitcher Inc.
Stitcher™ is a trademark of Stitcher,
Inc.Verband der Automobilindustrie e.V.
AdBlue ®
is a registered trademark of
the VDA.

Customer information285Vehicle data recording
and privacy
Event data recorders Data storage modules in the
vehicle
A large number of electronic
components of your vehicle contain
data storage modules temporarily or
permanently storing technical data
about the condition of the vehicle,
events and errors. In general, this
technical information documents the
condition of parts, modules, systems
or the environment:
● operating conditions of system components (e.g. filling levels)
● status messages of the vehicle and its single components (e.g.
number of wheel revolutions / rotational speed, deceleration,
lateral acceleration)
● dysfunctions and defects in important system components● vehicle reactions in particulardriving situations ( e.g. inflation of
an airbag, activation of the
stability regulation system)
● environmental conditions (e.g. temperature)
These data are exclusively technical
and help identifying and correcting
errors as well as optimising vehicle
functions.
Motion profiles indicating travelled
routes cannot be created with these
data.
If services are used (e.g. repair
works, service processes, warranty
cases, quality assurance),
employees of the service network
(manufacturer included) are able to
read out this technical information
from the event and error data storage
modules applying special diagnostic
devices. If required, you will receive
further information at these
workshops. After an error has been
corrected, the data are deleted from
the error storage module or they are
constantly overwritten.When using the vehicle, situations
may occur in which these technical
data related to other information
(accident report, damages on the
vehicle, witness statements etc.) may
be associated with a specific person - possibly, with the assistance of an
expert.
Additional functions contractually
agreed upon with the client (e.g.
vehicle location in emergency cases)
allow the transmission of particular
vehicle data from the vehicle.
Radio Frequency
Identification (RFID)
RFID technology is used in some
vehicles for functions such as tyre
pressure monitoring and ignition
system security. It is also used in
connection with conveniences such
as radio remote controls for door
locking/unlocking and starting, and in-
vehicle transmitters for garage door
openers. RFID technology in
Vauxhall vehicles does not use or
record personal information or link
with any other Vauxhall system
containing personal information.

286IndexAAccessories and vehicle modifications .......................... 198
Active Emergency Braking .........171
Active head restraints ..................38
Adaptive cruise control .........90, 160
Adaptive forward lighting ....90,
118, 209
Adjustable air vents ...................135
Airbag and belt tensioners ...........85
Airbag deactivation ................52, 85
Airbag system .............................. 49
Air conditioning regular operation ................................ 136
Air conditioning system .............. 128
Air intake .................................... 135
Air vents...................................... 135
Antilock brake system ................ 150
Antilock brake system (ABS) .......87
Anti-theft alarm system ................27
Anti-theft locking system .............. 27
Appearance care ........................247
Armrest .................................. 45, 46
Armrest storage ........................... 60
Ashtrays ....................................... 77
Automatic anti-dazzle ..................31
Automatic light control ...............115
Automatic locking ........................24
Automatic transmission .............145Autostop..................................... 140
Auxiliary heater ........................... 134
B Battery discharge protection ......126
Battery voltage ........................... 100
Belts.............................................. 46 Bonnet ....................................... 199
Brake and clutch fluid .................252
Brake and clutch system .............86
Brake assist ............................... 152
Brake fluid .................................. 203
Brakes ............................... 150, 203
Breakdown.................................. 245
Bulb replacement ....................... 206
C Capacities .................................. 268
Car Pass ...................................... 21
Catalytic converter .....................145
Central locking system ................22
Centre console lighting ..............125
Centre console storage ...............61
Changing tyre and wheel size ...232
Charging system .......................... 86
Child locks ................................... 24
Child restraint installation locations ................................... 55
Child restraints.............................. 53
Child restraint systems ................53
Cigarette lighter ........................... 77

287Climate control ............................. 15
Climate control systems .............127
Clock............................................. 75
Code ............................................. 97
Collision damage repair ..............282
Control indicators.......................... 82
Control of the vehicle .................138
Controls ........................................ 71
Convex shape .............................. 29
Coolant and antifreeze ...............252
Cruise control ...................... 90, 157
Cupholders .................................. 58
Curtain airbag system .................. 51
Curve lighting.............................. 118
D Danger, Warnings and Cautions ...4
Daytime running lights ...............118
Declaration of conformity ............278
Diesel fuel system bleeding .......205
Diesel particle filter ...............88, 144
Door open .................................... 91
Doors ............................................ 25
Driver assistance systems ..........157
Driver Information Centre .............91
Driving characteristics and towing tips .............................. 192
Driving hints ................................ 138E
Electric adjustment ......................29
Electrical system......................... 220
Electric parking brake ...........86, 151
Electric parking brake fault ...........87
Electronic climate control system 130
Electronic driving programmes ..147
Electronic Stability Control.......... 153
Electronic Stability Control and Traction Control system ............88
Electronic Stability Control off ...... 88
End-of-life vehicle recovery .......199
Engine compartment fuse box ...221
Engine coolant ........................... 201
Engine coolant temperature gauge ....................................... 81
Engine data ............................... 260
Engine exhaust .......................... 143
Engine identification ...................256
Engine oil ................... 200, 252, 257
Engine oil pressure ......................89
Entry lighting .............................. 125
ERA GLONASS .......................... 111
Event data recorders ..................285
Exit lighting ................................ 125
Exterior care .............................. 247
Exterior light ................................. 90
Exterior lighting ....................13, 114
Exterior mirrors ............................. 29F
Fault ........................................... 148
First aid ......................................... 67
First aid kit ................................... 67
Fixed air vents ........................... 135
Fog light ....................................... 90
Fog lights ................................... 210
Folding mirrors ............................. 30
Following distance indication ......170
Forward collision alert................. 167
Front airbag system .....................50
Front fog lights ........................... 122
Front seats.................................... 39
Front storage ................................ 59
Front turn signal lights ...............212
Fuel............................................. 186
Fuel consumption - CO 2-
Emissions ............................... 191
Fuel for diesel engines ..............187
Fuel for liquid gas operation .......188
Fuel for petrol engines ...............186
Fuel gauge ................................... 79
Fuel selector ................................ 79
Fuses ......................................... 220
G Gauges ......................................... 78
General information ...................192
Glass panel .................................. 36

288Glovebox ..................................... 58
Graphic-Info-Display, Colour- Info-Display .............................. 95
H Halogen headlights ....................206
Hand brake ......................... 150, 151
Hazard warning flashers ............121
Headlight flash ........................... 116
Headlight range adjustment ......117
Headlights................................... 114 Headlights when driving abroad 117
Head restraint adjustment .............8
Head restraints ............................ 37
Heated mirrors ............................. 30
Heated rear window ..................... 34
Heated steering wheel .................71
Heating ........................................ 45
Heating and ventilation system . 127
Height adjustable rear floor cover 65
High beam ........................... 90, 116
High beam assist ..................90, 116
Hill start assist ........................... 152
Horn ....................................... 15, 72
I
Identification plate .....................255
Ignition switch positions .............139
Immobiliser ............................ 29, 90
Indicators ...................................... 78
Information displays...................... 91Instrument cluster ........................78
Instrument panel fuse box .........223
Instrument panel illumination .....219
Instrument panel illumination control .................................... 123
Instrument panel overview ........... 11
Interactive driving system ...........155
Interior care ............................... 250
Interior lighting ............................ 123
Interior lights ...................... 123, 219
Interior mirrors .............................. 31
Interruption of power supply ......148
Introduction .................................... 3
J Jump starting ............................. 244
K Key, memorised settings ..............22
Keys ............................................. 20
Keys, locks ................................... 20
L Lane departure warning .......87, 185
Lashing eyes ............................... 66
Lighting features .........................125
Light switch ................................ 114
Load compartment ................25, 62
Load compartment cover .............64
Load compartment fuse box ......224
Loading information .....................68Low fuel ....................................... 89
Low washer fluid ..........................90
LPG .............................. 79, 188, 257
M
Malfunction indicator light ............86
Manual anti-dazzle ......................31
Manual mode ............................. 147
Manual seat adjustment ...............40
Manual transmission .................. 149
Manual windows ..........................32
Memorised settings ......................22
Midlevel-Display ........................... 91
Mirror adjustment ........................... 9
Misted light covers .....................123
N New vehicle running-in ..............138
Number plate light .....................219
O
Object detection systems ...........173
Odometer ..................................... 78
Oil, engine .......................... 252, 257
OnStar ........................................ 108
Operate pedal ............................... 86
Outside temperature ....................74
Overrun cut-off ........................... 140
