Storage59
Depending on the version,
cupholders are located under a cover
in the centre console. Slide cover
backwards. Bottles can be stowed
after folding up the intermediate shelf 3 61.Additional cupholders are located in
the rear armrest. Fold down the
armrest.
Front storage
A storage compartment is located
next to the steering wheel.

60StorageUnderseat storage

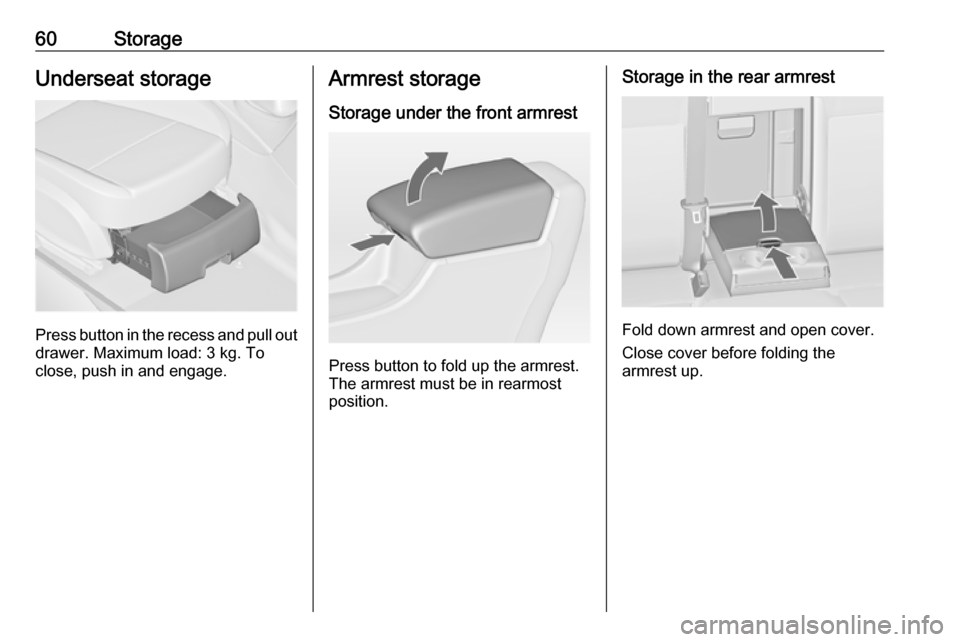

Press button in the recess and pull out
drawer. Maximum load: 3 kg. To
close, push in and engage.
Armrest storage
Storage under the front armrest
Press button to fold up the armrest.
The armrest must be in rearmost
position.
Storage in the rear armrest
Fold down armrest and open cover.
Close cover before folding the
armrest up.

Storage61Centre console storage
Front console
The storage container can be used to
store small items.
Depending on the version, a storage
compartment is located under a
cover.
Slide cover backwards.
Press button to remove the frame of
the cupholder. The frame can be
stowed in the glovebox.
A further storage compartment is
located under the intermediate shelf.
Fold up the intermediate shelf and fix it in the vertical position. The frame of
the cupholder can be reintegrated to
stow bottles.
Rear console
Pull out the drawer.
Caution
Do not use for ash or for other
combustible items.

62StorageLoad compartmentThe rear seat backrest is divided into
two parts. Both parts can be folded
down.
Load compartment extension ● Only 3-door hatchback: remove the load compartment cover ifnecessary.
● Press and hold the catch to push
the head restraints down 3 37.
● Fold up the rear armrest.● Guide the seat belts through side
supports to protect them against
damage. When folding the
backrests, pull the seat belts along with them.
● Pull the release lever on one or both sides and fold down the
backrests onto the seat cushion.
● Take the seat belt out of the seat
backrest guide and put it behind
the retainer as shown in the
illustration.
To fold up, raise the backrests and
guide them into an upright position until they engage audibly.
Ensure that the seat belts of the
outboard seats are placed in the corresponding belt guides.
The backrests are properly engaged
when the red marks on both sides near the release lever are no longer
visible.
9 Warning
When folding up, ensure that
backrests are securely locked in
position before driving. Failure to
do so may result in personal injury

Storage63or damage to the load or vehicle inthe event of hard braking or a
collision.
The seat belt of the centre seat could be blocked when the backrest is
folded up too quickly. To unlock the
retractor, push in the seat belt or pull
it out by approx. 20 mm then release.
Open the pass-through in the rear
centre backrest
● Fold down the rear armrest.
● Pull the grip and open the cover.
Suitable for loading long, narrow
objects.
Ensure that the cover engages after
folding up.The closed cover can be secured
from the side of the load
compartment. Turn the knob 90°:
knob horizontal:cover secured
from the side of
the passenger
compartmentknob vertical:cover not secured

64StorageRear storage
3-door hatchback
Press both buttons and fold down
cover.
Maximum load: 0.5 kg.
Load compartment cover
Do not place any objects on the cover.
3-door hatchback
Removing
Unhook retaining straps from tailgate.
Lift cover at the rear and push it
upwards at the front.
Remove the cover.
If the height adjustable cover is
mounted in the middle or upper
position, the load compartment cover can be stowed below it.
Height adjustable cover 3 65.
Fitting
Engage cover in side guides and fold
downwards. Attach retaining straps to
tailgate.

Storage65Rear floor storage coverRear floor cover, 3-door
hatchback
The rear floor cover can be lifted.
Hang the loop on the hook on the
lower side of the load compartment
cover.
Caution
Only use the hook for hanging up
the rear floor cover and the height adjustable cover.

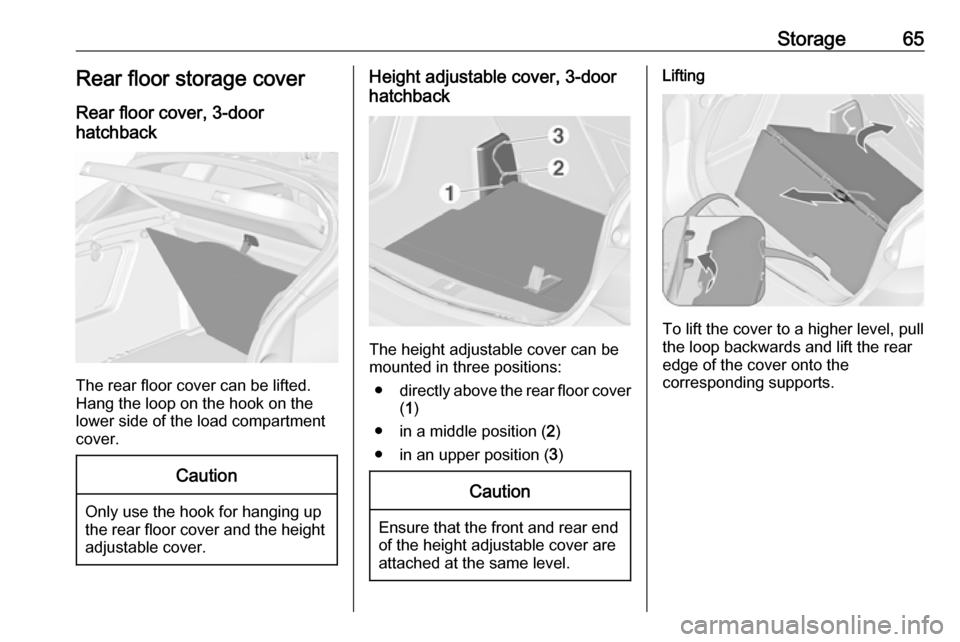

Height adjustable cover, 3-door
hatchback
The height adjustable cover can be
mounted in three positions:
● directly above the rear floor cover
( 1 )
● in a middle position ( 2)
● in an upper position ( 3)
Caution
Ensure that the front and rear end
of the height adjustable cover are
attached at the same level.
Lifting
To lift the cover to a higher level, pull
the loop backwards and lift the rear
edge of the cover onto the
corresponding supports.

66StorageLowering
To lower the cover, pull the strap
backwards and push down the front centre of the cover at the same time.
Caution
Do not lower the height adjustable
cover to position 1 in vehicles
equipped with subwoofer. The
subwoofer could be damaged.
Notice
● If mounted in position 2 or 3, the
space between the rear floor cover and the height adjustable
cover can be used as a stowage
compartment.
● The height adjustable cover can be lifted and hooked in with thestrap when it is mounted in
position 1 or 2.
● If mounted in position 2, an
almost completely flat load-bay is
created if the rear seat backrests are folded forwards.
● Opening the side covers (e.g. when exchanging the rear light
bulbs) is only possible with the
height adjustable cover mounted
in position 1 or 2.Caution
The height adjustable cover is
able to withstand a load of no more
than 100 kg.
Lashing eyes
The lashing eyes are designed to
secure items against slippage, e.g.
using lashing straps or luggage net.
The lashing eyes are only accessible
if the rear floor storage cover is in the lower position 3 65.

Storage67Warning triangle
3-door hatchback
Stow the warning triangle in the space
behind the strap on the right side of
the load compartment.
4-door saloon
Stow the warning triangle in the
recess on the left side of the load
compartment.
First aid kit
3-door hatchback
Stow the first aid kit in the stowage
compartment behind the warning
triangle.
Use the recesses to fold down the
cover.
Depending on the equipment, the first aid kit can be stored in the rear
storage compartment 3 64.

68Storage4-door saloon
Stow the first aid kit in the space
behind the mesh net on the right side of the load compartment.
Roof rack system
Roof rack
For safety reasons and to avoid
damage to the roof, the vehicle
approved roof rack system is
recommended. For further
information contact your workshop.
Follow the installation instructions
and remove the roof rack when not in use.
Mounting roof rack
Detach the cover from each mounting
point by using a coin.
Loading information
● Heavy objects in the load compartment should be placed
against the seat backrests.
Ensure that the backrests are
securely engaged. If objects can
be stacked, heavier objects
should be placed at the bottom.
● Secure objects with lashing straps attached to the lashing
eyes 3 66. Attach the height
adjustable cover in the lowest
position (1) 3 65.
