height adjustment VAUXHALL ASTRA K 2017 Infotainment system

Phone holder163UsageAdapting the phone holder to the sizeof the smartphone
1. Press both brackets (1) on the
rear side to disengage the shifters
for width adjustment and pull them
out.
2. Press button (2) on left upper side
to disengage shifter for height
adjustment.
3. Insert the smartphone.
4. Adjust the width of the phone holder to the width of the phone by
pushing together the shifters.
Attaching the phone holder to the
power connector
1. Press release button (3) to
disengage locking shifters (4).

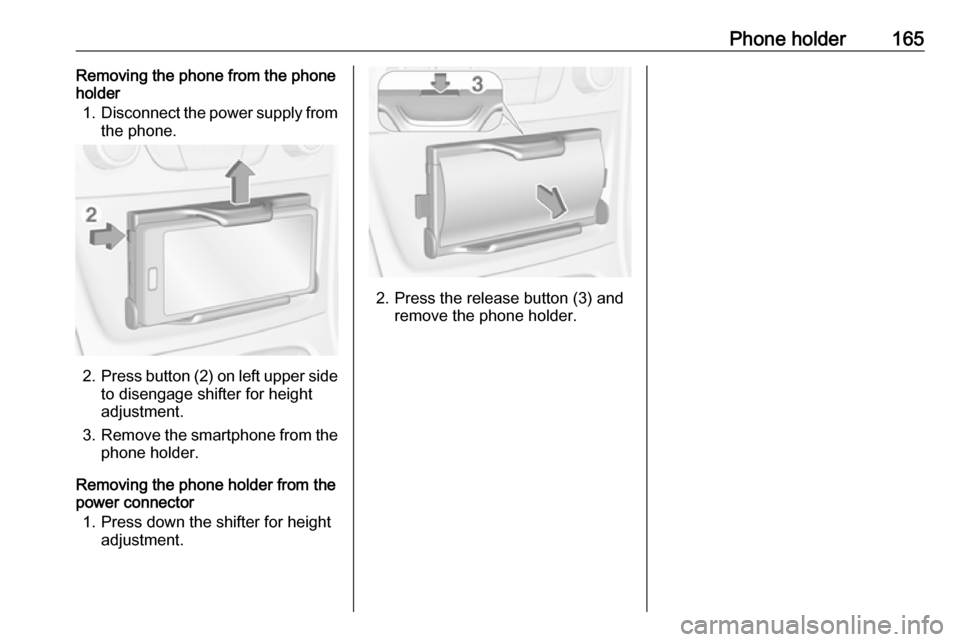

Phone holder165Removing the phone from the phone
holder
1. Disconnect the power supply from
the phone.
2. Press button (2) on left upper side
to disengage shifter for height
adjustment.
3. Remove the smartphone from the
phone holder.
Removing the phone holder from the power connector
1. Press down the shifter for height adjustment.
2. Press the release button (3) andremove the phone holder.
