VAUXHALL ASTRA K 2019 User Guide

In brief9Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Manual anti-dazzle interior mirror
3 40.
Automatic anti-dazzle interior mirror 3 41.
Exterior mirrors
Select the relevant exterior mirror by
switching the rocker control to left
mirror (L) or right mirror (R). Adjust
respective mirror by the four-way control.
Convex exterior mirrors 3 39,
Electric adjustment 3 39, Folding
exterior mirrors 3 39.
Heated exterior mirrors 3 40.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 58, Ignition
positions 3 156.

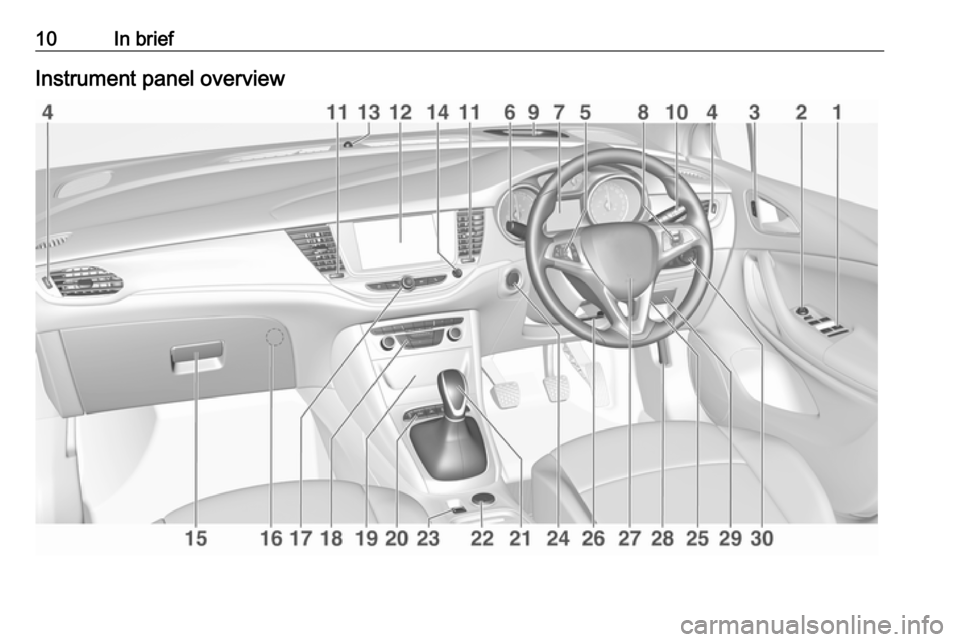

10In briefInstrument panel overview

In brief111Power windows .....................41
2 Exterior mirrors .....................39
3 Central locking system ..........24
4 Side air vents ...................... 153
5 Cruise control .....................183
Speed limiter ....................... 185
Adaptive cruise control .......186
Forward collision alert .........194
6 Turn and lane-change
signals, headlight flash,
low / high beam, high
beam assist ......................... 140
Exit lighting ......................... 143
Parking lights ...................... 141
Buttons for Driver
Information Centre ..............114
7 Instruments ........................ 102
Driver Information Centre .... 114
8 Buttons for Driver
Information Centre ..............114
9 Forward collision alert
indicator ............................. 19410Windscreen wiper and
washer, rear wiper and
washer ................................. 92
11 Centre air vents .................. 153
12 Info Display ......................... 120
13 Anti-theft alarm system
status LED ........................... 36
14 Hazard warning flashers ....139
15 Glovebox .............................. 71
16 CD player
17 Controls for Info-Display
operation ............................. 120
18 Climate control system ........ 146
19 Fuse box ............................ 249
20 Traction Control system .....180
Electronic Stability Control . 181
Sport mode ........................ 182
Parking assist/Advanced
parking assist .....................200
Lane keep assist ................215
Eco button for stop-start
system ................................. 161
21 Manual transmission ..........173
Automatic transmission ......170Manual transmission
automated ........................... 174
22 Power outlet .......................... 97
23 Parking brake ......................178
24 Power button ....................... 157
25 Ignition switch with
steering wheel lock ............156
26 Steering wheel adjustment ..91
27 Horn ..................................... 92
28 Bonnet release lever ..........230
29 Storage compartment ...........72
30 Light switch ........................ 134
Headlight range
adjustment ......................... 135
Front / rear fog lights ..........140
Instrument illumination .......142

12In briefExterior lightingAUTO:automatic light control
switches automatically
between daytime running
light and headlight8:sidelights9:headlights
Automatic light control 3 135.
Fog lights
Press button in light switch:
>:front fog lightsø:rear fog lightHeadlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:push or pull lever
High beam 3 135.
Headlight flash 3 135.
LED headlights 3 136.
High beam assist 3 136.
Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 140, Parking lights 3 141.

In brief13Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 139.
Horn
Press j.
Washer and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping
or
automatic wiping with rain
sensorOFF:off
For single wipe when the wiper is off,
press lever down to position 1x.
Windscreen wiper 3 92.

14In briefWindscreen washer
Pull lever.
Windscreen washer system 3 92,
Washer fluid 3 233, Wiper blade
replacement 3 235.
Rear window wiper
Turn outer cap to activate the rear
window wiper:
OFF:offINT:intermittent operationON:continuous operationRear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper/washer 3 94.

In brief15Climate control
Heated rear window
The heating is operated by pressing
Ü .
Heated rear window 3 43.
Heated exterior mirrors
Pressing Ü also activates the heated
exterior mirrors.
Heated exterior mirrors 3 40.
Demisting and defrosting the
windows
● Press V: the air distribution is
directed towards the windscreen.
● Set fan speed to highest level.
● Set temperature control to warmest level.
● Switch on heated rear window Ü.
● Open side air vents as required and direct them towards the doorwindows.
Heating and ventilation system
3 145.
Air conditioning system 3 146.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal and press the release button on the selector lever
and engage the gear.
Manual transmission 3 173.

16In briefAutomatic transmissionP:park positionR:reverseN:neutral modeD:automatic modeM:manual mode<:upshift]:downshift
The selector lever can only be movedout of P when the ignition is on and
the brake pedal is applied. To engage
P or R, press the release button.
Automatic transmission 3 170.
Manual transmission automatedN:neutral positionD:automatic modeM:manual mode<:upshift]:downshiftR:reverse
Engage reverse only when vehicle is stationary.
Manual transmission automated
3 174.
Starting off
Check before starting off ● tyre pressure and condition 3 255, 3 294
● engine oil level and fluid levels 3 231.
● all windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational
● proper position of mirrors 3 39,
seats 3 47 and seat belts
3 57
● brake function at low speed, particularly if the brakes are wet

In brief17Starting the engineIgnition switch
● Turn key to position 2.
● Move the steering wheel slightly to release the steering wheel
lock.
● Manual transmission: operate clutch and brake pedal.
Manual transmission automated:
operate brake pedal.
Automatic transmission: operate
brake pedal and move selector
lever to P or N.
● Do not operate accelerator pedal.
● Diesel engines: wait until control
indicator ! for preheating
extinguishes.
● Turn key to position 3 and
release after engine has been
started.
Starting the engine 3 159.
To turn the key back from position 2
to 1 or 0, first push the key all the way
in towards the steering column.
Power button ● Press Engine Start/Stop for a few
seconds until green LED
illuminates.
● Move the steering wheel slightly to release the steering wheel
lock.
● Manual transmission: operate clutch and brake pedal.
Manual transmission automated:
operate brake pedal.
Automatic transmission: operate
brake pedal and move selector
lever to P or N.
● Do not operate accelerator pedal.● Diesel engines: wait until control
indicator ! for preheating
extinguishes.
● Press Engine Start/Stop and
release.
Starting the engine 3 159.

18In briefStop-start system
If the vehicle is at a low speed or at astandstill and certain conditions are
fulfilled, an Autostop is activated.
An Autostop is indicated by the
needle at the AUTOSTOP position in
the tachometer.
A restart is indicated by the needle at
the idle speed position in the
tachometer.
Stop-start system 3 161.
Parking9 Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply the parking brake. Activate the manual
parking brake without pressing the release button. Apply as
firmly as possible on a downhill slope or uphill slope. Depress
brake pedal at the same time to
reduce operating force.
For vehicles with electric
parking brake, pull switch m for
a minimum of one second until
control indicator m illuminates
constantly and electric parking
brake is applied 3 109.
● Switch off the engine. ● If the vehicle is on a level surface or uphill slope, engage
first gear or set the selector
lever to position P before
removing the ignition key or
switching off ignition on
vehicles with power button. On
an uphill slope, turn the front
wheels away from the kerb.
If the vehicle is on a downhill
slope, engage reverse gear or
set the selector lever to position
P before removing the ignition
key or switching off ignition on
vehicles with power button.
Turn the front wheels towards
the kerb.
● Close the windows and the sunroof.
● Remove the ignition key from the ignition switch or switch off
ignition on vehicles with power
button. Turn the steering wheel until the steering wheel lock is
felt to engage.
For vehicles with automatic
transmission, the key can only
be removed when the selector
lever is in position P.
