Keys, doors and windows29Heated mirrors

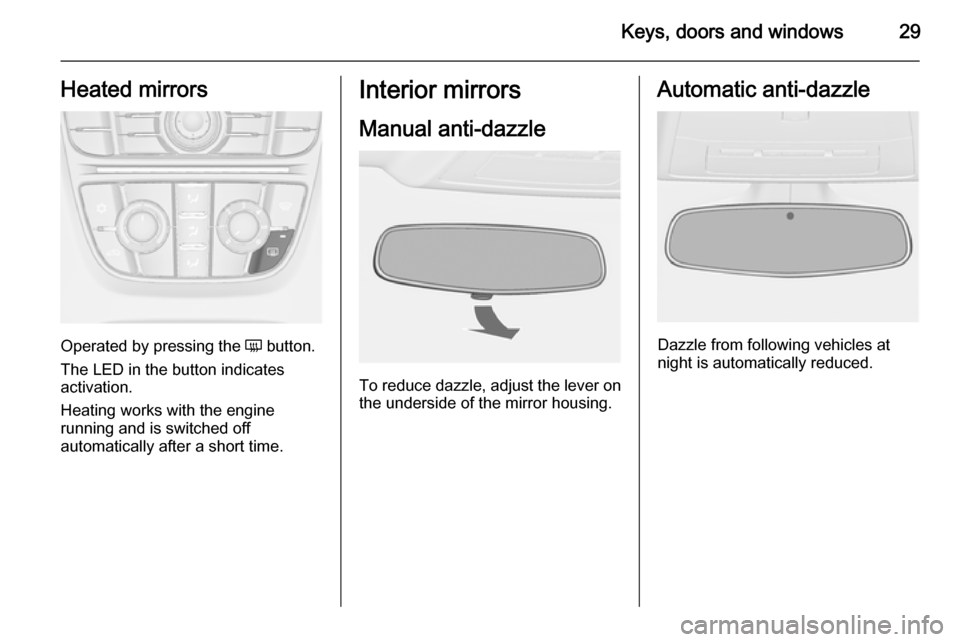

Operated by pressing the Ü button.
The LED in the button indicates
activation.
Heating works with the engine
running and is switched off
automatically after a short time.
Interior mirrors
Manual anti-dazzle
To reduce dazzle, adjust the lever on the underside of the mirror housing.
Automatic anti-dazzle
Dazzle from following vehicles at
night is automatically reduced.

30Keys, doors and windowsWindows
Windscreen
Heat-reflecting windscreen
The heat-reflecting windscreen has a
coating which reflects solar radiation. Also data signals, e.g. from toll
stations, might be reflected.
The marked areas on the windscreen are not covered with the coating.
Devices for electronic data recording
and fee payment must be attached in
these areas. Otherwise data
recording malfunctions may occur.
Windscreen stickers
Do not attach stickers such as toll
road stickers or similar on the
windscreen in the area of the interior
mirror. Otherwise the detection zone
of the sensor and the view area of the camera in the mirror housing could be restricted.
Power windows9 Warning
Take care when operating the
power windows. Risk of injury,
particularly to children.
Keep a close watch on the
windows when closing them.
Ensure that nothing becomes
trapped in them as they move.
Operable with ignition switch in
position 1 or 2 (ignition on) 3 132.
Retained power off 3 132.
Operate the switch for the respective
window by pushing to open or pulling to close.
Pushing or pulling gently to the first
detent: window moves up or down as long as the switch is operated.
Pushing or pulling firmly to the second
detent and then releasing: window
moves up or down automatically with
safety function enabled. To stop
movement, operate the switch once
more in the same direction.

Keys, doors and windows31
Central switch ,
Switch in the centre console to
operate all windows.
Push switch , briefly to open all
windows automatically.
Pull switch , briefly to close all
windows automatically.
Safety function
If the window glass encounters
resistance above the middle of the
window during automatic closing, it is
immediately stopped and opened again.
Override safety function
In the event of closing difficulties due
to frost or the like, switch on the
ignition, then pull the switch to the first
detent and hold. The window moves
up with safety function disabled. To
stop movement, release the switch.
Comfort operating with the
remote control
The windows and the soft top can be
operated remotely from outside the vehicle.Opening
■ Press button c once briefly: the
doors are unlocked.
■ Press button c once more for two
seconds: the windows move down
automatically. Press button c
longer: the soft top will be opened.
Hold button pressed until soft top is
completely opened.
Release button during opening the
soft top: movement stops for
10 seconds; pressing button once
more continues opening.
Closing ■ Press button e once briefly: the
doors are locked.
■ Press button e once more longer:
the soft top and the windows will be
closed. Hold button pressed until
soft top is completely closed.
Release button during closing the
soft top: movement stops for

32Keys, doors and windows
10 seconds; pressing button once
more continues closing.
■ If the soft top is already closed but windows are opened: pressing
button e for two seconds will close
the windows.
Confirmation
Complete opening or closing of the
soft top is confirmed by the hazard
warning flashers.
OverloadIf the windows are repeatedly
operated within short intervals, the
window operation is disabled for
some time.
Initialising the power windows
If the windows cannot be closed
automatically (e.g. after
disconnecting the vehicle battery), a
warning message is displayed in the
Driver Information Centre.
Vehicle messages 3 100.Activate the window electronics for
each window, beginning with the rear windows, as following:
1. Soft top must be closed.
2. Close doors.
3. Switch on ignition.
4. Pull switch to the second detent until the window starts to close,
and hold pulled for an additional
4 seconds.
5. Push switch to the second detent until the window starts to open
automatically.
6. Repeat for each window.Heated rear window
Operated by pressing the Ü button.
The LED in the button indicates
activation.
Heating works with the engine
running and is switched off
automatically after a short time.
Heated rear window is deactivated
when the soft top is opened.
Sun visors The sun visors can be folded down orswivelled to the side to prevent
dazzling.

Keys, doors and windows33
If the sun visors have integral mirrors,the mirror covers should be closed
when driving.
A ticket holder is located on the
backside of the sun visor.Roof
Soft top9 Warning
Take care when operating the soft
top. Risk of injury. Monitor the
action zone above, to the side and to the rear of the vehicle during
operation.
Make sure that no body parts or
objects could get pinched. Make
sure that people stay clear of the
action zone of the soft top or soft
top lid. Risk of injury.
Check the height, length and width of the available space before
operating the soft top, e.g. in a
garage, parking garage or when a
bicycle rack is fitted.
Vehicle passengers should be
informed accordingly.
Before leaving the vehicle, remove the ignition key in order to prevent
unauthorised operation of the
windows and the soft top.
Operation with the switch in the
centre console
Operable with ignition switch in
position 1 or 2 (ignition on) 3 132.
The soft top can be opened and
closed while driving up to a speed of
31 mph.
Open soft top
Hold switch pulled until the soft top is completely opened and the soft top lid
is closed. All windows will be opened
during this operation.
To close all windows pull switch ,.

34Keys, doors and windows
Close soft top
Hold switch pushed until the soft top
and the soft top lid are completely
closed. When the windows start to move up release switch, the windows will close automatically.
All windows will be opened at first
during this operation.
Confirmation of operation
Complete opening or closing of the
soft top with the switch in the centre
console is confirmed by the sound of
an acoustic signal.
Operation with remote control
Open soft top
Hold button c pressed until the soft
top is opened completely and the soft
top lid is closed. All windows will be
opened during this operation.
Close soft top
Hold button e pressed until the soft
top, the soft top lid and the windows
are completely closed. All windows
will be opened at first during this
operation.
Confirmation of operation
Complete opening or closing of the
soft top with the remote control is confirmed by the hazard warning
flashers.

Keys, doors and windows35
Safety stopThe button on the remote control or
the switch in the centre console must
be actuated until the soft top is in its
respective end position. Releasing
the button or the switch during
operation stops soft top movement
immediately. The soft top remains in
intermediate position only for a
certain time. After this time a warning
chime sounds, the hydraulic pressure
in the system decreases and the soft top can start to move by itself.
Actuating button or switch once more continues operation.
Requirements for operation ■ Vehicle is stationary or driving with a speed up to 31 mph.
■ Load compartment partition isfolded out, pass-through flap isclosed 3 71.
■ Soft top lid is engaged in closed position.
■ Boot lid is completely closed.
■ Outside temperature is not lower than -7 °C for opening and -10 °C
for closing.
■ Vehicle battery voltage is sufficient.
■ The system is not overloaded by repeated operation (max. 5
complete cycles in succession).If any of these requirements are not
fulfilled, a warning chime sounds
and a message appears in the
Driver Information Centre when the switch is actuated and the soft top
will not open or close.
■ There must be no objects in front of
the rear window or in the pivot area of the soft top and the soft top lid.
If the automatic drive is not
operational when the soft top is open, execute a manual closing process,
see the following instructions in
"Manual closing in the event of a
system fault".

36Keys, doors and windows
General hintsNotice■ Always actuate the operation switch until the acoustic signal
sounds or the hazard warning flashers illuminate, to ensure thatthe soft top is completely opened
or closed.
■ The soft top can be held in an intermediate position to facilitate
cleaning of hood spaces and
gaskets. Release the switch in the
centre console during operation to
stop soft top movement in
intermediate position for a
maximum of 7 minutes when
ignition is on. After this time a warning chime sounds, the
hydraulic pressure in the system
decreases and the soft top can
start to move by itself.
■ Do not open the soft top if it is wet,
frozen or dirty.
■ Activating the soft top on uneven ground can lead to malfunctions
and damage.
■ Vehicle care 3 218.Manual closing in the event of a
system fault In case of malfunction of the electro-
hydraulic actuation, the opened soft
top can be closed manually.
A warning chime sounds and a
message appears in the Driver
Information Centre.
Caution
We strongly advise performing manual closing of the soft top with
two persons.
Manual operation of the soft top is permitted only for closing.
Read the following description
completely before starting to
operate.
Do not perform the manual closing with the vehicle parked on
downhill gradient or inclines.
Remove the large wind deflector
before starting to operate.
After closing, have the soft top
repaired by a workshop.
Prepare the following tools which are
required for manual operation:

Keys, doors and windows37
■Allen key with 4 mm hexagon on the
long side and 6 mm hexagon on the short side, located in the glovebox,
■ two strings, located in the glovebox,
■ screwdriver, located in the tool box in the load compartment 3 199.
1. Switch off ignition.
2. Open the boot lid and remove the
screwdriver from the tool box.3. On the inside of the upper load compartment edge is a lever for
releasing the soft top lid. Locate
the lever and unlatch by swivelling the lever downwards.
Notice
The boot lid cannot be opened from
next step on.
Remove the screwdriver from the
toolbox for further operation. It is
possible that the load compartment
cannot be opened until the vehicle is
at a workshop. Therefore remove
any required objects from the load
compartment.
4. Close boot lid.5. Lift up soft top lid from both sides simultaneously up to approx. the
half raised position.

38Keys, doors and windows
6. Insert the 4 mm Allen key into the
marked position of the flap-drive
unit. Turn the Allen key clockwise
all the way to the stop, so that the
sideways flaps are swivelled in.
7. Open the soft top lid to its end position.
8. Remove plastic covers on both sides by pushing and sliding
backwards, see illustration.
9. At the hinges on each side there are visible marks.
10. Haul in the attached strings around the marked position at the
hinge on both sides and pull the
end of the string through the loop, as shown in the illustration.
11. Deposit the end of the strings at the front.
