stop start VAUXHALL CASCADA 2014 Owner's Guide

216Vehicle care
positioned as far as possible to
the front. Secure the wheel by
turning the wing nut clockwise.
6. Insert and close floor cover.9 Warning
Storing a jack, a wheel or other
equipment in the load
compartment could cause injury if they are not fixed properly. During a sudden stop or a collision, loose
equipment could strike someone.
Store jack and tools always in the
respective storage compartments
and secure them by fixing.
Damaged wheel placed in the load
compartment must always be
secured by the strap.
Temporary spare wheel
Caution
The use of a spare wheel that is smaller than the other wheels or in combination with winter tyres
could affect driveability. Have thedefective tyre replaced as soon as
possible.
Only mount one temporary spare
wheel. Do not drive faster than
50 mph. Take curves slowly. Do not
use for a long period of time.
If your vehicle gets a flat tyre on the
rear while towing another vehicle,
mount the temporary spare wheel in
the front and the full tyre in the rear.
Tyre chains 3 207.
Directional tyres Fit directional tyres such that they roll
in the direction of travel. The rolling
direction is indicated by a symbol
(e.g. an arrow) on the sidewall.
The following applies to tyres fitted
opposing the rolling direction:
■ Driveability may be affected. Have the defective tyre renewed or
repaired as soon as possible.
■ Drive particularly carefully on wet and snow-covered road surfaces.
Jump starting
Do not start with quick charger.
A vehicle with a discharged vehicle
battery can be started using jump
leads and the vehicle battery of
another vehicle.9 Warning
Be extremely careful when starting
with jump leads. Any deviation
from the following instructions can
lead to injuries or damage caused
by battery explosion or damage to the electrical systems of both
vehicles.
9 Warning
Avoid contact of the battery with
eyes, skin, fabrics and painted
surfaces. The fluid contains
sulphuric acid which can cause
injuries and damage in the event
of direct contact.

218Vehicle care
4. Switch on electrical consumers(e.g. headlights, heated rear
window) of the vehicle receiving
the jump start.
5. Reverse above sequence exactly when removing leads.Towing
Towing the vehicle

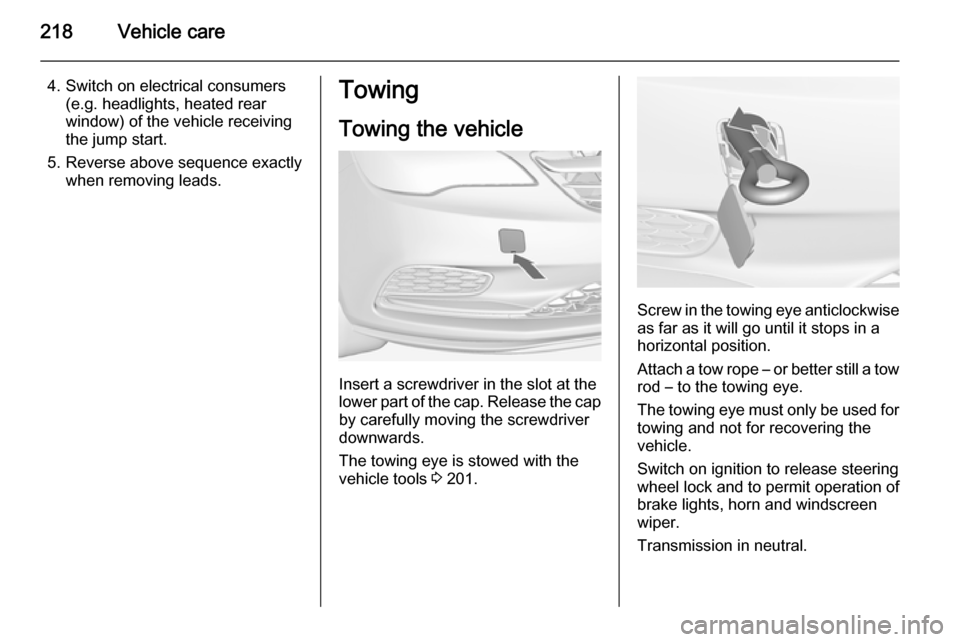

Insert a screwdriver in the slot at the
lower part of the cap. Release the cap
by carefully moving the screwdriver
downwards.
The towing eye is stowed with the
vehicle tools 3 201.
Screw in the towing eye anticlockwise
as far as it will go until it stops in a
horizontal position.
Attach a tow rope – or better still a tow rod – to the towing eye.
The towing eye must only be used for
towing and not for recovering the
vehicle.
Switch on ignition to release steering
wheel lock and to permit operation of
brake lights, horn and windscreen
wiper.
Transmission in neutral.

243
RRadio Frequency Identification (RFID) ..................................... 239
Radio remote control ...................19
Reading lights ............................ 120
Rear floor storage cover ..............73
Rear fog light ............................... 93
Rear fog lights ........................... 118
Rear storage ................................. 73
Rear view camera ...................... 165
Recommended fluids and lubricants ........................ 224, 228
Refuelling ................................... 172 Retained power off .....................134
Reversing lights .........................119
Ride control systems ..................147
Rollover protection system ...........42
S Seat adjustment ....................... 7, 47
Seat belt ........................................ 8
Seat belt reminder .......................88
Seat belts ..................................... 53
Seat folding .................................. 49
Seat position ................................ 46
Selector lever ............................. 141
Service ............................... 132, 223
Service display ............................ 85
Service information ....................223Side airbag system ......................60
Side blind spot alert ....................164
Sidelights .................................... 110
Side turn signal lights ................194
Soft top ........................................ 33
Spare wheel ............................... 213
Speed limiter............................... 153
Speedometer ............................... 83
Starting and operating ................134
Starting off ................................... 16
Starting the engine ....................135
Steering ...................................... 133
Steering wheel adjustment ......9, 76
Steering wheel controls ...............76
Stop-start system........................ 136
Storage ......................................... 68
Storage compartments .................68
Sunvisor lights ........................... 120
Sun visors .................................... 32
Symbols ......................................... 4
T
Tachometer ................................. 84
Tail lights ................................... 192
Three-point seat belt .................... 55 Tools .......................................... 201
Top-tether fastening eyes ............67
Tow bar....................................... 174 Towing ................................ 174, 218
Towing another vehicle .............219Towing equipment .....................175
Towing the vehicle .....................218
Traction Control system ............. 147
Traction Control system off........... 91
Traffic sign assistant ...................167
Trailer coupling ........................... 174
Trailer towing ............................. 175
Transmission ............................... 15
Transmission display .................141
Tread depth ............................... 206
Trip odometer .............................. 84
Turn and lane-change signals ...117
Turn signal ................................... 88
Tyre chains ................................ 207
Tyre designations ......................203
Tyre pressure ............................ 203
Tyre pressure monitoring system ............................... 92, 204
Tyre pressures ........................... 236
Tyre repair kit ............................. 208
U Ultrasonic parking assist............. 156
Upholstery .................................. 222
Upshift .......................................... 91
Using this manual ..........................3
V Vehicle battery ........................... 185
Vehicle checks............................ 181
