Vehicle care205
Turn the adjuster wheel to select the
tyre pressure monitoring system.
System status and pressure warnings
are displayed by a message with the
corresponding tyre flashing in the
Driver Information Centre.
A detected low tyre pressure
condition is indicated by the control
indicator w 3 92.
If w illuminates, stop as soon as
possible and inflate the tyres as
recommended 3 236.
After inflating, driving may be
required to update the tyre pressure
values in the DIC. During this time w
may illuminate.
If w illuminates at lower temperatures
and extinguishes after some driving,
this could be an indicator for getting low pressure. Check tyre pressure.
Vehicle messages 3 100.
If the tyre pressure must be reduced
or increased, switch off ignition.
Only mount wheels with pressure
sensors, otherwise the tyre pressure
will not be displayed and w
illuminates continuously.
A spare wheel or temporary spare
wheel is not equipped with pressure
sensors. The tyre pressure
monitoring system is not operational
for these wheels. Control indicator w
illuminates. For the further three
wheels the system remains
operational.
The use of commercially available
liquid tyre repair kits can impair the
function of the system. Factory-
approved repair kits can be used.External high-power radio equipment
could disrupt the tyre pressure
monitoring system.
Each time the tyres are replaced tyre
pressure monitoring system sensors
have to be dismounted and serviced.
For the screwed sensor: replace
valve core and sealing ring. For
clipped sensor: replace complete
valve stem.
Vehicle loading status
Adjust tyre pressure to load condition according to tyre information label or
tyre pressure chart 3 236, and select

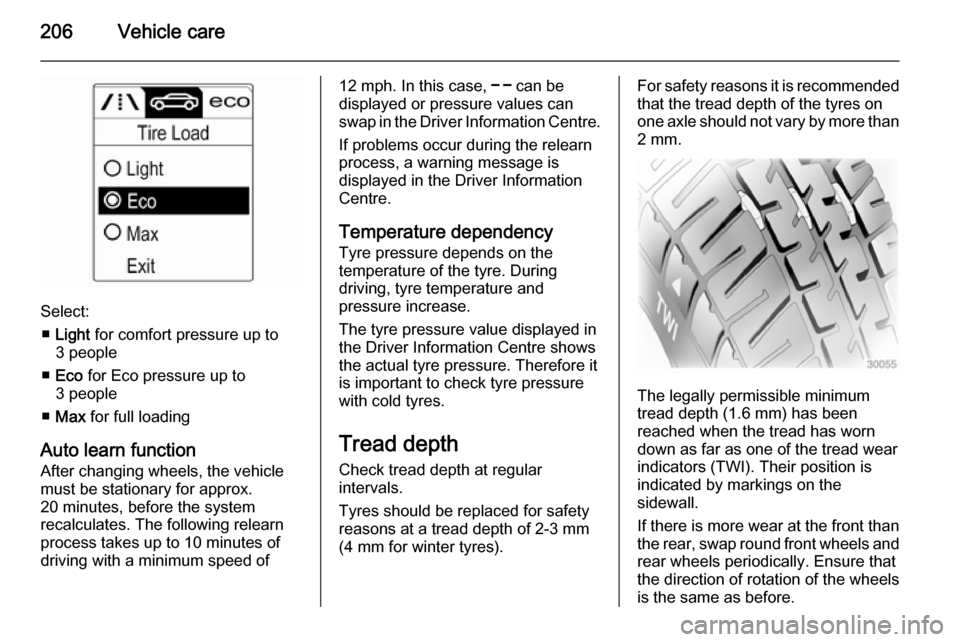

the relevant setting in the menu Tire
Load in the Driver Information Centre,
Vehicle Information Menu 3 94.

206Vehicle care
Select:■ Light for comfort pressure up to
3 people
■ Eco for Eco pressure up to
3 people
■ Max for full loading
Auto learn function
After changing wheels, the vehicle
must be stationary for approx.
20 minutes, before the system
recalculates. The following relearn process takes up to 10 minutes of
driving with a minimum speed of
12 mph. In this case, $ can be
displayed or pressure values can
swap in the Driver Information Centre.
If problems occur during the relearn
process, a warning message is
displayed in the Driver Information
Centre.
Temperature dependency Tyre pressure depends on the
temperature of the tyre. During
driving, tyre temperature and
pressure increase.
The tyre pressure value displayed in
the Driver Information Centre shows
the actual tyre pressure. Therefore it
is important to check tyre pressure
with cold tyres.
Tread depth Check tread depth at regular
intervals.
Tyres should be replaced for safety
reasons at a tread depth of 2-3 mm
(4 mm for winter tyres).For safety reasons it is recommended
that the tread depth of the tyres on
one axle should not vary by more than 2 mm.
The legally permissible minimum
tread depth (1.6 mm) has been
reached when the tread has worn
down as far as one of the tread wear
indicators (TWI). Their position is
indicated by markings on the
sidewall.
If there is more wear at the front than
the rear, swap round front wheels and
rear wheels periodically. Ensure that
the direction of rotation of the wheels
is the same as before.

222Vehicle care
After the underbody is washed, checkthe underbody and have it waxed if
necessary.
Bitumen/rubber materials could
damage the PVC coating. Have
underbody work carried out by a
workshop.
Before and after winter, wash the
underbody and have the protective
wax coating checked.
Towing equipment Do not clean the coupling ball bar with
a steam-jet or high-pressure jet
cleaner.
Interior care Interior and upholsteryOnly clean the vehicle interior,
including the instrument panel fascia
and panelling, with a dry cloth or
interior cleaner.
Clean the leather upholstery with
clear water and a soft cloth. In case of
heavy soiling, use leather care.The instrument cluster and the
displays should only be cleaned using
a soft damp cloth. If necessary use a
weak soap solution.
Clean fabric upholstery with a
vacuum cleaner and brush. Remove
stains with an upholstery cleaner.
Clothing fabrics may not be
colourfast. This could cause visible
discolourations, especially on light-
coloured upholstery. Removable
stains and discolourations should be
cleaned as soon as possible.
Clean seat belts with lukewarm water or interior cleaner.Caution
Close Velcro fasteners as open
Velcro fasteners on clothing could damage seat upholstery.
The same applies to clothing with
sharp-edged objects, like zips or
belts or studded jeans.
Plastic and rubber parts
Plastic and rubber parts can be
cleaned with the same cleaner as
used to clean the body. Use interior cleaner if necessary. Do not use any
other agent. Avoid solvents and petrol in particular. Do not use high-
pressure jet cleaners.

Service and maintenance223Service and
maintenanceGeneral information ...................223
Recommended fluids, lubricants and parts .................................... 224General information
Service information In order to ensure economical and
safe vehicle operation and to
maintain the value of your vehicle, it
is of vital importance that all
maintenance work is carried out at the proper intervals as specified.
The detailed, up-to-date service
schedule for your vehicle is available
at the workshop.
Service display 3 85.
European service intervals
Maintenance of your vehicle is
required every 20,000 miles or after
1 year , whichever occurs first, unless
otherwise indicated in the service
display.
The European service intervals are
valid for the following countries:
Andorra, Austria, Belgium, Bosnia-
Herzegovina, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark,
Estonia, Finland, France, Germany,
Greece, Greenland, Hungary,Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Macedonia,
Malta, Montenegro, Netherlands,
Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland, United Kingdom.
Service display 3 85.
International service intervals Maintenance of your vehicle is
required every 10,000 miles or after
1 year , whichever occurs first, unless
otherwise indicated in the service
display.
The international service intervals are
valid for the countries which are not
listed in the European service
intervals.
Service display 3 85.
Confirmations
Confirmation of service is recorded in the Service and Warranty Booklet.The date and mileage is completed
with the stamp and signature of the
servicing workshop.

224Service and maintenance
Make sure that the Service and
Warranty Booklet is completed
correctly as continuous proof of
service is essential if any warranty or goodwill claims are to be met, and is
also a benefit when selling the
vehicle.
Service interval with remaining
engine oil life duration The service interval is based on
several parameters depending on
usage.
The service display lets you know
when to change the engine oil.
Service display 3 85.Recommended fluids,
lubricants and parts
Recommended fluids and lubricants Only use products that meet the
recommended specifications.
Damage resulting from the use of
products not in line with these
specifications will not be covered by
the warranty.9 Warning
Operating materials are
hazardous and could be
poisonous. Handle with care. Pay
attention to information given on
the containers.
Engine oil
Engine oil is identified by its quality
and its viscosity. Quality is more
important than viscosity when
selecting which engine oil to use. The oil quality ensures e.g. engine
cleanliness, wear protection and oil
aging control, whereas viscosity
grade gives information on the oil's
thickness over a temperature range.
Dexos is the newest engine oil quality
that provides optimum protection for
gasoline and diesel engines. If it is unavailable, engine oils of other listed qualities have to be used.
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
3 228.
Topping up engine oil
Engine oils of different manufacturers
and brands can be mixed as long as
they comply with the required engine
oil quality and viscosity.
Use of engine oil with only
ACEA A1/B1 or only A5/B5 quality is
prohibited, since it can cause long-
term engine damage under certain
operating conditions.
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
3 228.

241
Control indicators.......................... 86
Control of the vehicle .................133
Controls ........................................ 76
Convex shape .............................. 28
Coolant and antifreeze ...............224
Cruise control ...................... 93, 151
Cupholders .................................. 69
Curve lighting.............................. 114
D
Danger, Warnings and Cautions ...3
Daytime running lights ...............114
Declaration of conformity ............238
Diesel fuel system bleeding .......187
Diesel particle filter ...............91, 139
Door open .................................... 93
Doors ............................................ 23
Driver assistance systems ..........151
Driver Information Centre .............94
Driving characteristics and towing tips .............................. 174
Driving hints ................................ 133
E Electric adjustment ......................28
Electrical system......................... 196
Electric parking brake ...................90
Electric parking brake fault ...........90
Electronic climate control system 126
Electronic driving programmes ..142Electronic Stability Control.......... 148
Electronic Stability Control and Traction Control system ............91
Electronic Stability Control off....... 91
End-of-life vehicle recovery .......181
Engine compartment fuse box ...197
Engine coolant ........................... 184
Engine coolant temperature gauge ....................................... 85
Engine data ............................... 231
Engine exhaust .......................... 139
Engine identification ...................227
Engine oil ................... 182, 224, 228
Engine oil pressure ......................92
Entry lighting .............................. 121
Event data recorders ..................238
Exit lighting ................................ 121
Exterior care .............................. 220
Exterior light ................................. 93
Exterior lighting ....................12, 110
Exterior mirrors ............................. 28
F
Fault ........................................... 143
First aid ......................................... 74
First aid kit ................................... 74
Fixed air vents ........................... 131
Fog light ....................................... 93
Fog lights ................................... 191
Folding mirrors ............................. 28Following distance indication ......156
Forward collision alert................. 154
Front airbag system .....................60
Front fog lights ........................... 118
Front seats.................................... 46
Front storage ................................ 69
Front turn signal lights ...............191
Fuel............................................. 171
Fuel consumption - CO 2-
Emissions ............................... 173
Fuel for diesel engines ..............172
Fuel for petrol engines ...............171
Fuel gauge ................................... 85
Fuses ......................................... 196
G Gauges ......................................... 83
General information ...................174
Glovebox ..................................... 68
Graphic-Info-Display, Colour- Info-Display .............................. 98
Ground clearance .......................134
H
Halogen headlights ....................188
Hand brake ......................... 144, 145
Hazard warning flashers ............117
Headlight flash ........................... 112
Headlight range adjustment ......113
Headlights................................... 110

242
Headlights when driving abroad 113
Head restraint adjustment .............8
Head restraints ............................ 44
Heated mirrors ............................. 29
Heated rear window ..................... 32
Heated steering wheel .................77
Heating ........................................ 53
Heating and ventilation system . 123
High beam ........................... 93, 111
High beam assist ..................93, 112
Hill start assist ........................... 147
Horn ....................................... 13, 77
I
Identification plate .....................226
Ignition switch positions .............134
Immobiliser ............................ 27, 93
Indicators ...................................... 83
Information displays...................... 94
Instrument cluster ........................83
Instrument panel fuse box .........199
Instrument panel illumination .....195
Instrument panel illumination control .................................... 119
Instrument panel overview ........... 10
Interactive driving system ...........149
Interior care ............................... 222
Interior lighting ............................ 119
Interior lights ...................... 119, 195
Interior mirrors .............................. 29Interruption of power supply ......143
Introduction .................................... 3
ISOFIX child restraint systems ....67
J Jump starting ............................. 216
K Key, memorised settings ..............20
Keys ............................................. 18
Keys, locks ................................... 18
L Lane departure warning .......91, 170
Lashing eyes ............................... 74
Light switch ................................ 110
Load compartment ................23, 71
Load compartment fuse box ......200
Loading information .....................75
Low fuel ....................................... 92
M Malfunction indicator light ............89
Manual anti-dazzle ......................29
Manual mode ............................. 142
Manual transmission .................. 144
Memorised settings ......................20
Mirror adjustment ........................... 9
Misted light covers .....................119N
New vehicle running-in ..............134
Number plate light .....................195
O Object detection systems ...........156
Odometer ..................................... 84
Oil, engine .......................... 224, 228
Outside temperature ....................80
Overrun cut-off ........................... 136
P Parking ................................ 17, 138
Parking assist ............................ 156
Parking brake ............................ 145
Parking lights ............................. 118
Particulate filter ........................... 139
Performance .............................. 232
Performing work ........................181
Pollen filter ................................. 131
Power outlets ............................... 82
Power seat adjustment ................50
Power steering.............................. 91
Power windows ............................ 30
Preheating ................................... 91
Puncture ..................................... 211
Q
Quickheat ................................... 130

243
RRadio Frequency Identification (RFID) ..................................... 239
Radio remote control ...................19
Reading lights ............................ 120
Rear floor storage cover ..............73
Rear fog light ............................... 93
Rear fog lights ........................... 118
Rear storage ................................. 73
Rear view camera ...................... 165
Recommended fluids and lubricants ........................ 224, 228
Refuelling ................................... 172 Retained power off .....................134
Reversing lights .........................119
Ride control systems ..................147
Rollover protection system ...........42
S Seat adjustment ....................... 7, 47
Seat belt ........................................ 8
Seat belt reminder .......................88
Seat belts ..................................... 53
Seat folding .................................. 49
Seat position ................................ 46
Selector lever ............................. 141
Service ............................... 132, 223
Service display ............................ 85
Service information ....................223Side airbag system ......................60
Side blind spot alert ....................164
Sidelights .................................... 110
Side turn signal lights ................194
Soft top ........................................ 33
Spare wheel ............................... 213
Speed limiter............................... 153
Speedometer ............................... 83
Starting and operating ................134
Starting off ................................... 16
Starting the engine ....................135
Steering ...................................... 133
Steering wheel adjustment ......9, 76
Steering wheel controls ...............76
Stop-start system........................ 136
Storage ......................................... 68
Storage compartments .................68
Sunvisor lights ........................... 120
Sun visors .................................... 32
Symbols ......................................... 4
T
Tachometer ................................. 84
Tail lights ................................... 192
Three-point seat belt .................... 55 Tools .......................................... 201
Top-tether fastening eyes ............67
Tow bar....................................... 174 Towing ................................ 174, 218
Towing another vehicle .............219Towing equipment .....................175
Towing the vehicle .....................218
Traction Control system ............. 147
Traction Control system off........... 91
Traffic sign assistant ...................167
Trailer coupling ........................... 174
Trailer towing ............................. 175
Transmission ............................... 15
Transmission display .................141
Tread depth ............................... 206
Trip odometer .............................. 84
Turn and lane-change signals ...117
Turn signal ................................... 88
Tyre chains ................................ 207
Tyre designations ......................203
Tyre pressure ............................ 203
Tyre pressure monitoring system ............................... 92, 204
Tyre pressures ........................... 236
Tyre repair kit ............................. 208
U Ultrasonic parking assist............. 156
Upholstery .................................. 222
Upshift .......................................... 91
Using this manual ..........................3
V Vehicle battery ........................... 185
Vehicle checks............................ 181
