height VAUXHALL CASCADA 2014 Owner's Manual

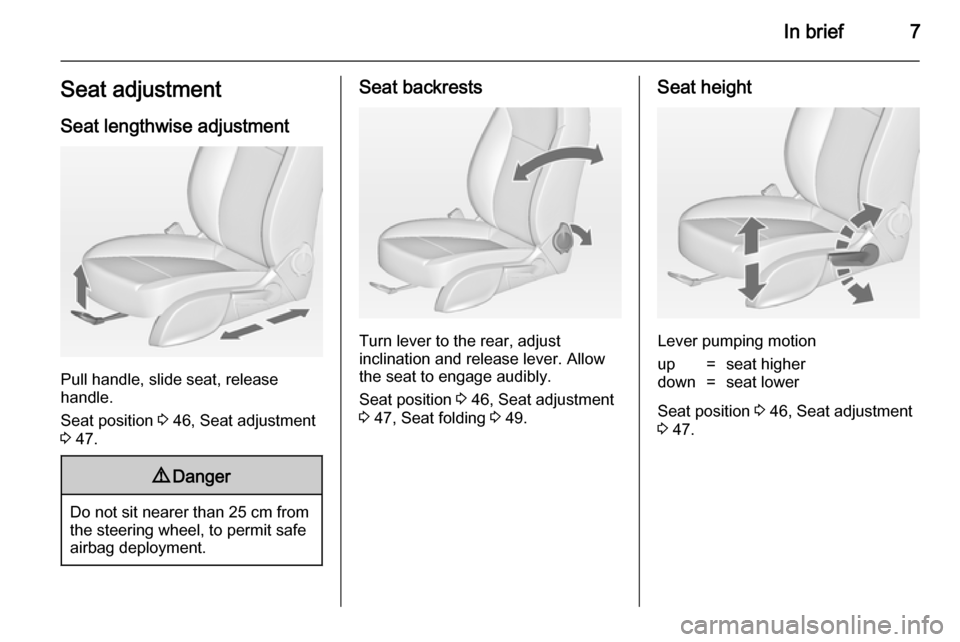

In brief7Seat adjustmentSeat lengthwise adjustment
Pull handle, slide seat, release
handle.
Seat position 3 46, Seat adjustment
3 47.
9 Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.
Seat backrests
Turn lever to the rear, adjust
inclination and release lever. Allow
the seat to engage audibly.
Seat position 3 46, Seat adjustment
3 47, Seat folding 3 49.
Seat height
Lever pumping motion
up=seat higherdown=seat lower
Seat position 3 46, Seat adjustment
3 47.

8In brief

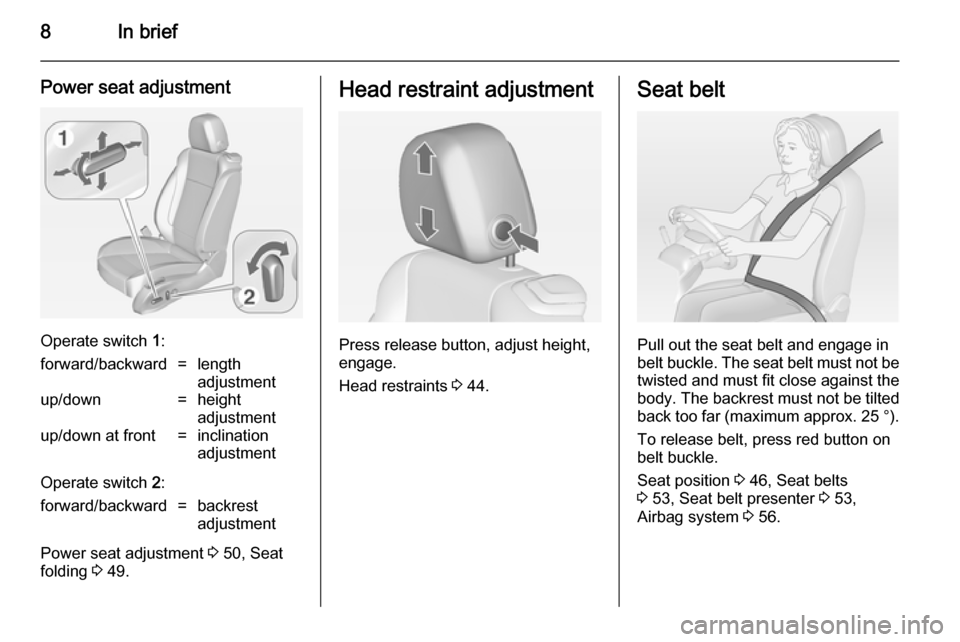

Power seat adjustment
Operate switch 1:
forward/backward=length
adjustmentup/down=height
adjustmentup/down at front=inclination
adjustment
Operate switch 2:
forward/backward=backrest
adjustment
Power seat adjustment 3 50, Seat
folding 3 49.
Head restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 44.
Seat belt
Pull out the seat belt and engage in
belt buckle. The seat belt must not be twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25 ° ).
To release belt, press red button on belt buckle.
Seat position 3 46, Seat belts
3 53, Seat belt presenter 3 53,
Airbag system 3 56.

Keys, doors and windows33
If the sun visors have integral mirrors,the mirror covers should be closed
when driving.
A ticket holder is located on the
backside of the sun visor.Roof
Soft top9 Warning
Take care when operating the soft
top. Risk of injury. Monitor the
action zone above, to the side and to the rear of the vehicle during
operation.
Make sure that no body parts or
objects could get pinched. Make
sure that people stay clear of the
action zone of the soft top or soft
top lid. Risk of injury.
Check the height, length and width of the available space before
operating the soft top, e.g. in a
garage, parking garage or when a
bicycle rack is fitted.
Vehicle passengers should be
informed accordingly.
Before leaving the vehicle, remove the ignition key in order to prevent
unauthorised operation of the
windows and the soft top.
Operation with the switch in the
centre console
Operable with ignition switch in
position 1 or 2 (ignition on) 3 134.
The soft top can be opened and
closed while driving up to a speed of
31 mph.
Open soft top
Hold switch pulled until the soft top is completely opened and the soft top lid
is closed. All windows will be opened
during this operation.
To close all windows pull switch ,.

44Seats, restraintsSeats, restraintsHead restraints............................ 44
Front seats ................................... 46
Seat belts ..................................... 53
Airbag system .............................. 56

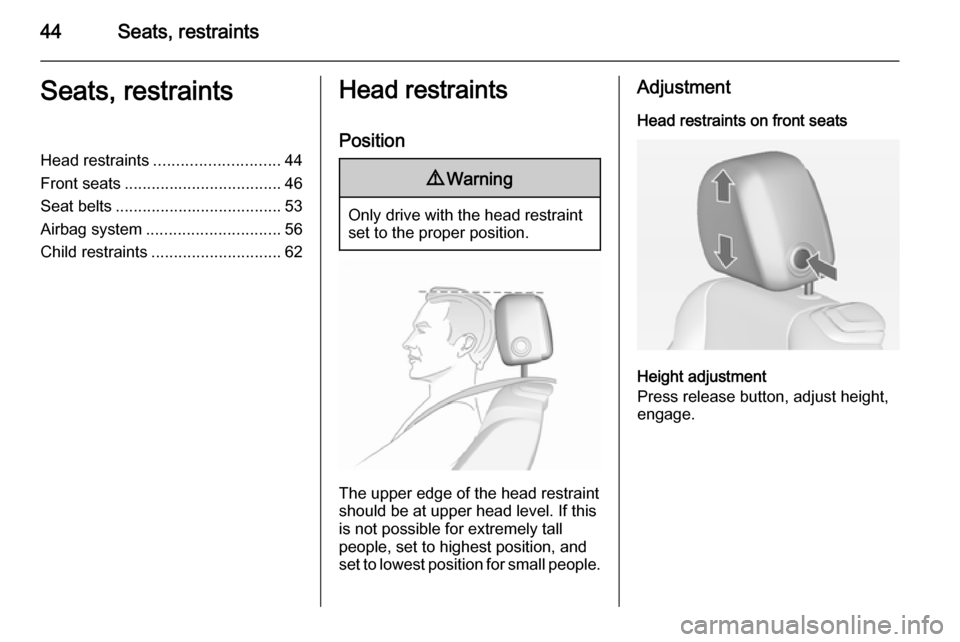

Child restraints ............................. 62Head restraints
Position9 Warning
Only drive with the head restraint
set to the proper position.
The upper edge of the head restraint
should be at upper head level. If this
is not possible for extremely tall
people, set to highest position, and
set to lowest position for small people.
Adjustment
Head restraints on front seats
Height adjustment
Press release button, adjust height,
engage.

Seats, restraints45

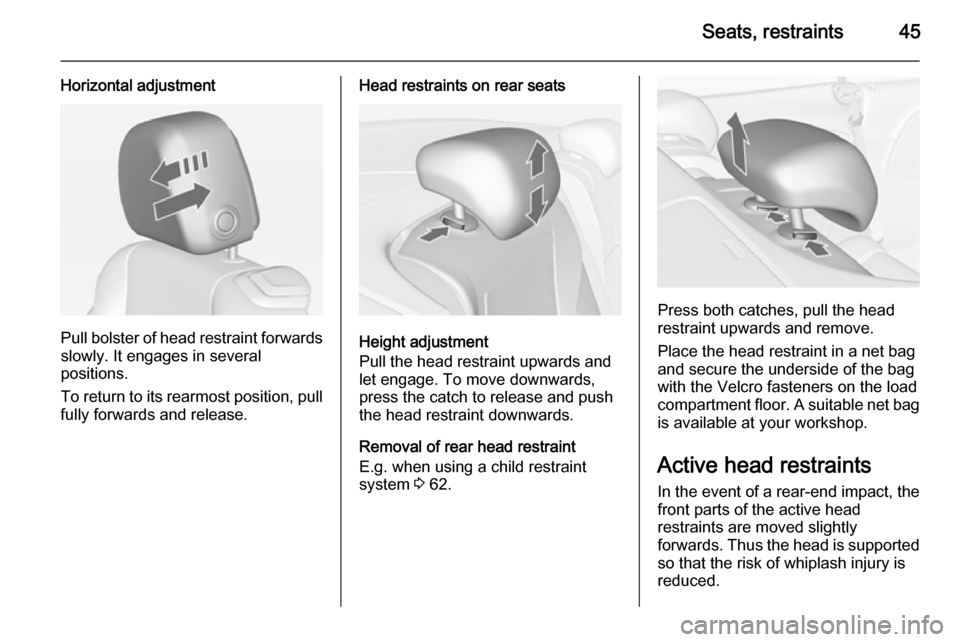

Horizontal adjustment
Pull bolster of head restraint forwardsslowly. It engages in several
positions.
To return to its rearmost position, pull
fully forwards and release.
Head restraints on rear seats
Height adjustment
Pull the head restraint upwards and
let engage. To move downwards, press the catch to release and push
the head restraint downwards.
Removal of rear head restraint
E.g. when using a child restraint
system 3 62.
Press both catches, pull the head
restraint upwards and remove.
Place the head restraint in a net bag
and secure the underside of the bag
with the Velcro fasteners on the load
compartment floor. A suitable net bag
is available at your workshop.
Active head restraints
In the event of a rear-end impact, the front parts of the active head
restraints are moved slightly
forwards. Thus the head is supported
so that the risk of whiplash injury is
reduced.

46Seats, restraints
Notice
Approved accessories may only be
attached if the seat is not in use.Front seats

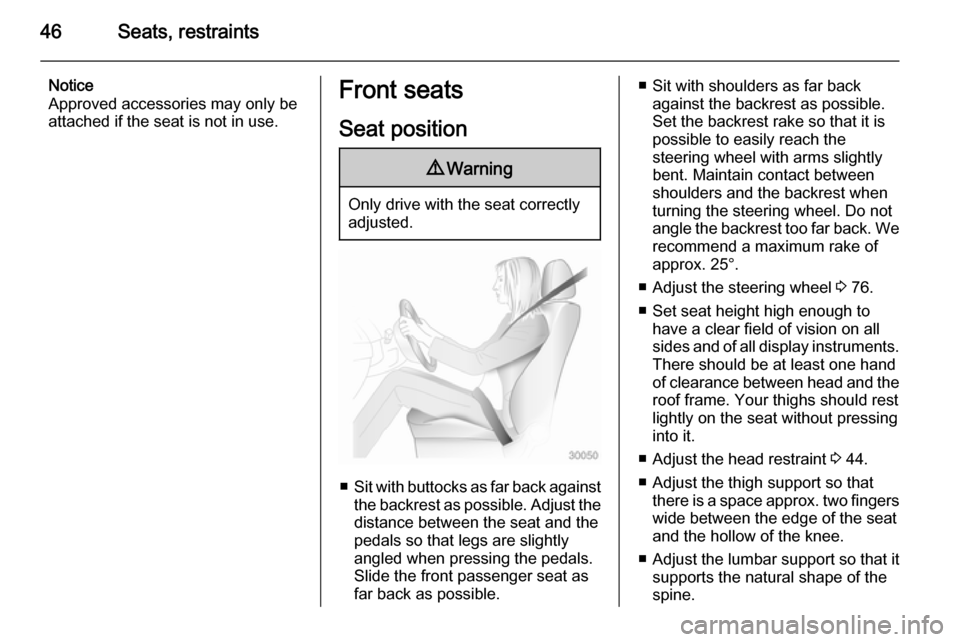

Seat position9 Warning
Only drive with the seat correctly
adjusted.
■ Sit with buttocks as far back against
the backrest as possible. Adjust the distance between the seat and the
pedals so that legs are slightly
angled when pressing the pedals.
Slide the front passenger seat as
far back as possible.
■ Sit with shoulders as far back against the backrest as possible.
Set the backrest rake so that it is possible to easily reach the
steering wheel with arms slightly bent. Maintain contact between
shoulders and the backrest when
turning the steering wheel. Do not
angle the backrest too far back. We recommend a maximum rake of
approx. 25°.
■ Adjust the steering wheel 3 76.
■ Set seat height high enough to have a clear field of vision on allsides and of all display instruments.
There should be at least one hand
of clearance between head and the
roof frame. Your thighs should rest
lightly on the seat without pressing
into it.
■ Adjust the head restraint 3 44.
■ Adjust the thigh support so that there is a space approx. two fingers
wide between the edge of the seat
and the hollow of the knee.
■ Adjust the lumbar support so that it
supports the natural shape of the
spine.

48Seats, restraints

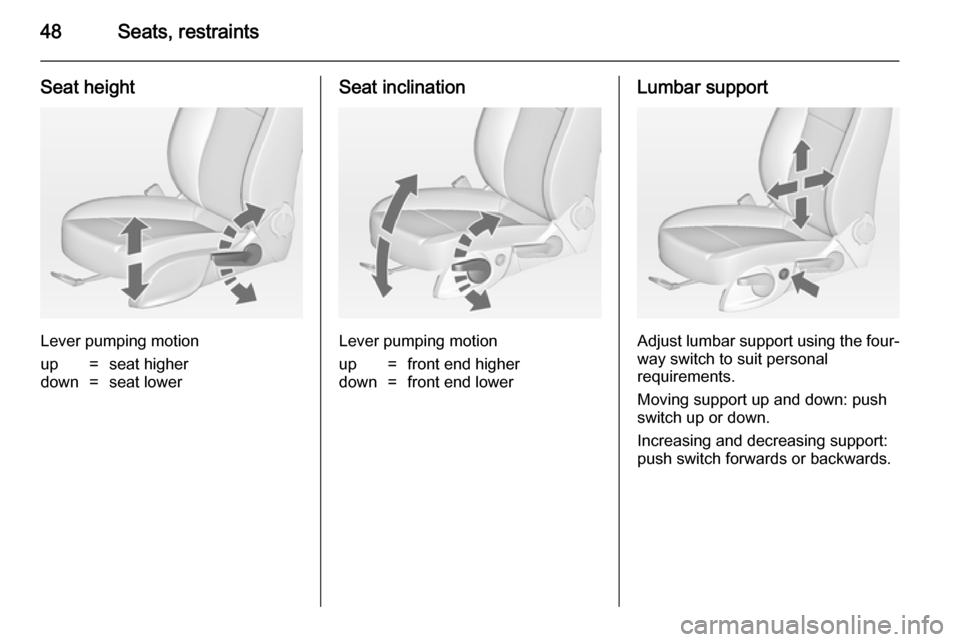

Seat height
Lever pumping motion
up=seat higherdown=seat lowerSeat inclination
Lever pumping motion
up=front end higherdown=front end lowerLumbar support
Adjust lumbar support using the four-way switch to suit personal
requirements.
Moving support up and down: push switch up or down.
Increasing and decreasing support:
push switch forwards or backwards.

Seats, restraints49

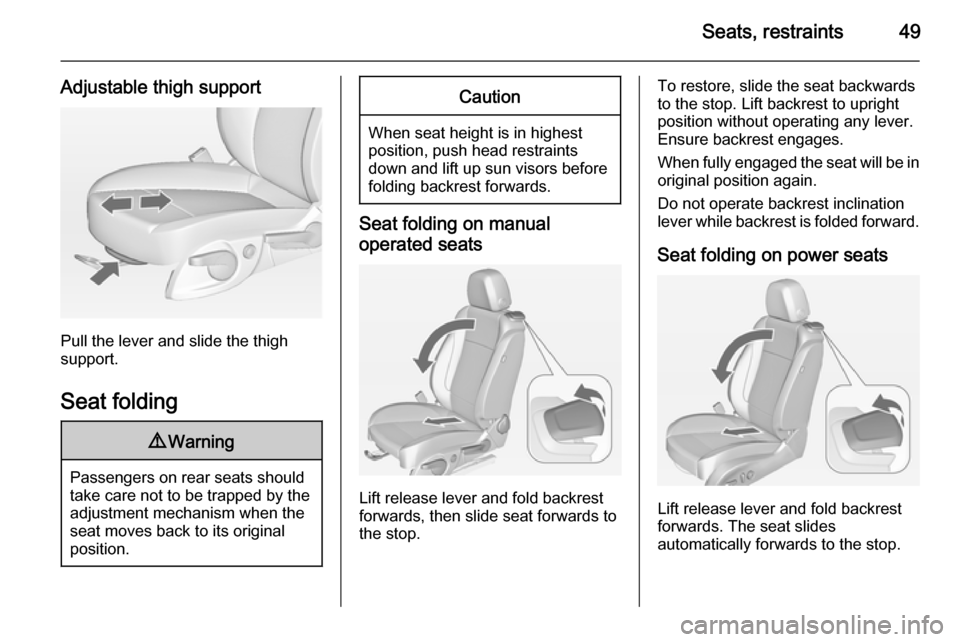

Adjustable thigh support
Pull the lever and slide the thigh
support.
Seat folding
9 Warning
Passengers on rear seats should
take care not to be trapped by the
adjustment mechanism when the
seat moves back to its original
position.
Caution
When seat height is in highest
position, push head restraints
down and lift up sun visors before
folding backrest forwards.
Seat folding on manual
operated seats
Lift release lever and fold backrest
forwards, then slide seat forwards to
the stop.
To restore, slide the seat backwards
to the stop. Lift backrest to upright
position without operating any lever.
Ensure backrest engages.
When fully engaged the seat will be in
original position again.
Do not operate backrest inclination
lever while backrest is folded forward.
Seat folding on power seats
Lift release lever and fold backrest
forwards. The seat slides
automatically forwards to the stop.

Seats, restraints51

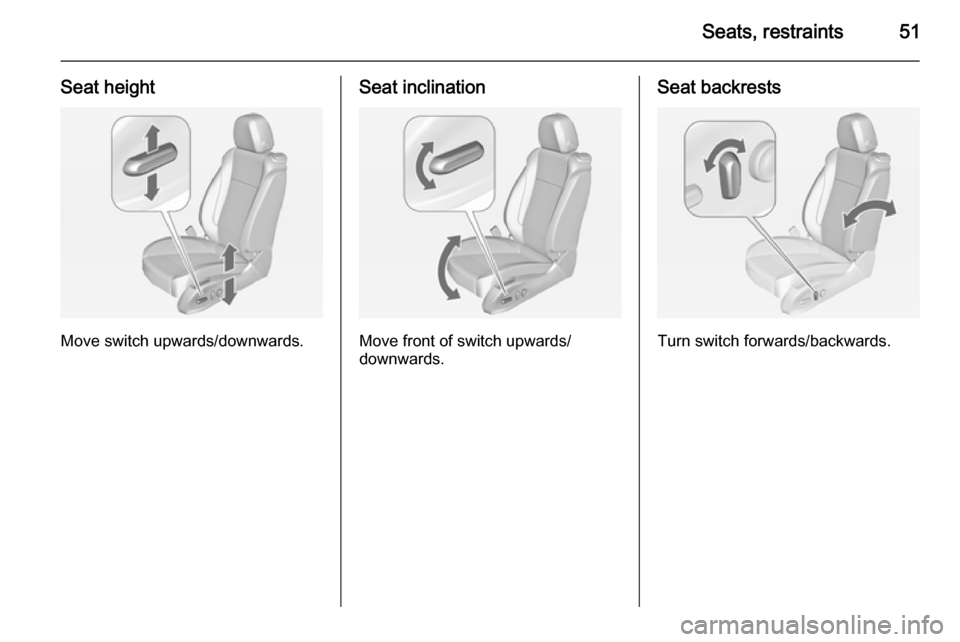

Seat height
Move switch upwards/downwards.
Seat inclination
Move front of switch upwards/
downwards.
Seat backrests
Turn switch forwards/backwards.

64Seats, restraintsChild restraint installation locationsPermissible options for fitting a child restraint system
Weight and age class
On front passenger seat
On rear seats
activated airbagdeactivated airbagGroup 0: up to 10 kg
or approx. 10 monthsXU 1U 2Group 0+: up to 13 kg
or approx. 2 yearsXU 1U2Group I: 9 to 18 kg
or approx. 8 months to 4 yearsXU 1U2, 3Group II: 15 to 25 kg
or approx. 3 to 7 yearsXXUGroup III: 22 to 36 kg
or approx. 6 to 12 yearsXXU1=Only if front passenger seat airbag system is deactivated. If the child restraint system is being secured using a three- point seat belt, move seat into the rear adjustment area and set seat height to uppermost position. Adjust seat backrestinclination as far as necessary to a vertical position to ensure that the belt is tight on the buckle side.2=Seat available with ISOFIX and Top-Tether mounting brackets 3 67.3=Remove rear head restraint when using child restraint systems in this weight group 3 44.U=Universal suitability in conjunction with three-point seat belt.X=No child restraint system permitted in this weight class.
