VAUXHALL CASCADA 2015 Owner's Manual

Instruments and controls99
above recommends upshifting for
fuel saving reasons.
Eco index display : The current fuel
consumption is indicated on a
segment display. For economical driving adapt your driving style to
keep the filled segments within the
Eco area. The more segments are
filled, the higher the fuel
consumption. Simultaneously the
current consumption value is
indicated.
â–  Top Consumers : List of top comfort
consumers currently switched on is displayed in descending order. Fuel
saving potential is indicated. A
switched-off consumer disappears
from the list and the consumption
value will be updated.
During sporadic driving conditions,
the heated rear window is activated automatically to increase engine
load. In this event, the heated rear
window is indicated as one of the
top consumers, without activation
by the driver.
â–  Economy Trend : Displays the
average consumption development
over a distance of 50 miles. Filled
segments display the consumption
in 5 mile steps and shows the effect of topography or driving behaviour
on fuel consumption.
Graphic-Info-Display,
Colour-Info-Display Depending on the vehicle
configuration the vehicle has a
Graphic-Info-Display or a Colour-
Info-Display.
The Info-Displays is located in the
instrument panel above the
Infotainment system.
Graphic-Info-Display

100Instruments and controls
Depending on the Infotainment
system, the Graphic-Info-Display is available in two versions.
Graphic-Info-Display indicates:
â–  time 3 81
â–  outside temperature 3 81
â–  date 3 81
â–  electronic climate control settings 3 125
â–  Infotainment system, see description in the Infotainment
system manual
â–  settings for vehicle personalisation 3 103
Colour-Info-Display
The Colour-Info-Display indicates in
colour:
â–  time 3 81
â–  outside temperature 3 81
â–  date 3 81
â–  electronic climate control settings 3 125
â–  rear view camera 3 165
â–  Infotainment system, see description in the Infotainment
system manual
â–  navigation, see description in the Infotainment system manual
â–  system settings
â–  vehicle messages 3 101
â–  settings for vehicle personalisation 3 103
The type of information and how it is
displayed depends on the equipment
of the vehicle and the settings made.
Selecting menus and settingsMenus and settings are accessed via
the display.

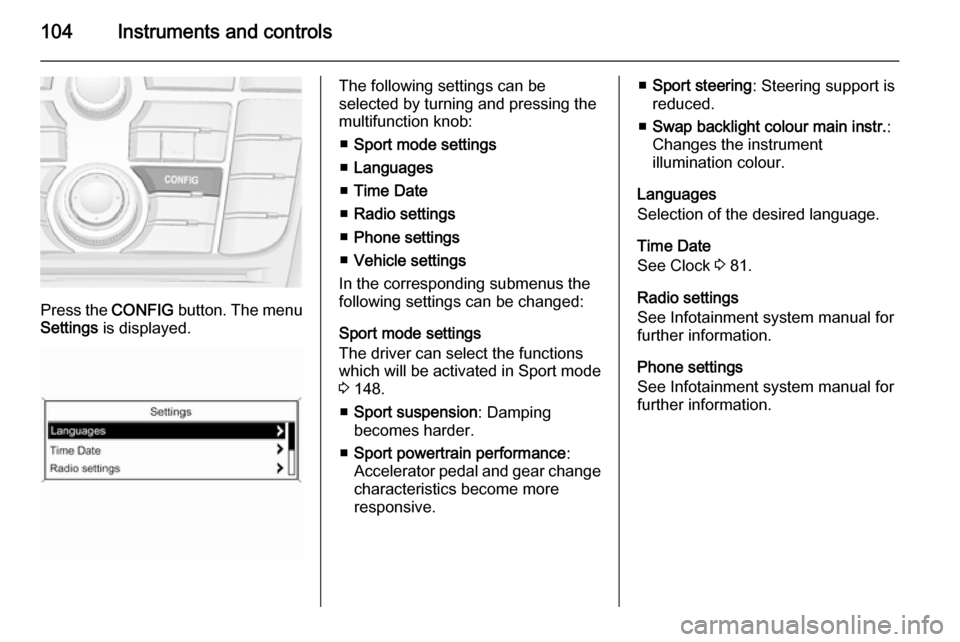

Push button CONFIG: Menu page
Settings is displayed.

Instruments and controls101
Turn multifunction knob to:â–  select a setting or value
â–  display a menu option
Push multifunction knob to: â–  confirm a setting or value
â–  select or activate the marked option
â–  switch a system function on/off
Push button BACK to:
â–  exit a menu or setting without changing
â–  return from a submenu to a higher menu level
â–  delete the last character in a character sequence. Push BACK
for a few seconds to delete the
entire entry.
To exit the Settings menu, push
button BACK stepwise or push button
CONFIG after confirming the
changes.
Vehicle personalisation 3 103.
Memorised settings 3 21.
Vehicle messages
Messages are indicated in the Driver
Information Centre (DIC), in some
cases together with a warning and
signal sound.
Press the SET/CLR button, the
MENU button or turn the adjuster
wheel to confirm a message.

102Instruments and controls
Messages in the DriverInformation Centre (DIC)
The vehicle messages are displayed
as text. Follow the instructions given
in the messages.
The system displays messages
regarding the following topics:
â–  Service messages
â–  Fluid levels
â–  Anti-theft alarm system
â–  Brakes
â–  Ride control systems
â–  Driver assistance systems
â–  Cruise control
â–  Speed limiter
â–  Parking assist systems
â–  Lighting, bulb replacement
â–  Wiper/washer system
â–  Doors, windows
â–  Soft top
â–  Load compartment, boot lid
â–  Radio remote control
â–  Seat belts
â–  Airbag systems
â–  Engine and transmission
â–  Tyre pressure
â–  Diesel particle filter
â–  Vehicle battery status
Messages in the
Colour-Info-Display
Some important messages may
appear additionally in the
Colour-Info-Display. Press the
multifunction knob to confirm a
message. Some messages only pop
up for a few seconds.Warning chimes
When starting the engine or
whilst driving Only one warning chime will sound at
a time.
The warning chime regarding
unfastened seat belts has priority
over any other warning chime.
â–  If seat belt is not fastened.
â–  If a door or the boot lid is not fully closed when starting off.
â–  If the soft top is not completely opened or closed.
â–  If the soft top lid is not completely closed.
â–  If the load compartment partition is folded in when operating the soft
top.
â–  If a certain speed is exceeded with parking brake applied.
â–  If a certain speed is exceeded when
operating the soft top.
â–  If a programmed speed or speed limit is exceeded.

Instruments and controls103
â–  If a warning message appears inthe Driver Information Centre.
â–  If the parking assist detects an object.
â–  If unintended lane change occurs.
â–  If the diesel particle filter has reached the maximum filling level.
When the vehicle is parked and/ or the driver's door is opened â–  When the key is in the ignition switch.
â–  With exterior lights on.
During an Autostop â–  If the driver's door is opened.
Battery voltage When the vehicle battery voltage is
running low, a warning message will
appear in the Driver Information
Centre.1. Switch off immediately any electrical consumers which are
not required for a safe ride, e.g.
seat heating, heated rear window or other main consumers.
2. Charge the vehicle battery by driving continuously for a while or
by using a charging device.
The warning message will disappear after the engine has been started
twice consecutively without a voltage
drop.
If the vehicle battery cannot be
recharged, have the cause of the fault
remedied by a workshop.Vehicle personalisation
The vehicle's behaviour can be
personalised by changing the settings
in the Info-Display.
Some of the personal settings for
different drivers can be memorised
individually for each vehicle key.
Memorised settings 3 21.
Depending on vehicle equipment and
country-specific regulations, some of the functions described below may
not be available.
Some functions are only displayed or
active when the engine is running.
Personal settings in the
Graphic-Info-Display
CD 400plus/CD 400/CD 300

104Instruments and controls
Press the CONFIG button. The menu
Settings is displayed.
The following settings can be
selected by turning and pressing the
multifunction knob:
â–  Sport mode settings
â–  Languages
â–  Time Date
â–  Radio settings
â–  Phone settings
â–  Vehicle settings
In the corresponding submenus the
following settings can be changed:
Sport mode settings
The driver can select the functions
which will be activated in Sport mode
3 148.
â–  Sport suspension : Damping
becomes harder.
â–  Sport powertrain performance :
Accelerator pedal and gear change
characteristics become more
responsive.â–  Sport steering : Steering support is
reduced.
â–  Swap backlight colour main instr. :
Changes the instrument
illumination colour.
Languages
Selection of the desired language.
Time Date
See Clock 3 81.
Radio settings
See Infotainment system manual for further information.
Phone settings
See Infotainment system manual for
further information.

Instruments and controls105
Vehicle settings
â– Climate and air quality
Auto fan speed : Modifies the level
of the cabin airflow of the climate
control in automatic mode.
Climate control mode : Controls the
state of the cooling compressor
when the vehicle is started. Last
setting (recommended) or at
vehicle start is either always ON or
always OFF.
Auto rear demist : Activates heated
rear window automatically.
â–  Comfort settings
Chime volume : Changes the
volume of warning chimes.
Personalization by driver : Activates
or deactivates the personalisation
function.
â–  Park assist / Collision detection
Park assist : Activates or
deactivates the parking assist.
Side blind zone alert : Changes the
settings for the side blind spot alert
system.
â–  Exterior ambient lighting
Duration upon exit of vehicle :
Activates or deactivates and
changes the duration of exit
lighting.
Exterior lighting by unlocking :
Activates or deactivates the
welcome lighting.
â–  Power door locks
Auto door lock : Activates or
deactivates the automatic door
unlocking function after switching
off ignition. Activates or deactivates the automatic door locking function after driving off.
Stop door lock if door open :
Activates or deactivates the
automatic door locking function
while a door is open.
Delayed door lock : Activates or
deactivates the delayed door
locking function.
â–  Remote locking, unlocking, starting
Remote unlock feedback : Activates
or deactivates the hazard warning
flasher feedback whilst unlocking.
Remote door unlock : Changes the
configuration to unlock only the
driver's door or the whole vehicle
whilst unlocking.

106Instruments and controls
Auto relock doors: Activates or
deactivates the automatic relock
function after unlocking without opening the vehicle.
â–  Restore factory settings
Restore factory settings : Resets all
settings to the default settings.
Settings in the Colour-Info- Display
Navi 950/Navi 650/CD 600
Press the CONFIG button on the
Infotainment system faceplate to
enter the Configuration menu.
Turn the multifunction knob to scroll
upwards or downwards in the list.
Press the multifunction knob
(Navi 950 / Navi 650: press the outer
ring) to select a menu item.
â–  Sport Mode Profile
â–  Languages
â–  Time and Date
â–  Radio Settings
â–  Phone Settings
â–  Navigation Settings
â–  Display Settings
â–  Vehicle Settings
In the corresponding submenus the
following settings can be changed:
Sport Mode Profile
â–  Engine Sport Performance :
Accelerator pedal and gear change
characteristics become more
responsive.
â–  Sport Mode Back Lighting :
Changes the instrument
illumination colour.
â–  Sport Suspension : Damping
becomes harder.
â–  Sport Steering : Steering support is
reduced.
Languages
Selection of the desired language.
Time and Date
See Infotainment system manual for
further information.
Radio Settings
See Infotainment system manual for
further information.
Phone Settings
See Infotainment system manual for
further information.

Instruments and controls107
Navigation Settings
See Infotainment system manual for
further information.
Display Settings â–  Home Page Menu :
See Infotainment system manual
for further information.
â–  Rear Camera Options :
Press to adjust the rear camera options 3 165.
â–  Display Off :
See Infotainment system manual
for further information.
â–  Map Settings :
See Infotainment system manual for further information.
Vehicle Settings â–  Climate and Air Quality
Auto Fan Speed : Modifies the level
of the cabin airflow of the climate
control in automatic mode.
Air Conditioning Mode : Controls the
state of the cooling compressor
when the vehicle is started. Last
setting (recommended) or atvehicle start is either always ON or
always OFF.
Auto Rear Demist : Activates
heated rear window automatically.
â–  Comfort and Convenience
Chime Volume : Changes the
volume of warning chimes.
Personalisation by Driver :
Activates or deactivates the
personalisation function.
â–  Collision Detection Systems
Park Assist : Activates or
deactivates the ultrasonic sensors.
Side Blind Zone Alert : Activates or
deactivates the side blind spot alert system.
â–  Lighting
Vehicle Locator Lights : Activates or
deactivates the entry lighting.
Exit Lighting : Activates or
deactivates and changes the
duration of exit lighting.
â–  Power Door Locks
Open Door Anti Lock Out : Activates
or deactivates the automatic doorlocking function while a door is
open.
Auto Door Lock : Activates or
deactivates the automatic door
unlocking function after switching off ignition. Activates or deactivates the automatic door locking function
after driving-off.
Delay Door Lock : Activates or
deactivates the delayed door
locking function.
â–  Remote Lock/Unlock/Start
Remote Lock Feedback : Activates
or deactivates the hazard warning flasher feedback whilst locking.
Remote Unlock Feedback :
Activates or deactivates the hazard warning flasher feedback whilst
unlocking.
Remote Door Unlock : Changes the
configuration to unlock only the
driver's door or the whole vehicle
whilst unlocking.
Relock Remotely Unlocked Doors :
Activates or deactivates the
automatic relock function after

108Instruments and controls
unlocking without opening the
vehicle.
â–  Return to Factory Settings? :
Resets all settings to the default settings.
